220 Ton Ermaksan CNC AP 13x220, 4-Axis CNC, 156" OA, 128" BH, Y1,Y2,X,R, Crowing, 2006 #31751

Manufacturer

Ermaksan

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

31571

Model

CNC AP 13x220

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31751

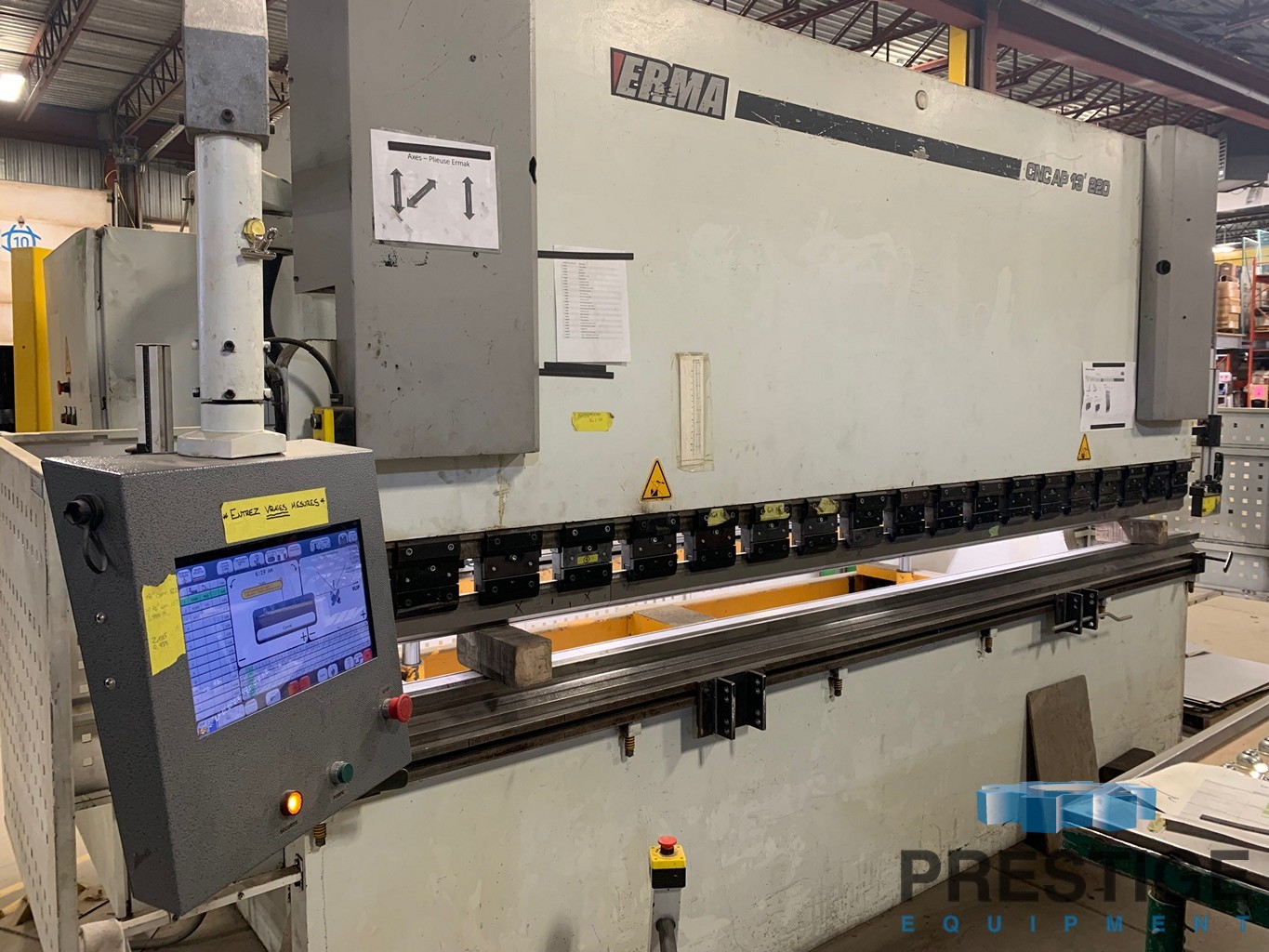

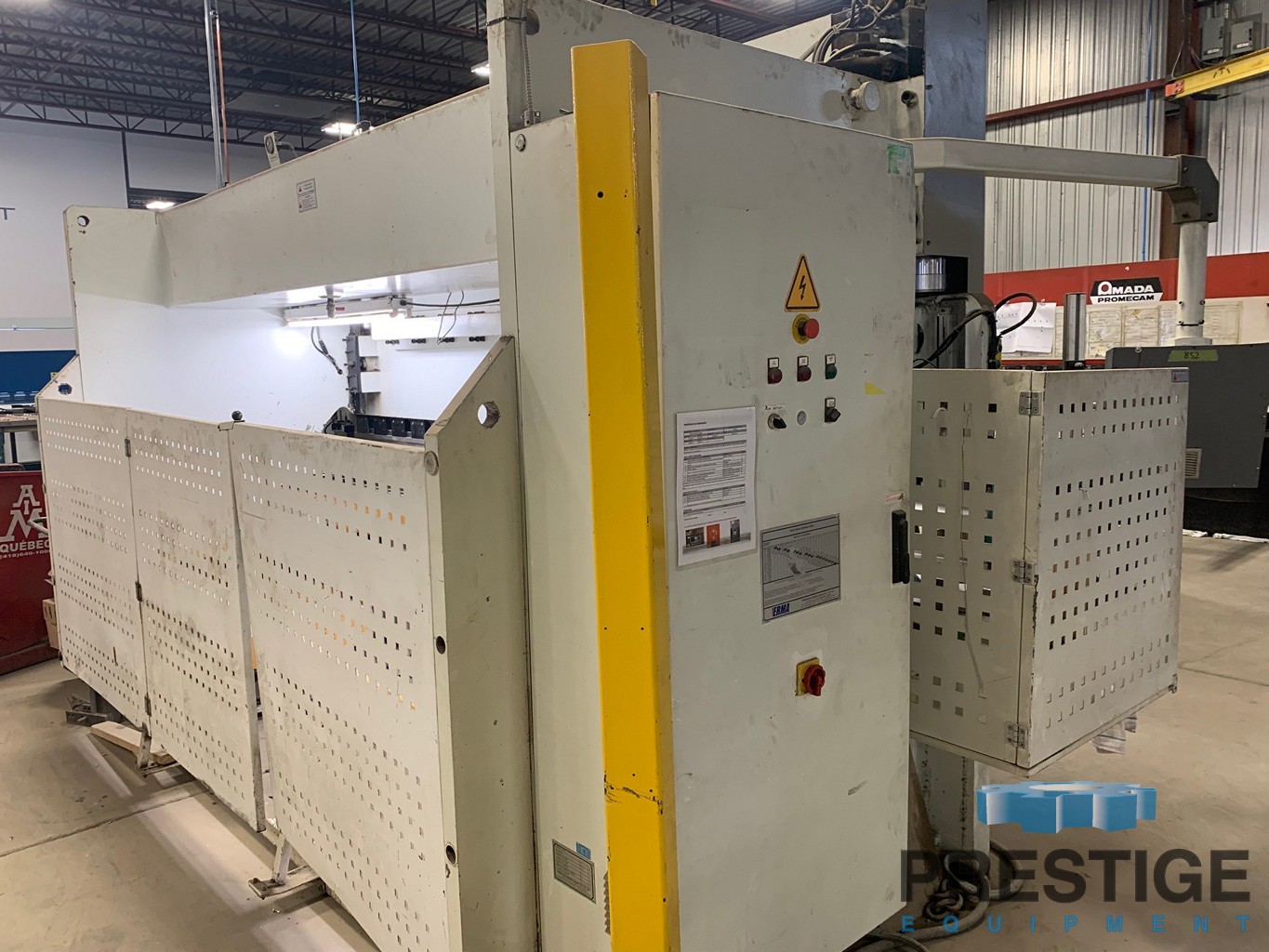

Ermaksan CNC AP 13x220 220 Ton x 13' 4-Axis CNC Press Brake

Tonnage Capacity ...................... 220 Tons
Bending Length ........................ 156"
Distance Between Housings ............. 128"
Stroke Length ......................... 7"
Throat Clearance ...................... 15.75"
Open Height ........................... 16.88"
Shut Height ........................... 9.88"
Main Motor ............................ 20 HP
Approach Speed ........................ 236 IPM
Bending Speed ......................... 23 IPM
Return Speed .......................... 212 IPM
Approximate Shipping Weight ........... 33,075 Lbs

EQUIPPED WITH:

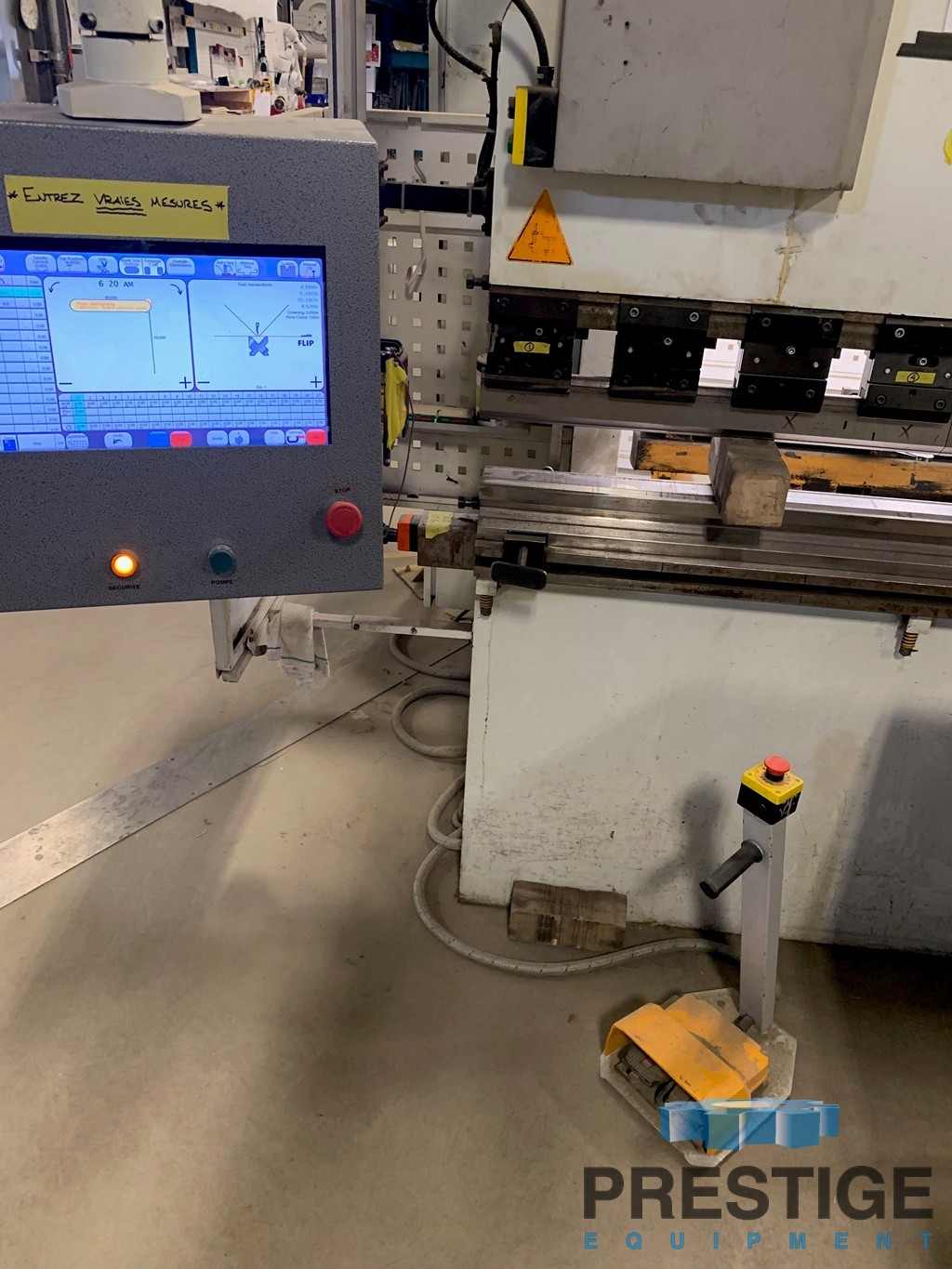

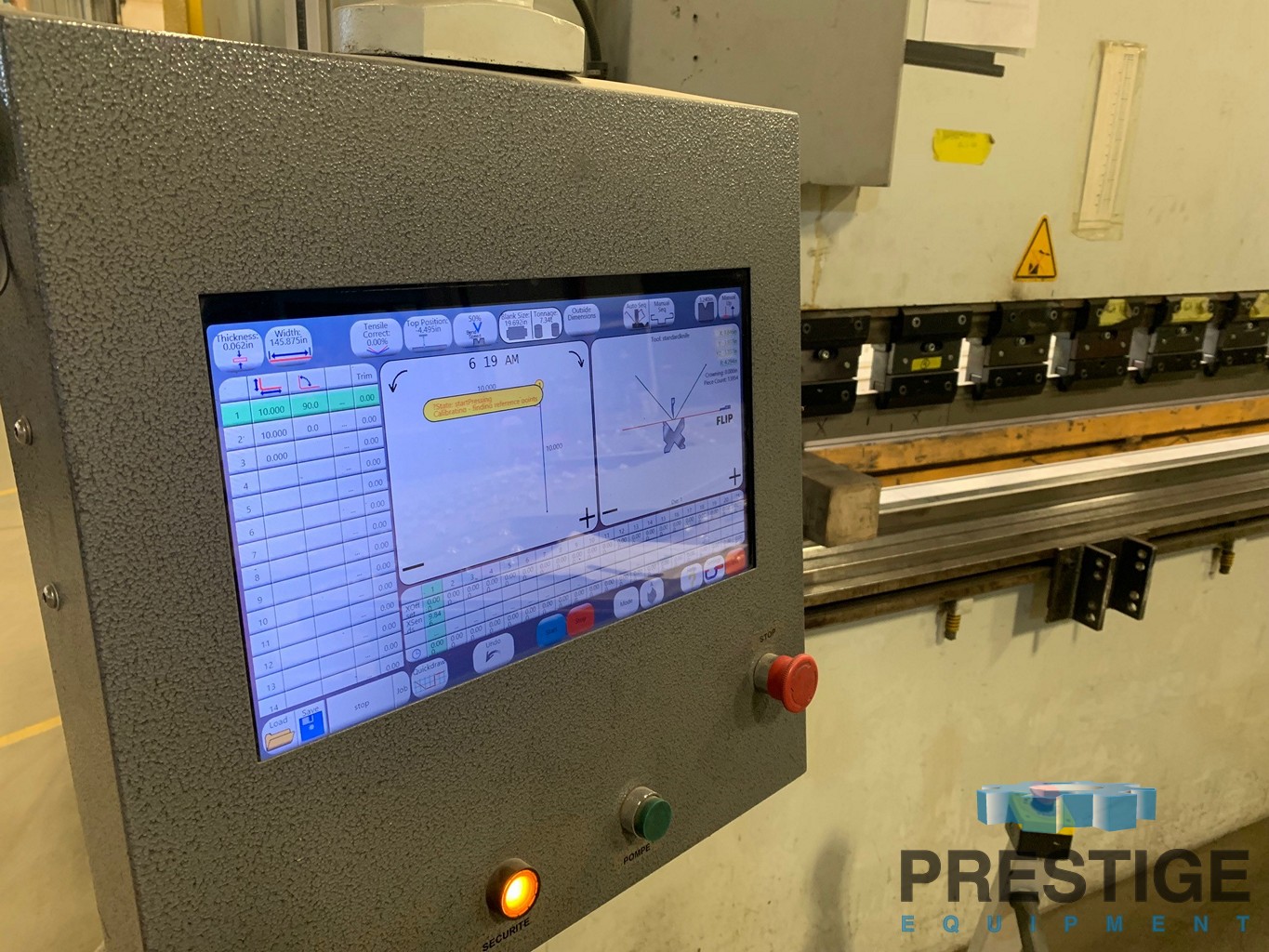

CNC Automation "Fast-Fold" 4-Axis CNC Control (Upgraded 2017)
Programmable Y1,Y2,R,X
Manual Lower Crowing Die Holder
Electric Foot Switch
Flush Floor Mounted Machine

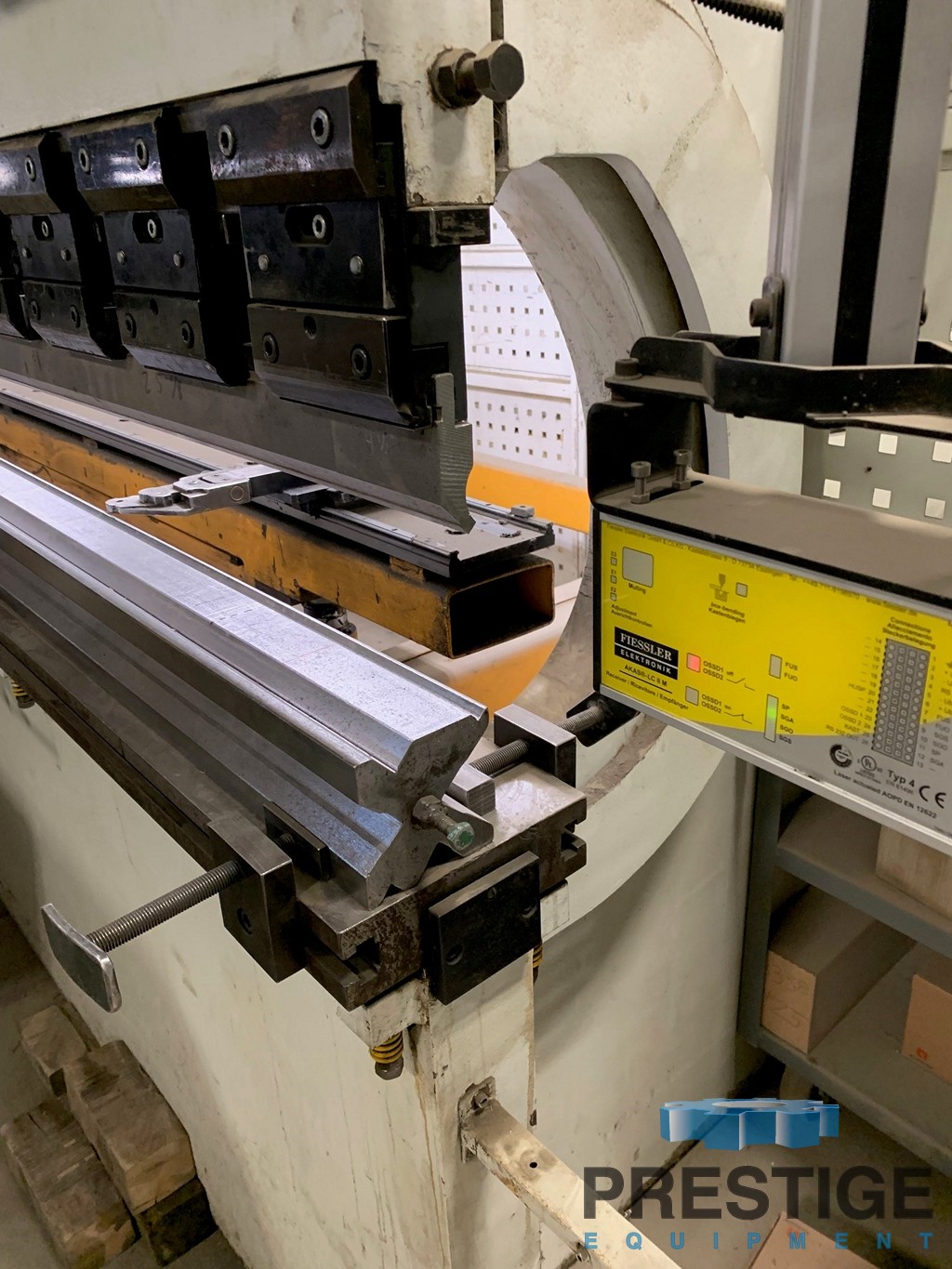

Safety Light Guard

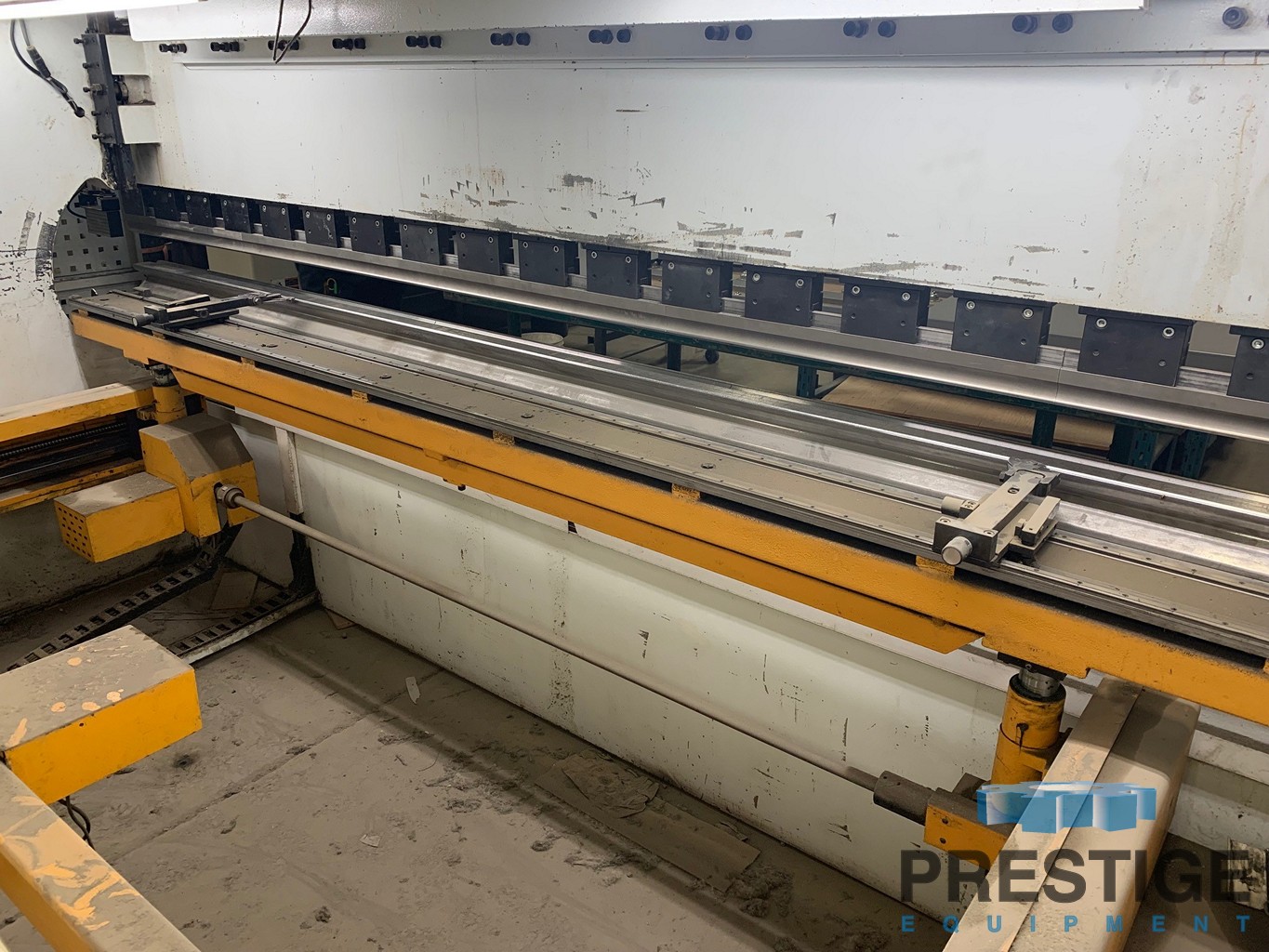

Universal Lower Brake Die
Full Length Upper Punch Die

NOTE:
Inspect Under Power in a Canadian Plant
