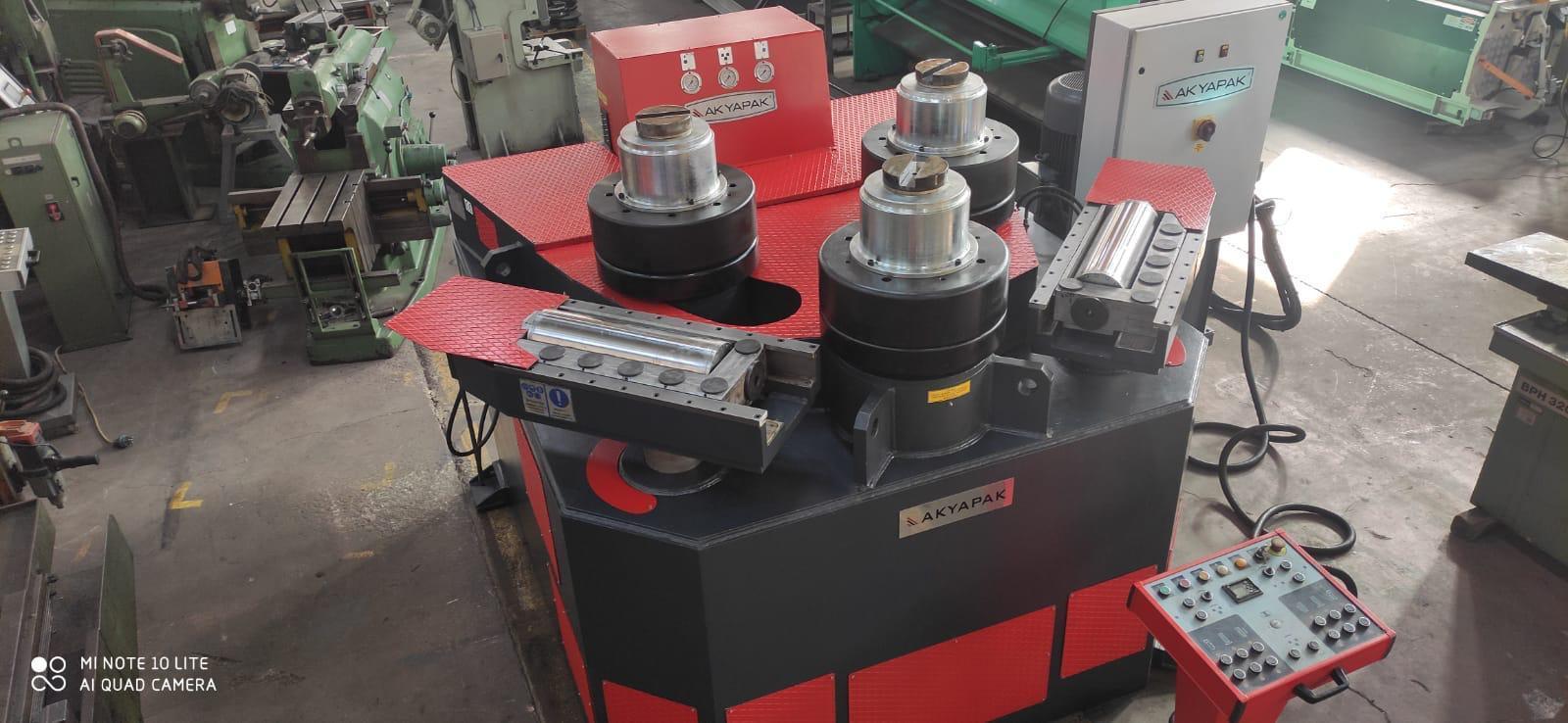

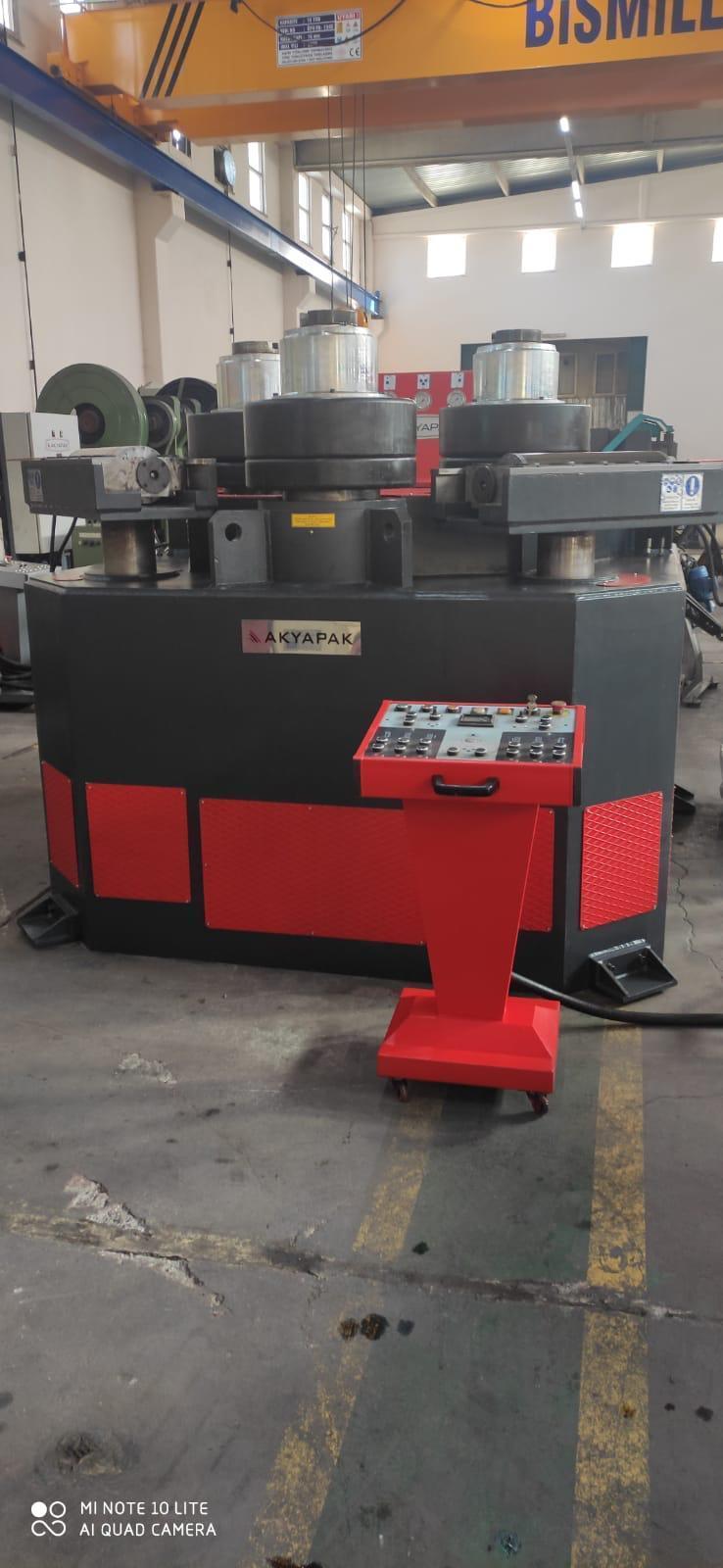

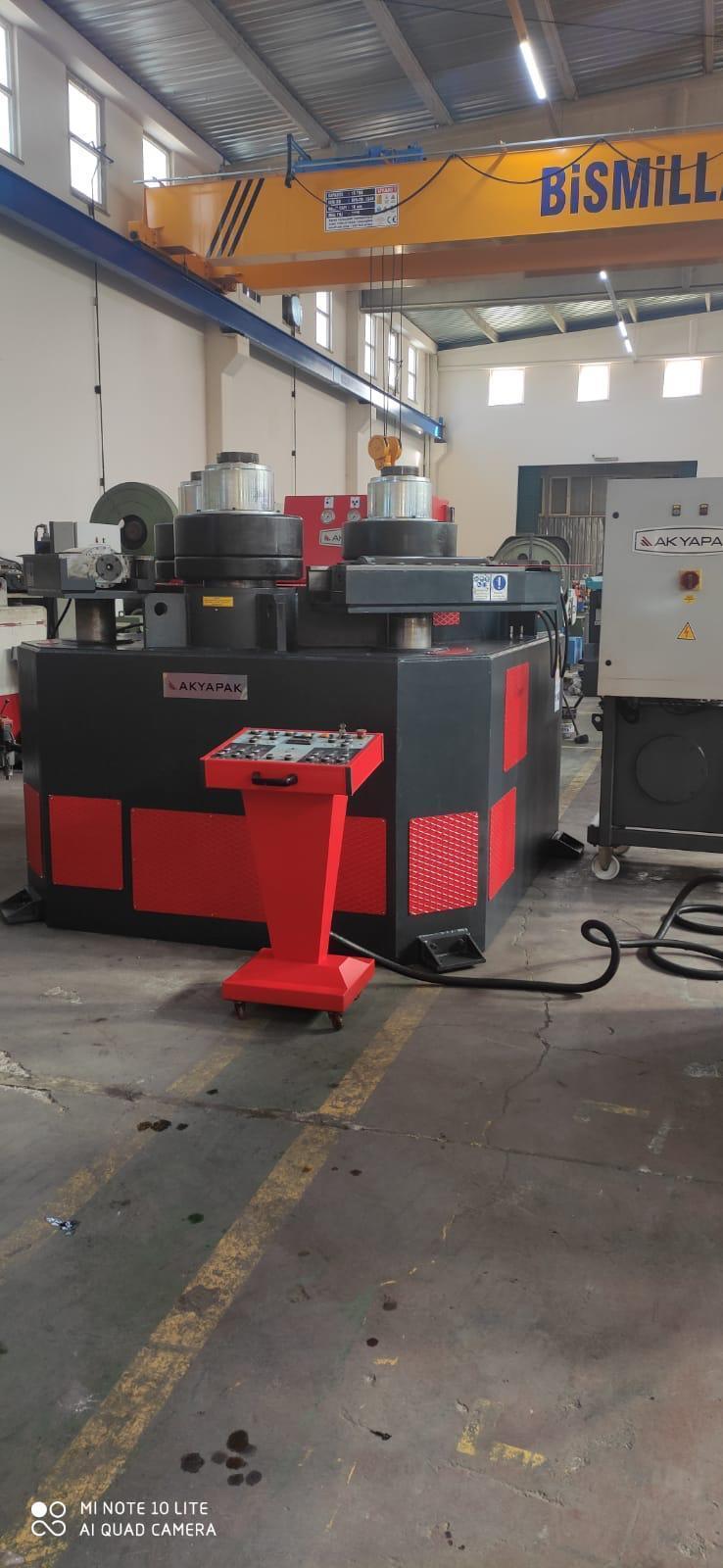

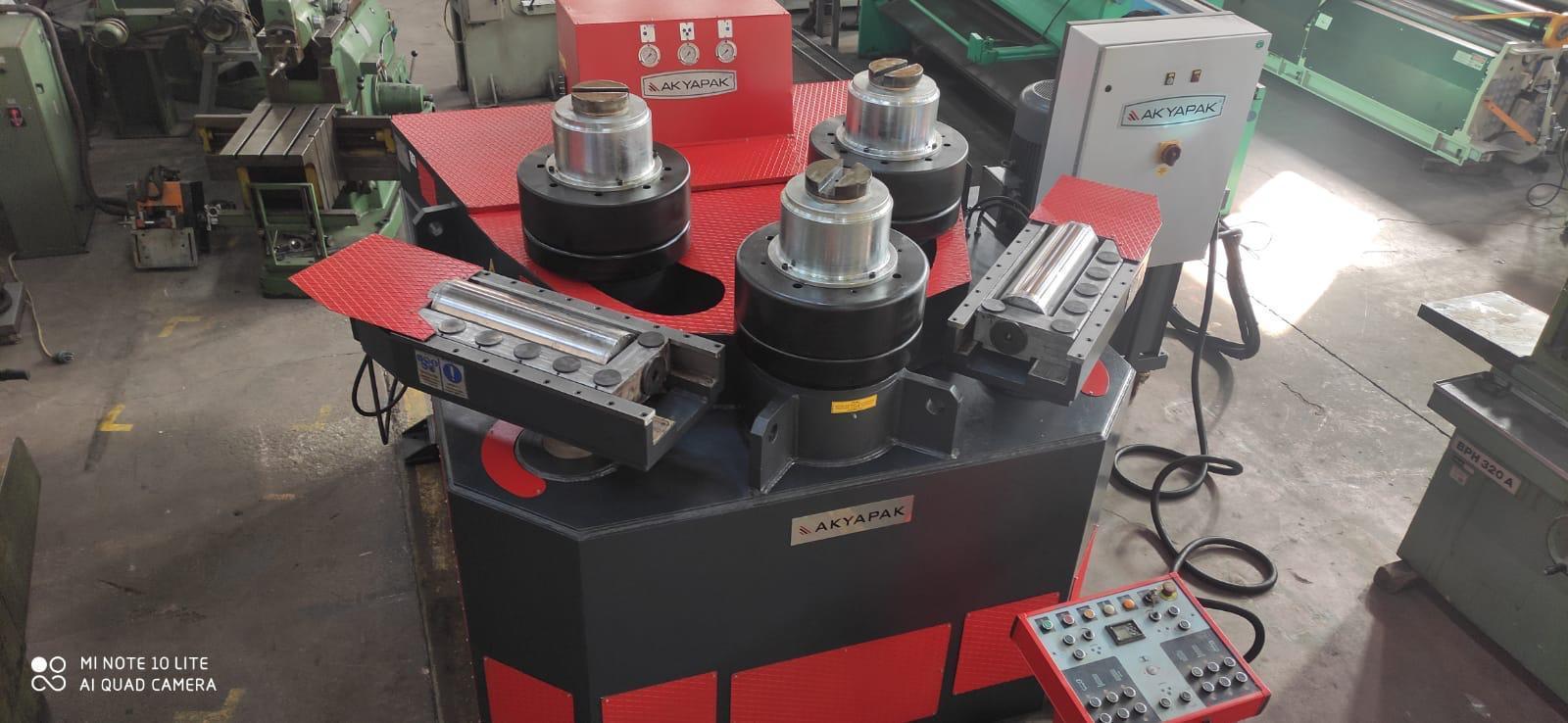

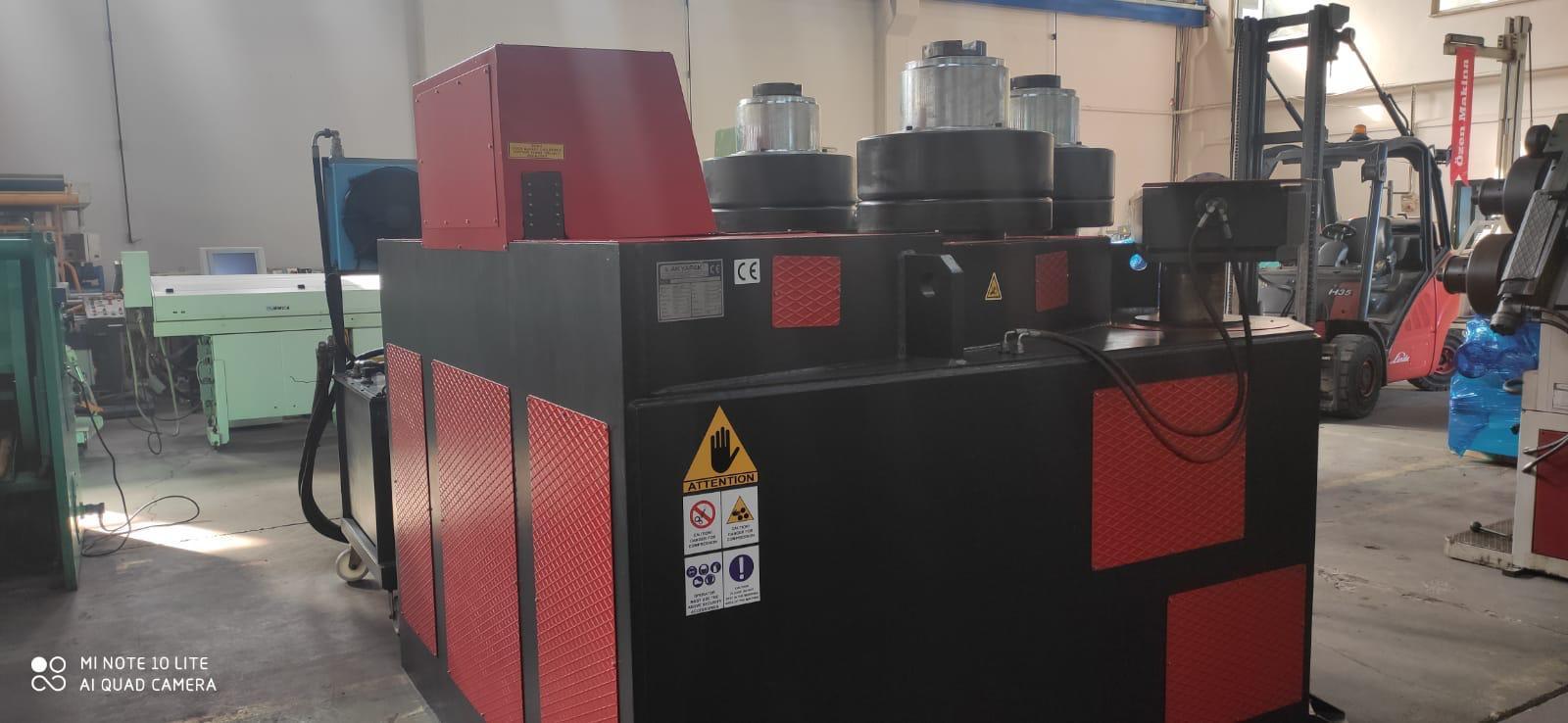

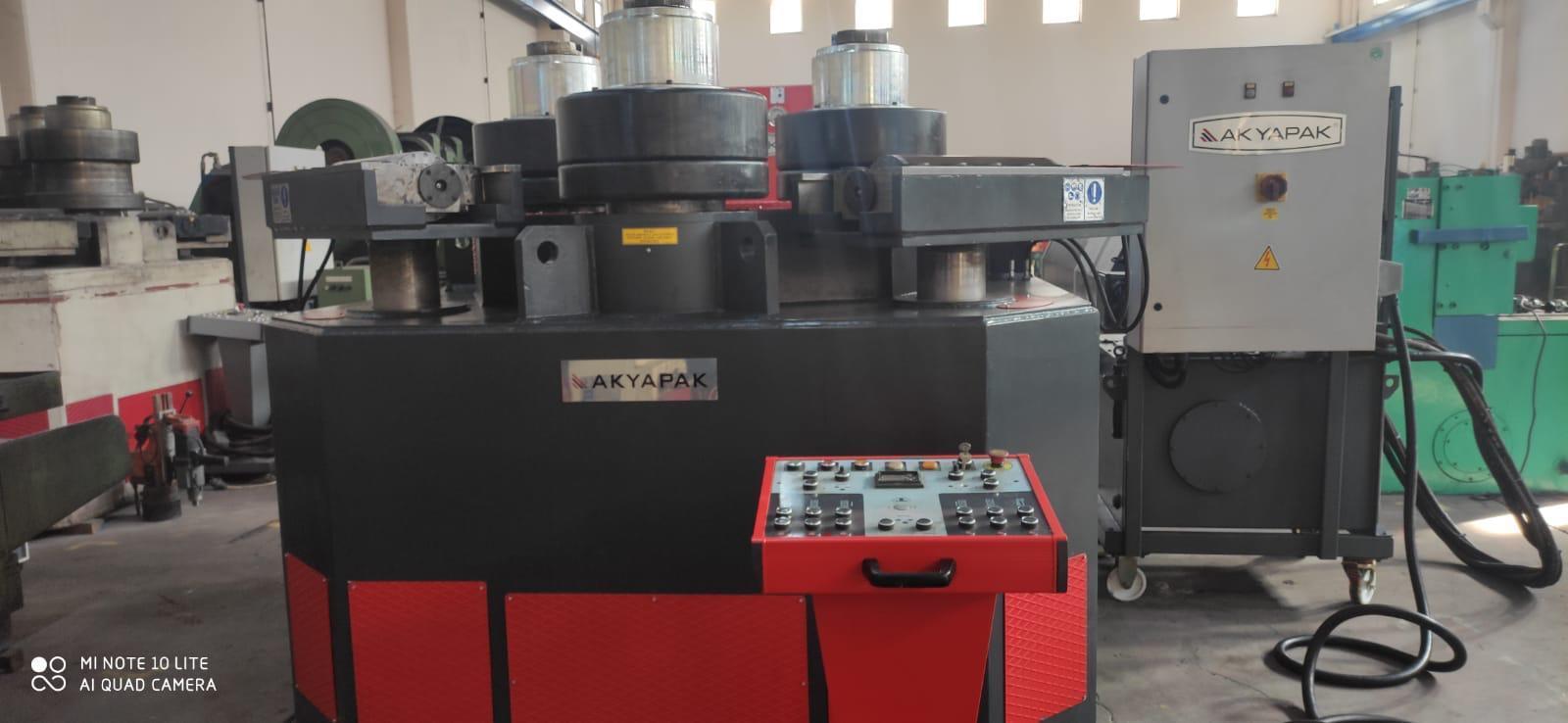

2017 Akyapak APK 240 Angle Roll (#4009)

Manufacturer

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

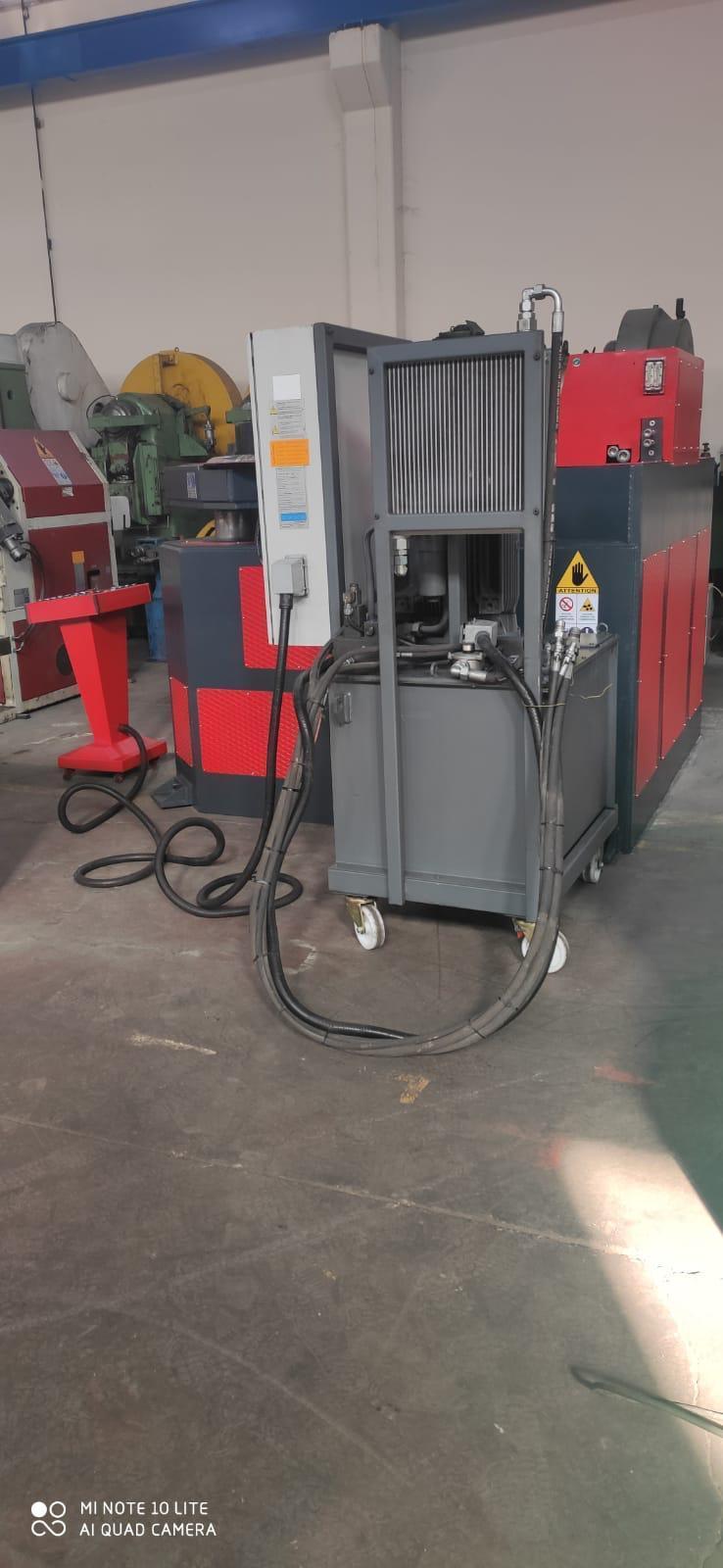

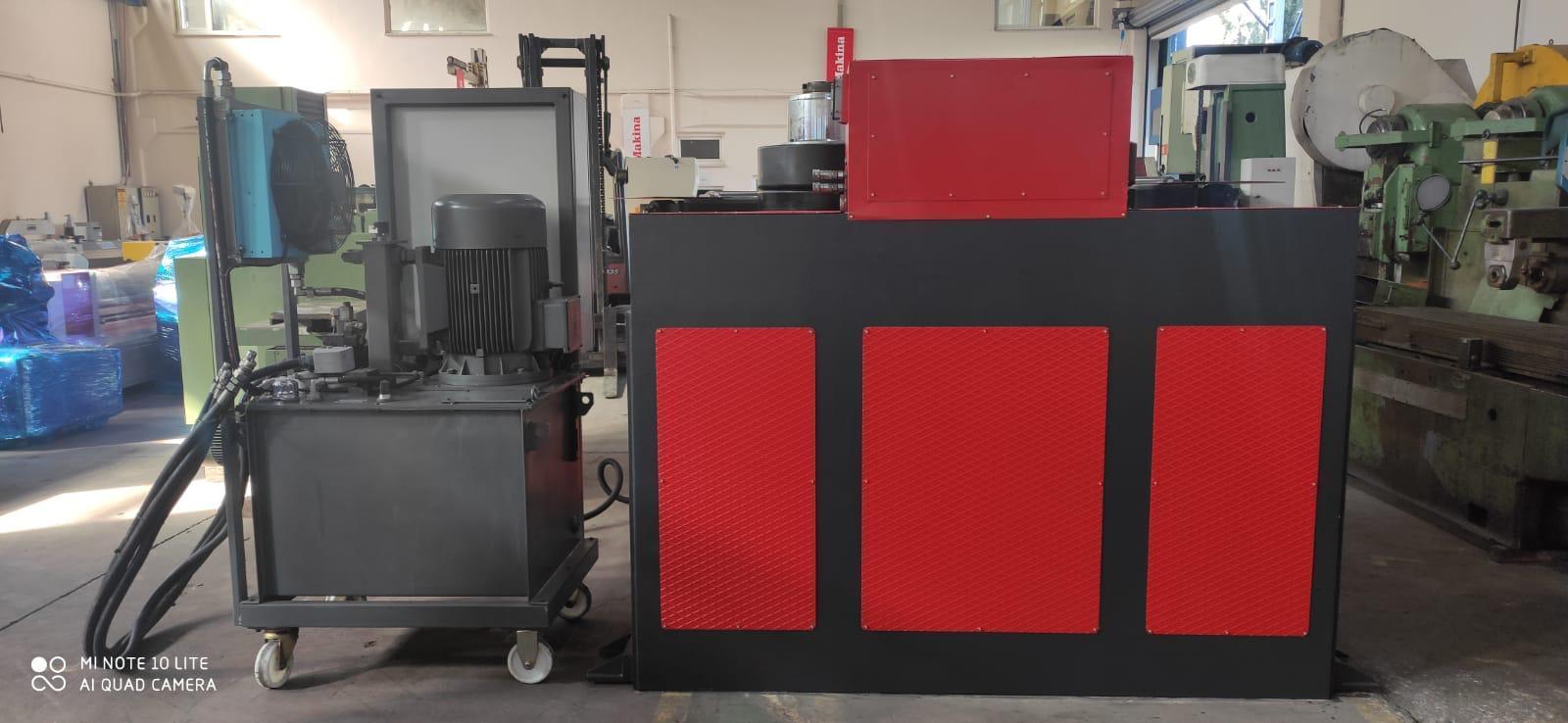

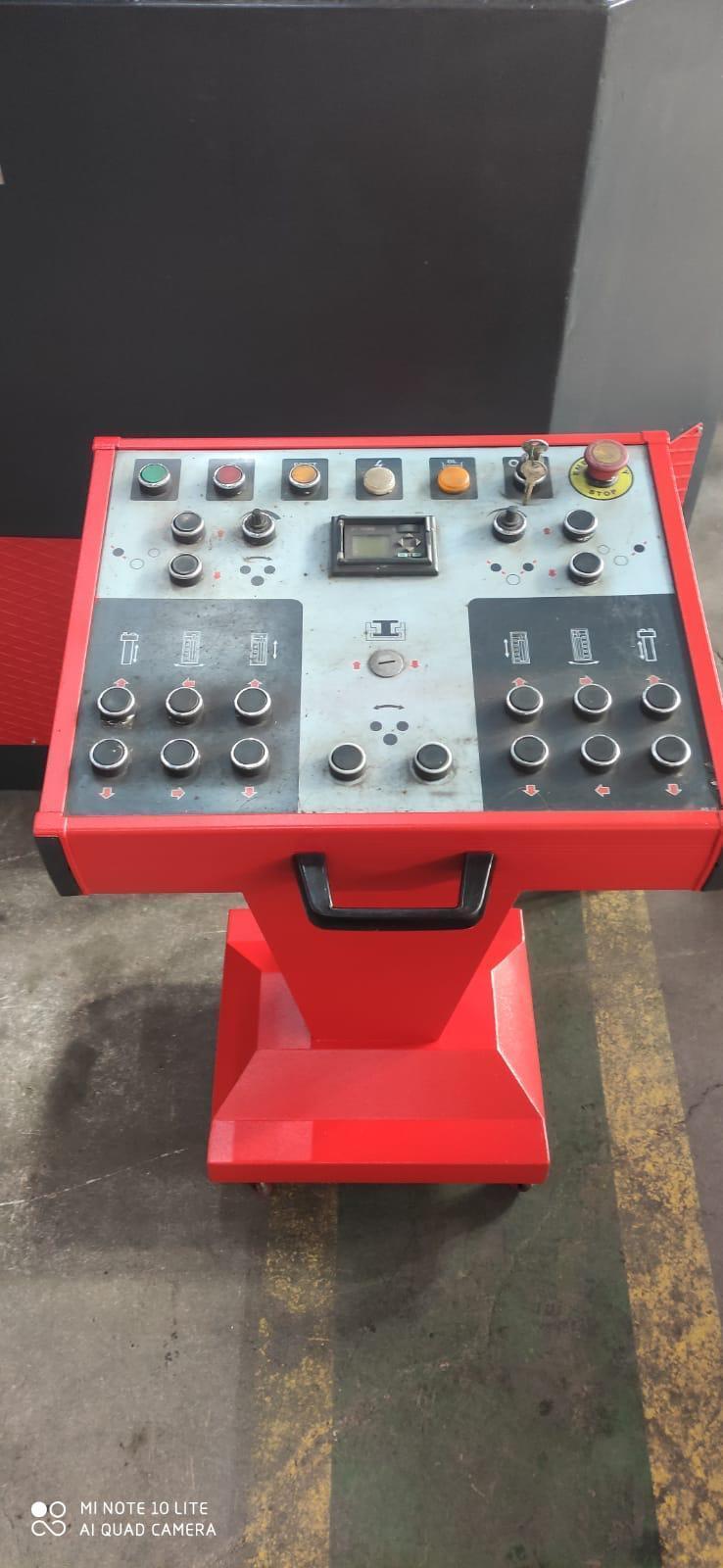

6” X 6” X 1” Angle Roll with Welded Steel Construction Body, Rolls Driven by a Separate Hydraulic Motor, Infinitely Variable Speed of Rotation, Special Steel Gears, Hardened and Ground Steel Shafts, Digital Display for Bottom Rolls, Separate Movable Control Panel and Horizontal & Vertical Working Positions.

GENERAL SPECIFICATIONS


  • Max. Section Modulus: 19.5”

  • Power: 40 HP

  • Roll Diameter: 21.65”

  • Shaft Diameter: 9.45” / 8.66”

  • Bending Speed: 0 - 23’ / Min

  • Angle Leg In / Out: L6” X 6” X 1” / L6” X 6” X 1”

  • T - Section Leg In / Out /Side: WT6” / WT6” / WT6”

  • Flat Hard / Easy: 8” X 1-¼” / 12” X 2-½”

  • Square: 4-½”

  • Round: 5”

  • Tube - Pipe: 8” SCH40

  • Square Tube: 6” X ⅜”

  • Channel Legs In / Out: C15 X 50

  • Channel Hard Way: C8 X 18.75

  • Beam Easy Way: W8 X 31 / W12 X 53

  • Beam Hard Way: W8 X 21 / W6 X 25



INCLUDES: Welded Steel Construction Body, Rolls Driven by a Separate Hydraulic Motor, Infinitely Variable Speed of Rotation, Special Steel Gears, Hardened and Ground Steel Shafts, Digital Display for Bottom Rolls, Separate Movable Control Panel and Horizontal & Vertical Working Positions.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
