98" x 240" Blaw Knox CNC Roll Lathe, 241 RPM, 100 Ton Wt. Capacity, 200 HP, Fanuc CNC, Remanufactured 2021, #28893

Manufacturer

BLAW KNOX

Category

Lathes

Type

LATHES, ROLL, CNC

Stock

28893

Model

1794 E60-20

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #28893

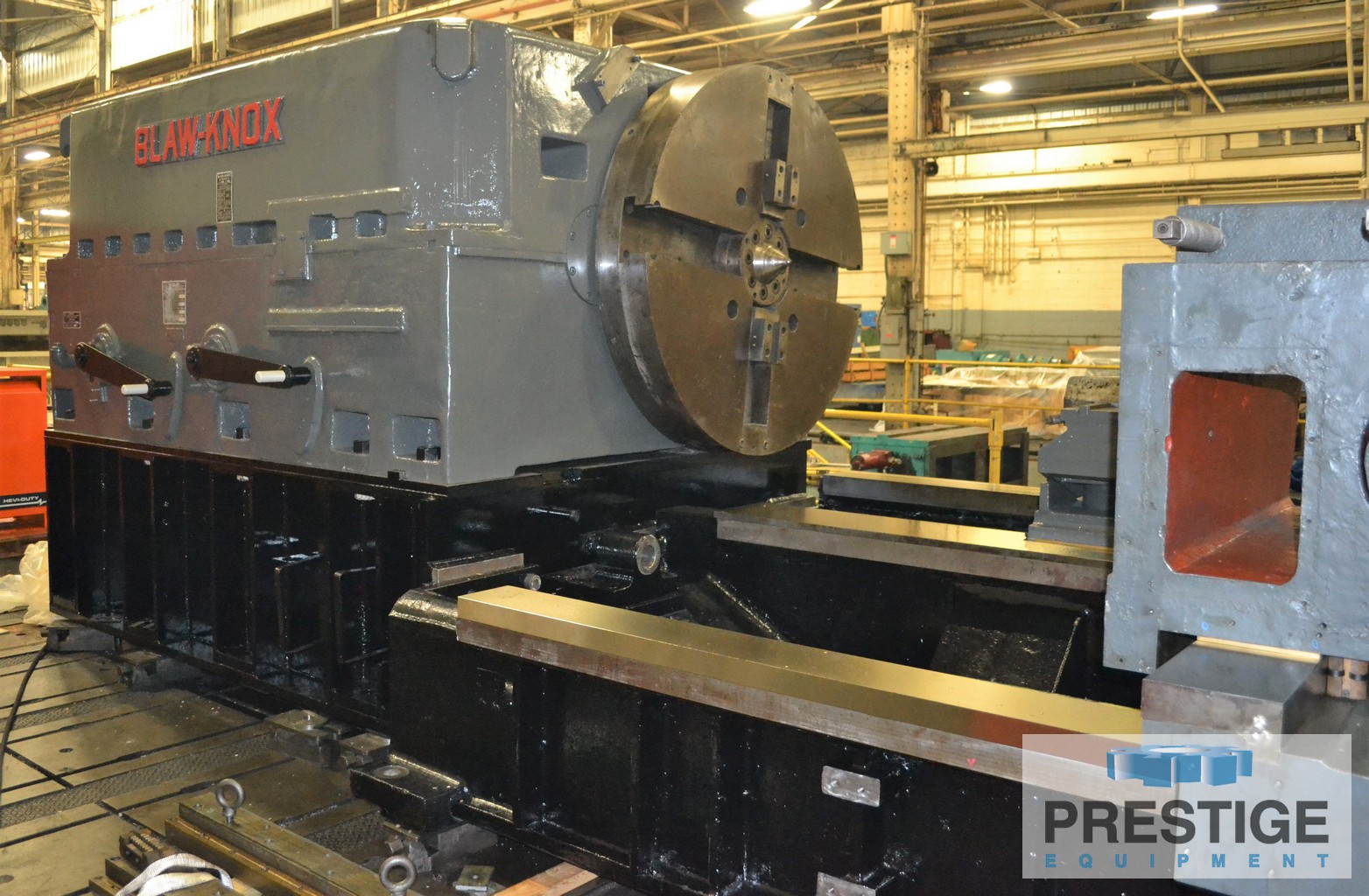

Blaw Knox 80" x 240"" Heavy Duty CNC Roll Lathe

FEATURES:
Machine Has Been Mechanically Re-Manufactured
CNC Retrofit To Take Place At Time Of Order
100 Ton Weight Capacity
200 HP Spindle Motor

CAPACITY:
Maximum Swing Over Bedways ............ 80"
Maximum Swing Over Cross Slide ........ 60"
Distance Between Centers .............. 240"

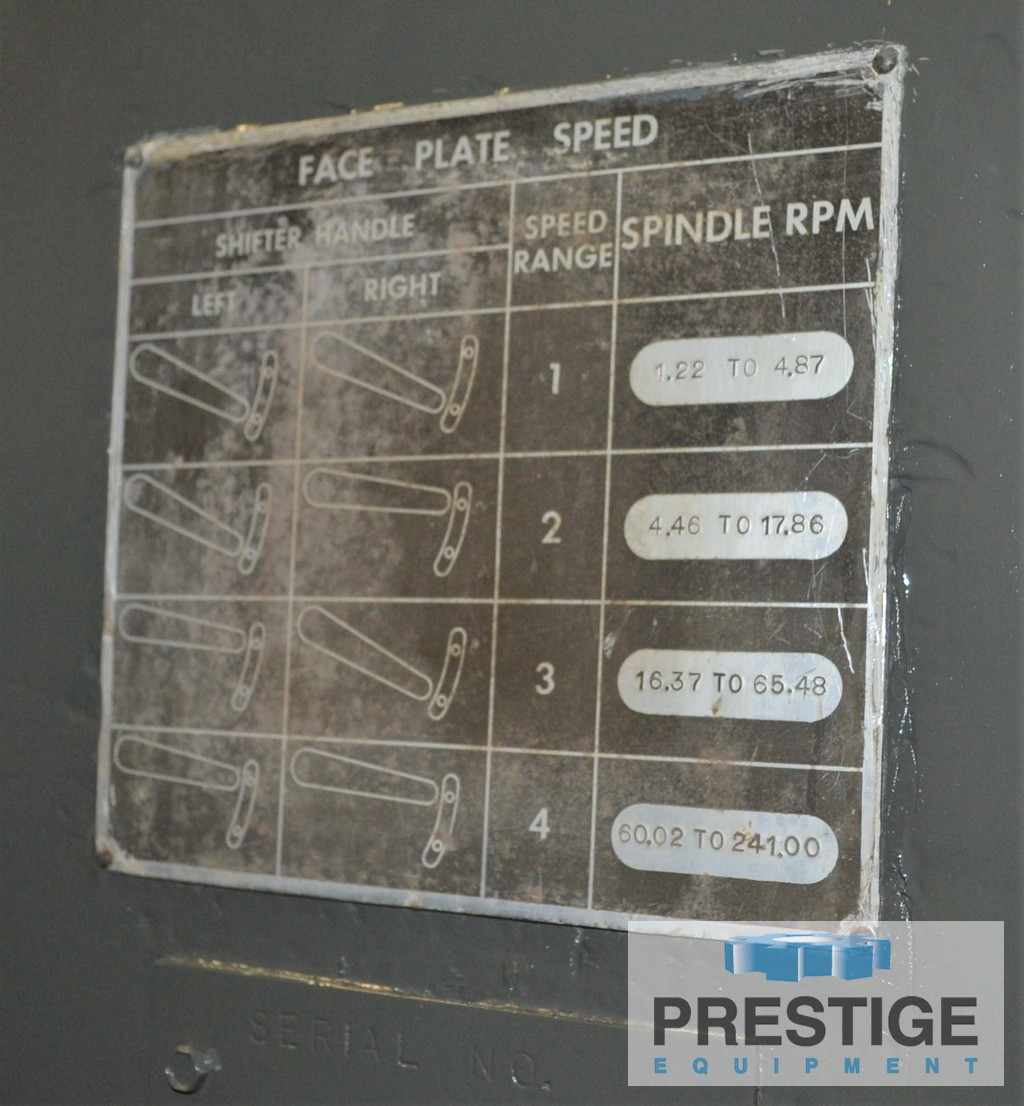

Spindle Speeds: ....................... 1.22-241 RPM
Spindle Motor ......................... 200 HP
Weight Capacity ....................... 100 Ton

NOTE:
Machine Has Been Mechanically Re-Manufactured, Ways Reground & Refit
CNC Retrofit To Be Done at Time of Order, Including New Ballscrews, Electrics & CNC Control Per Customer Preference
Cost To Be Determined by Final Scope of Work Required by Customer
