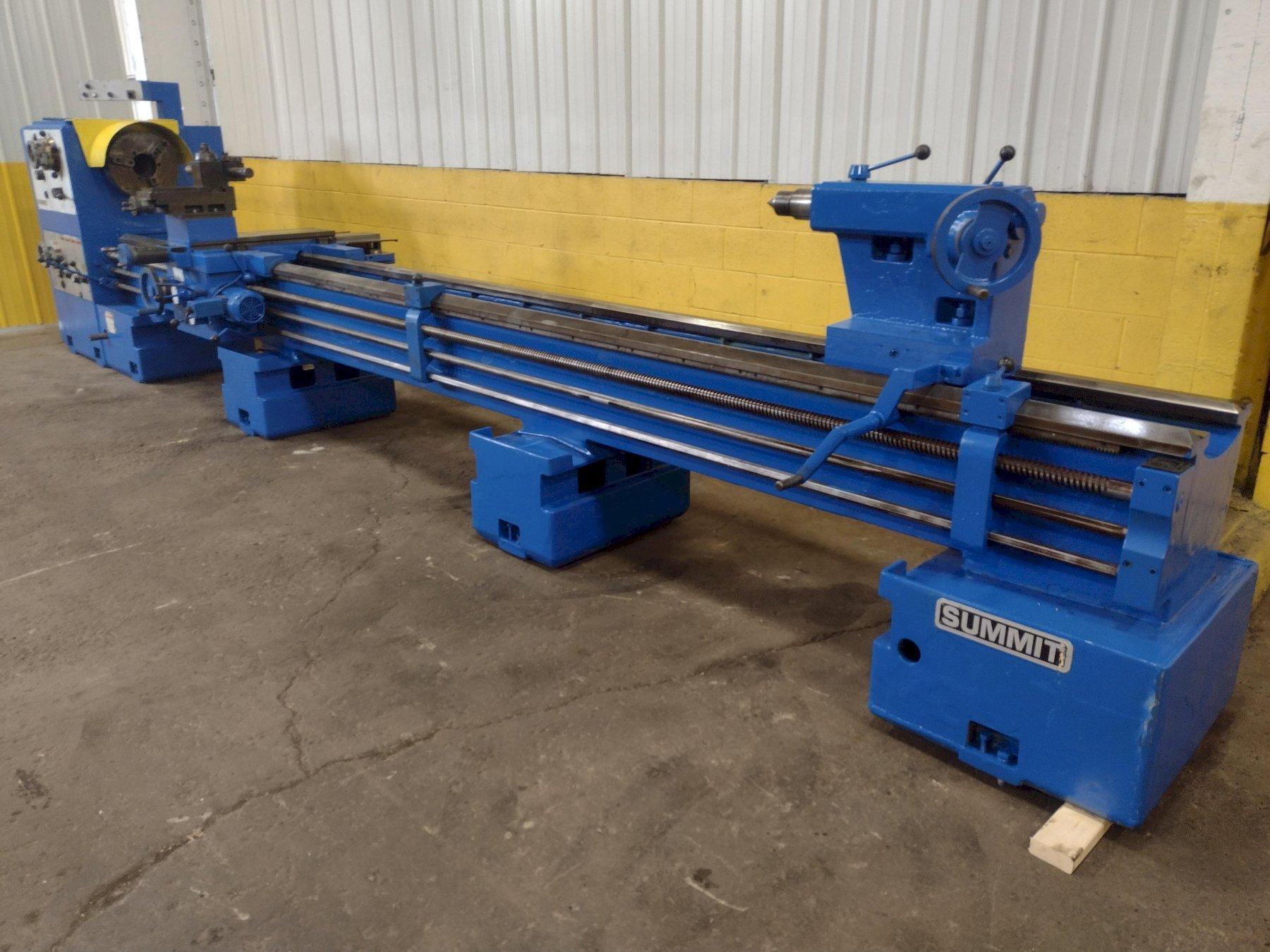

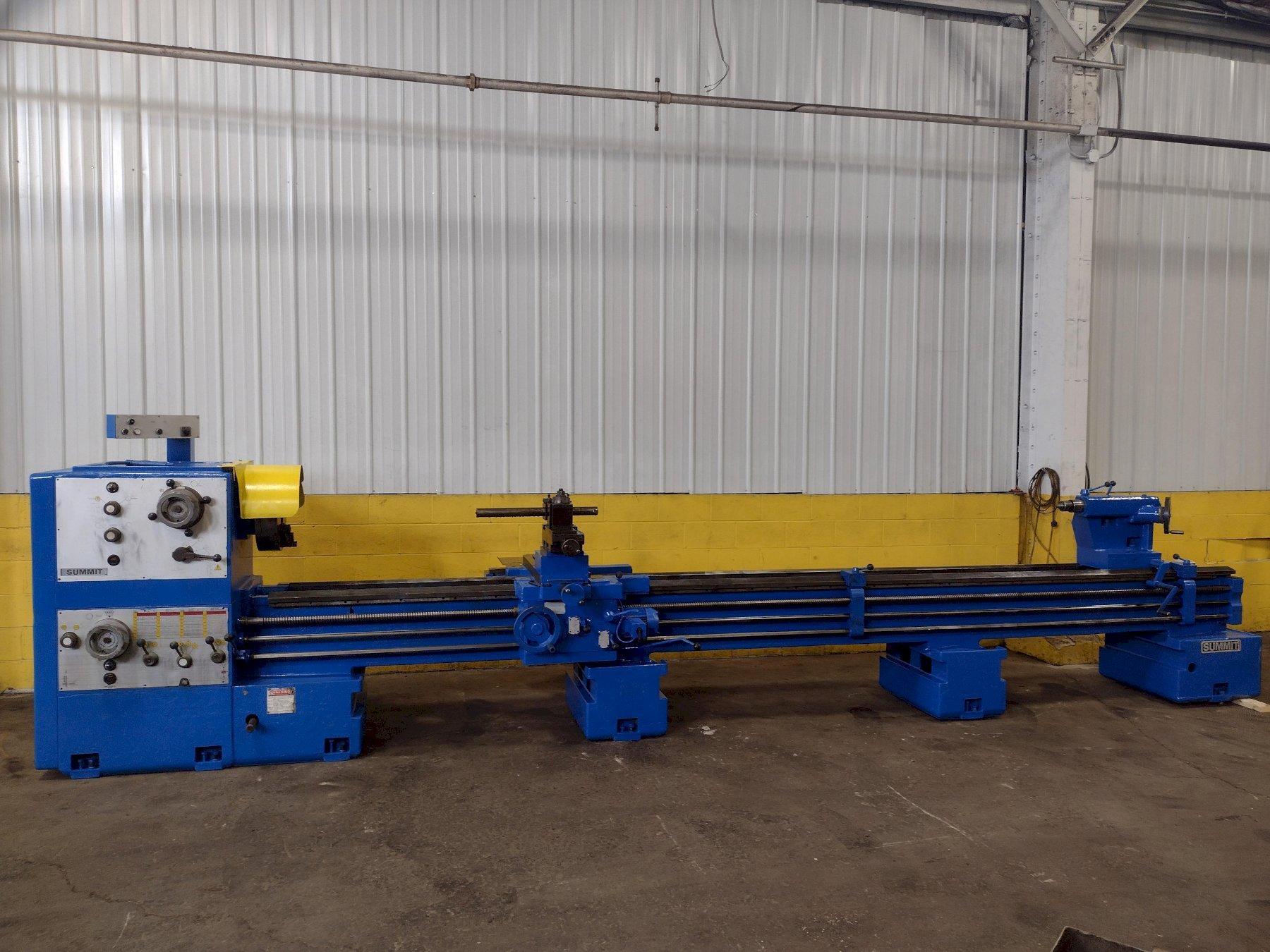

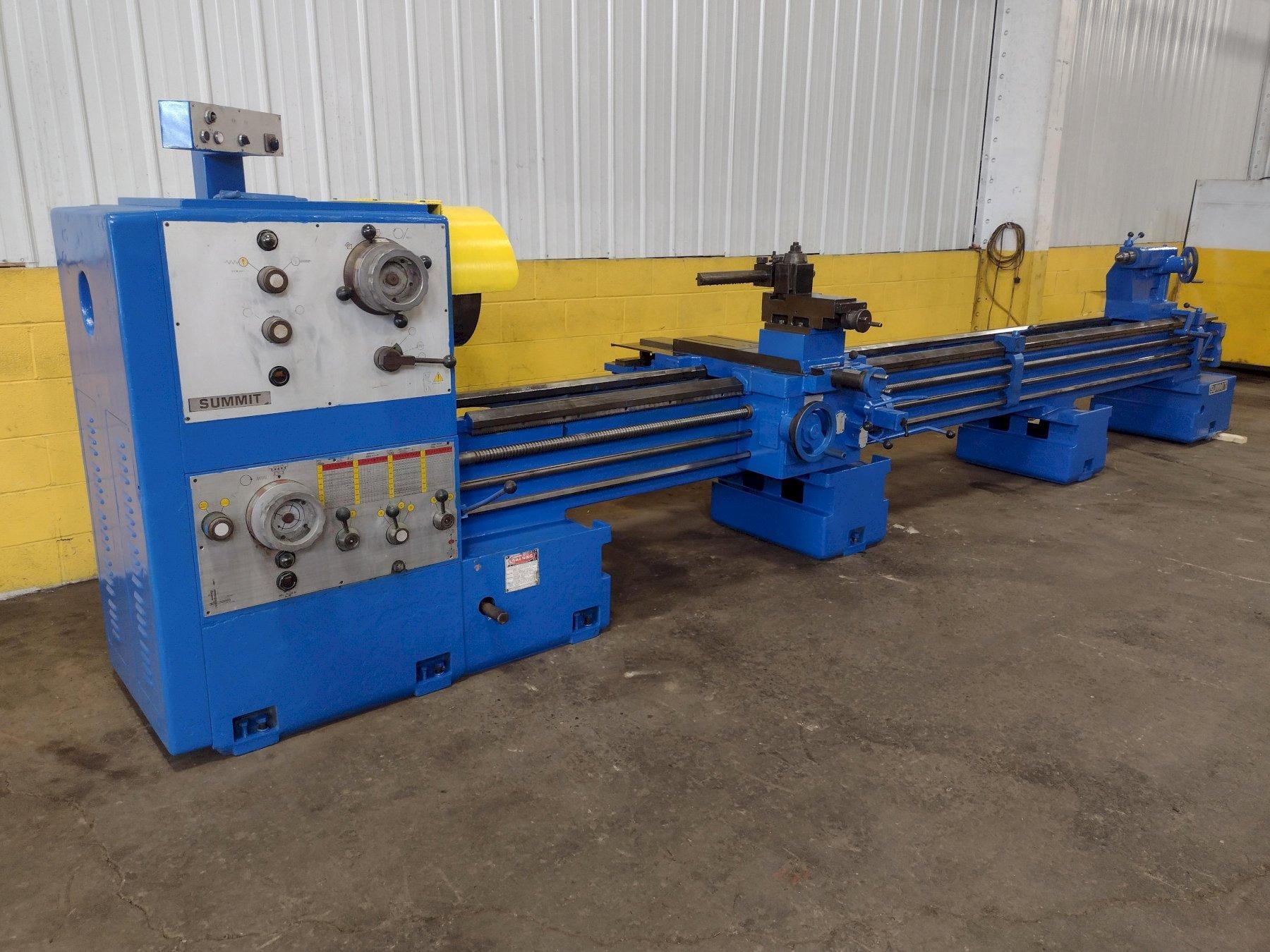

33" x 200" SUMMIT MODEL 30X4-200 ENGINE LATHE 4" HOLE: STOCK 15015

Manufacturer

SUMMIT

Category

Lathes

Type

LATHES, ENGINE

Stock

15015

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................... 810410
MODEL ..................... 30-4 X 200
NEW ....................... 1986
SWING OVER WAYS ........... 33"
SWING OVER CROSS SLIDE .... 23"
SWING IN GAP .............. 40-1/2"
LENGTH OF GAP ............. 19"
DISTANCE BETWEEN CENTERS .. 200"
SPINDLE SPEEDS ............ (16) 14 TO 1010 RPM
DIAMETER OF SPINDLE HOLE .. 4-1/8"

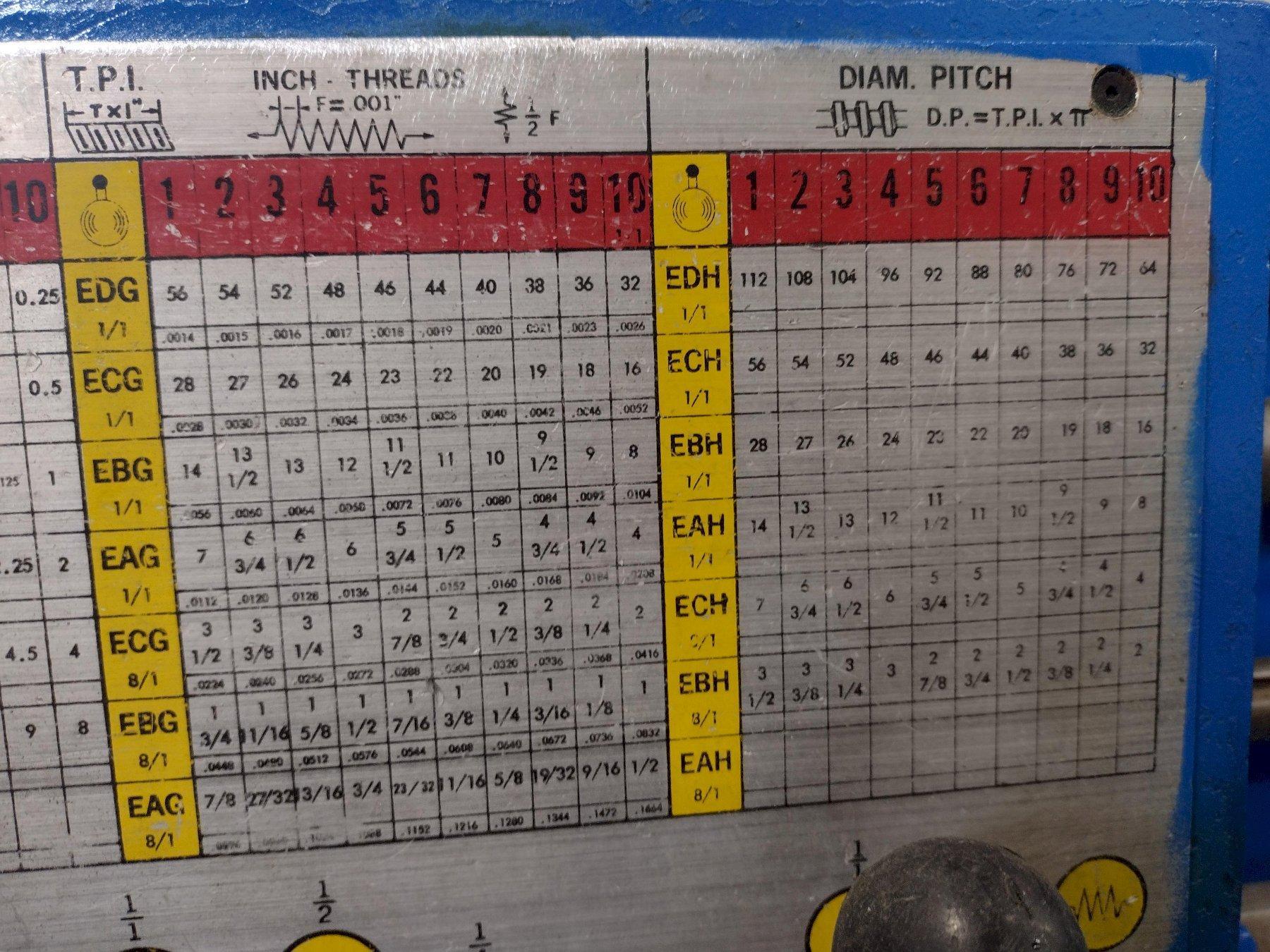

THREADS STANDARD .......... .25 TO 56 TPI

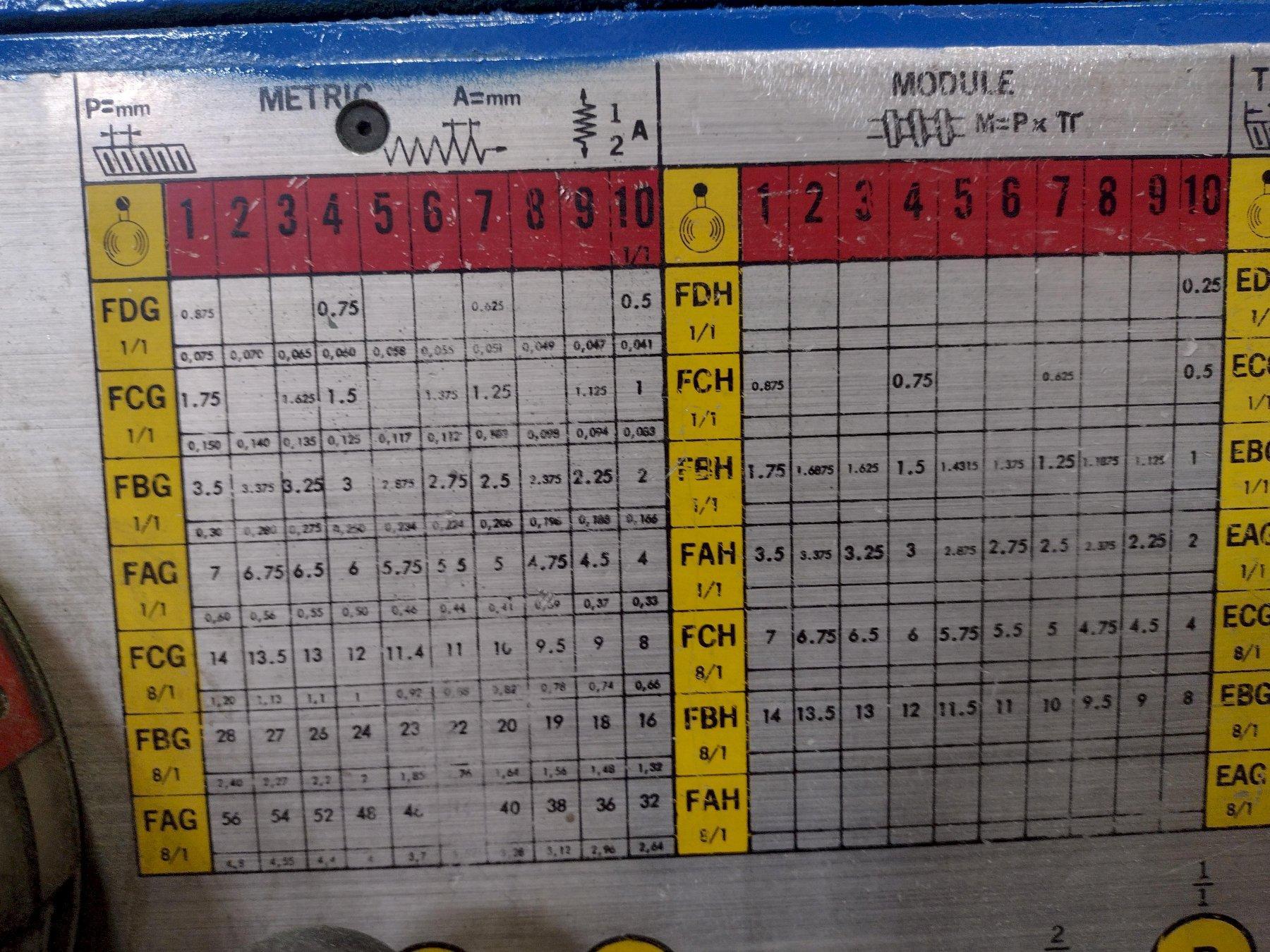

THREADS METRIC ............ .875 TO 32 MM
FEEDS STANDARD ............ .002 TO .032 IPR
FEEDS METRIC .............. .25 TO 14 MMPR

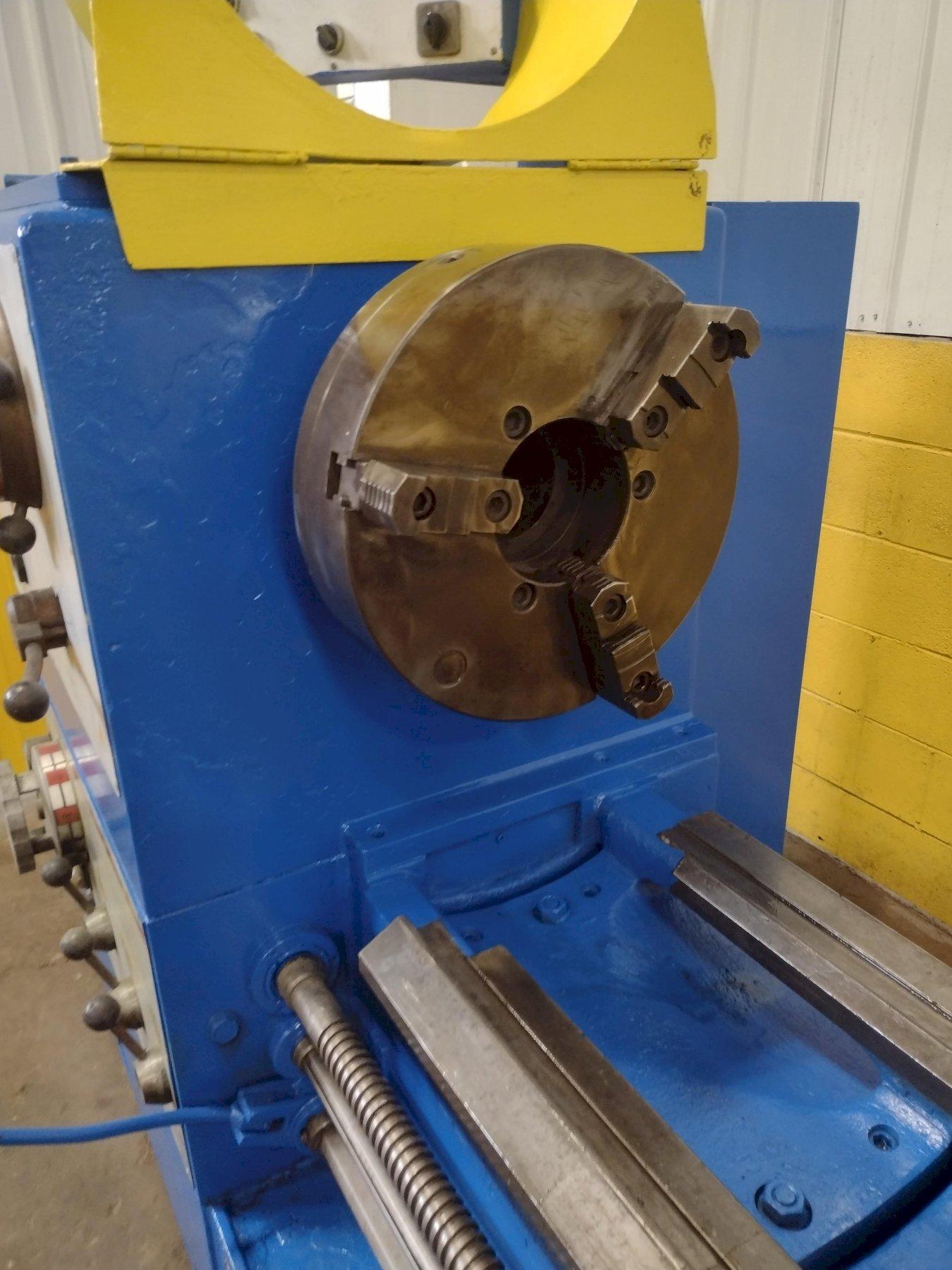

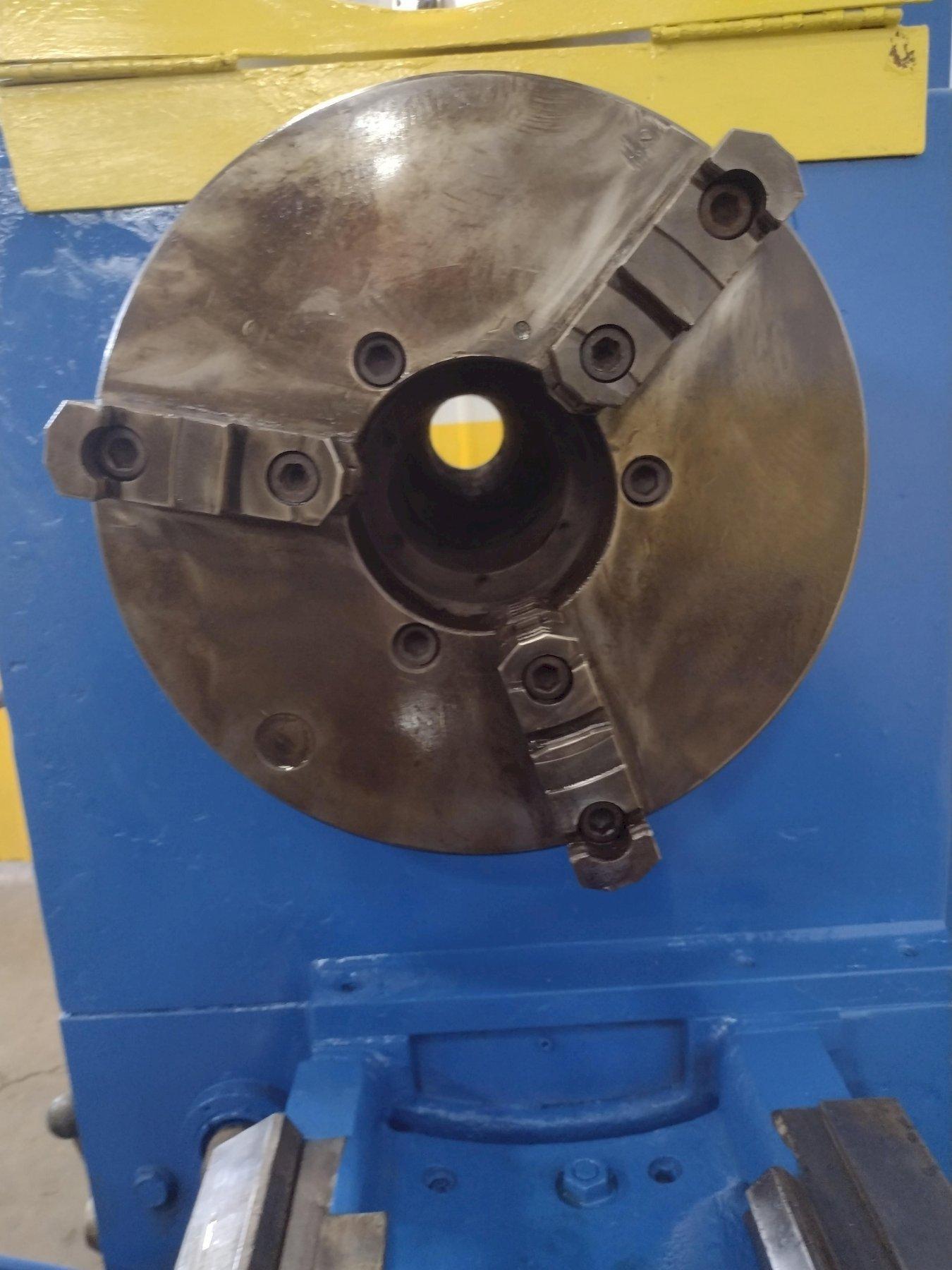

CHUCK ..................... YES
TAPER ..................... YES
STEADY REST ............... 17" 3 POINT
FOLLOW REST ............... YES
RAPID TRAVERSE ............ YES
MOTOR ..................... 15 HORSEPOWER
