Schiess CNC Ring Turning Lathe with 43" Spindle Bore, Siemens 840D #31820

Manufacturer

SCHIESS

Category

Lathes

Type

LATHES, ENGINE

Stock

31820

Model

ZM 125/40C

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31820

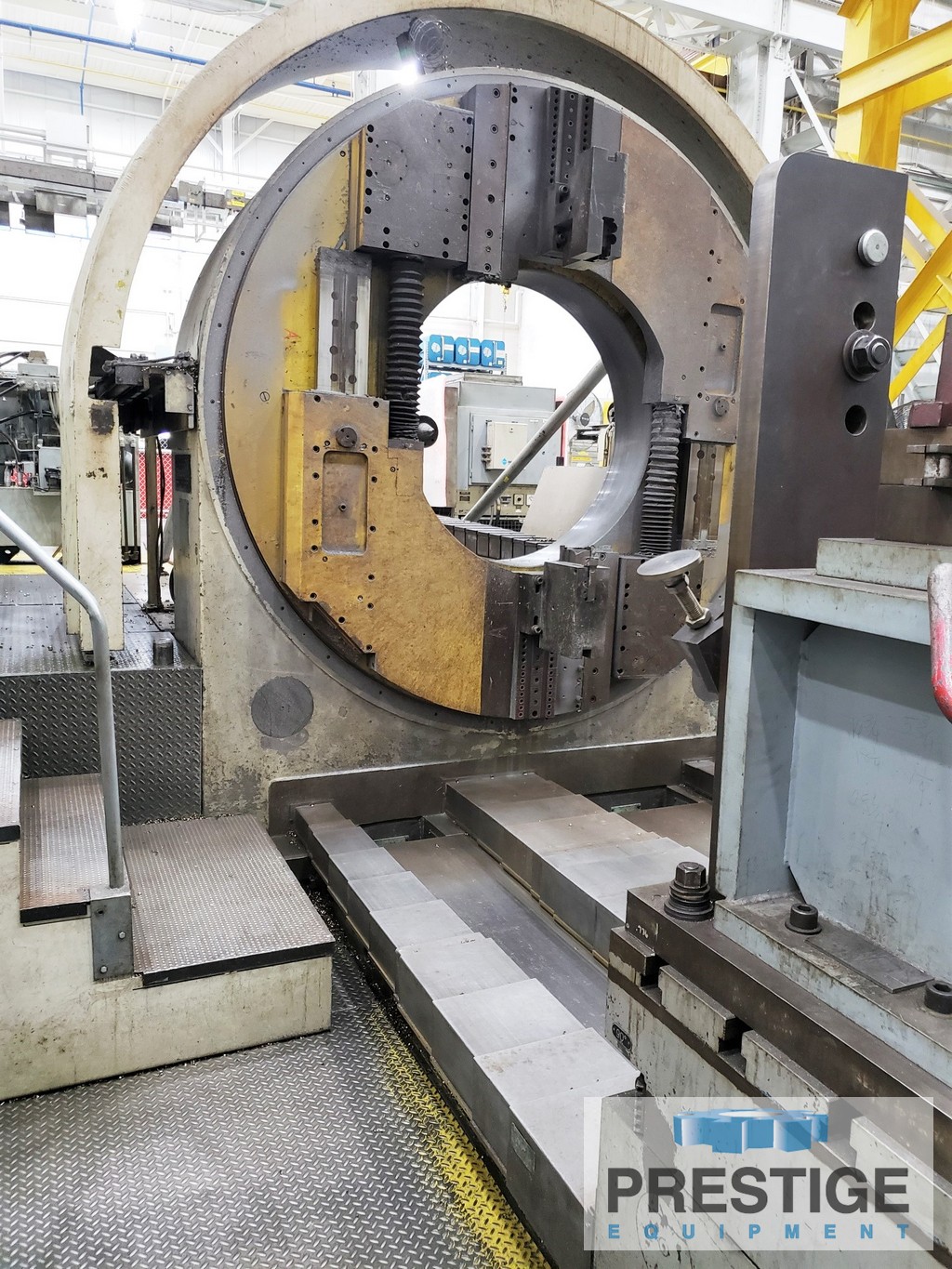

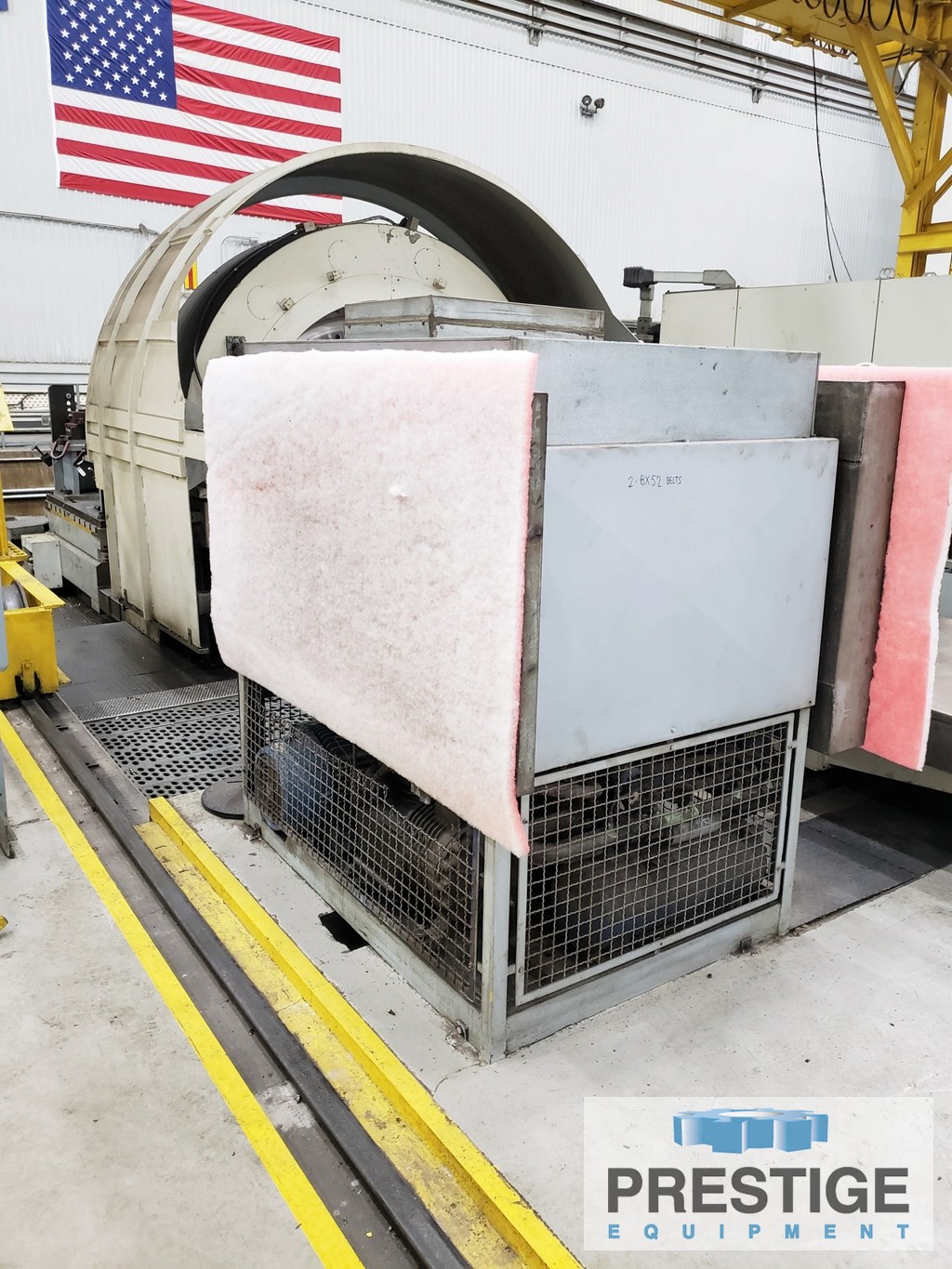

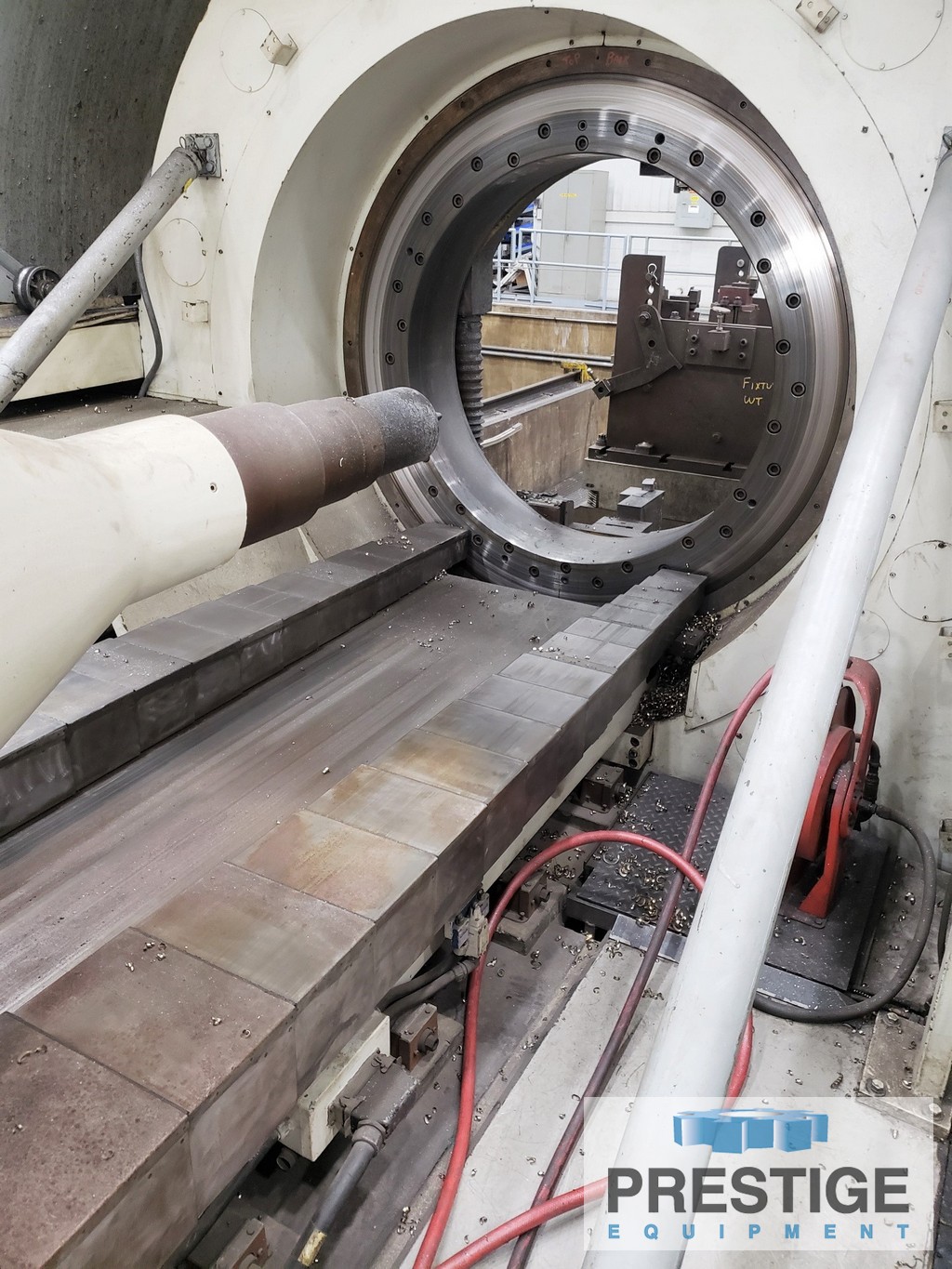

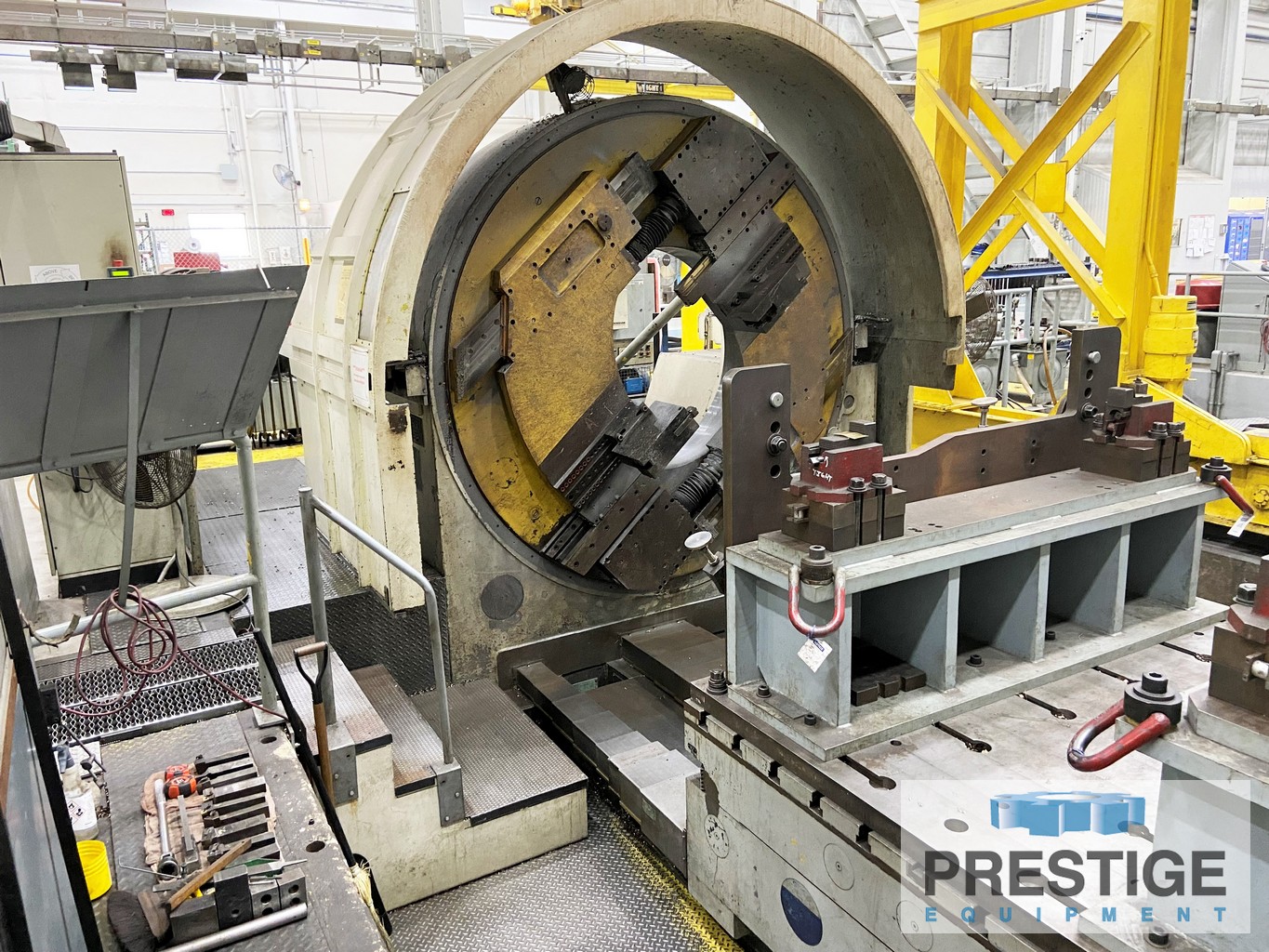

Schiess CNC Ring Turning Lathe with 43" Spindle Bore

FEATURES:

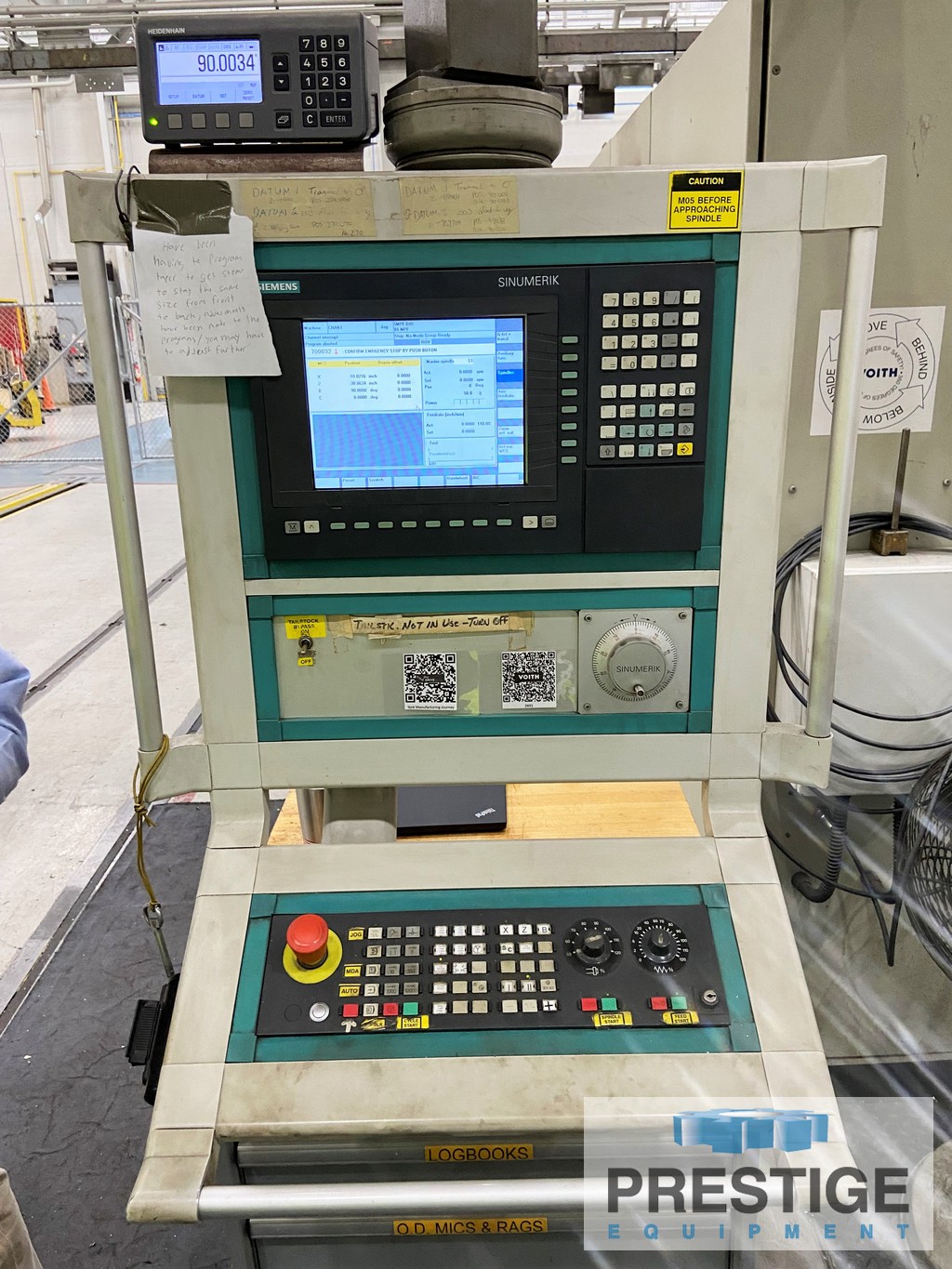

Siemens 840D CNC Control

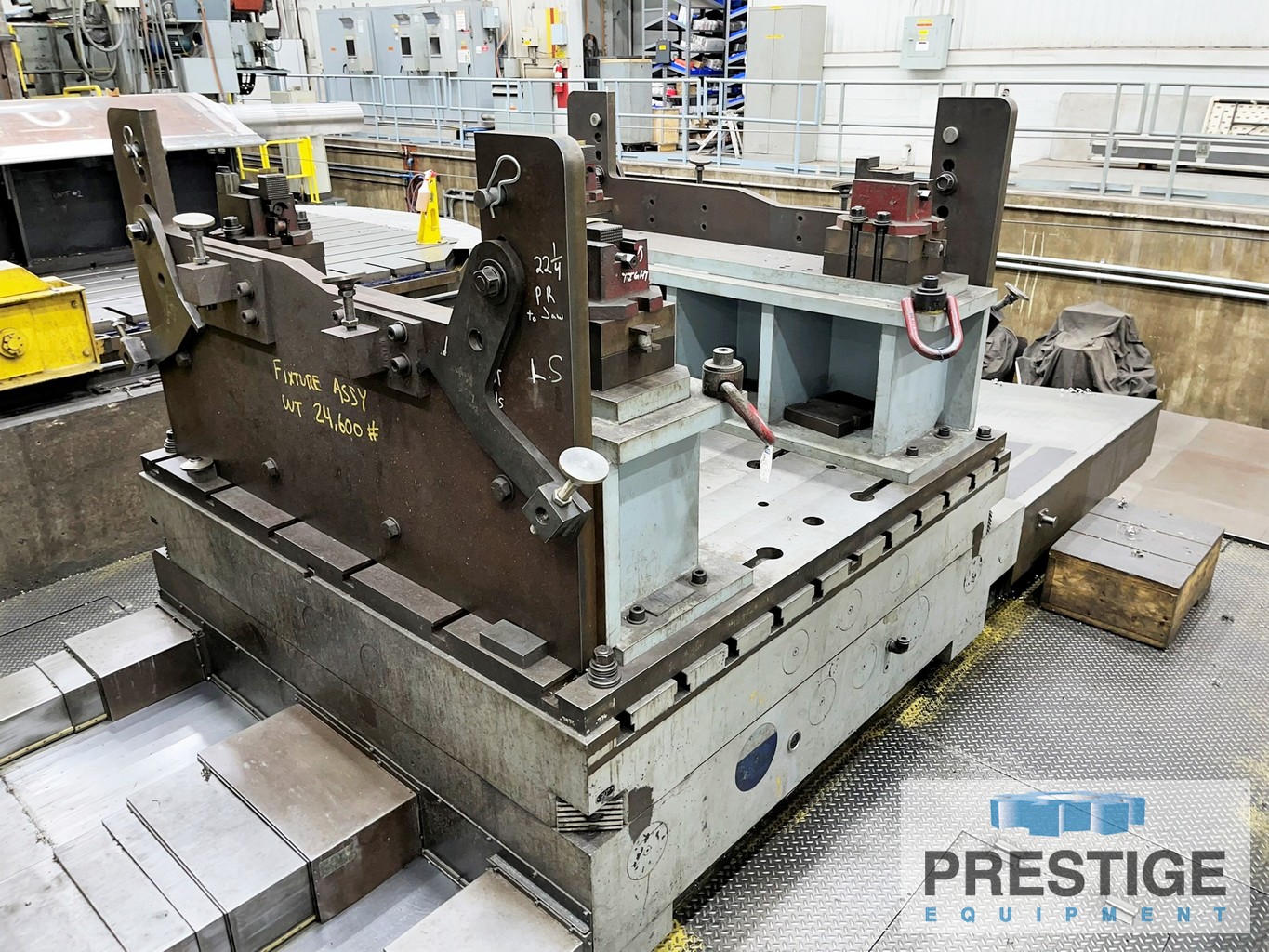

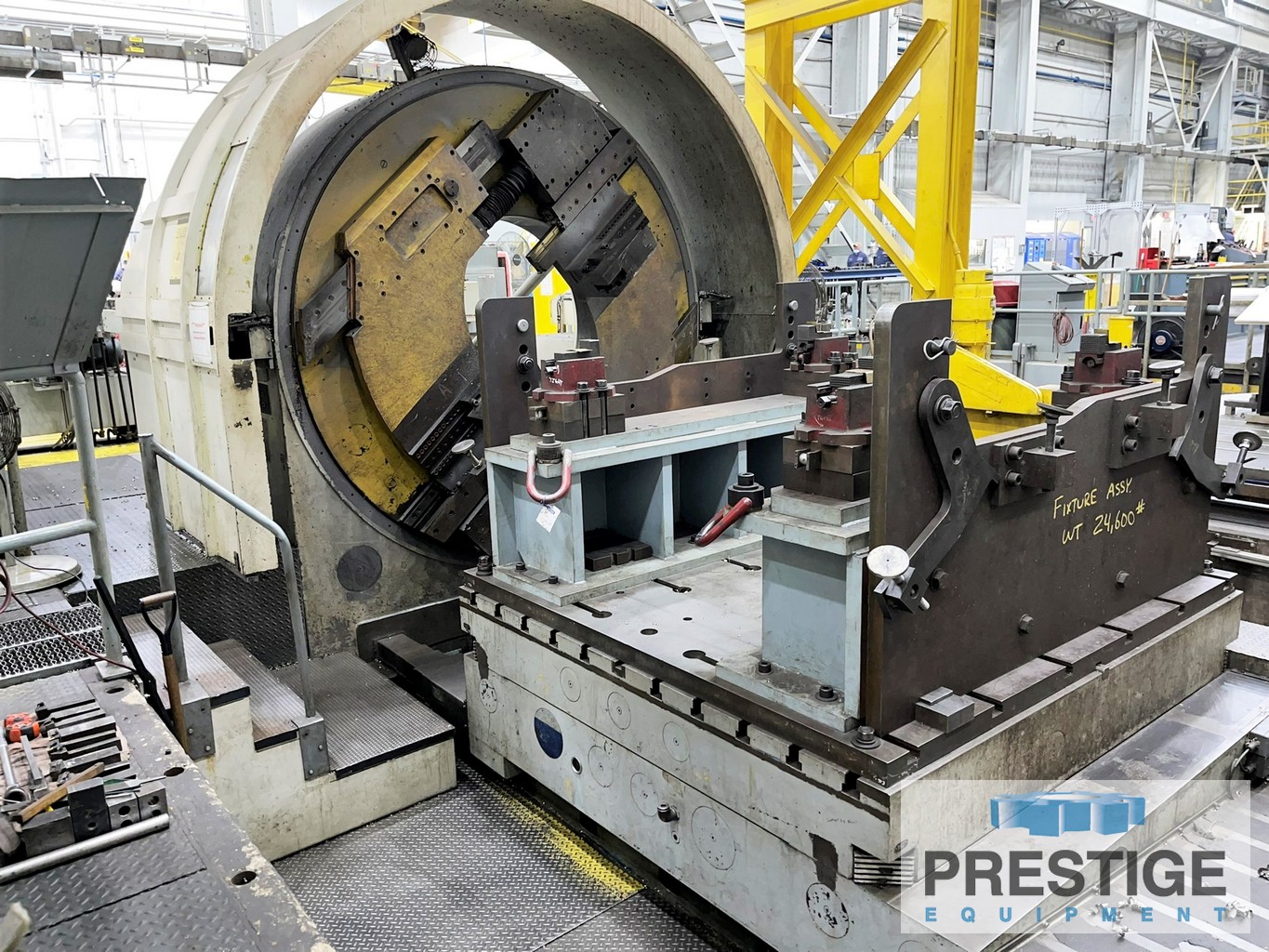

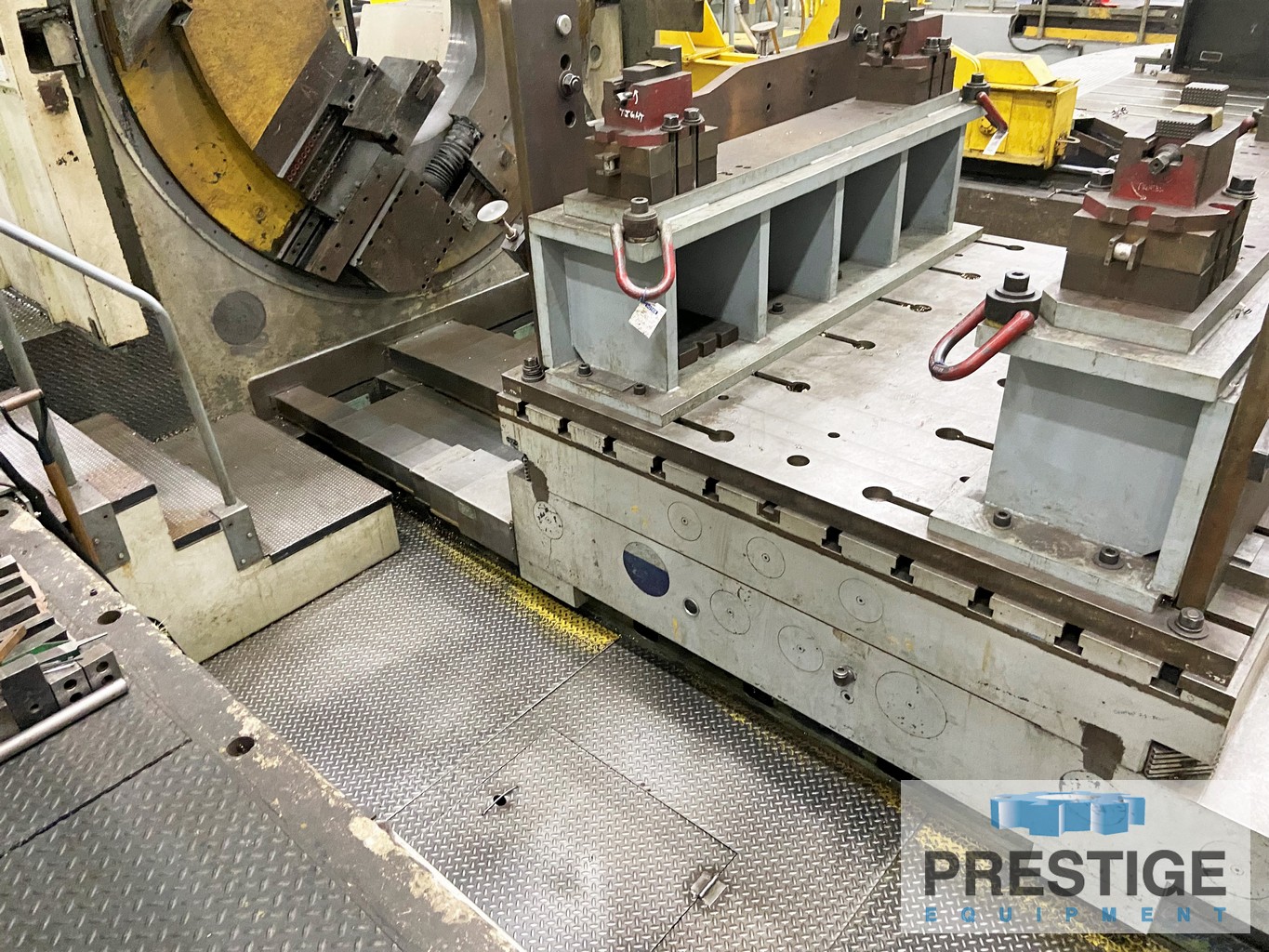

88.58" x 88.58" Rotary Table
One Pair WSD-210 Tool Holders
Coolant System

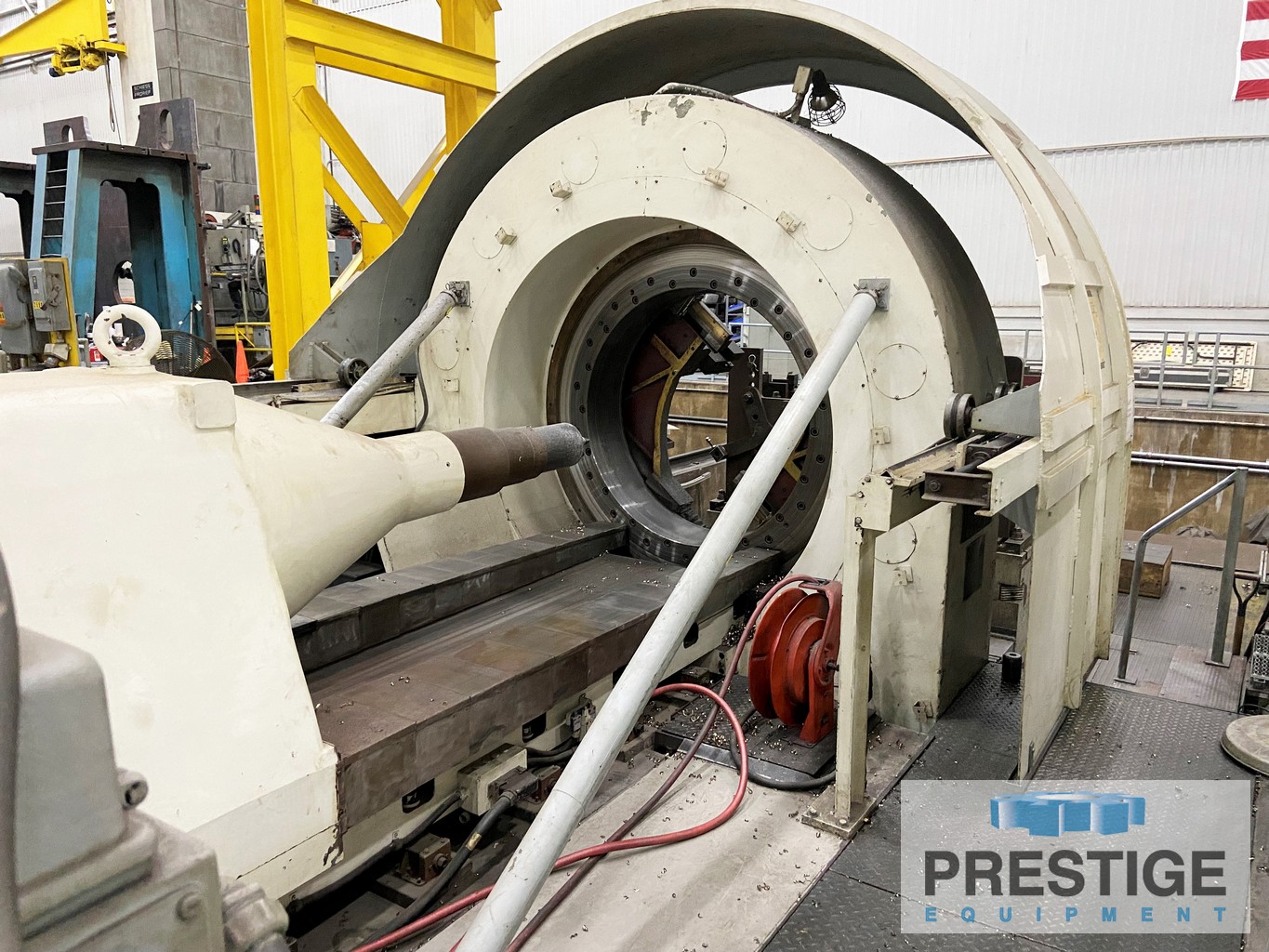

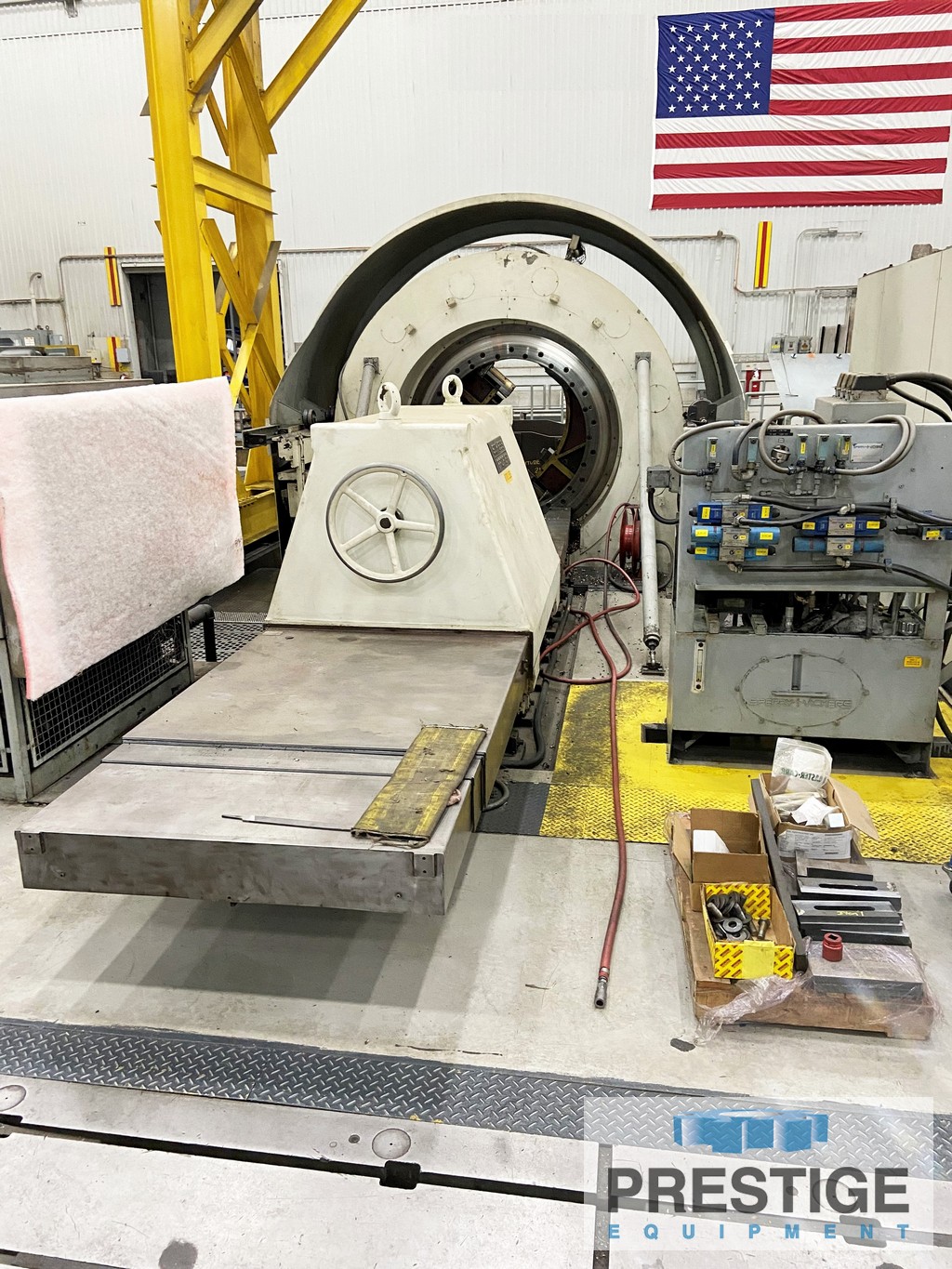

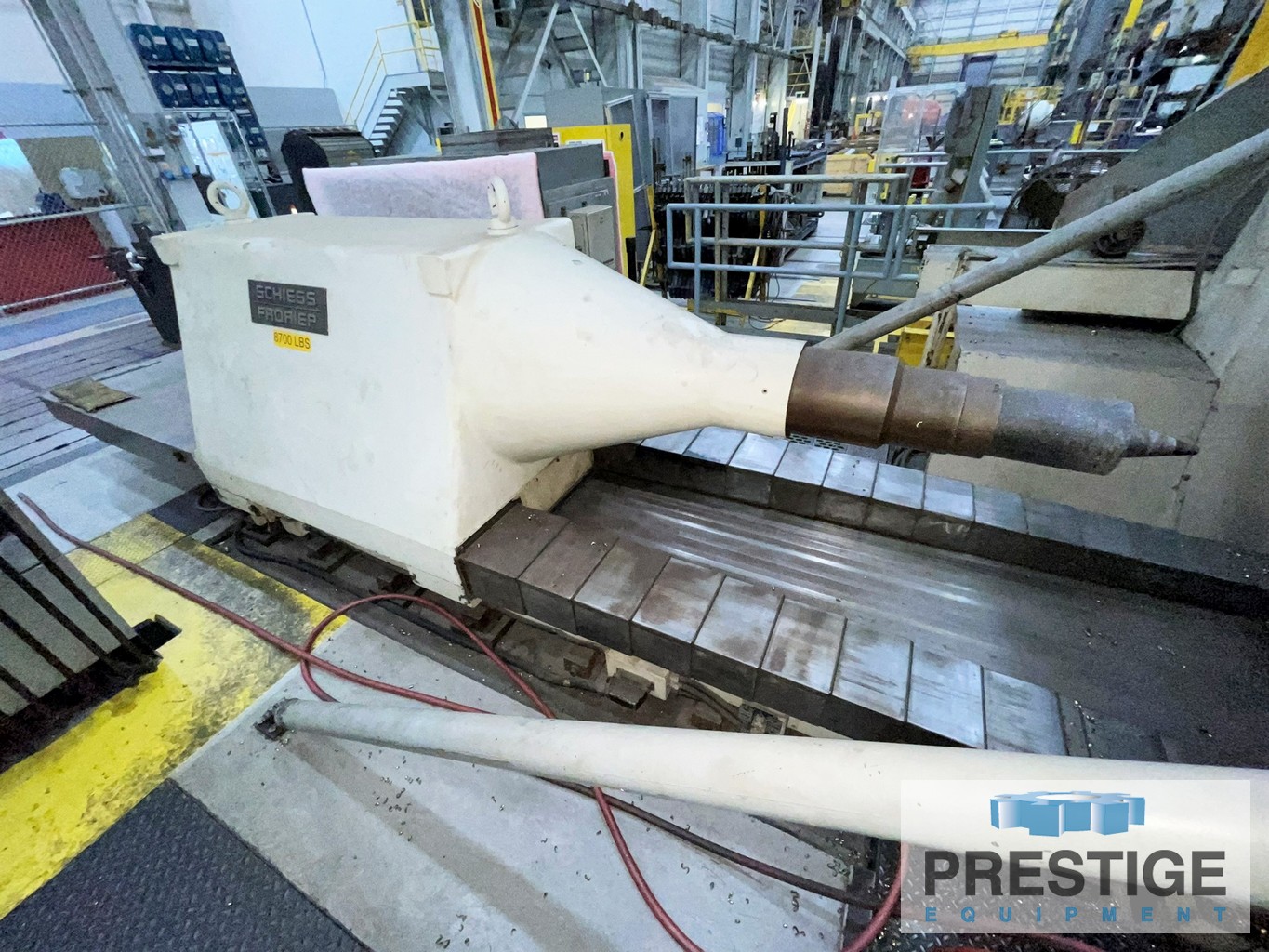

Tailstock
Chip Conveyor

CAPACITY:
Facing Diameter ...................... 98.42"
Turning Diameter, Max ................ 43.3"
Turning Diameter, Min ................. 5.51"
Maximum Machining Length ............. 96.45"
Maximum Workpiece Weight ............. 88,000 lbs
Radial Travel of Slide ............... 18.89"
Maximum Distance Between Slides ...... 49.21"
Minimum Distance Between Slides ....... 9.05"
Turning Ring Speeds, 2-Ranges ........ .8-80 RPM
Turning Ring Drive Motor .............. 85 HP
Rotary Table Size .................... 88.58" x 88.58"
Rotary Table Infeed ................... 96.45"

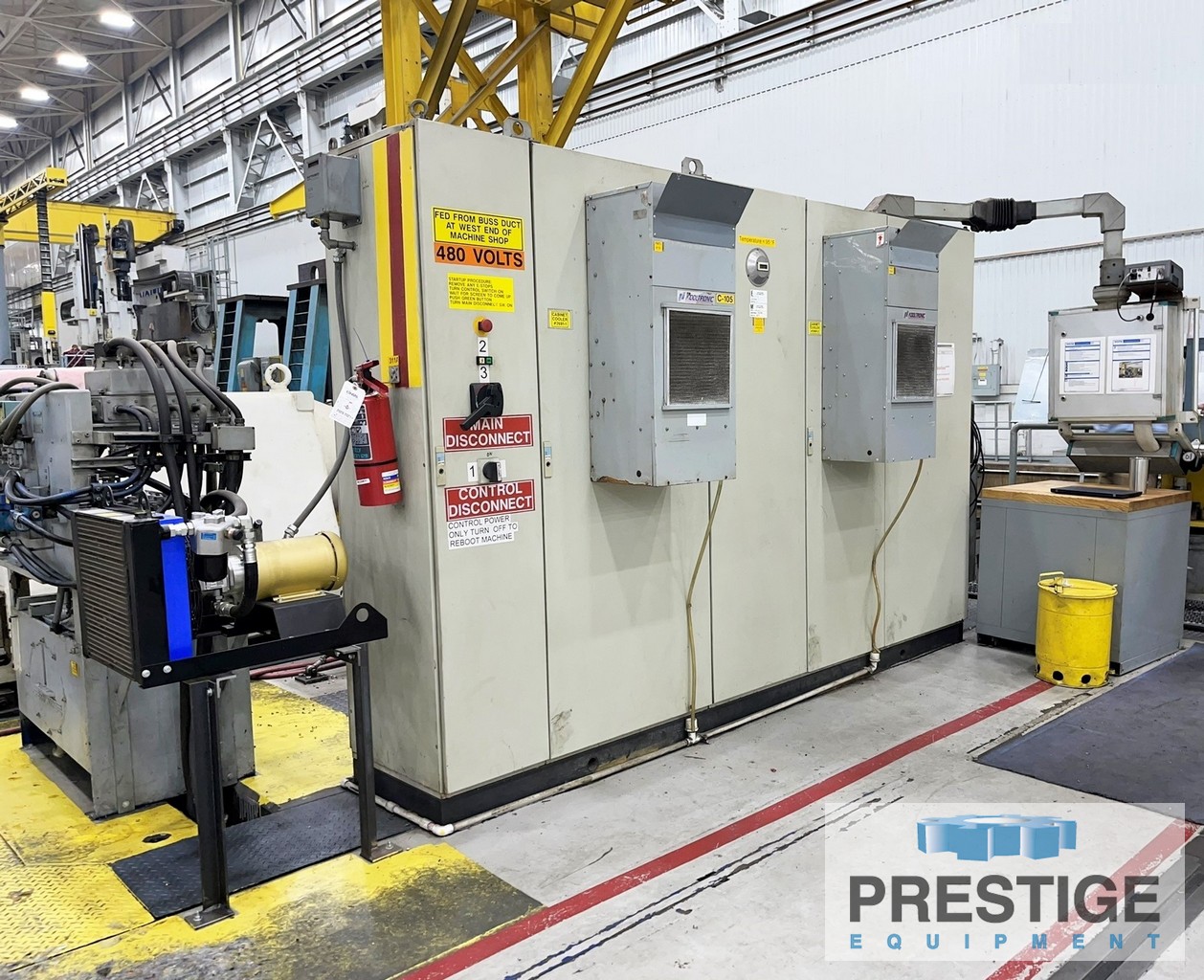

Machine Electrics .................... 480/3/60

EQUIPPED WITH:
Siemens 840D CNC Control
88.58" x 88.58" Rotary Table
One Pair WSD-210 Tool Holders
Coolant System
Tailstock
Chip Conveyor
