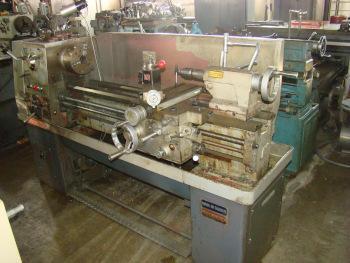

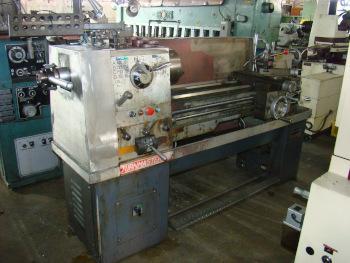

1989 Turnmaster 1340 Engine Lathe (#4826)

Manufacturer

Category

Lathes

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet



13 - 3/8" X 40" Engine Lathe with 3 - Jaw Chuck, Lever Operated Collet Closer, Coolant System, Worklight, Quick Change Toolpost with Holders, Thread Dial, Foot Brake and One Shot Lubrication System.

GENERAL SPECIFICATIONS
Swing Over Bed:                13 - ⅜”
Swing Over Cross Slides:            8 - ¼”
Spindle Hole Diameter:            1 - 9/16”
Type of Spindle Nose:             D1-4
Distance Between Centers:            40”
Width of Bed:                9”
Spindle Speed Number:            16
Spindle Speed Range:            70 - 2,500 RPM
Inch Threads Number:            45
Inch Threads Range:            2 - 72tpi
Metric Threads Number:            39
Metric Threads Range:            0.2 - 14mm
Longitudinal Feeds Number:        17
Longitudinal Feeds Range:            .002” - .067”
Tailstock Taper:                #3MT
Tailstock Spindle Diameter:            2”
Tailstock Spindle Travels:            6 - ⅛”
Main Motor (2 Speed):            5.0 / 2.5HP
Electrics:                     220 / 3 / 60
Approx. Weight:                2,650 Lbs
Dimesnions:                    80” X 32” X 50”

INCLUDES: 3 - Jaw Chuck, Lever Operated Collet Closer, Coolant System, Worklight, Quick Change Toolpost with Holders, Thread Dial, Foot Brake and One Shot Lubrication System.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
