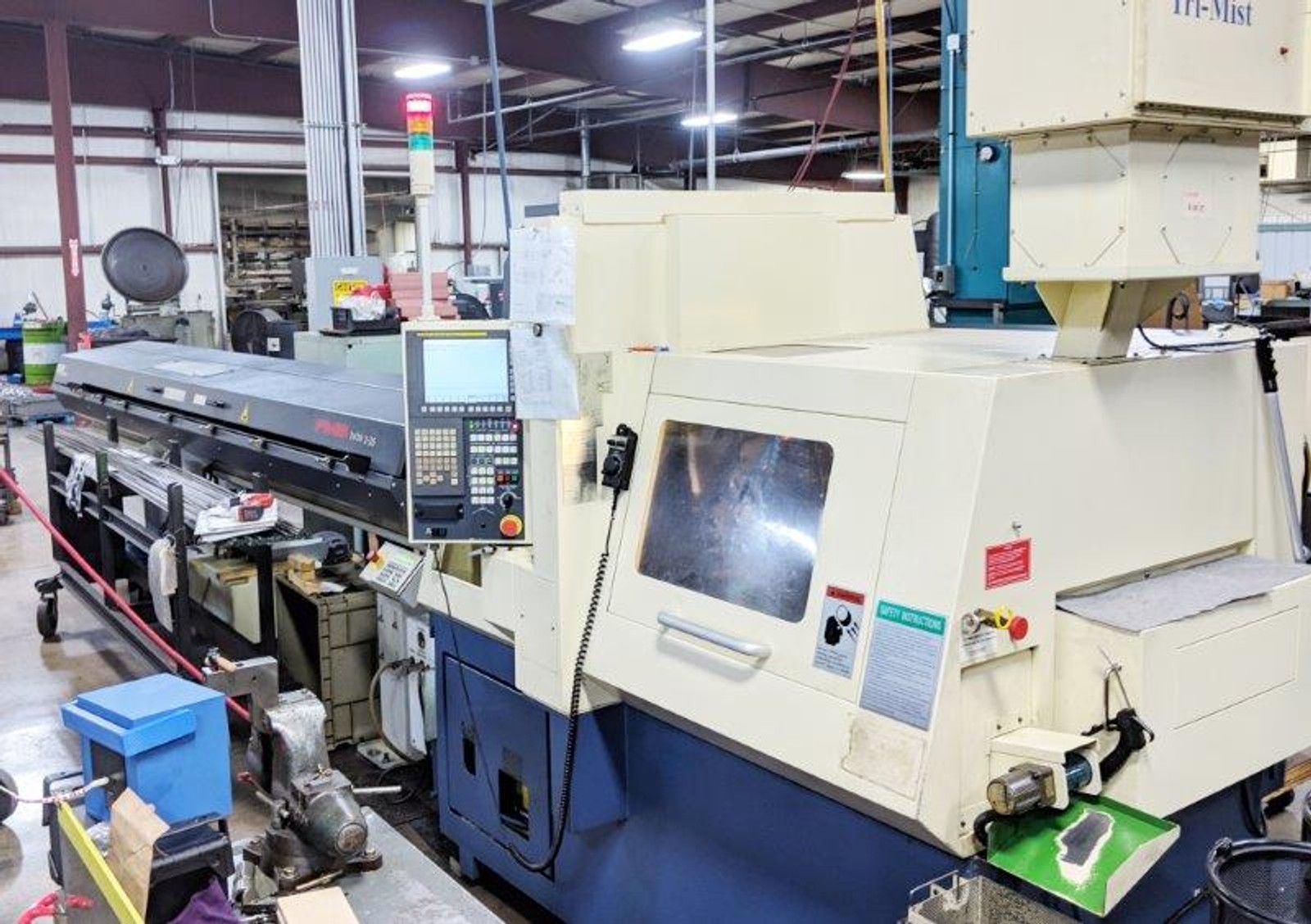

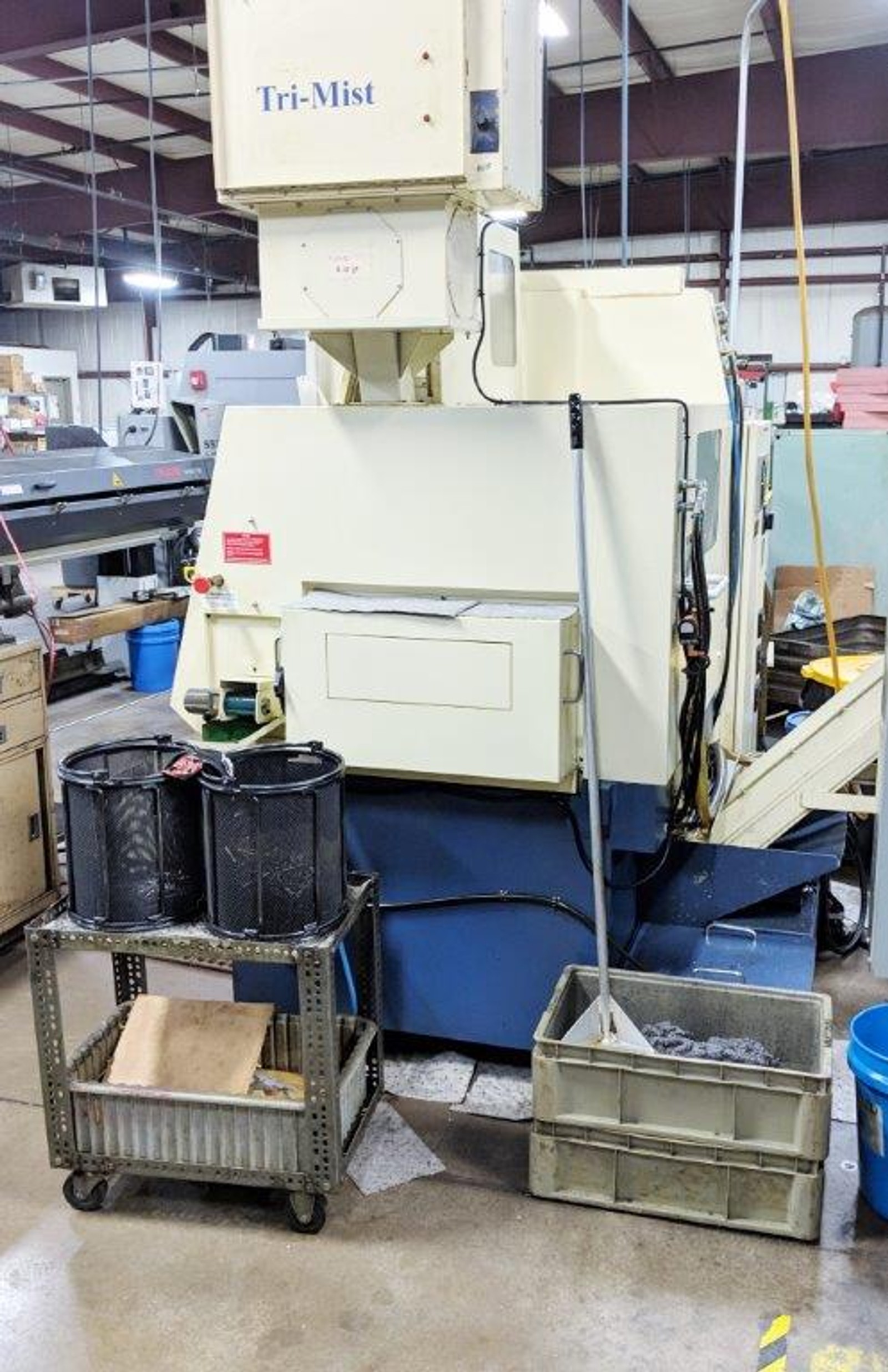

2008 TSUGAMI SS20 & FMB BARFEEDER

Manufacturer

TSUGAMI

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

488208

Model

SS20

Dealer Location

Maryland

Request a Quote
View Contact Information

Spec Sheet

CHUCKING BARSTOCK DIAMETER.................. 0.75"
MAX MACHINING LENGTH........................ 8.66"
MAX DRILLING DIAMETER....................... 0.39"

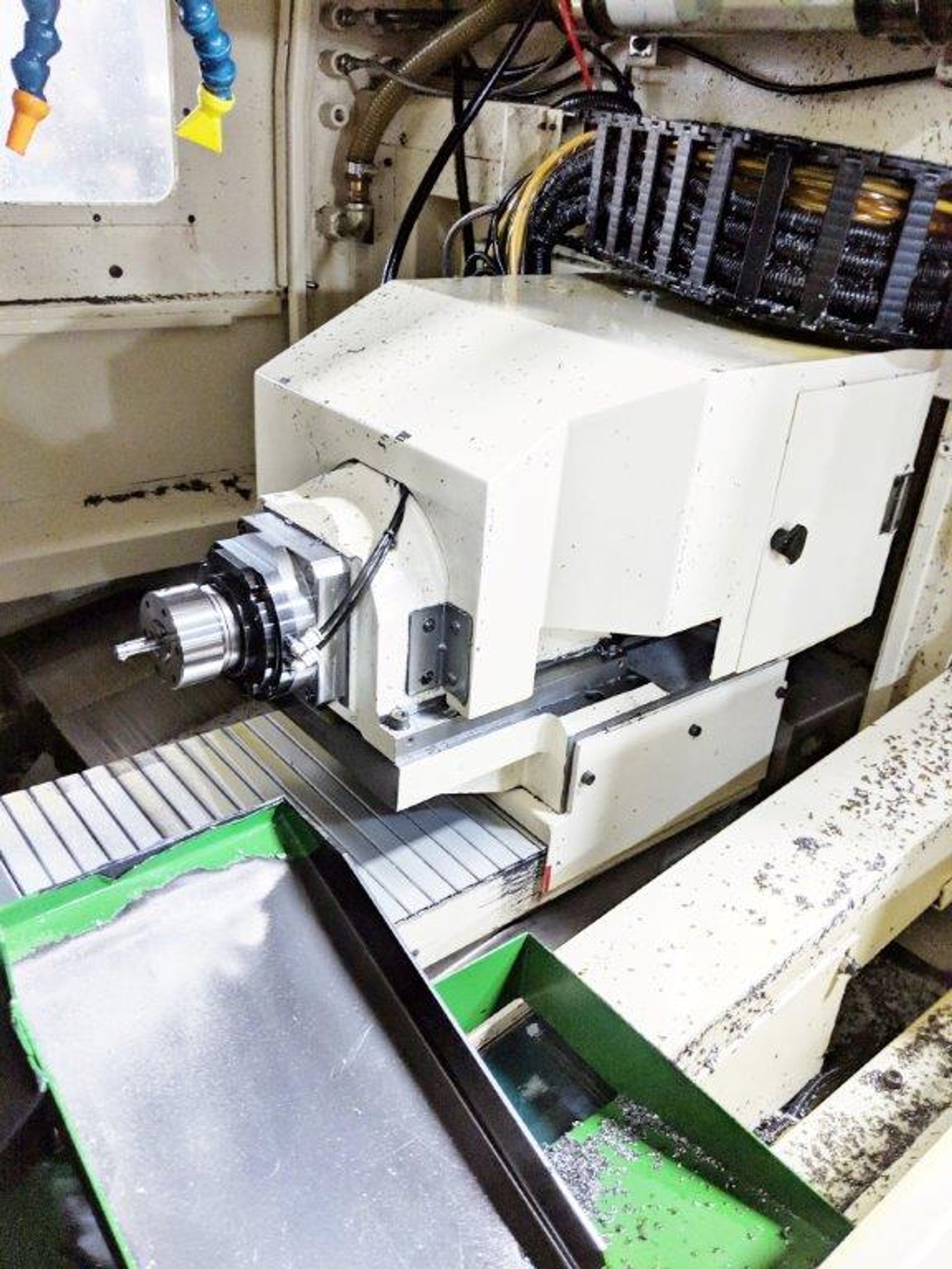

MAX BACK SPINDLE CHUCKING DIAMETER.......... 0.75"
MAX BACK SPINDLE DRILLING DIAMETER.......... 0.39"
MAIN SPINDLE SPEED.......................... 10,000 RPM
BACK SPINDLE SPEED.......................... 10,000 RPM
TOOL SPINDLE SPEED.......................... 5,000 RPM
NUMBER OF TOOLS............................. 24 TOOLS
CONTROLLABLE AXES........................... 7
MAIN SPINDLE MOTOR.......................... 5 HP
BACK SPINDLE MOTOR.......................... 5 HP

EQUIPPED WITH:
FANUC 31i CONTROL
EDGE TECHNOLOGIES FMB TURBO 3-26 MAGAZINE BARFEEDER (12')
HIGH-PRESSURE COOLANT SYSTEM (2,000 PSI, 4-PORT)
TRI-MIST MIST COLLECTOR

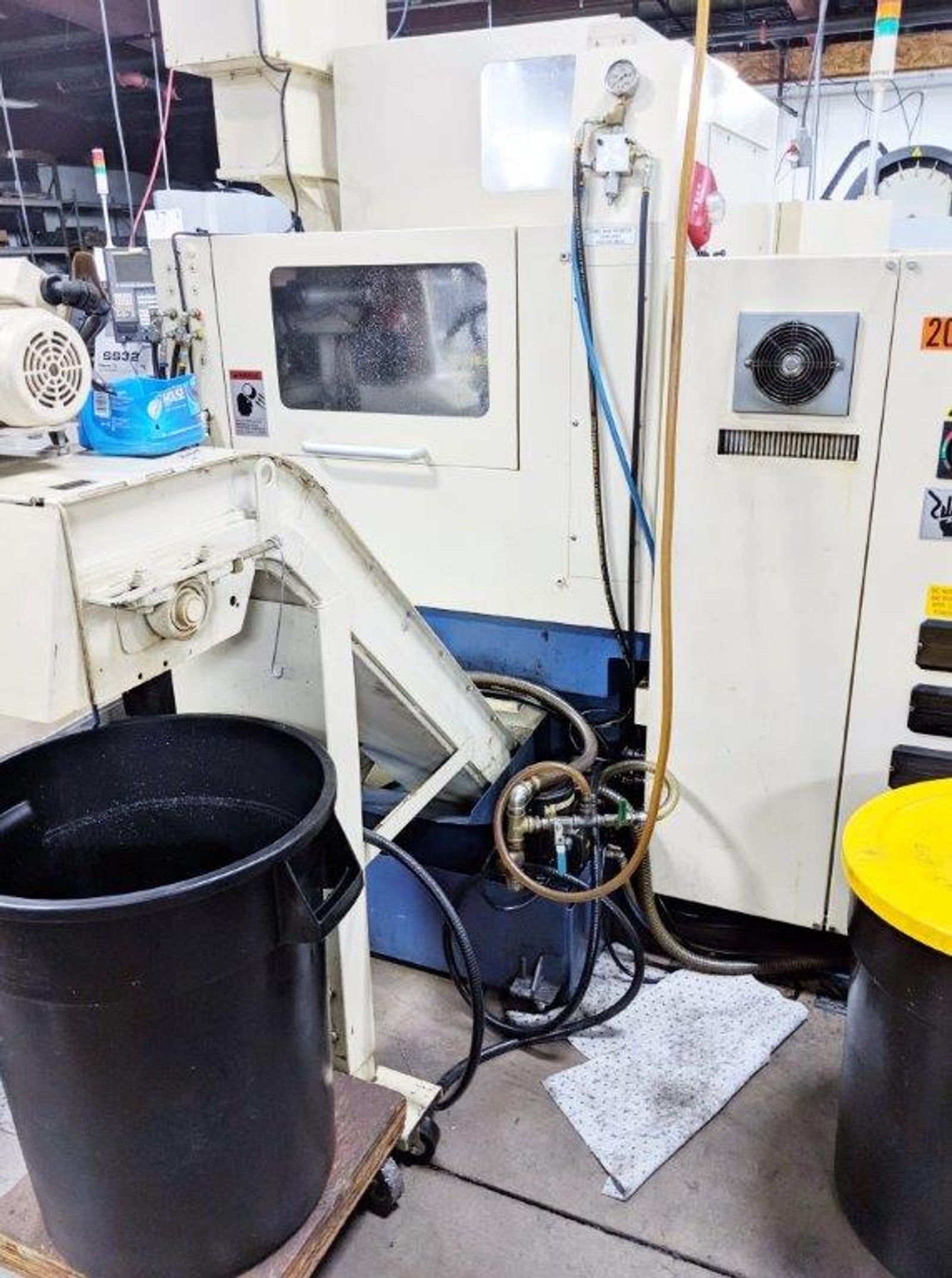

LNS TURBO CHIP CONVEYOR (REAR DISCHARGE)
PARTS CONVEYOR
PARTS CATCHER
FIRETRACE FIRE SUPPRESSION SYSTEM

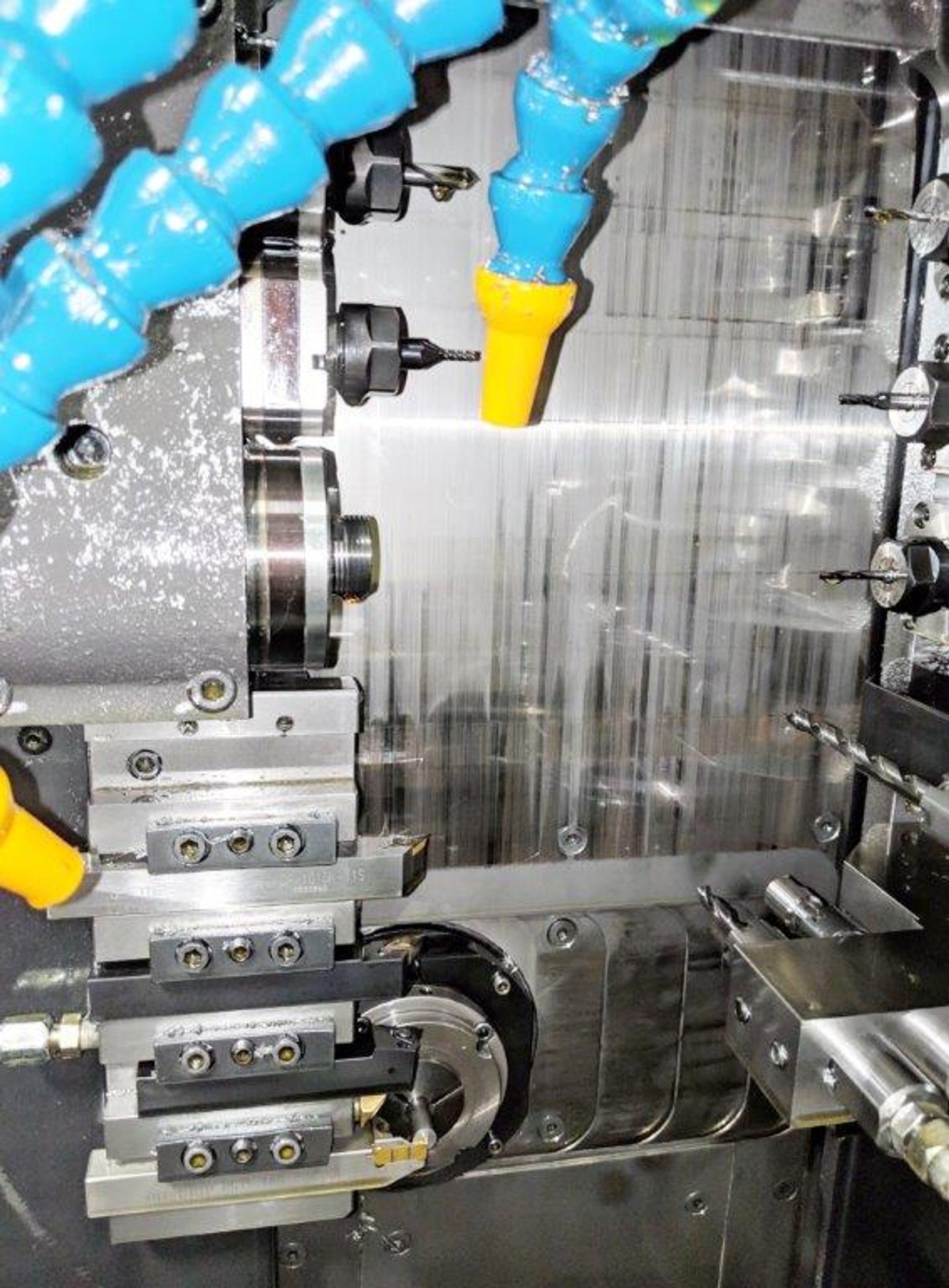

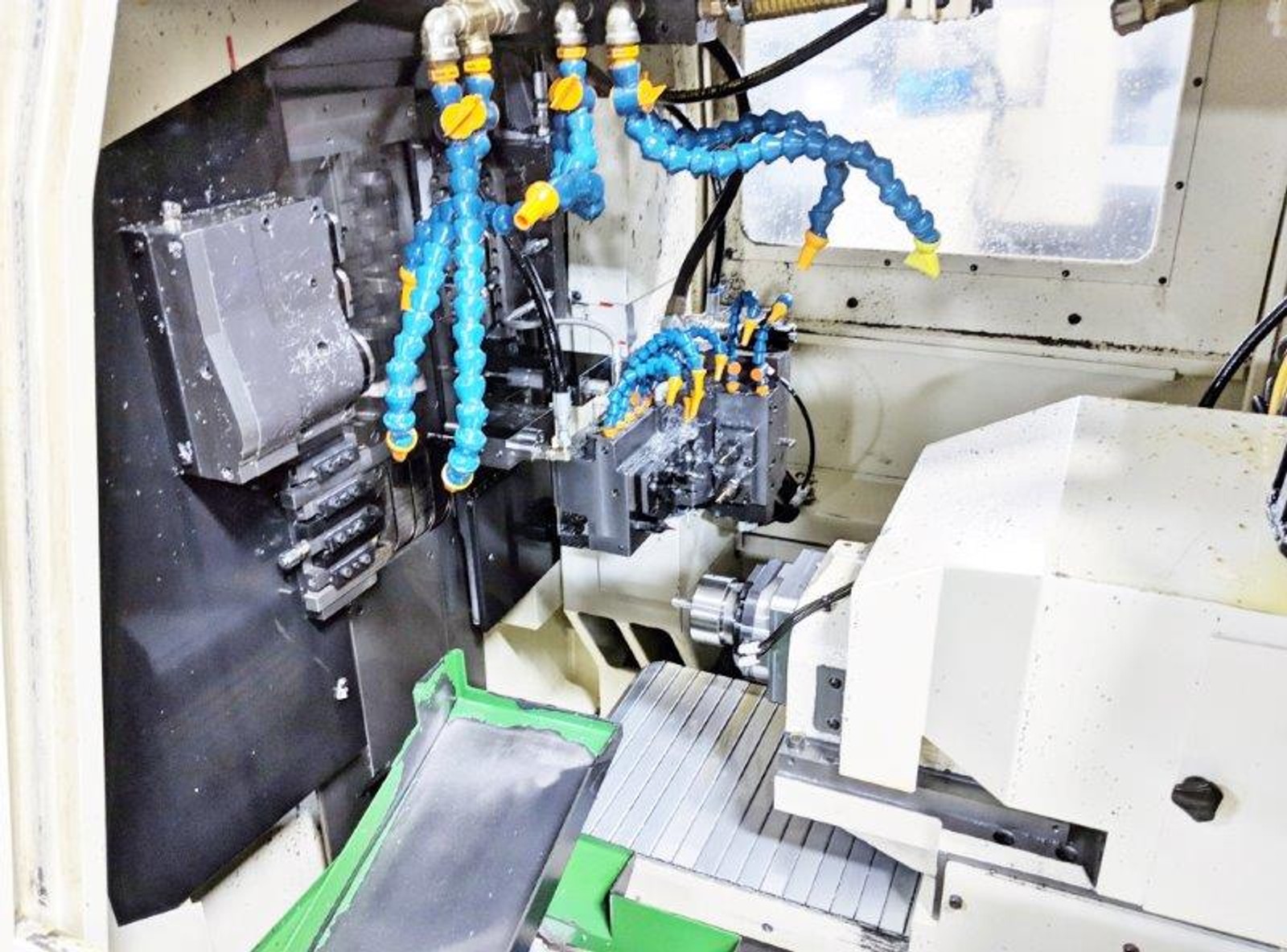

(6) STRAIGHT LIVE HOLDERS FOR MAIN SPINDLE
(2) STRAIGHT LIVE HOLDERS FOR SUB SPINDLE
TRANSFORMER

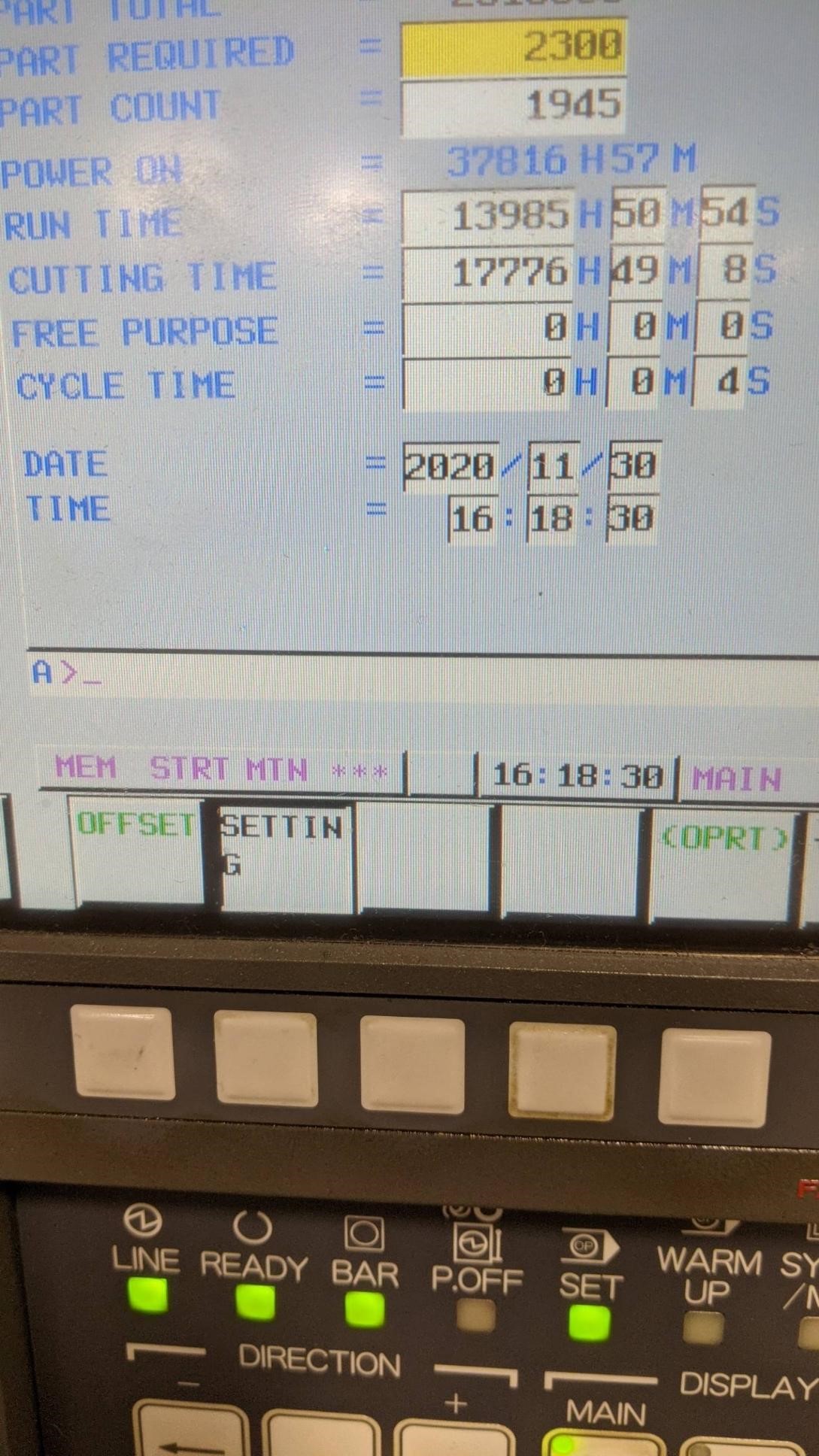

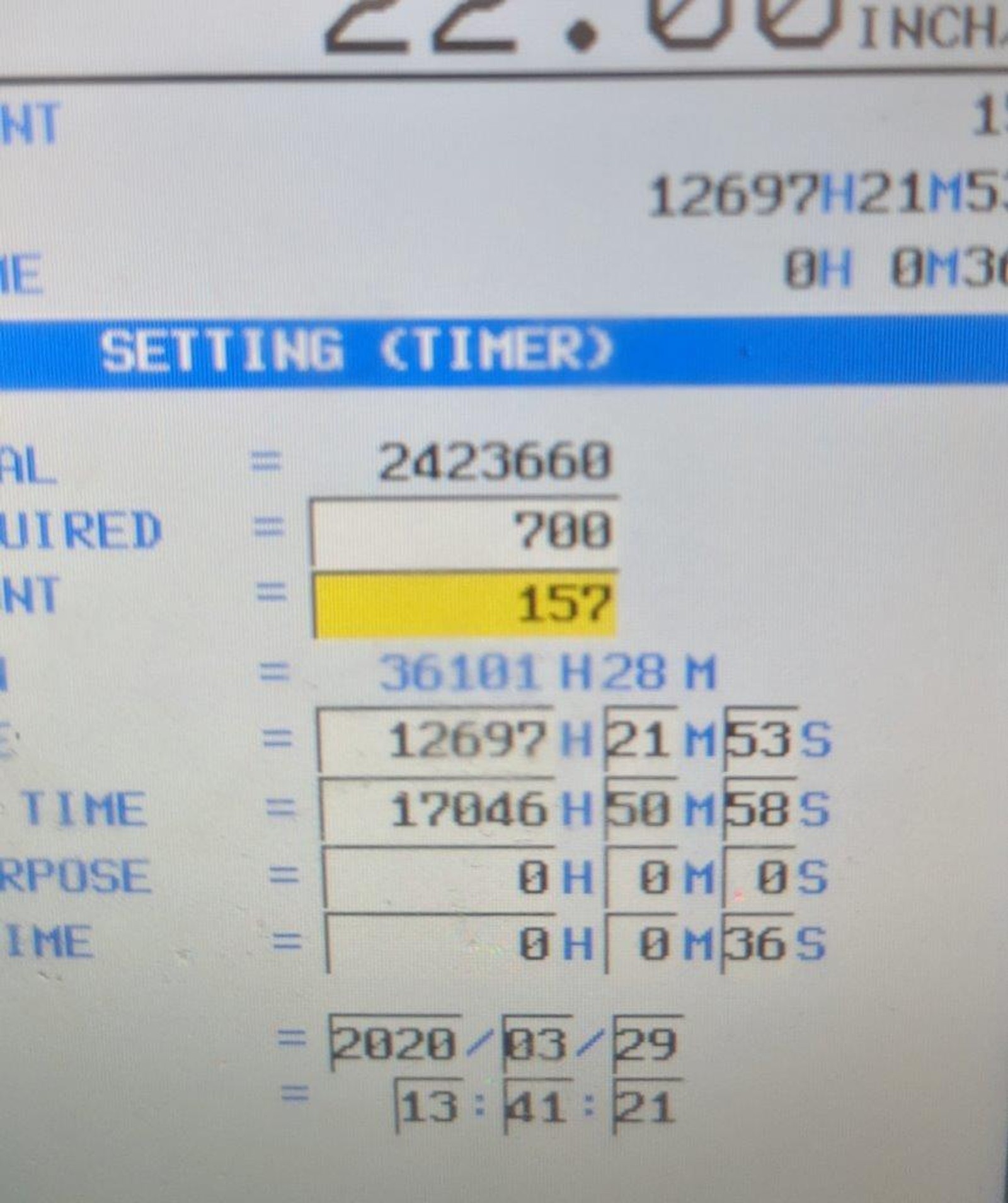

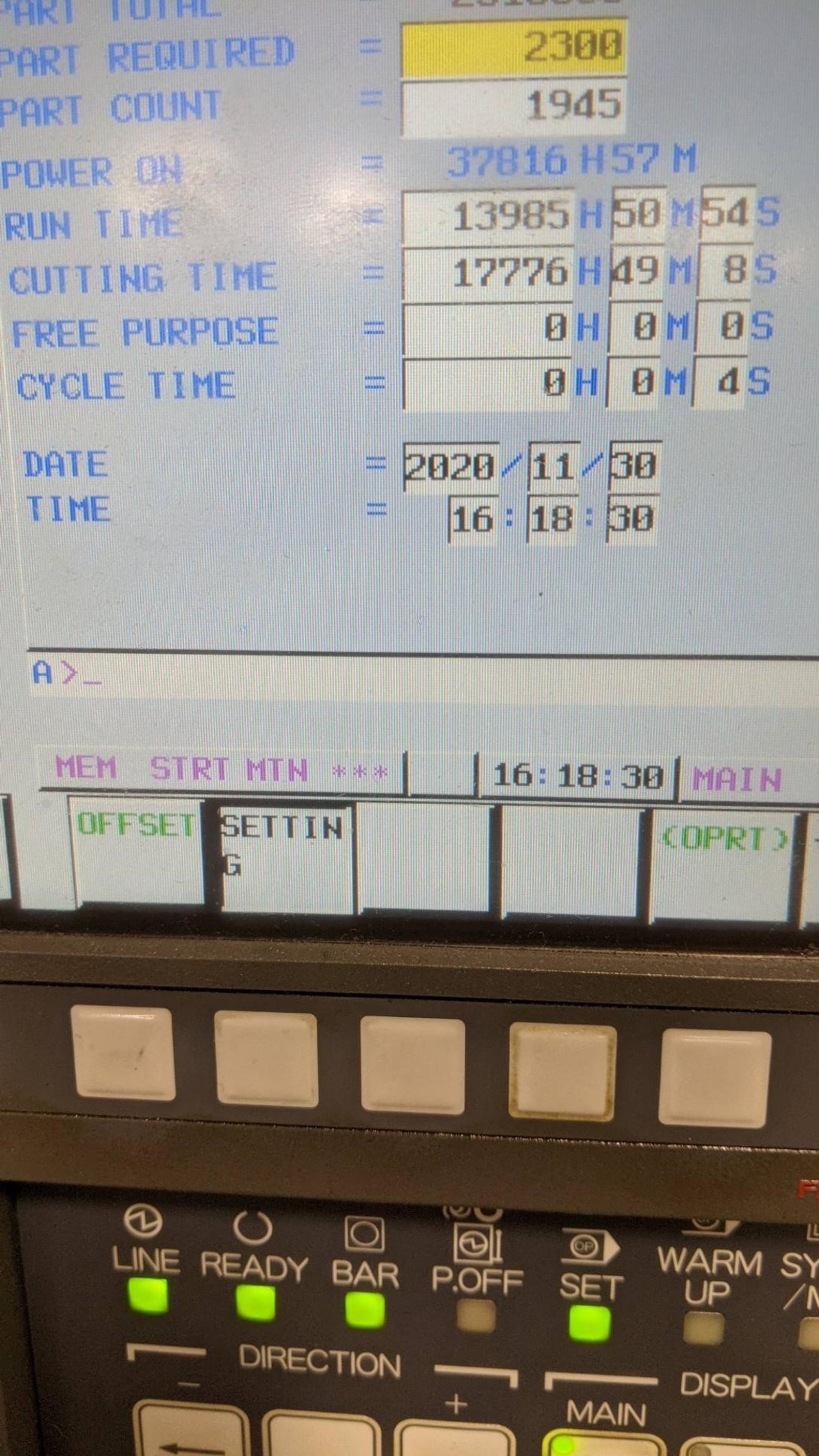

** AS OF APRIL 2023, CUTTING TIME - 20,786 HOURS

** MACHINE CUT PRIMARILY 12L14 SOFT STEEL
** REPLACEMENT COST, AS EQUIPPED - $230,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

** SELLER HAS USED HANGSTERFERS FULL SYNTHETIC CUTTING OIL ONLY
