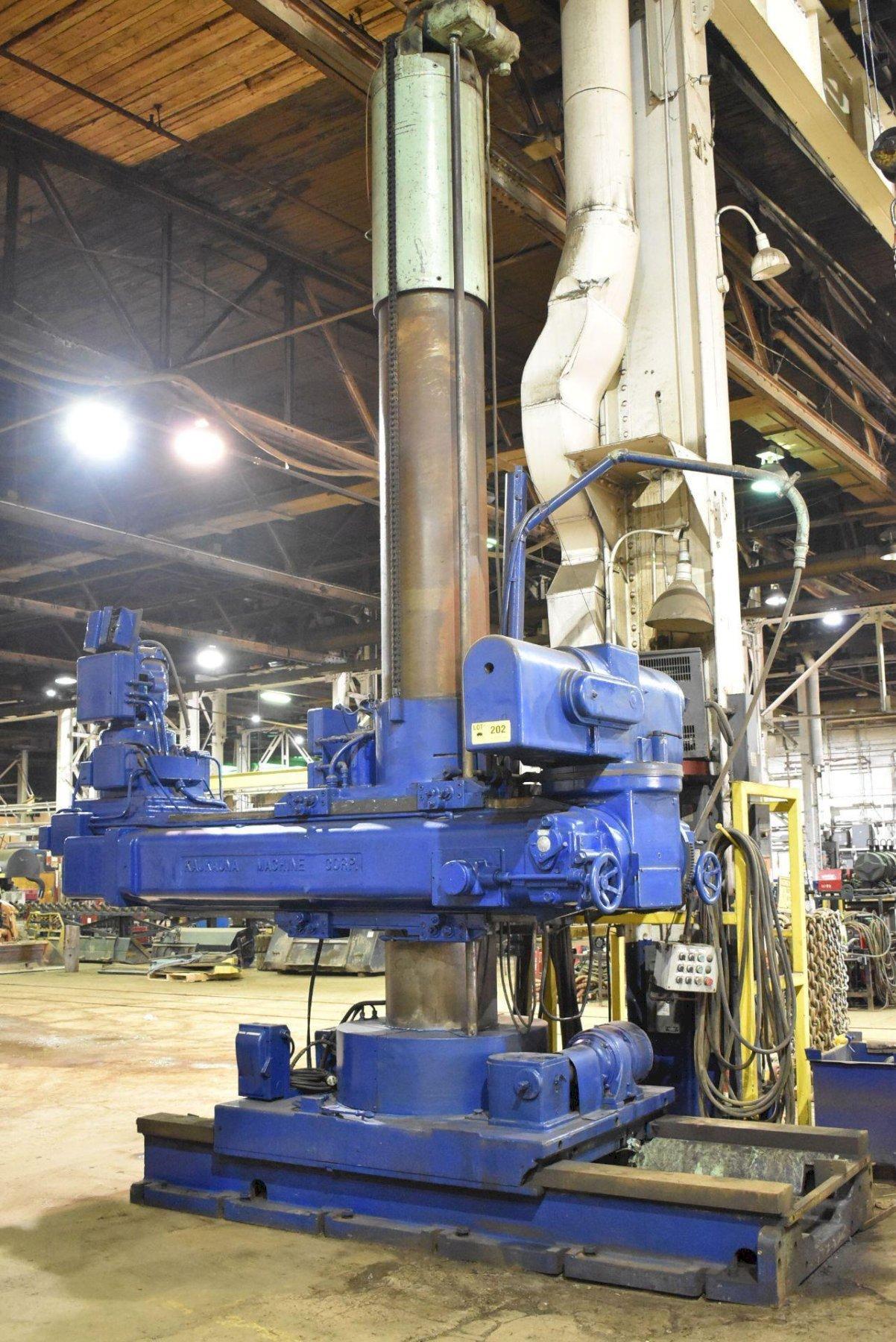

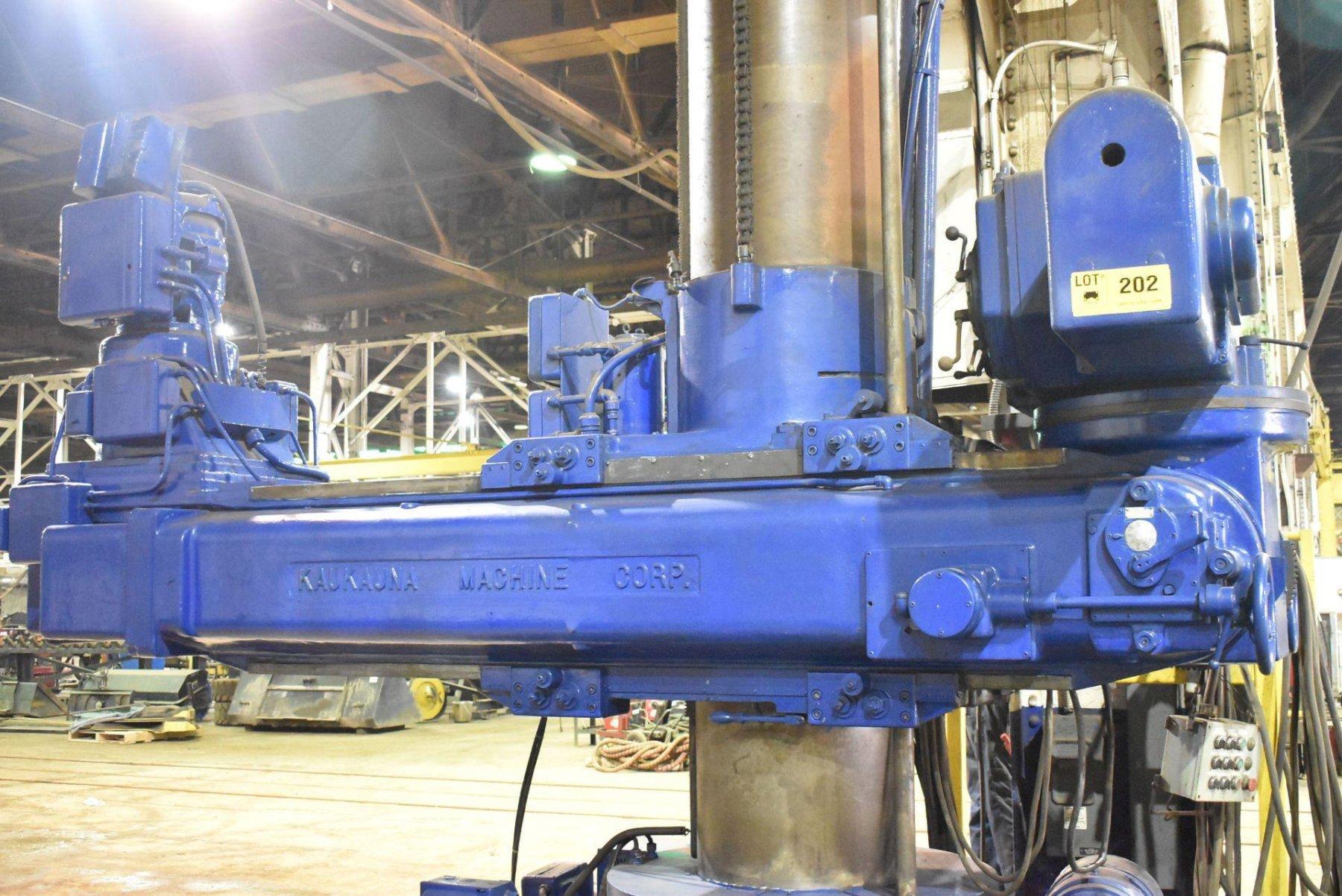

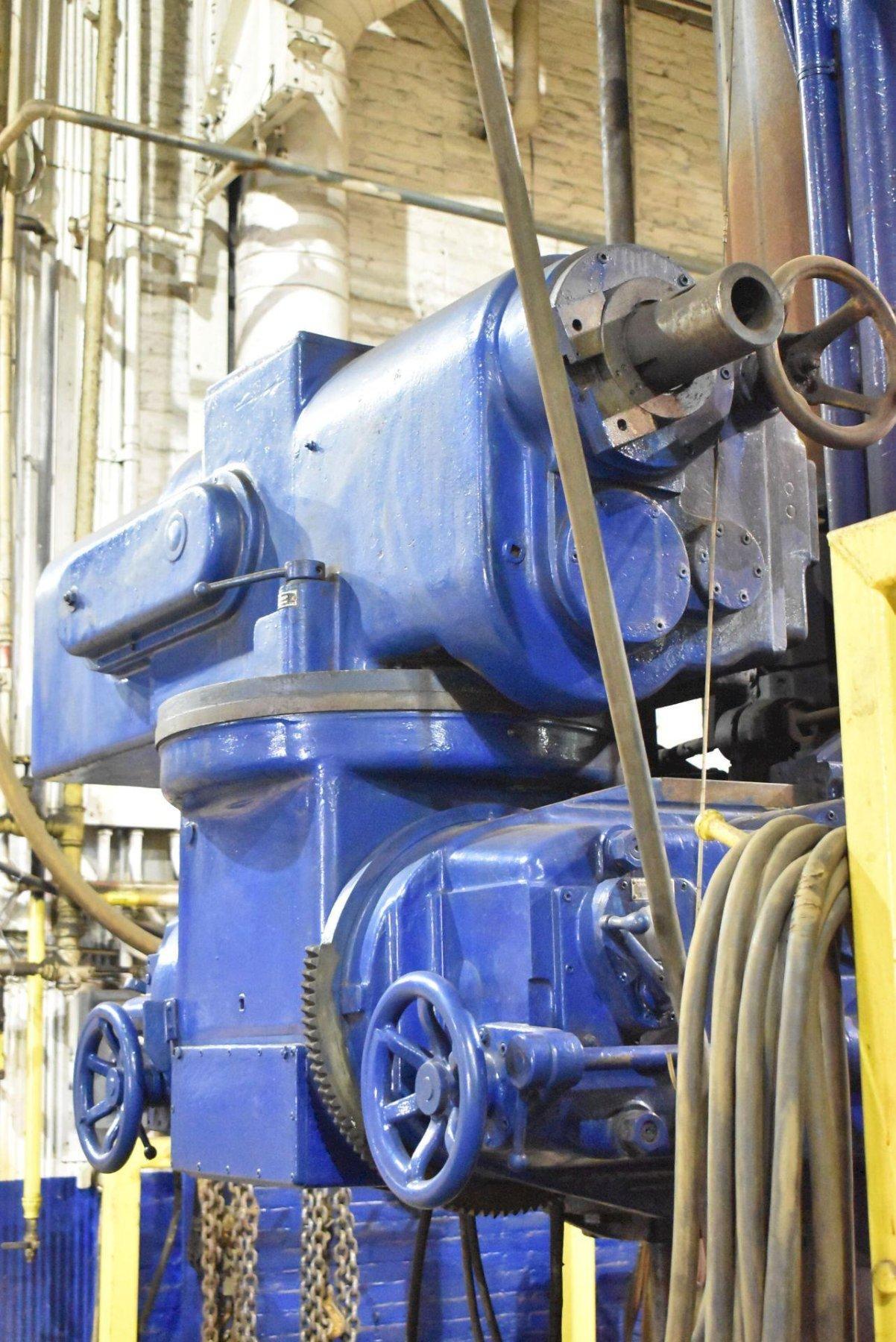

8' x 22" KAUKAUNA MODEL#140U PORTABLE UNIVERSAL RADIAL DRILL: STOCK #19479

Manufacturer

KAUKAUNA

Category

Drilling Machines

Type

DRILLING & TAPPING MACHINES, CNC

Stock

19479

Model

140U

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

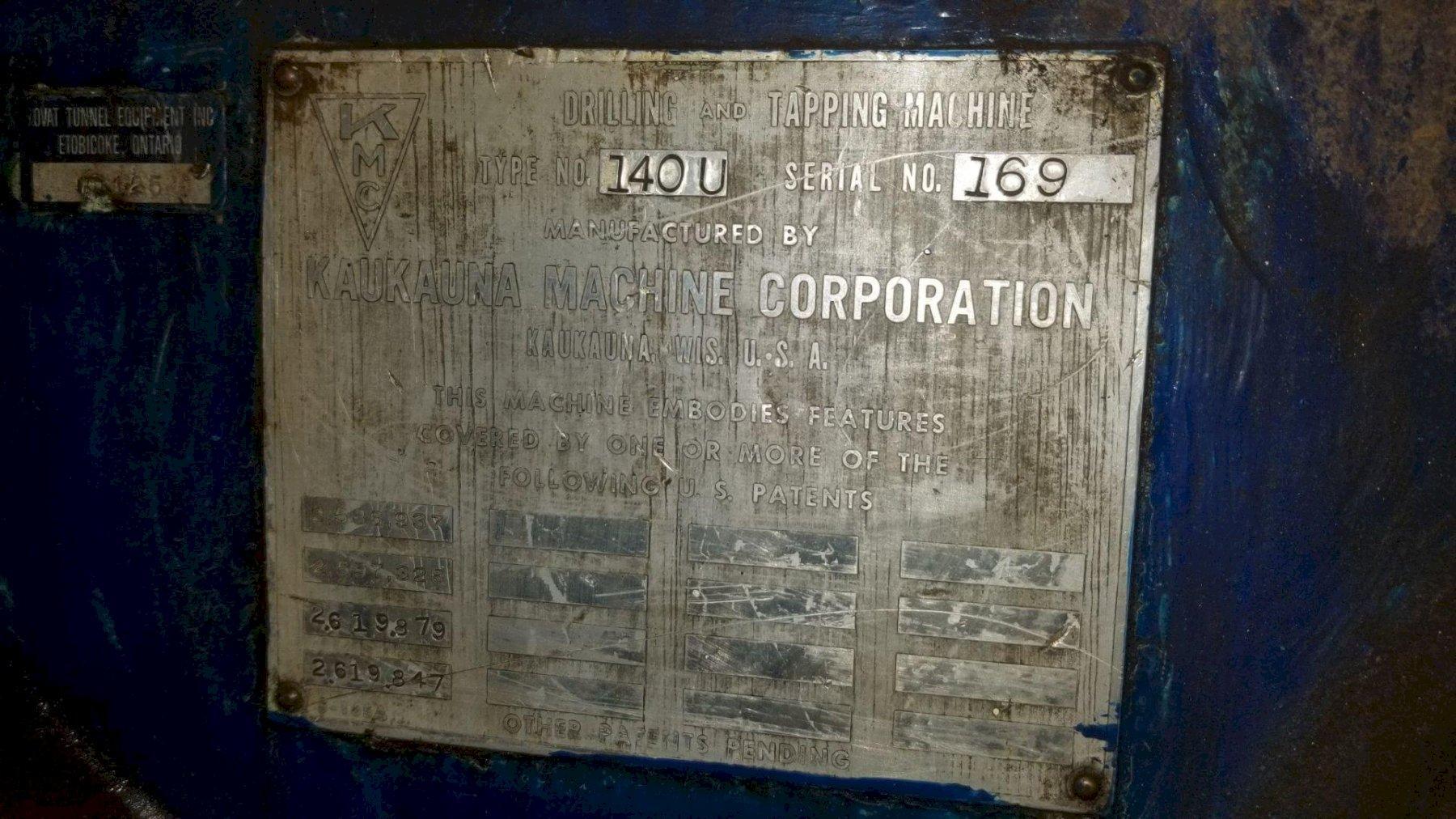

SERIAL ............................... 169
MODEL ................................ 140U
LENGTH OF ARM ........................ 8'
DIAMETER OF COLUMN ................... 22"
TAPER IN SPINDLE ..................... #5 MT
DIAMETER OF SPINDLE .................. 4"
SPINDLE SPEEDS ....................... (9) 45 TO 800 RPM
SPINDLE FEEDS ........................ (9) .0035 TO .062 IPR
RAPID TRAVERSE ....................... 80 IPM
SPINDLE TRAVEL ....................... 18"
VERTICAL TRAVEL OF HEAD ON COLUMN .... 60"
HORIZONTAL HEAD ADJUSTMENT ON RAILS .. 36"

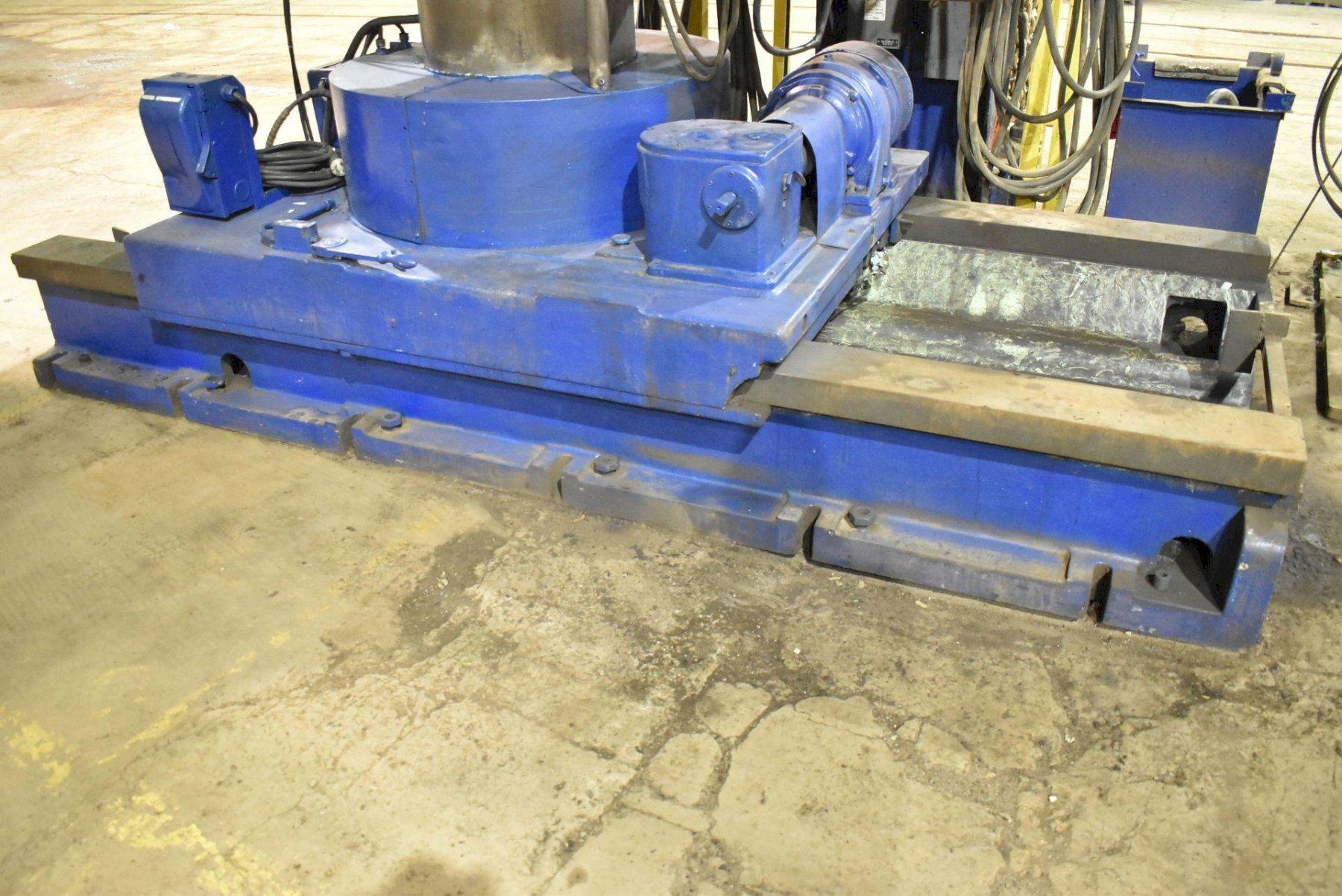

HORIZONTAL TRAVEL OF COLUMN ON BED ... 63"
HORIZONTAL TRAVEL OF ARM ............. 42"
VERTICAL TRAVEL OF ARM ............... 84"
SWIVEL OF COLUMN ON BASE ............. 360 DEGREES (MANUAL)
SWIVEL OF HEADSTOCK .................. 360 DEGREES
SWIVEL OF TRUNNION ................... 180 DEGREES
SPEEDS ............................... 600 RPM
MOTOR ................................ 10 HP
