Mazak Quick Turn Smart 300, 28" Swing, 50" Centers, 10" Chuck, Tool Presetter, Tailstock, Chip Conveyor, 2012, #32733

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32733

Model

Quick Turn Smart 300

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32733

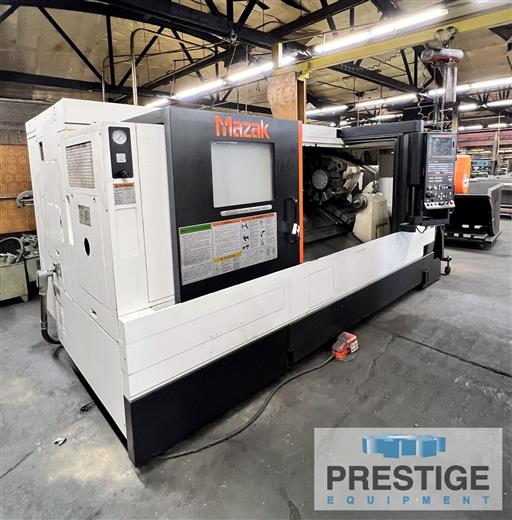

Mazak Quick Turn 300 Smart CNC Turning Center

FEAUTRES:
Mazatrol Smart CNC Control
10" Chuck
Tailstock
Chip Conveyor

SPECIFICATIONS:
Maximum Swing ......................... 28.35"
Maximum Machining Diameter ............ 16.53"
Machining Length ...................... 50.47"
Maximum Bar Capacity .................. 3"
Spindle Speed ......................... 4000 RPM
Spindle Motor ......................... 35 HP
Turret Positions ...................... 12
X-Axis Travel ......................... 25.4"
Z-Axis Travel ......................... 51.37"
Machine Dimensions .................... 120" x 75.1"

EQUIPPED WITH:

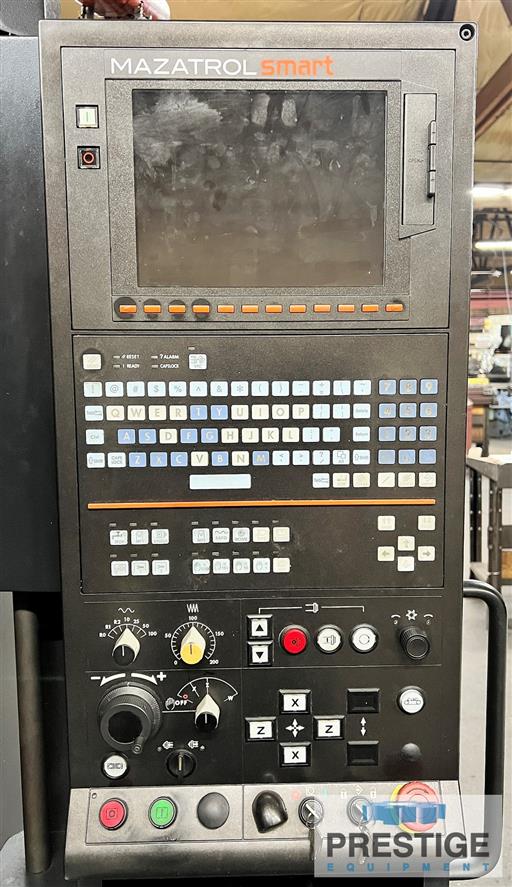

Mazatrol Smart CNC Control
10" Kitagawa 3-Jaw Chuck

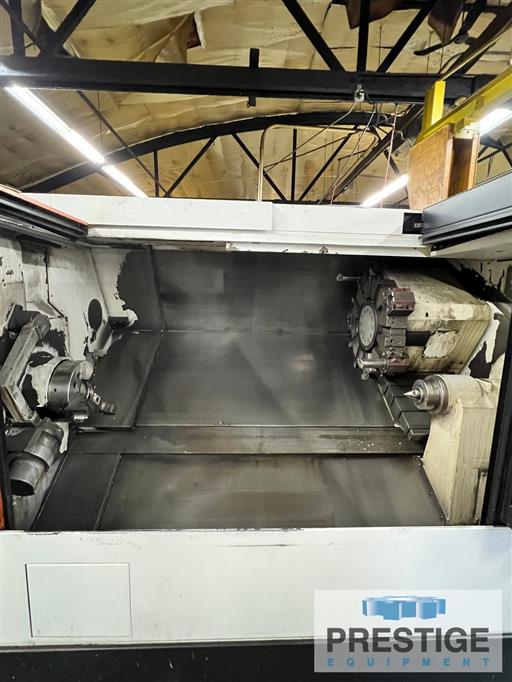

12-Station Auto Indexing Turret
Automatic Tool Eye
Programmable Tailstock
Jorgensen Chip Conveyor

NOTE:
Hours - 9,263

LOCATIONS:
Philadelphia, PA
