Okuma Multus U4000 Multi-Axis,25.5" Swing, 59" Centers, Milling, 80 ATC, B&C Axis, Sub Spindle, OSP-P300SA, 2019, #31460

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

31460

Model

Multus U4000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31460

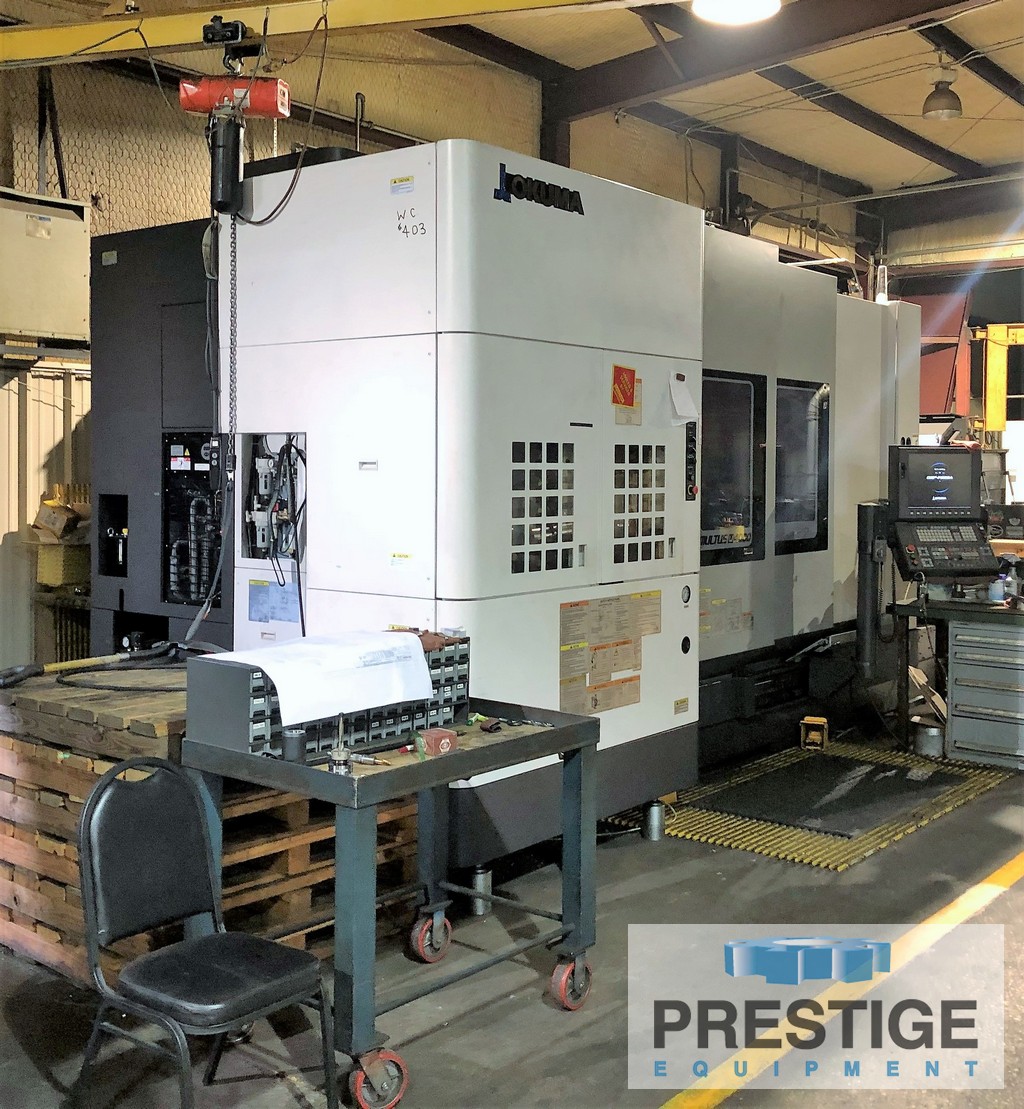

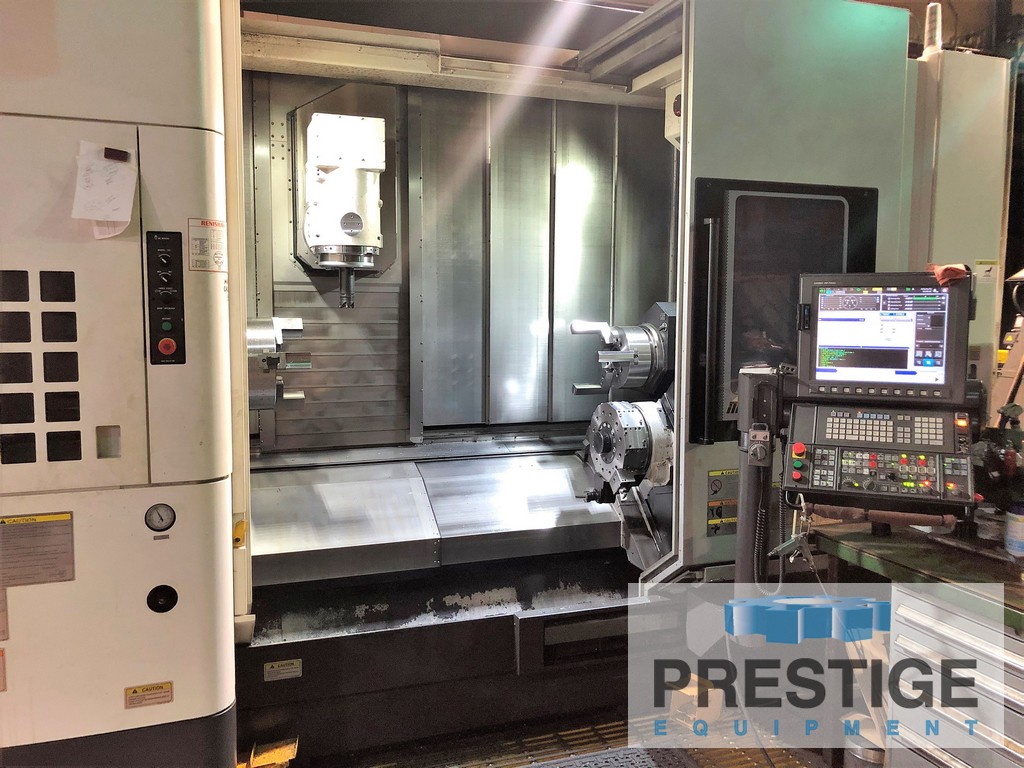

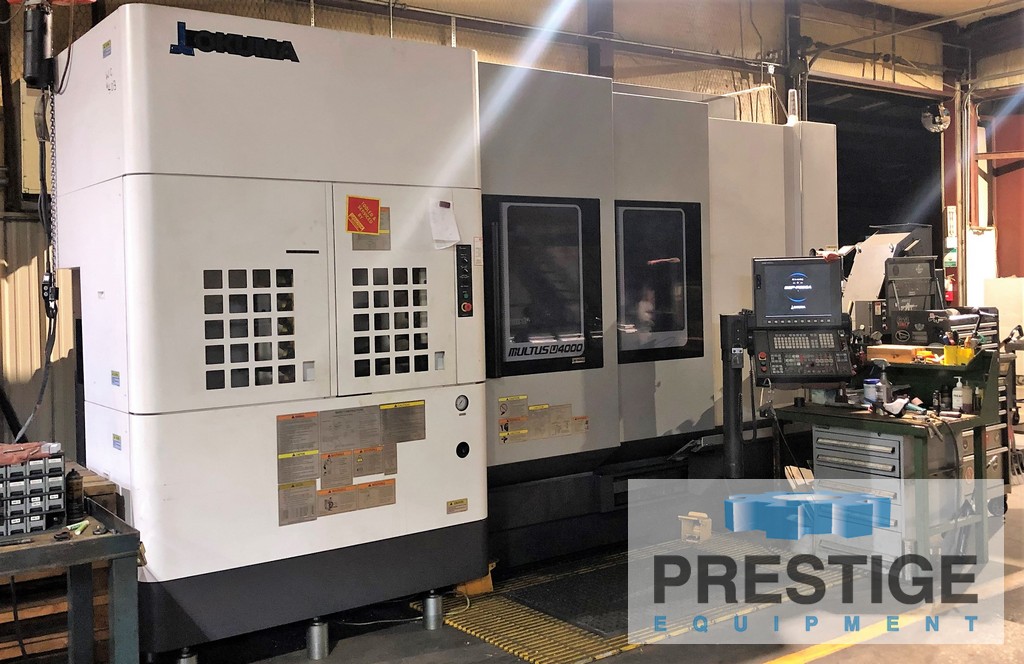

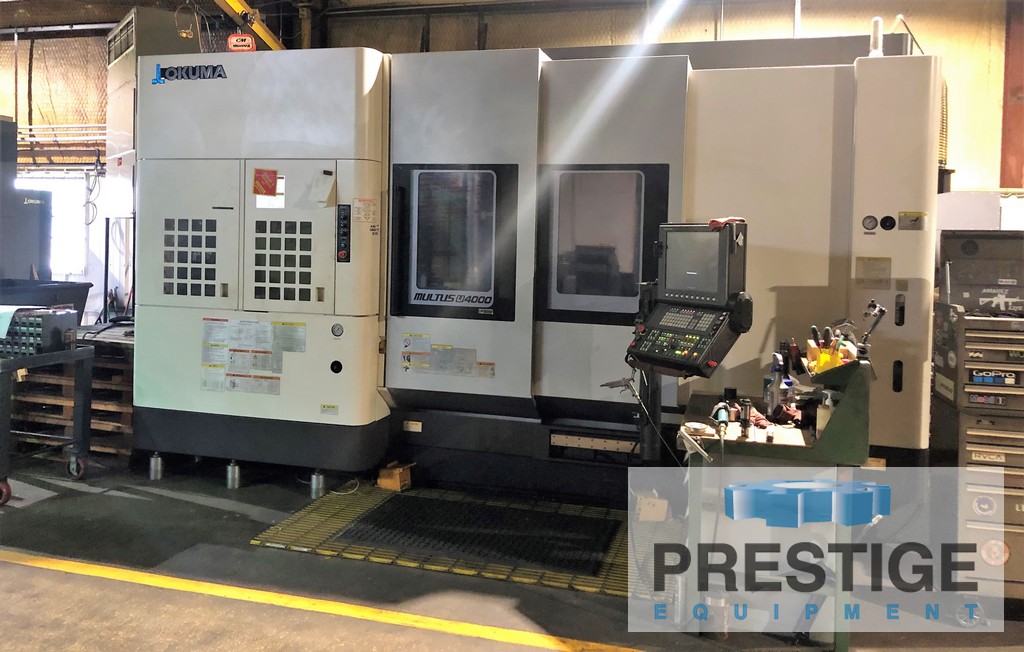

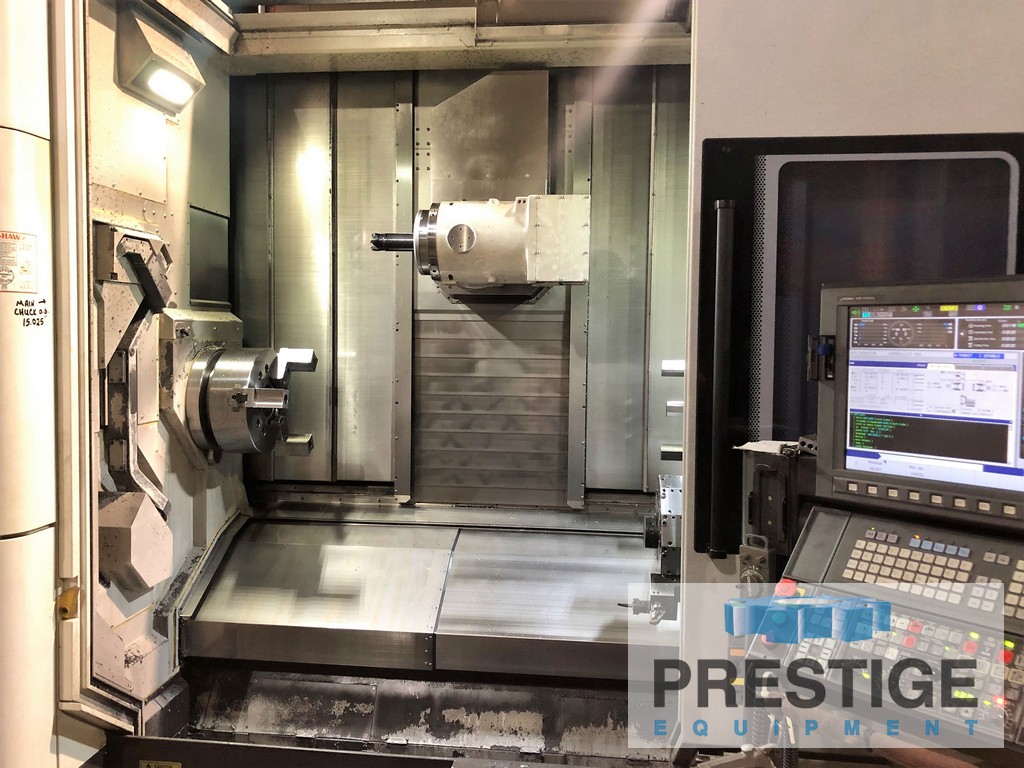

Okuma Multus U4000 Multi-Axis CNC Lathe

FEATURES:
OSP-P300SA CNC Control

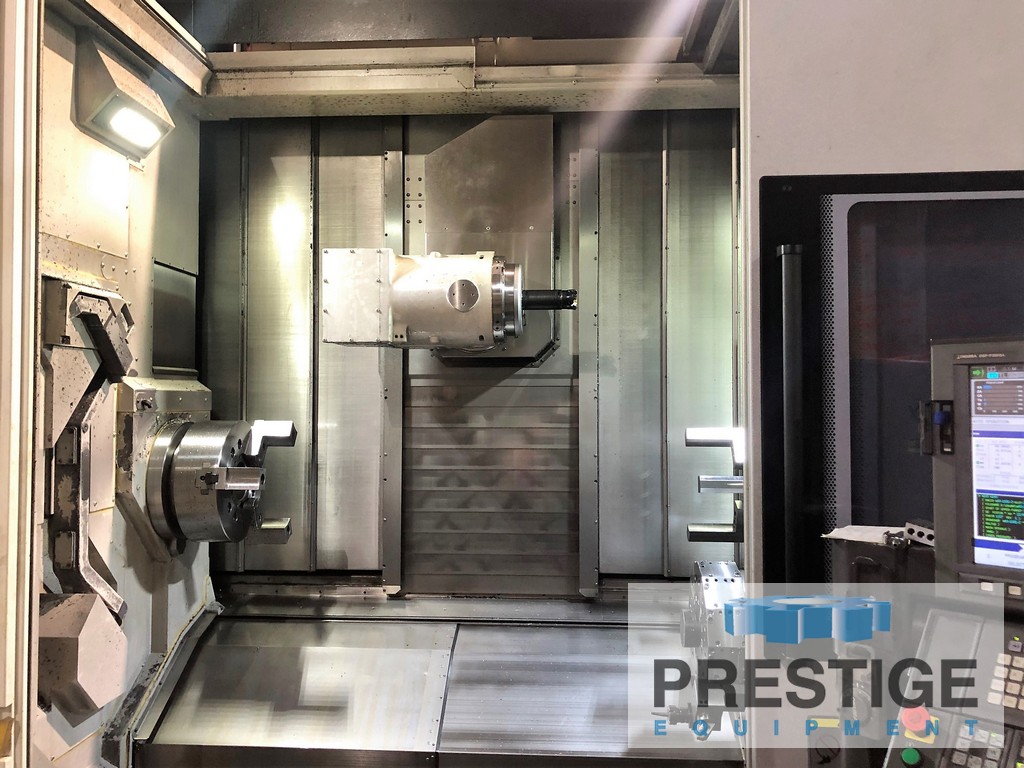

15" 3-Jaw Kitagawa Chuck (Main)
12" 3-Jaw Kitagawa Chuck (Sub)

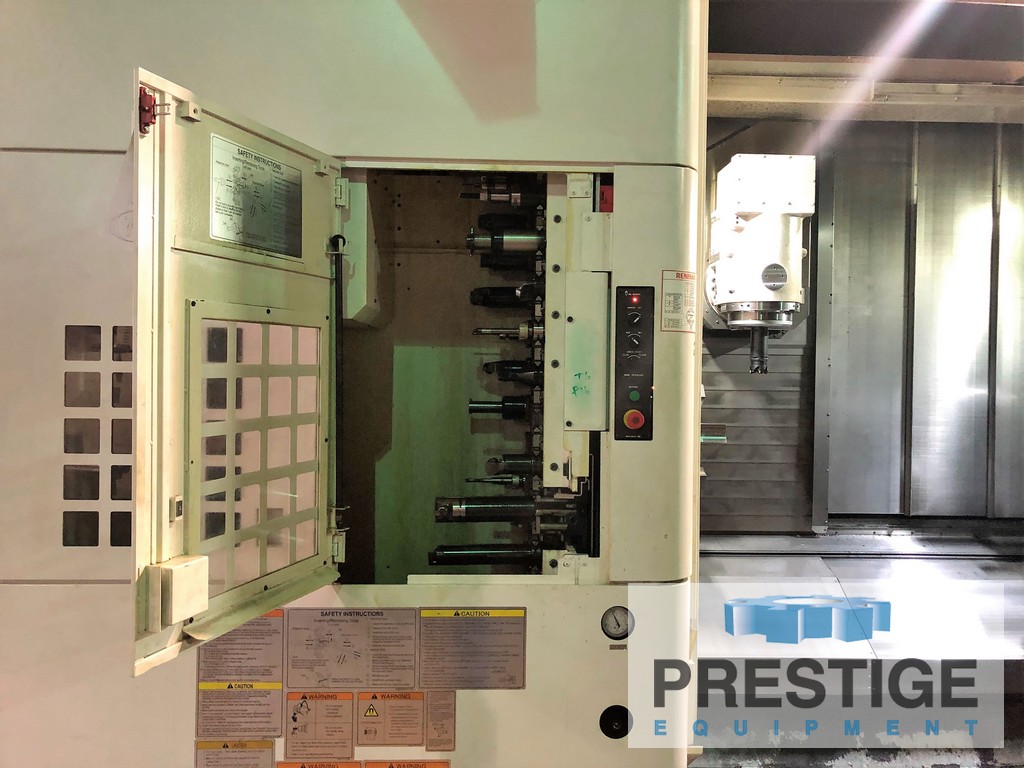

80-Station Tool Changer (CaptoC6)
Live Milling
C-Axis Indexing
Sub Spindle

CAPACITIES:
Maximum Turning Diameter ............. 25.59"
Maximum Distance Between Centers ..... 59.05"
Main Spindle Speed Range ............. 3800 RPM
Milling Speeds ....................... 12,000 RPM
Spindle Nose & Sub Spindle ........... JIS A2-8
X-Axis (Upper) ....................... 27.36"
X-Axis (Lower) ....................... 9.25"
Y-Axis Travel ........................ +/- 11.8"
Z-Axis (Upper) ....................... 62"
Z-Axis (Lower) ....................... 60"
W-Axis (Sub Spindle) ................. 60"
C-Axis Indexing ...................... 0.001 Degree
B-Axis Indexing ...................... -30 to +210/.001 Min Angle
Spindle Bore ......................... 3.15"
Main Motor ........................... 30 HP/ 20HP
Rapid Traverse XA/ZA ................. 1,968 IPM
Rapid Traverse ZB/Y .................. 1,574 IPM
Rapid Traverse XB .................... 980 IPM


EQUIPPED WITH:
OSP-P300SA CNC Control
15" 3-Jaw Kitagawa Chuck (Main)
12" 3-Jaw Kitagawa Chuck (Sub)
80-Station Tool Changer (CaptoC6)
Big Bore
Auto Gauging Renishaw RMP600 Capto C6
Auto Door w/ Dual Cycle St
C-Axis
Touchsetter A for 2S Y-Axis Gauging
C-Axis Auto Zero Off (L or R)Feed Hold During Threading
Helical Cutting for X-C-Z
Inverse Time Function
Off-Center Turning Function
Thread Start Point Off-Set
Variable Spindle Spd Threading
Prep for Mist 6 STD Lathe
Shower Coolant Niagara B Type Renishaw Plus Software
MP Systems High Pressure Coolant
MP Systems Mist Collection System

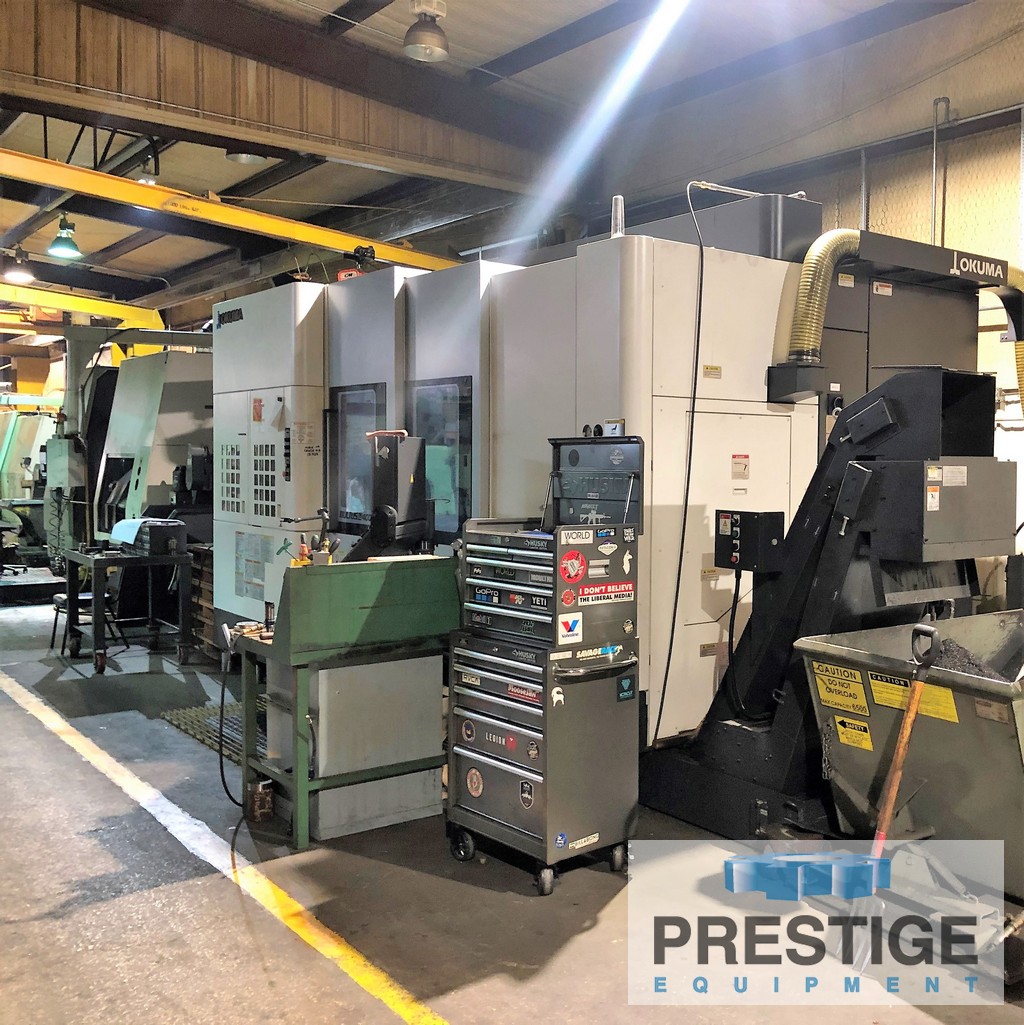

Chip Conveyor

HOURS:
1,738 Hours

NOTE:
Inspect In Plant Under Power

No Video Available
