Haas ST 35Y, 21" x 32.5", Live Tooling, C-Axis, 300 PSI Hi Pressure Coolant , Presetter, Chip Conveyor, 2016, #43094

Manufacturer

HAAS

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

43094

Model

ST 35Y

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43094

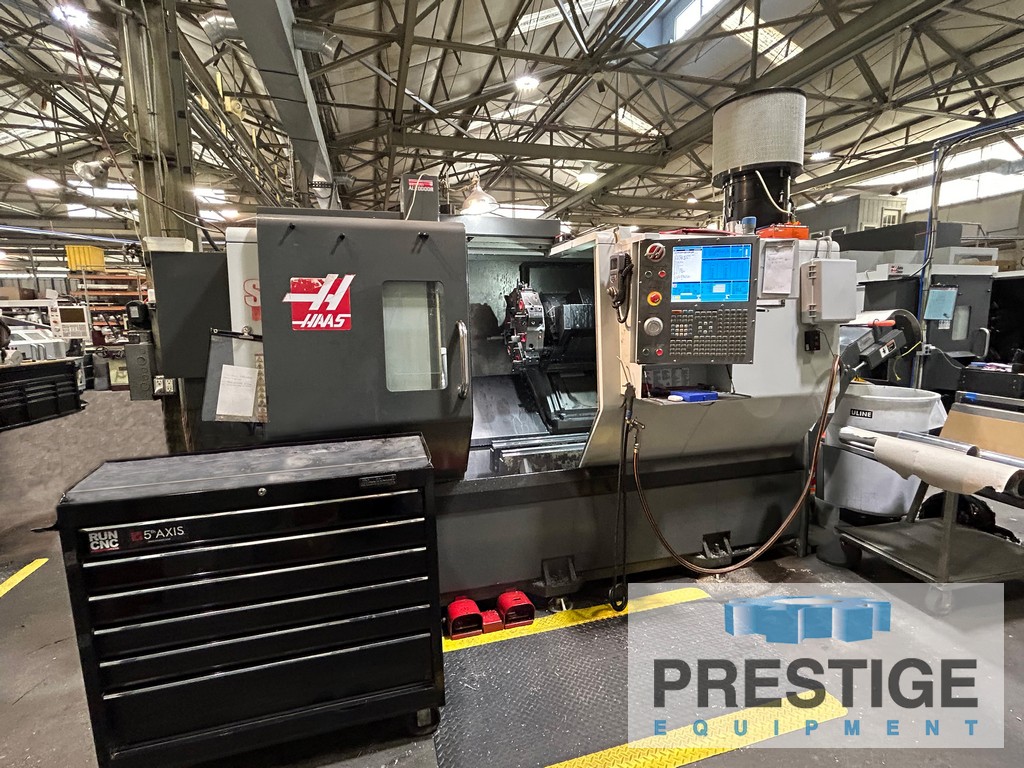

Haas ST 35Y CNC Lathe

FEATURES:
Haas CNC Control with 15" Color LCD Monitor

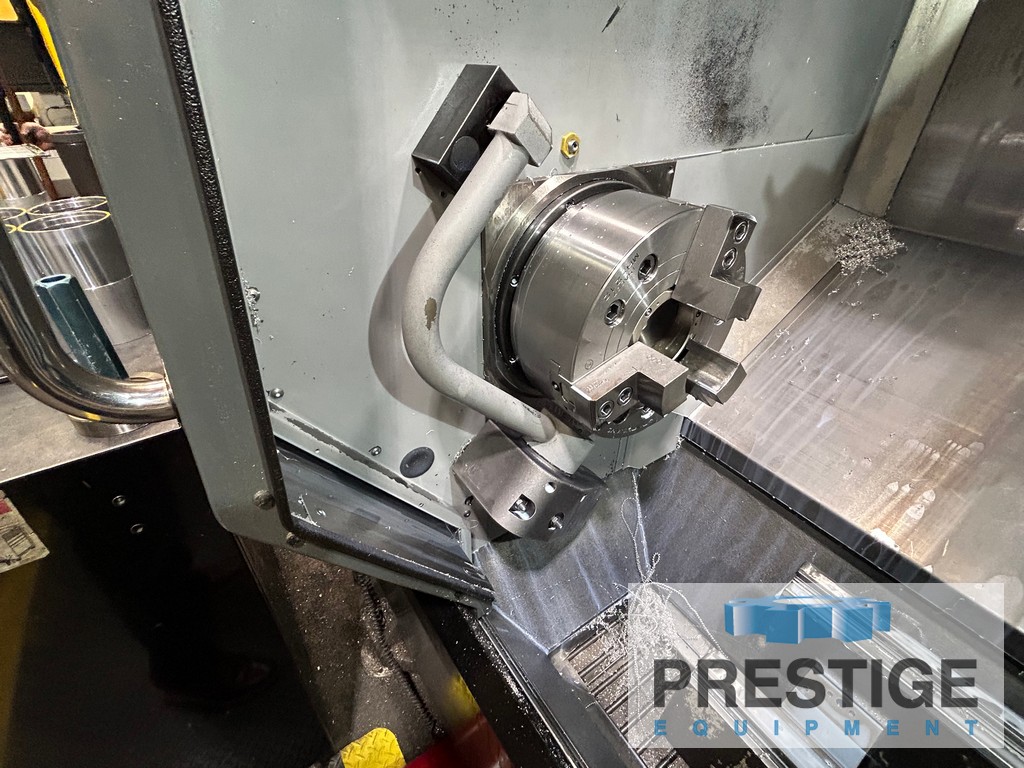

12" 3-Jaw Hydraulic Chuck
High Torque Live Tooling
Servo Driven C-Axis
High Pressure Coolant (300 PSI)
Automatic Tool Pre-Setter
Programmable Hydraulic Tailstock
Belt Type Chip Conveyor
Tooling

CAPACITY:
Maximum Part Swing .................... 21"
Maximum Cutting Diameter .............. 13.75"
Maximum Cutting Length ................ 32.5"
Spindle Speeds ........................ 3,200 RPM
Spindle Motor ......................... 40 HP
Spindle Nose .......................... A8-5
Spindle Bore .......................... 4.62"
Bar Capacity .......................... 4"
X-Axis Travel ......................... 9.4"
Y-Axis Travel ......................... +/- 2"
Z-Axis Travel ......................... 32.5"
C-Axis Positioning .................... 0.01 Deg.
Live Milling Speed .................... 4,000 RPM
Rapids(X/Y Axis) ...................... 472 IPM
Rapids(Z-Axis) ........................ 945 IPM

EQUIPPED WITH:

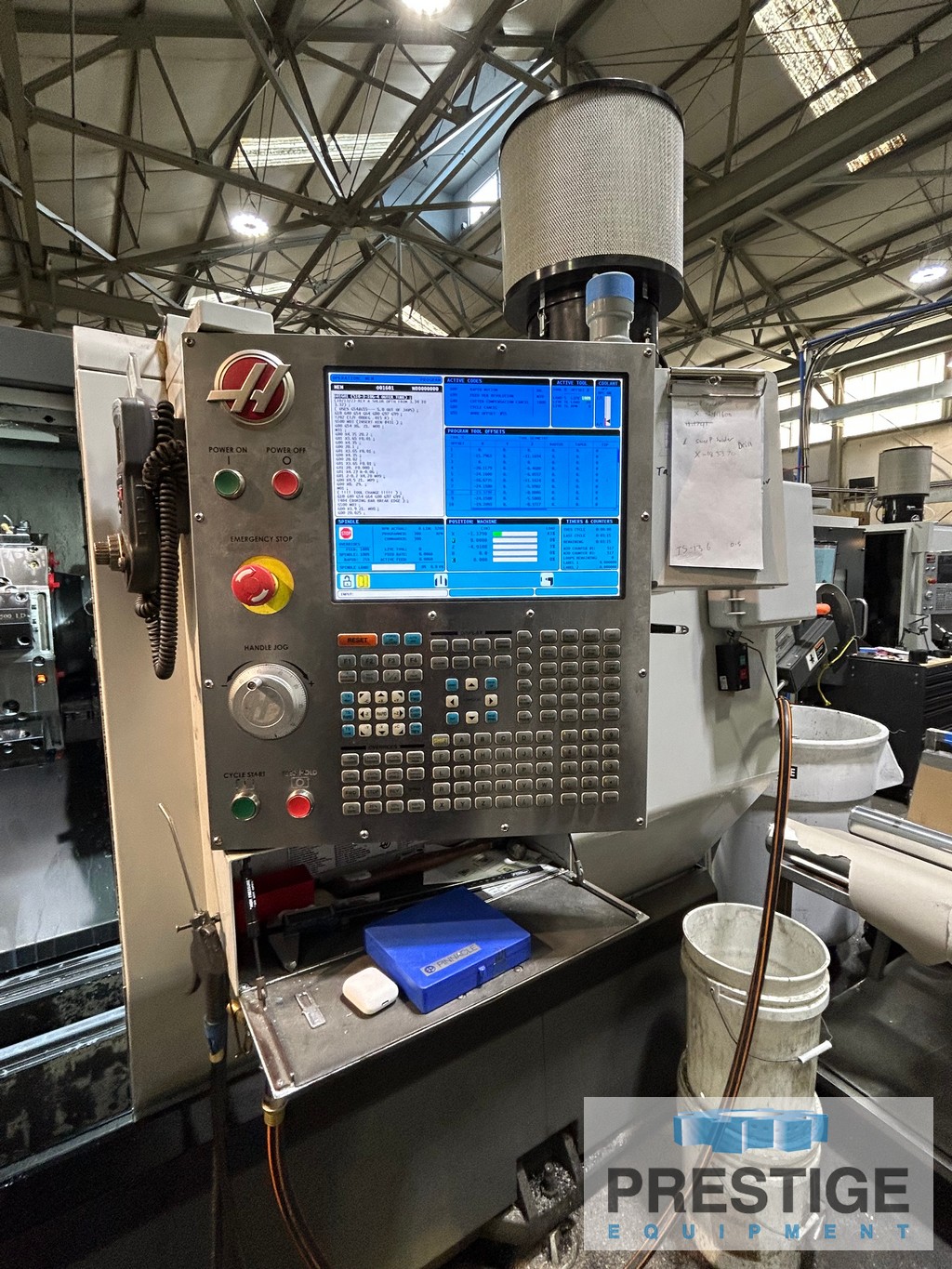

Haas CNC Control with 15" Color LCD Monitor
750 MB Expanded Memory
Remote Jog Handle, Color Display
USB Port
12" 3-Jaw Hydraulic Chuck
High Torque Live Tooling
Servo Driven C-Axis

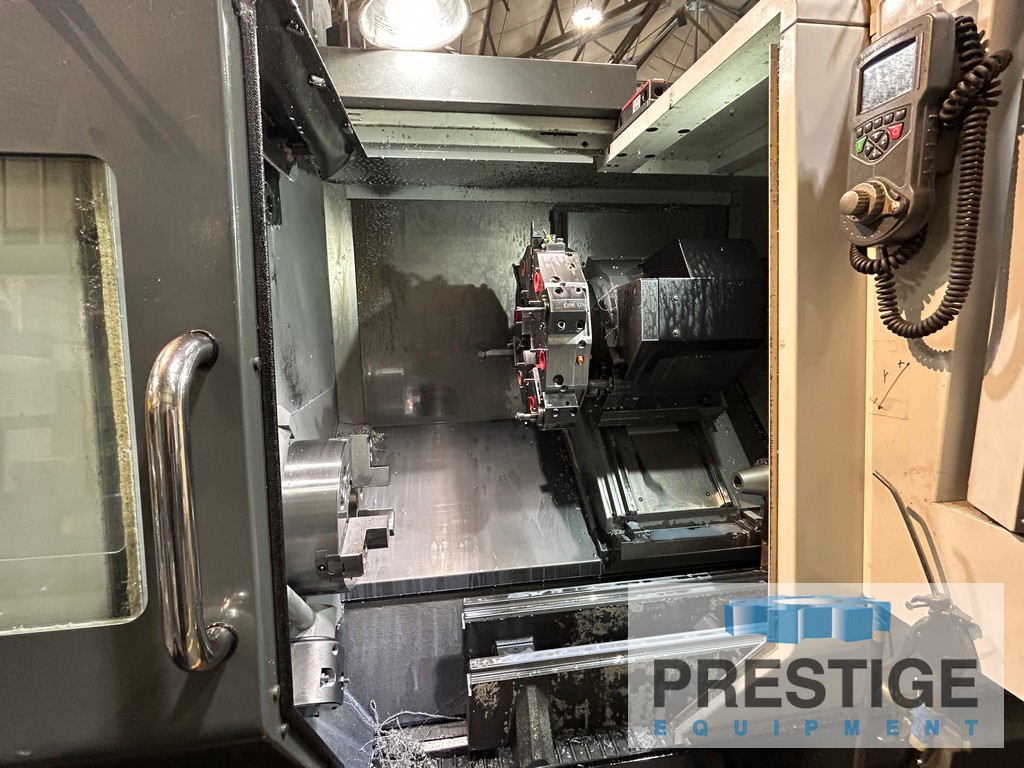

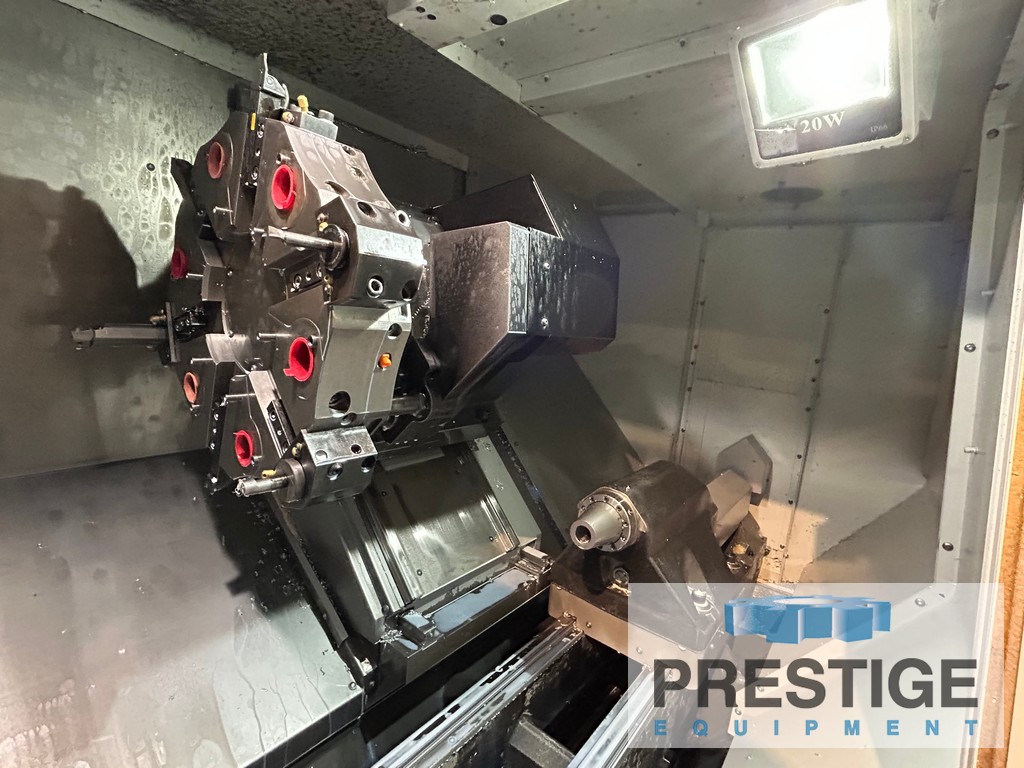

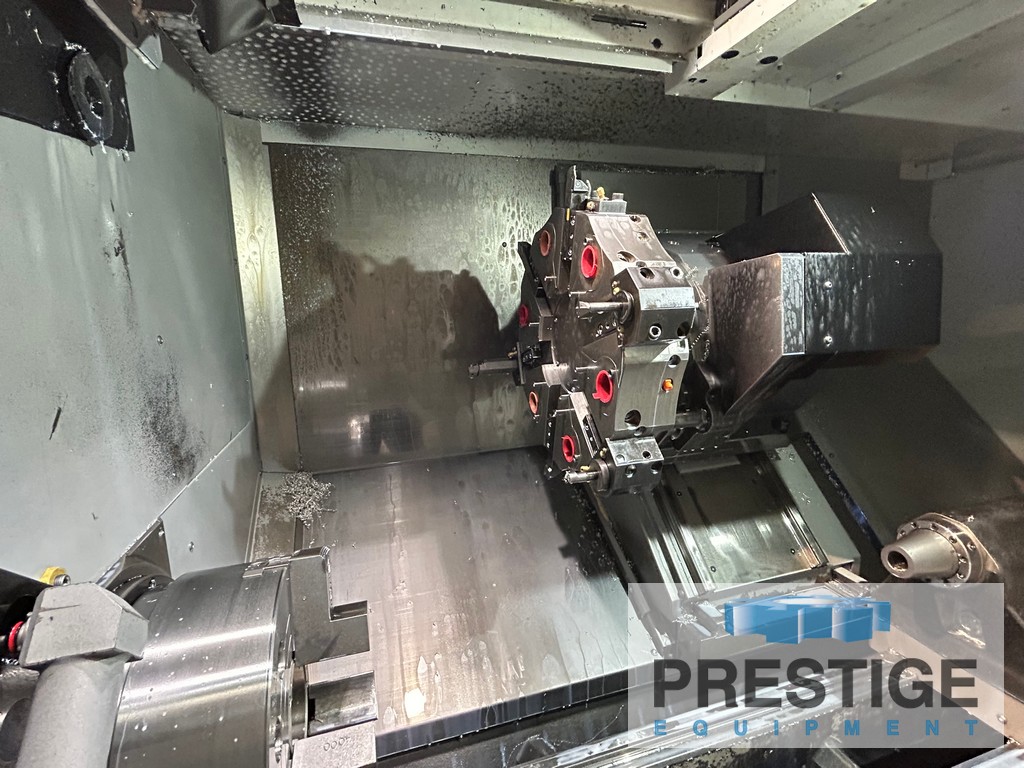

12-Station Hybrid Turret
High Pressure Coolant (300 PSI)
Automatic Door Option
Spindle Orientation
Rigid Tapping
Automatic Tool Pre-Setter
CNC Control Cabinet Cooler (A/C Unit for Cooling Control Cabinet)
Programmable Hydraulic Tailstock

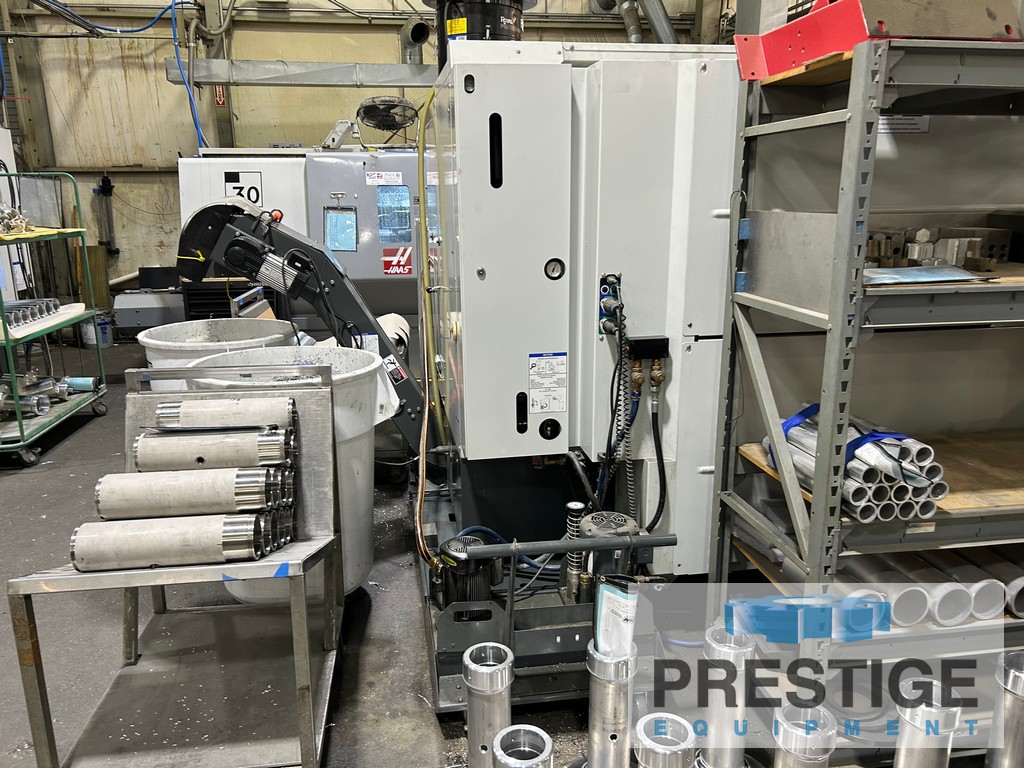

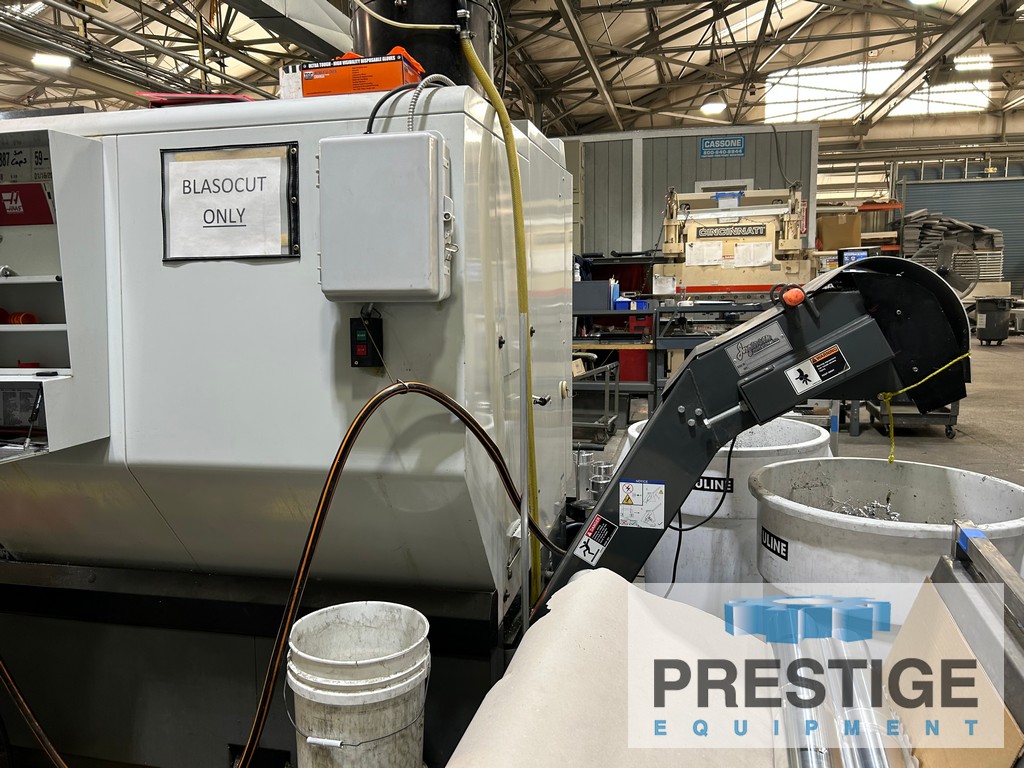

Belt Type Chip Conveyor

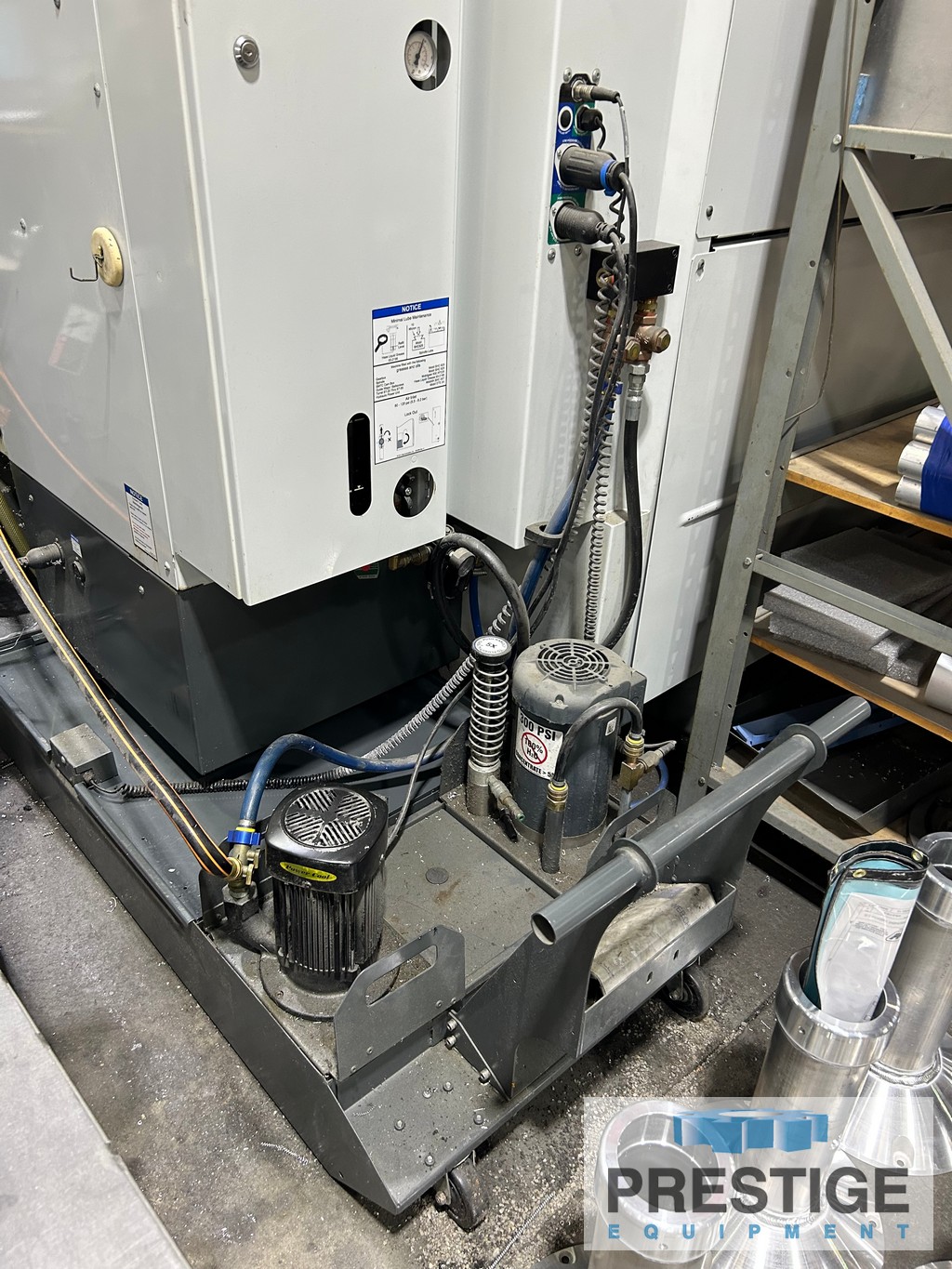

Coolant Tank Oil Skimmer
Tooling

NOTE:
Inspect In Plant Under power
