Ravensburg 100" x 254" Lathe, 84" O/C, 63" 4-Jaw Chuck, 240 RPM, Crane Rope Threading, Copy Device,19.8 Ton Cpty, #32731

Manufacturer

RAVENSBURG

Category

Lathes

Type

LATHES, ENGINE

Stock

32731

Model

K-85

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32731

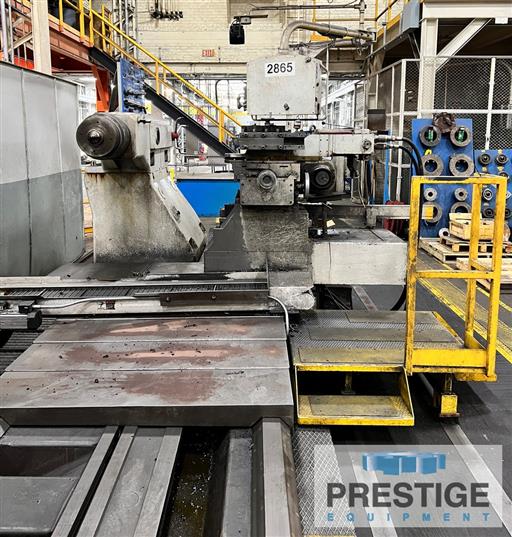

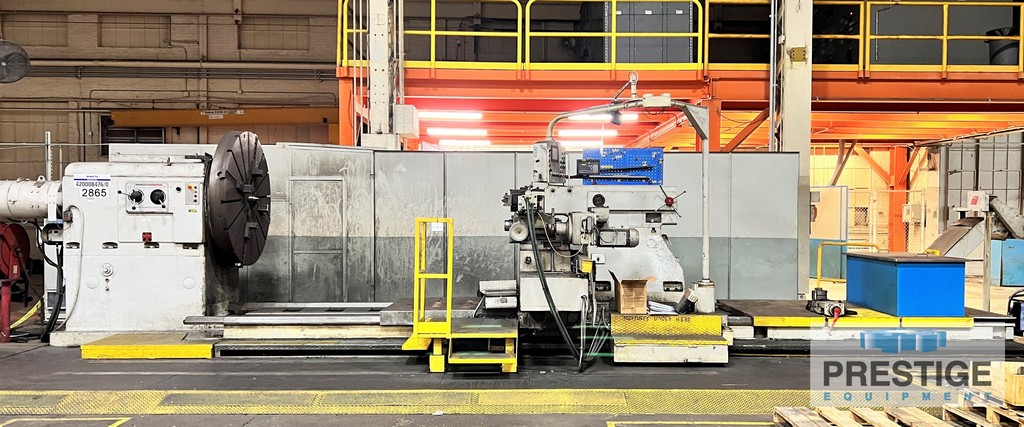

Ravensburg 100" x 254" Manual Lathe with Crane Rope Drum Threading

FEATURES:

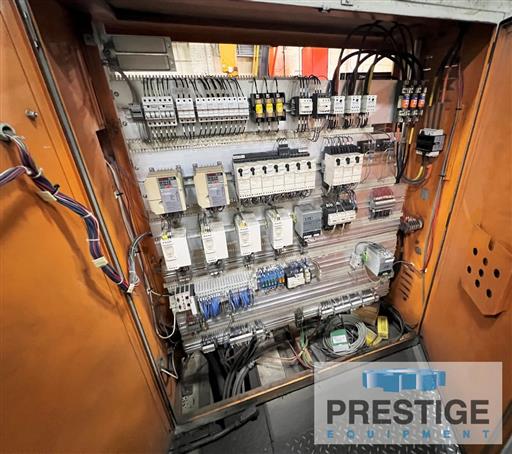

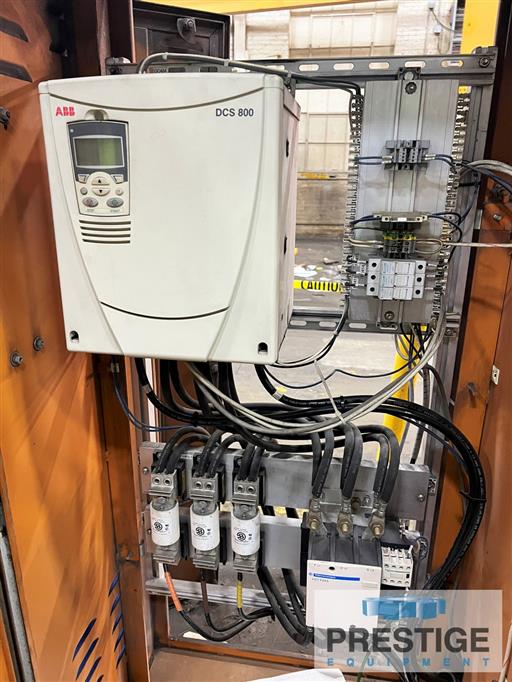

New Electrics In 2010

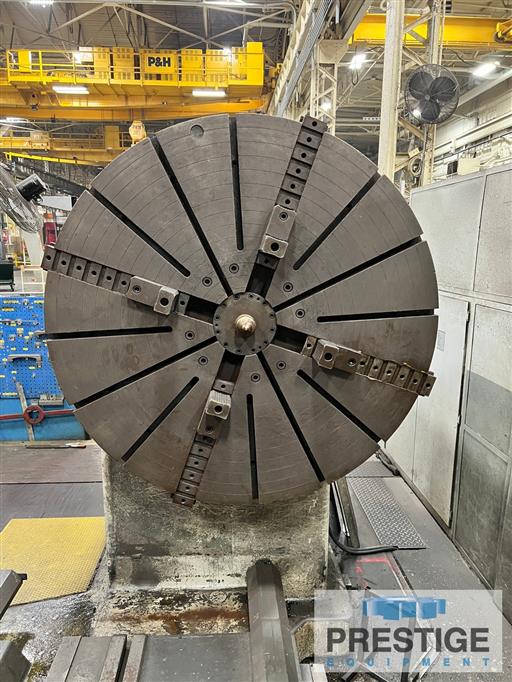

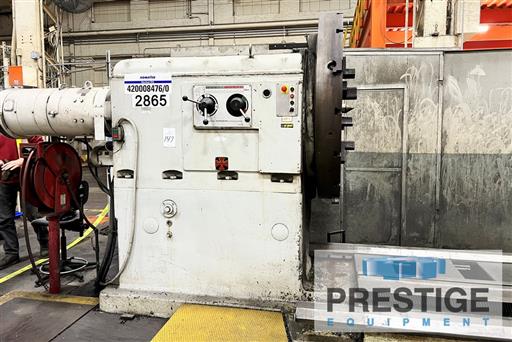

63" Diameter 4-Jaw Face Plate

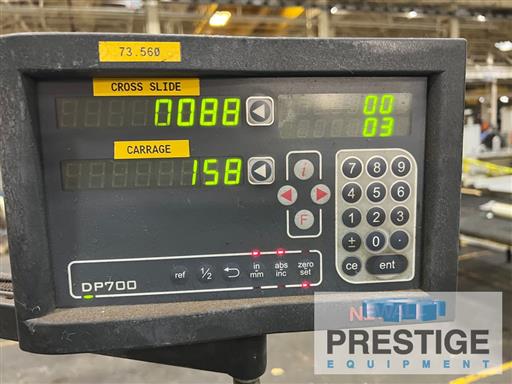

Newall DP700 Digital Readouts

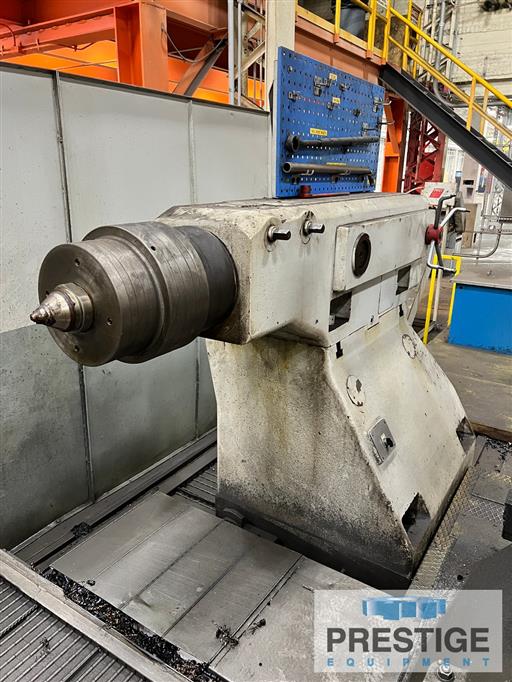

Tailstock with Live Center
Drum Grooving Change Gears

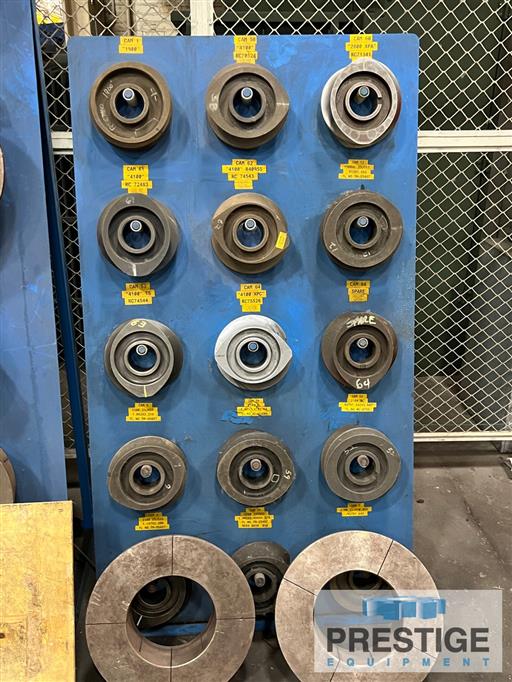

Copying Device for Drum/Crane Threads
60 HP Spindle Drive

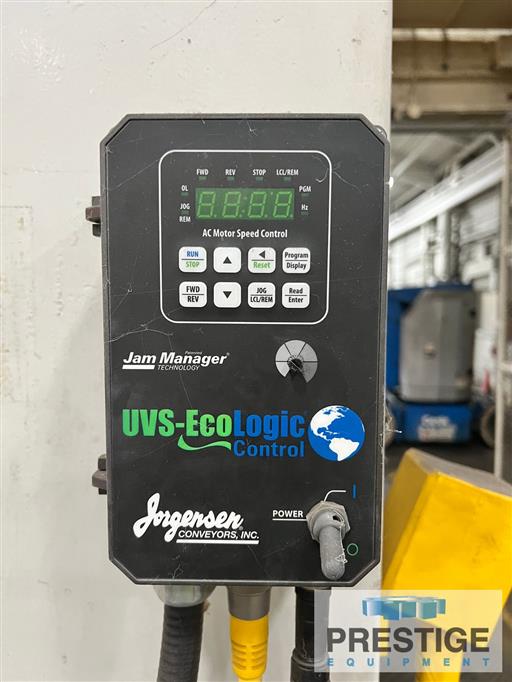

Chip Conveyor

SPECIFICATIONS:
Actual Swing Over Bedways ............. 100"
Maximum Swing Over Cross Slide ........ 84"
Distance Between Centers .............. 254"
Max Weight Between centers ............ 19.8 Tons
Bed Width ............................. 53.54"
Tailstock Quill Dimeter ............... 11"

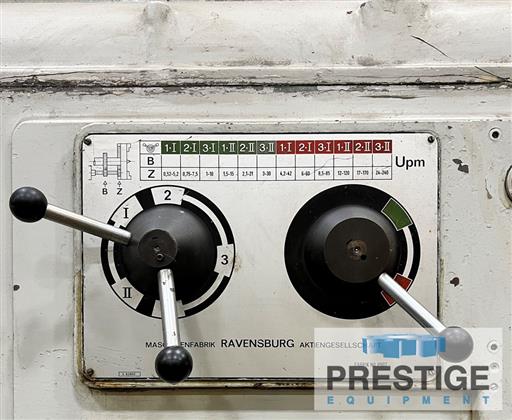

Speeds (24) ........................... .52-240 RPM
Machine Footprint ..................... 480" x 130"
Electrics ............................. 460/3/60 Cycle


EQUIPPED WITH:
63" Diameter 4-Jaw Face Plate
New Electrics In 2010
Newall DP700 Digital Readouts
Tailstock with Live Center
Drum Grooving Change Gears
Copying Device for Drum/Crane Threads
Chip Conveyor
60 HP Spindle Drive

NOTE:
New Electrics 2010
