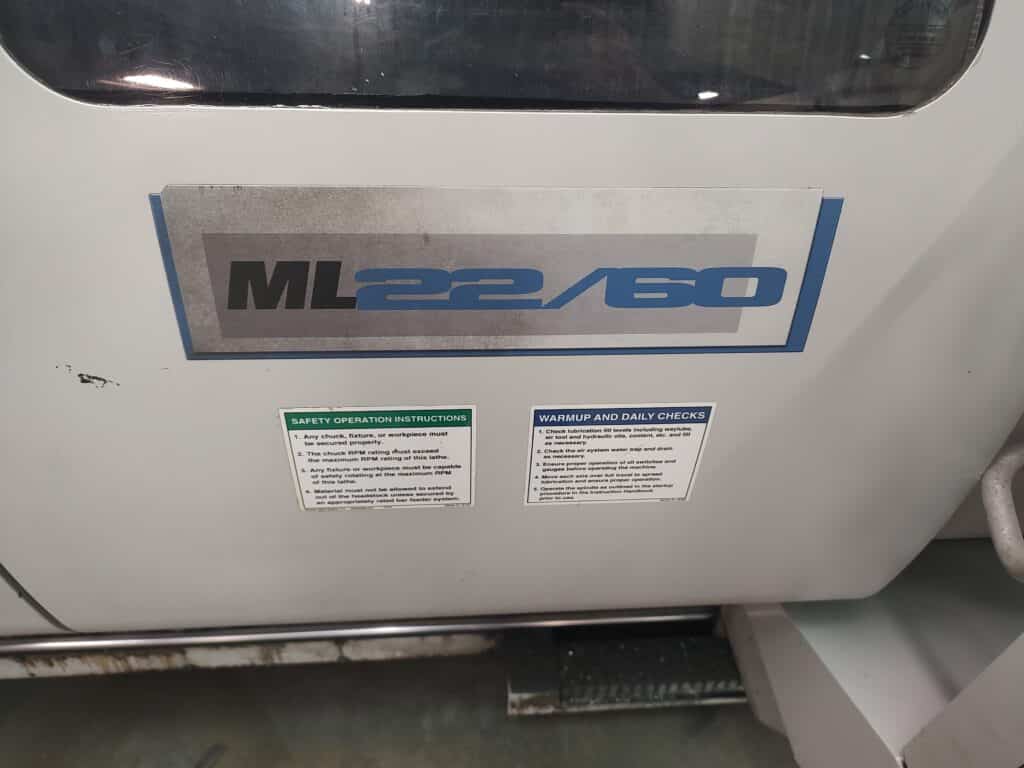

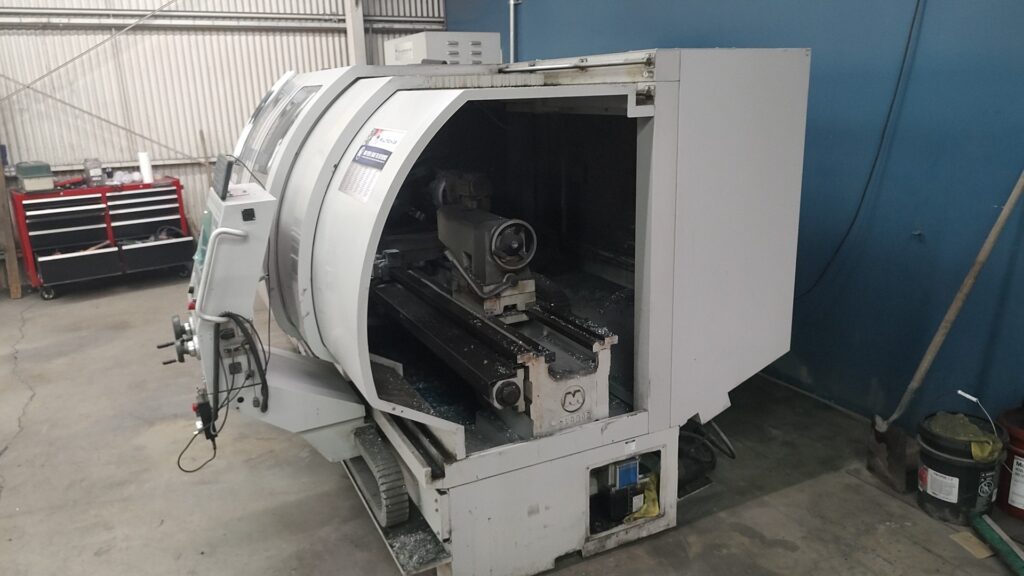

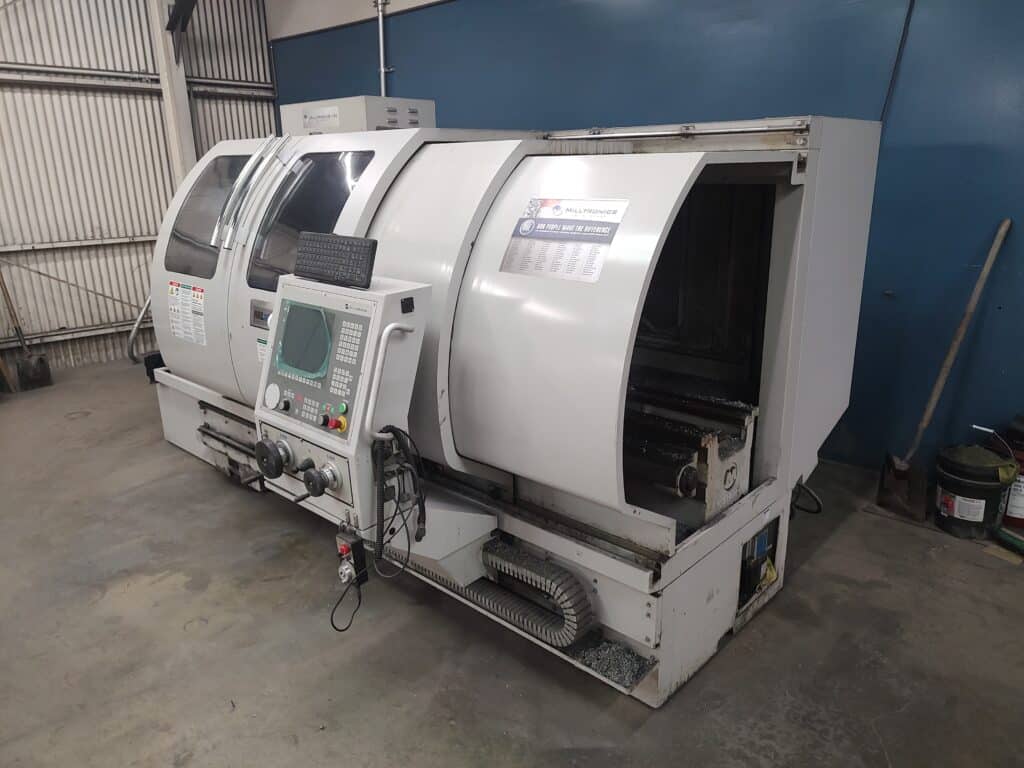

Milltronics ML 22/60 Flat Bed CNC Lathe (2016)

Manufacturer

Milltronics

Category

Lathes

Type

LATHES, CNC

Stock

112230003

Model

ML 22/60

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 112230003
  • Location: Pomona, CA
  • Brand: Milltronics
  • Model: ML 22/60

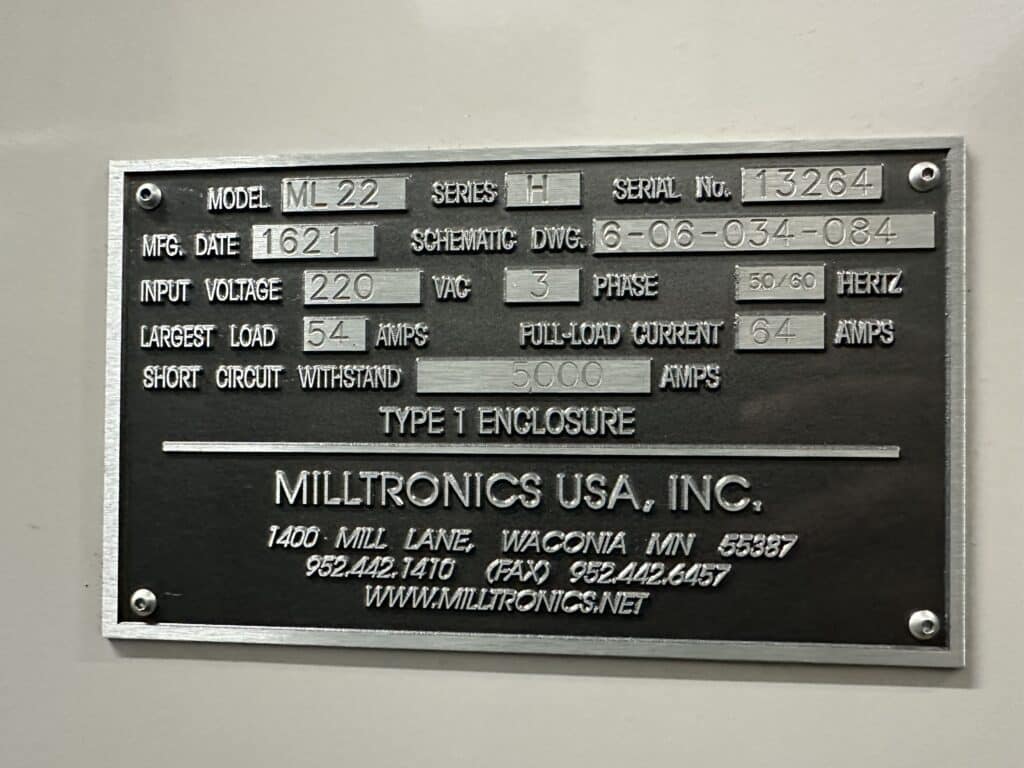

  • Serial #: 13264
  • Year: 2016
  • Approx. Shipping Weight: 10,000 Lbs.
  • Approx. Shipping Dimensions: 143″ x 83″ x 83″ H

Specifications

  • X Axis Travel: 13″
  • Z Axis Travel: 63.5″
  • Swing Over Bed: 23″
  • Swing Over Gap: 30.3″
  • Swing Over Cross Slide: 12.1″
  • Gap Distance: 12.75″
  • Spindle Nose: A1-8
  • Spindle Bore: 3.22″
  • Spindle Range: 2,000 RPM
  • AC Spindle Motor: 24/15 HP
  • Tailstock Quill Travel: 6″
  • Tailstock Quill Diameter: 3.94″
  • Tailstock Quill Taper: MT5

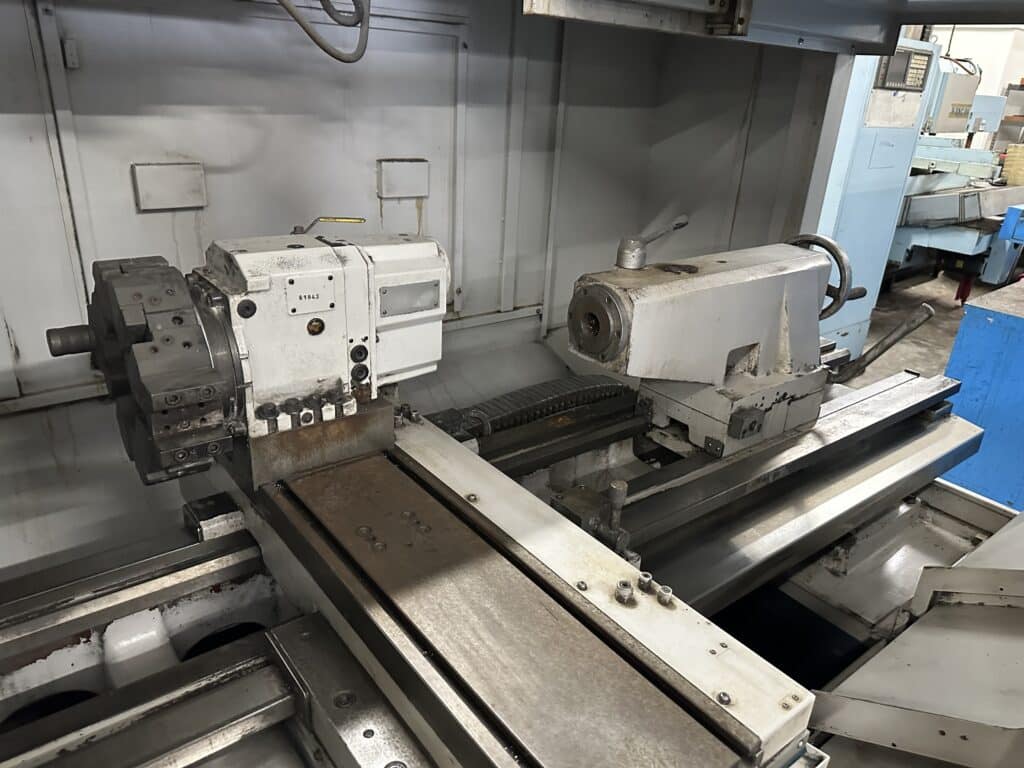

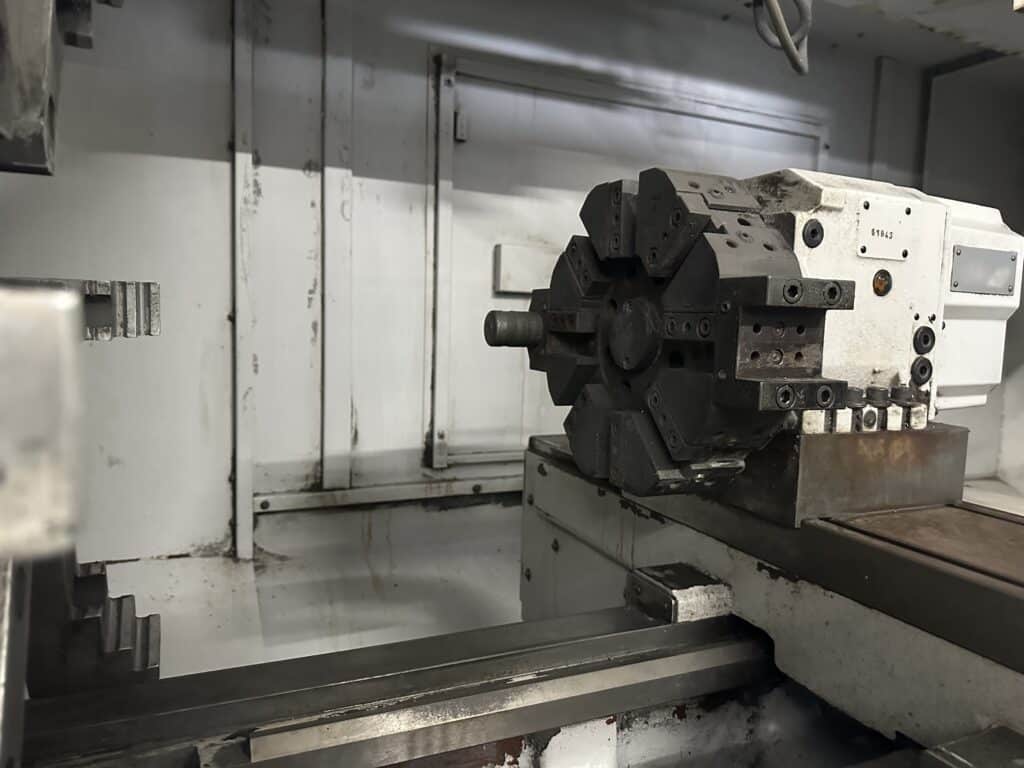

  • Number of Tools: 8 TRT
  • Boring Bar Capacity: 1.5″
  • Tool Selection: Bi-Directional
  • X, Z Axis Rapid Traverse Rate: 500 IPM
  • Max. Cutting Feed Rate: 100 IPM
  • X Axis Bball Screw Diameter: 1.25″
  • Z Axis Ball Screw Diameter: 1.77″
  • Positioning Accuracy: 0.00025″
  • Repeatability: 0.0002″
  • Axis Thrust Force X, Z: 2,300 Lbs
  • Power Required: 30 KVA / 80 Amps
  • Electrical: 208 – 240 Volts / 3 PH

Equipped With

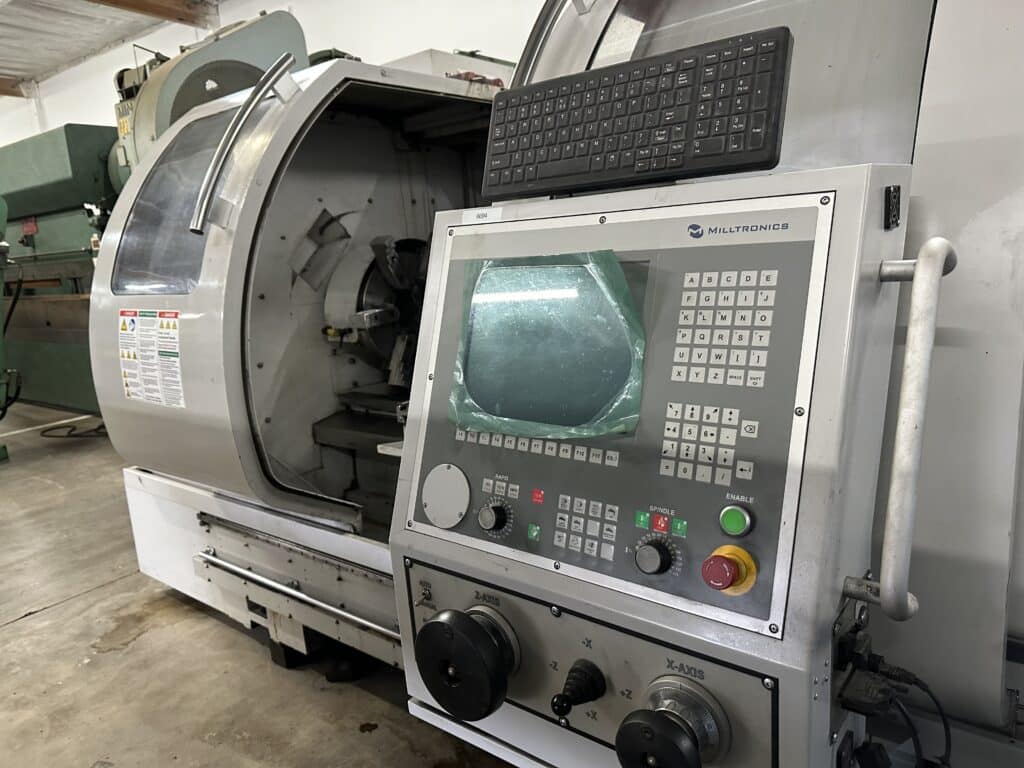

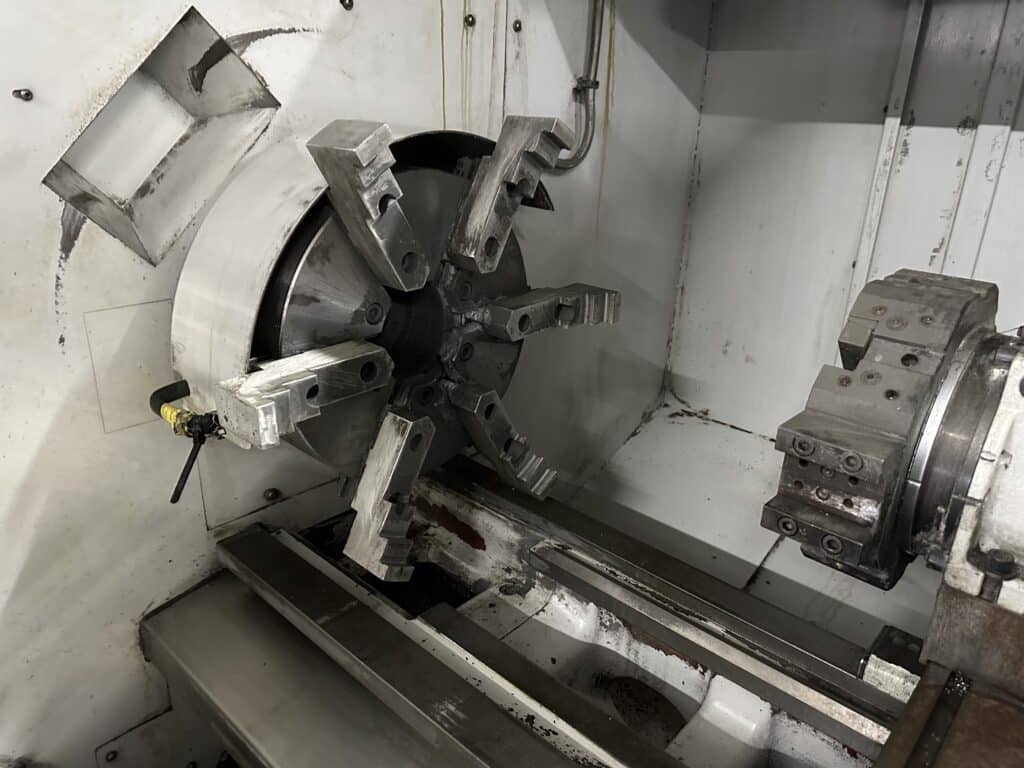

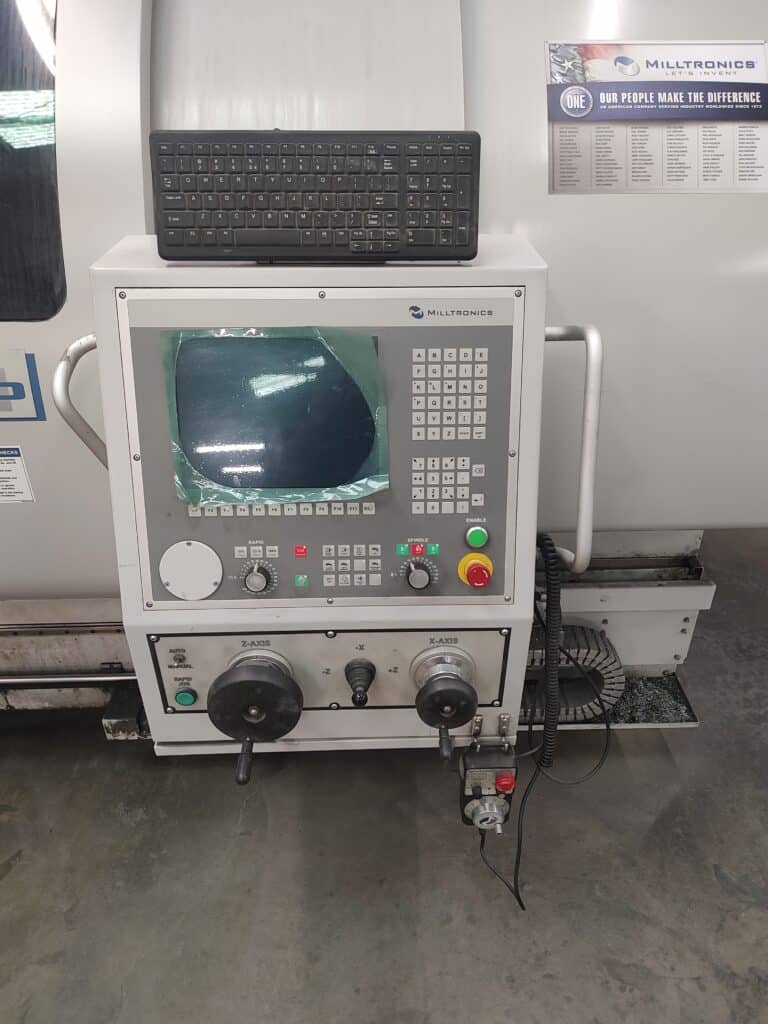

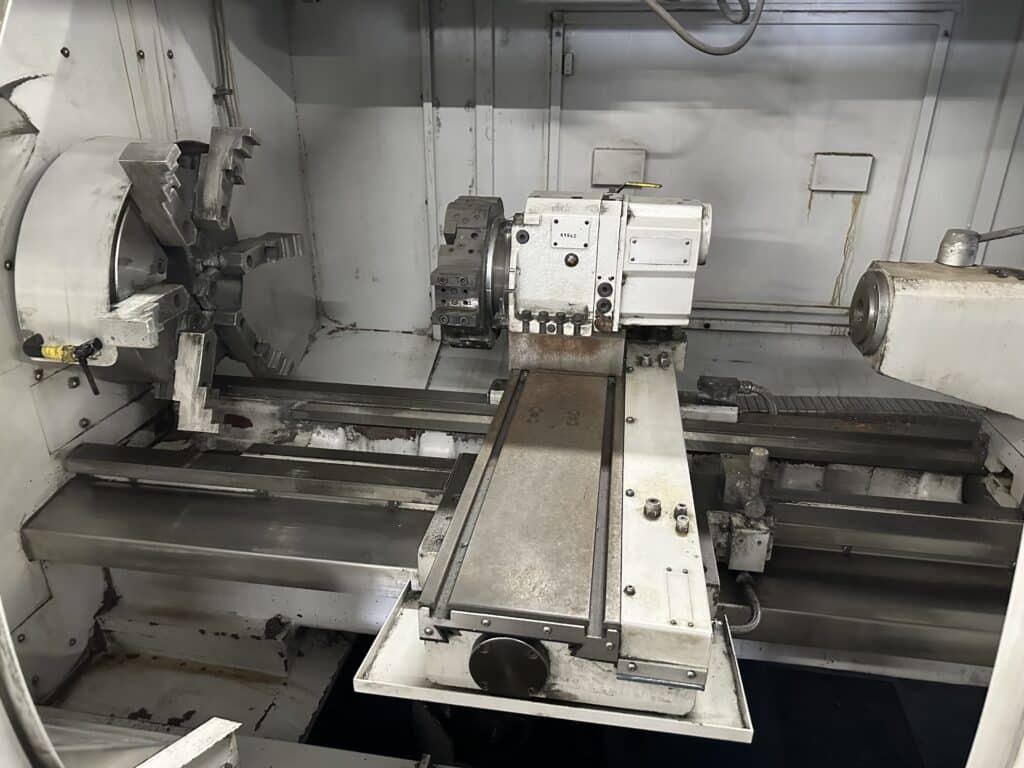

Milltronics 8200-B series CNC control, 10″ 3-Jaw Hydraulic Chuck, Solid box way bed construction, 2000 RPM spindle, Tailstock, Auto lubrication, Full enclosure w/ sliding doors, 3.22″ Spindle bore, A1-8 Spindle nose, 12″ LCD color display, Spindle load meter, Flood coolant, Solid model graphic display, USB Port, Gap bed design, 8 Station 1″ automatic turret, LCD hour meter, Thread chasing feature
