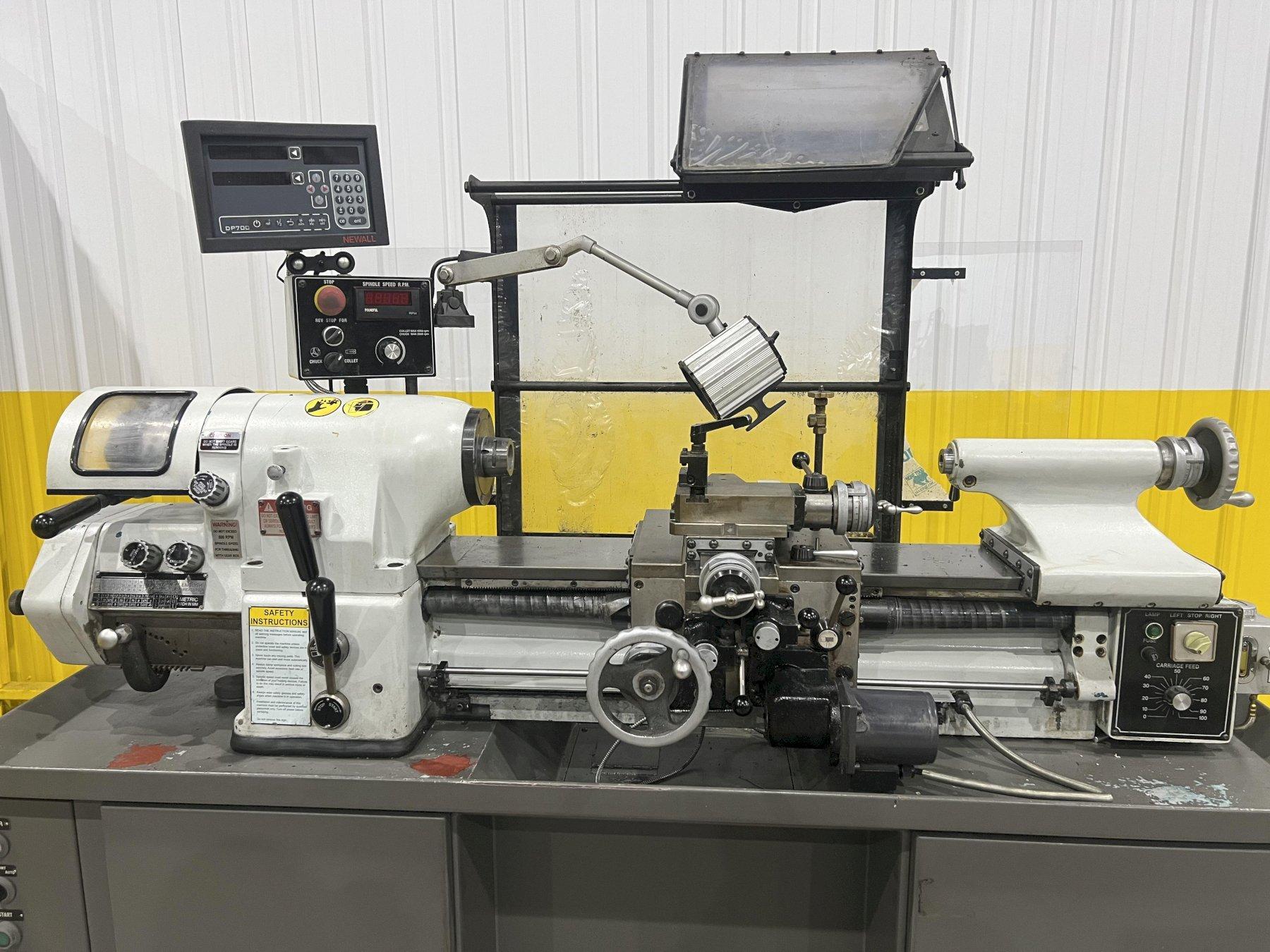

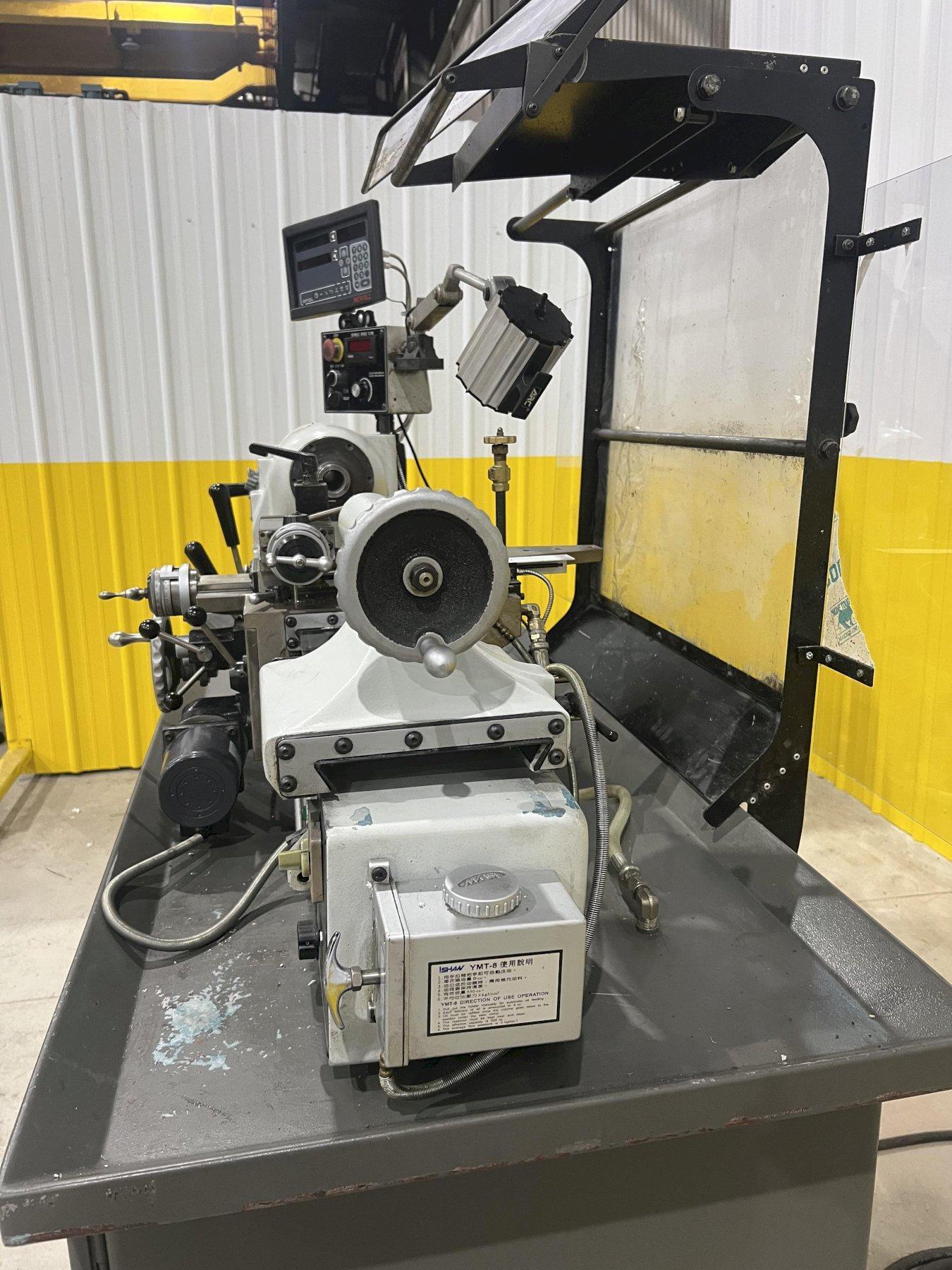

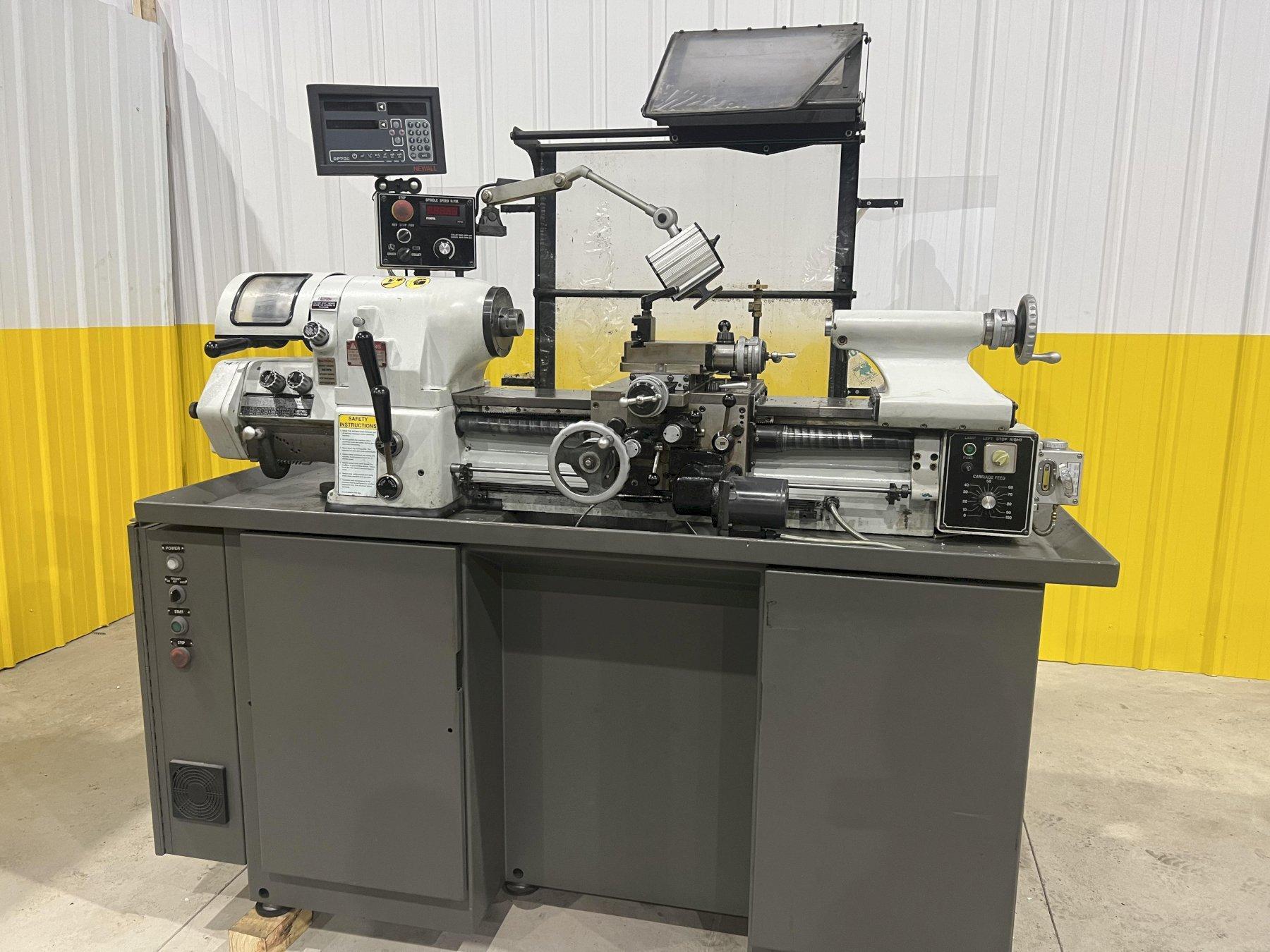

6" X 18" GMC MODEL #TL-618 EVS HIGH PRECISION TOOLROOM LATHE, 4,000 RPM, 1.25" HOLE: STOCK #2029

Manufacturer

GMC

Category

Lathes

Stock

20291

Model

TL-618 EVS

Dealer Location

Ohio

Spec Sheet

Dimensions - 73" x 30" x 67"
Weight - 2530 pounds

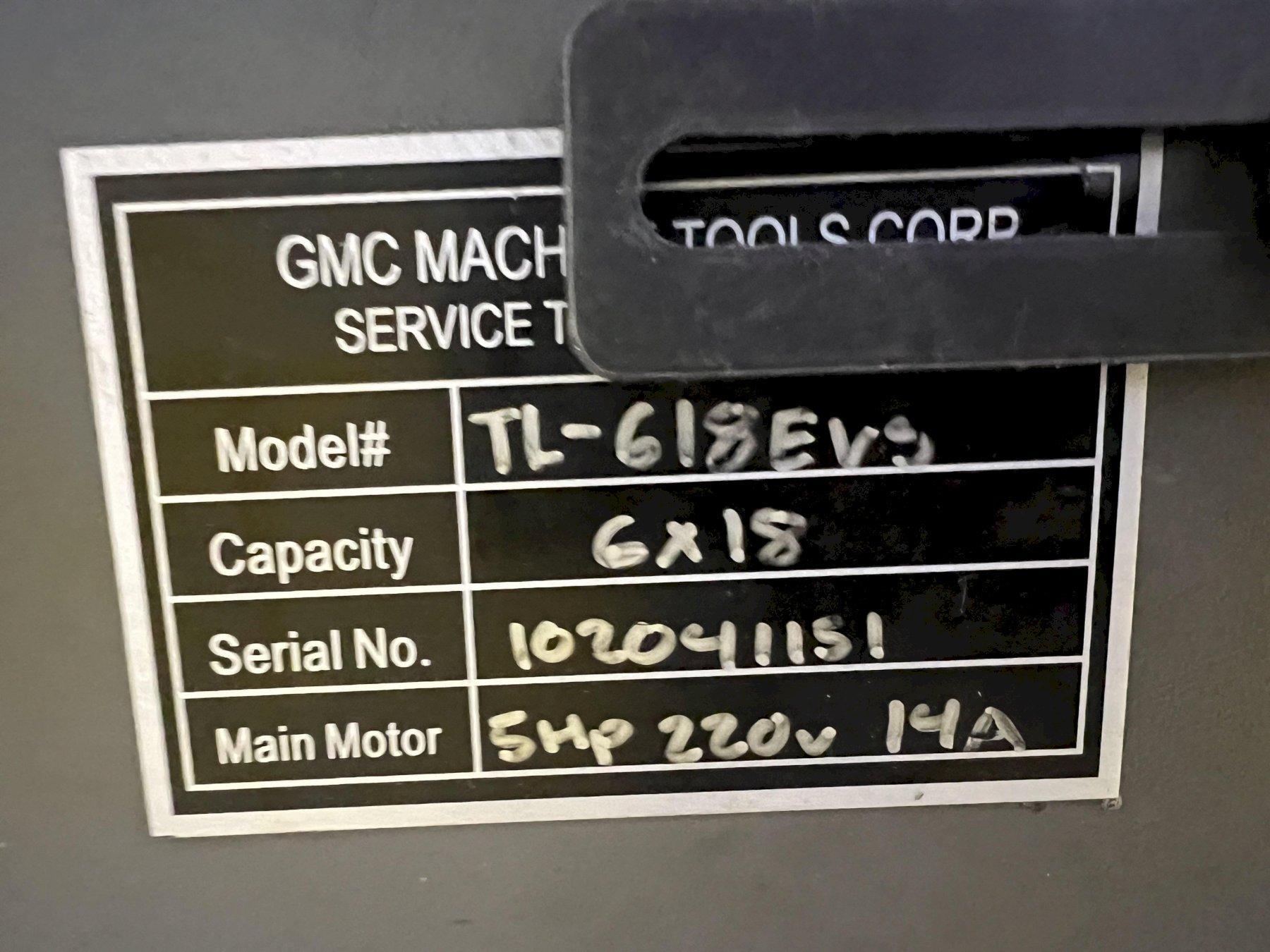

SERIAL ................. 10204115
MODEL .................. TL-618EVS
CAPACITY ............... 6" X 18"
SWING .................. 6"
CENTERS ................ 18"
SWING OVER CROSS ....... 9"
SPINDLE HOLE ........... 1.25"

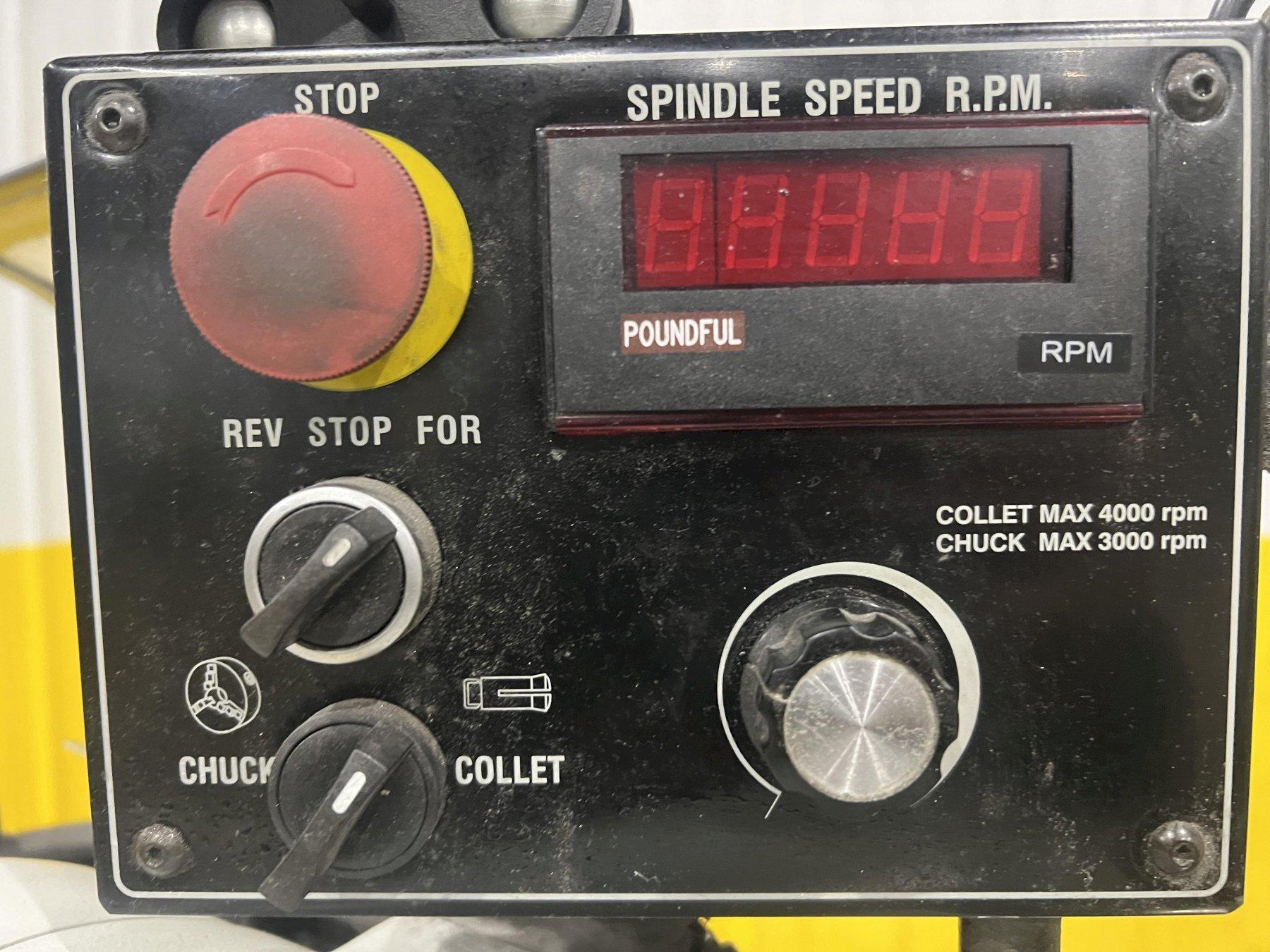

SPINDLE SPEEDS ......... O TO 4,000 RPM, VARIABLE

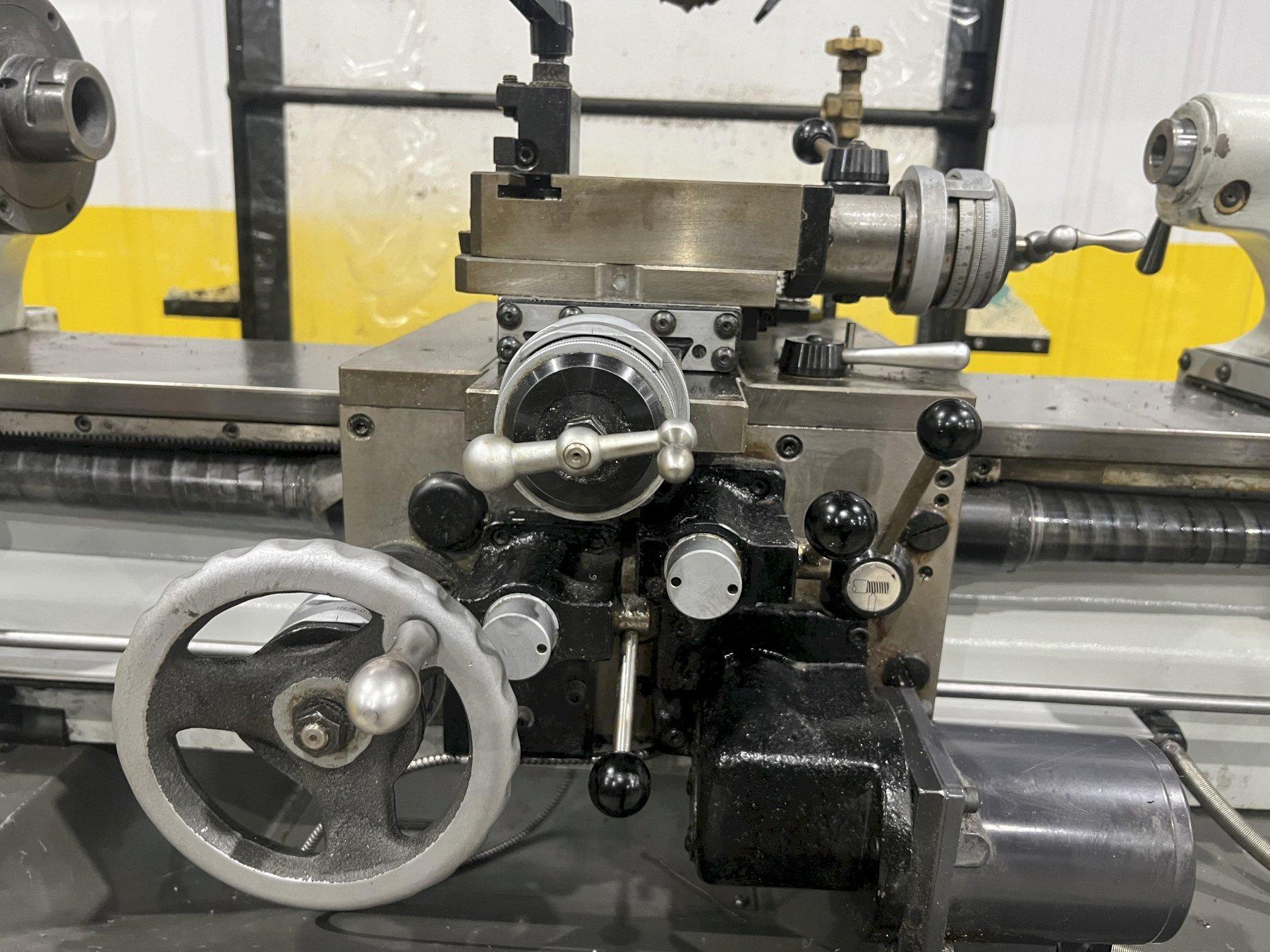

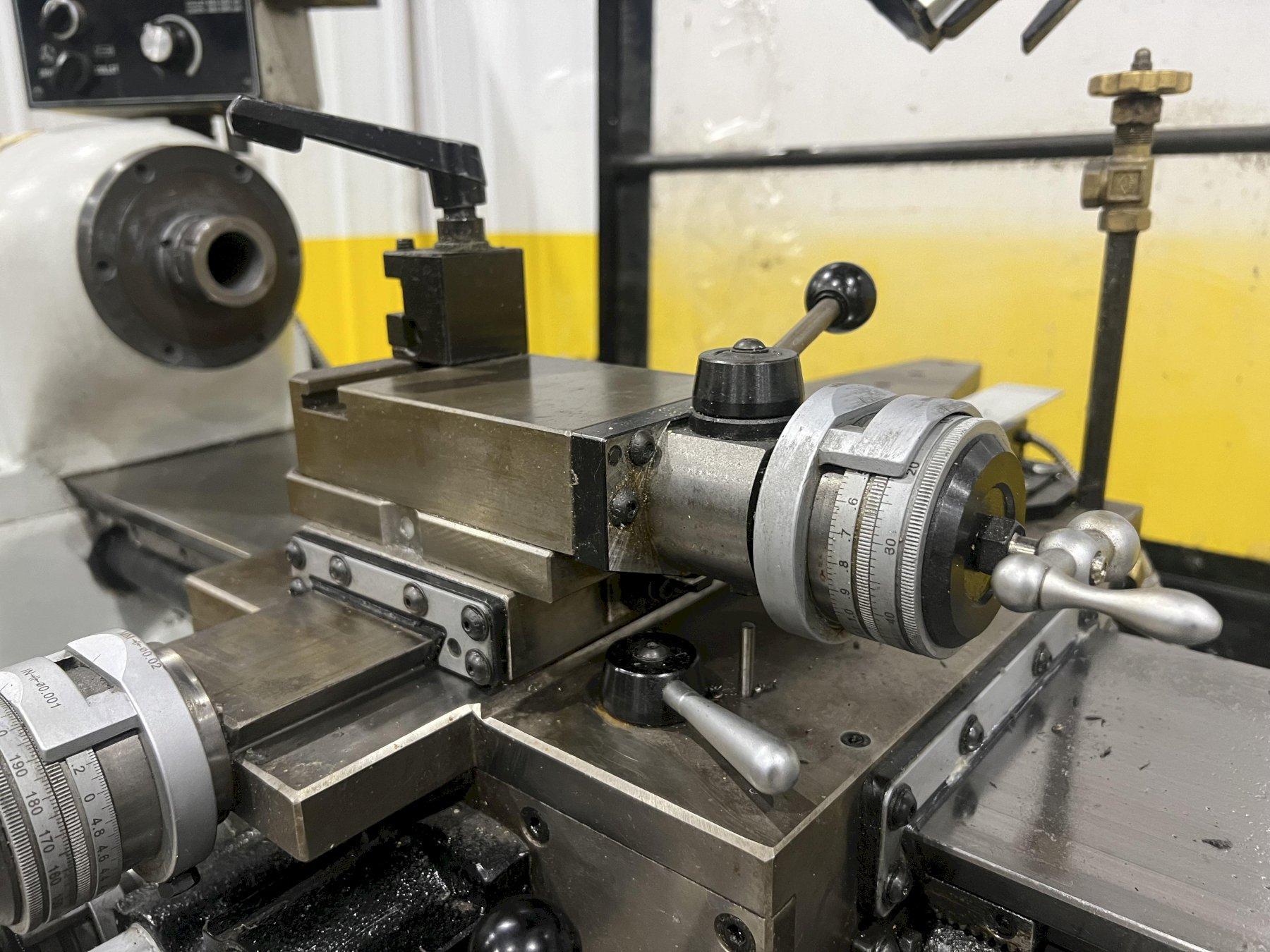

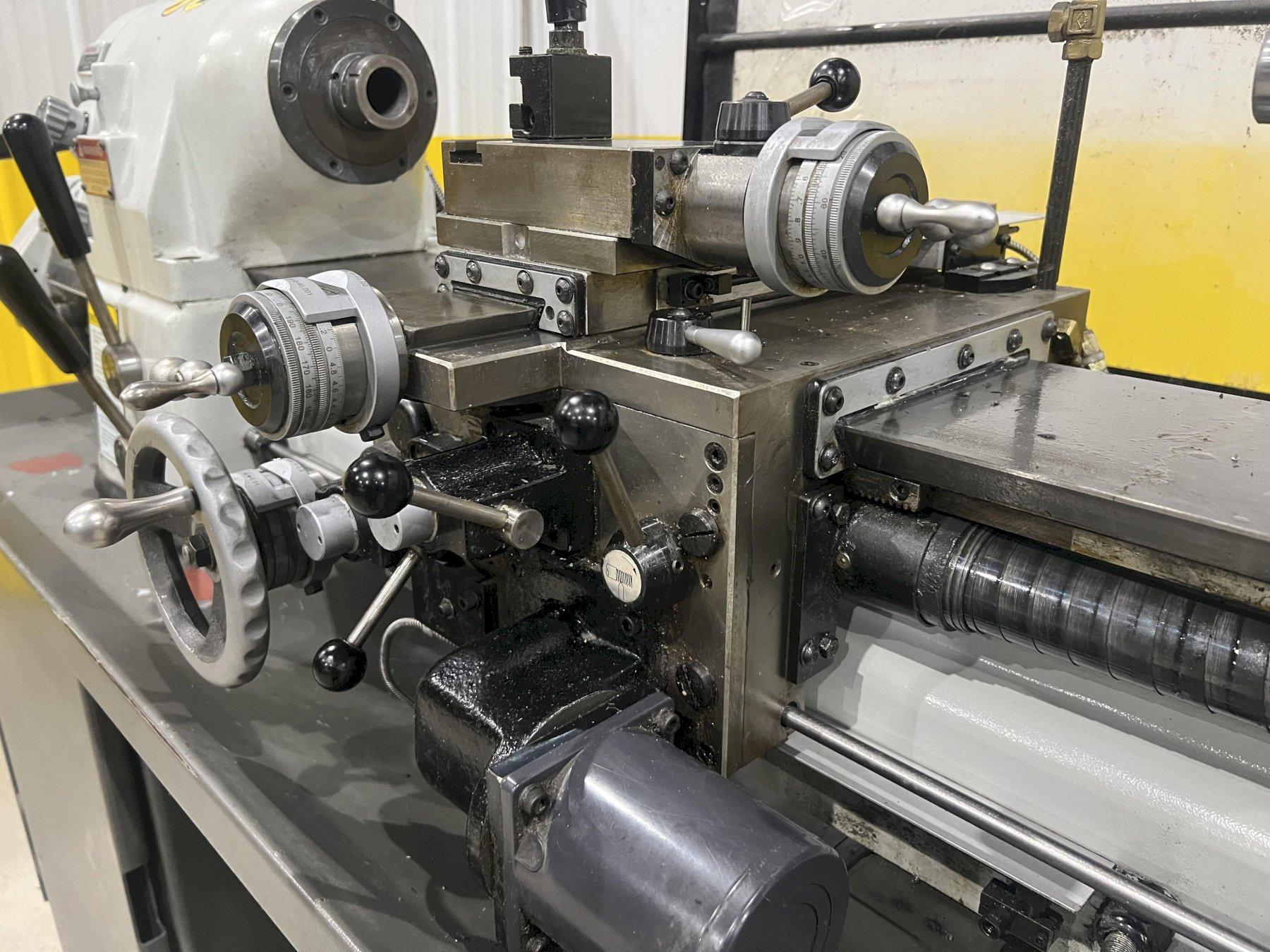

CROSS SLIDE TRAVEL ..... 6"
COMPOUND SLIDE TRAVEL .. 3"

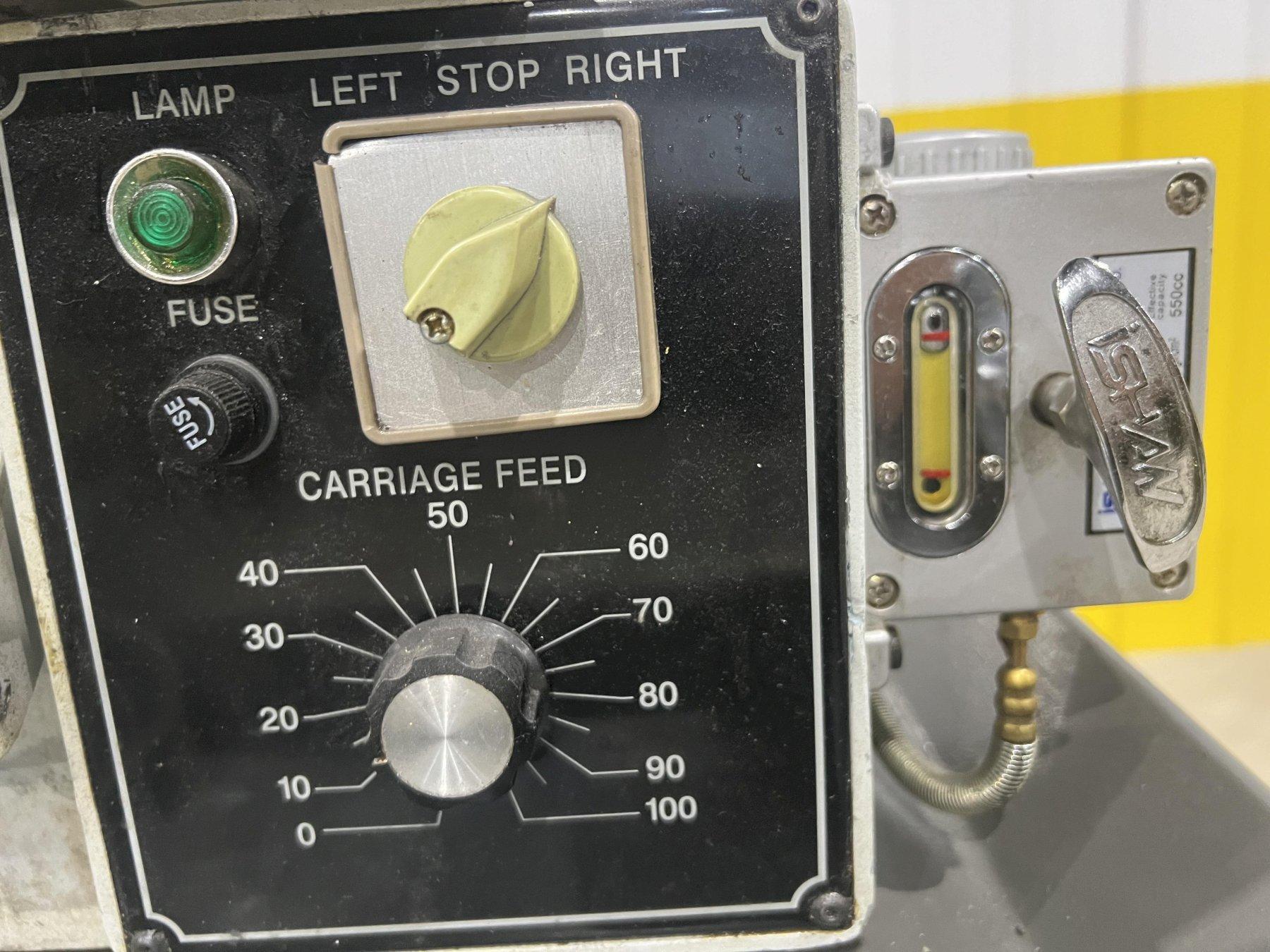

POWER CARRIAGE FEED .... 5/16" TO 7" / MINUTE
POWER CROSS SLDE FEED .. 3/16" TO 4" / MINUTE

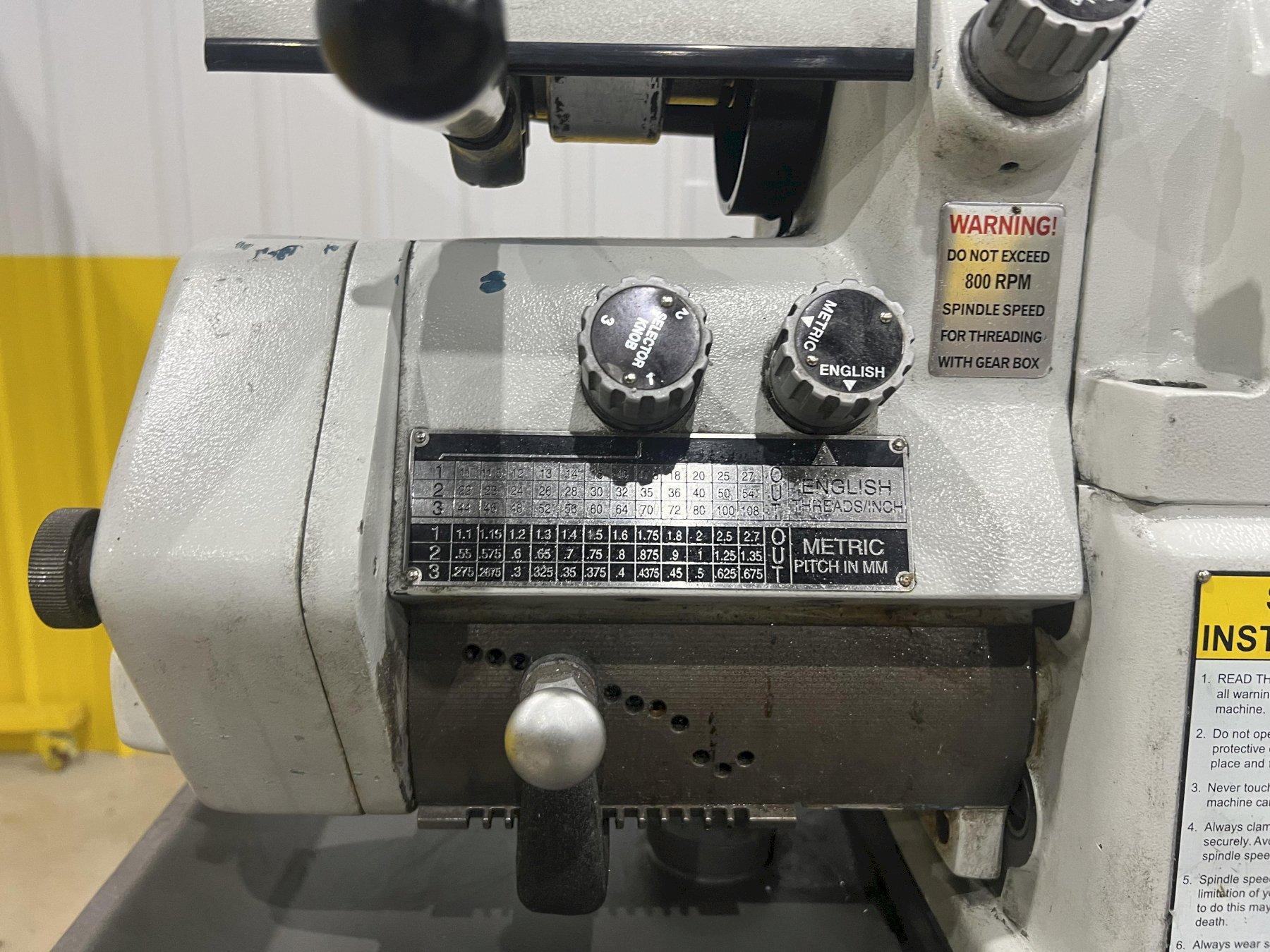

INCH THREADS ........... (36) 11 TO 118 TPI
METRIC THREADS ......... (36) .275 TO 2.7 MM

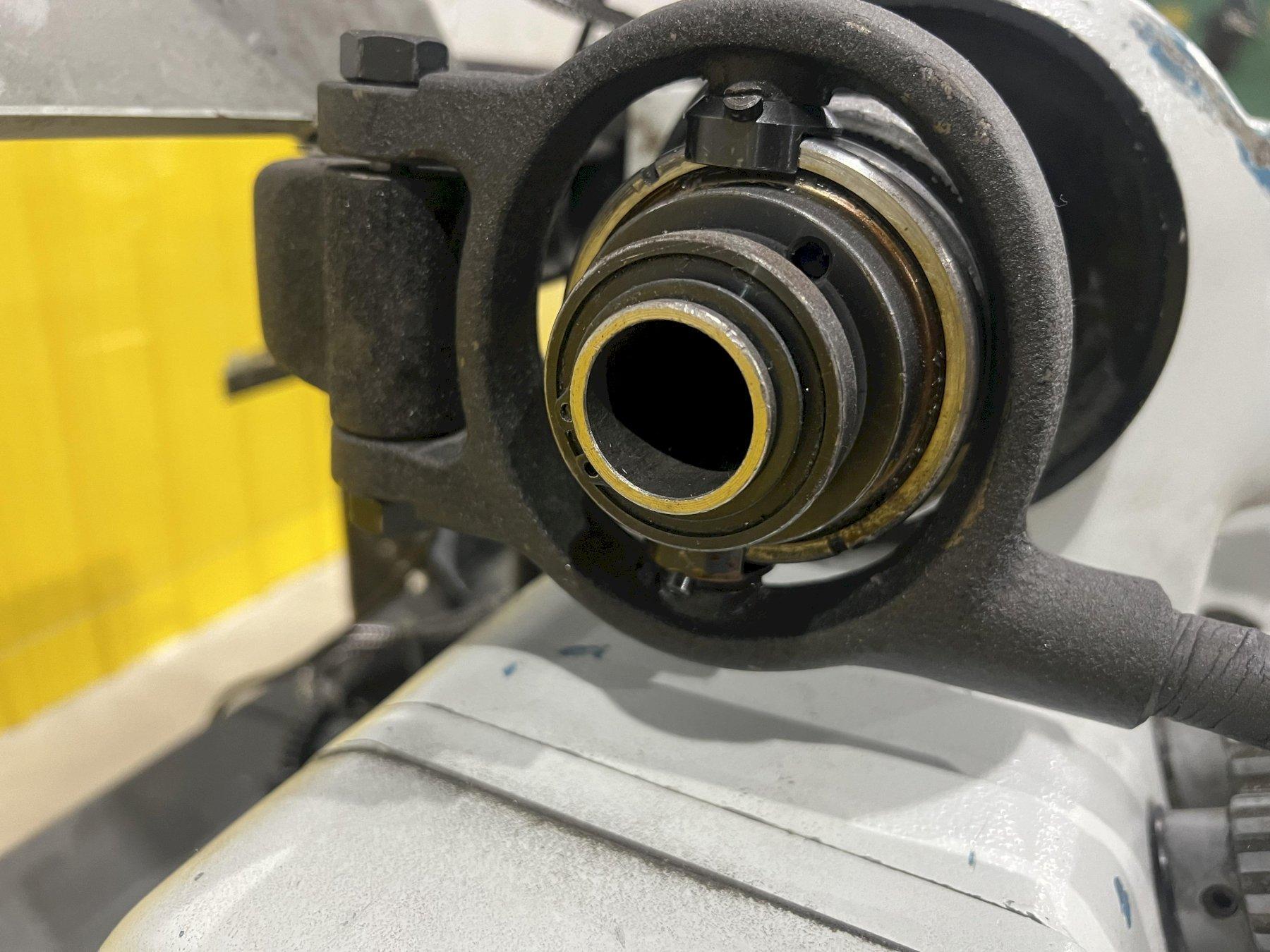

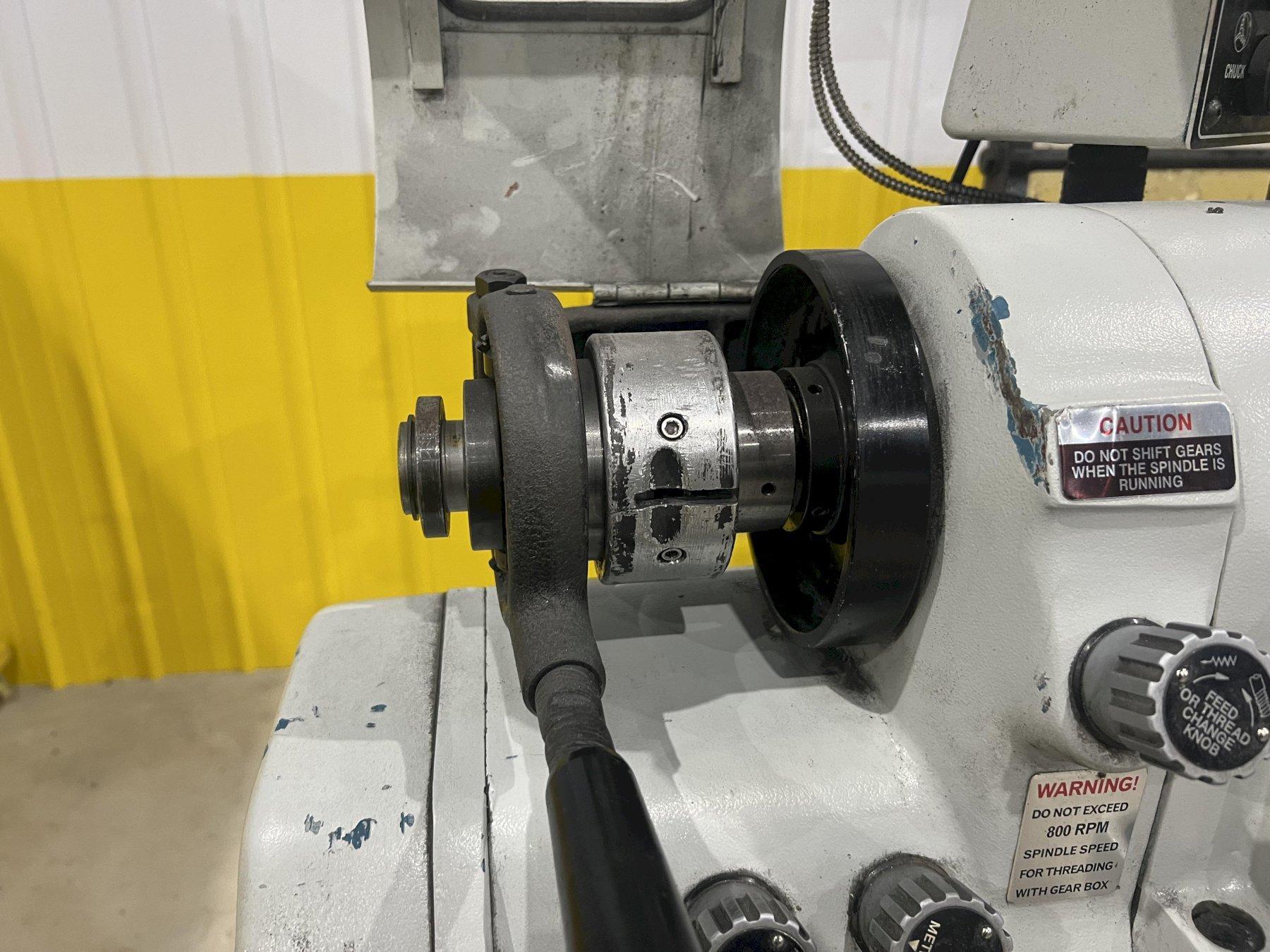

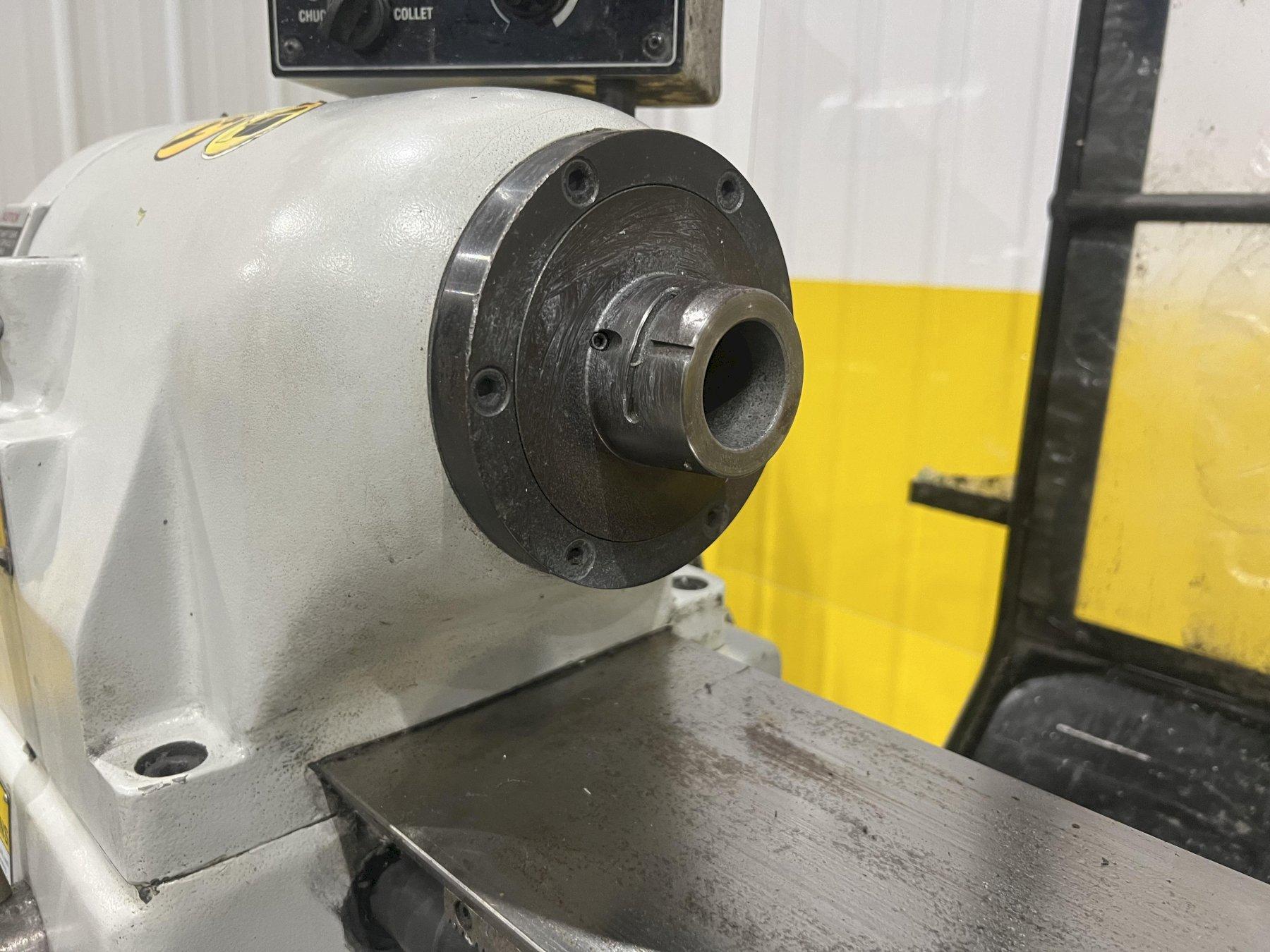

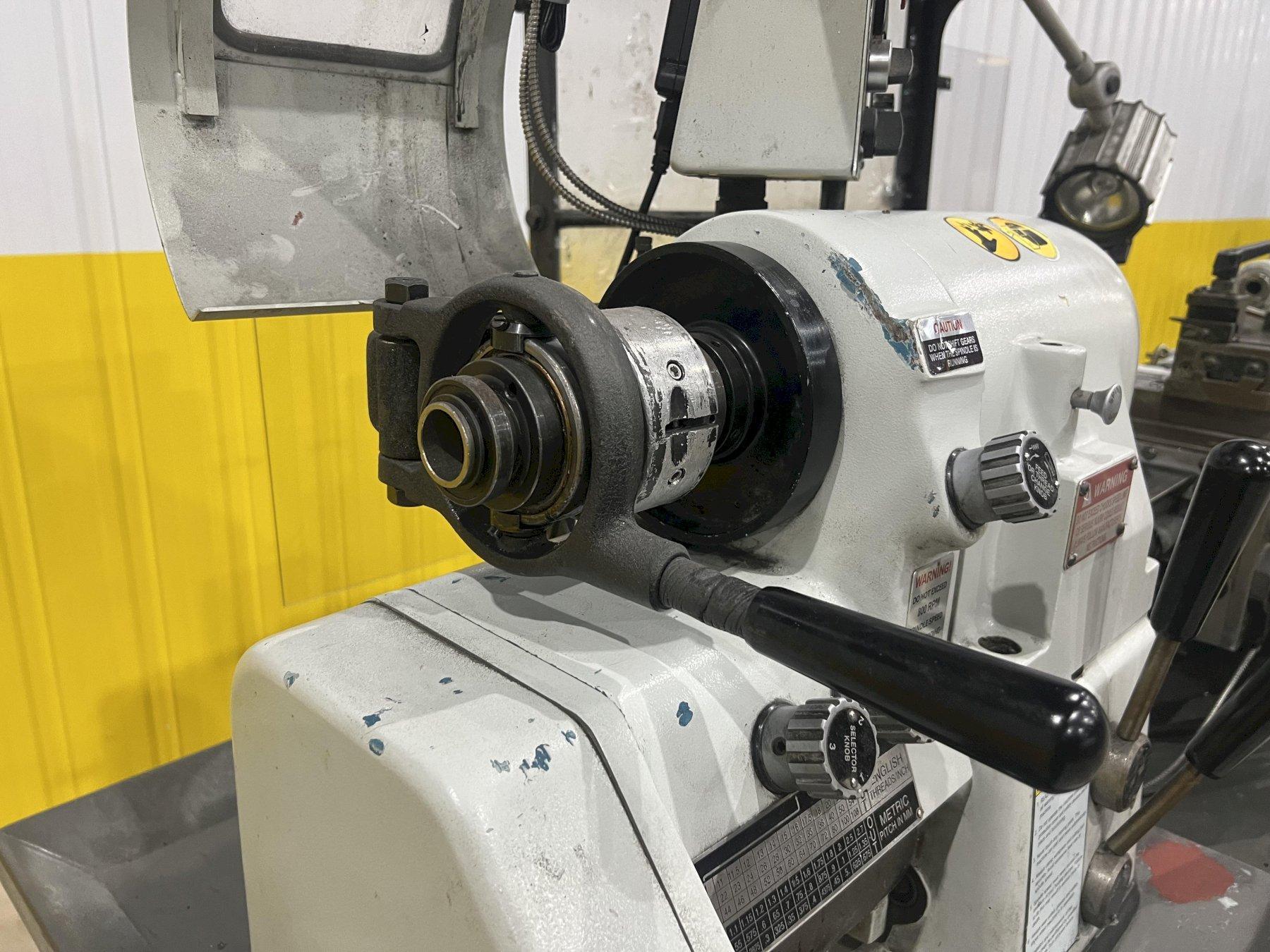

SPINDLE NOSE ........... 5C TAPER

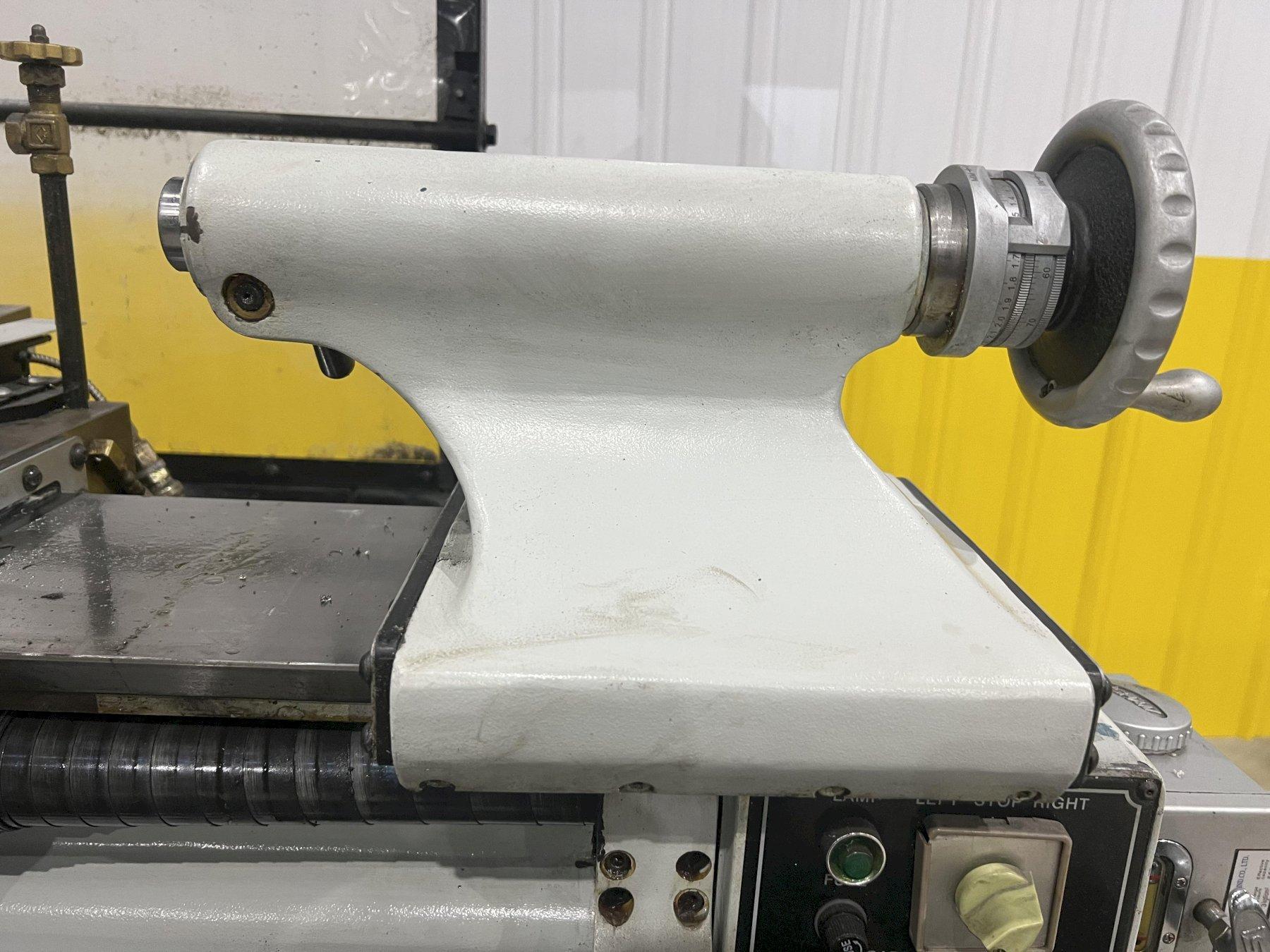

TAILSTOCK QUILL ........ 1-3/8" DIAMETER
TAILSTOCK TAPER ........ #2MT
TAILSTOCK TRAVEL ....... 3-3/4"

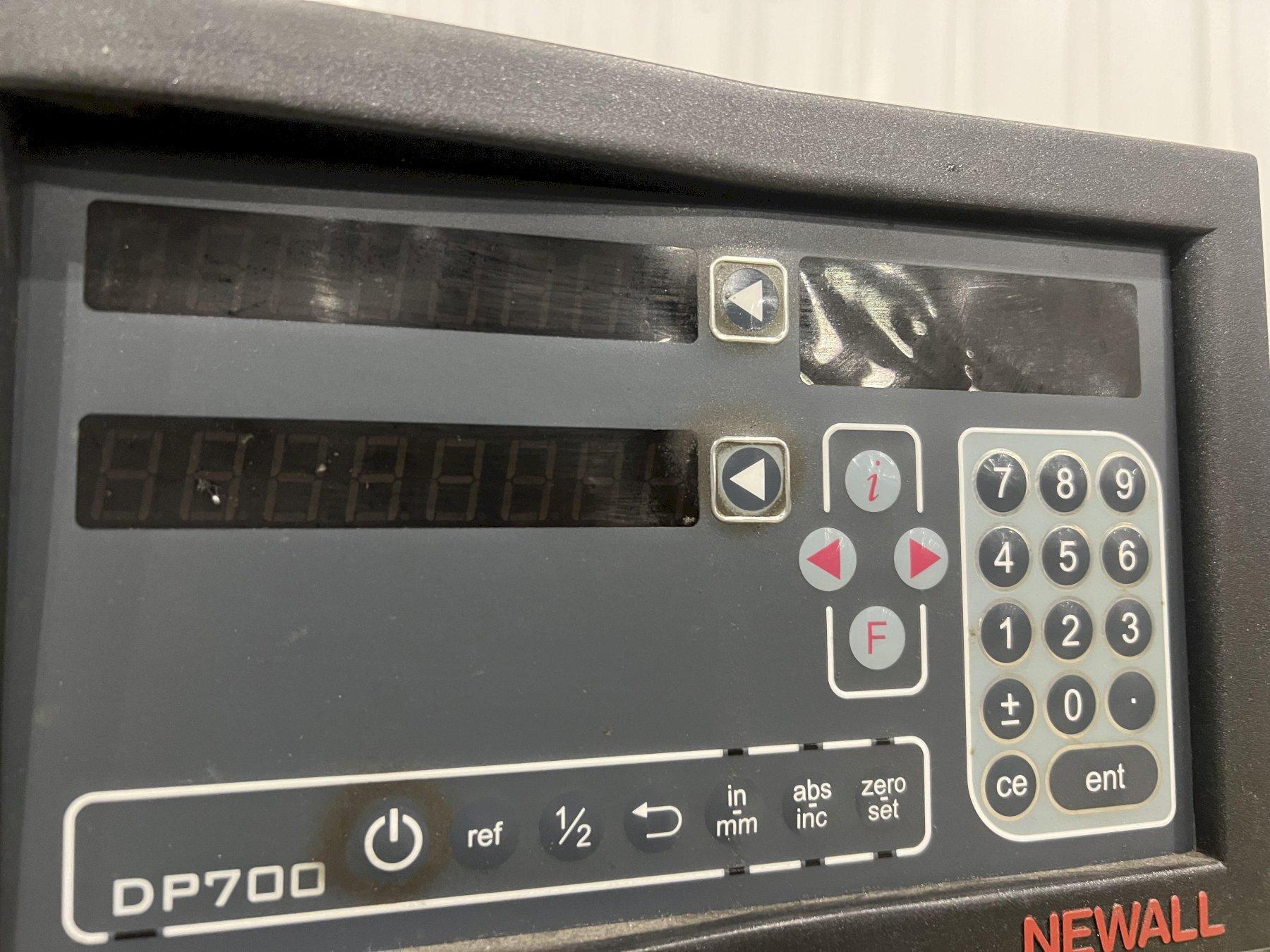

DIGIAL READ OUT ........ NEWALL 2 AXIS

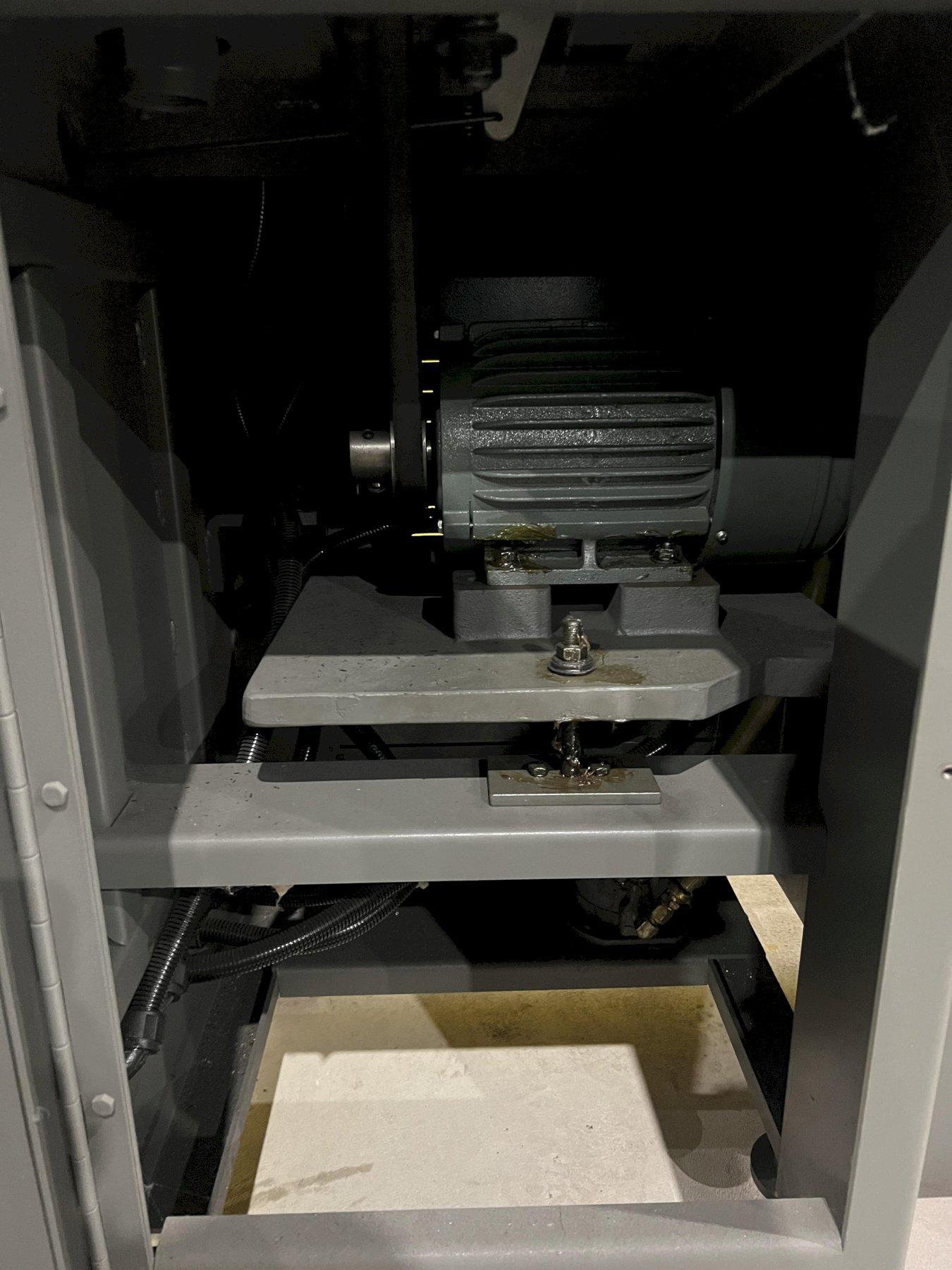

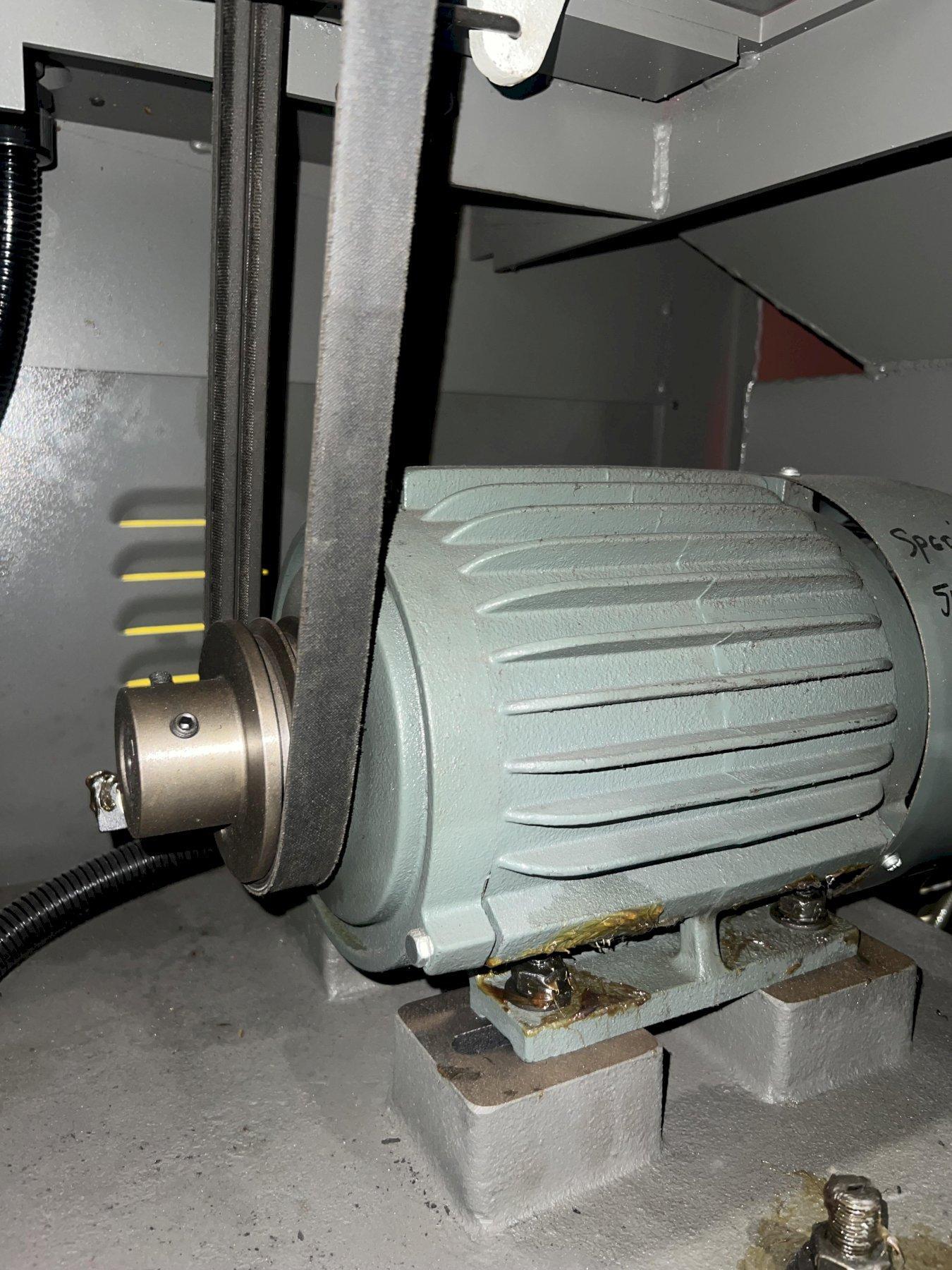

SPINDLE MOTOR .......... 3 HP
