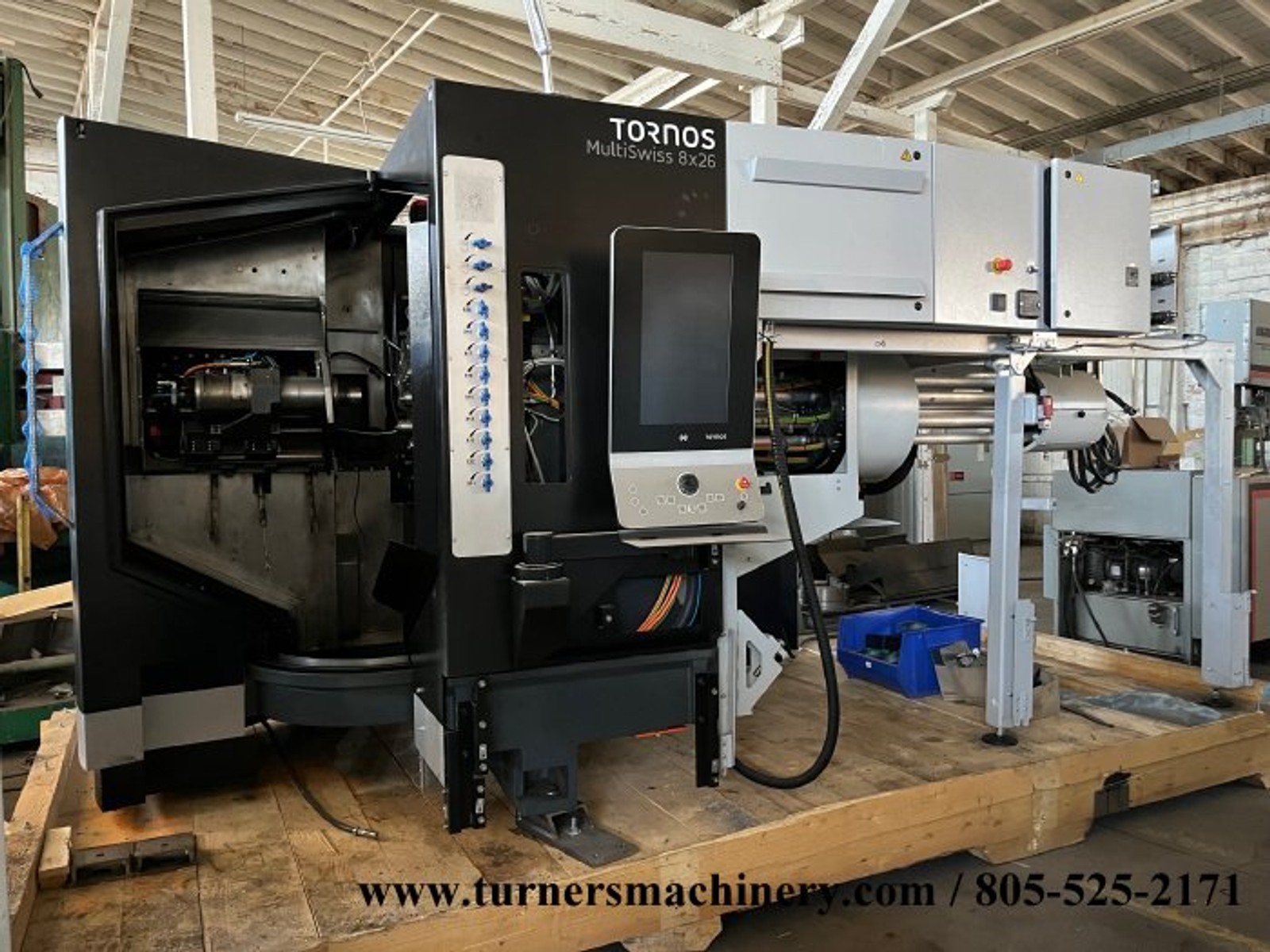

2022 TORNOS MULTISWISS 8X26

Manufacturer

TORNOS

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

4585

Model

MULTISWISS

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

MAKE: TORNOS
MDL: MUTISWISS 8X26
YEAR: 2022

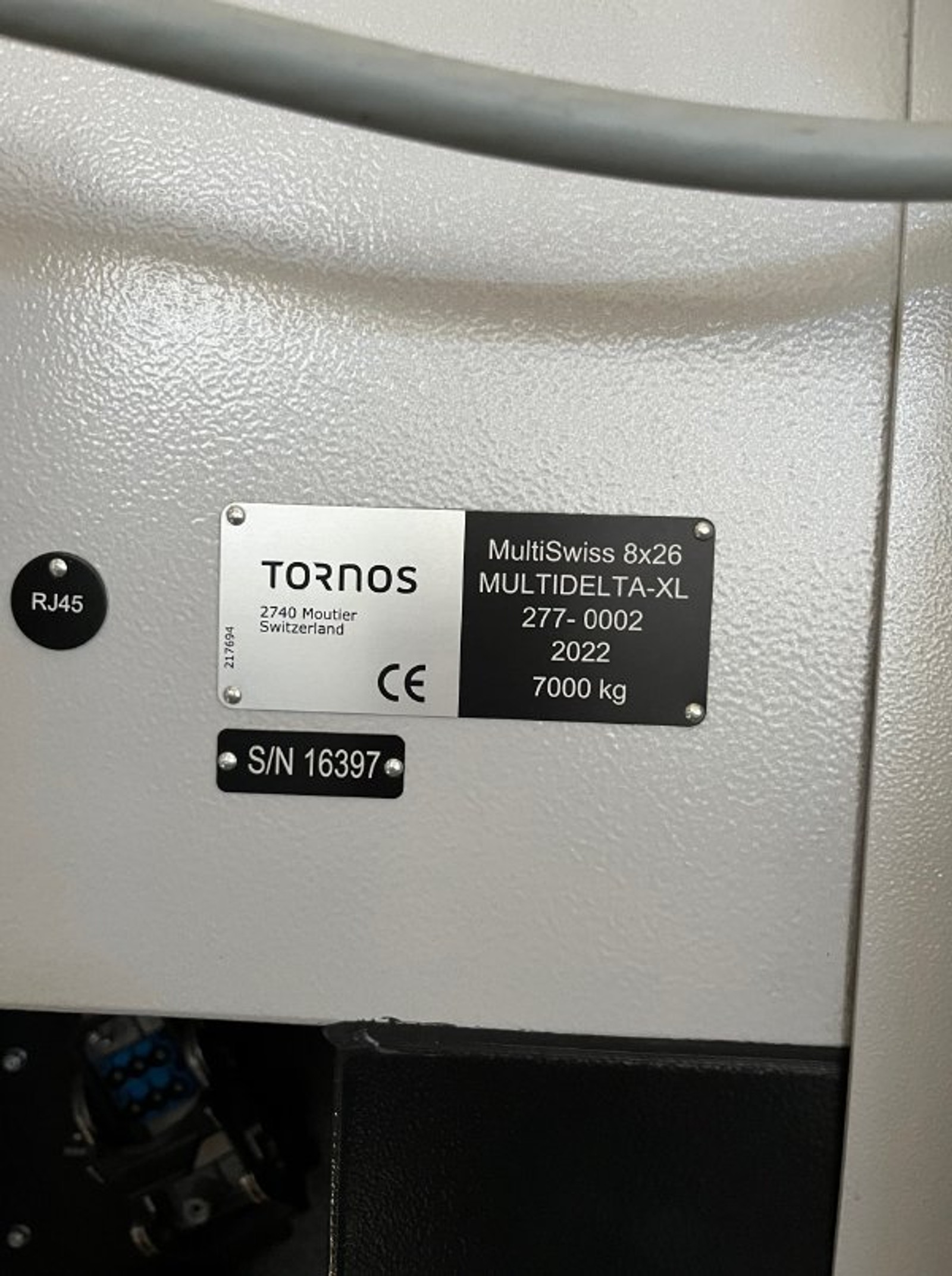

S/N: 16397
(APPROX. 6HRS USE)
CAPACITY: 1.0236"
# SINDLES: 8 SPDL

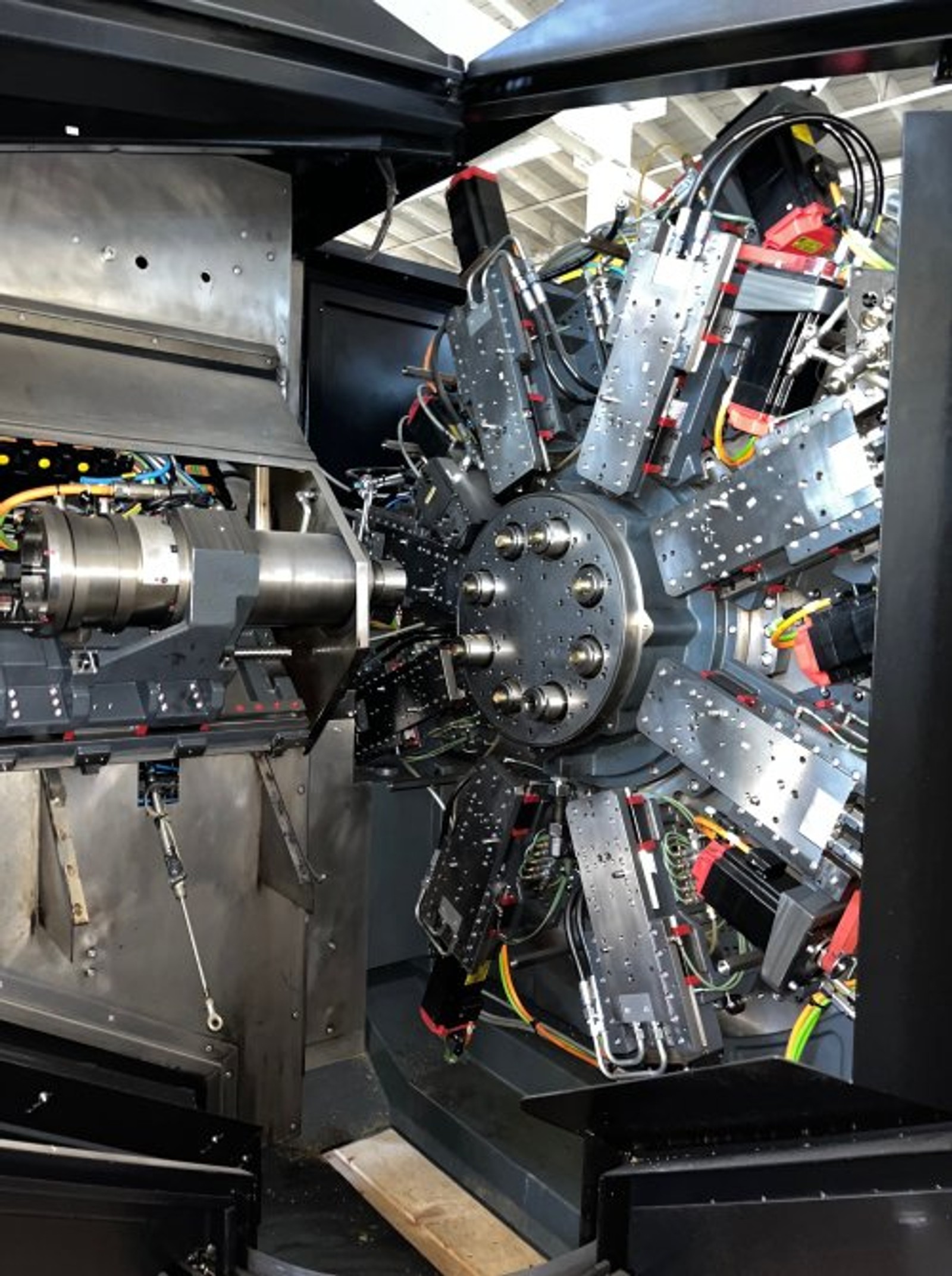

8 MOTOR SPINDLES, 1.1KW - MAX RPM 8,000
SPINDLE CAPACITY: 26MM, Z STROKE 7MM
(MAX PART LENGHT 65MM)
5 SLIDE WITH X AXES, POST 1-2-3-7-8
X STROKE OF 80MM
3 SLIDES WITH X-Y AXES, POSIT 4-5-6
X STROKE OF 55MM, Y STROKE OF +/-16 5MM
COUNTER SPINDLE, 1.1 KW - MAX RPM 8,000
Z STROKE OF 150MM AND X OF 170MM
COOLANT FED, HP ROTATING EJECTOR (REQUIRES 3010 OR 3020)
CNC CONTRO: FANUC
INTEGRATED PC WITH OPERATING SYSTEM WINDOWS 10
21.5" TOUCH SCREEN COLOUR MONITOR
INDEPENDANT C AXIS ON EACH SPINDLE IN MAIN AND COUNTER OPERATIONS

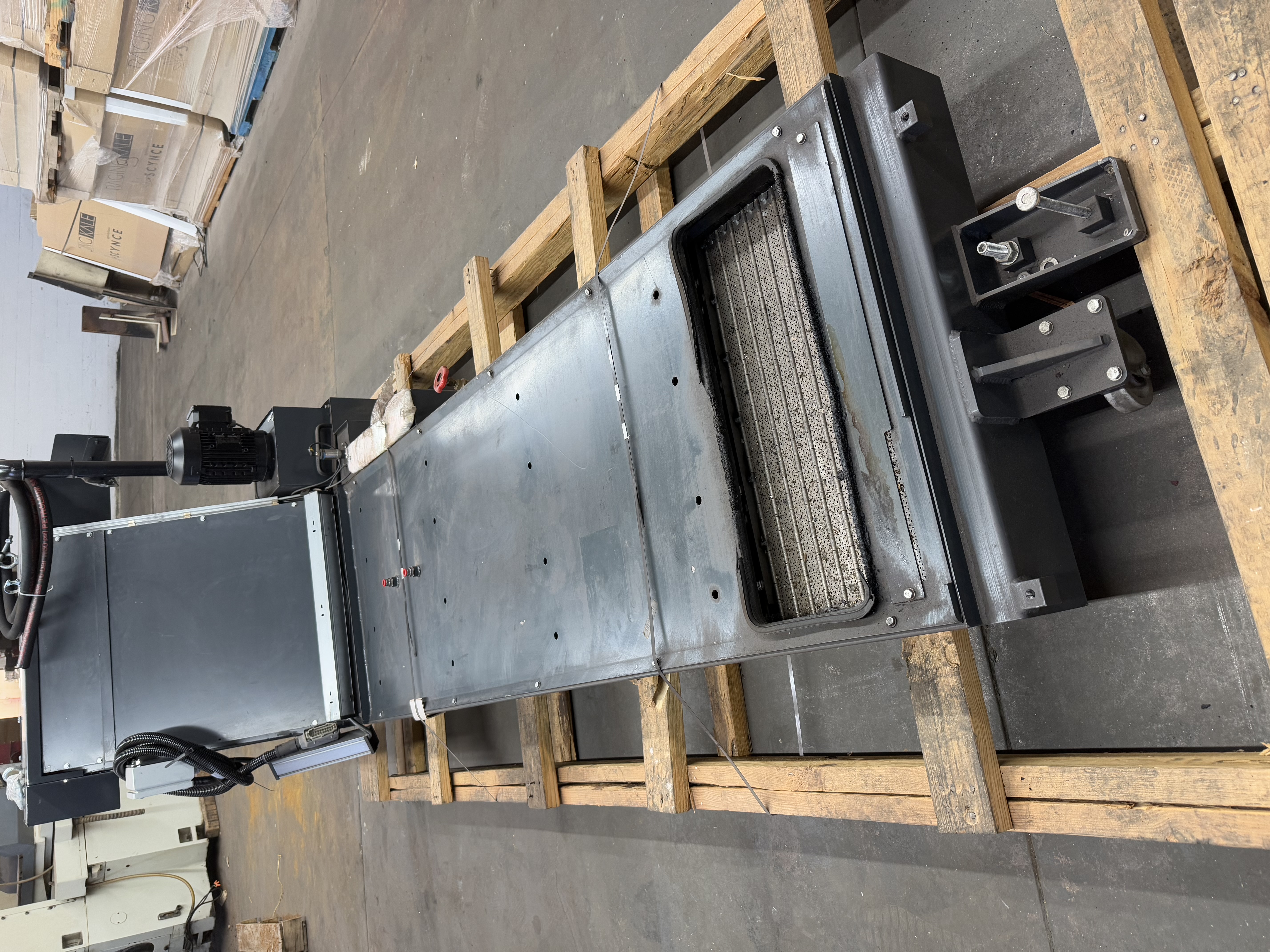

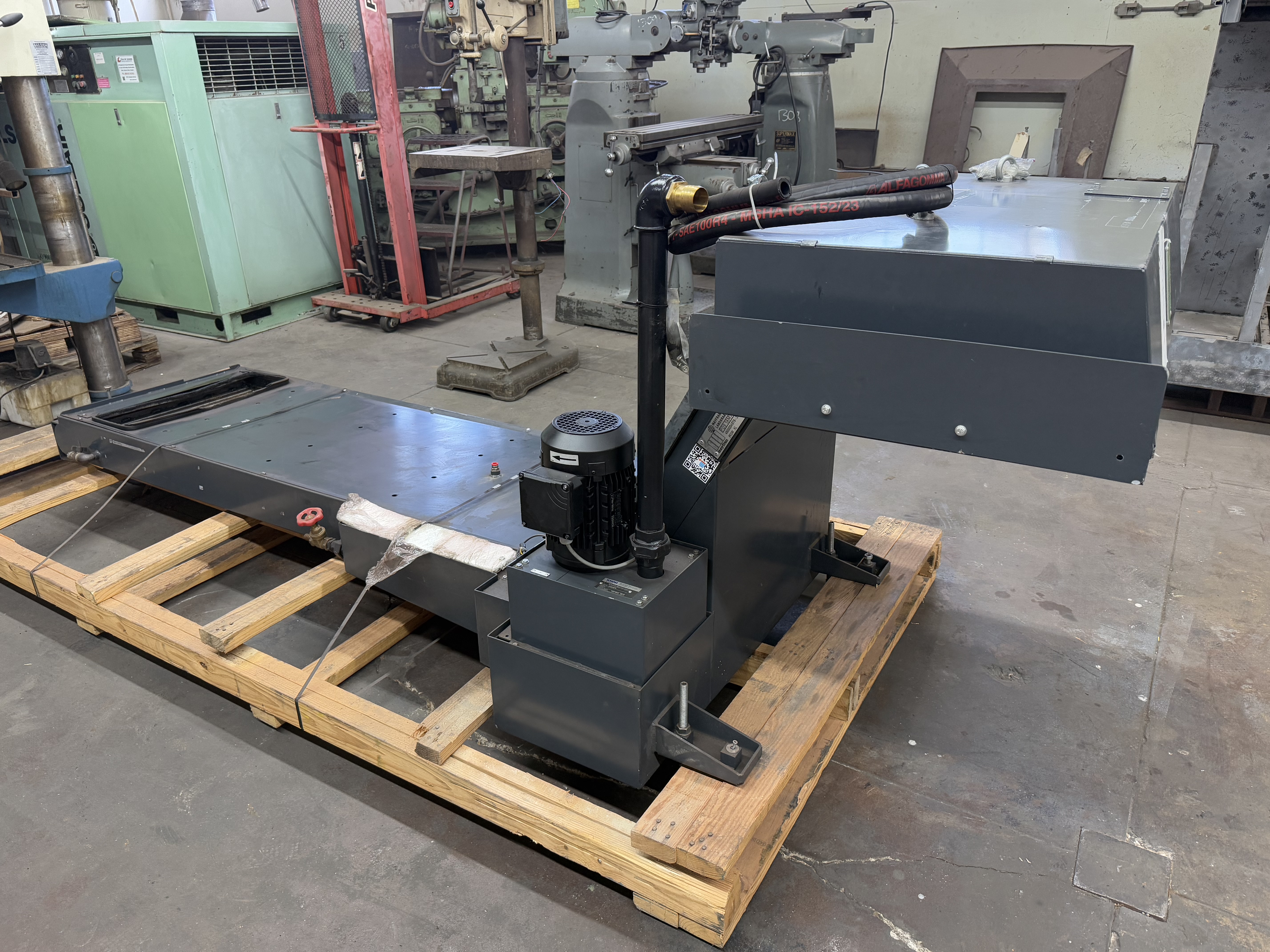

INCLUDES BAR FEED AND CHIP CONVEYOR

(REQUIRES 0060 OR 0065 OR 0070 OR 0075)

MACHINE MISSING "CONTAINER"
CONTAINER UNIT CONSISTS OF COOLANT, HYDRAULIC COOLER & CROSS FEED RACK

CONDITION: SUFFERED TINY FIRE & ONLY RAN 1 SHIFT WAS REPLACE BY
INSURANCE COMPANY WAS STILL RUNABLE THEY KEEPED THE CONTAINER

LOCATION: SANTA PAULA, CA USA

PRICE: $200,000.00
COMES WITH BAR FEED MISSING HYDRAULIC UNIT, COOLANT TO CHILLERS AND SIDE DELIVERY,
8 HOUR USE SINCE NEW

**WOULD RUN WITH JUMPERS AND HYDRAULIC UNIT

MACHINE DIMS: 16'L, X 8'W, X 9'-1"H
MACHINE WEIGHT: 16,000 LBS


***SPECIFICATION SHOWN ARE TO BE USED
AS A GUIDELINE ONLY. IT IS THE CUSTOMERS
RESPONSIBILITY TO CHECK FOR SIZE AND FEATURES
BEFORE PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
