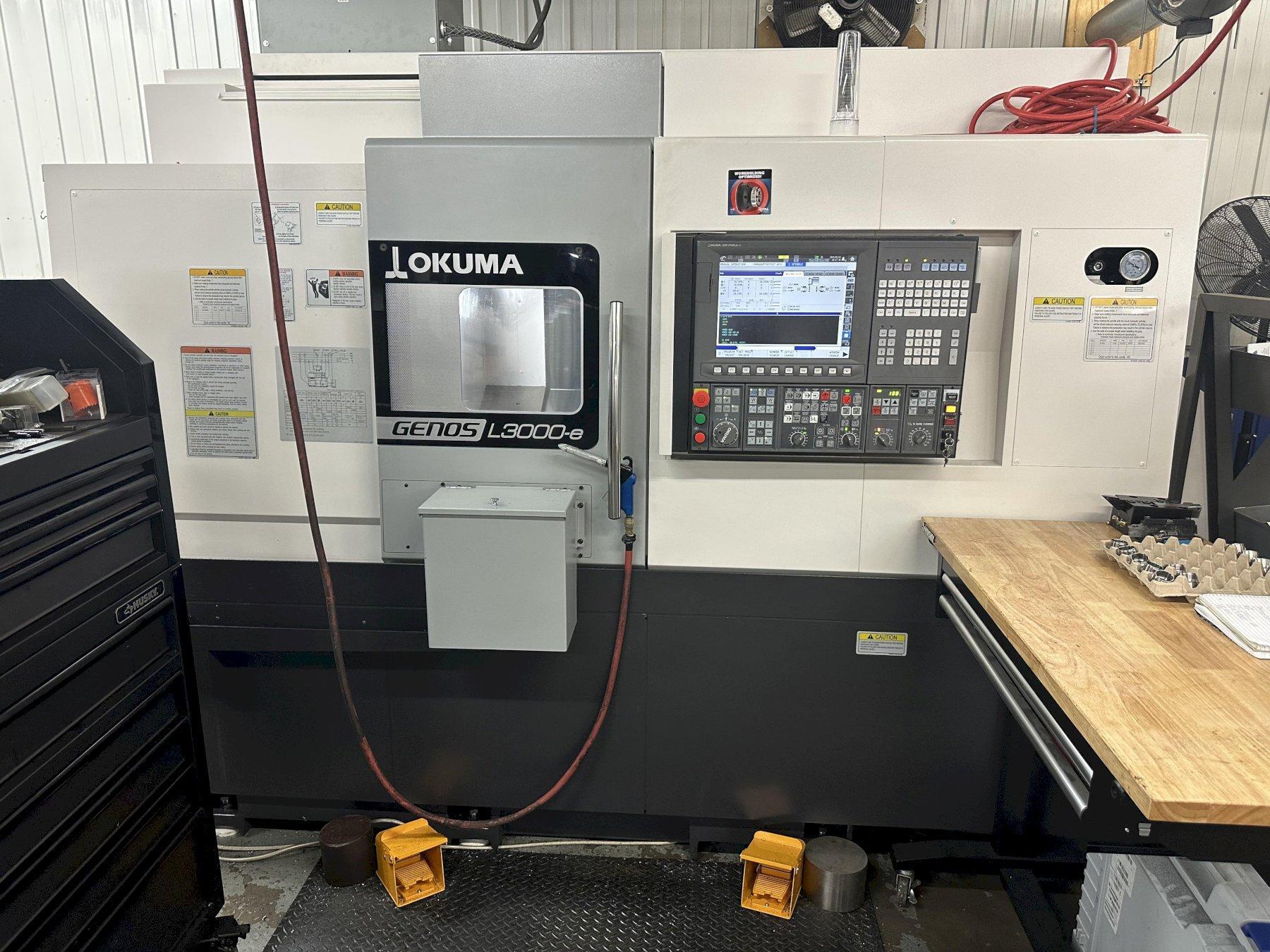

2024 Okuma Genos L3000MYW-EX CNC Lathe For Sale - Like New

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

K43524

Model

Genos L3000MYW

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes
Type of CNC Control - OSP-P300LA-e
# Axis - 5
Swing - 20.47 inches
Turning Diameter - 15.35 inches
Center Distance - 20.47 inches
Chuck Size - 10 inches
Bar Capacity - 3.15 inches
X Axis Travel - 9.25 inches
Y Axis Travel - 3.94 inches
Z Axis Travel - 18.11 inches
B Axis Travel (Sub Spindle) - 20.47 inches
C Axis Index - 0.001°
Spindle Nose - A2-8
Spindle Speed - 3,800 rpm
Main Motor - 30 hp
Tailstock - no
Y Axis - yes
Live Tooling - yes
Live Tooling Speed - 6,000 rpm
Live Tooling Motor - 7.5 hp
Sub Spindle - yes
Sub Spindle Nose - 140 Flat
Sub Spindle Chuck - 6 inches
Sub Spindle Bar Capacity - 2.09 inches
Sub Spindle Speed - 6,000 rpm
Sub Spindle Motor (HP) - 10 hp
Turret Capacity - 12
Machine Dimensions - 120" x 79" x 90"
Machine Weight - 13200 pounds

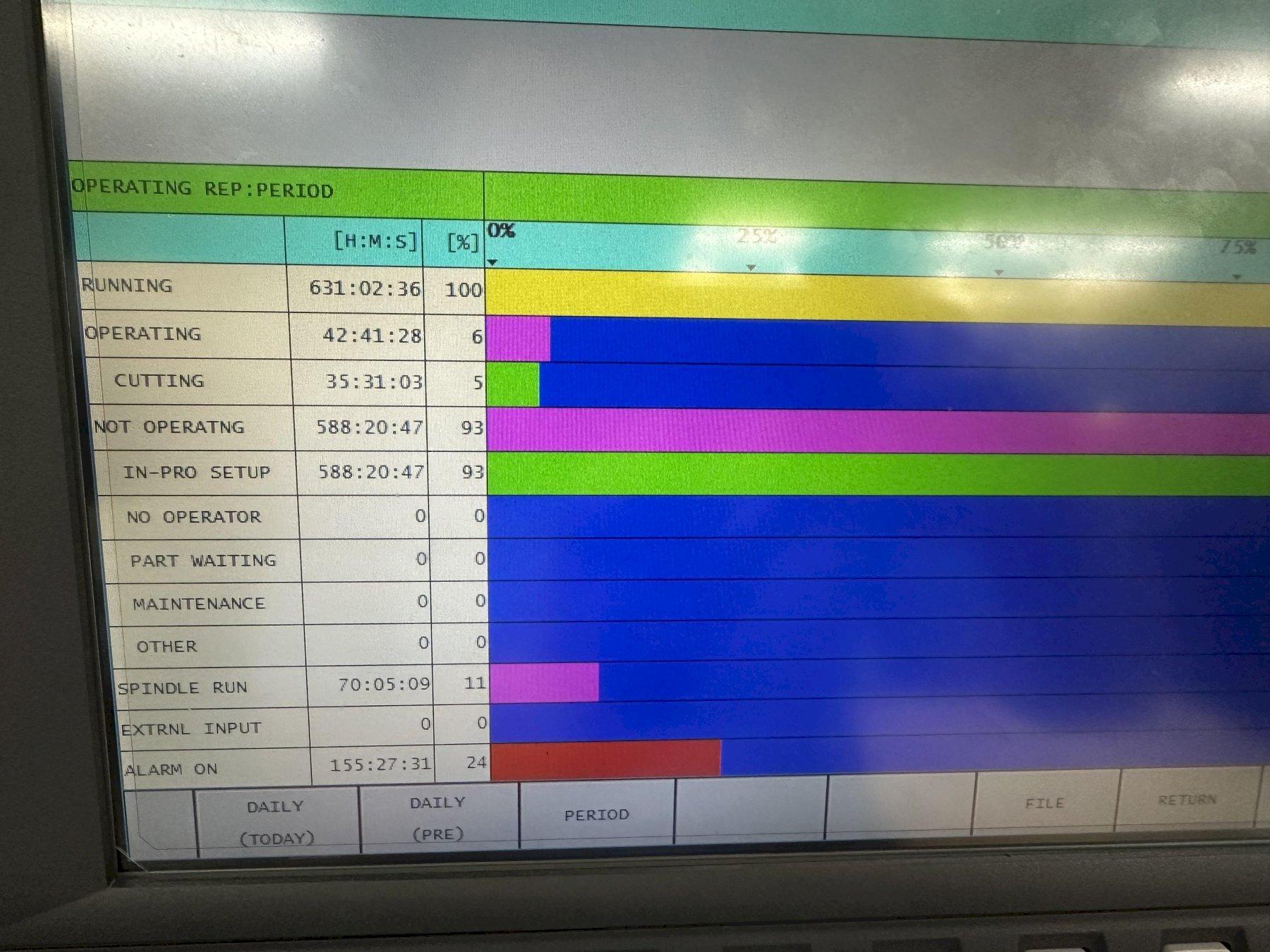

- LIKE NEW - Only 35 Cutting Hours
- Okuma OSP-P300LA-e CNC Control

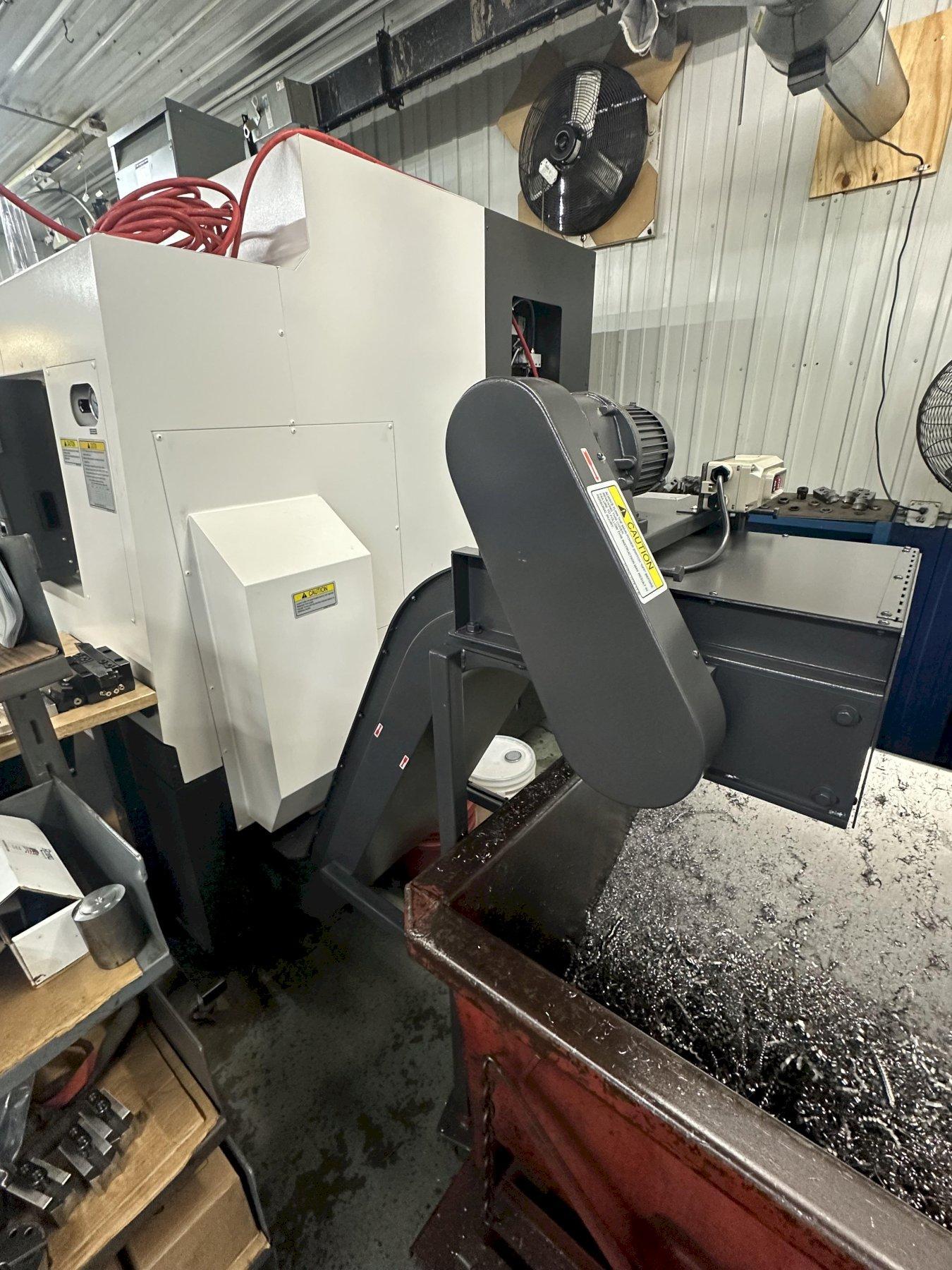

- Chip Conveyor

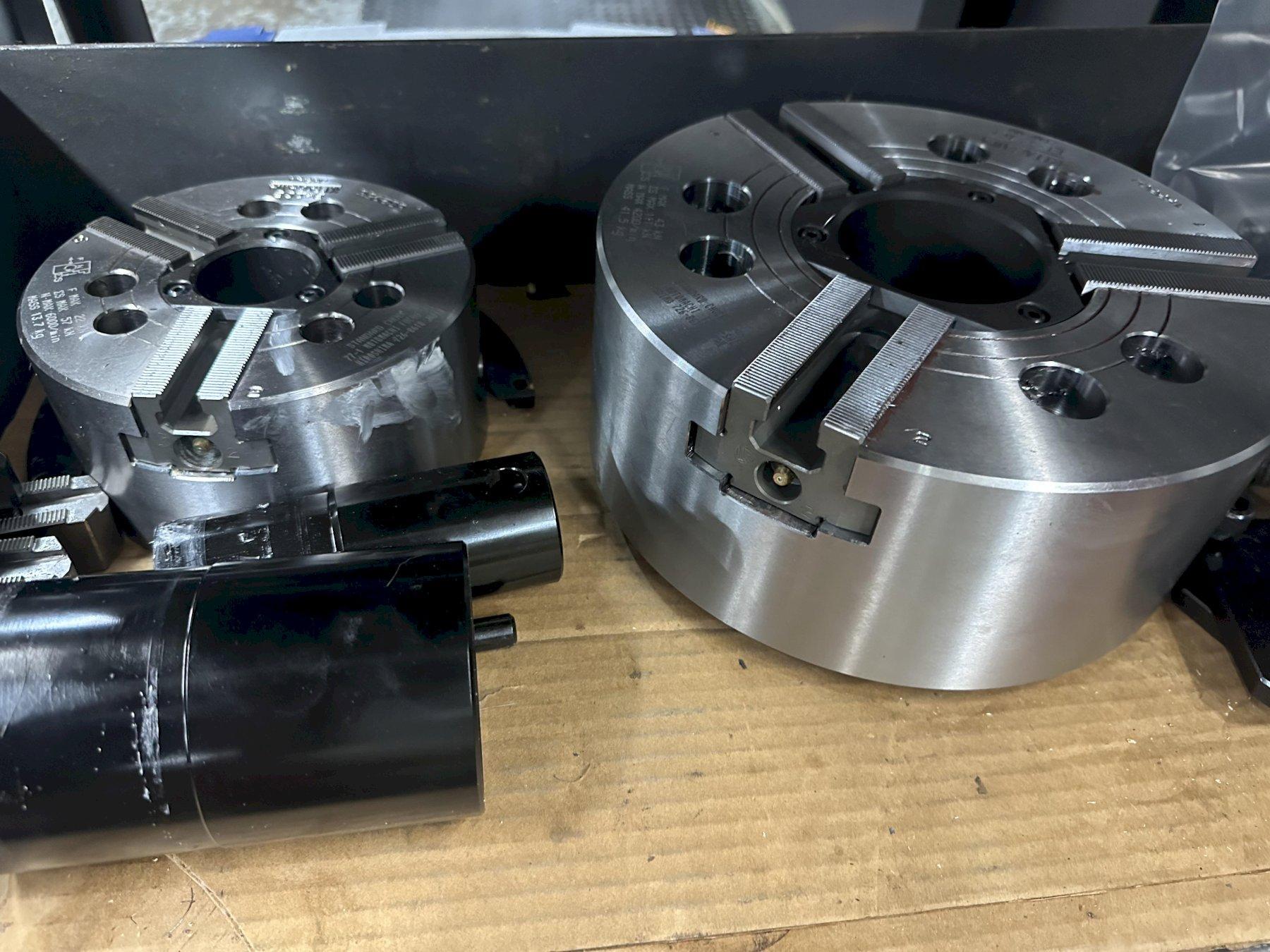

- 10" 3-Jaw Hydraulic Chuck (Main Spindle)
- 6" 3-Jaw Hydraulic Chuck (Sub Spindle)
- Bar Feed Interface
- Parts Catcher
- (4) Live Tool Holders

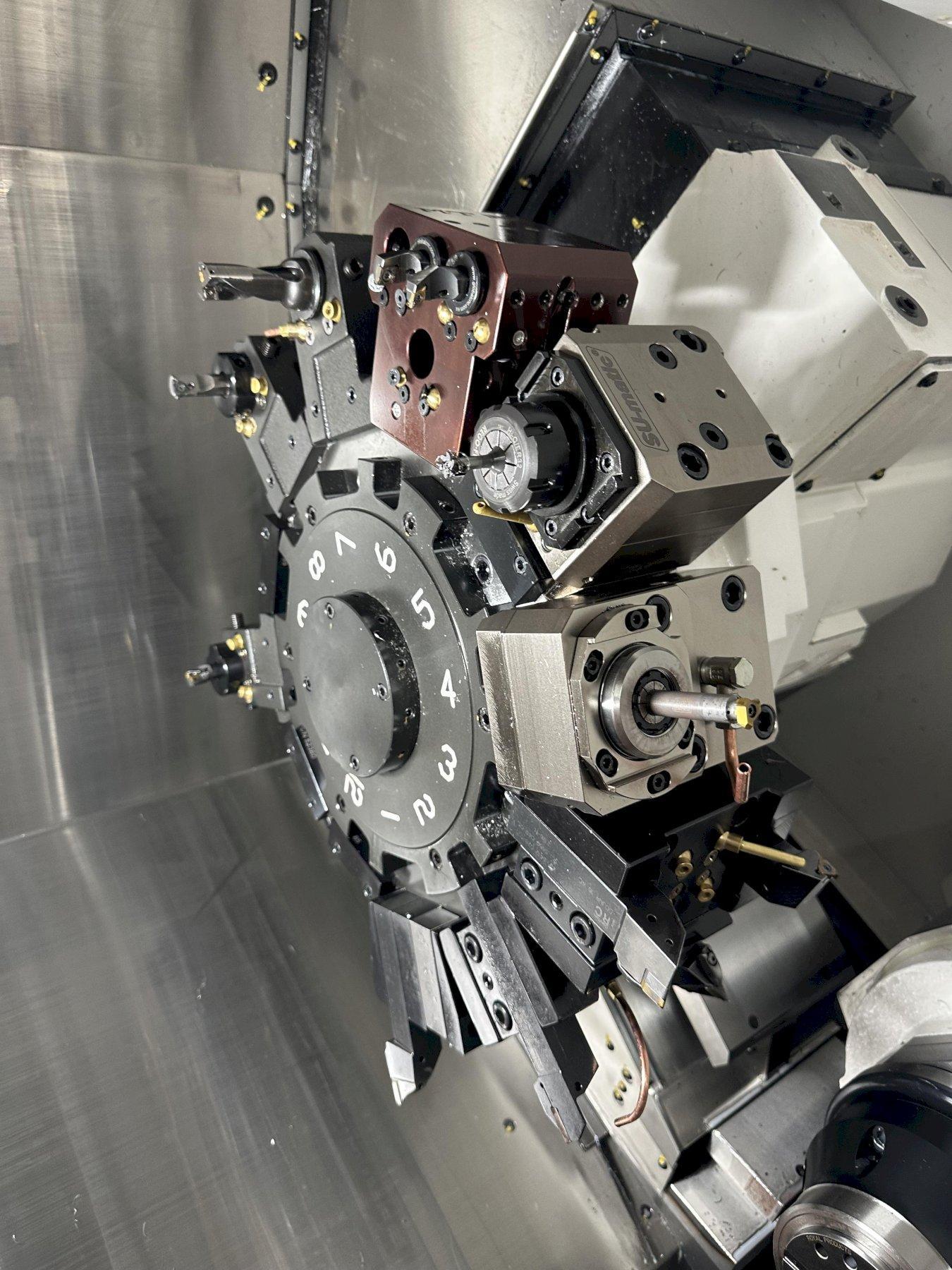

- Static Holders As Shown on Turret Included
- Live Tooling
- Sub Spindle
- Y Axis
- One Touch IGF (Conversational Programming)
- Collet Chuck Shown NOT INCLUDED
