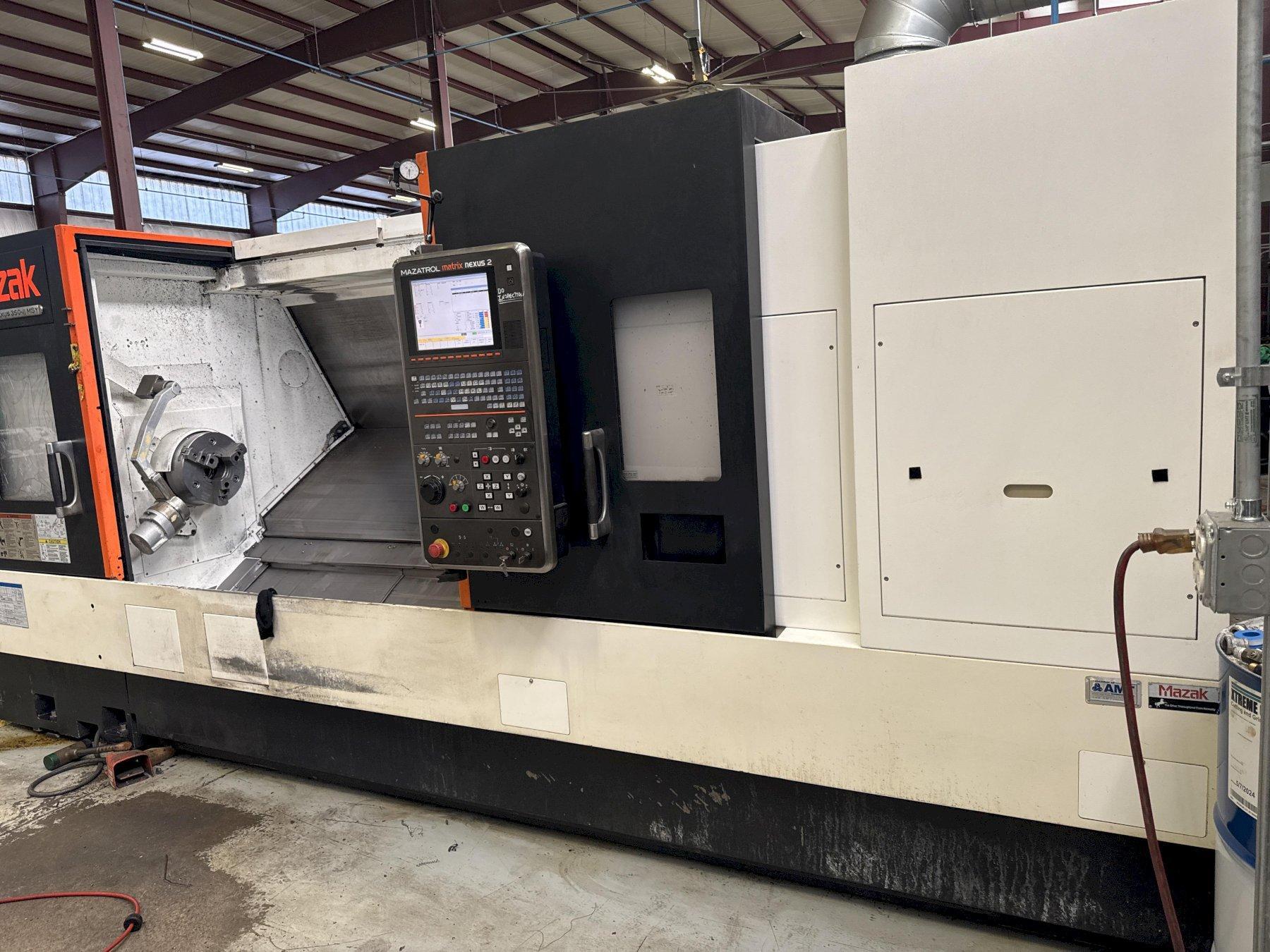

2014 Mazak QTN-350II MSY CNC Lathe For Sale

Stock

DR17150

Model

QTN-350II MSY

Dealer Location

Michigan

Spec Sheet

Type of CNC Control - Mazatrol Matrix Nexus 2
Swing - 32.68 inches
Turning Diameter - 16.6 inches
Center Distance - 62.2 inches
Chuck Size - 12 inches
Bar Capacity - 4.05 inches
X Axis Travel - 10.75 inches
Y Axis Travel - 6.90 inches
Z Axis Travel - 62.25 inches
C Axis Index - 0.001
Spindle Speed - 3,500 rpm
Main Motor - 40 hp
Tailstock - no
Y Axis - yes
Live Tooling - yes
Live Tooling Speed - 4,000 rpm
Sub Spindle - yes
Sub Spindle Chuck - 10 inches
Sub Spindle Bar Capacity - 2.55 inches
Sub Spindle Motor (HP) - 25
Turret Capacity - 12

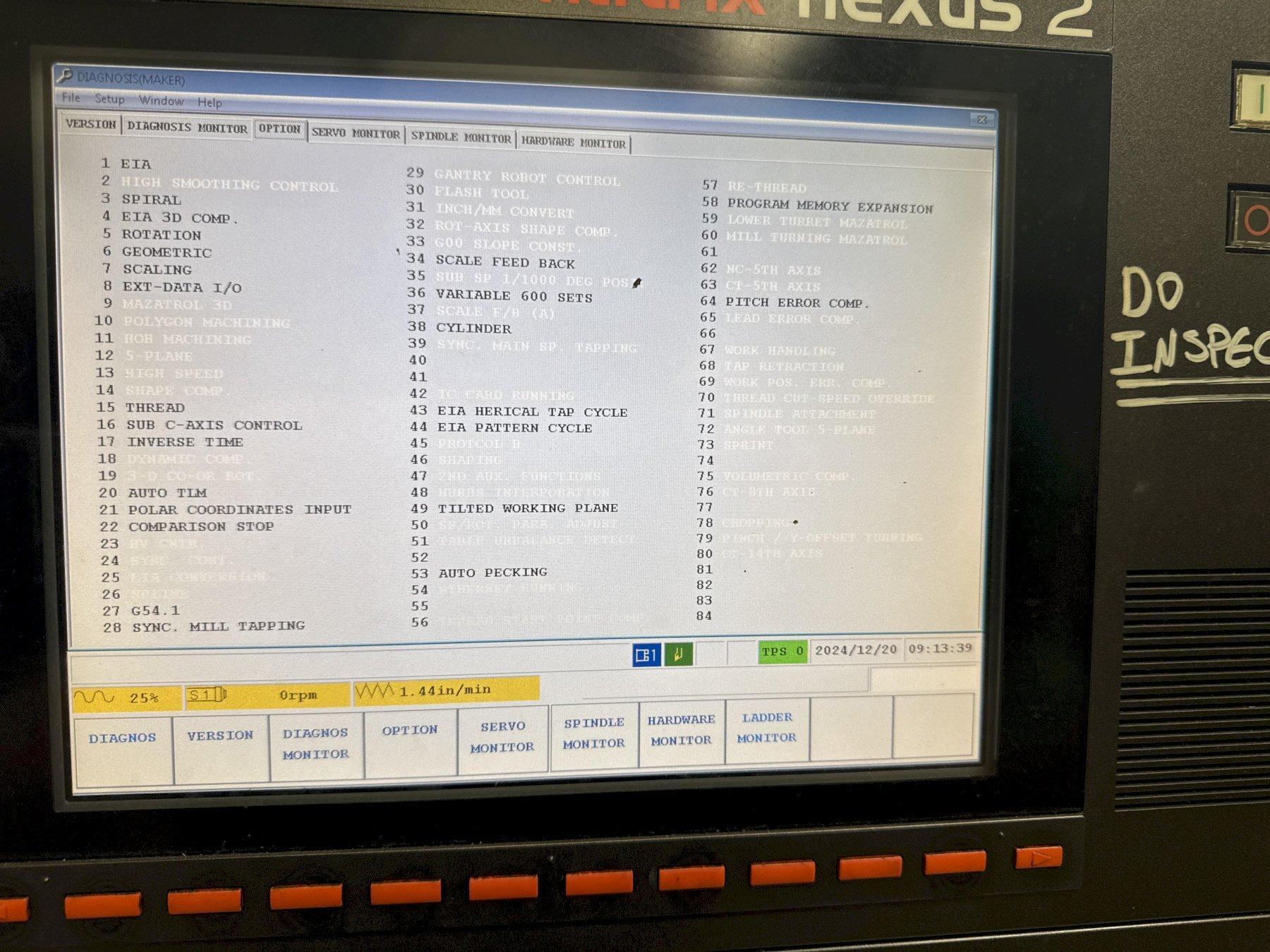

- Mazatrol Matrix Nexus 2 CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Misc Live and Static Holders
- EIA/ISO Input Function
- Mazak Tapping Boring Tornado
- USB Interface
- Milling Spindle rigid tapping
- C axis 0.0001 Deg
- 213 psi High Power Coolant
- Auto Tool Length Measurement
- Scale Feedback
