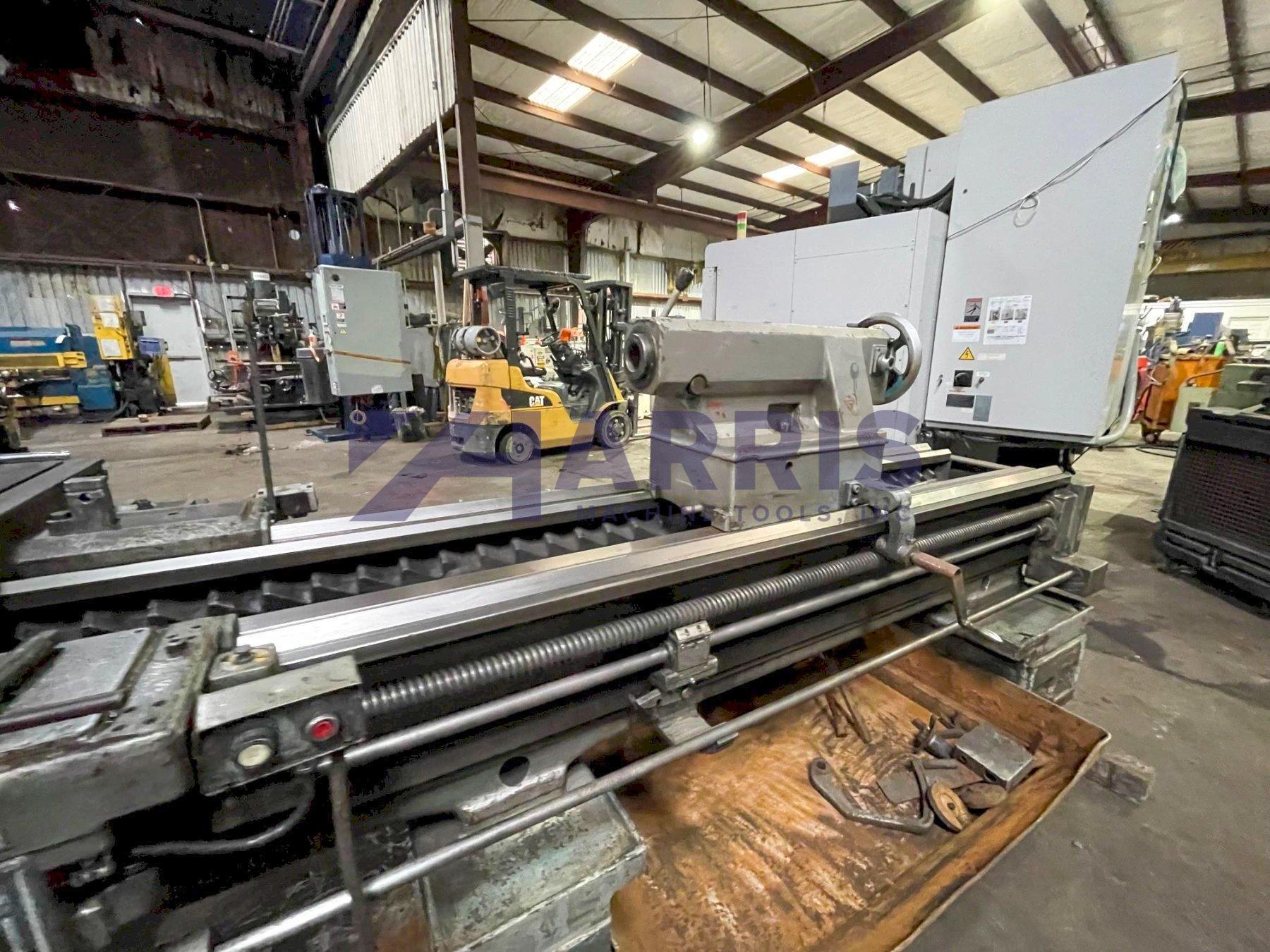

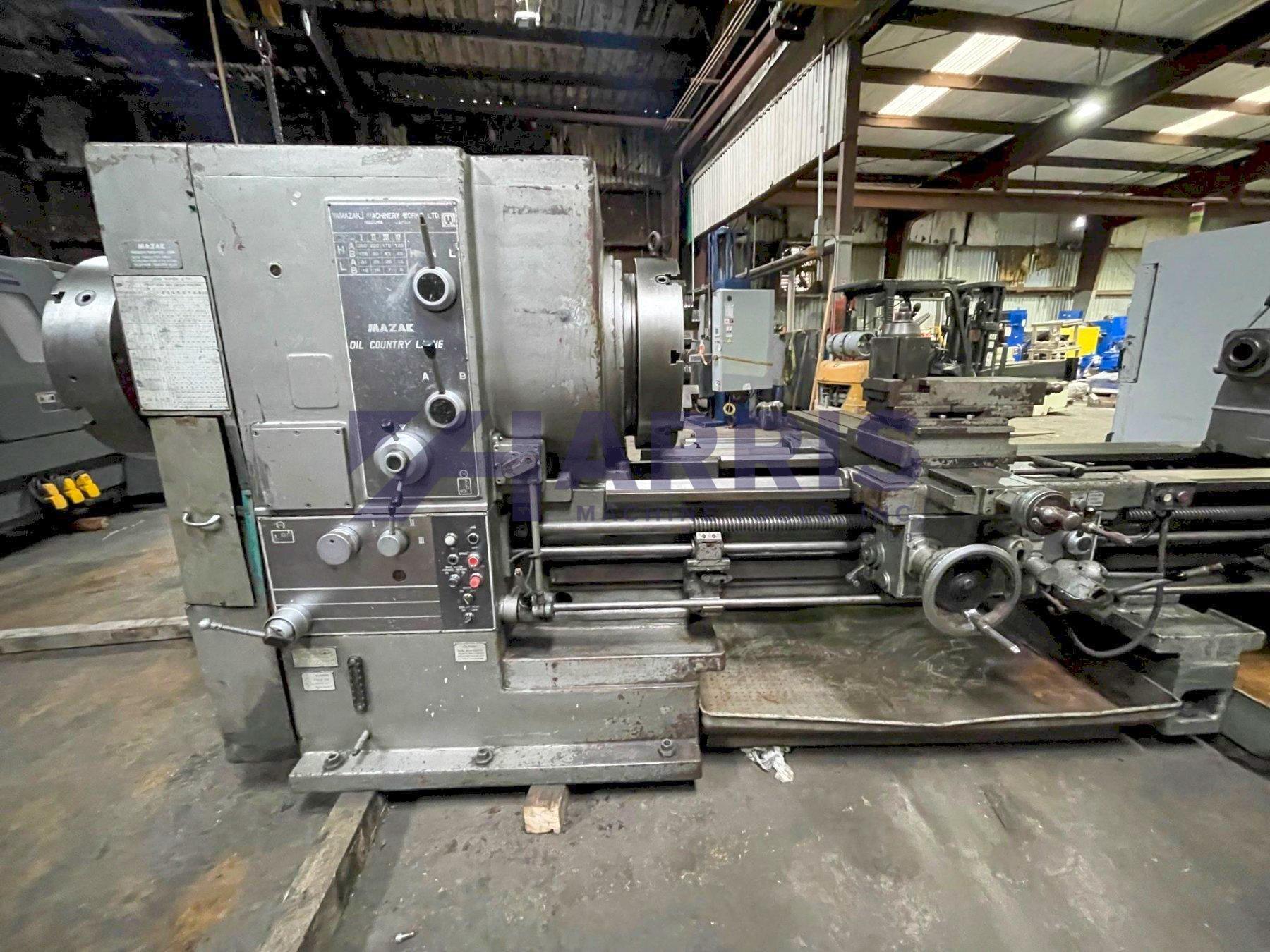

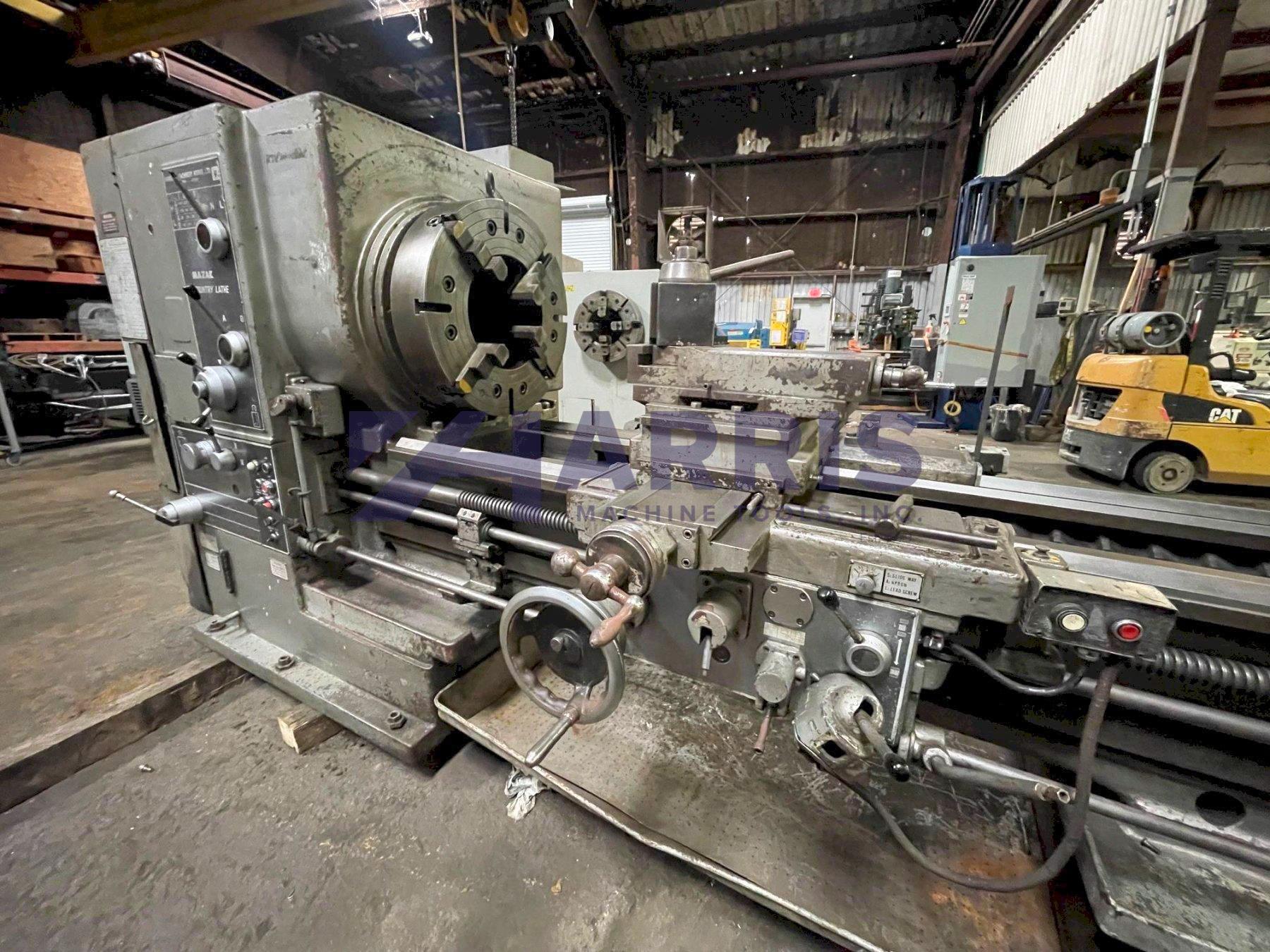

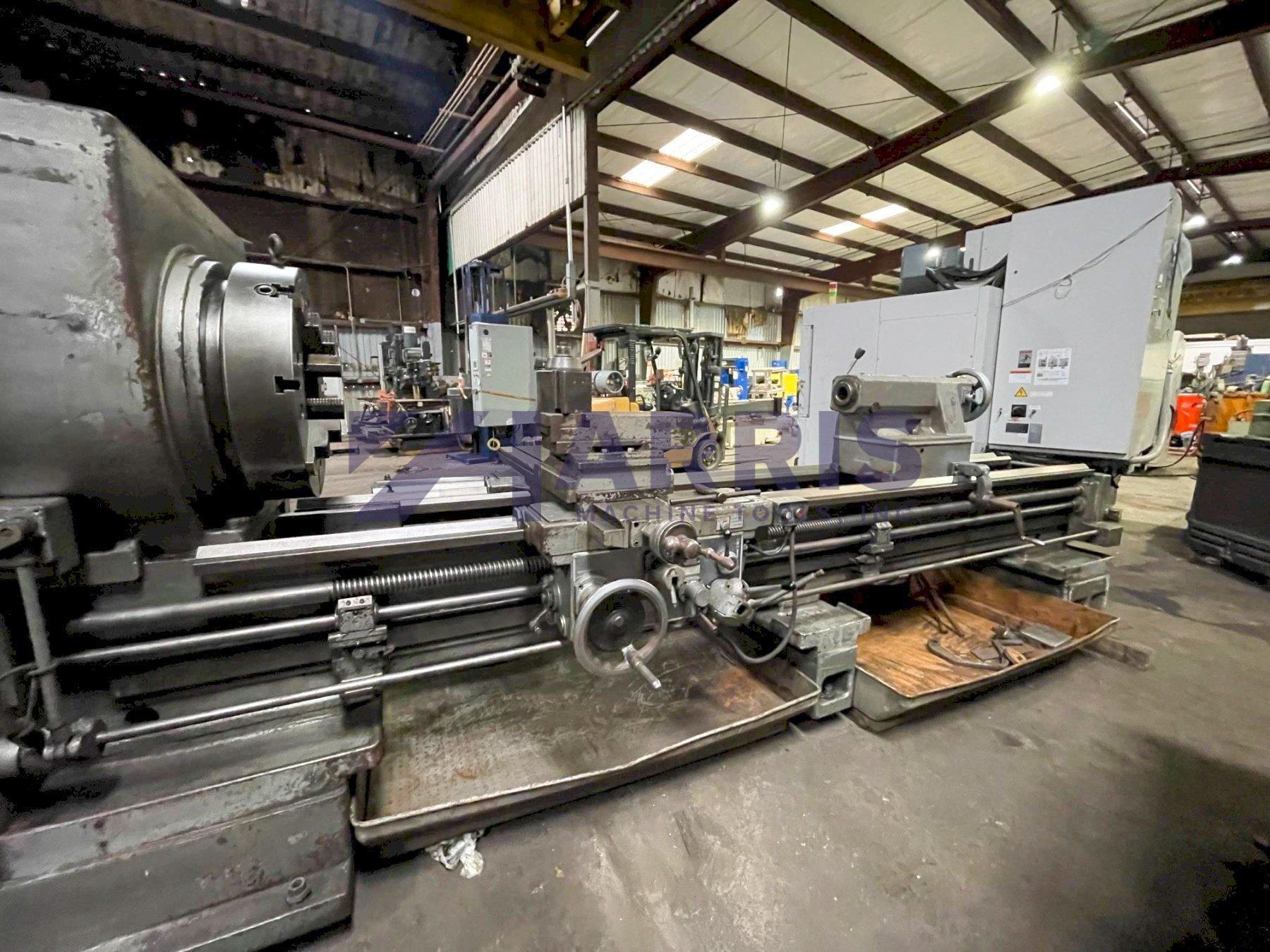

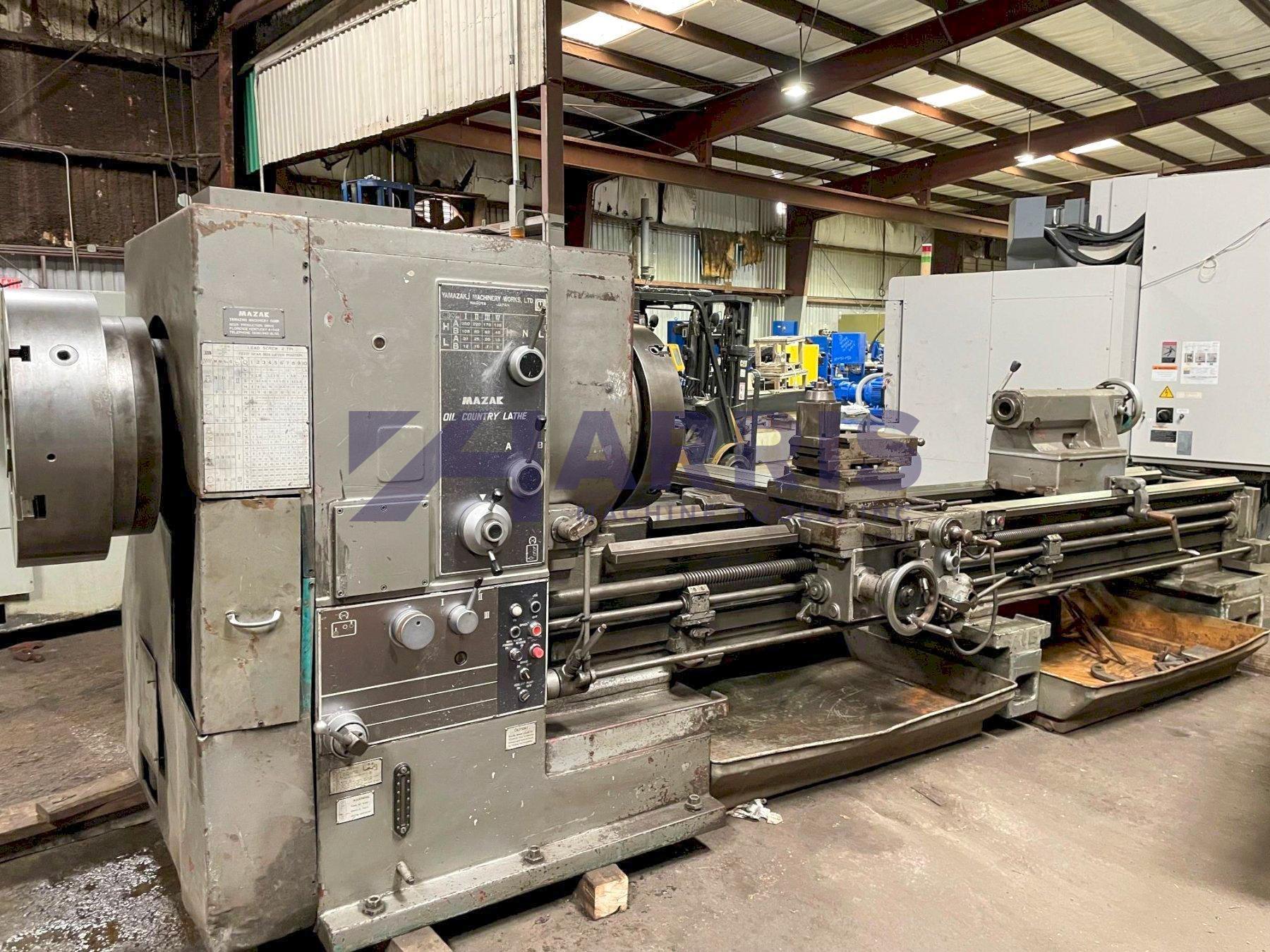

30" x 120" Mazak Heavy Duty Hollow Spindle Lathe with 12" Spindle Bore

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, OIL FIELD & HOLLOW SPINDLE

Stock

20688

Model

Oil Country 30

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

Swing - 30 inches
Centers - 120 inches
Spindle Bore - 12 inches
Power - 20 horsepower
RPM - 300
Dimensions - 190" x 62"
Weight - 17000 pounds


EQUIPPED WITH:

Taper Attachment - ASA A2-20" Spindle Nose

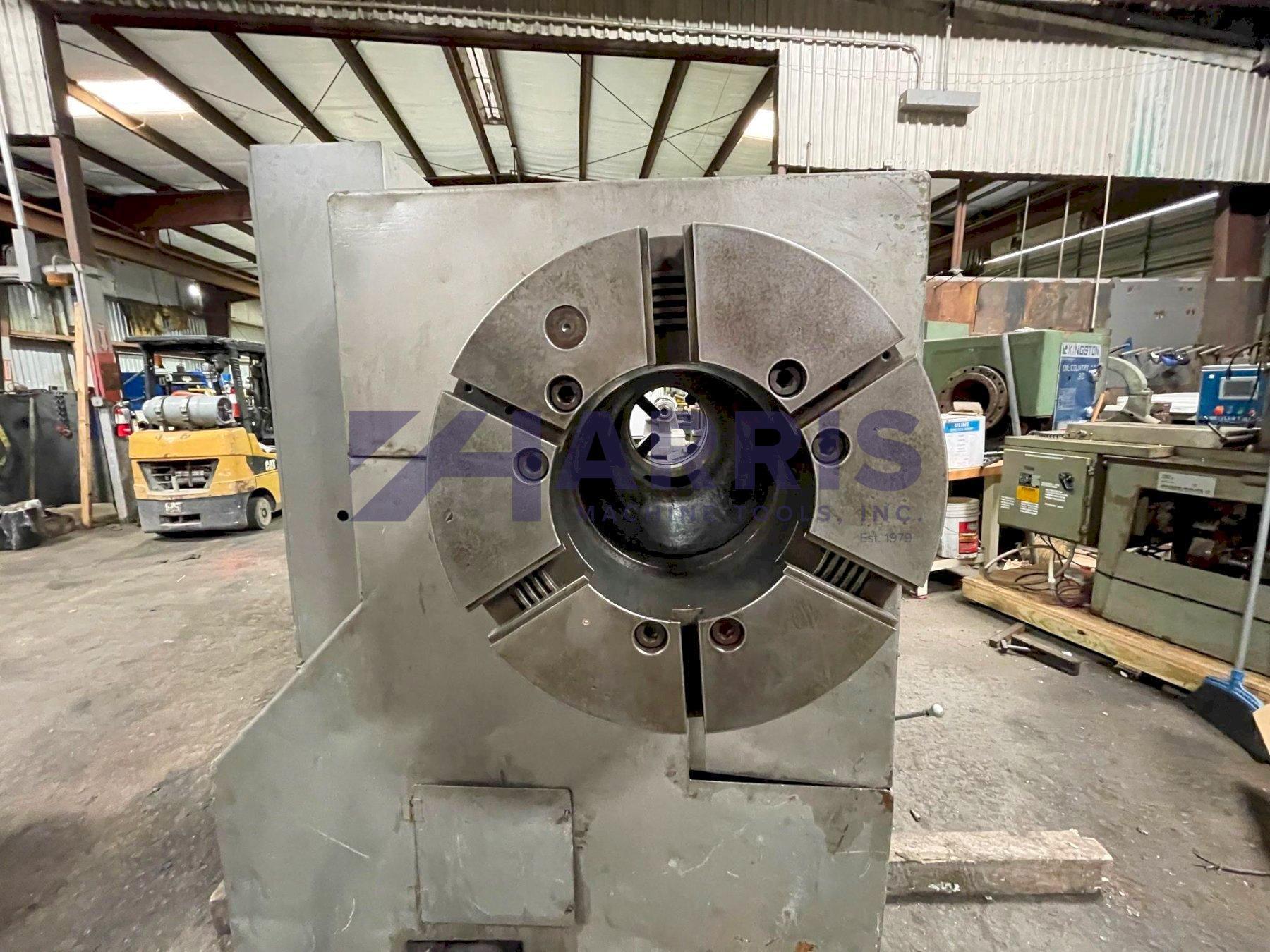

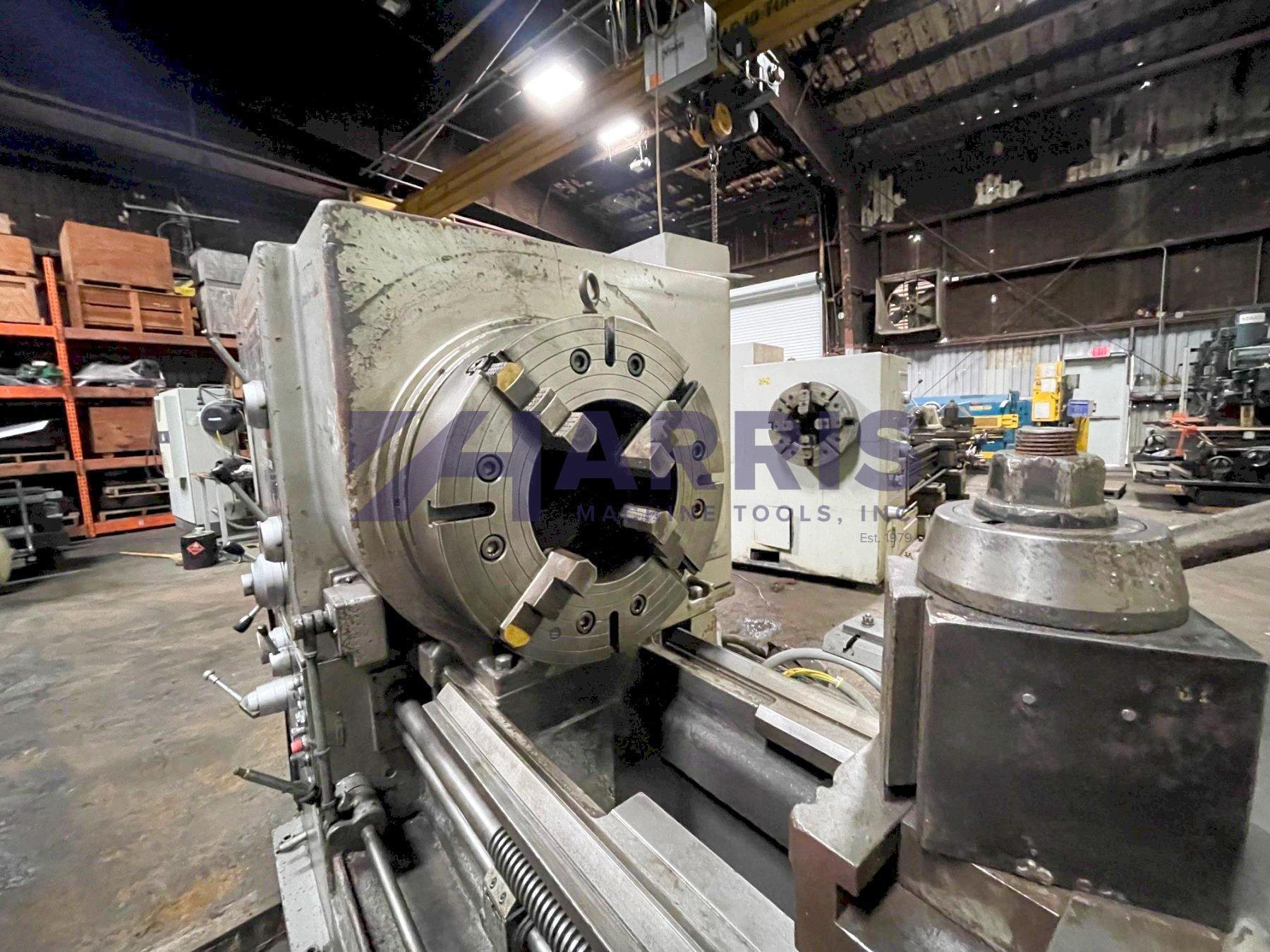

(2) 24" Chucks (Front & Rear)

Power Rapid Traverse - Threading Dial

Threading (Inch-Metric Full-Length Lead Screw)

Hardened & Ground Bed Ways

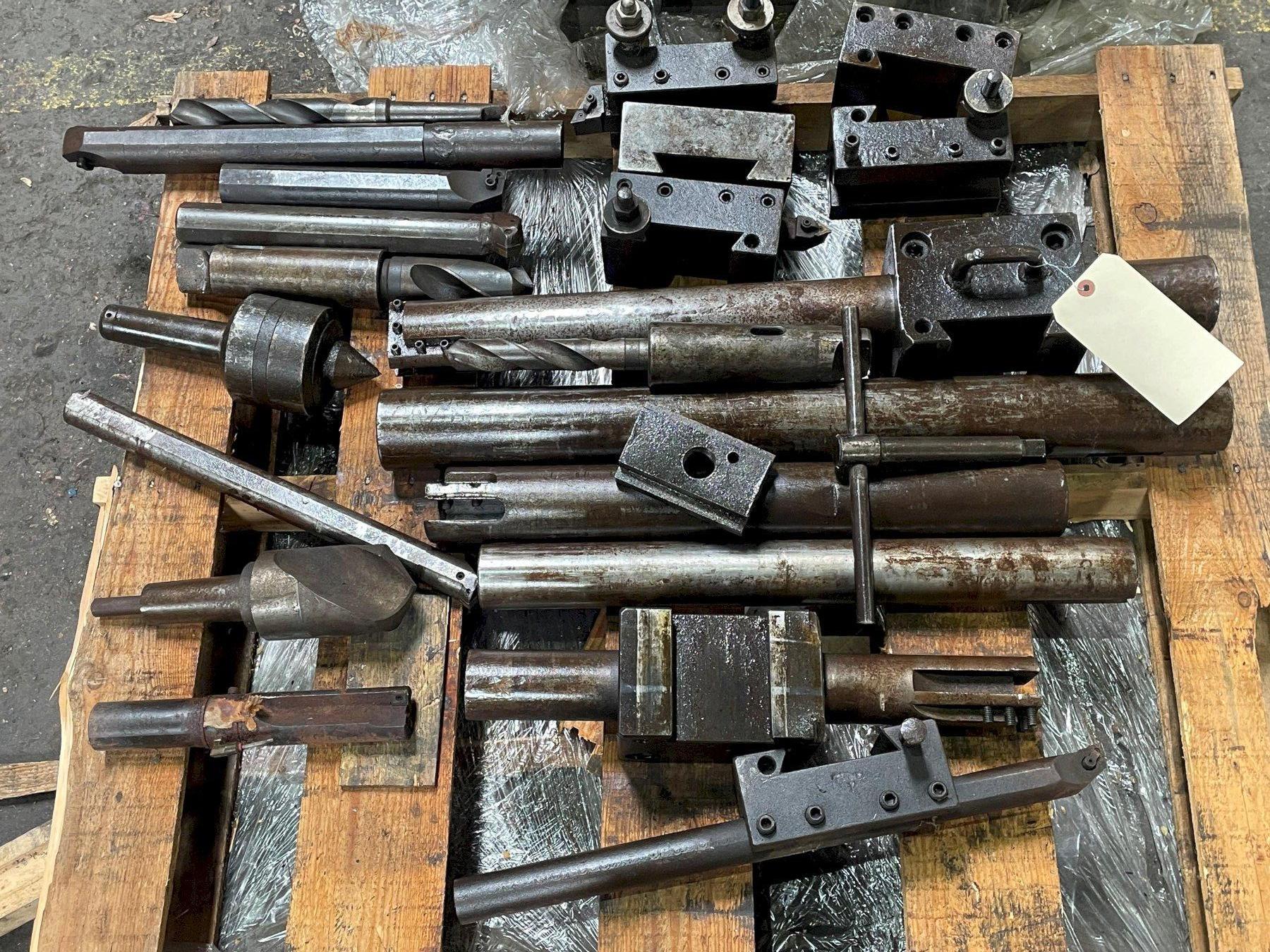

(See images for included tooling)



CATALOG SPECIFICATIONS:

Hole Thru Spindle...................... 12.5"

Swing Over Bed Ways, Rated............. 30"

Swing Over Cross-Slide................. 20.75"

Distance Between Centers............... 100"

Cross-Slide Cross-Feed Travel.......... 21.25"

Compound-Rest Top Slide Travel......... 9.875"

Tailstock, Spindle Diameter............ 3.93"

Tailstock, Spindle Travel.............. 11.81"

Tailstock, Spindle Taper............... #6 MT

(16) Spindle Speeds, Range............. 5 to 300 RPM

(40) Carriage Longitudinal Feeds...... .0025 to .0356 IPR

(40) Carriage Longitudinal Feeds .06 to .89 MMPR

(40) Cross-Slide Cross Feeds.......... .0012 to .178 IPR

(40) Cross-Slide Cross Feeds .03 to .45 MMPR

Whitworth Thread Changes, Range........ .1 to 28 TPI

Metric Thread Changes, Range........... 1 to 28 MM

Module Thread Changes, Range........... .5 to 7 M

D.P. Thread Changes, Range............. 4 to 56 D.P.

Motor Horsepower 20 HP

Floor Space Required, L x D............ 190" x 62"

Weight, Approximately.................. 16,850 LBS
