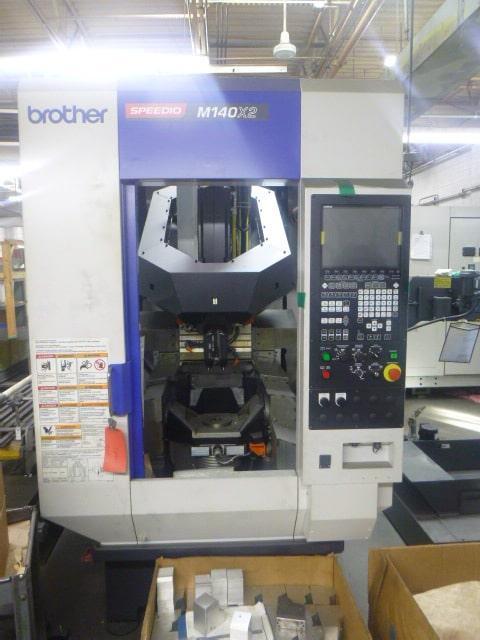

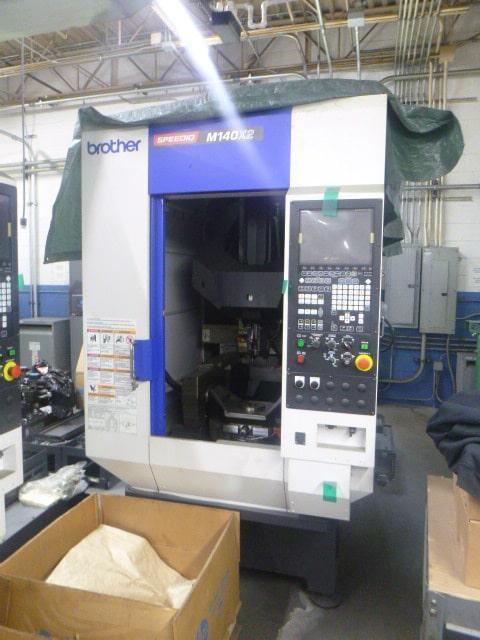

Brother Speedio M140X2 5-axis CNC Vertical Drilling, Milling, and Turning Center

Manufacturer

BROTHER

Category

Lathes

Type

TURNING CENTERS, CNC

Stock

VMCM140X

Model

M140X2

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Maximum Spindle Speed - 16,000 RPM
Travels: X-axis - 7.9” (200mm)
Travels: Y-axis - 17.3” (440mm)
Travels: Z-axis - 12” (305mm)
A-axis (Tilt) - -30 to 120°
C-axis (Rotation) - 360°
Work Area Size (Diameter) - 5.5” (140mm)
Spindle Speed - 16-16,000 RPM
Maximum Tapping Speed - 6,000 RPM
Spindle Taper - BT30
Maximum Turning Spindle Speed - 2,000 RPM
Rapid Traverse Rate (X, Y, Z Area) - 1969 IPM (50m/min)
Cutting Feed Rate (X, Y, Z-axis) - .04-1181 IPM (1-30,000 mm/min)
Indexing Feed Rate: A-axis (Tilt) - 60 IPM
Indexing Feed Rate: C-axis (Rotation) - 200 IPM
Tool Shank Type - BT30
Tool Storage Capacity - 22-Positions
Maximum Tool Length - 7.9” (200mm)
Maximum Tool Diameter - 3.1” (80mm)
Maximum Tool Weight - 6.6 lbs. (3kg)
Main Spindle Motor (10 minutes) - 10 HP (7.4 kw)
Main Spindle Motor (Continuous) - 6.5 HP (4.5 kw)
Approximate Machine Dimensions - 50.4” x 150.7” x 102” H (1280mm x 3829mm x 2603mm H)
Approximate Weight - 6,000 lbs.


EQUIPPED WITH:

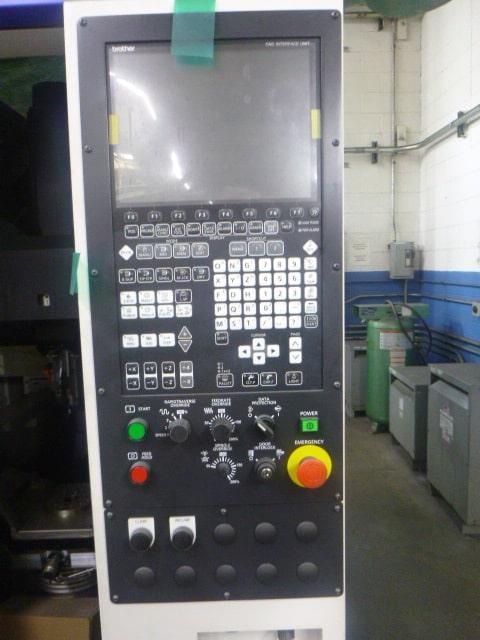

Brother CNC-COO Control.
Manual Pulse Generator.
22-Position ATC.
Thru-Spindle Coolant.
435 PSI High Pressure Pump.

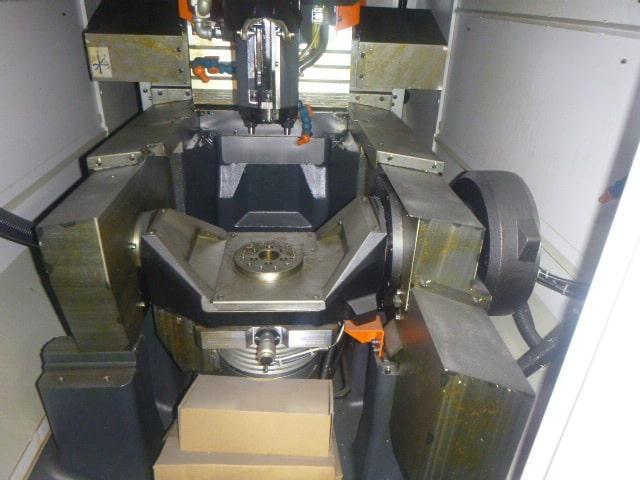

Turning Spindle with 5.5” Diameter Table.
The turning Spindle has Three Modes: Indexing Table, Turning and Cutting Feed.

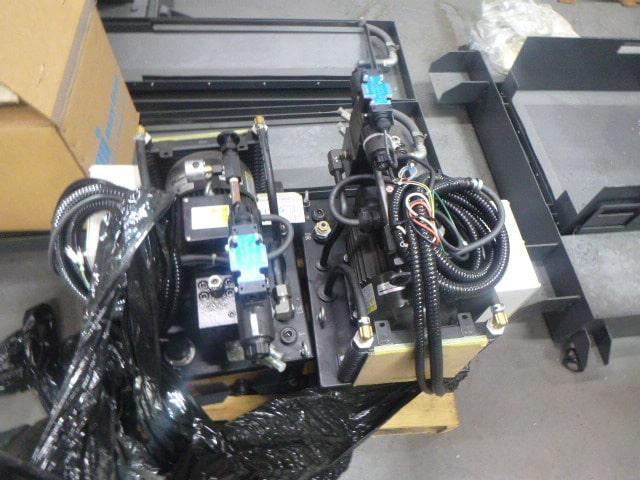

Kitigawa 2-Jaw Chuck with Hydraulic Actuator Kit.
High Speed Synchronized Tapping.

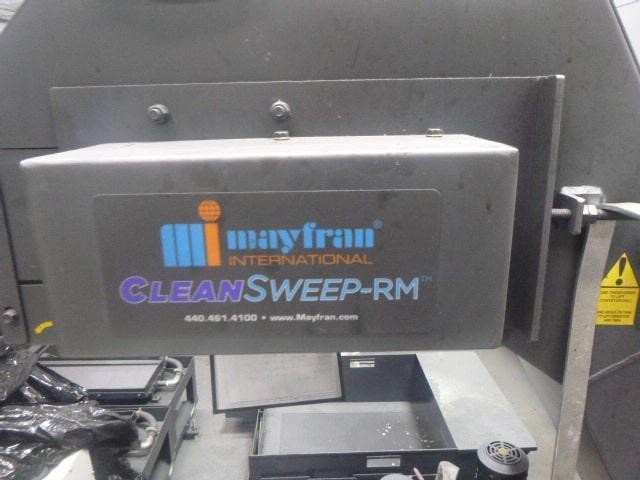

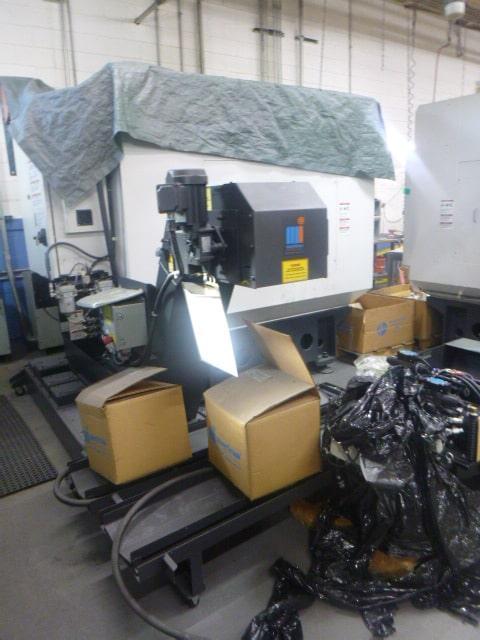

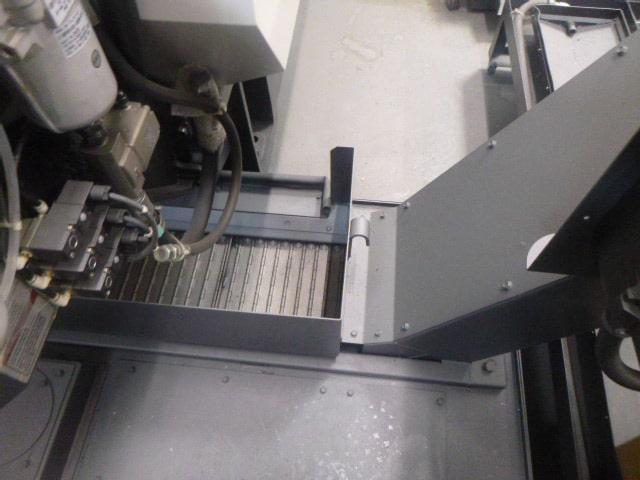

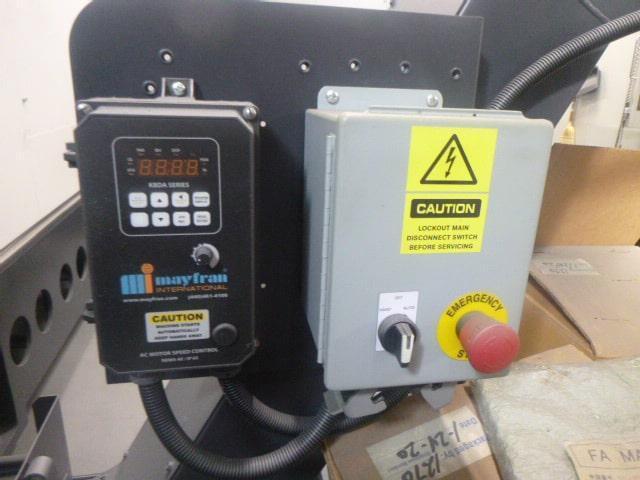

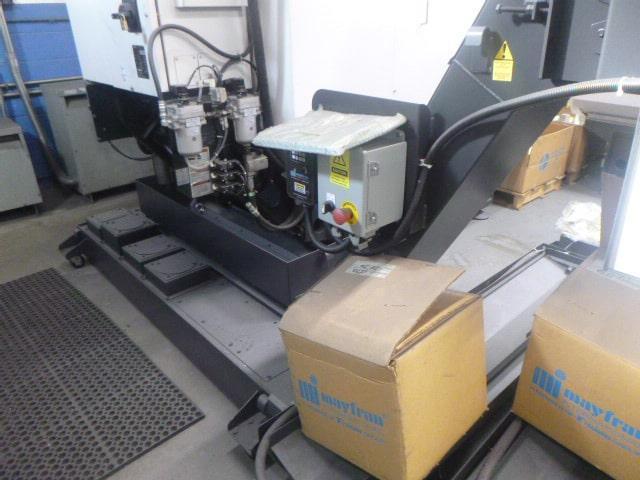

Mayfran Clean Sweep Chip Conveyor/Coolant System.
Air assisted Toolwash and Back Washing System.
Automatic Grease Lubrication System.
Chip Shower System.
Complete Enclosure with Ceiling Cover and Safety Door Interlock System.
Manuals and Drawings.
