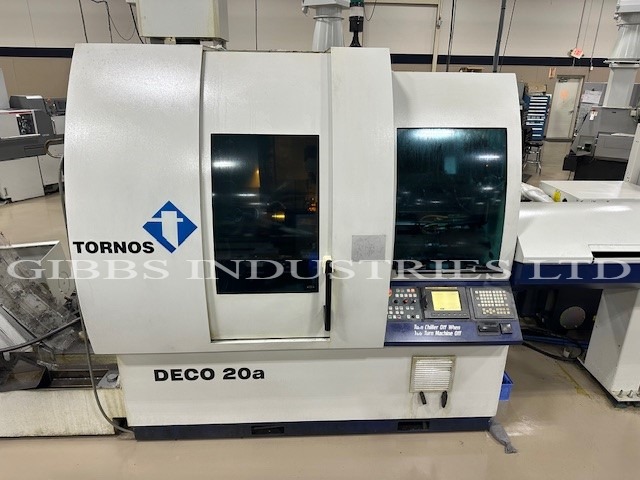

Tornos Deco 20a/26a CNC Hz Swiss Type Automatic Screw Machine, Tornos Fanuc PNC Deco CNC Ctrl., Bar Feed, Chiller, Chip Conveyor, 2011

Manufacturer

TORNOS

Category

Automatic Screw Machines

Type

AUTOMATIC SCREW MACHINES, SWISS TYPE, CNC

Stock

129486

Model

Deco 20a/26a

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

TORNOS DECO 20a/26a CNC HORIZONTAL SWISS TYPE AUTOMATIC SCREW MACHINE
Year: 2011

Specifications:
Headstock:
Main Spindle Turning Diameter Maximum: 1"
Main Spindle Turning Length Maximum: 7.870"
Main Spindle Bar Diameter Maximum: 0.790"
Main Spindle Bar Diameter Opt: 1"
Sub Spindle Turning Diameter Maximum: 0.790"
Sub Spindle Turning Length Maximum: 7.870"

Single Spindle:
Number Main Spindle: 1
Main Spindle 1: 10,000 RPM, 7.50 HP, 0.100 Index Increment
Main Spindle 2: 10,000 RPM, 7.50 HP, 0.100 Index Increment
Sub Spindle (Standard): 6,000 RPM, 7.50 HP, 0.100 Index Increment

Tooling:
Primary Tool Carrier: Front Slide
Maximum Tools: 10 Turning, 4 Rotary
Rotary Tool: 3.00 HP, 8,000 RPM
Second Tool Carrier: Back Slide
Maximum Tools: 4 Turning, 3 Rotary
Rotary Tool: 8,000 RPM
Number Simultaneous Cutting Tools: 4
Secondary Mill/Drill Function:
On-Center: Standard
Off-Center: Standard
With 'C' Axis: Optional
With 'Y" Axis: Standard

Axes and Travels:
Number of Axes: 8
Number of Axes Opt: 9
Number of Axes Opt 2: 9
X Axis Travel: 0.790"
Z Axis Travel: 7.870"

Equipped With:
Tornos Fanuc PNC Deco CNC Control
Robo Bar SBF-50532 Bar Feed
Chiller
LNS Turbo-MF2 Variable Speed Chip Conveyor With
High Pressure Coolant Pump, Motor & Tank
Fire Suppression System
Chip Conveyor
Mist Collector
