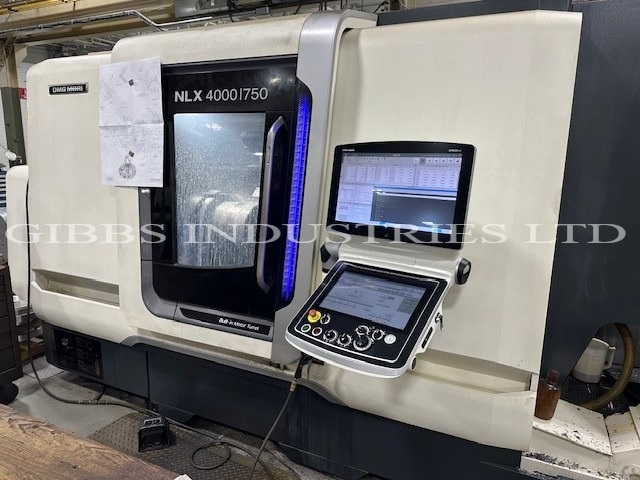

DMG Mori NLX 4000AY/750 3-Axis CNC Lathe w/Live Tooling & Tool Holders, 39.4" Swg, X 12.4", Y 4.7", Z 34.4", Celos ERGOLine Ctrl, Chiller, Conveyor, 2015-Del 2016

Manufacturer

DMG MORI

Category

Lathes

Type

LATHES, TURNING, CNC

Stock

129487

Model

NLX 4000AY/750

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

DMG MORI NLX 4000AY/750 THREE AXIS CNC LATHE WITH LIVE TOOLING Year: 2015 - Delivered 2016 Specifications: Capacity: Swing Over Bed: 39.4" Swing Over Cross Slide: 30.7" Maximum Turning Diameter: 19.7" Standard Turning Diameter: Standard: 15.3" 12-Station Turret: 12.6" Maximum Turning Length: Standard: 27.6" When The Turning Tool Holder (O.D.) T00186 is Used: 29.3" Bar Work Capacity: 4.6" Travel: X-Axis: 12.4" Y-Axis: 4.7" Z-Axis: 34.4" Spindle1: Maximum Spindle Speed: 2,000 Number of Spindle Speed Ranges : 2 Step Type of Spindle Nose: JIS A2-11 Thru-Spindle Hole Diameter: 5.7" Minimum Spindle Indexing Increment: 0.001 Degree Spindle Bearing Inner Diameter: 7.9" Turret1: Number of Tool Stations: 12 Shank Height for Square Tool: 32" Diameter of Boring Bar Shank Part: 2" Shank Diameter for Rotary Tool: 32" Turret Indexing Time: 0.5 Sec. Maximum Rotary Tool Spindle Speed: Standard: 10,000 Min-1 High Torque: 4,000 Min-1 Feedrate: Rapid Traverse Rate: X-Axis: 1,181.1 IPM Y-Axis: 393.7 IPM Z-Axis: 1,181.1 IPM C-Axis: 400 Min-1 Tailstock : 787.4/27.6 IPM Tailstock: Tailstock Travel: 28.9" Tailstock Spindle Diameter: 4.3" Taper Hole of Tailstock Spindle: Live Center: MTS Built-In Center: MT4 Motor: Spindle 1 Drive Motor: 50/40 HP Rotary Tool Spindle Drive Motor: Standard<3 Min/5 Min/Cont>: 7.3/7.3/4.9 HP High Torque<4 Min/Cont>: 13.3/8.0 HP Feed Motor: X-Axis: 6.0 HP Y-Axis: 6.0 HP Z-Axis: 6.0 HP Tailstock: 4.0 HP Equipped With: Live Tooling With Tool Holders Celos ERGOLine CNC Control With 19" Color TFT Screen Dainkin Chiller Kitagawa 15" Hollow Chuck Super High-Pressure Coolant System High Torque Spindle Rotary Tool Spindle 4,000 RPM LNS Turbo-HB Chip Conveyor Coolant Pump, Motor & Tank
