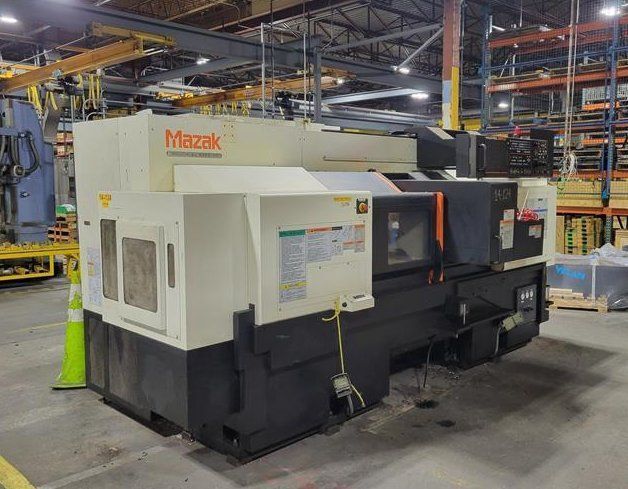

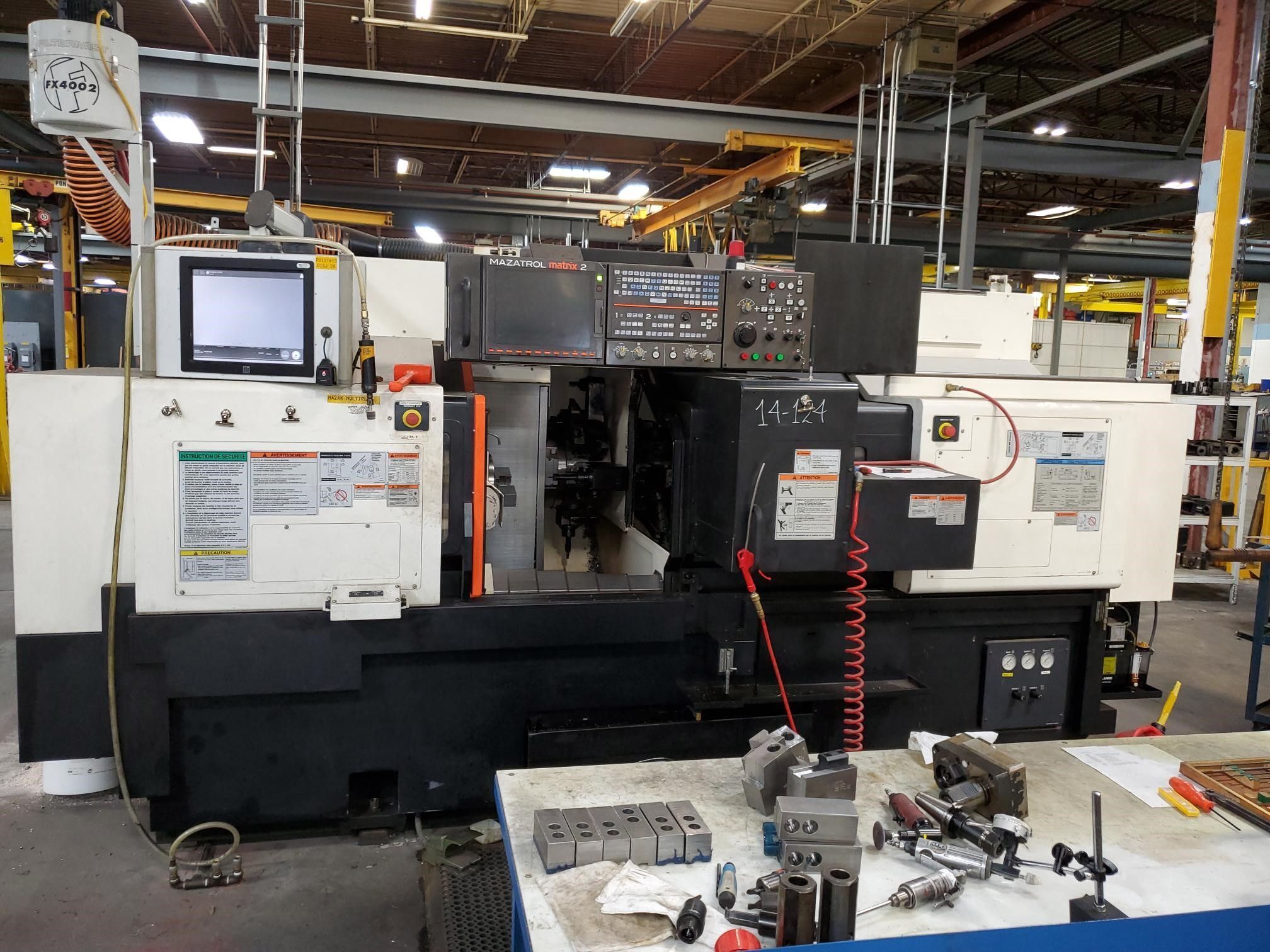

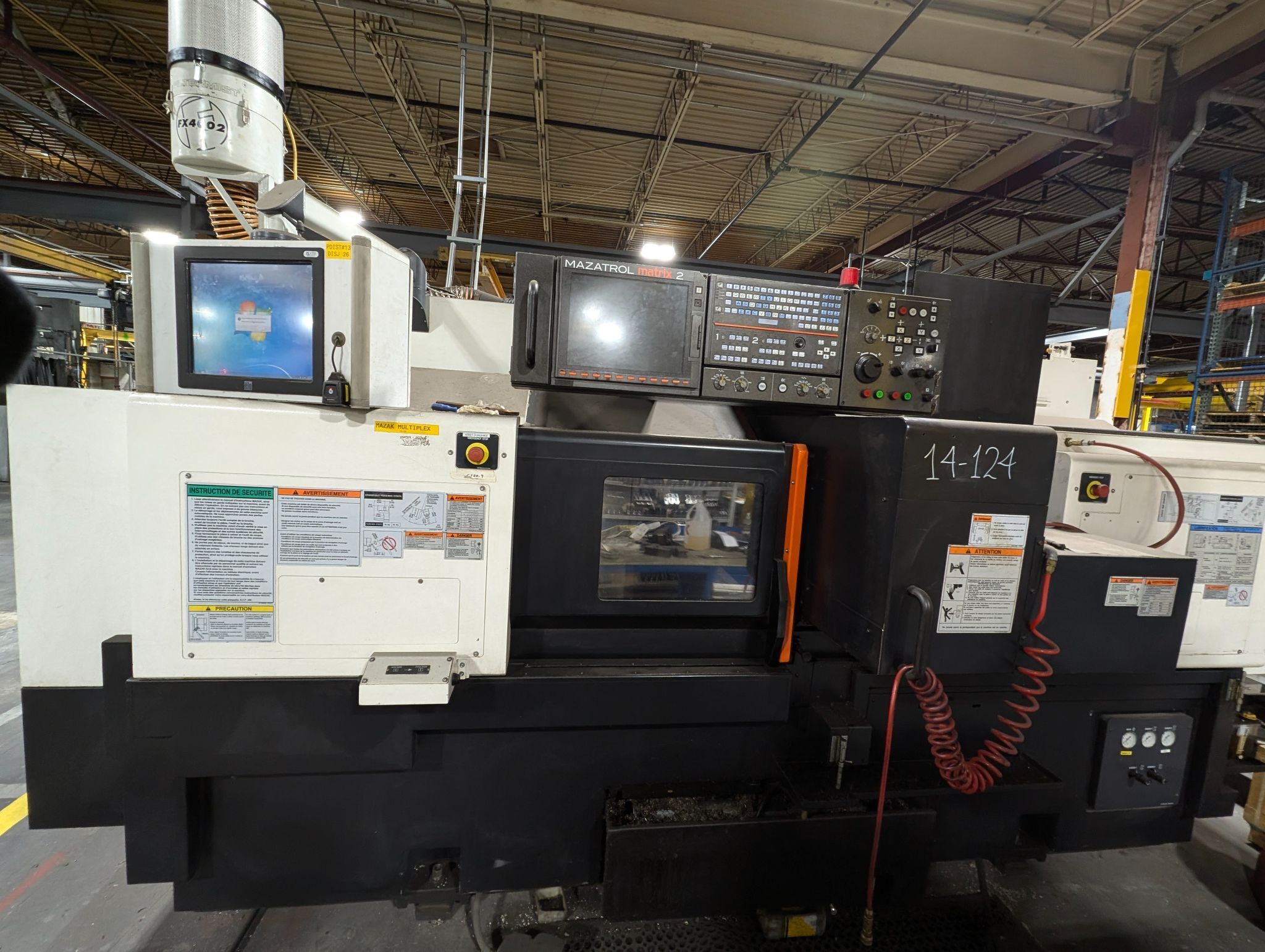

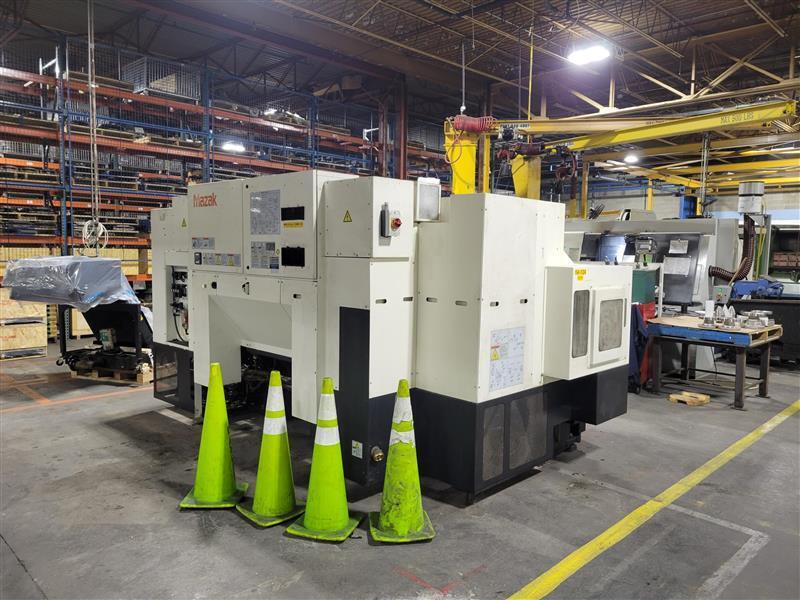

MAZAK MULTIPLEX 6300-II Y MULTI AXIS CNC Y-AXIS TURNING CENTER - NEW: 2012

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

69165

Model

MULTIPLEX 6300-II Y

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Specifications
Capacity
Maximum Swing 430 mm / 16.93 in
Maximum Machining Diameter 430 mm / 16.930 in
Maximum Bar Work Capacity 77 mm / 3.0 in
Maximum Machining Length 225 mm / 8.860 in

Main Spindle
Chuck Size 10 in
Maximum Speed 4000 rpm
Motor Output (30 minute rating) 22 kw / 30.0 hp

Second Spindle
Chuck Size 10 in
Maximum Speed 4000 rpm
Motor Output (30 minute rating) 22 kw / 30.0 hp

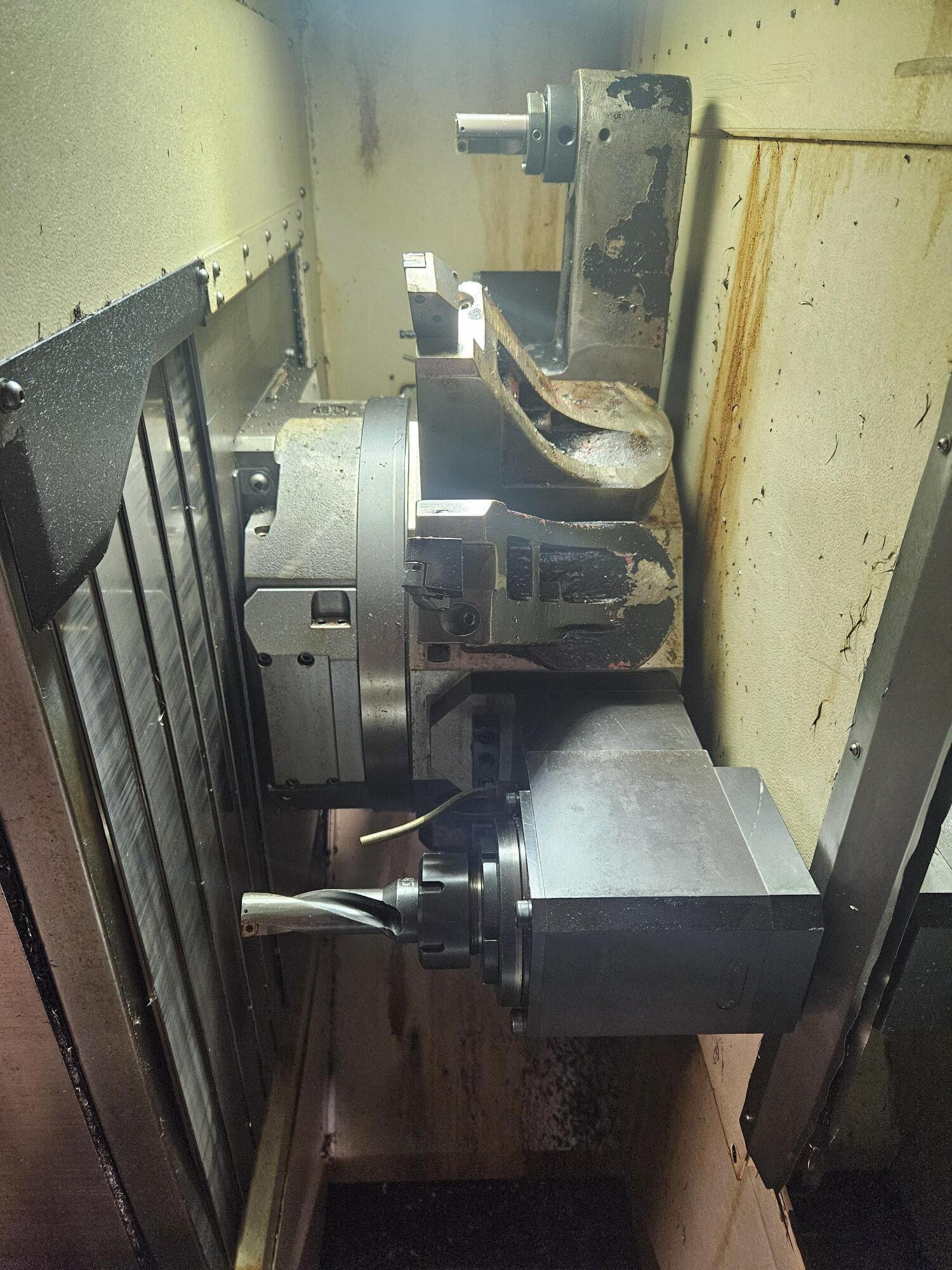

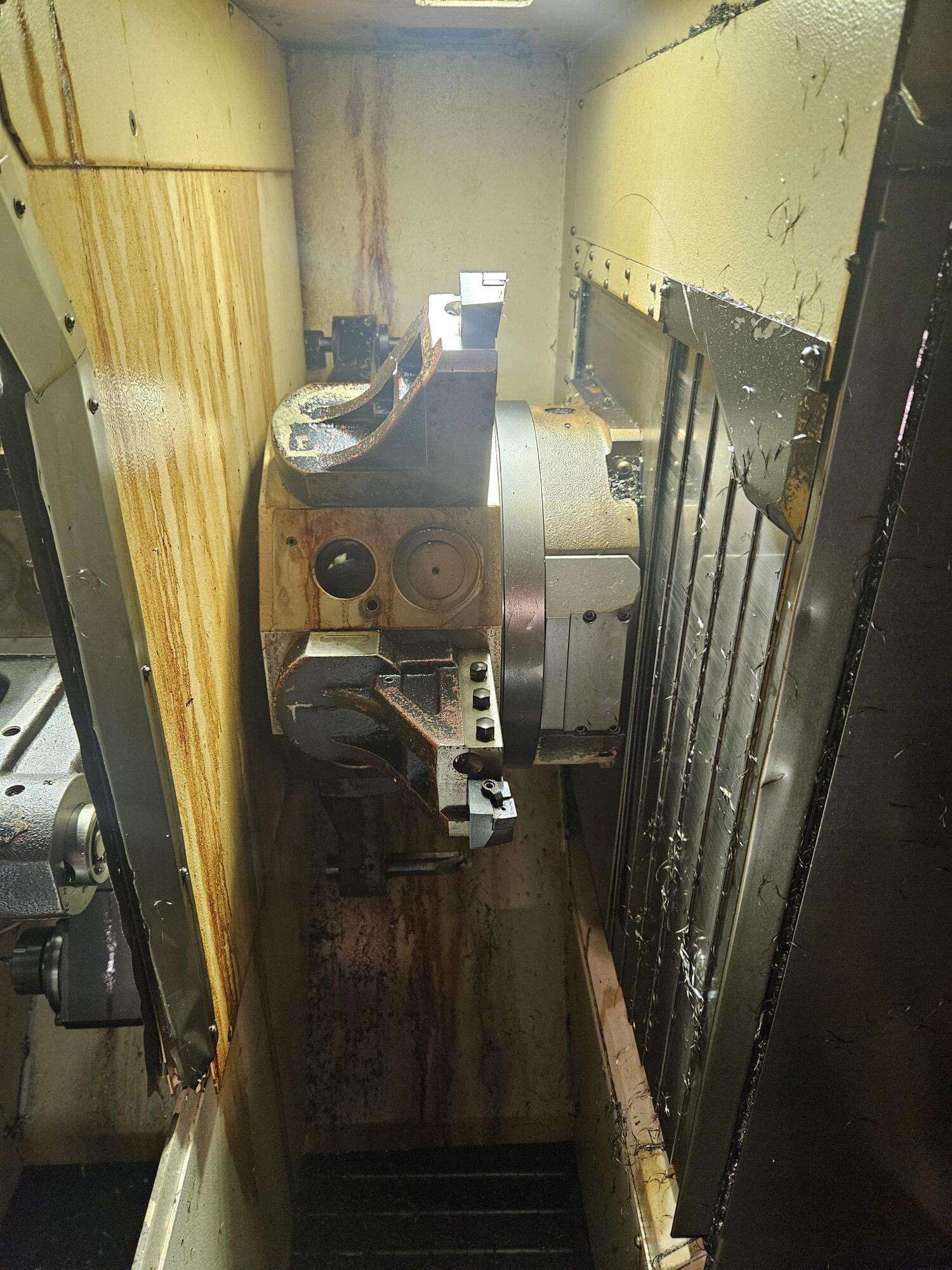

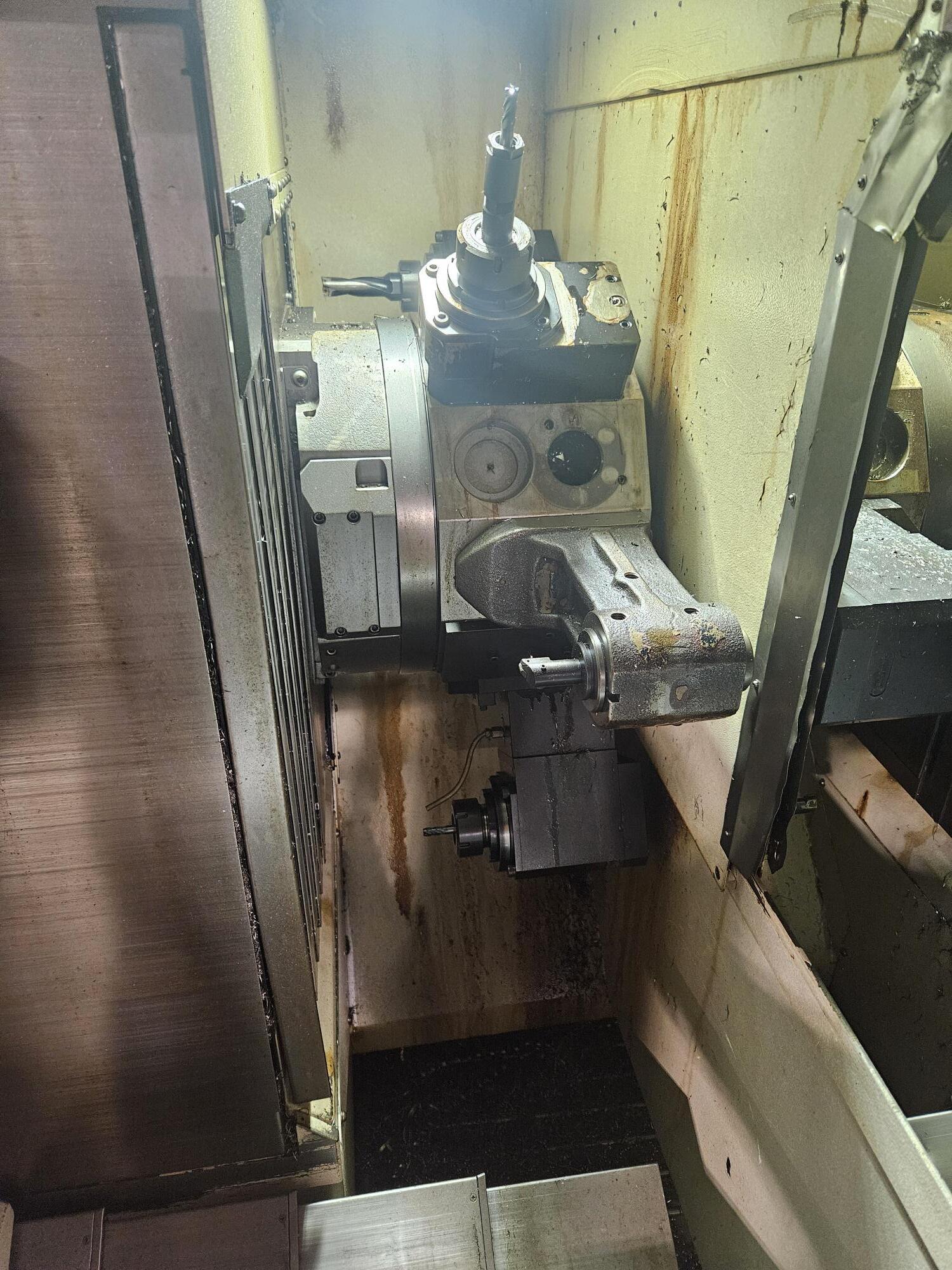

Turret (Left and Right)
Number of Tools 12
Maximum Speed 4000 rpm
Motor Output (30 minute rating) 8 kw / 10.0 hp

Feed Axes
Travel (X Axis) 310 mm / 12.20 in
Travel (Y Axis) 154 mm / 3.03 in
Travel (Z Axis) 605 mm / 23.82 in
Travel (Z2 Axis) 605 mm / 23.82 in

Spindle Bore: 3.46"
Bar Capacity: 3"
Spindle Indexing (C Axis): 0.001 Degrees (Both Spindles)
Number of Turrets: 2
Rotary Tool Available Positions: 12 per Turret 12 (Per Turret)
Mill Spindle Speed: 4,000 RPM
Y Axis Travel: +/-3"
Dimensions: 168" x 96" x 86"
Weight: 26,400 LBS

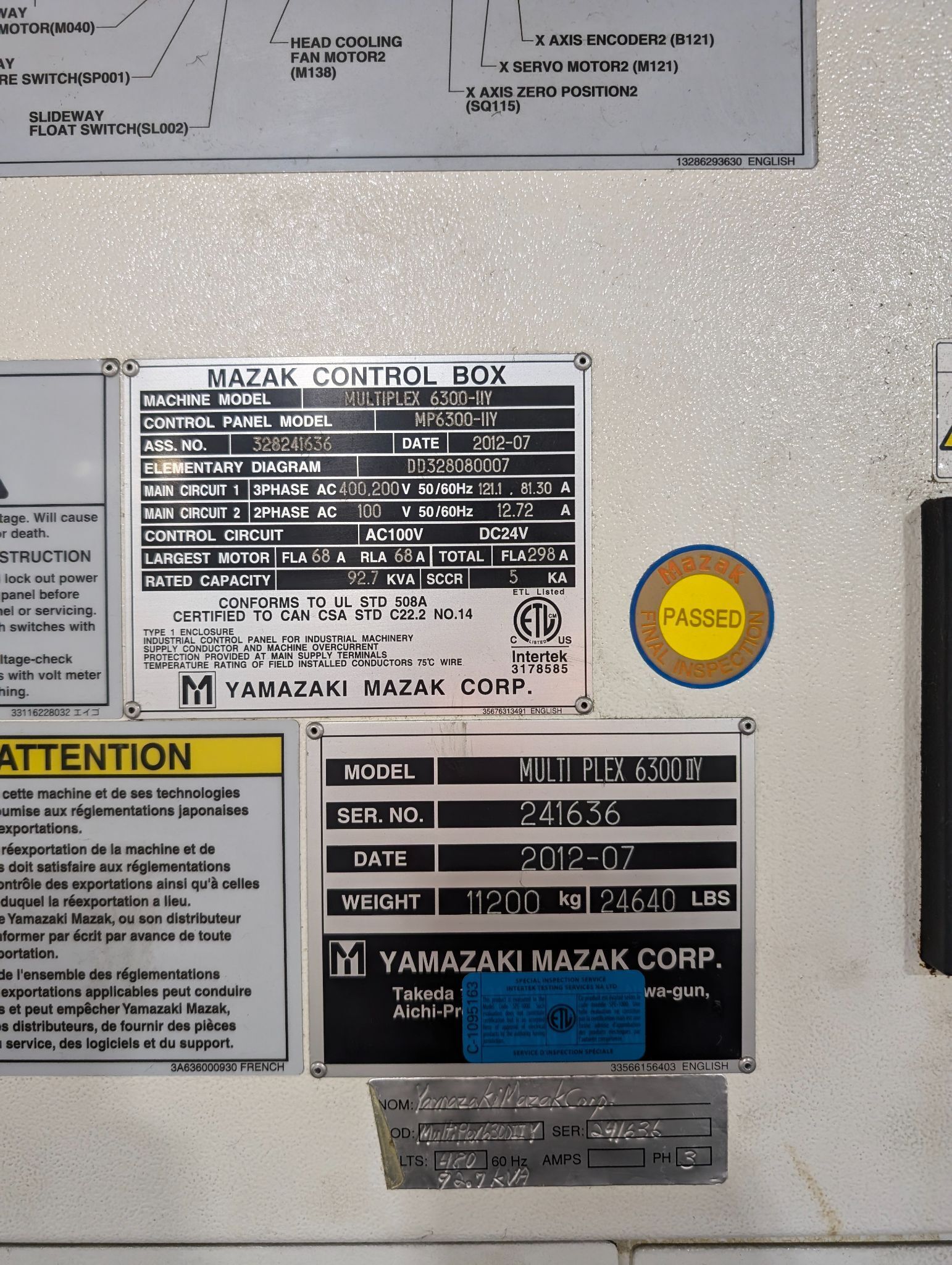

Voltage 480/3/60


Equipped With

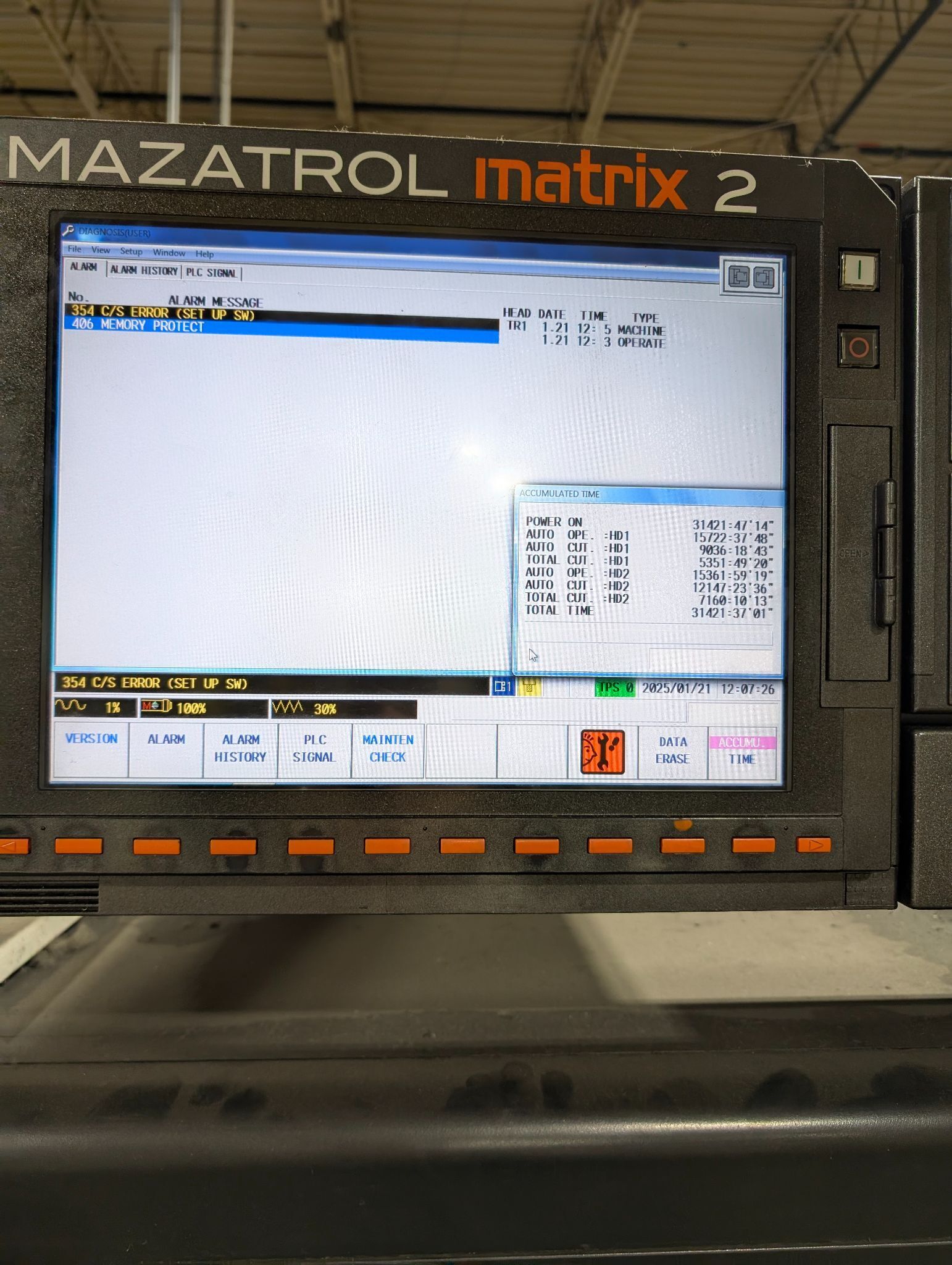

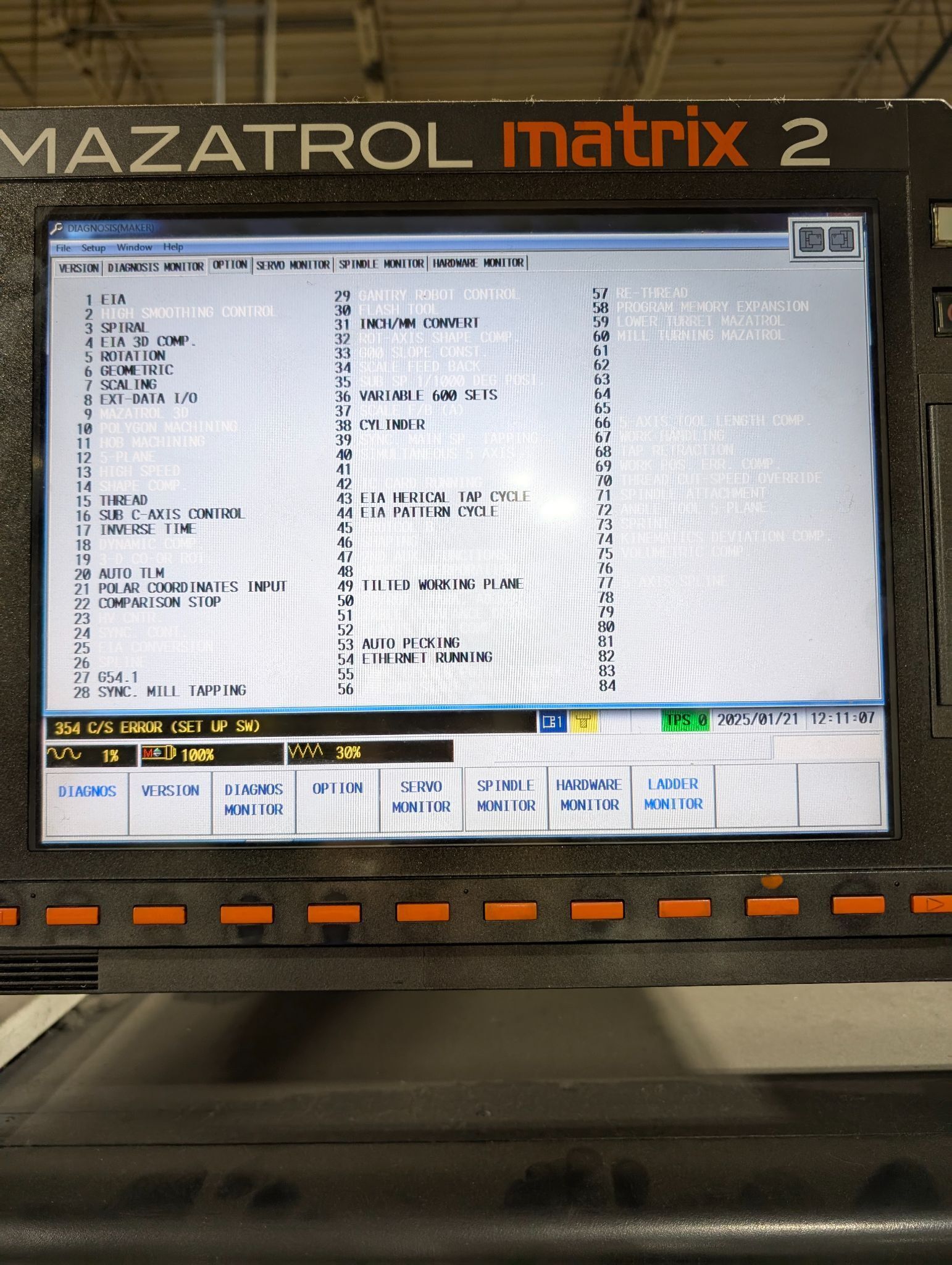

Mazak Mazatrol Matrix 2
High-pressure coolant system (213 psi)

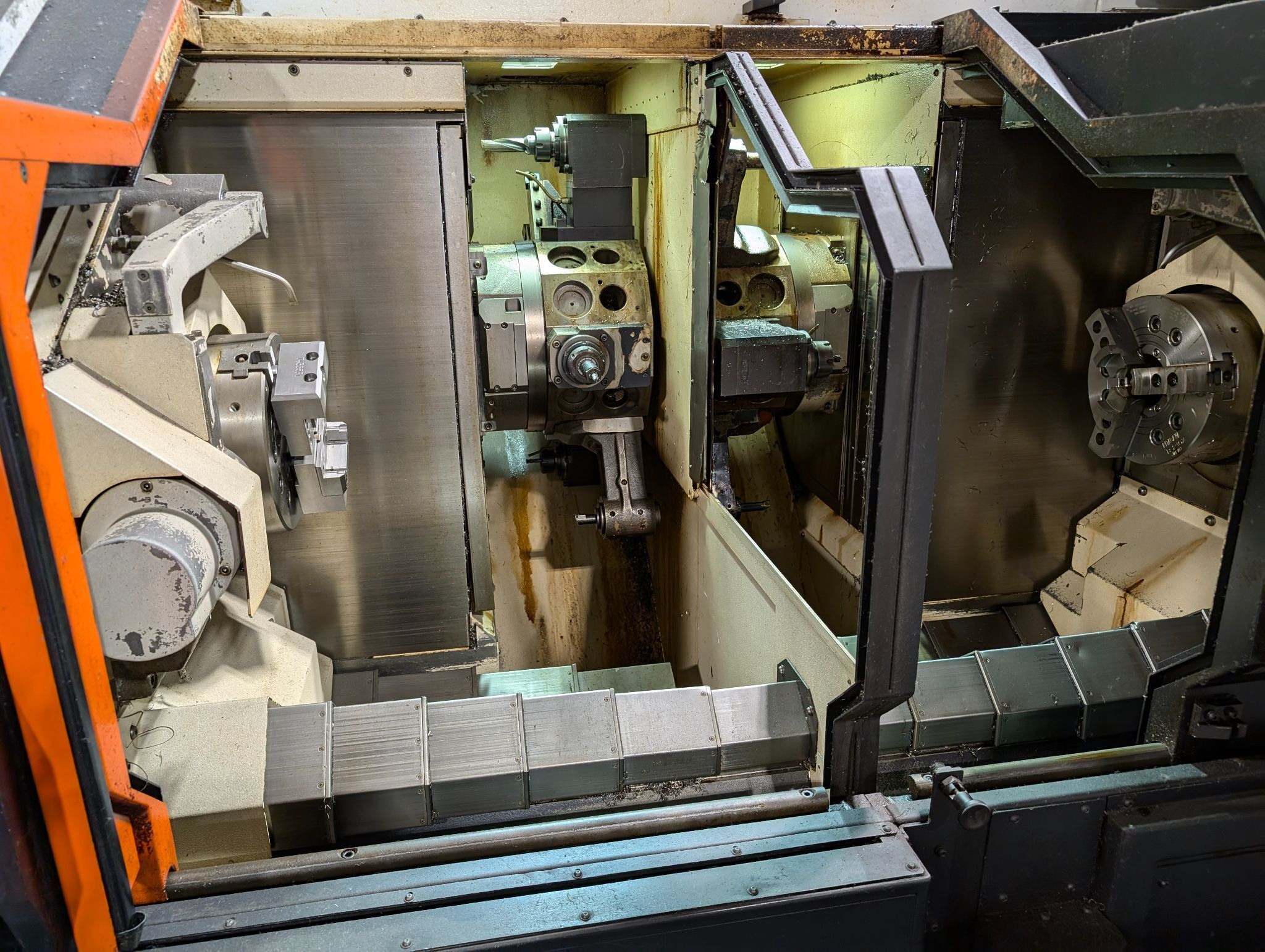

Twin spindles (4000 rpm)
Dual-turrets (12 tools)
4000 rpm rotary tools (both turrets)

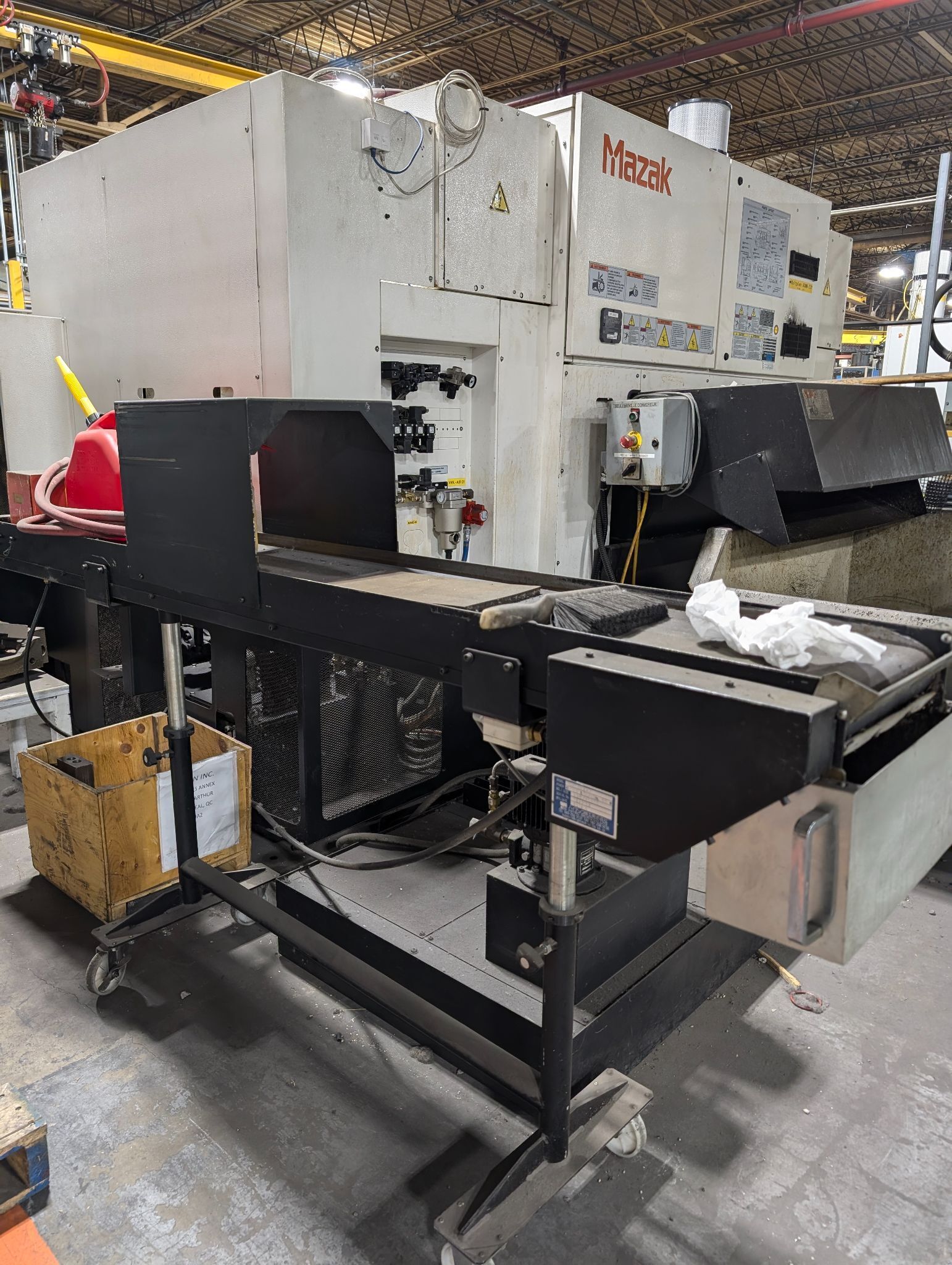

Work unloader w/ exit conveyor
Y-axis (both turrets)
C-axis (both spindles)

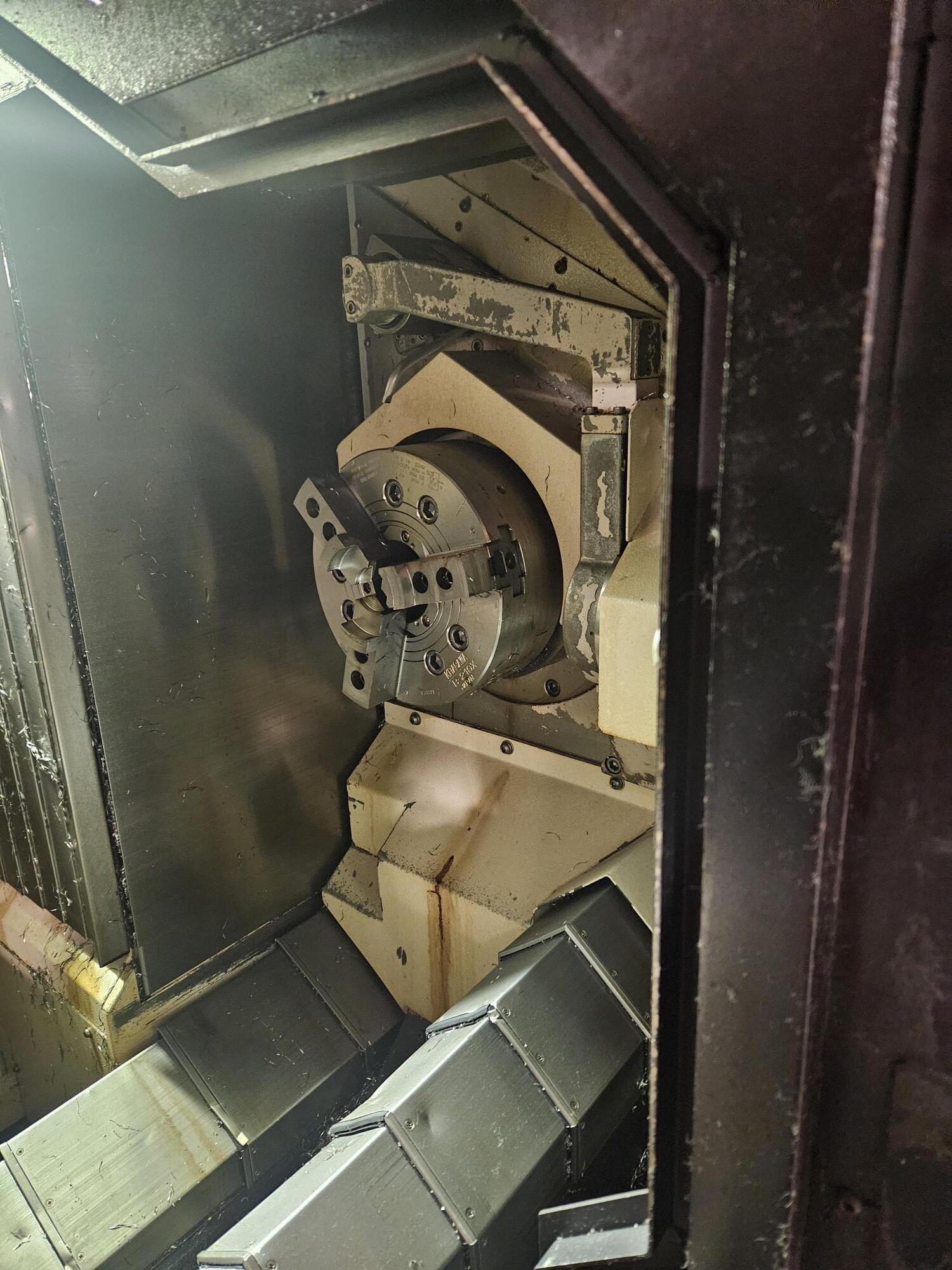

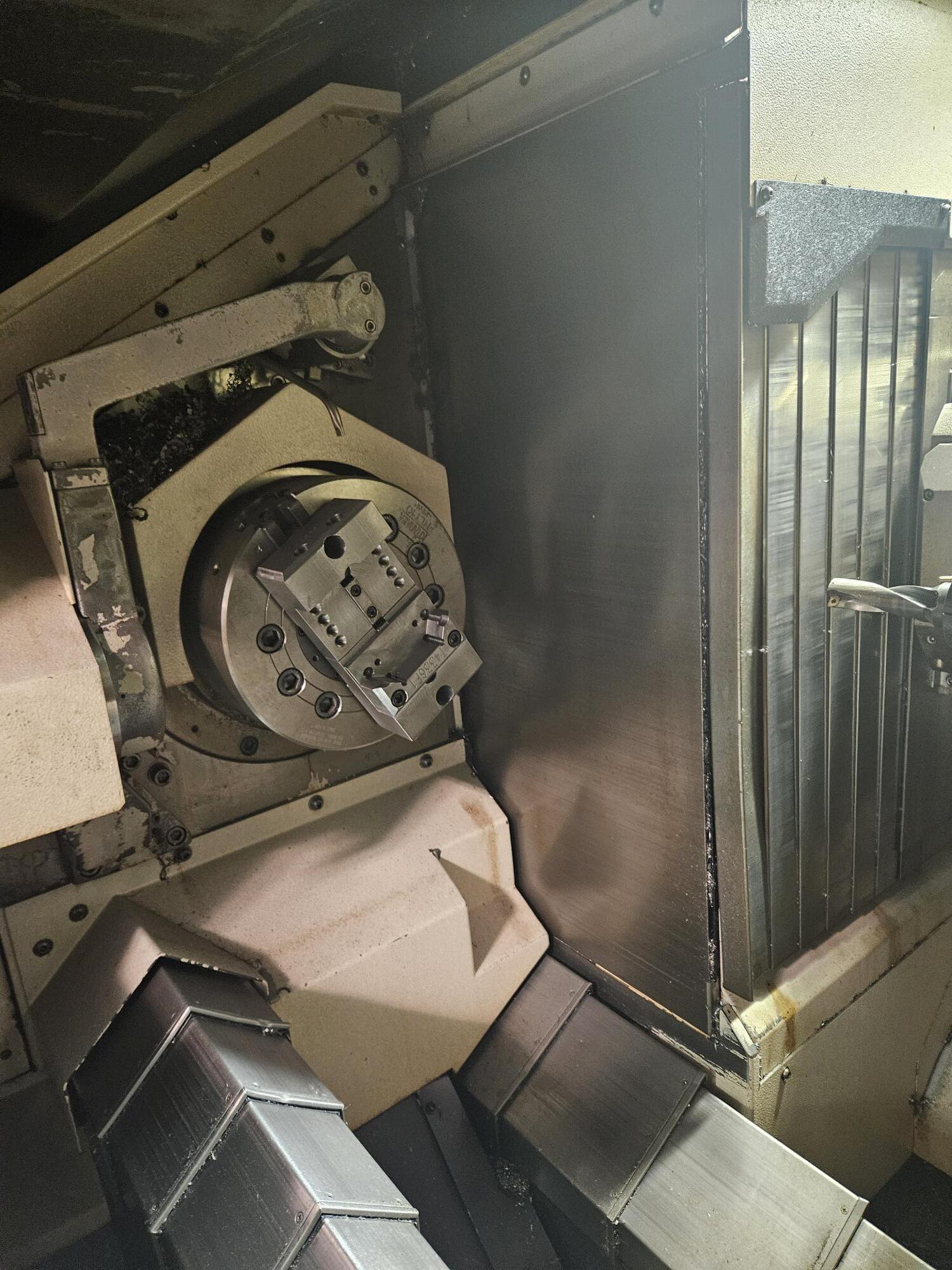

(2) 10” Kitagawa 3-jaw power chuck
10" Kitagawa 2-jaw long stroke power chuck
Auto-pecking cycle w/ load protection

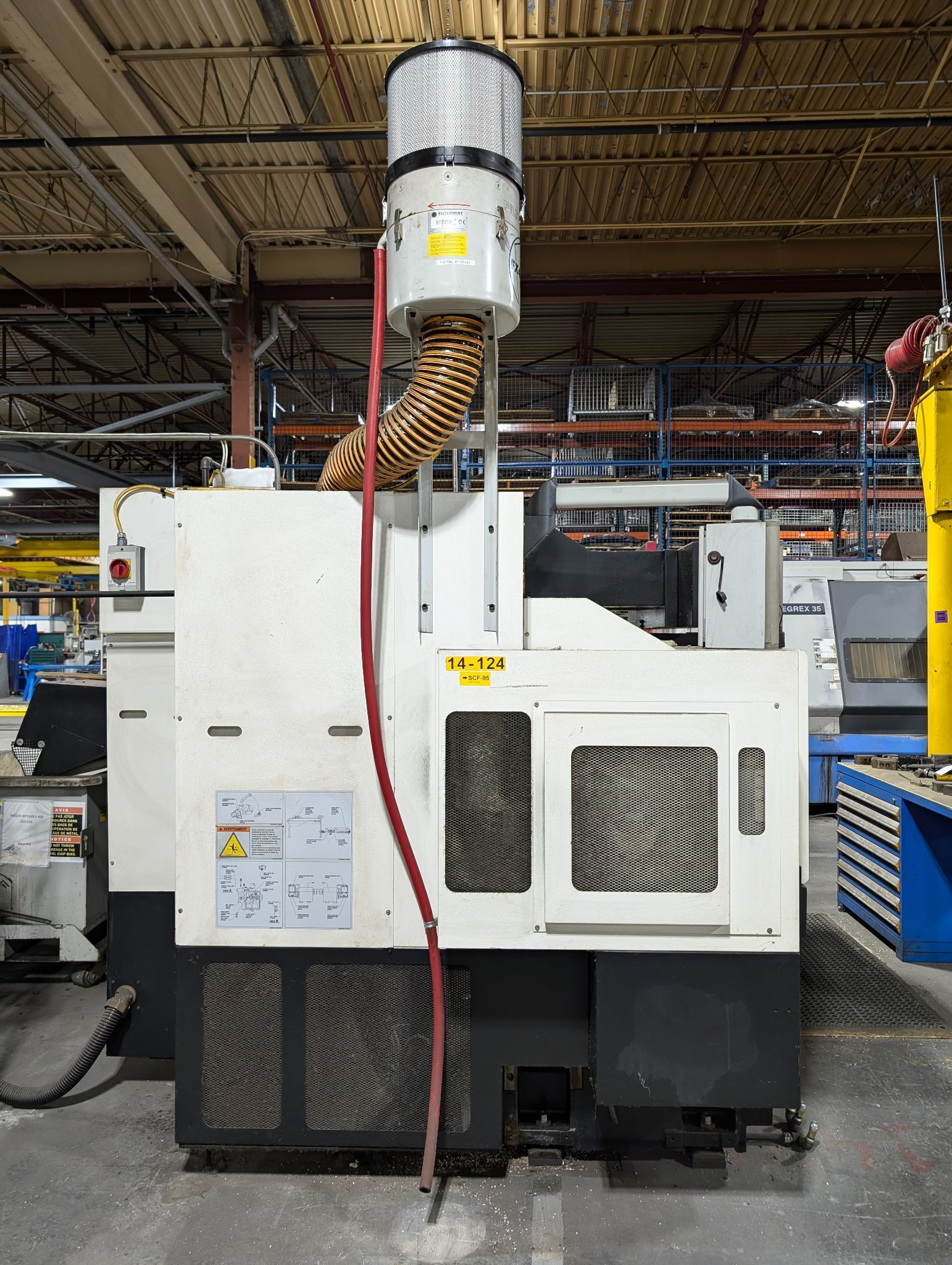

Mist collector

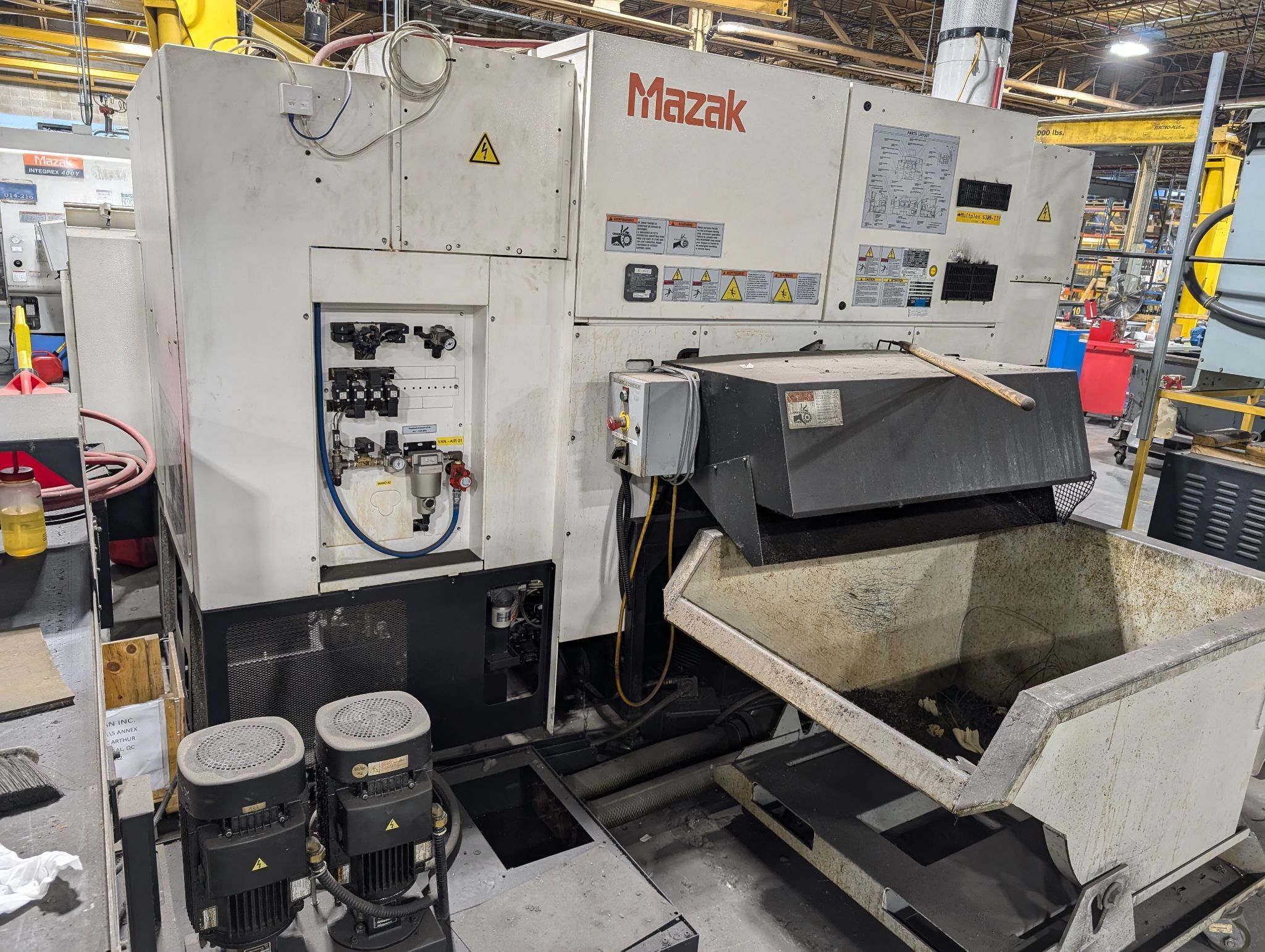

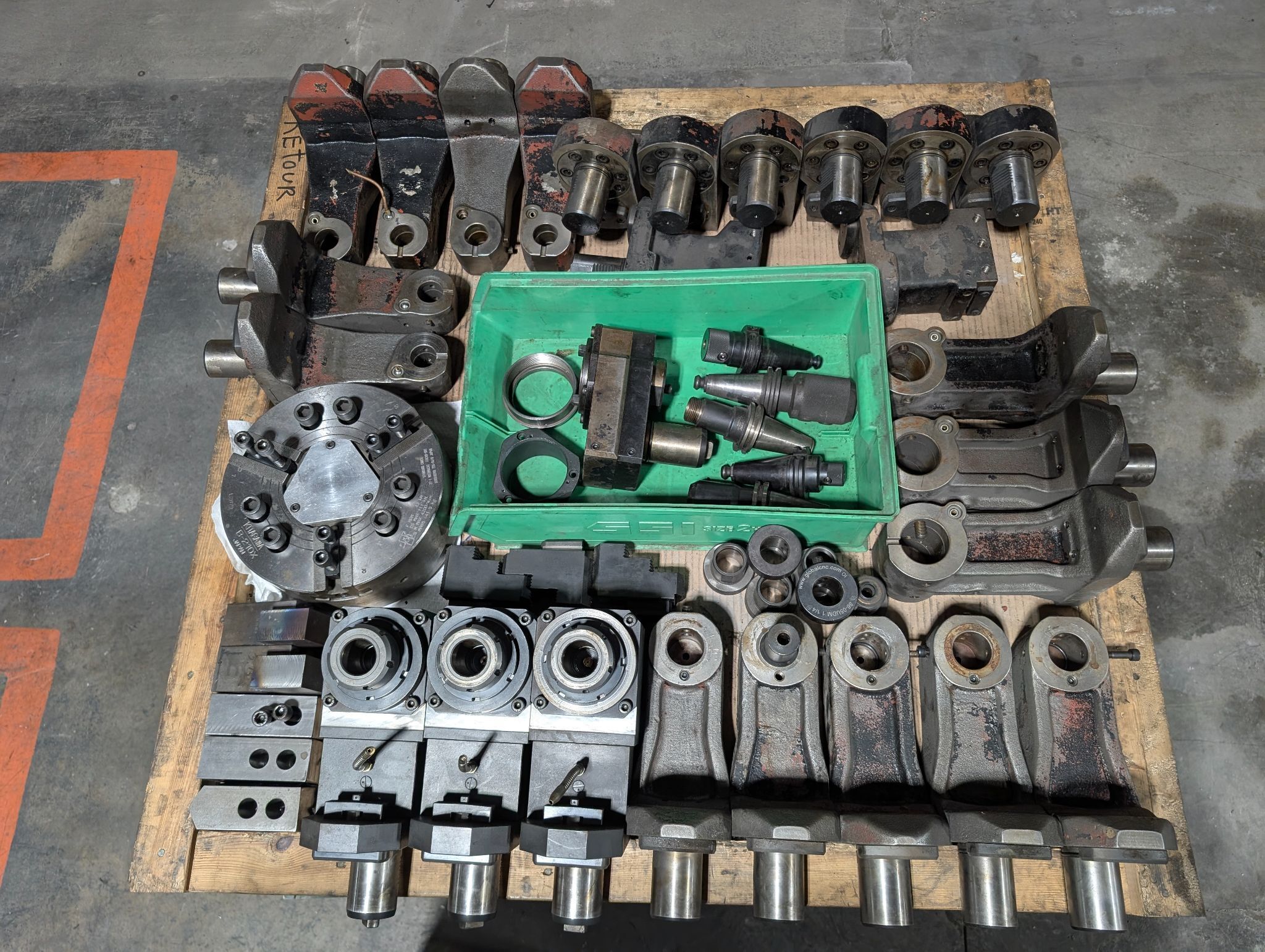

Chip conveyorLarge assortment of turning and live tooling (10 live holders)

Low hour machine that is very well equipped. Price includes prepping and loading
