21"/28" x 60" MAZAK MODEL: MARK II GAP BED LATHE - NEW: 1978

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, GAP, REMOVABLE GAP

Stock

69194

Model

MARK II

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

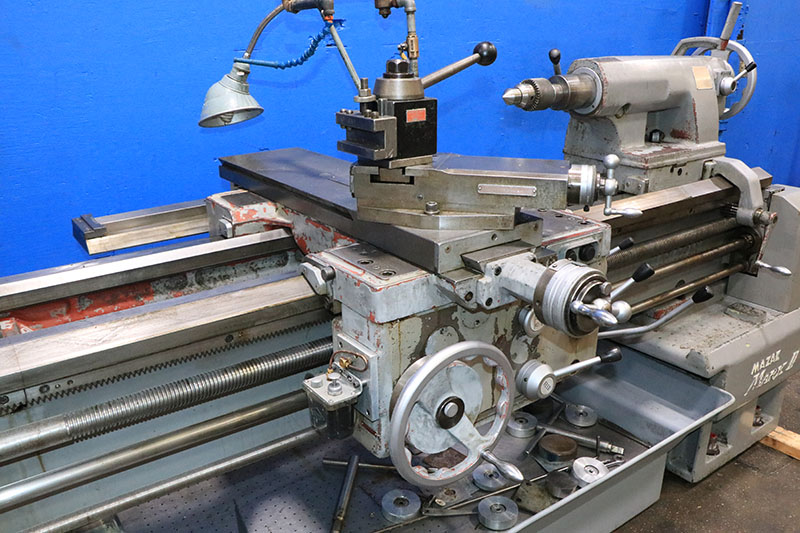

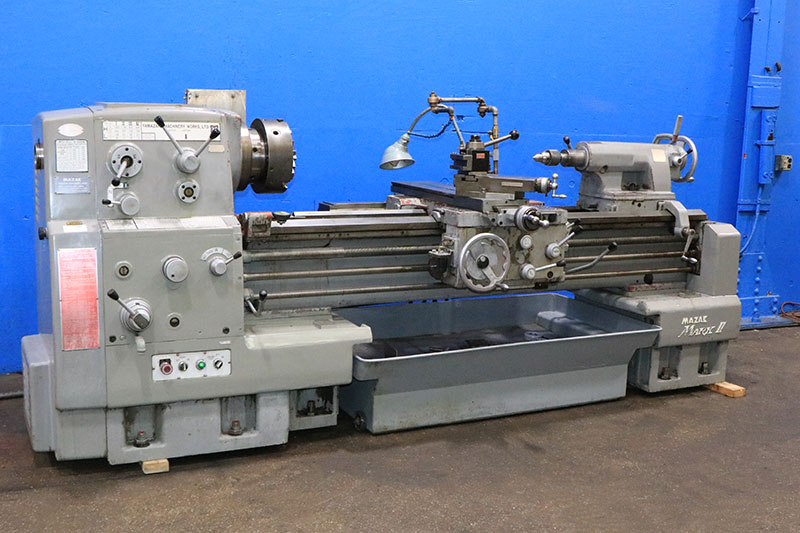

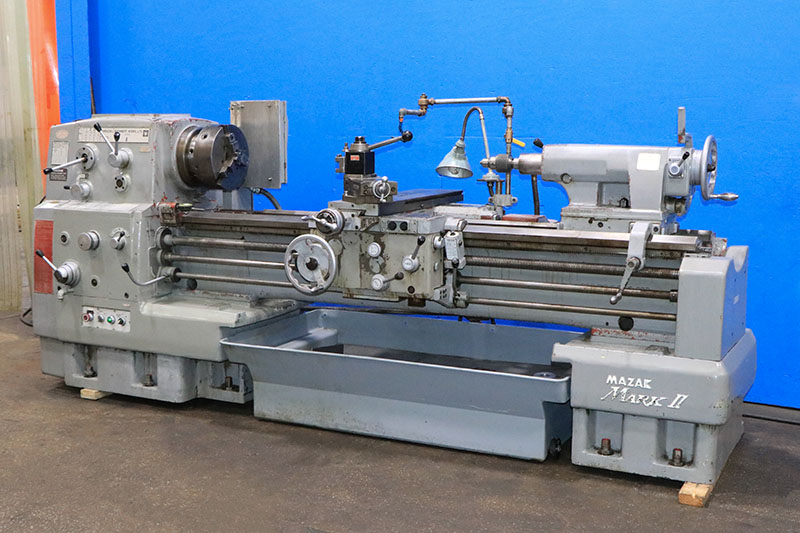

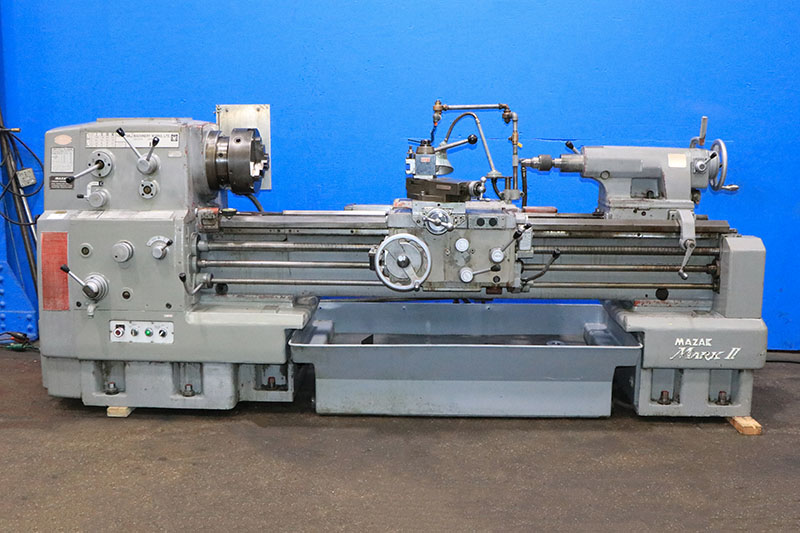

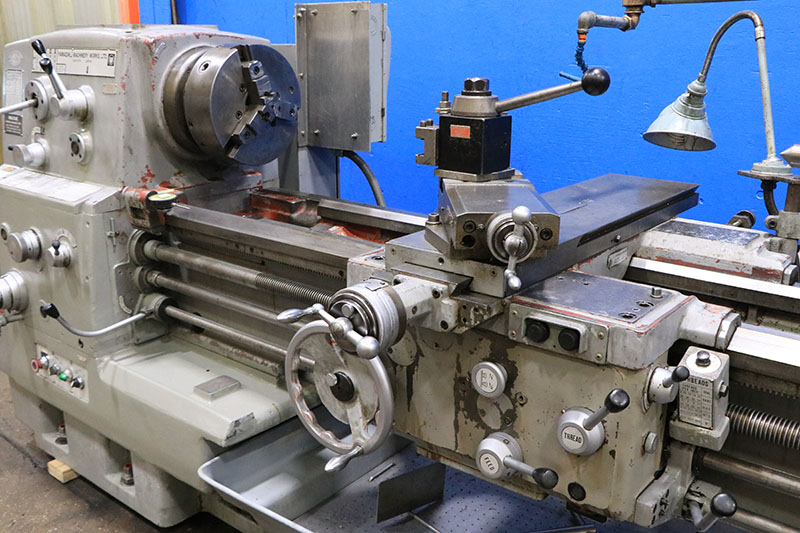

21"/28" x 60" MAZAK GAP BED LATHE

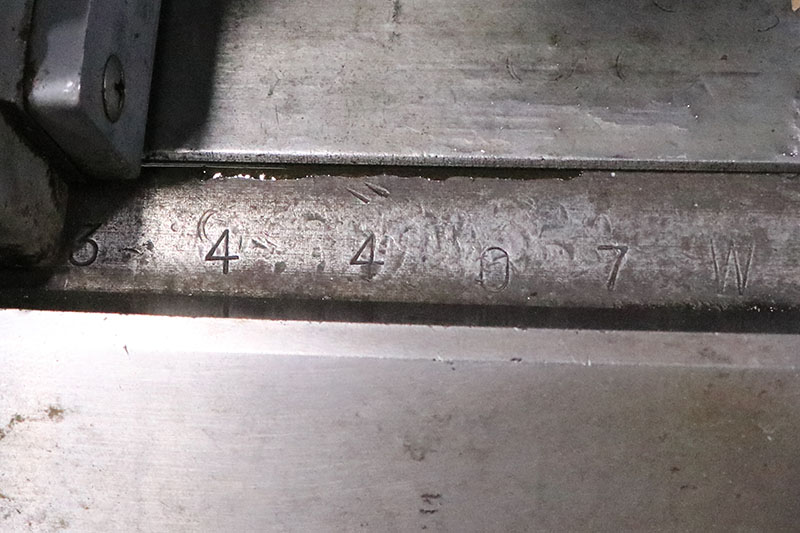

MODEL: MARK II, S/N: 34407W, NEW: 1978

SPECIFICATIONS:
SWING OVER BED WAYS ................. 21"

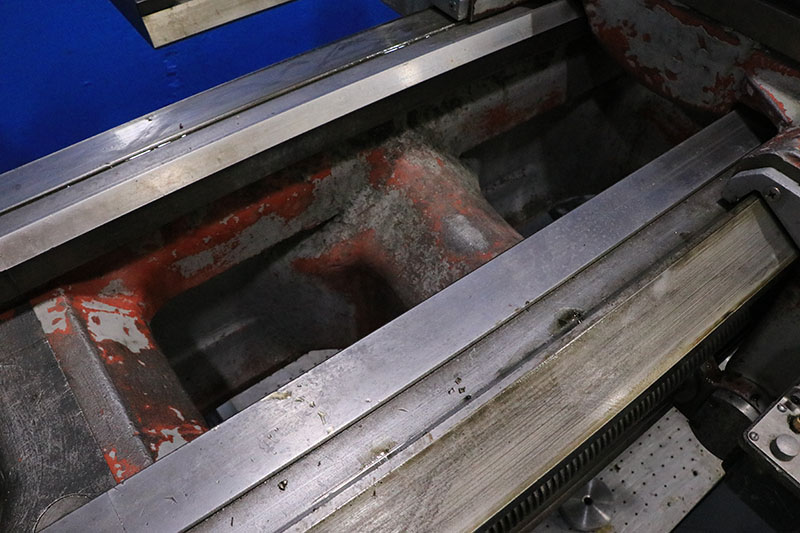

SWING IN REMOVABLE GAP .............. 27-31/32"
SWING OVER CROSS SLIDE .............. 11-51/64"
DISTANCE BETWEEN CENTERS ............ 60"
HOLE THRU SPINDLE ................... 3-1/8"
SPINDLE NOSE ........................ D1-8" CAMLOCK
WIDTH OF BED ........................ 16-17/32"

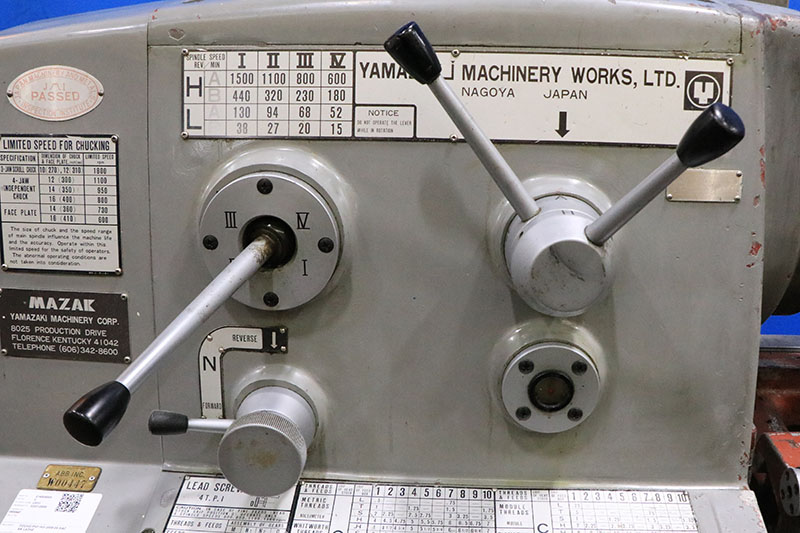

SPINDLE SPEED RANGE (16) ............ 15 - 1500 RPM
LONGITUDINAL FEED RANGE (80) ........ .0022" - .040" IPR
CROSS FEED RANGE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (40) ........... 4 - 56 TPI
METRIC THREADING RANGE (23) ......... .5 - 7 mm

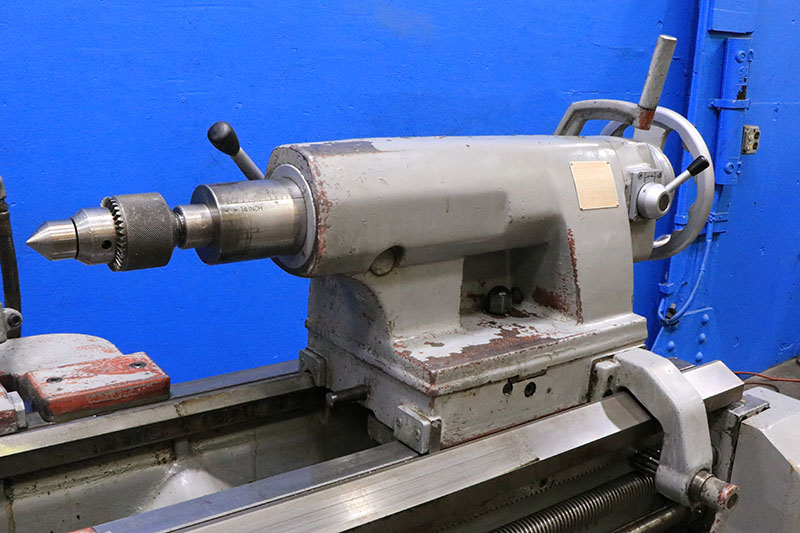

TAILSTOCK SPINDLE TRAVEL ............ 7-7/8"
TAILSTOCK SPINDLE TAPER ............. #5MT
APPROXIMATE FLOOR SPACE ............. 133"L x 49"W
APPROXIMATE WEIGHT .................. 6,000 LBS

EQUIPPED WITH:

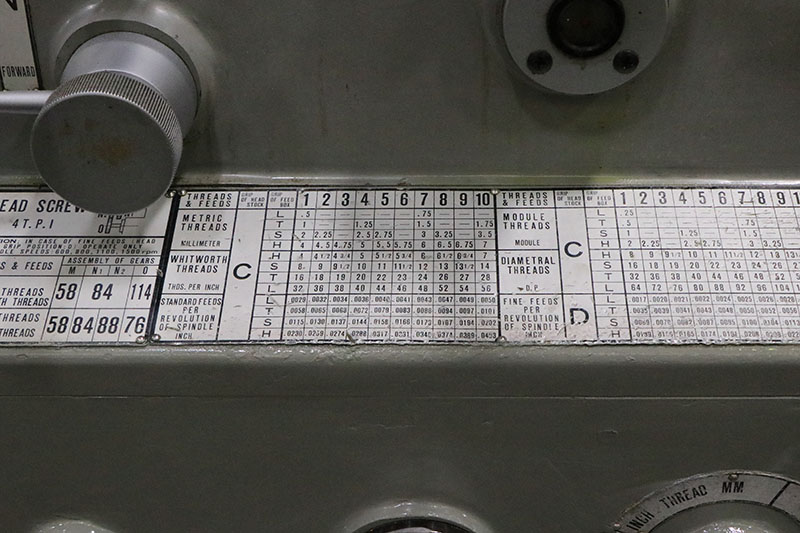

INCH, METRIC, DIAMETRIC & MODULE THREADING
FINE & COARSE FEED SETTINGS

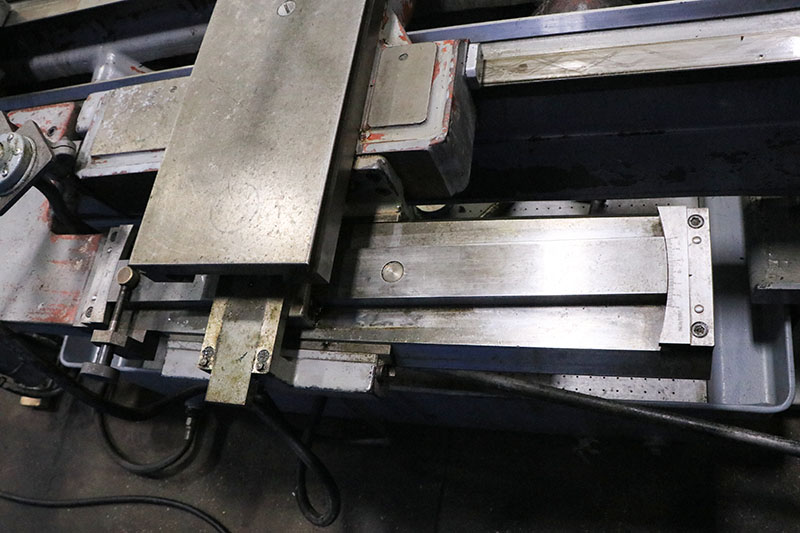

TAPER TURNING ATTACHMENT

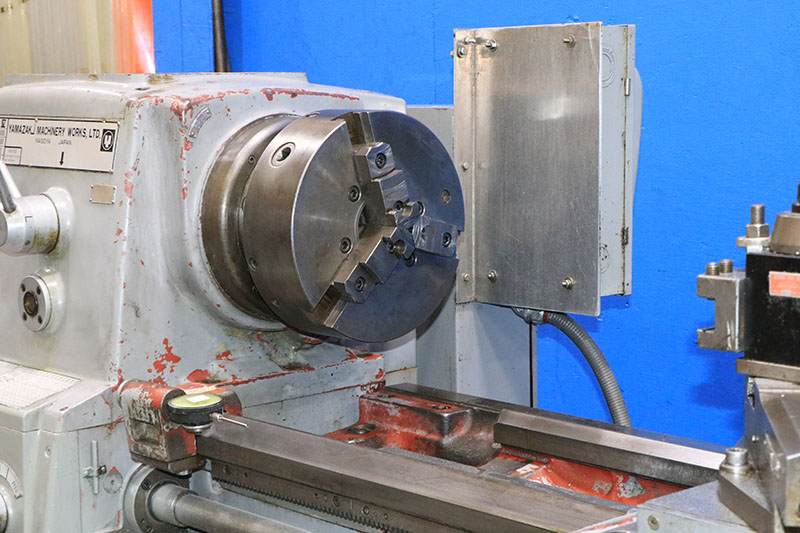

12" 3-JAW CHUCK
ALORIS MODEL: CA QUICK CHANGE TOOLPOST
POWER RAPID TRAVERSE

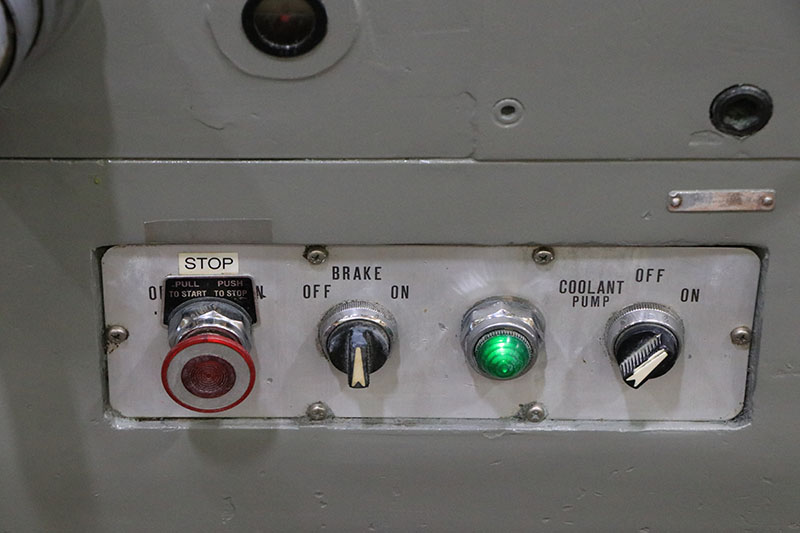

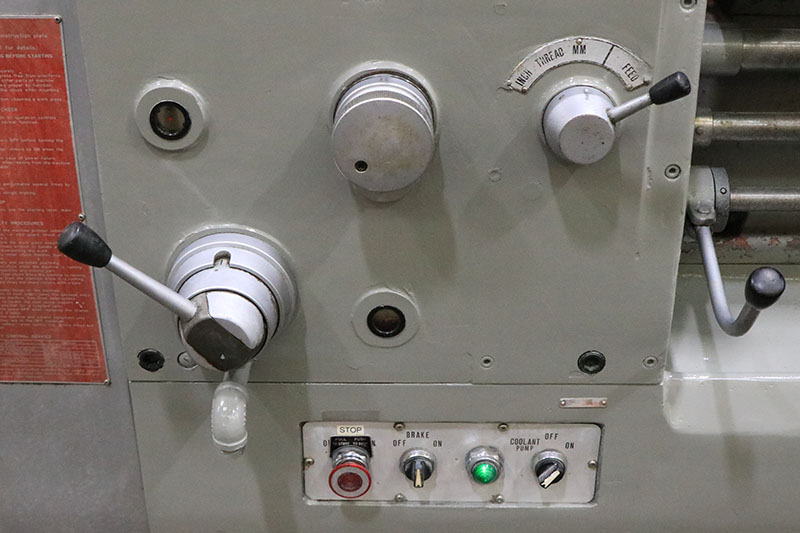

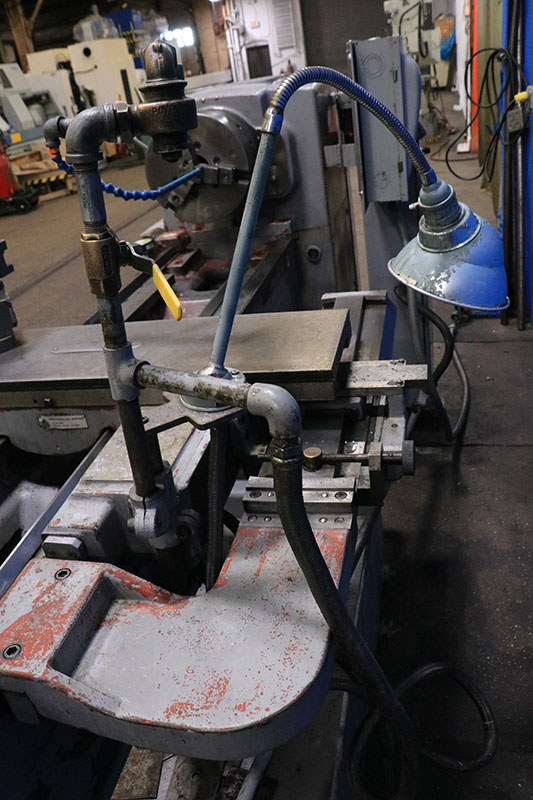

COOLANT SYSTEM
TWO SPEED TAILSTOCK

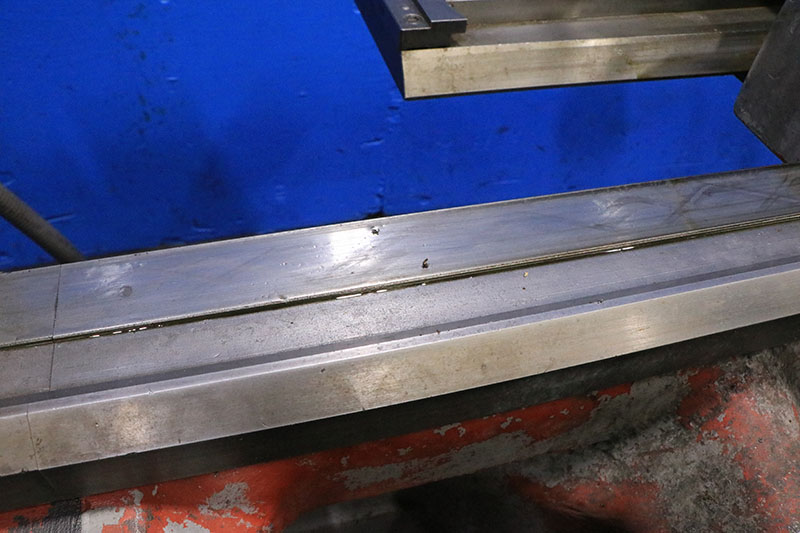

HARDENED & GROUND BED WAYS
15 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
