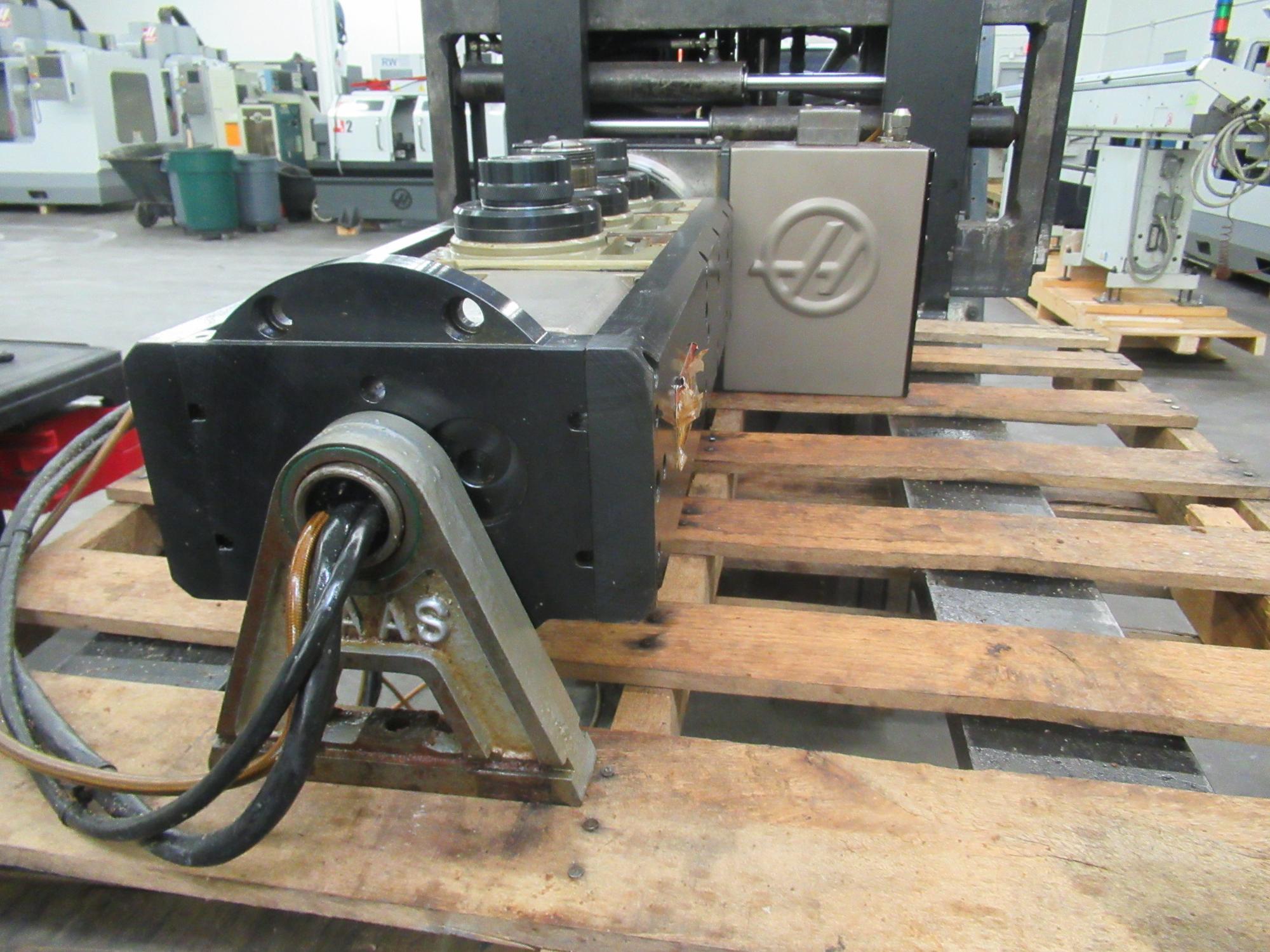

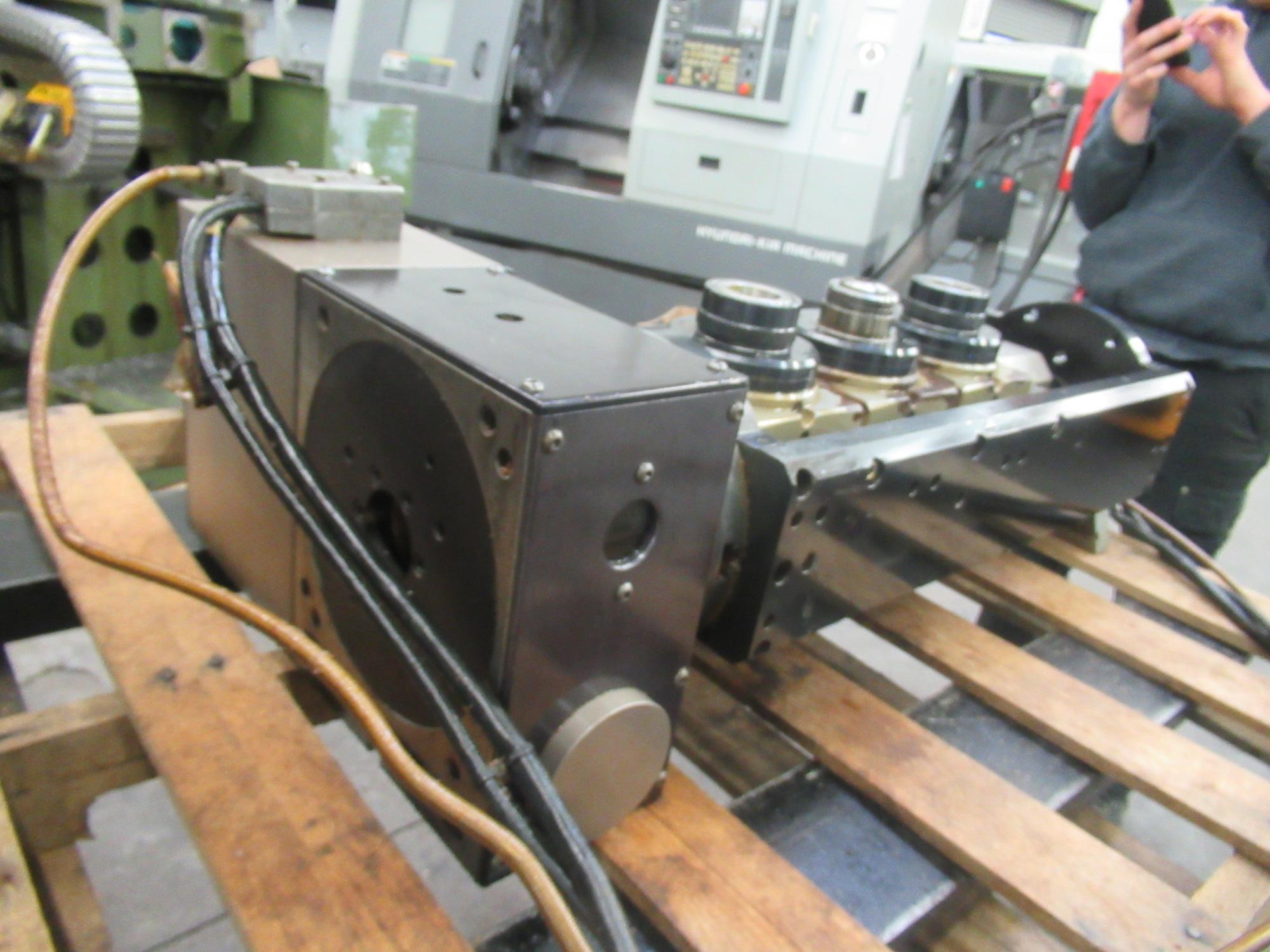

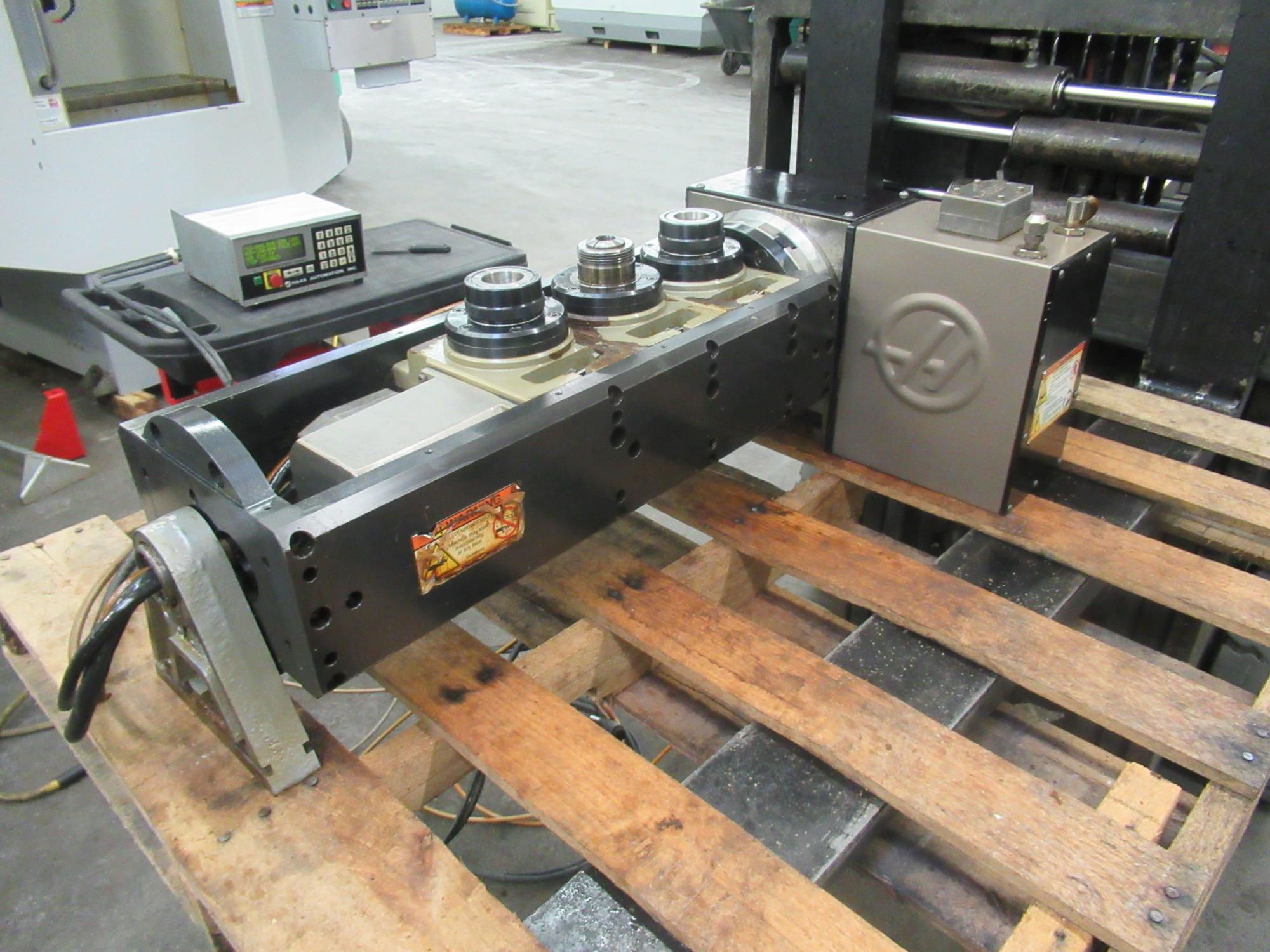

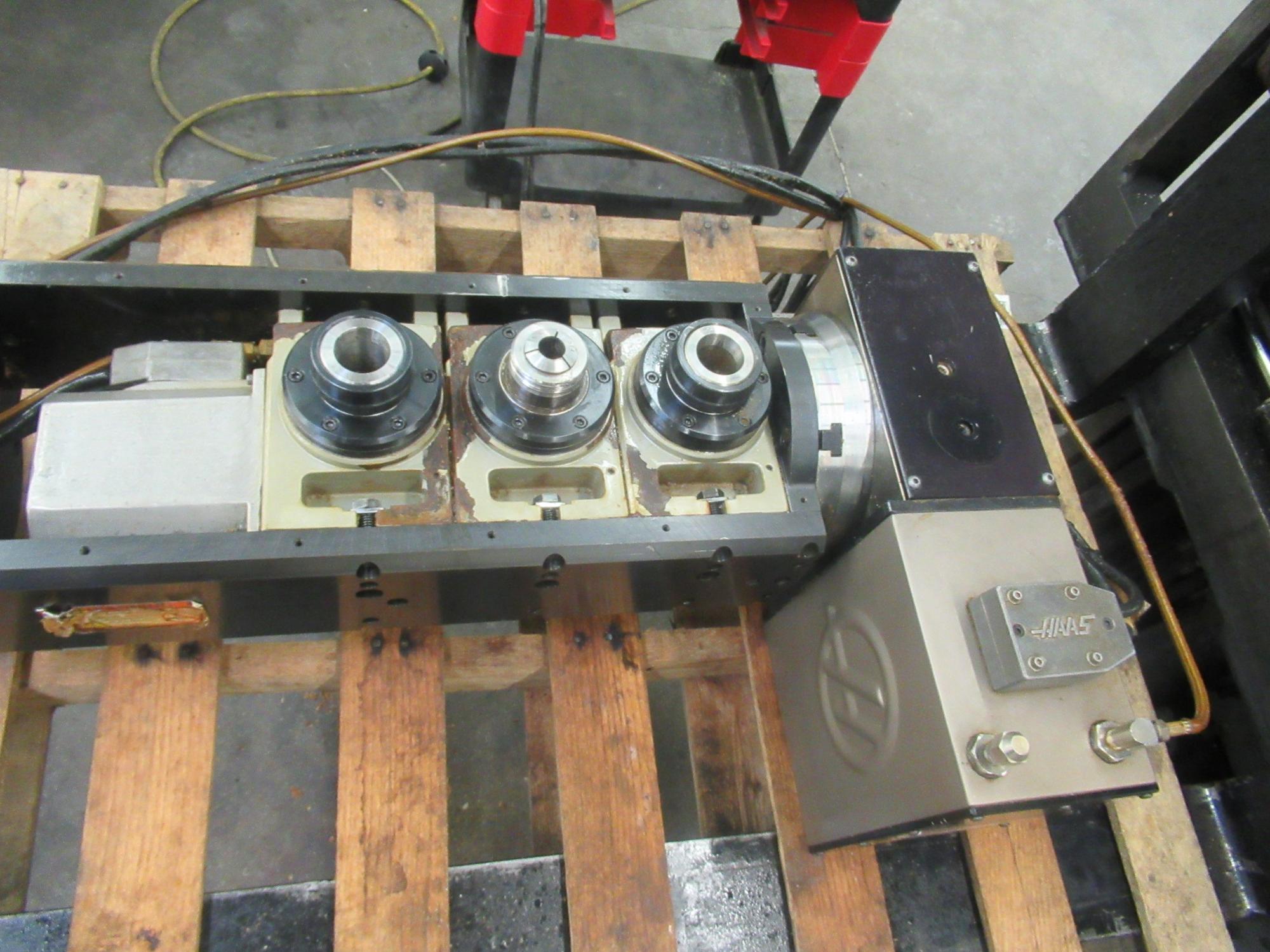

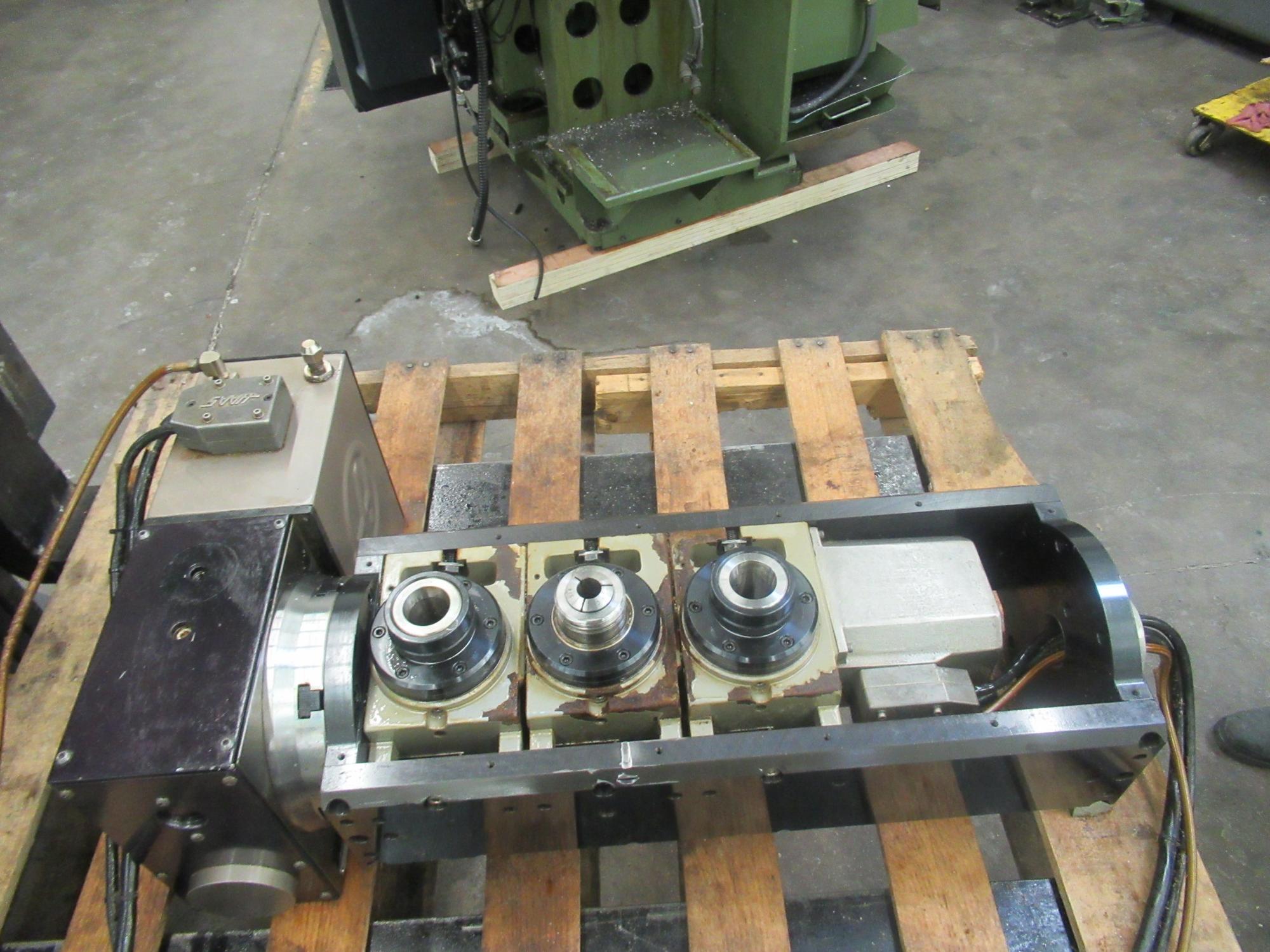

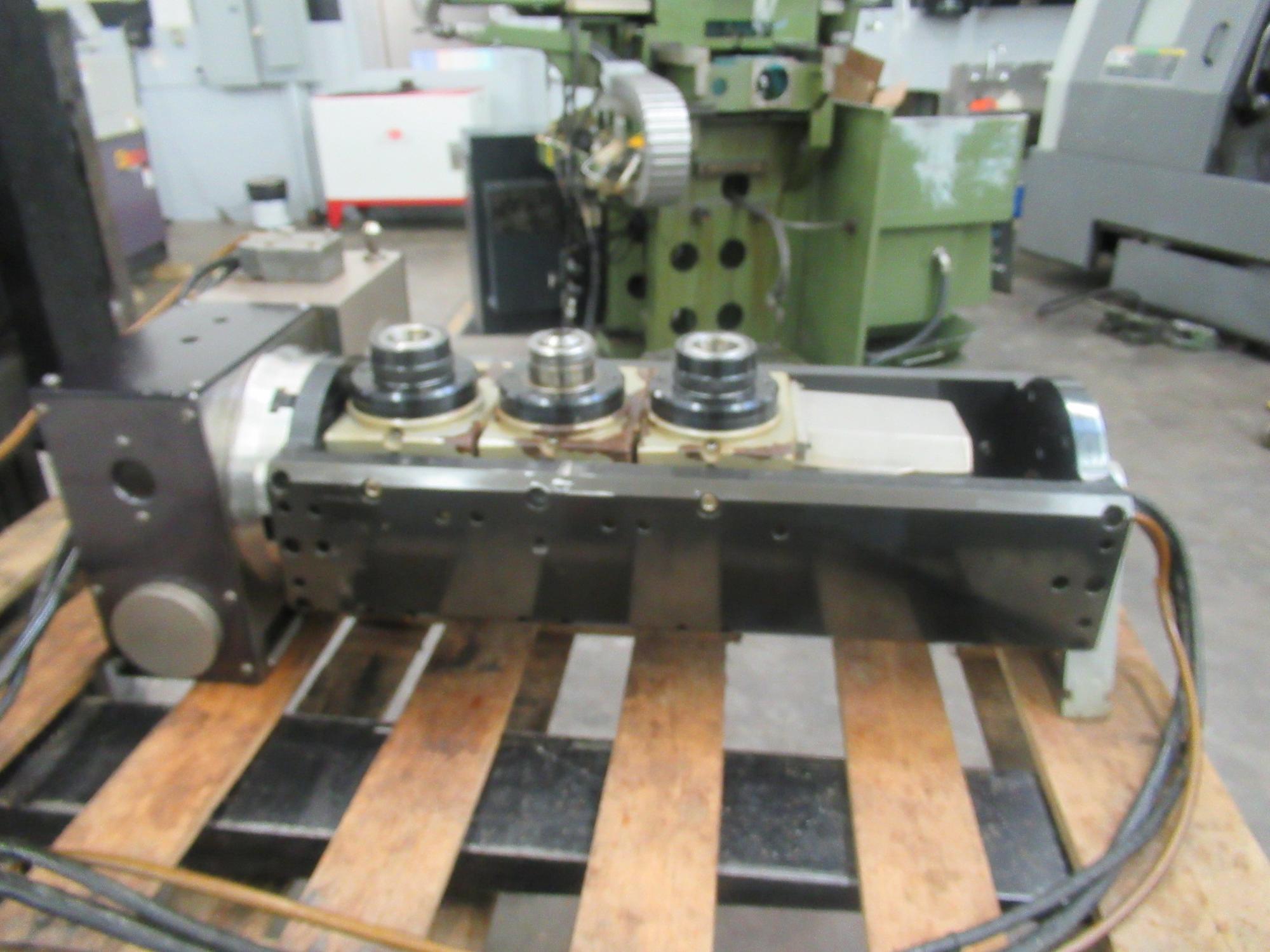

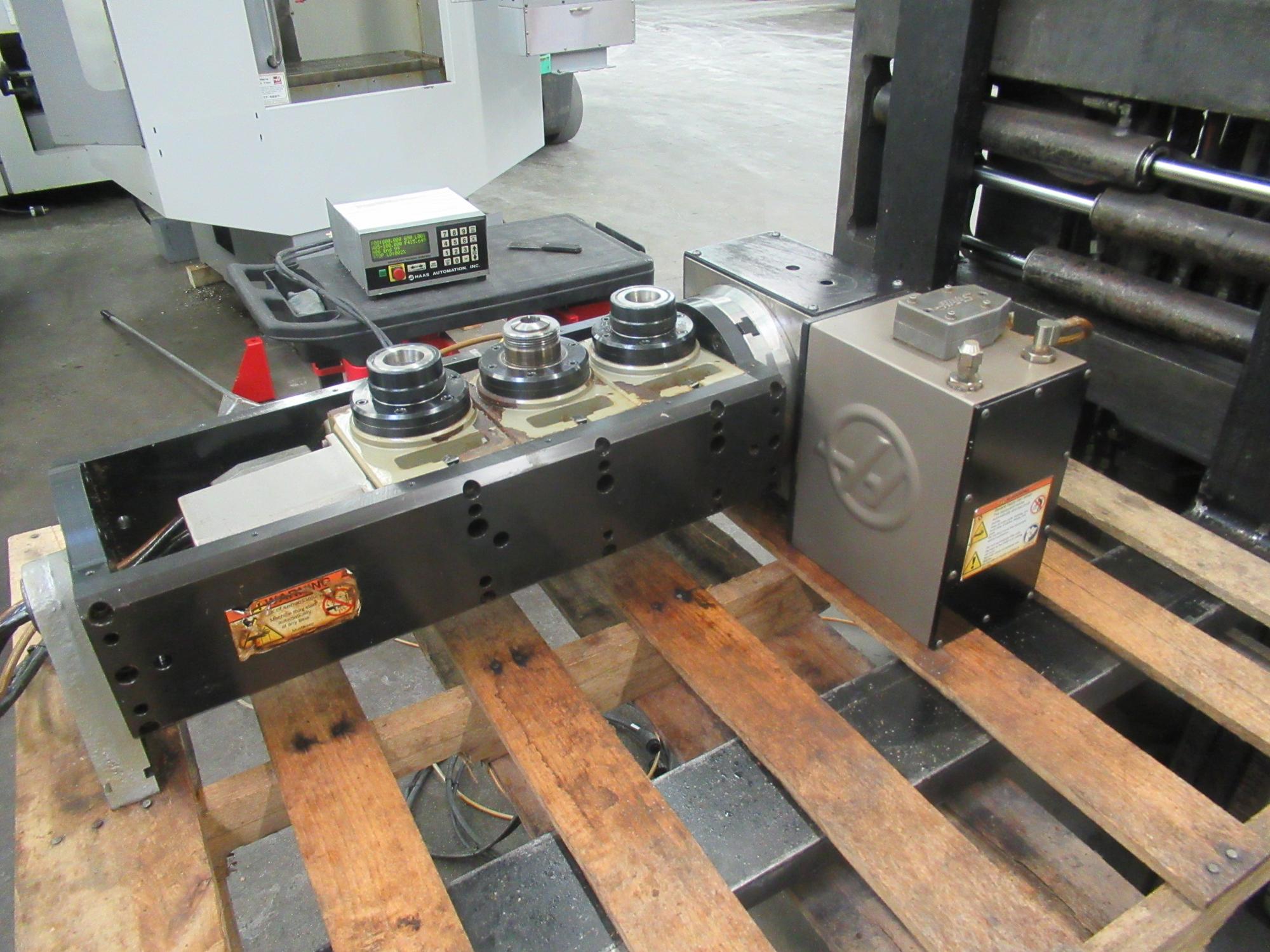

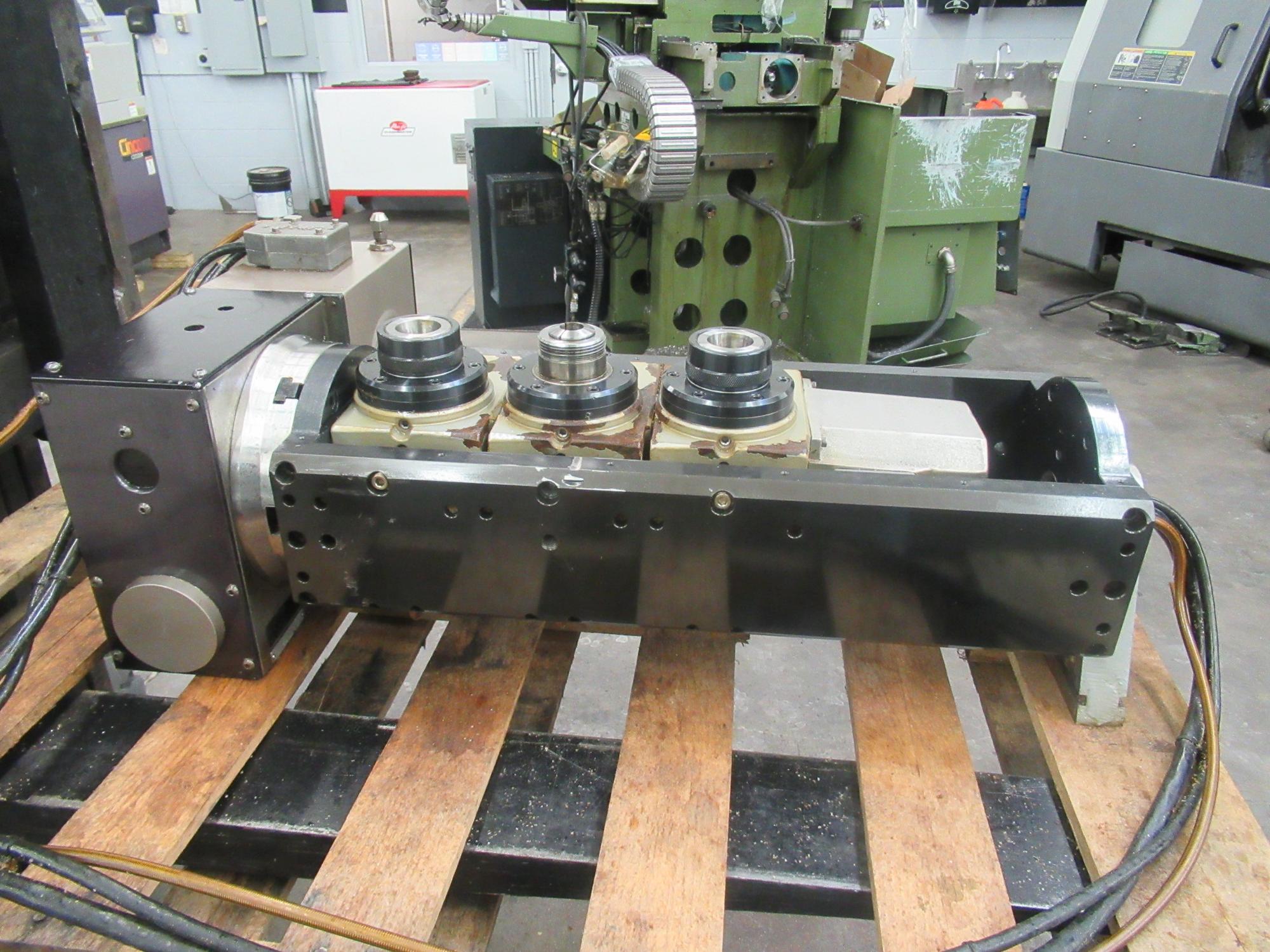

Haas T5C-3 Tilting (3) Headed 2-Axis Brushless Sigma 1 Rotary Table w HA5C-3 Rotation

Manufacturer

Haas

Category

Tooling & Accessories

Type

ROTARY TABLES

Stock

6842

Model

T5C-3

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

A Axis (Tilt) Max Speed: 0.001 TO 200 Degree / Second

A Axis (Tilt) Max Torque: 210 ft-lb

A Axis (Tilt) Gear Ratio: 90:01

A Axis (Tilt) Center Height: 6.000" +/- 0.001"

A Axis (Tilt) Brake Torque: 200 ft-lb

B Axis (Rotary) # of Heads / Platens: 3

B Axis (Rotary) Max Speed: 0.001 TO 200 Degree / Second

B Axis (Rotary) Max Torque: 25' ft-lb

B Axis (Rotary) Nose or Platen: Nose

B Axis Nose Thread: 2-3/16" - 10

B Axis (Rotary) Center Height: 5.875"

B Axis (Rotary) Gear Ratio: 60:1

B Axis (Rotary) Collet Size: 5C (1/64" -1 1/16")

B Axis (Rotary) Resolution: 999.999 Degree

Description:

Brushless Sigma 1 Servo Motors, Pneumatic Collet Closers, Cable & Connector

Equipped With:

Brushless Sigma 1 Servo Motors, Pneumatic Collet Closers, Cable & Connector
