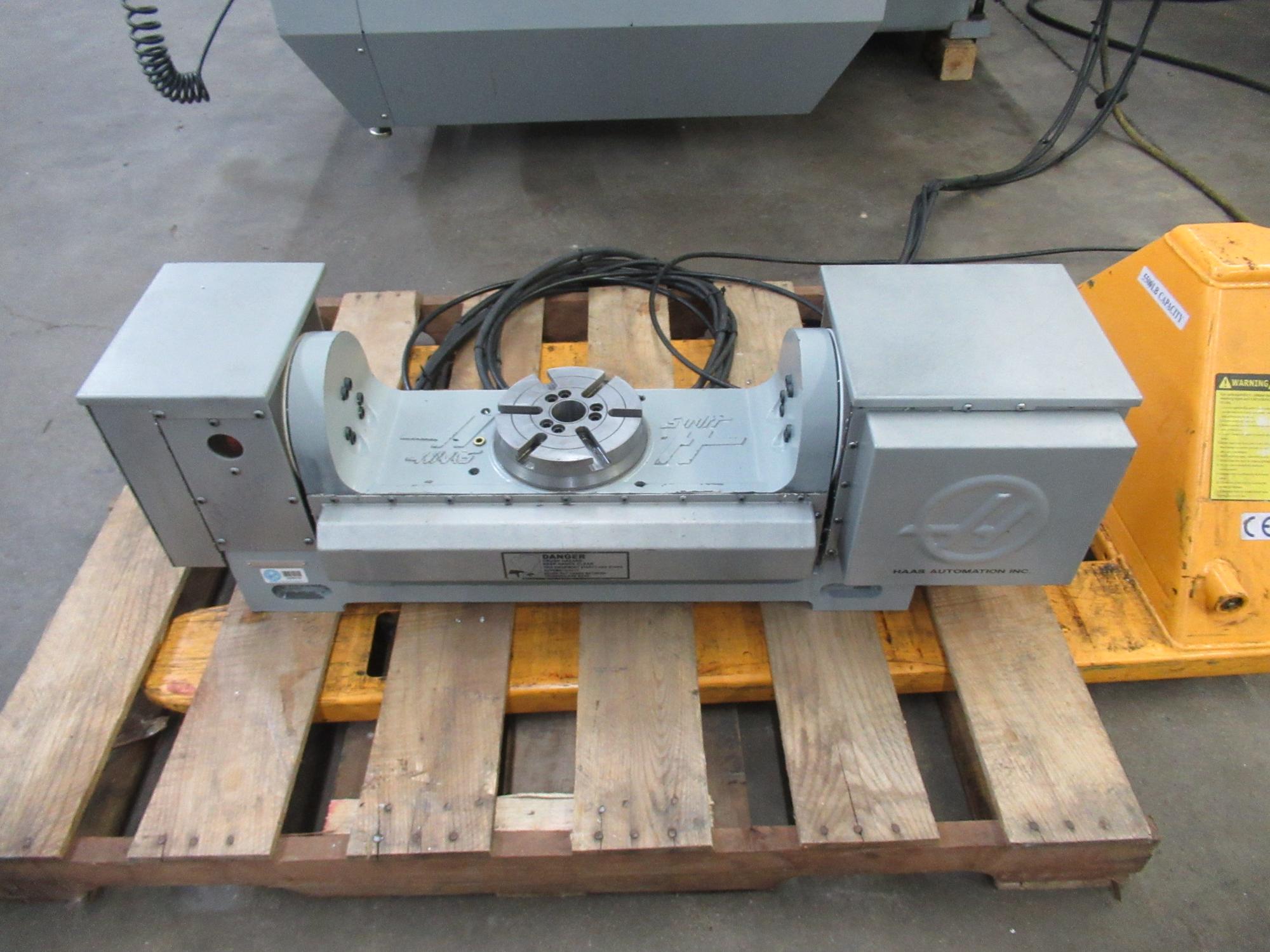

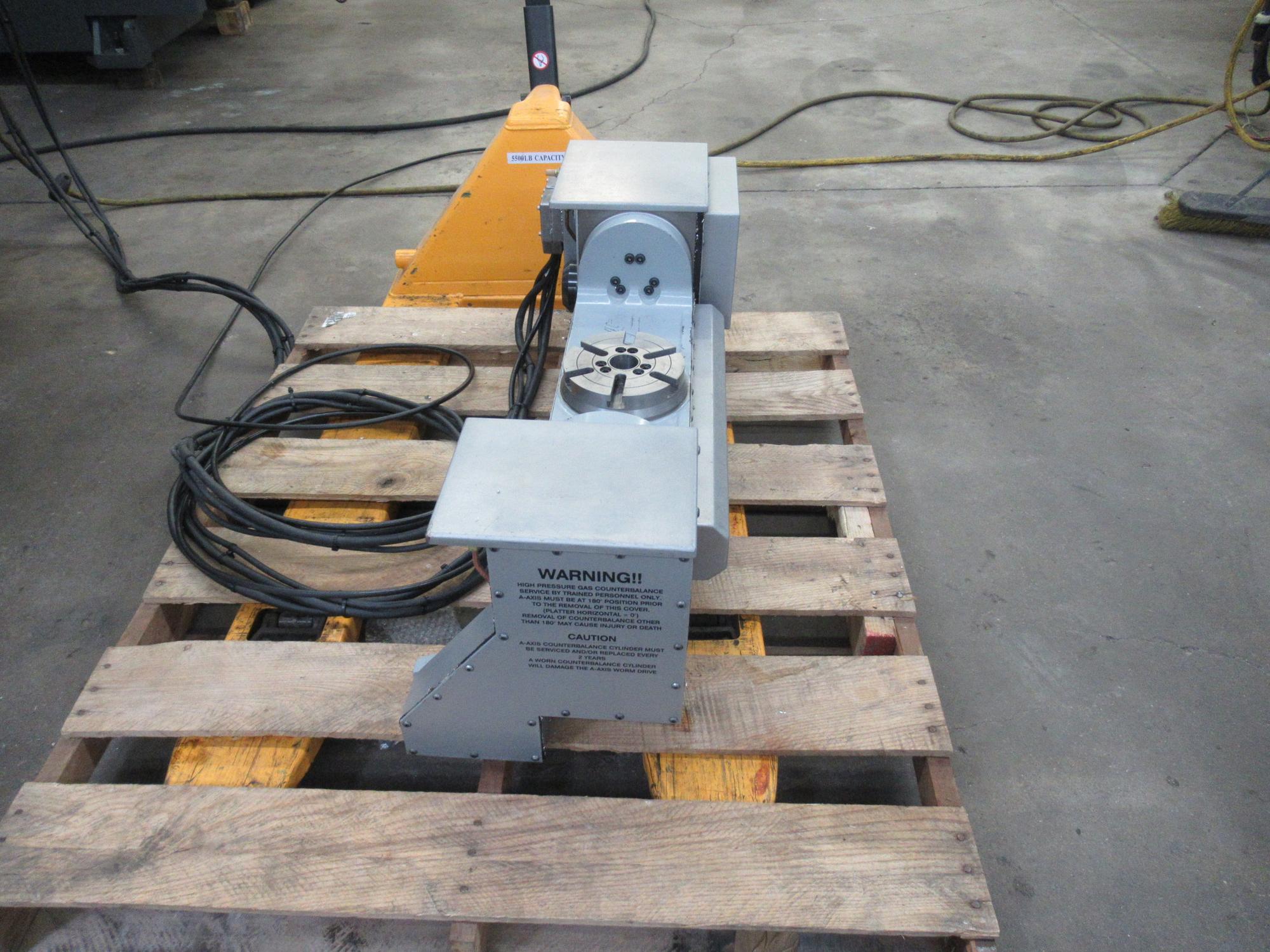

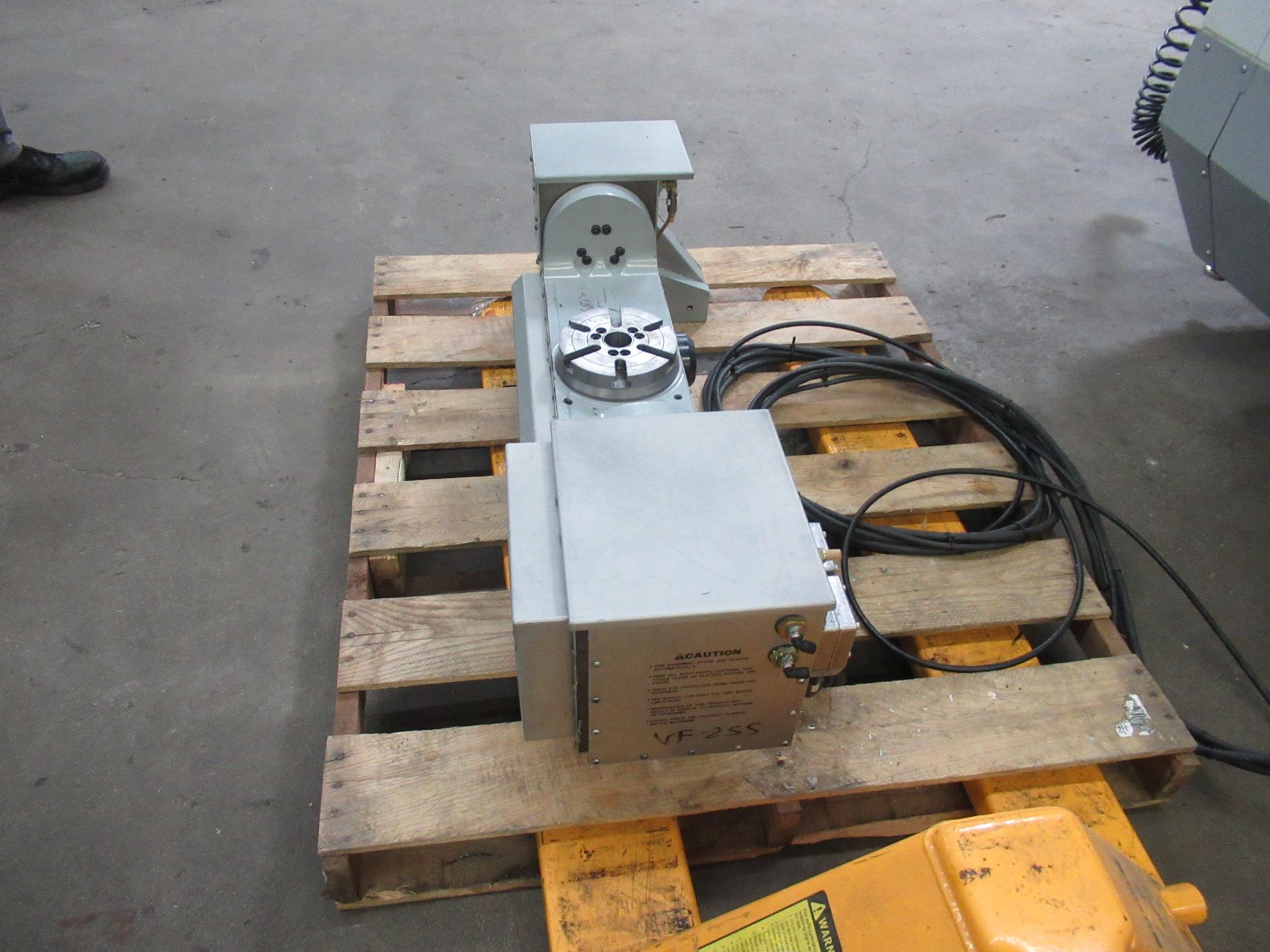

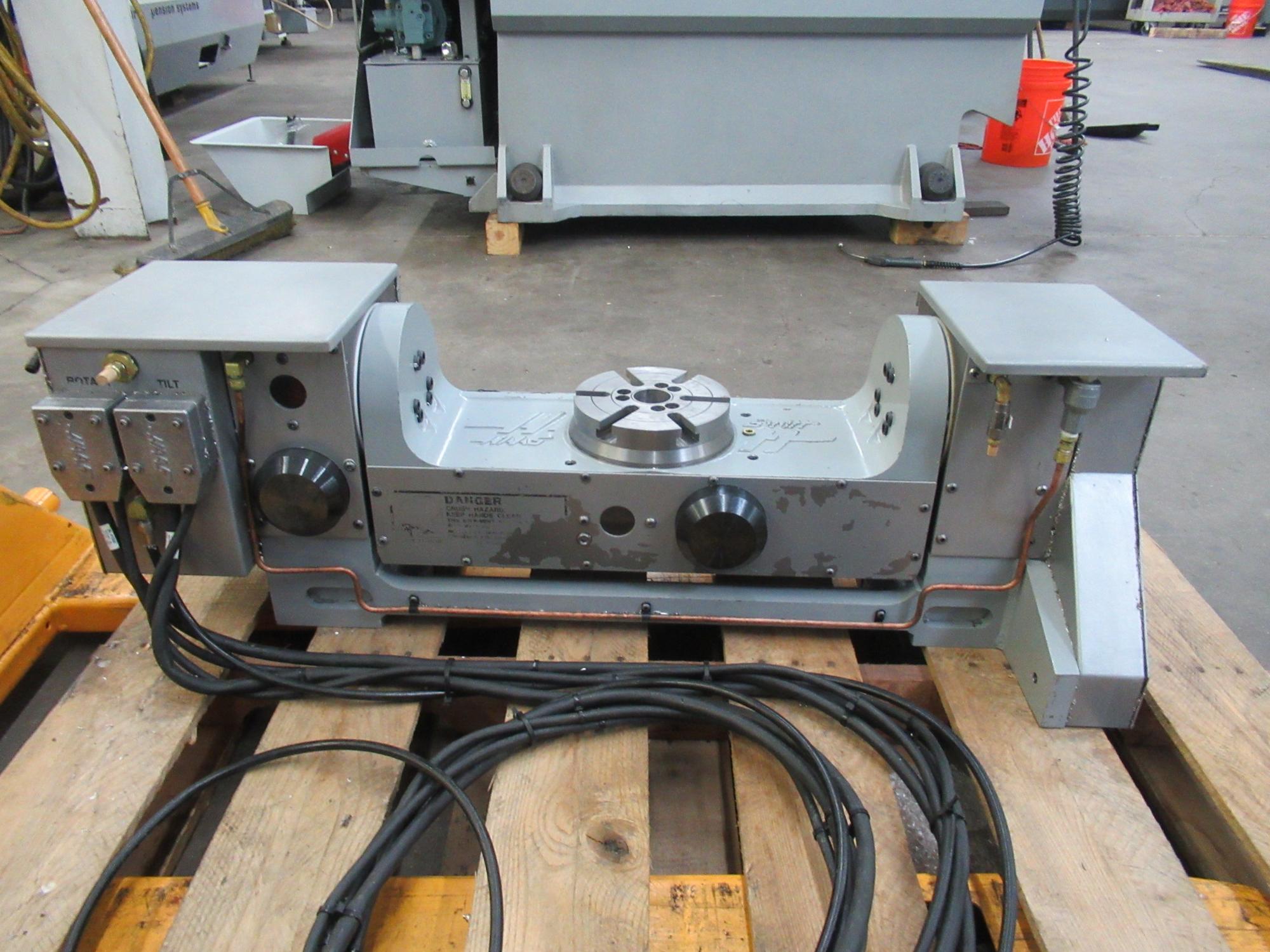

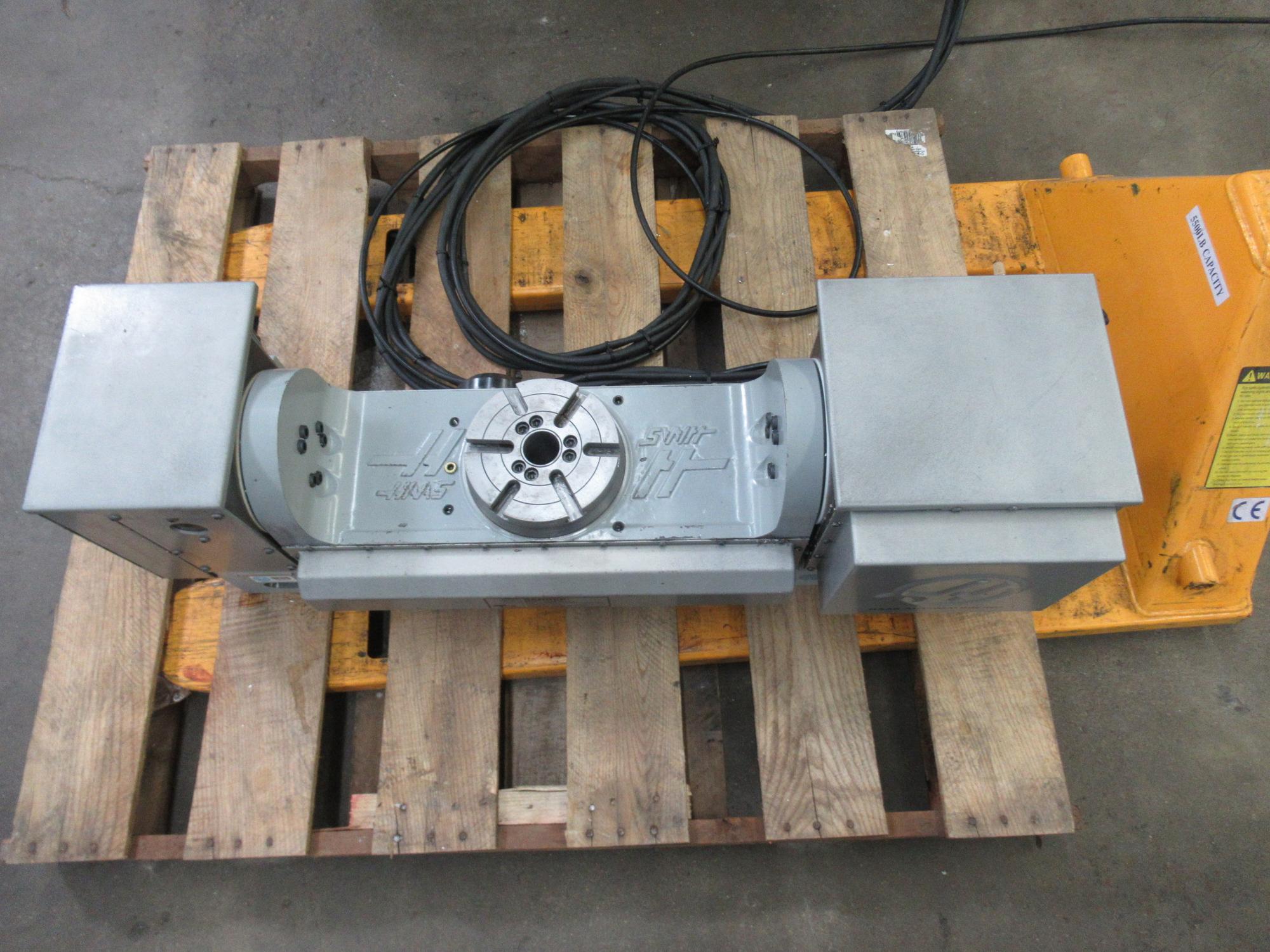

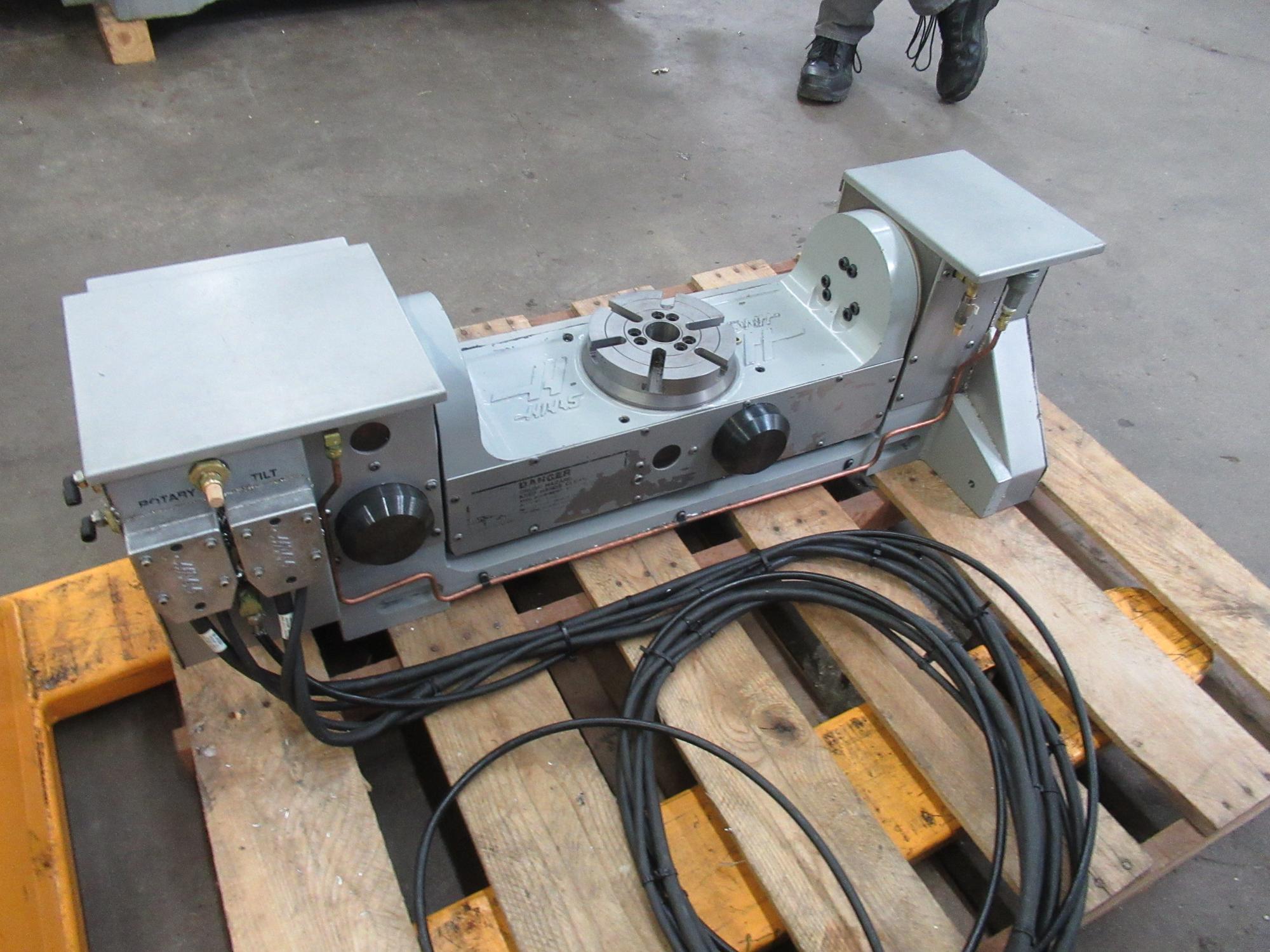

Haas TR-160 2-Axis Programmable Trunnion Table, 6.3" Rotary Platen, Sigma 1 Brushless Drives, Air Brake

Manufacturer

Haas

Category

Tooling & Accessories

Type

ROTARY TABLES

Stock

7177

Model

TR-160

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

A Axis (Tilt) Max Speed: .001 to 80 Deg / Second

A Axis (Tilt) Max Torque: 150 Ft Lbs.

A Axis (Tilt) Gear Ratio: 63:1

A Axis (Tilt) Center Height: 9.5"

A Axis (Tilt) Brake Torque: 100 Ft Lbs.

B Axis (Rotary) # of Heads / Platens: 1

B Axis (Rotary) Max Speed: .001 to 80 Deg / Second

B Axis (Rotary) Max Torque: 100 Ft Lbs.

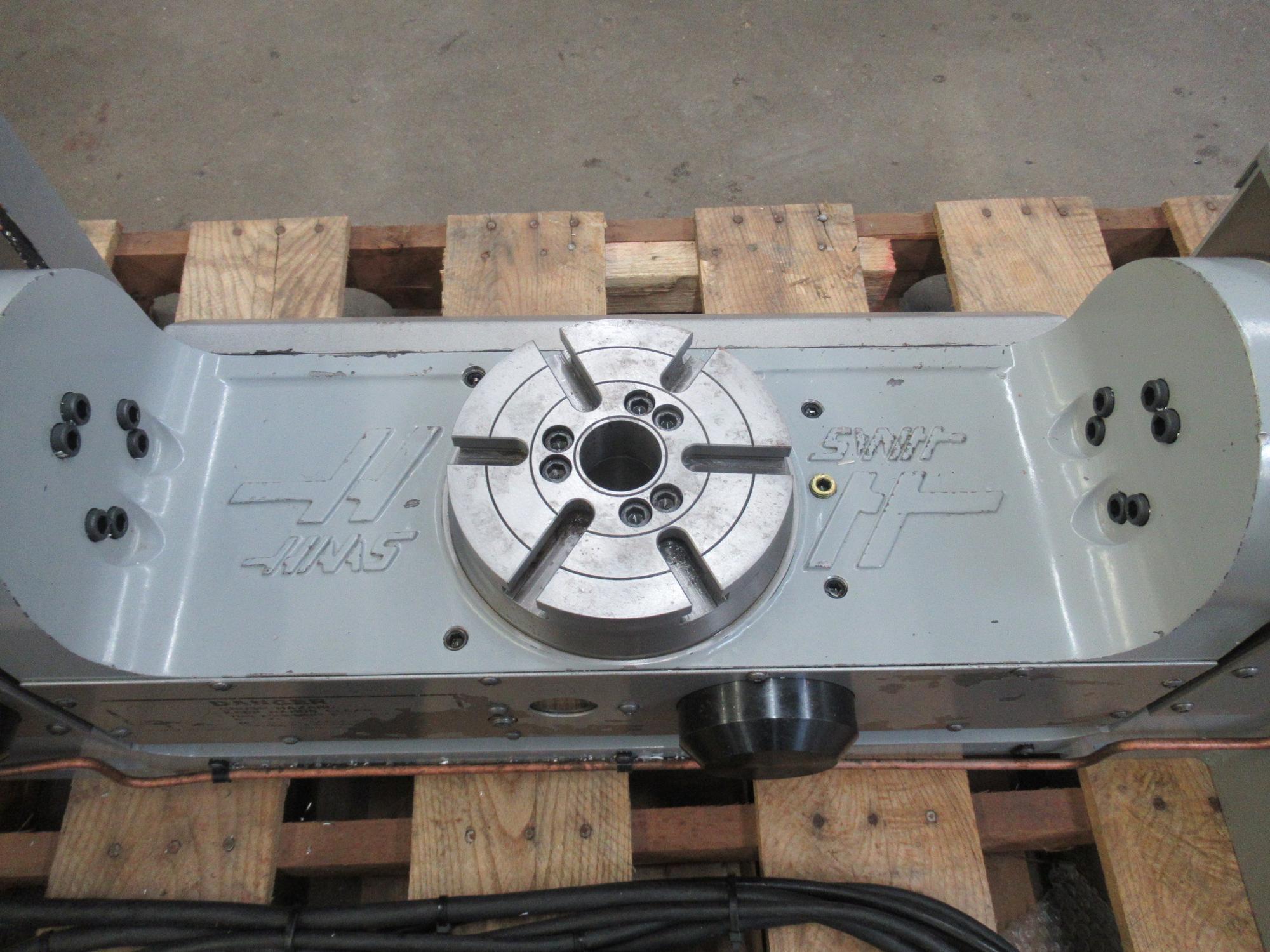

B Axis (Rotary) Nose or Platen: 6.3" Diameter Platen

B Axis (Rotary) Center Height: 9.38" Platen Height

B Axis (Rotary) Gear Ratio: 63:1

B Axis (Rotary) Resolution: .001 Degree

Equipped With:

Sigma 1 Brushless Drive Motors, Axis Drive Cables and Connectors, Air Line and Fitting

Electrics:

115 Volt, Single Phase
