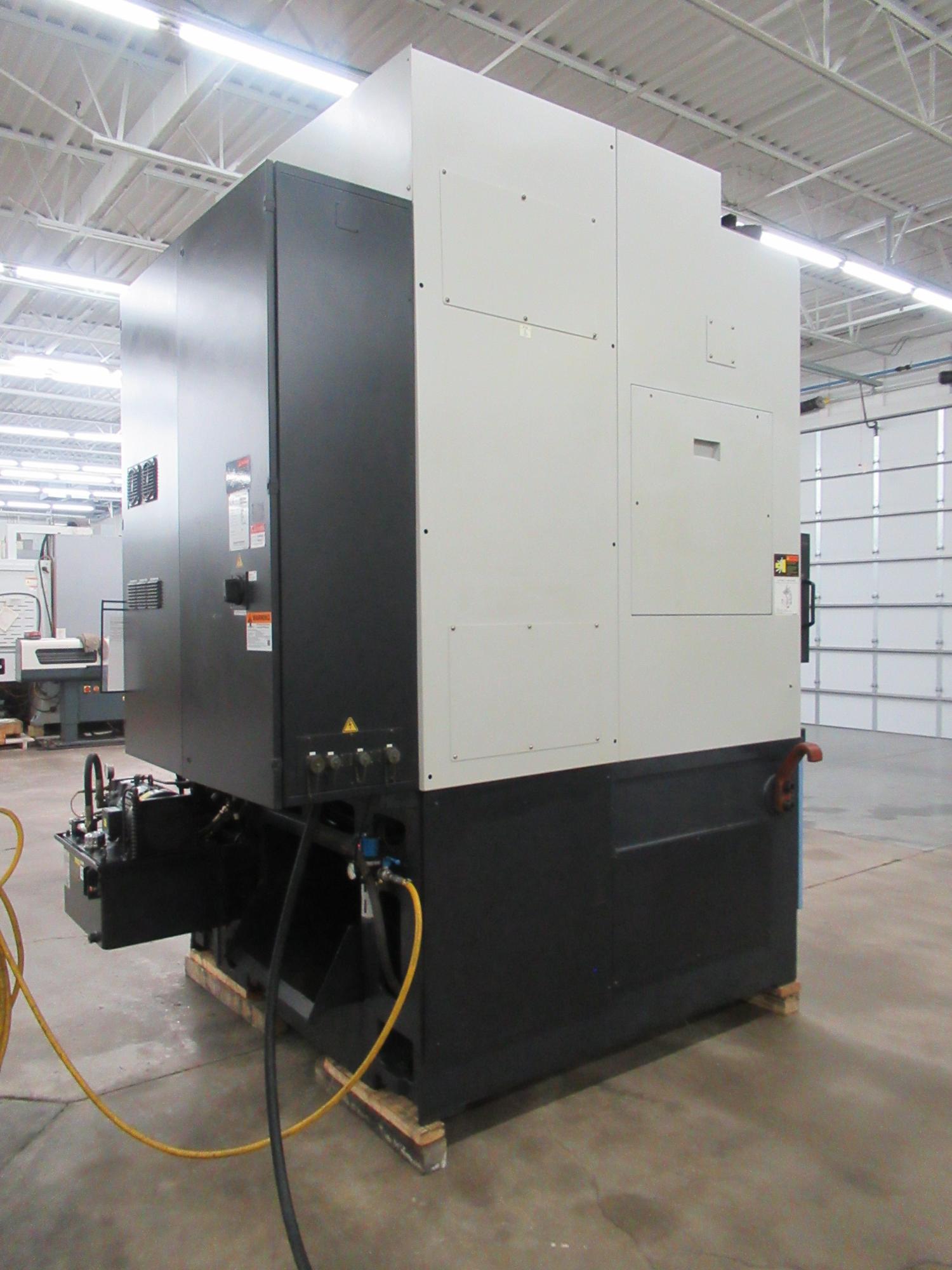

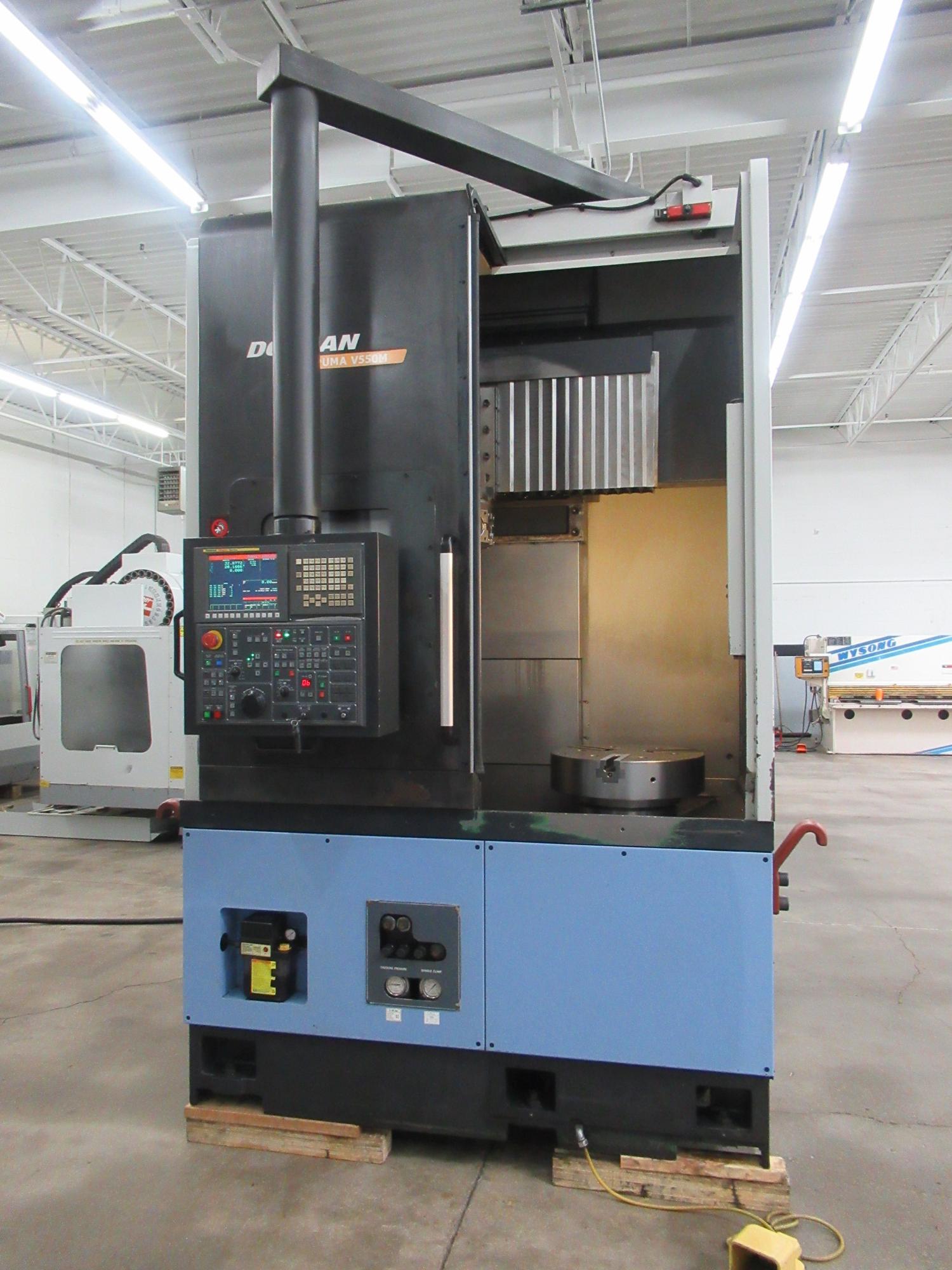

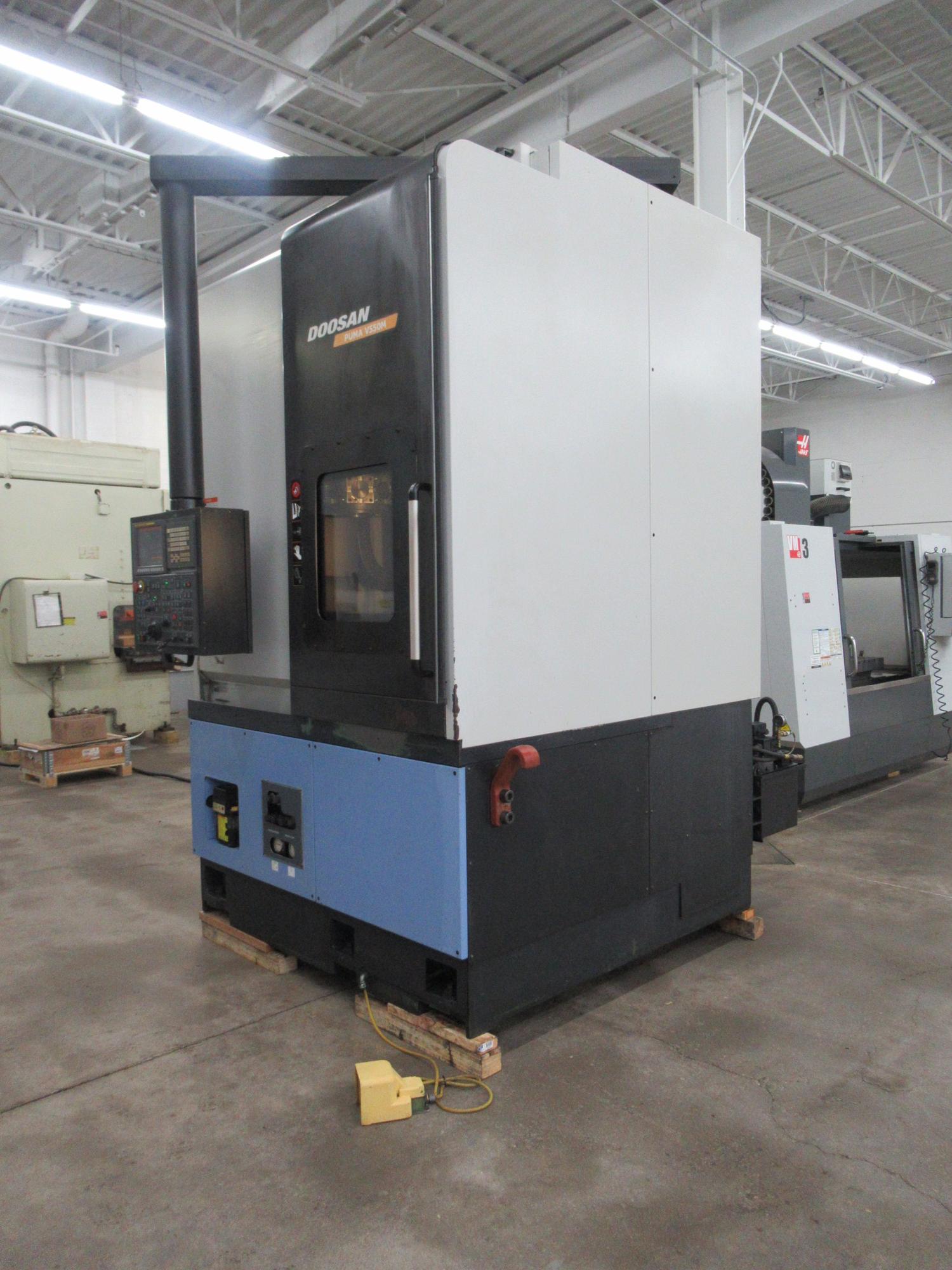

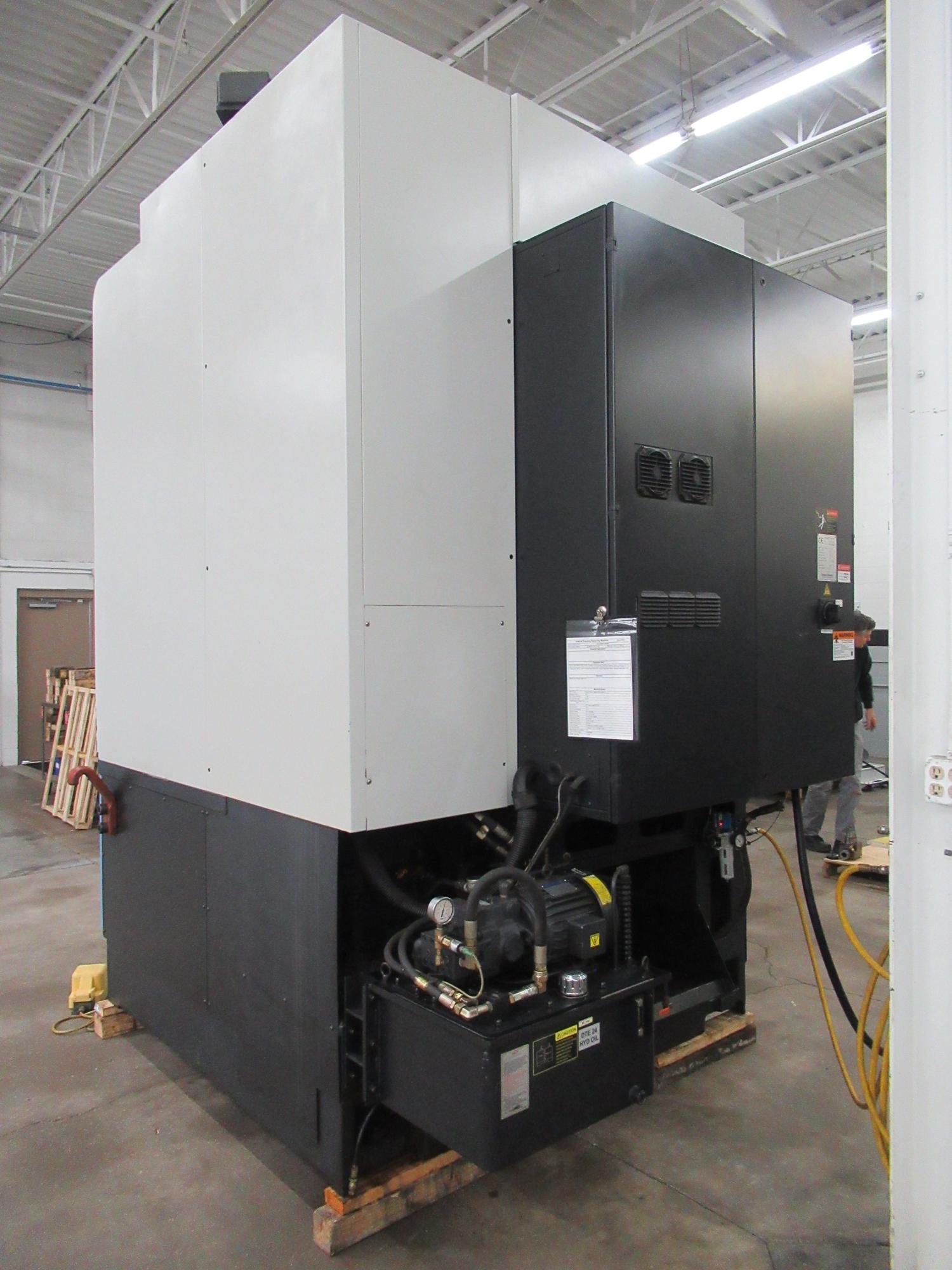

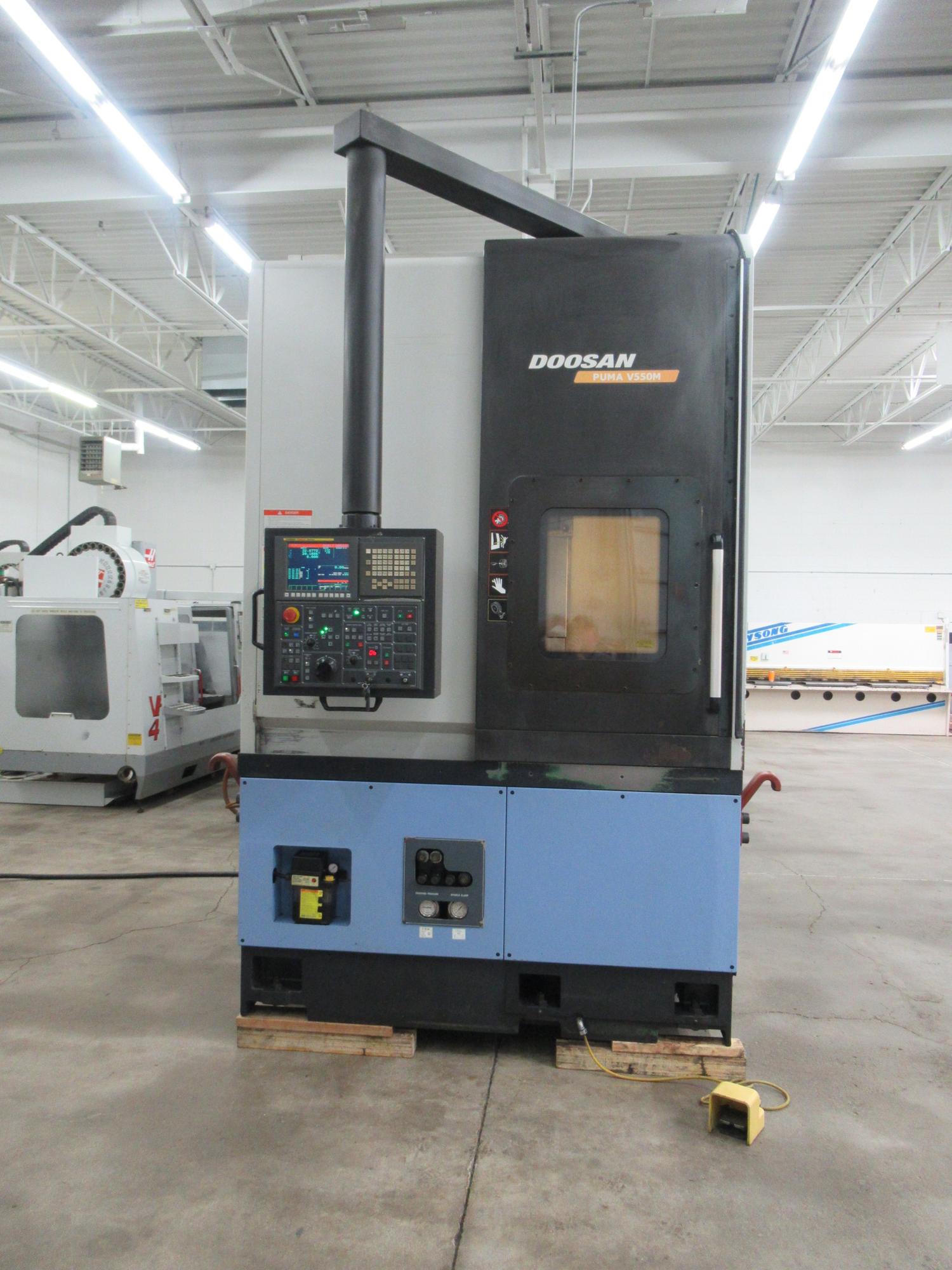

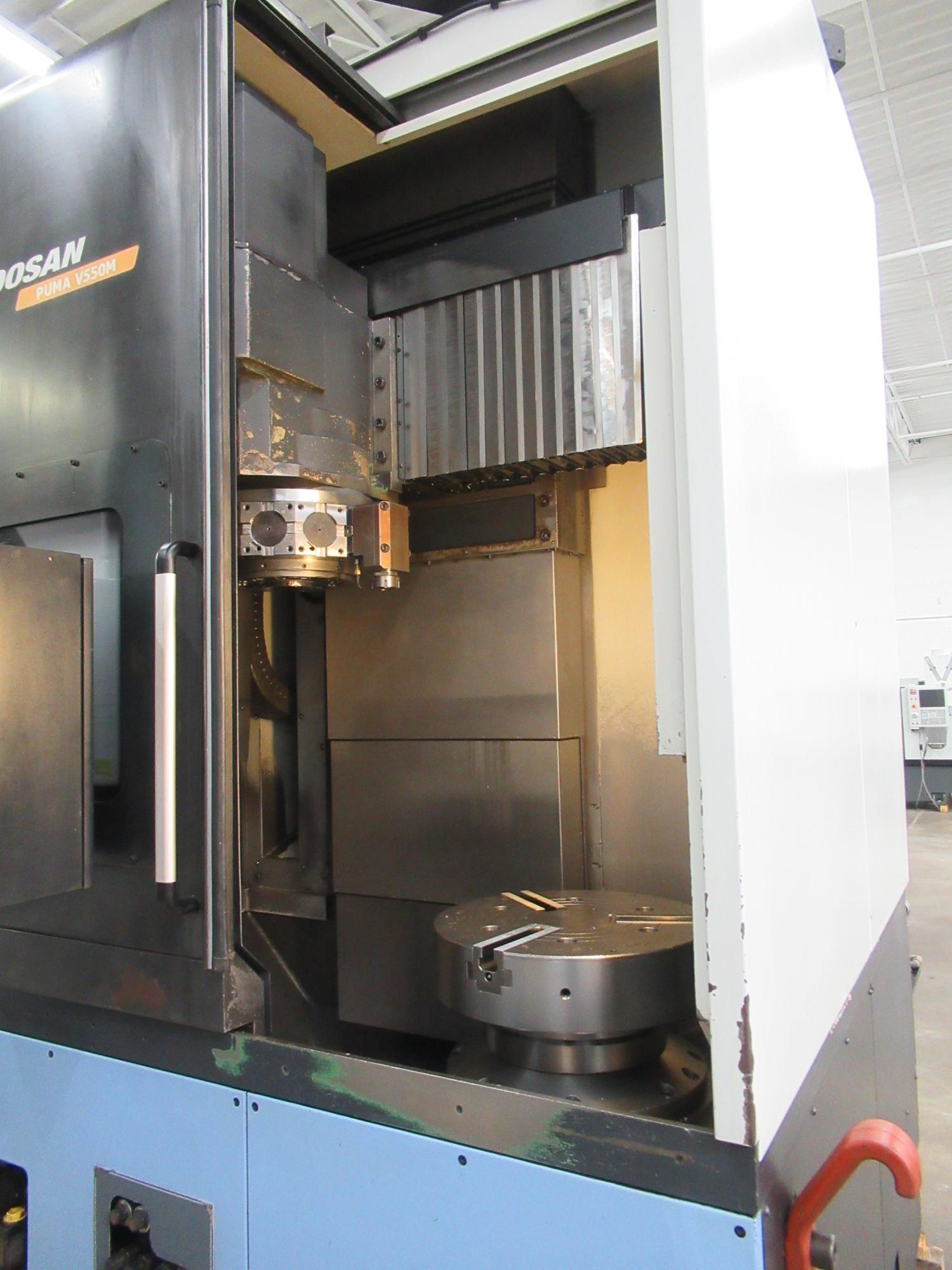

Doosan Puma V550ML CNC Vertical Turning Center with Live Milling, 20" Chuck, Chip Conveyor, New 2011

Manufacturer

Doosan

Category

Lathes

Type

LATHES, CNC

Stock

7218

Model

V550M

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

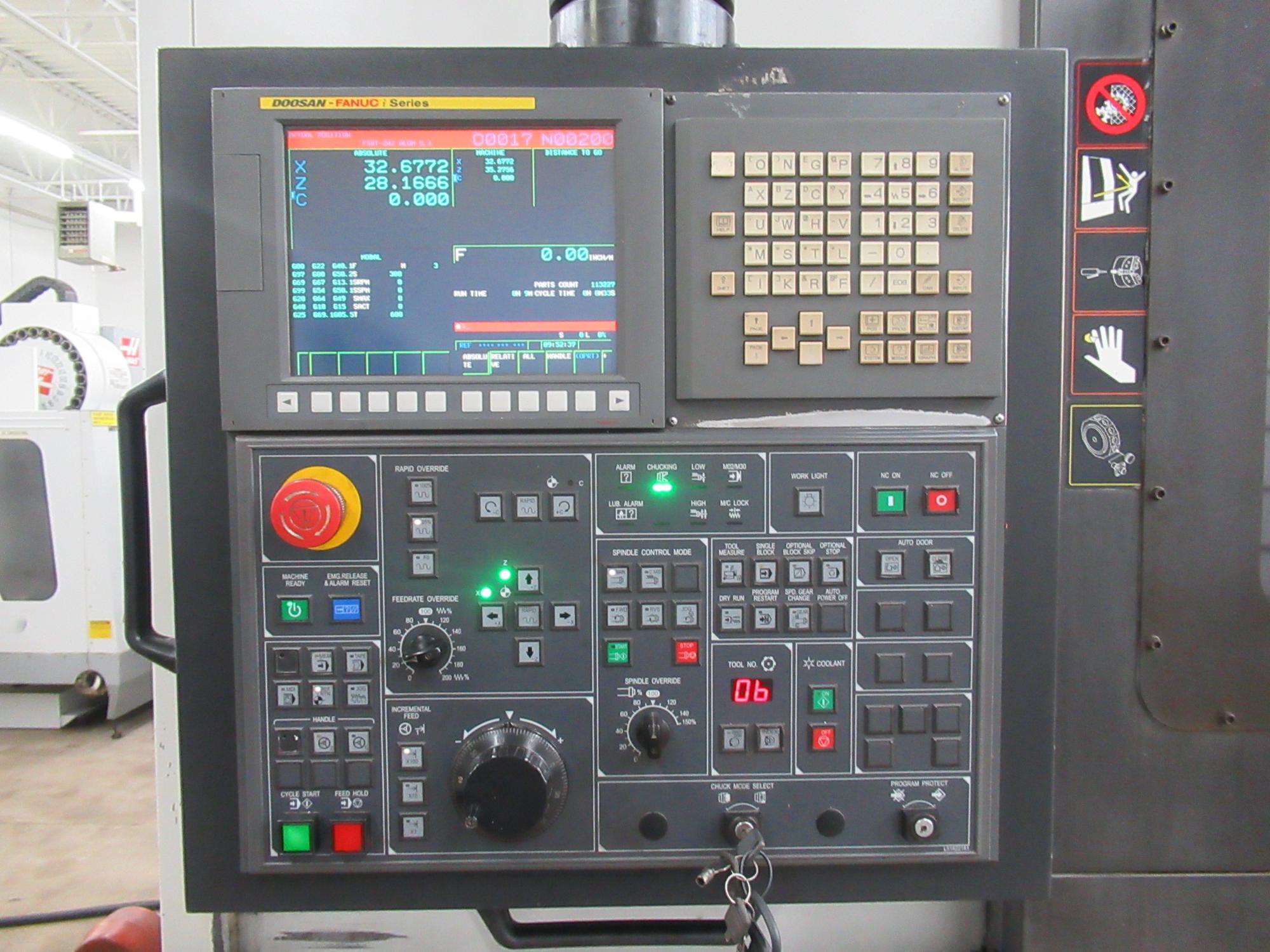

CNC Control: Doosan Fanuc i Series CNC Control

Maximum Swing: 30.7"

Max Turning Diameter: 19.68"

Max Turning Length: 24.20"

Spindle Height Surface From Floor: 41.73"

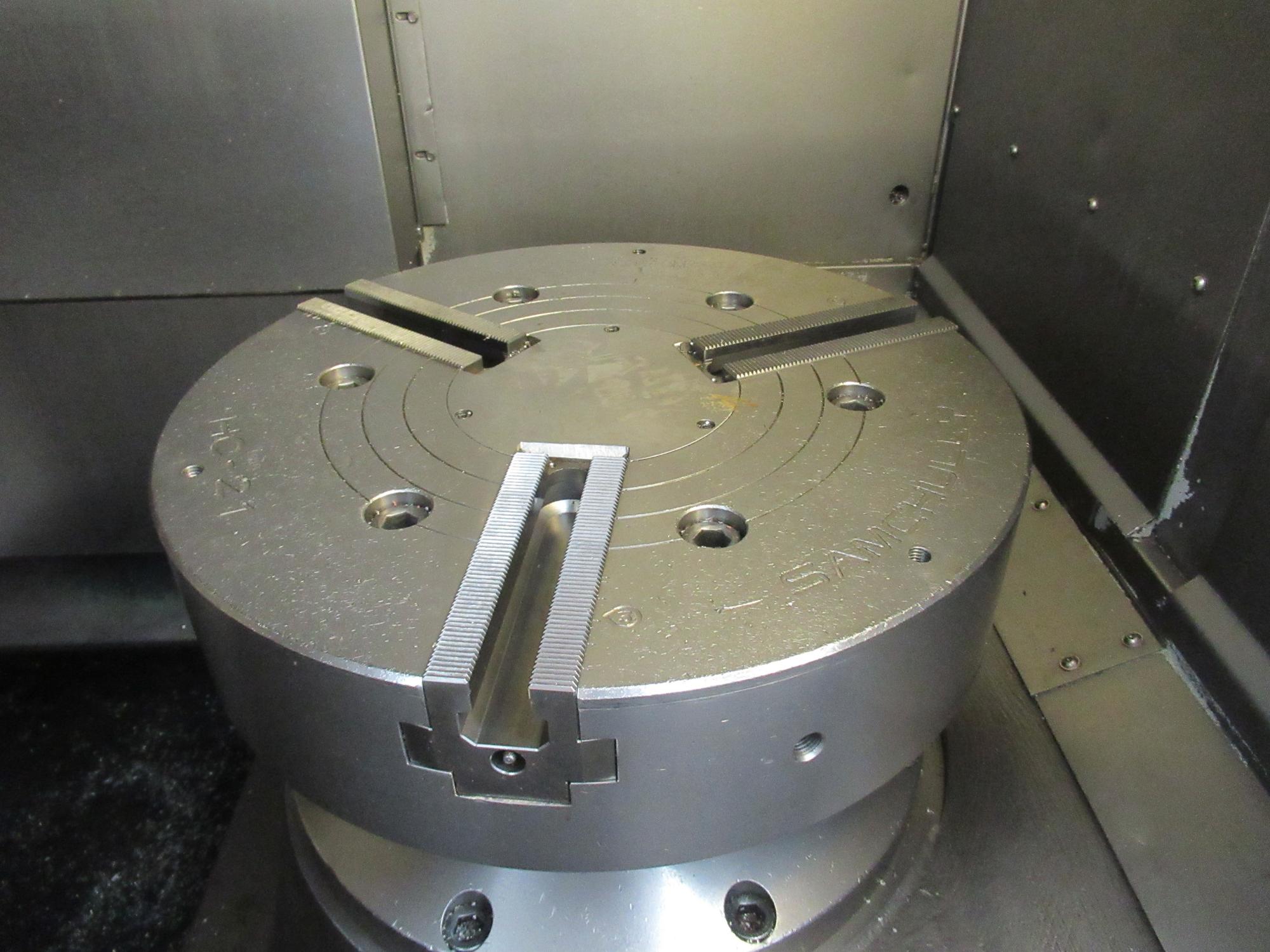

Chuck Size: 20" 3-Jaw Hydraulic Chuck

Spnsdle Nose: A2-11

Hole Through Spindle: 4.33"

Spindle Speeds: 20 -2,000 RPM

Spindle Torque: 509 Ft- Lbs. Max

Spindle Orientation: C-Axis, (.001 Degree)

C-Axis Max Speed: 55.5 RPM

Turret Travels (X/Z): 14.57" x 24.02"

Rapid Traverse (X/Z): 787 IPM

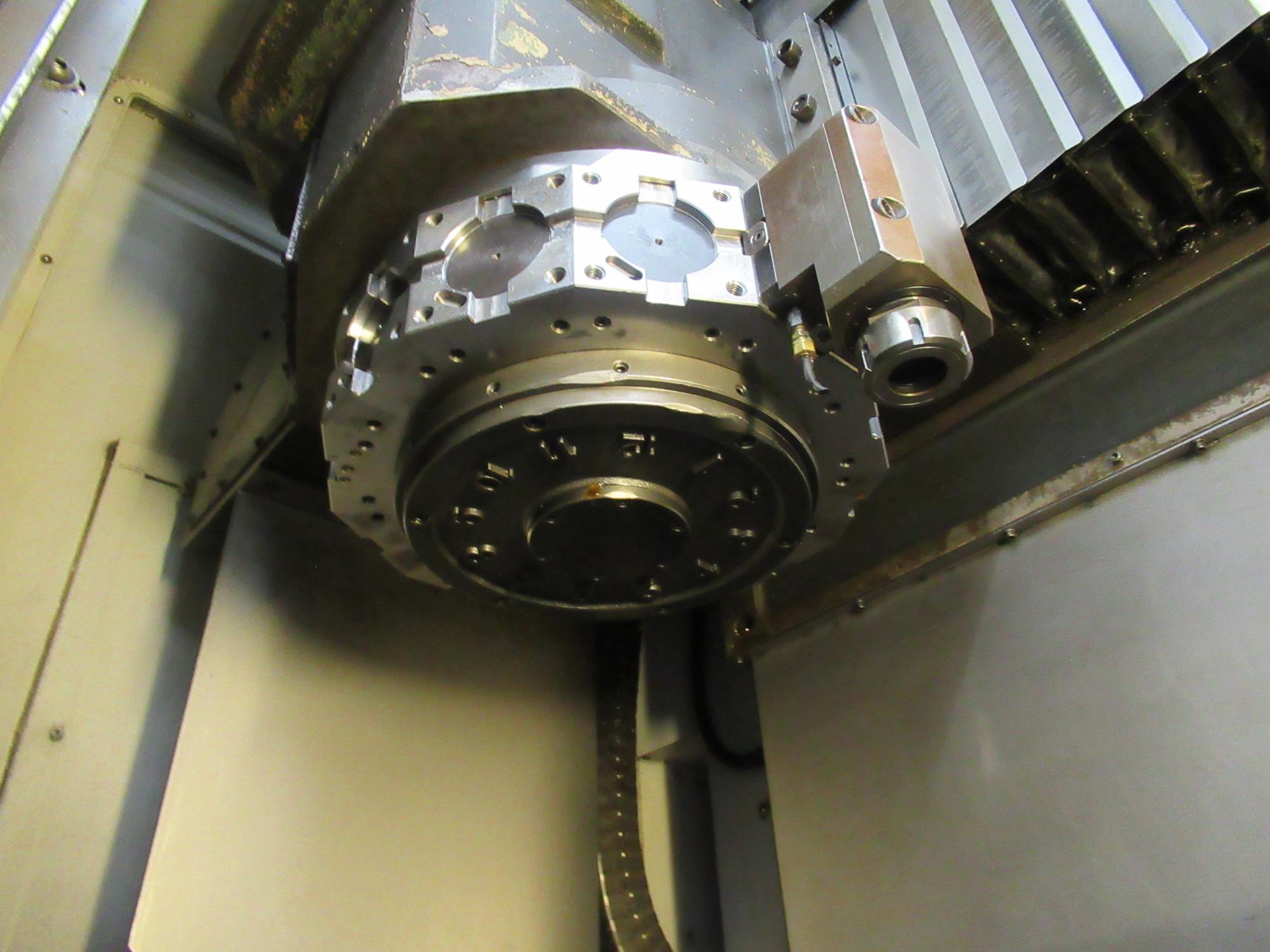

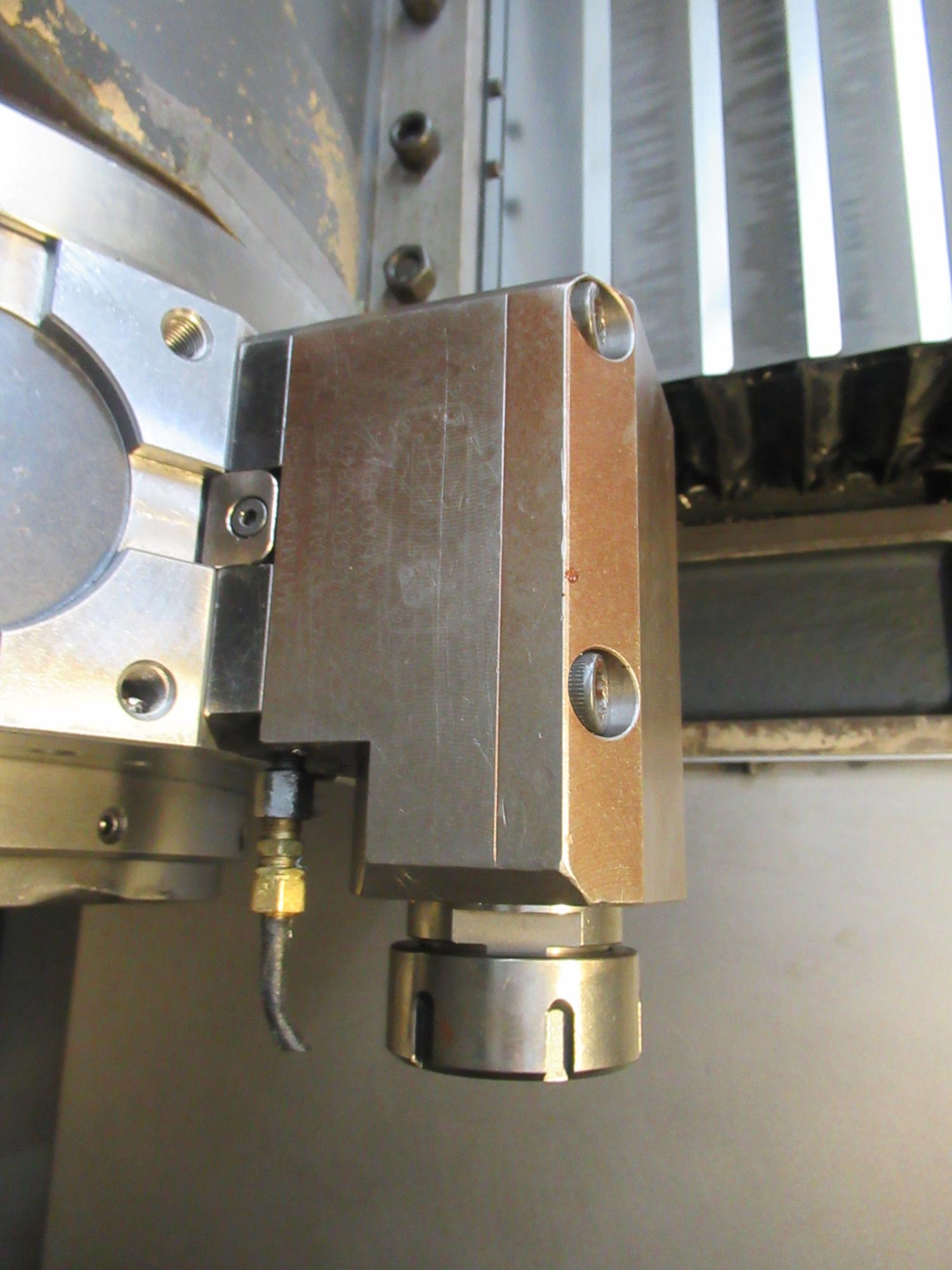

Turret Capacity: 12 Stations (Live Milling Capable)

Turret Index Time: .7 Second 1 Tool / 1.08 Sec 6 Tools

Max Number of Live Tools: 12

Live Tool Max Speed: 3,000 RPM

Rotary Tool Drive: 7.5 HP

Main Spindle Drive: 50 / 40 HP

Equipped With:

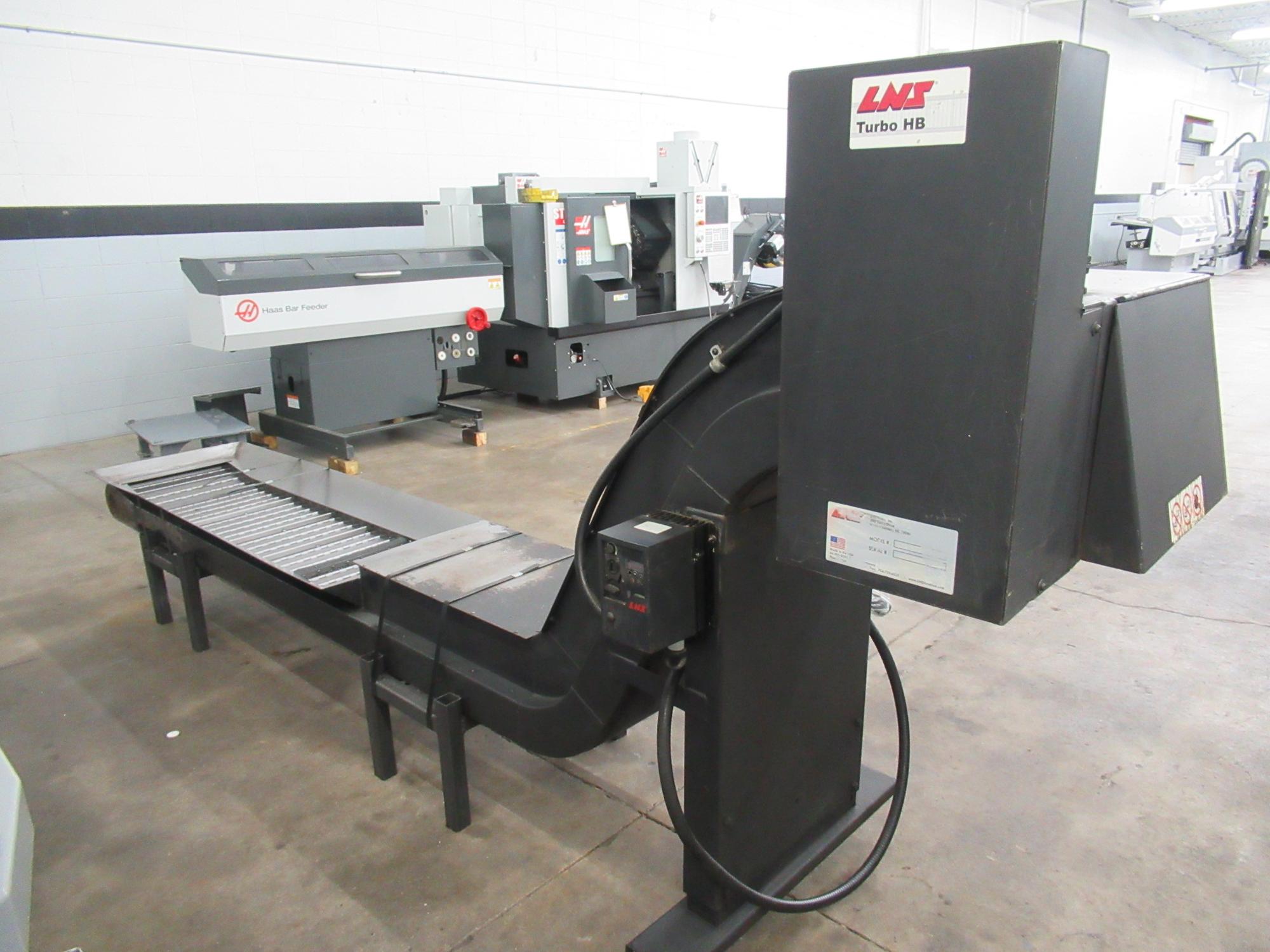

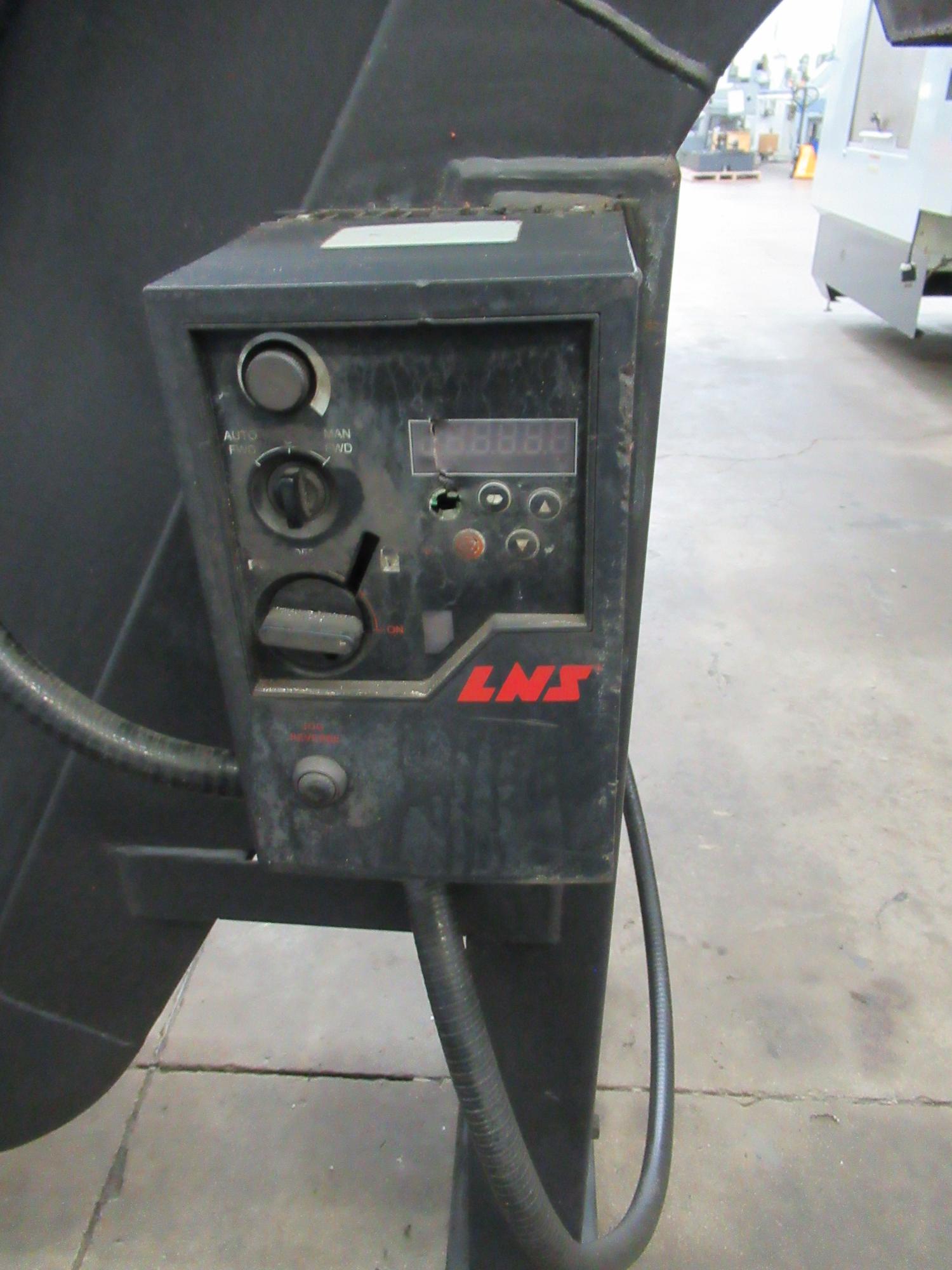

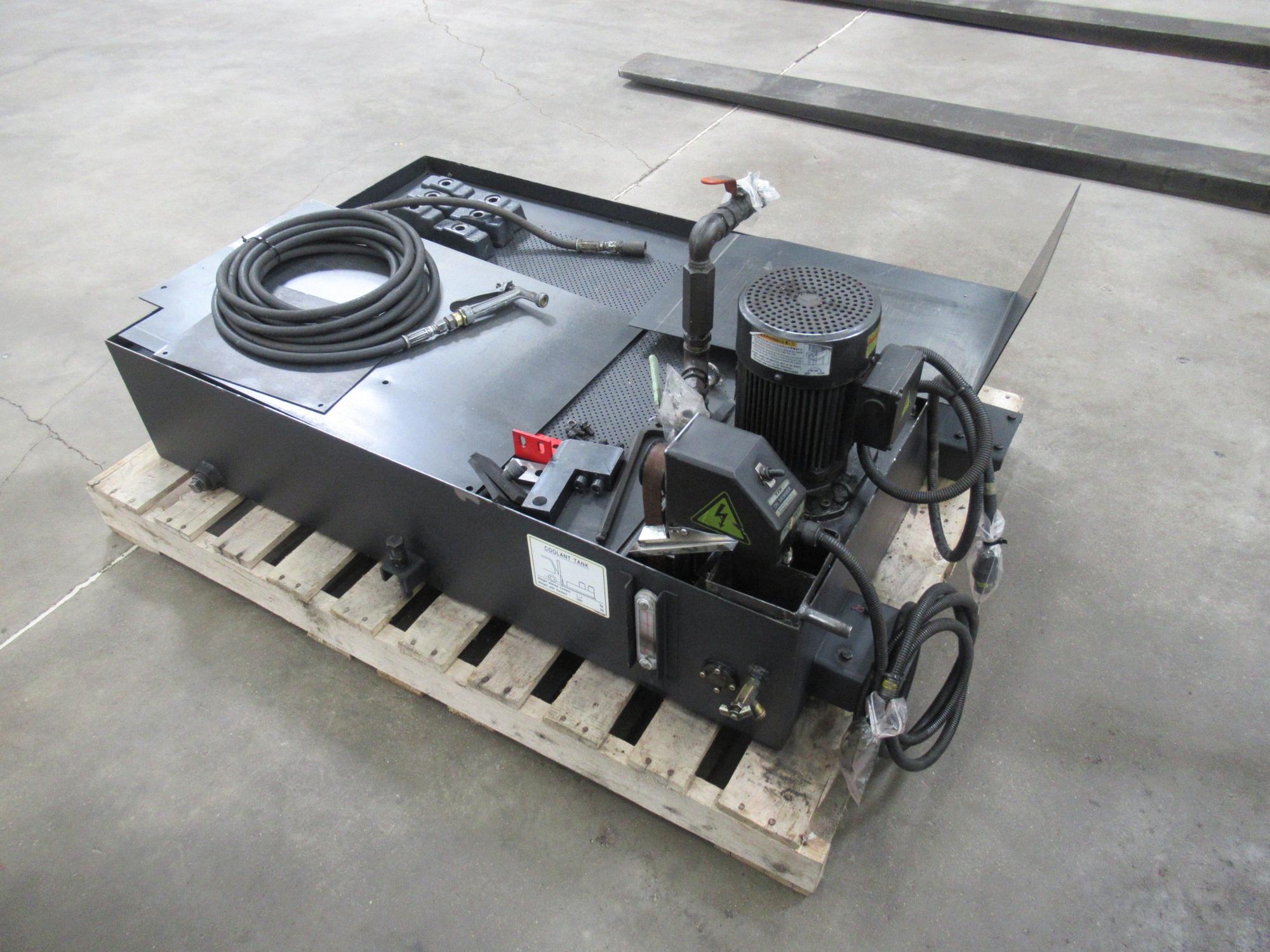

Doosan Fanuc Series i CNC Control, 12 Station Tool Turret with Live Milling, 2-Speed Gearbox, Samchully HC21 21" 3-Jaw Hydraulic Chuck and Acutator, Auto-Door, Coolant System, Rear-Discharge Chip Conveyor, Rigid Tapping, (2) Live Milling Tool Holders (Axial), (2) BOring Holders, (1) Turning Holder, Fanuc Manuals, Machine Instruction Manual, Machine Parts Manual, Electrical Schematics, Program Manual, Parameters, Chuck Jaws

Electrics:

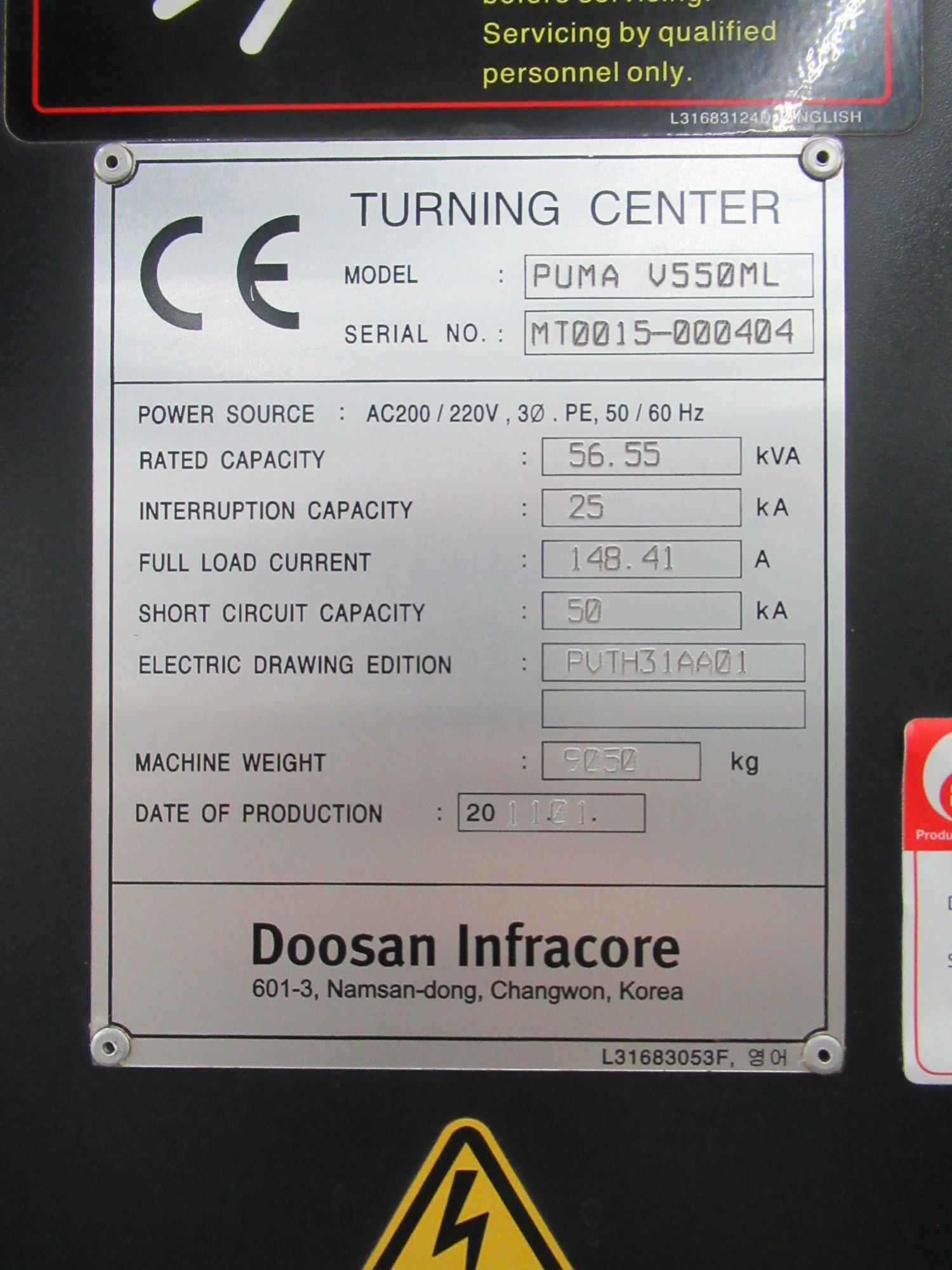

200/220 Volt, 3 Phase 148.41 FLA
