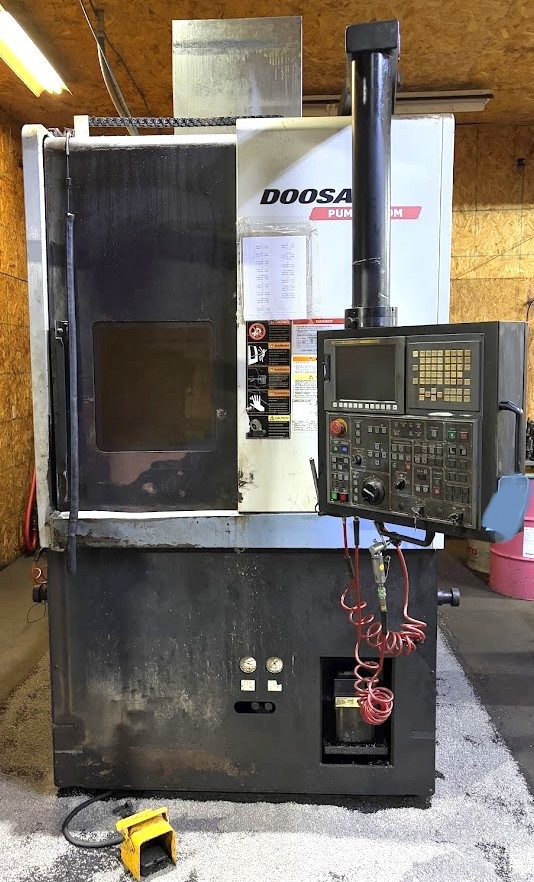

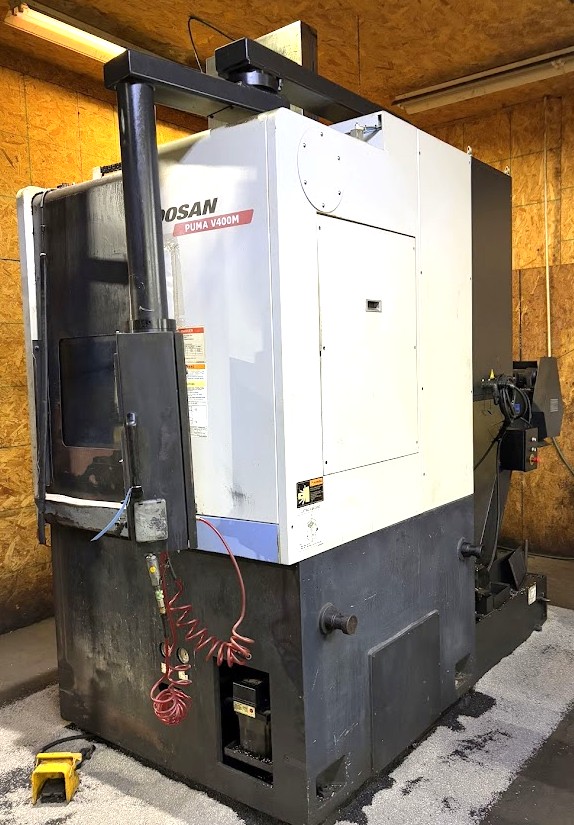

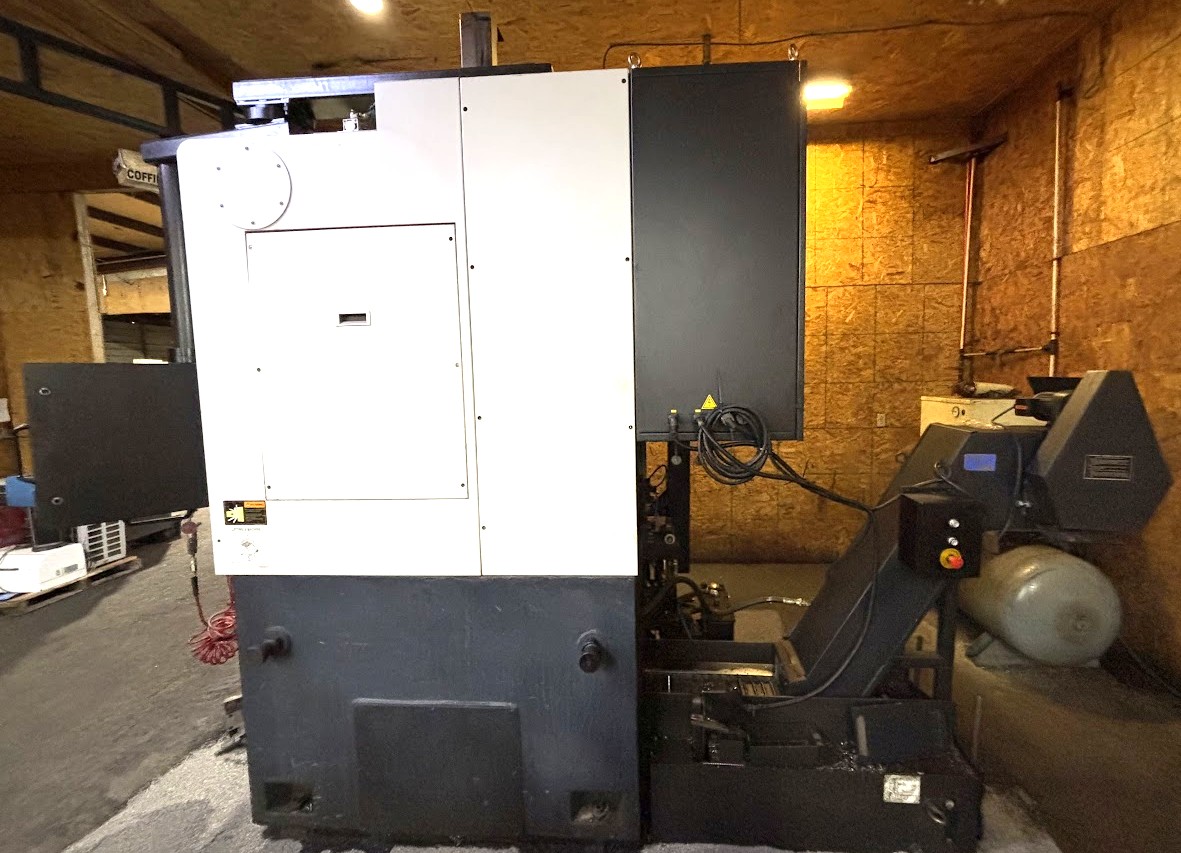

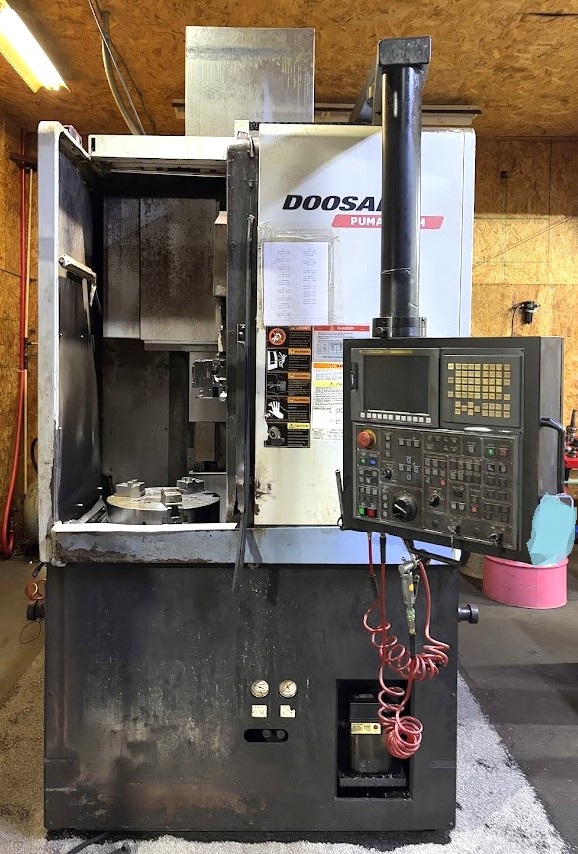

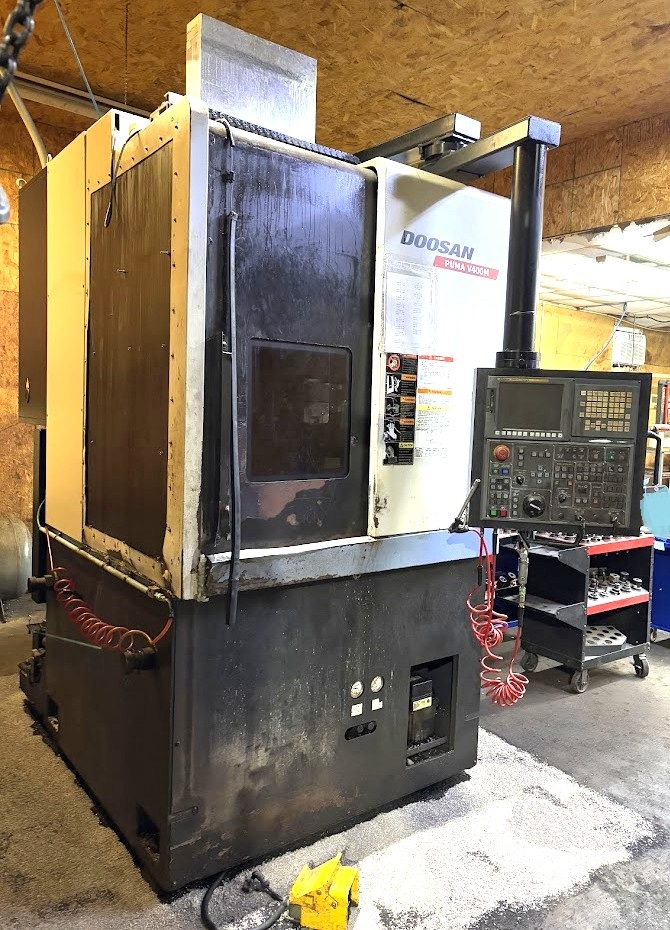

DOOSAN V400M 3-AXIS CNC VERTICAL LATHE WITH LIVE TOOLING, NEW 2012

Manufacturer

DOOSAN

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

13491

Model

V400M

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

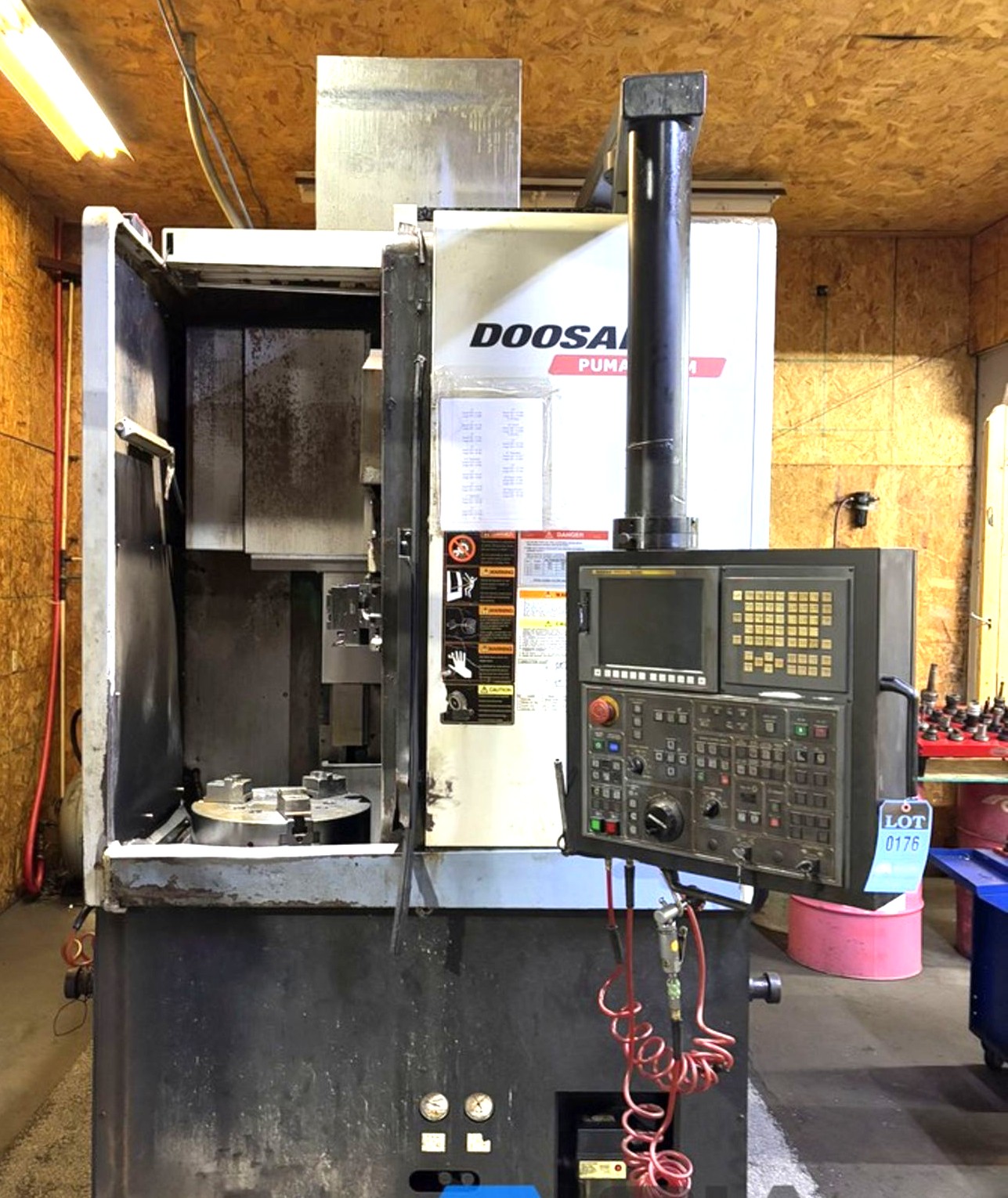

DOOSAN V400M 3-AXIS CNC VERTICAL LATHE WITH LIVE TOOLING, NEW 2012, 5 LIVE TOOLHOLDS


Specifications

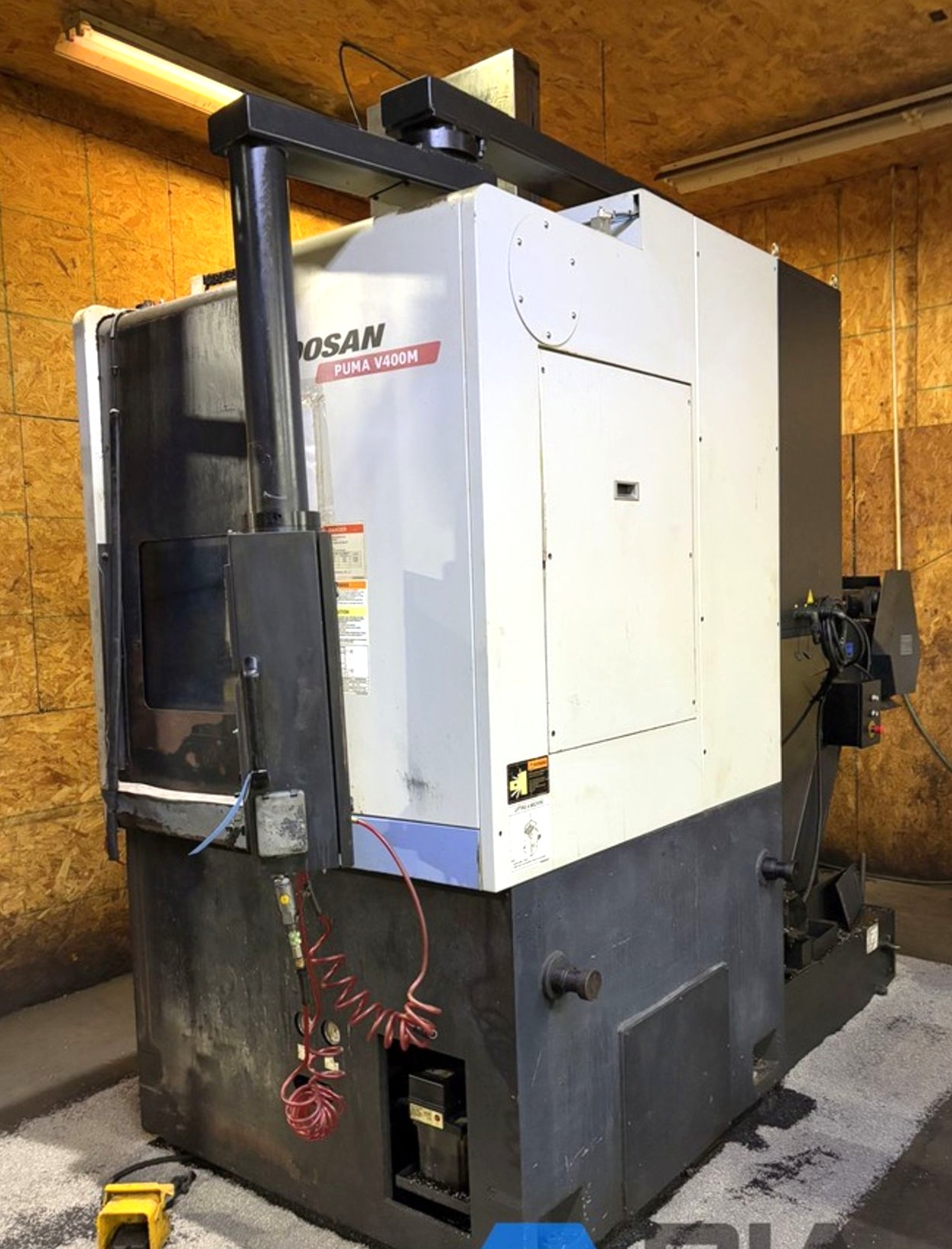

Doosan Puma V400M Single Turret Vertical Lathe

Technical Specification for Puma V400M
Technical Specification

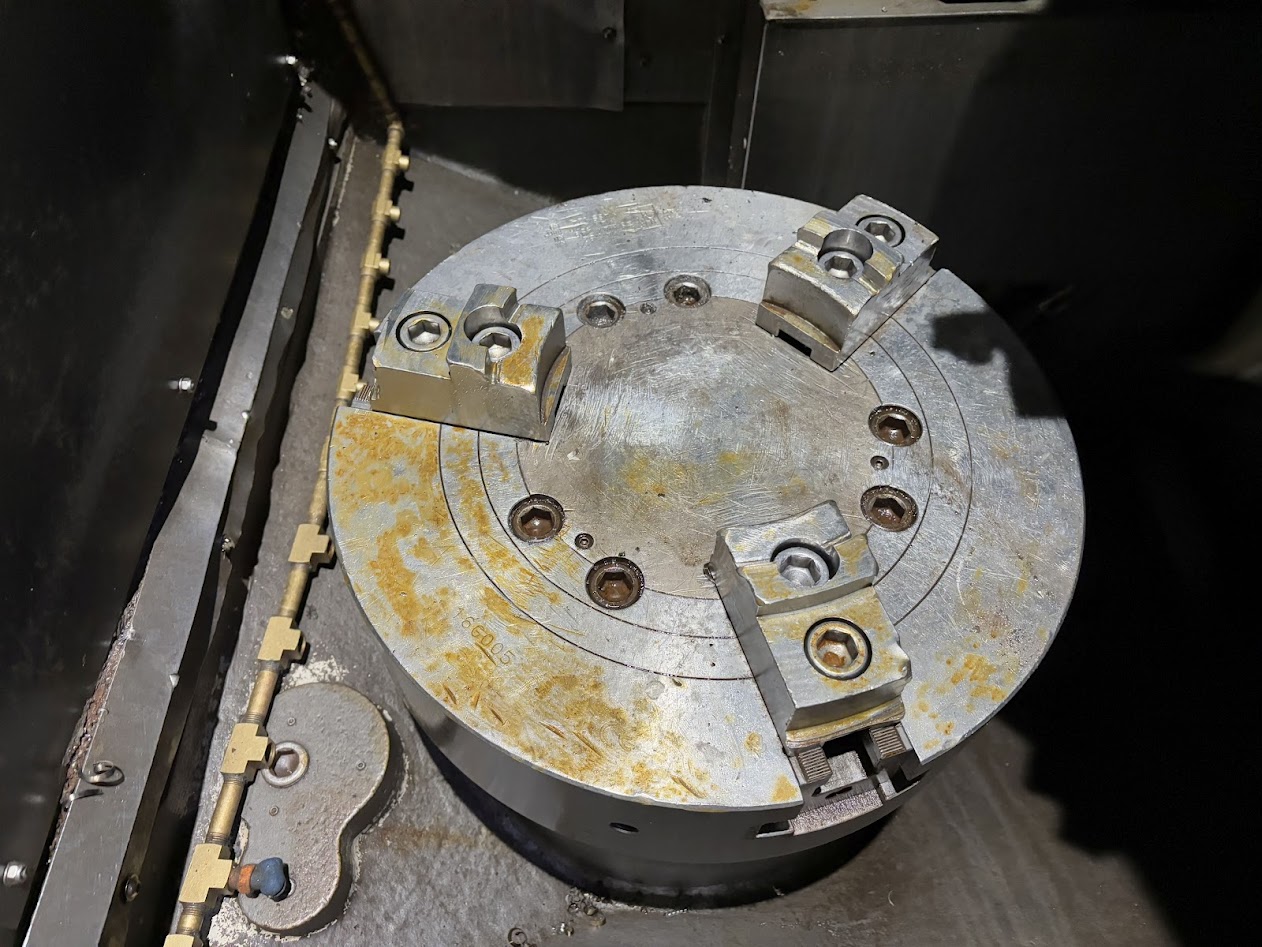

Chuck size 12 inch
Max. Turning Diameter 496 mm
Max. Turning Length 461 mm
X Axis Rapid Traverse 20 m/min
Z Axis Rapid Traverse 20 m/min
Max. Spindle Speed 3000 r/min
Max. Spindle Power 22 kW
Max. Spindle Torque 731 N·m
No. of tool station 12
Rotary Tool r/min 4000 r/min
X Axis Travel distance 268 mm
Z Axis Travel distance 488 mm
Product Dimensions
Length 1475mm
Width 2075mm
Height 3210mm
Weight 6000kg


Equipped With

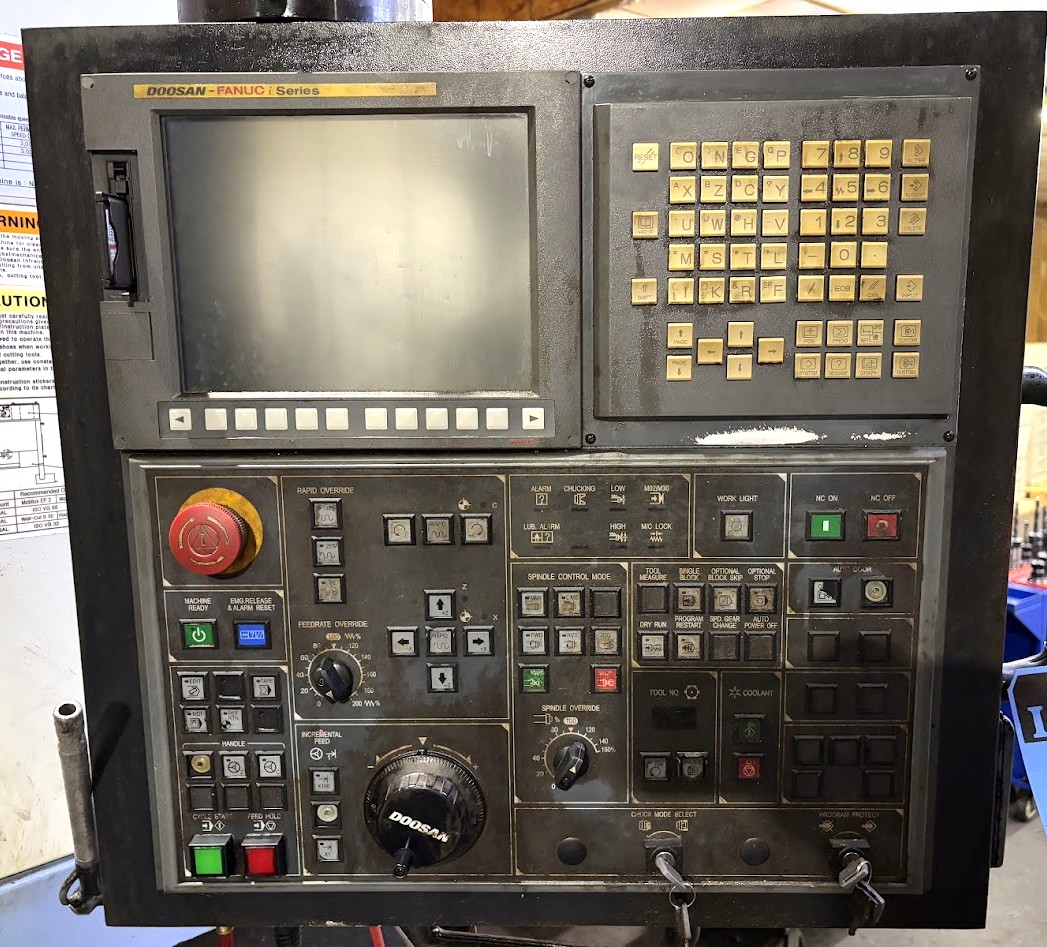

FANUC I SERIES CNC CONTROL

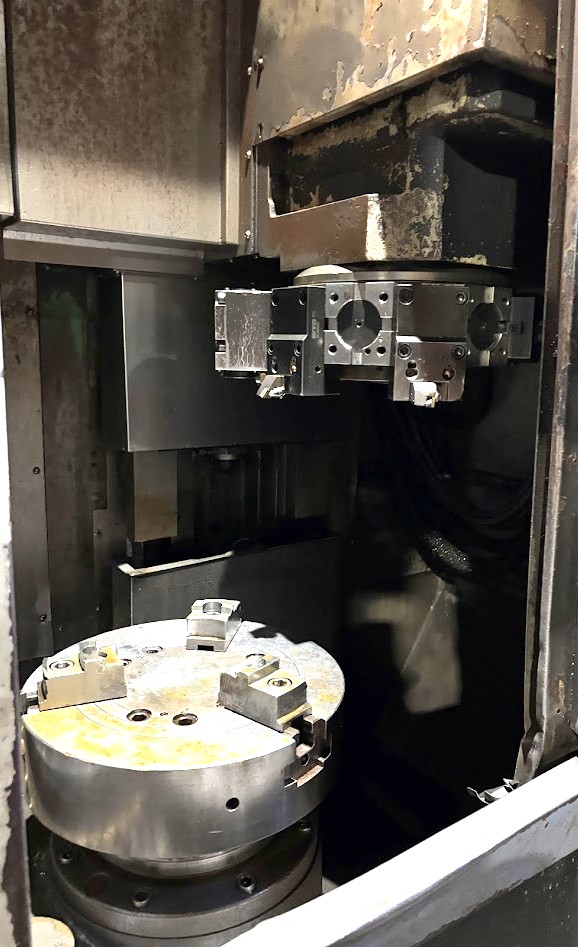

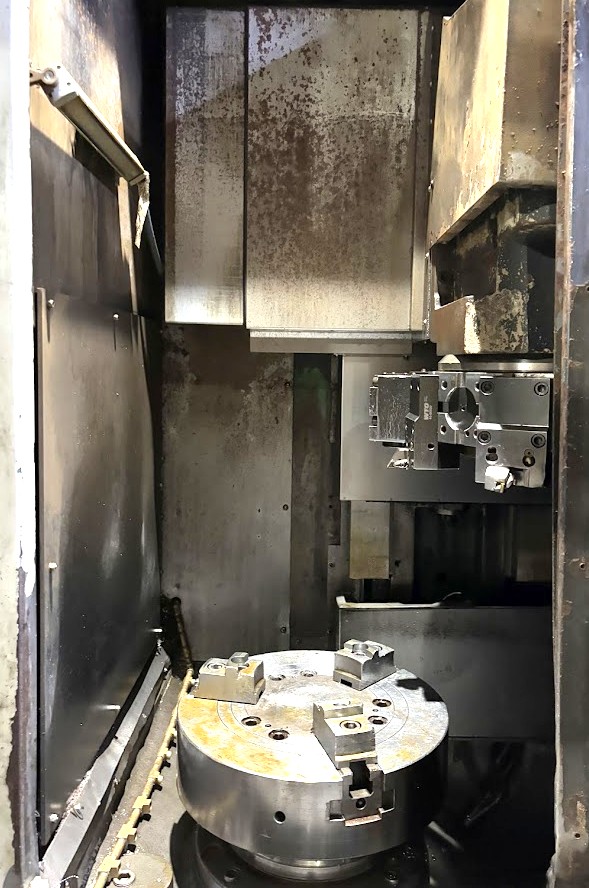

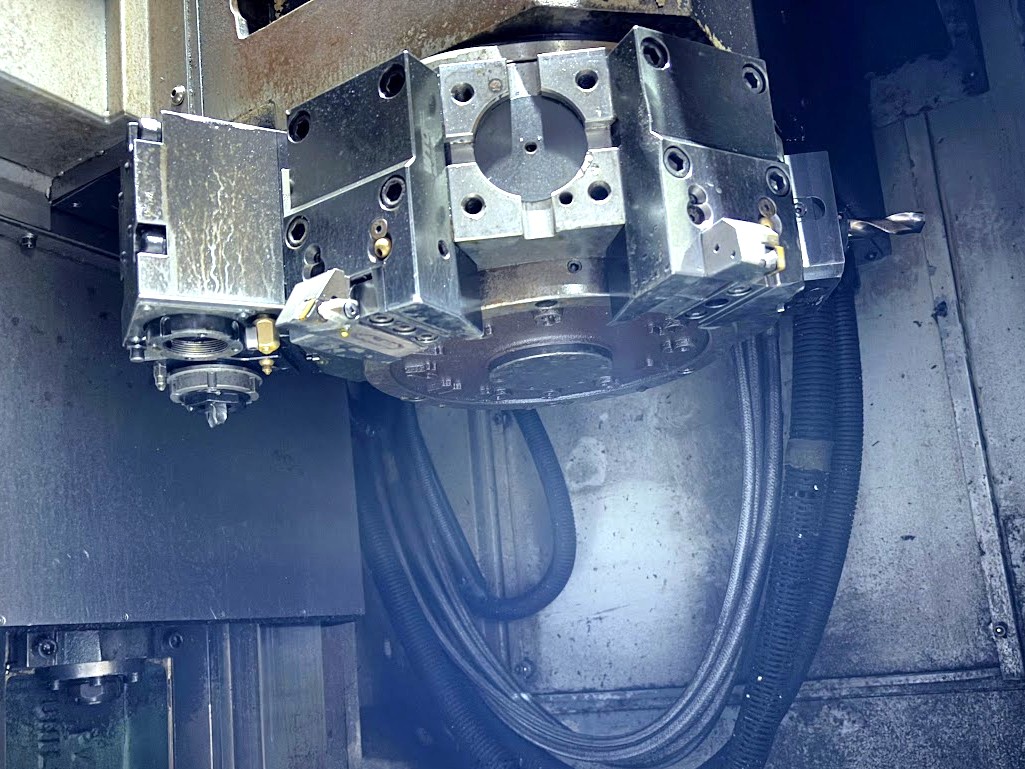

TURRET WITH LIVE TOOLING
5 LIVE TOOL HOLDERS
COOLANT SYSTEM

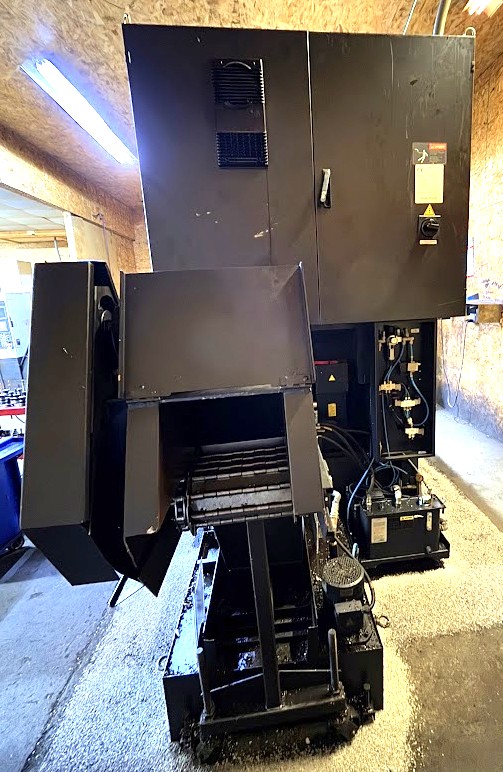

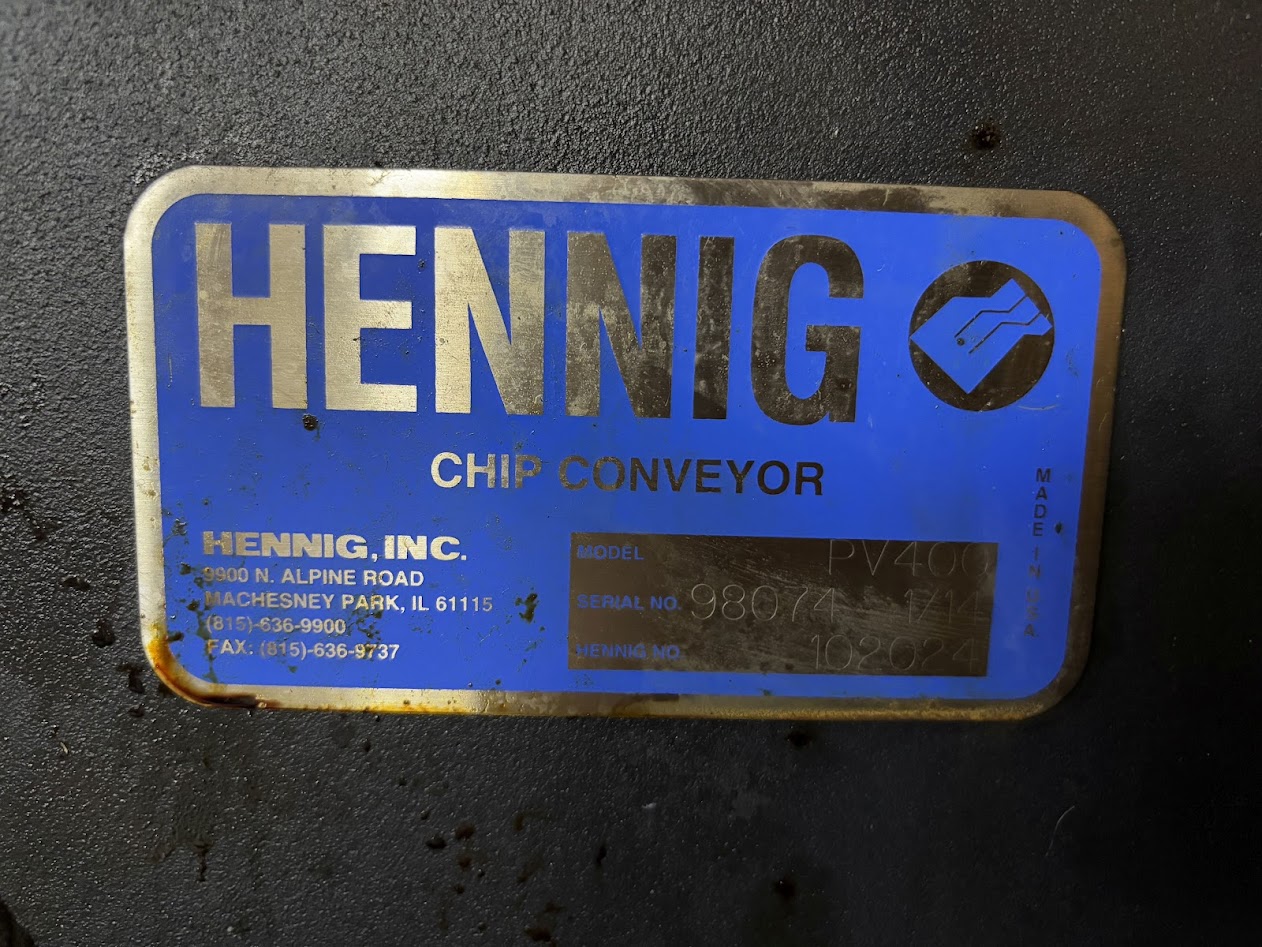

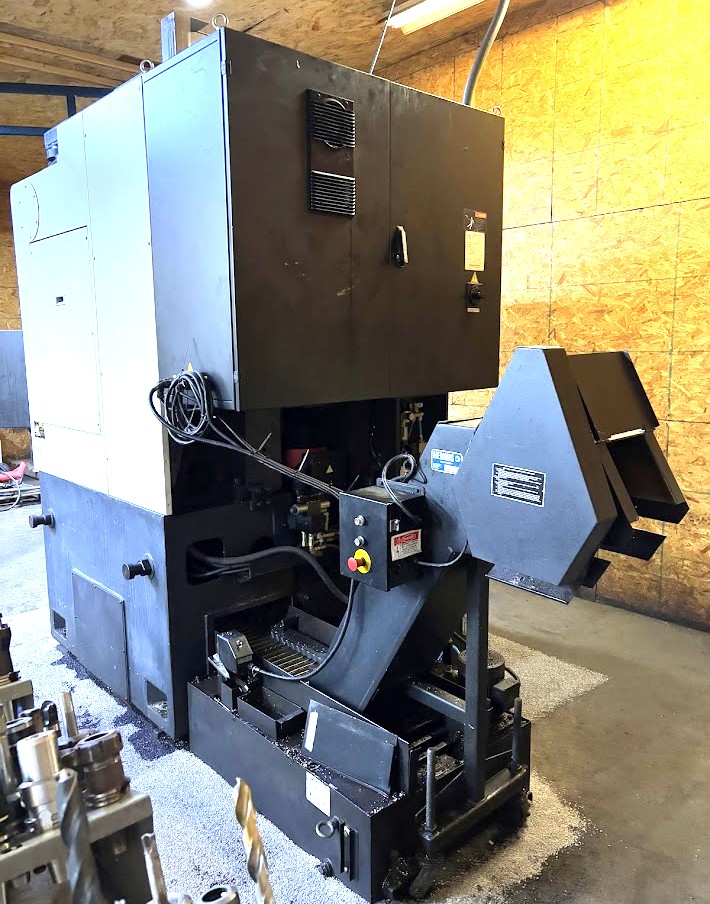

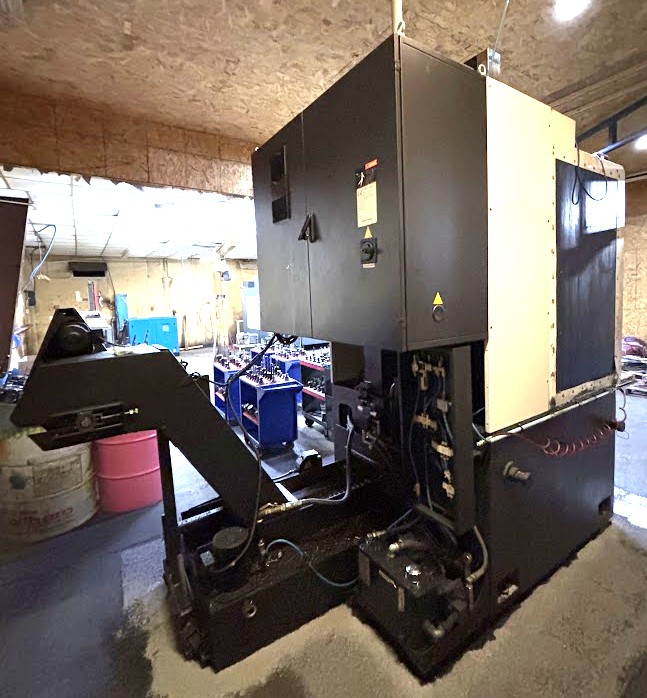

CHIP CONVEYOR
