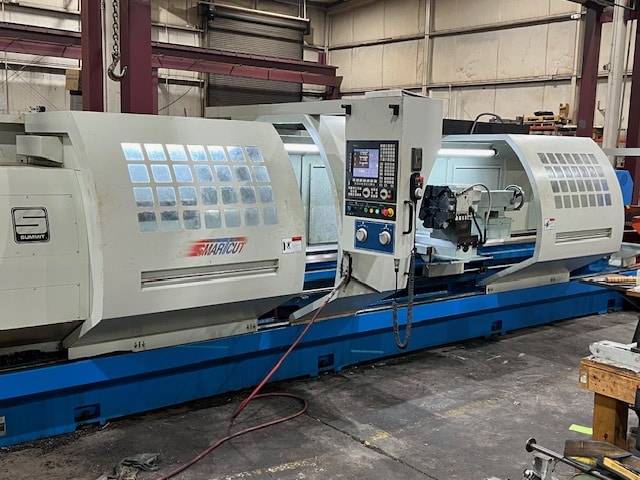

Summit SmartCut 30 30″ x 200″ CNC Flat Bed Lathe (2022)

Manufacturer

Summit

Category

Lathes

Type

LATHES, CNC

Stock

111250019

Model

SmartCut 30

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 111250019
  • Brand: Summit
  • Model: SmartCut 30
  • Year: 2022
  • Approx. Shipping Weight: 14,820 Lbs.
  • Approx. Shipping Dimensions: 280″ x 72″ x 90″

Specifications

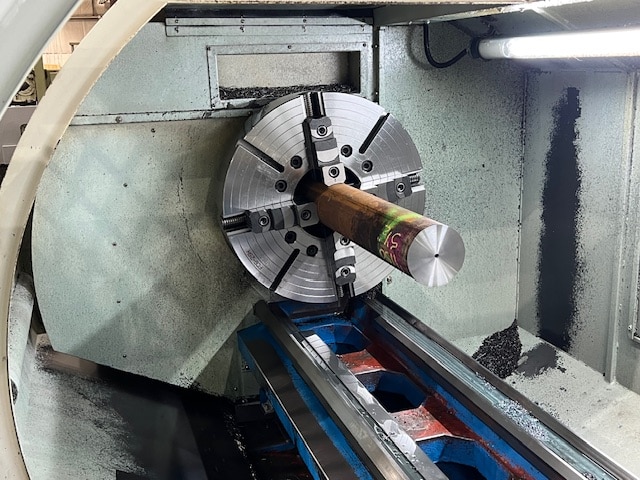

  • Chuck Size: 26″
  • Bar Capacity: 9″
  • Swing: 30.3″
  • Turning Diameter: 18.1″
  • Spindle Speed: 600 RPM

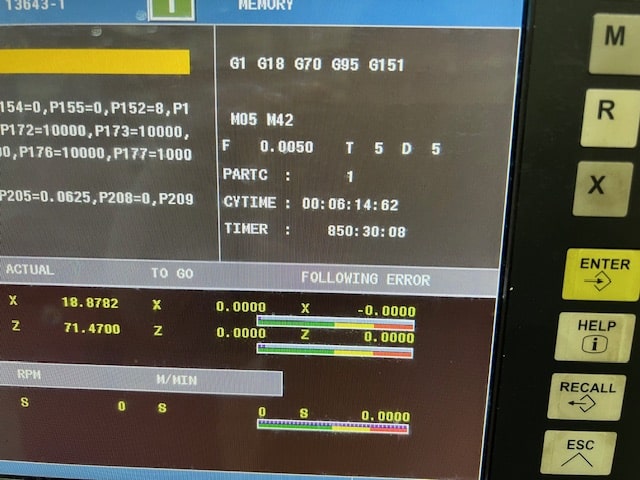

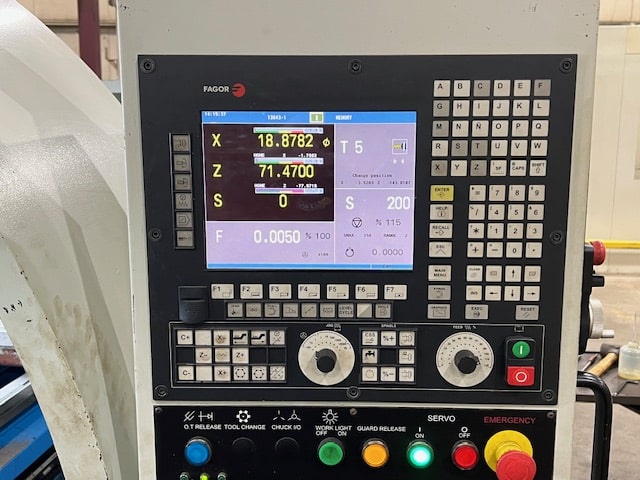

  • Controller: Fagor 8055TC
  • Distance Between Centers: 200″
  • Turret Positions: 8
  • Chip Removal: Chip Conveyor
  • Spindle Nose: A2-15
  • Cross Slide Travel: 16″
  • Longitudinal Travel (Z Axis): 189″
  • Z and X Feed Rates: 0-196 IPM
  • Ballscrew Diameter (Z Axis): 2″
  • Ballscrew Diameter (X Axis): 1.25″
  • Diameter of Spindle Barrel: 4.13″
  • Width of Bed: 18.1″
  • Spindle Motor: 20 HP
  • Coolant Pump: 1 HP

Equipped With

Dual Voltage Electronics, Extra Capacity Steady Rest, Fixed Rear Chuck Guard, Front and Rear 26″ Steel Body 4 Jaw Chucks, Guarding Package with Lighting, Rear Spindle Flange, Steady Rest with Rollers, Thread Repair, Coolant System, Follow Rest, Remote Manual Pulse Generator, Tailstock
