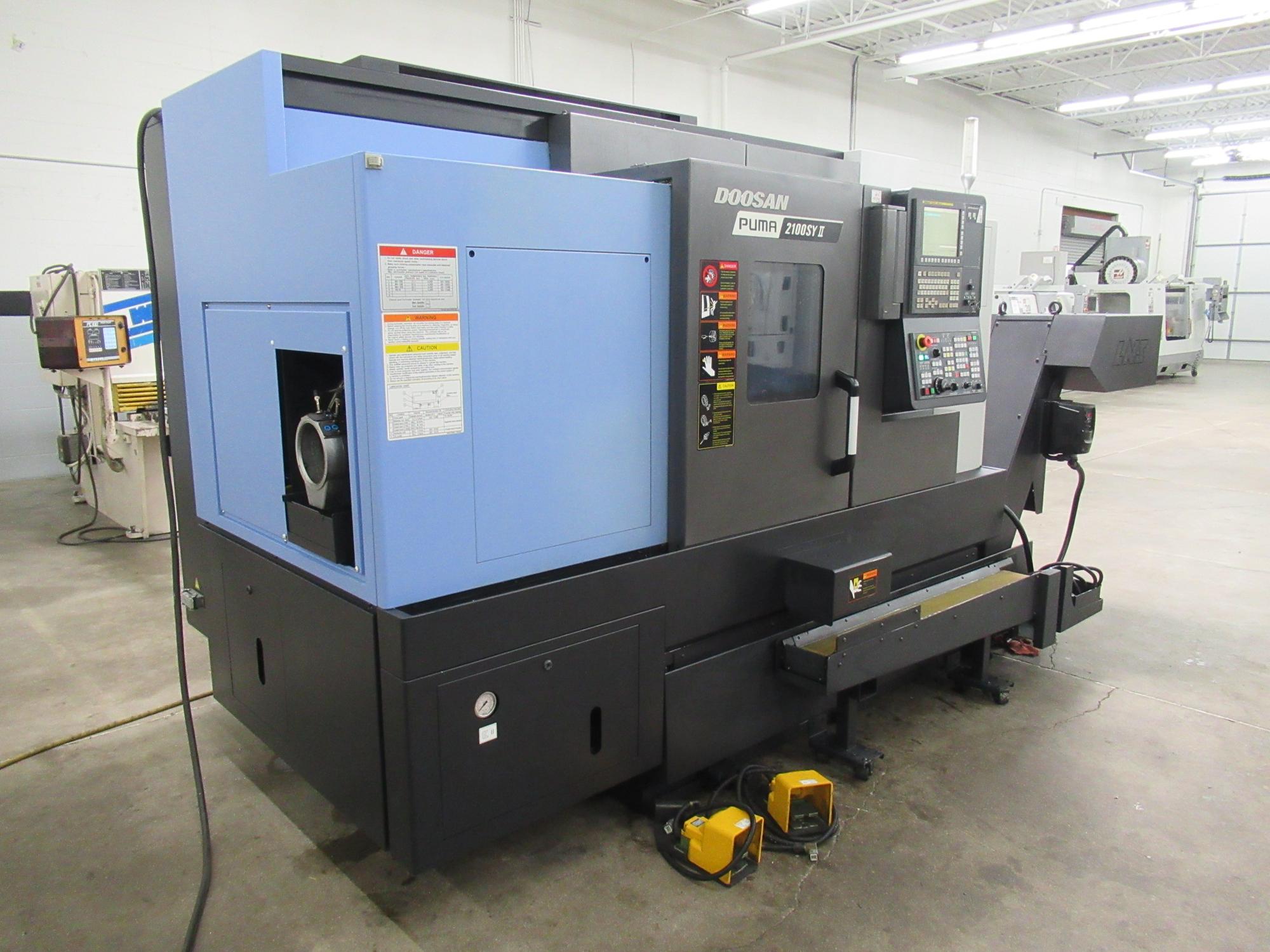

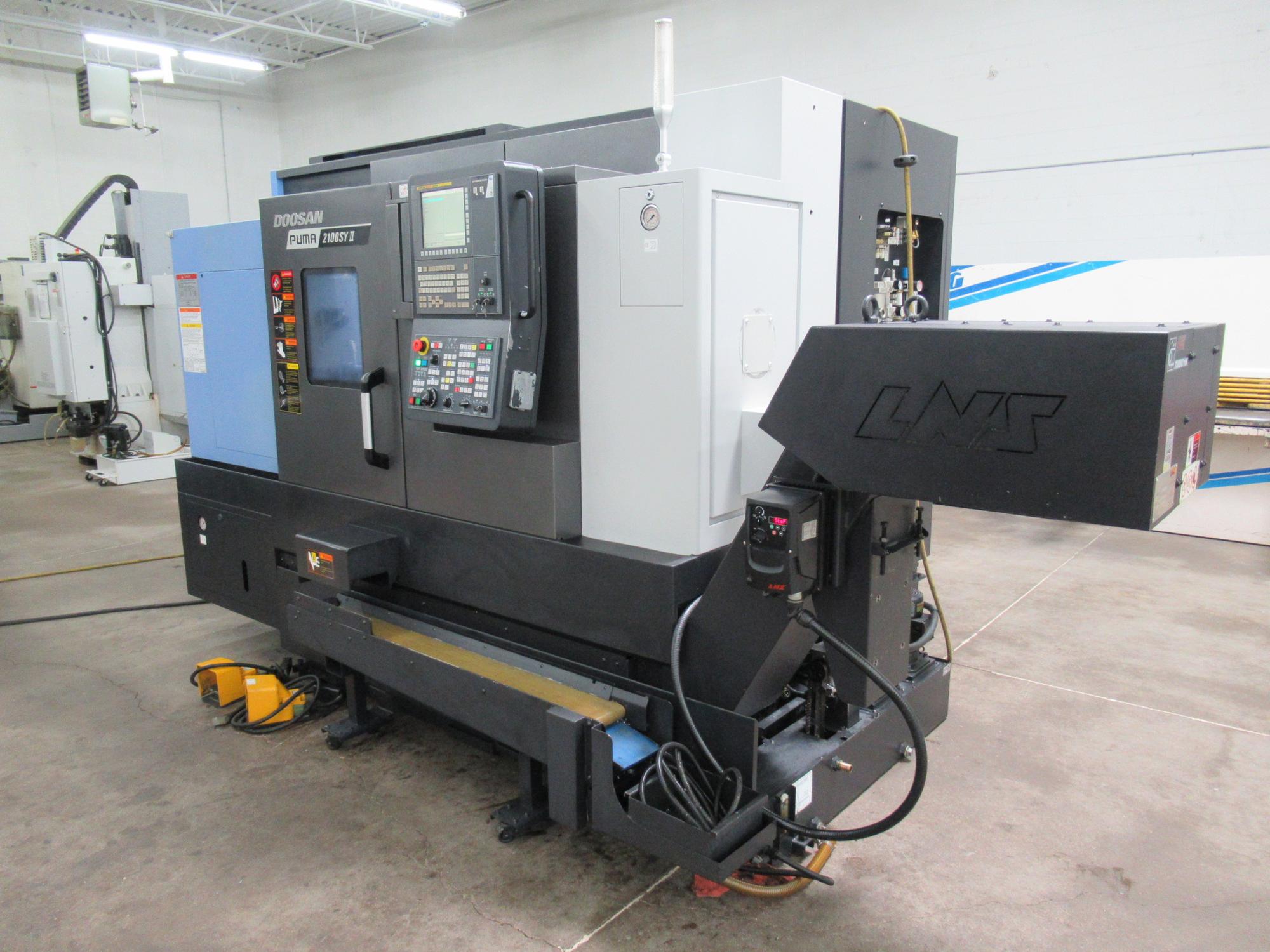

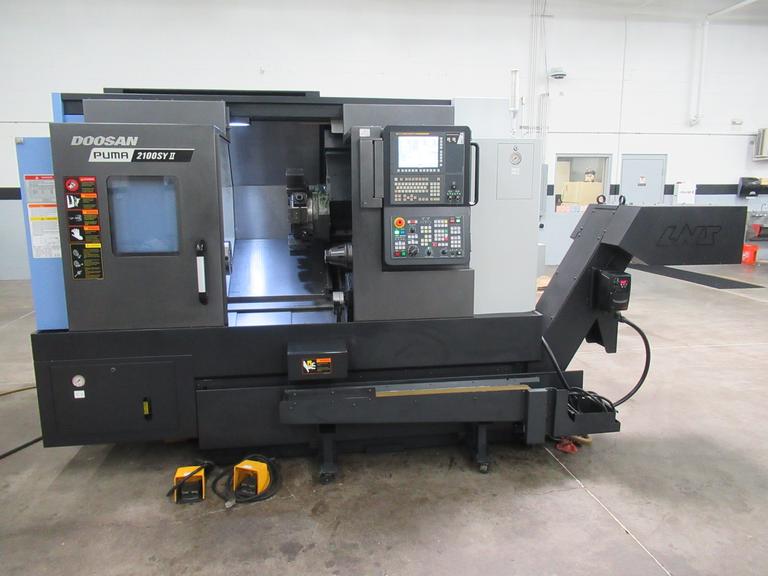

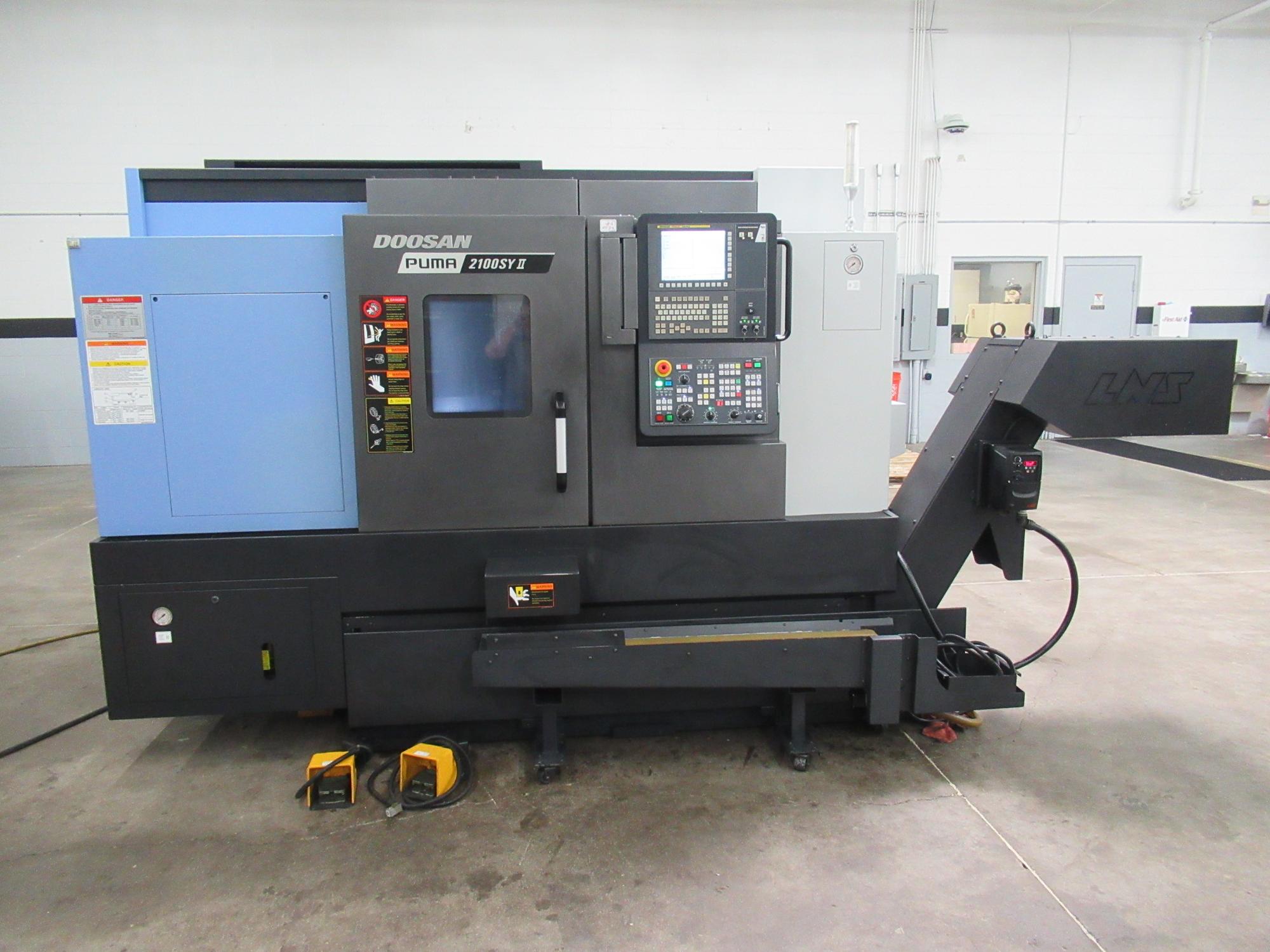

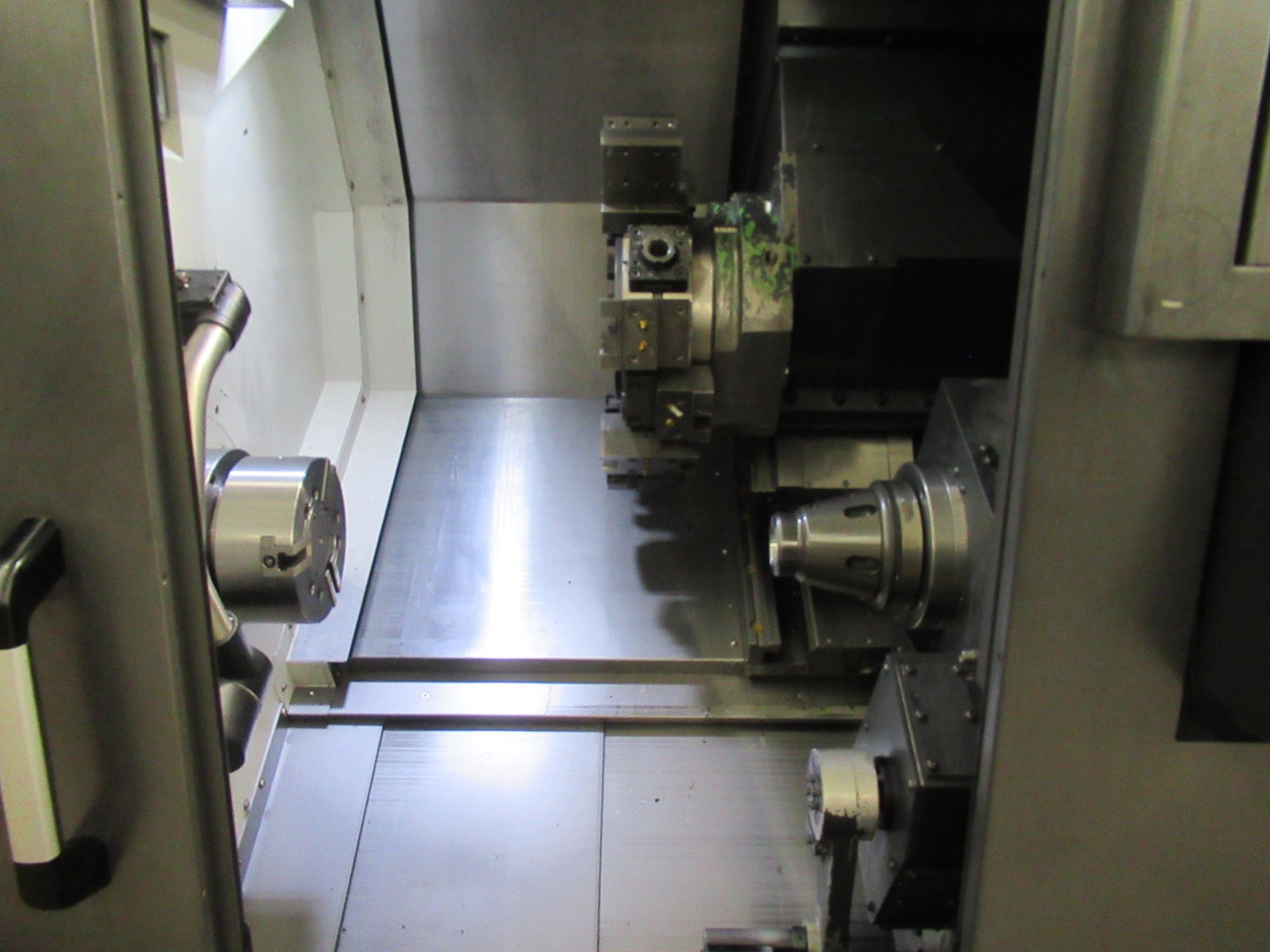

Doosan Puma 2100SY II CNC Lathe, Live Milling, Y-Axis, Sub-Spindle, C-Axis Main and Sub, Chip Conveyor, Parts Catcher, Conveyor

Manufacturer

Doosan

Category

Lathes

Type

LATHES, CNC

Stock

7257

Model

Puma 2100SY II

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

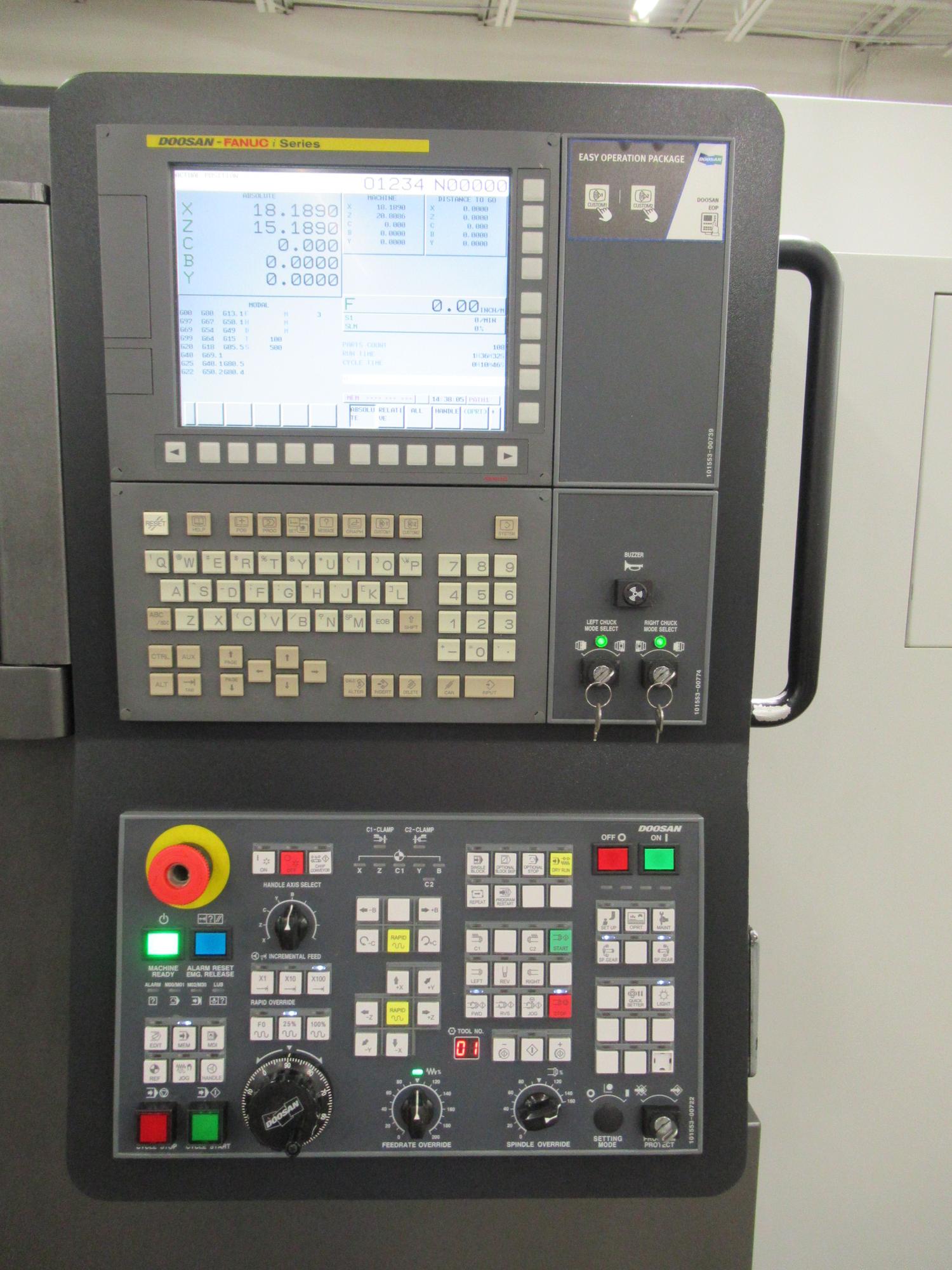

Control: Fanuc series I CNC Control

Spindle Nose: A2-6

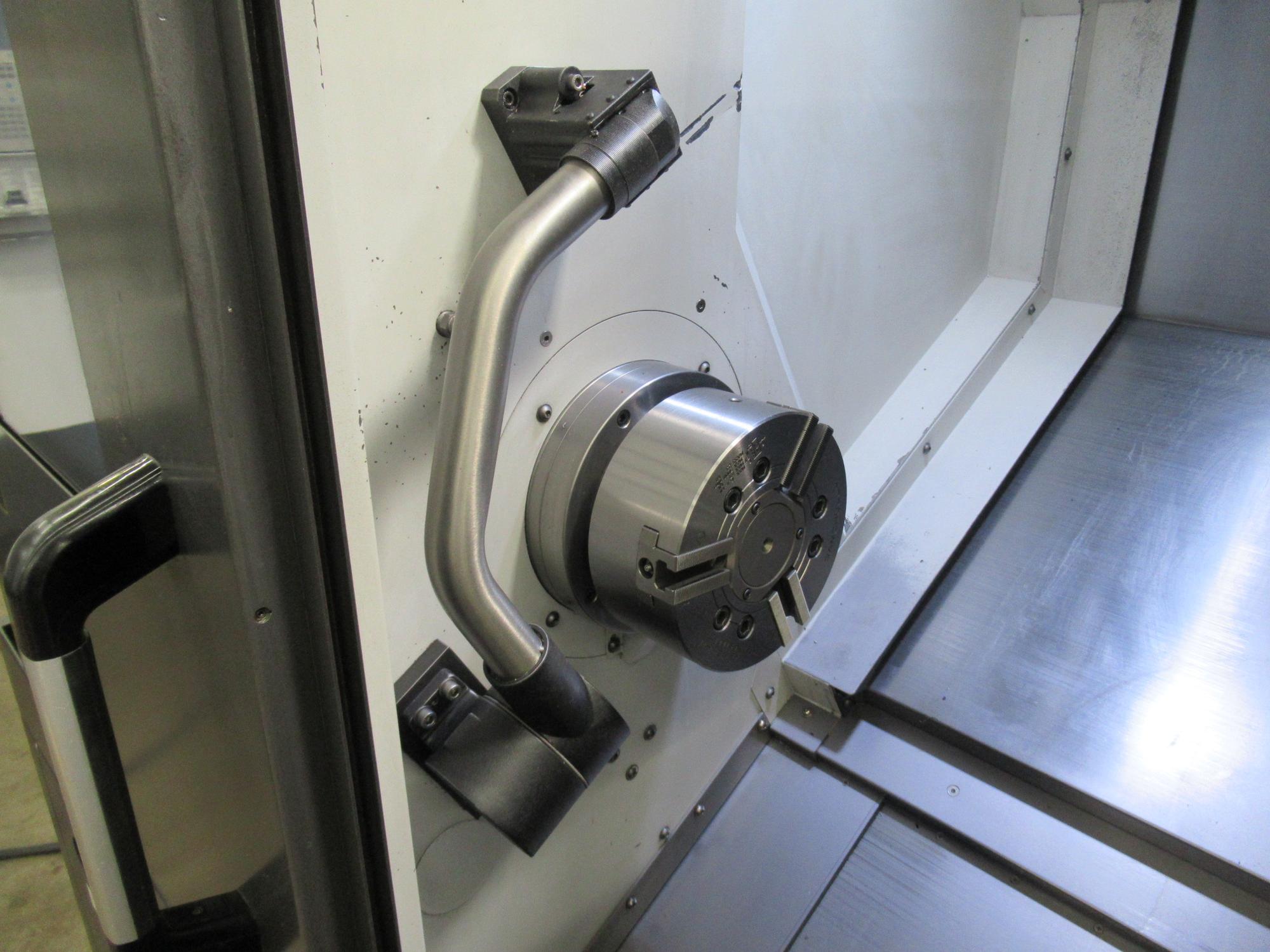

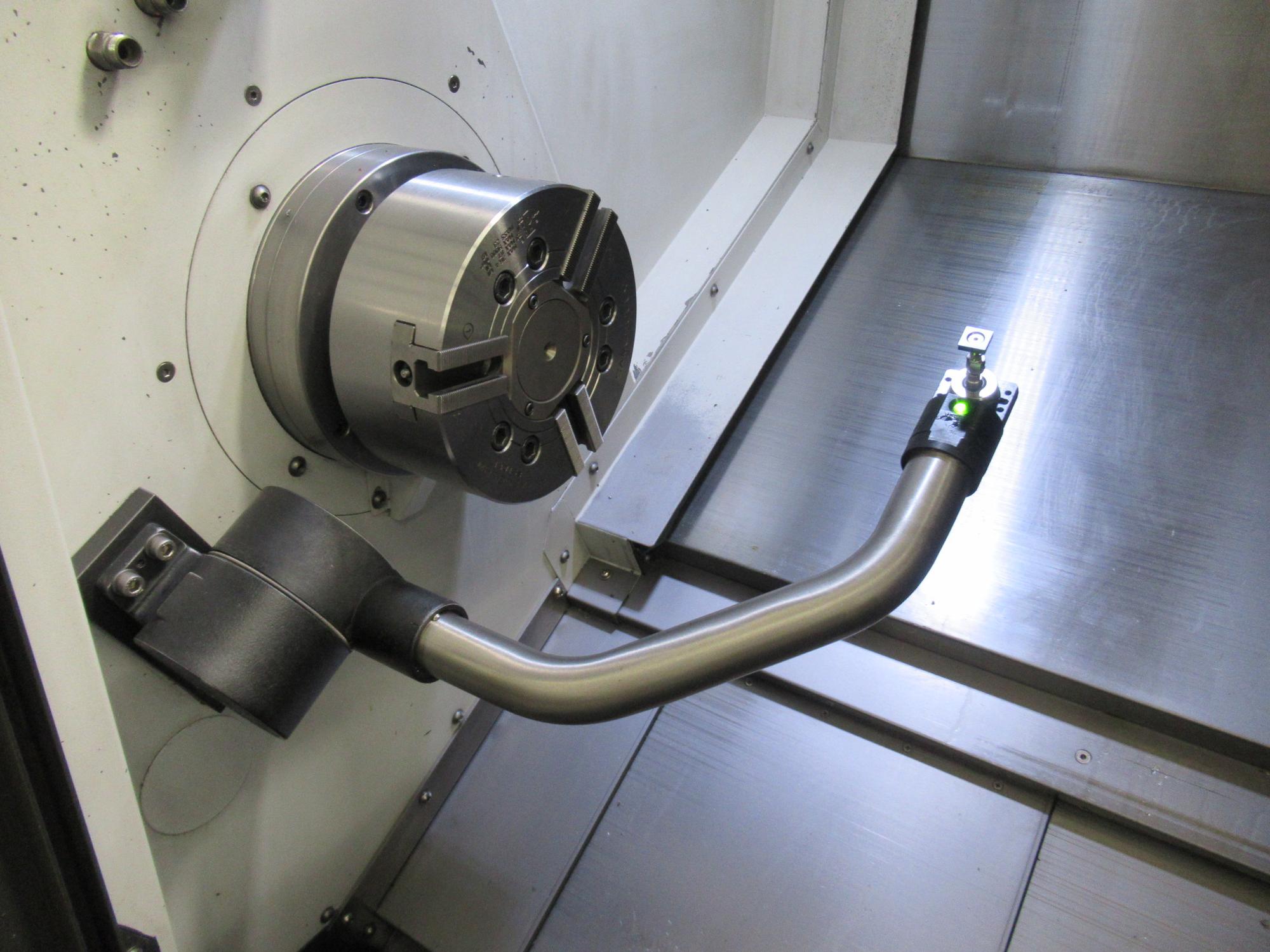

Main Spindle Chuck Size: 8"

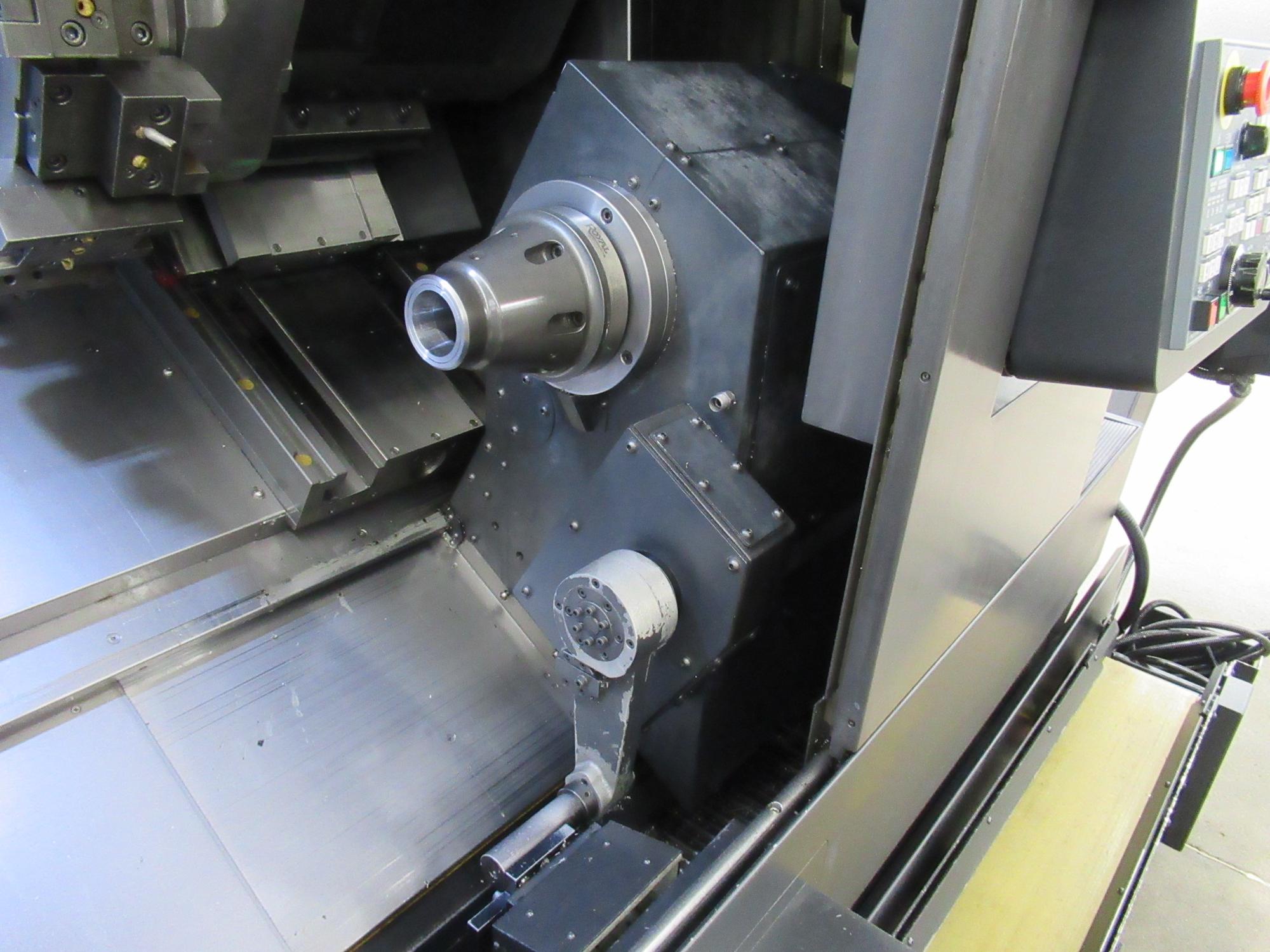

Sub-SpindleChuck Size: 6"

Max Swing Over Bed: 30.7"

Max Swing Over Cross Slide: 24/8"

Max Turning Diameter: 16"

Max Turning Length: 20.5"

Sub-Spindle Travel: 23.2"

Main Bar Capacity: 2.6"

Main Spindle Speeds : 5,000 Max RPM

Main Spindle Orientation: Full C-Axis (.001 Degree)

Sub-Spindle Speeds : 6,000 Max RPM

Sub-Spindle Nose: A2-5

Sub-Spindle Orientation: Full C-Axis (.001 Degree)

Main Spindle Drive: 29.5 / 24.8 / 14.8 HP

Sub-Spindle Drive : 20.1 / 14.8 HP

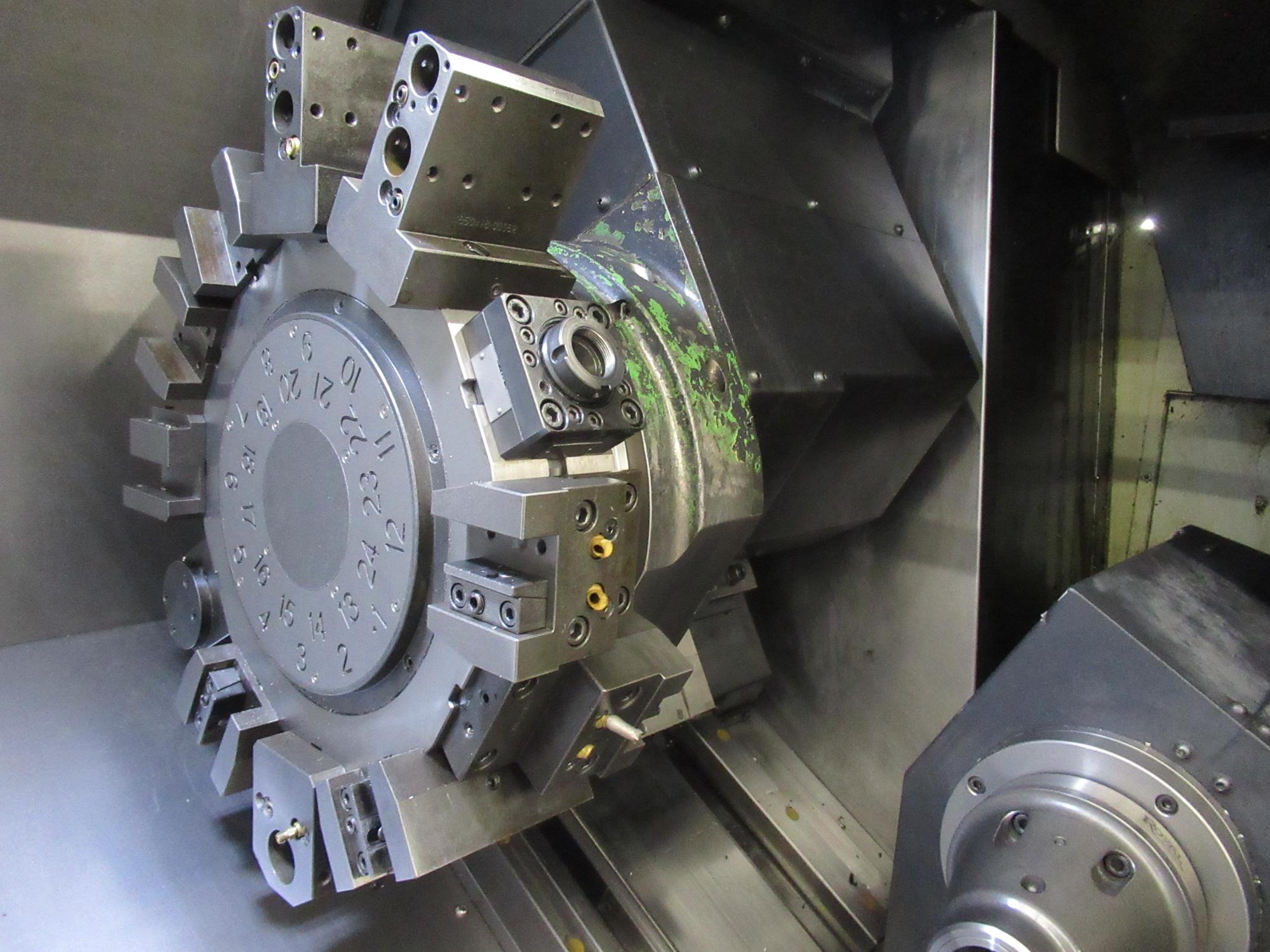

Turret Capacity: 12 Station Live Milling Capable

Turret Travels (X/Z): 10.2" X 23.2"

Rapids: 1,181 IPM X/Z/B Axes; 393.7 IPM Y axis

Live Tool Speeds: 5,000 Max RPM

Live Tool Drive Motor: 7.5 HP

Equipped With:

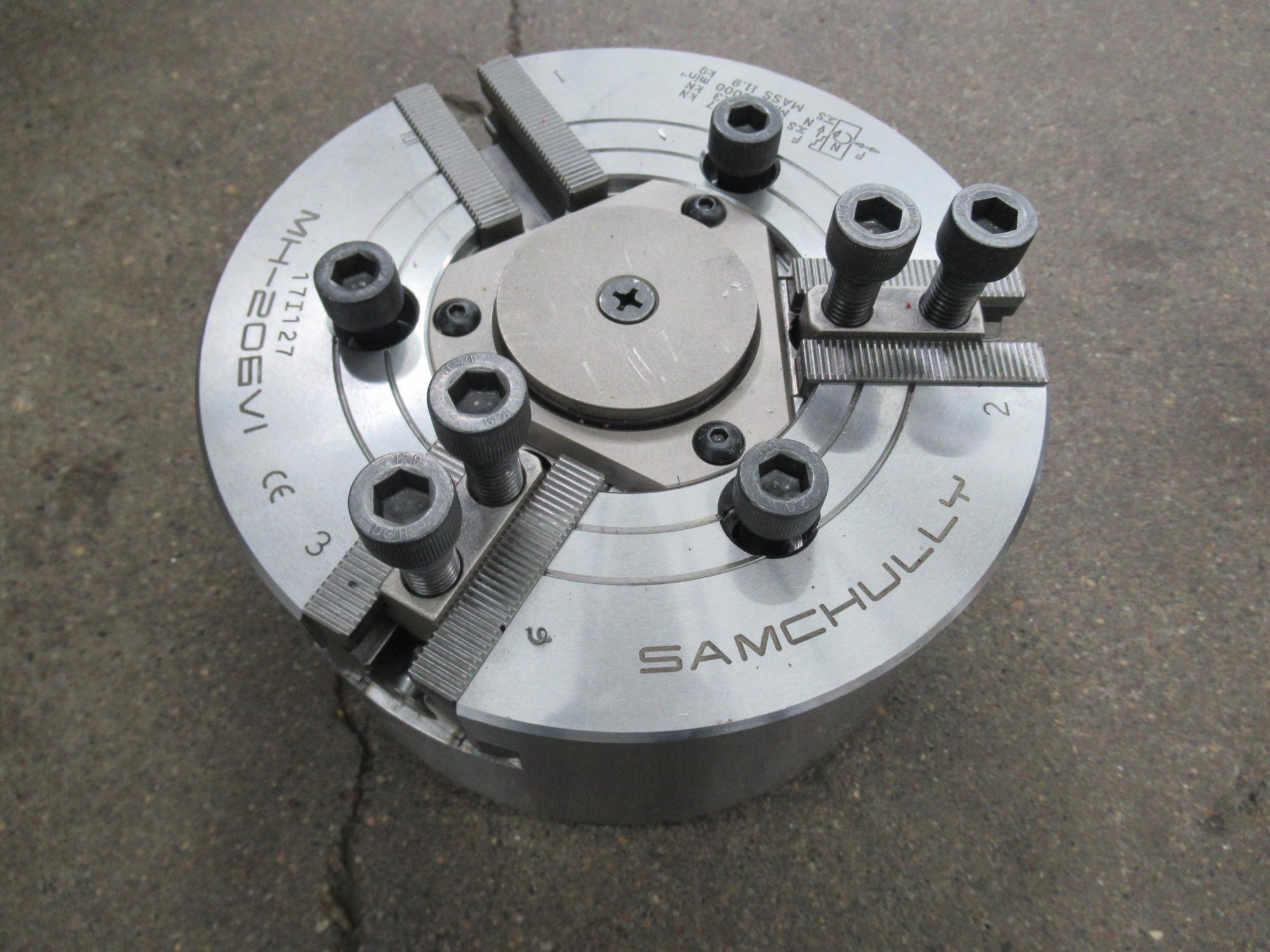

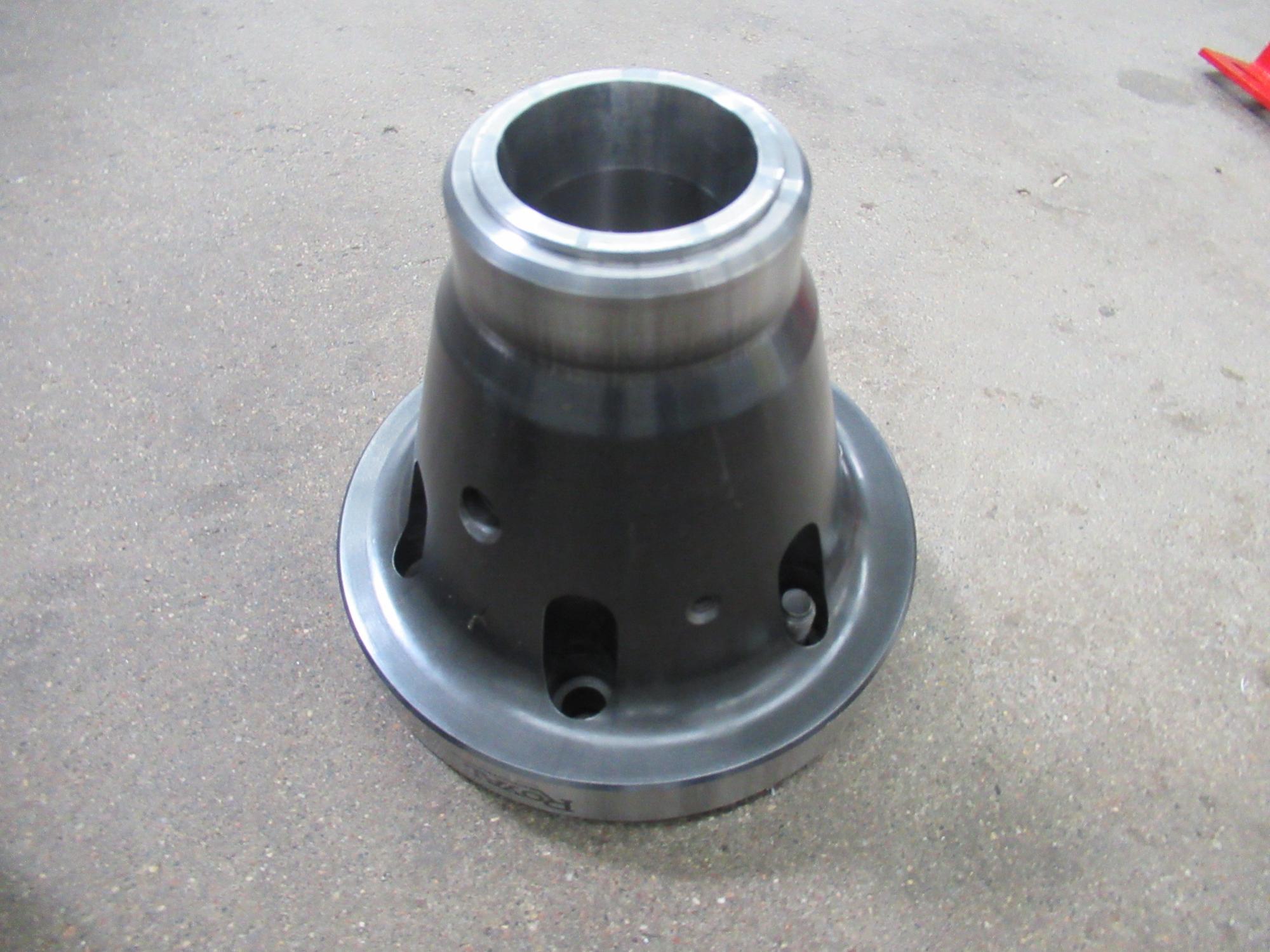

Fanuc i Series CNC Control, Manual Guide I, SamChully 8" 3-Jaw Chuck, SamChully 6" 3-Jaw Chuck, (2) Royal 16C Collet Closers, 12 Staton Turret with Live Milling, Y-Axis Programmable Turret, Sub-Spindle, C-Axis Main and Sub-Spindles, Parts Catcher, Parts Conveyor, LNS Turbo HB Chip Conveyor, Coolant System, Complement of Static Turret Tool Holders, (1) Live Axial Live Tool, Fanuc Manuals, Doosan Operator, Parts, Electrical Manuals, and Disk.

Electrics:

220 Volt, 3 Phase, 50.44 FLA
