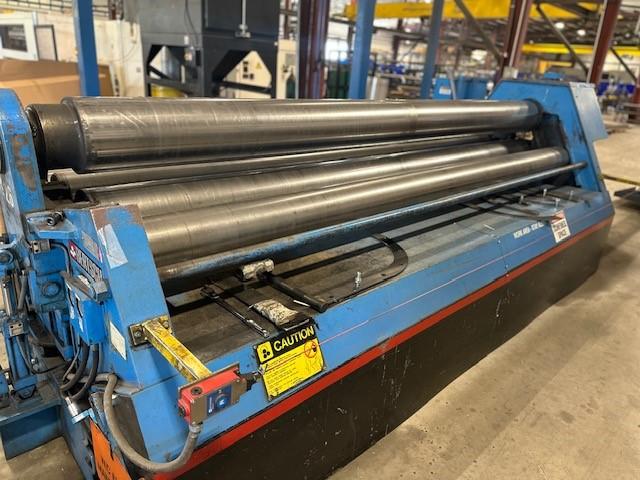

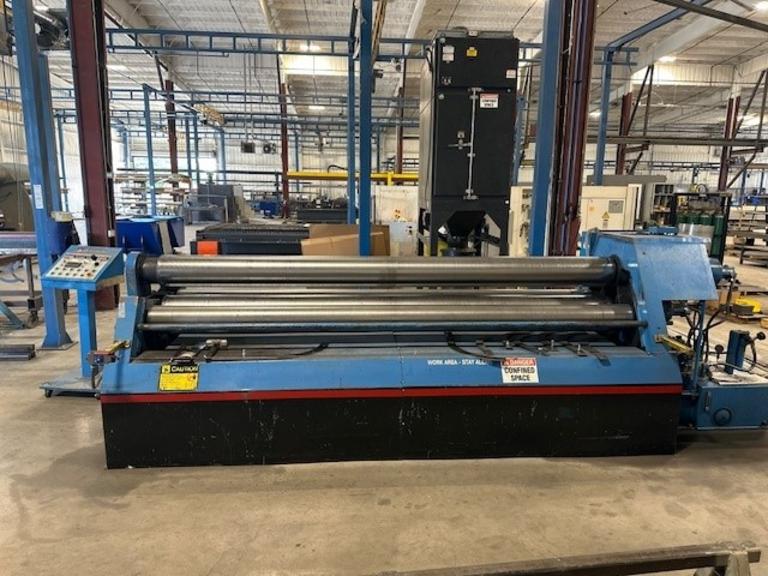

Bertsch Model 25-12 (1/4" x 12') 4 Roll Plate Bending Roller

Manufacturer

Bertsch

Category

Rolls

Type

ROLLS, BENDING & CURVING

Stock

None

Model

25-12

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

Number of Rolls: 4

Material Capacity in Mild Steel: 0.250"/144"

Roll Diameters: 9.0"

Description:

• Easiest machine to operate since material is clamped during the squaring process and held during the entire rolling process. • Able to pre-bend, roll and post-bend the entire piece without releasing the pinch, allowing some parts to be pre-bent and the entire cylinder rolled in a single pass. • Because the plate is clamped through the entire bending cycle, a rotary encoder can be utilized to indicate how much plate has been fed through the machine, allowing it to be fitted with an optional CNC control. • Material is fed into the machine parallel to the floor, easily fitted with feed tables and side supports, or placed into a pit for ease of operation. • Less floor space is required because the part is rolled up and over right after the first pre-bend. • Machine can be fed from either direction.

Equipped With:

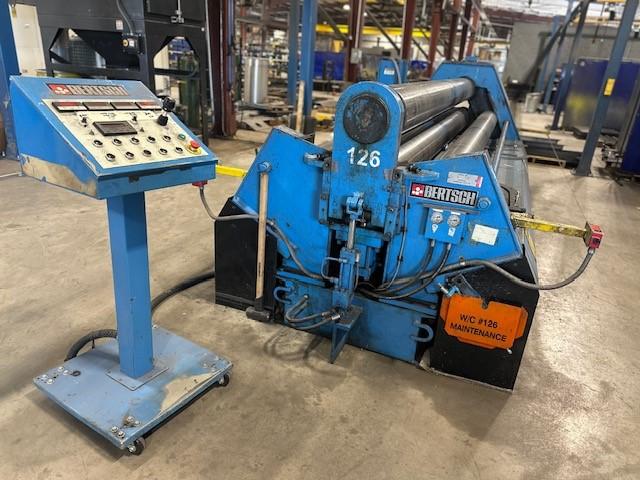

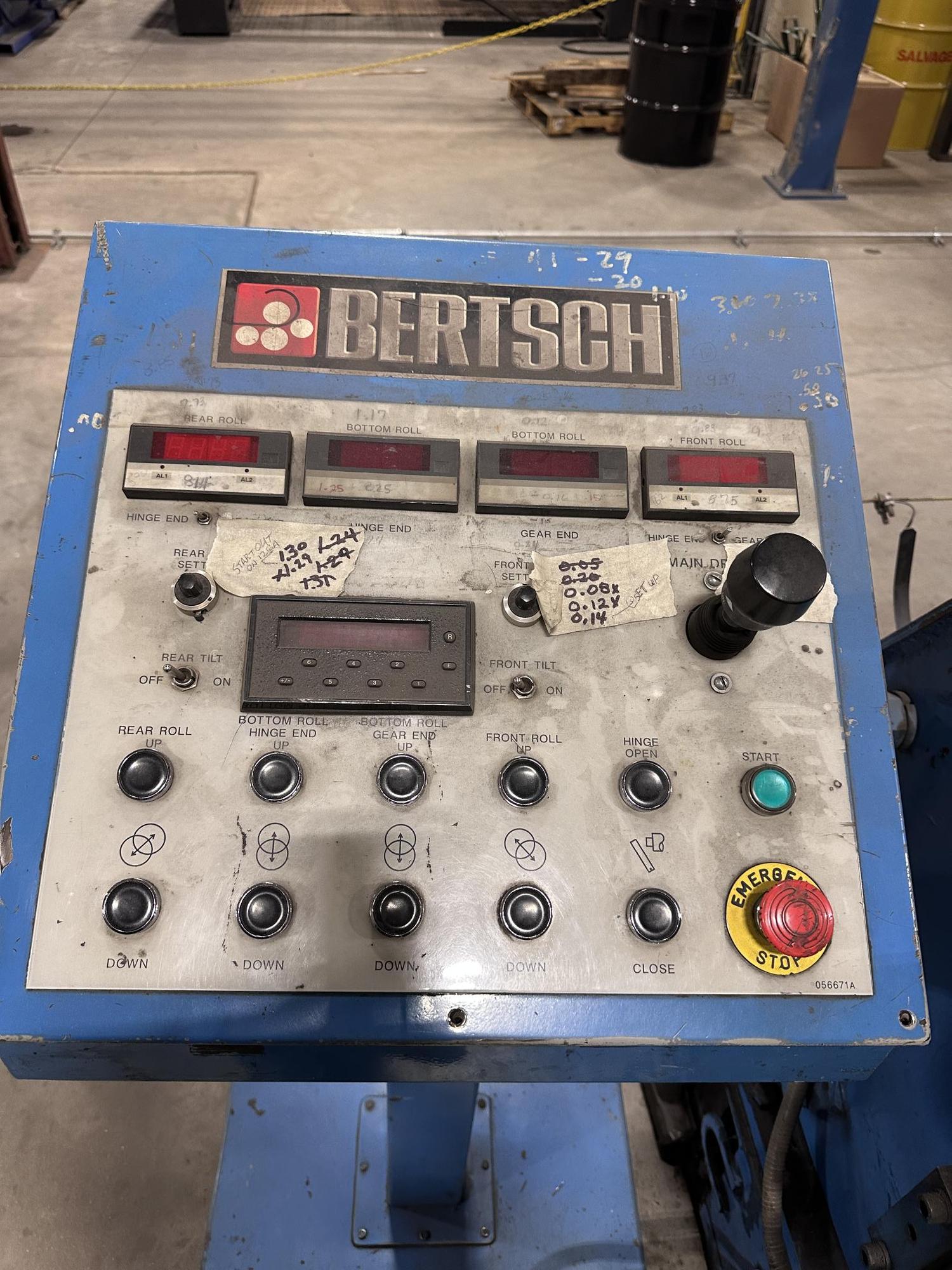

4 Roll Double Pinch, Control Pedestal, Pre-Bend Steel Capacity: 1/4" Thick x 12' Length

Electrics:

480 Volt, 3 Phase
