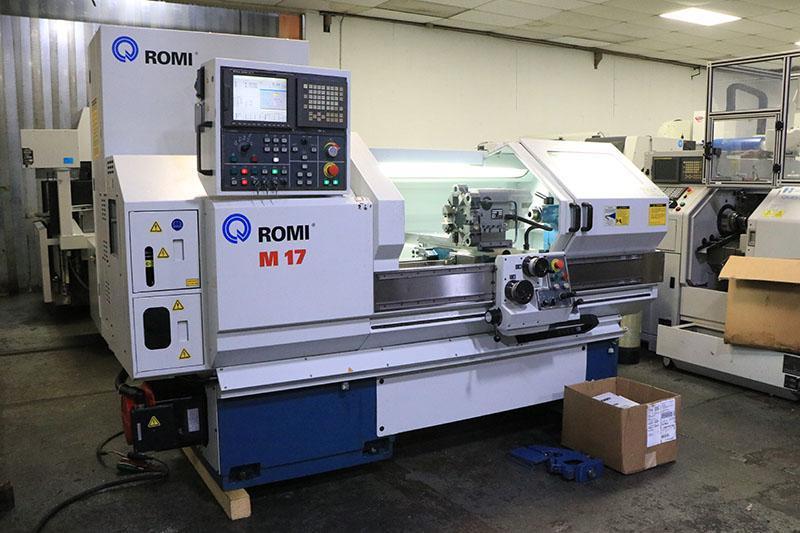

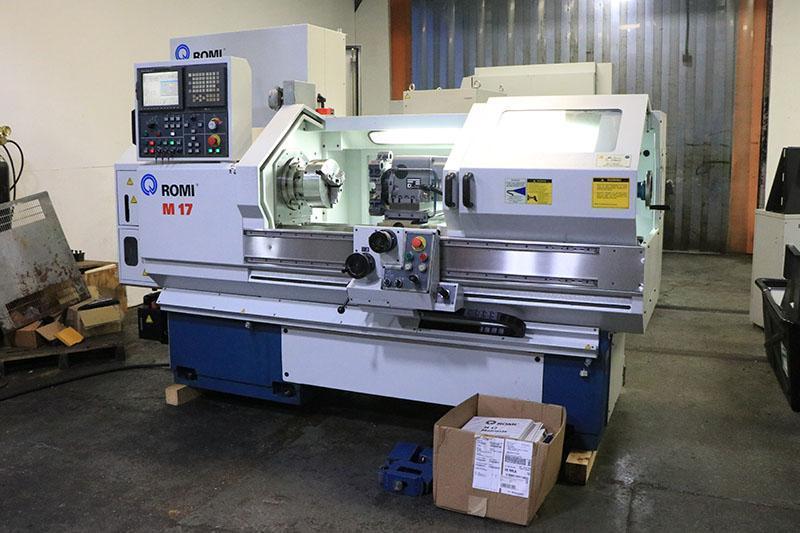

17" X 43" ROMI MODEL M17 CNC COMBINATION "TEACH" LATHE

Manufacturer

ROMI

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

CNCM17X

Model

M17

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Swing Over Bed - 16.93 inches
Distance Between Centers - 43.46 inches
Swing over Cross Slide - 8.03 inches
Cross Slide (X) Travel - 8.66 inches
Bed Width - 12.01 inches
Bed Height - 13.07 inches
Spindle Nose - CAMLOCK D1-6"
Hole Through Spindle - 2.09 inches
Range of Spindle Speeds (Inf Variable) - 3 - 3000 RPM
Z-Axis Rapid Traverse Rate - 394 ipm
X-Axis Rapid Traverse Rate - 295 ipm

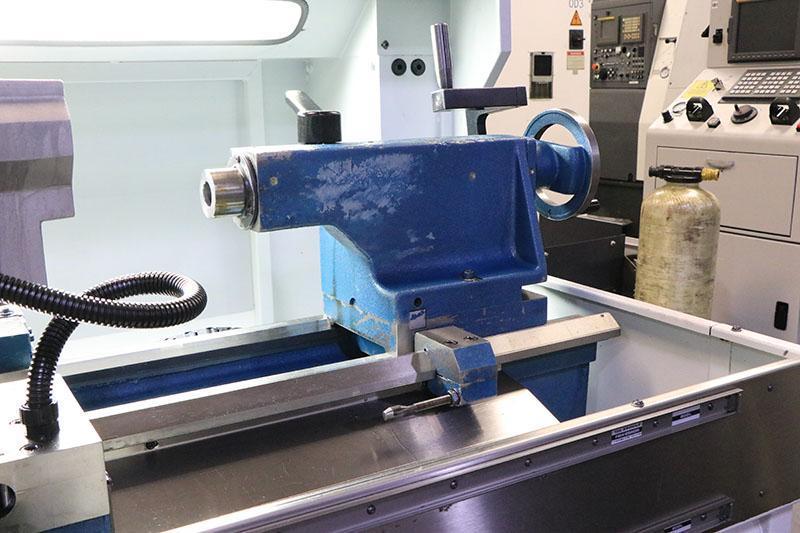

Tailstock Quill Travel - 4.72 inches
Quill Diameter - 2.36 inches
Quill Taper Hole - 4MT
Main Motor - 10 HP
Approximate Dimensions - 110" x 50"

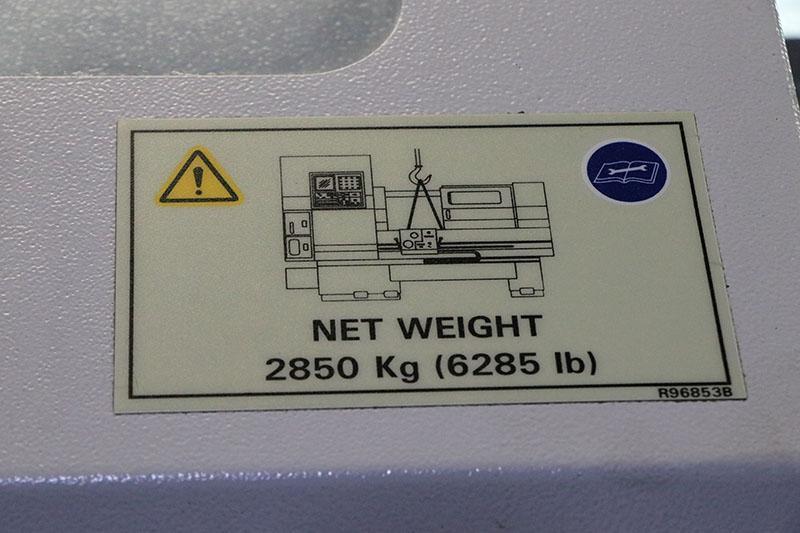

Approximate Weight - 6300 pounds

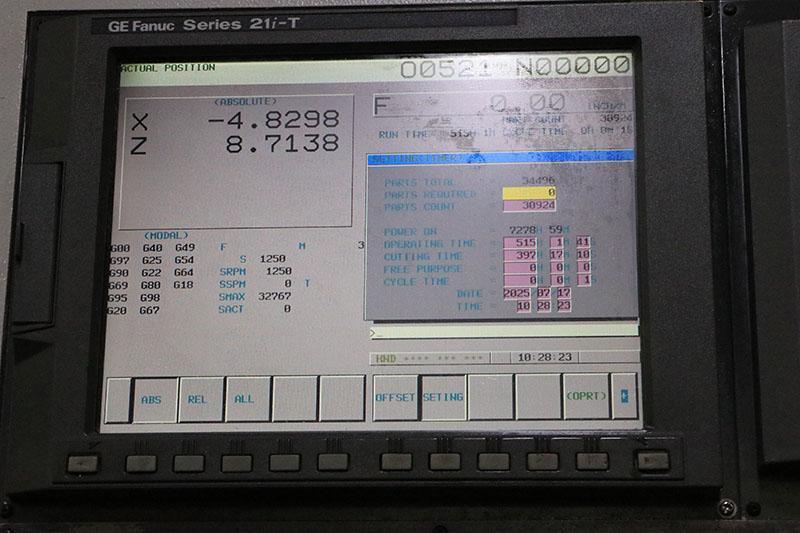

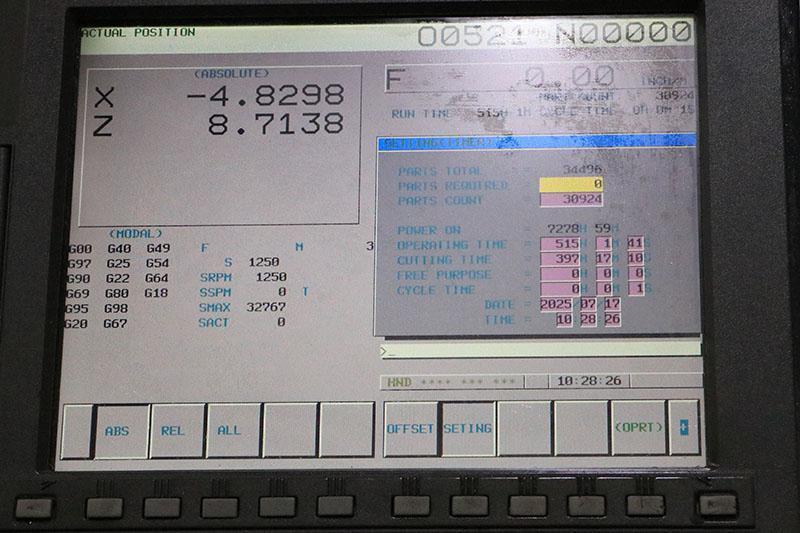

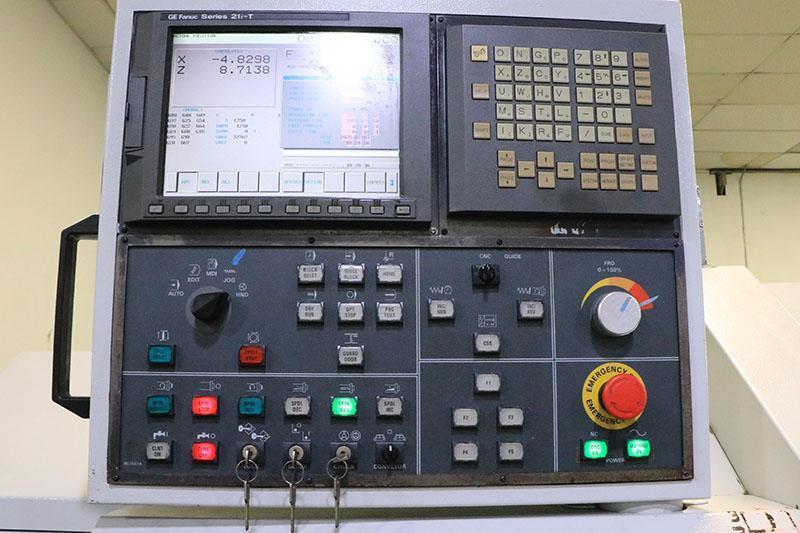

GE-FANUC 21i-T CONTROL w/MANAUL GUIDANCE SOFTWARE, TOOL PATH & 3D PART SHAPE GRAPHICS, TEACH MODE, CONVERSATIONAL PROGRAMMING, G-CODE PROGRAMMING, BUILT-IN DRO

  • 10 HP GE-FANUC TYPE VARIABLE SPEED SPINDLE DRIVE
  • TURN PARTS MANUALLY OR AUTOMATICALLY

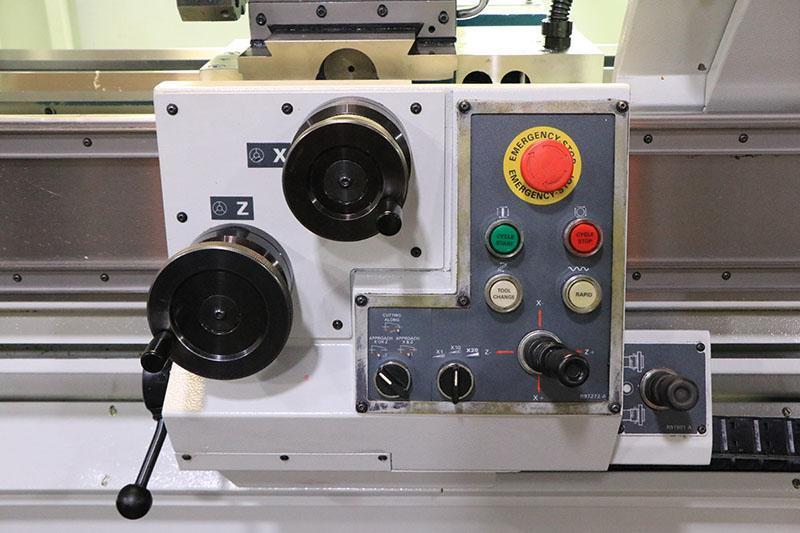

  •  DUAL ELECTRONIC HANDWHEEL CONTROLS
  •  "TEACH" 1ST PART, RUN REMAINING PARTS AUTOMATICALLY
  • FLASH MEMORY CARD SLOT & RS 232 PORT
  • 10.4" COLOR LCD DISPLAY
  • RIGID TAPPING
  • CONSTANT SURFACE SPEED
  • INCH/METRIC CONVERSION
  • MULTI-START THREADING, THREAD REPAIR

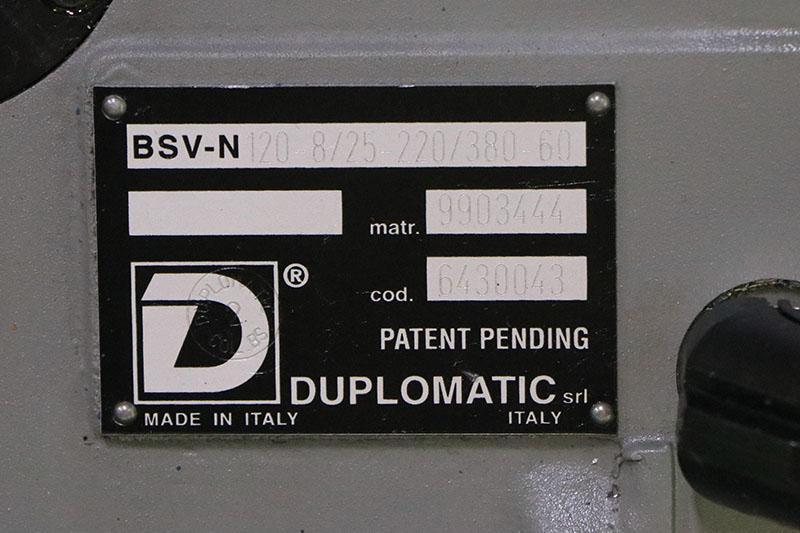

  • DUPLOMATIC MODEL BSV-N 8-POSITION ELECTRONIC TURRET

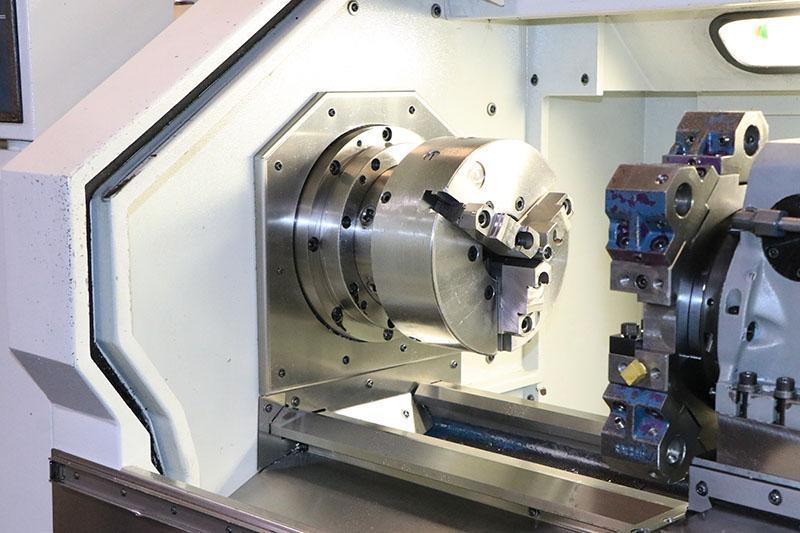

  • 10" 3-JAW CHUCK
  • STEADY REST

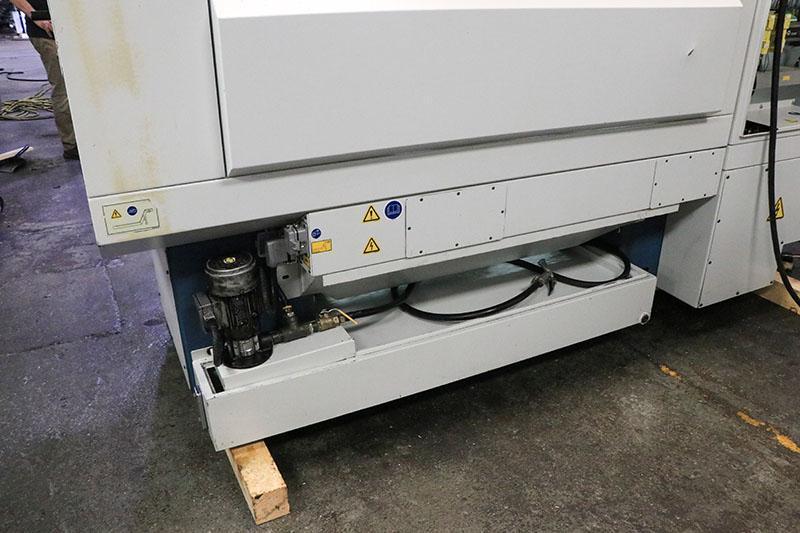

  • COOLANT SYSTEM
  • AUTOMATIC LUBRICATION SYSTEM
