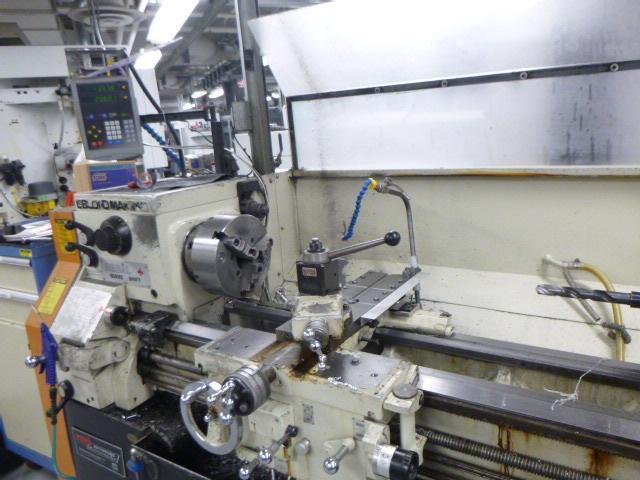

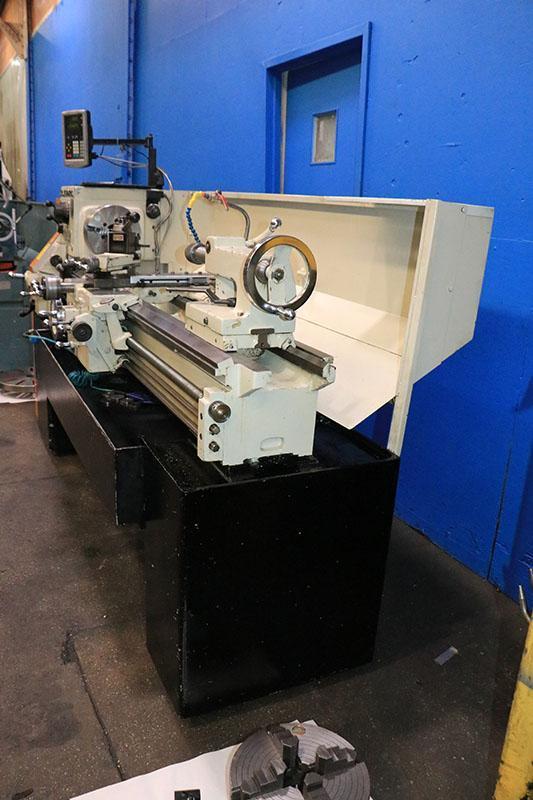

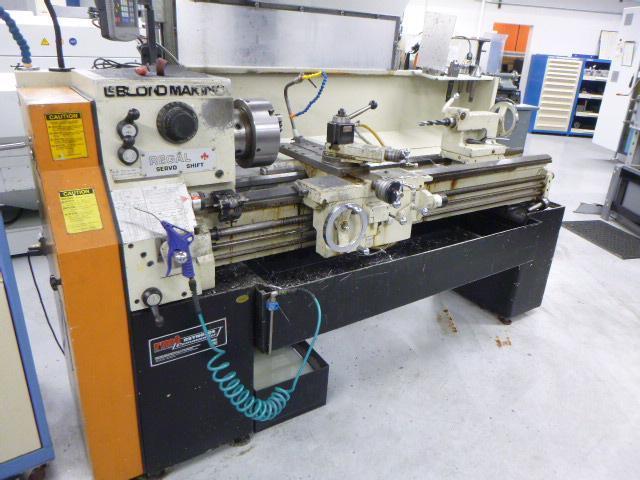

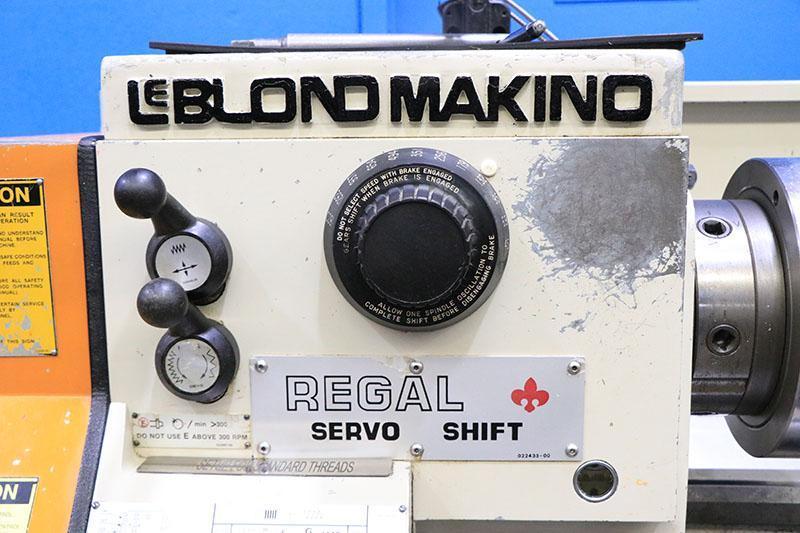

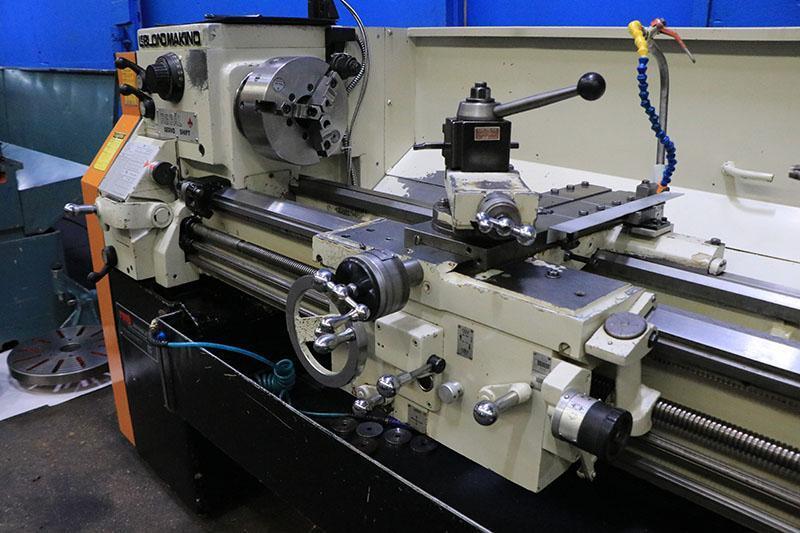

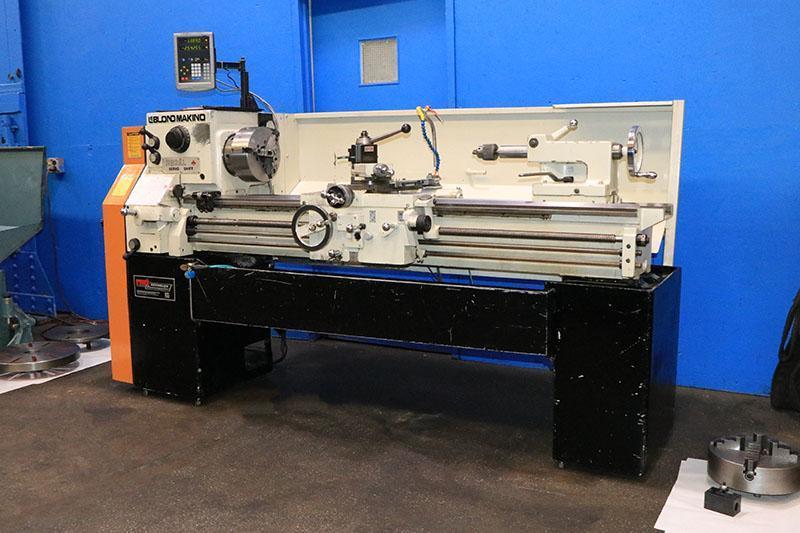

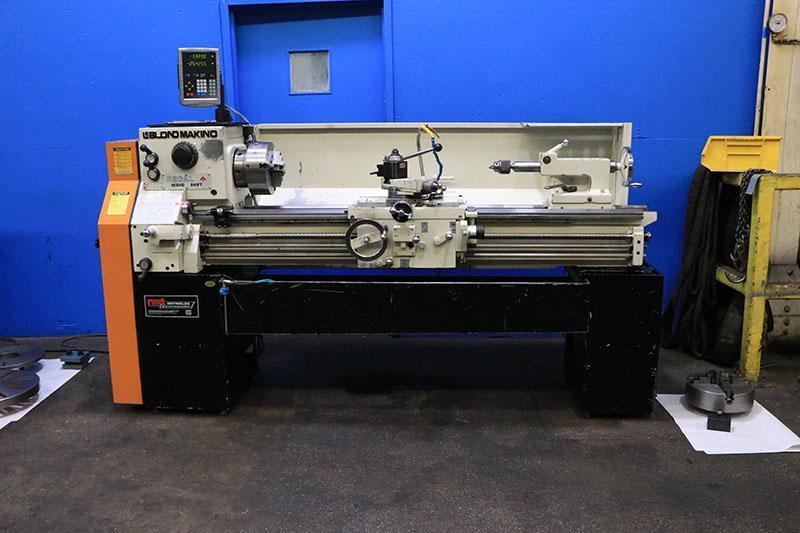

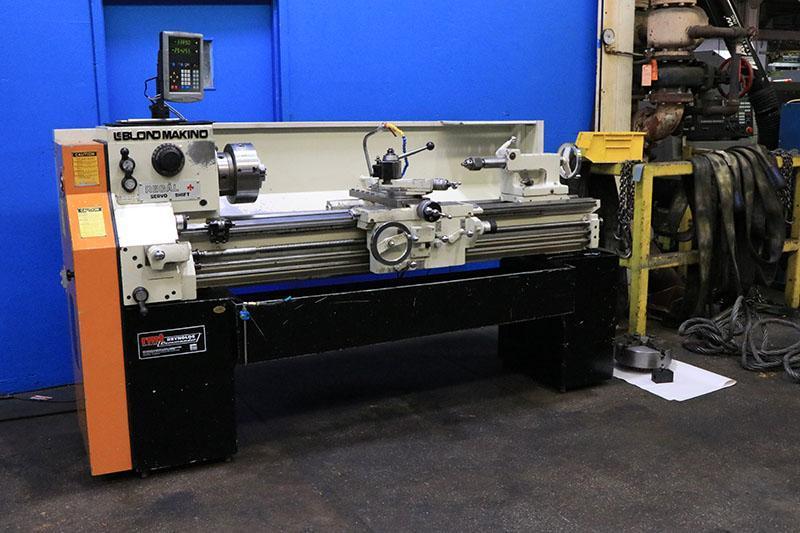

15" x 54" LeBlond-Makino 15 Regal Engine Lathe

Manufacturer

LEBLOND MAKINO

Category

Lathes

Type

LATHES, ENGINE

Stock

LLM15X

Model

15 Regal

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet



SWING OVER BED .................... 15-1/2"

SWING OVER CROSS SLIDE ............ 9-1/2"

DISTANCE BETWEEN CENTERS .......... 54"

SPINDLE NOSE CAMLOCCK ............. D1-6"

HOLE THRU SPINDLE ................. 2-17/64"

SPINDLE SPEED RANGE (12) .......... 45 - 1800 RPM

LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR

CROSS FEEDS HALF THE VALUES OF LONGITUDINAL

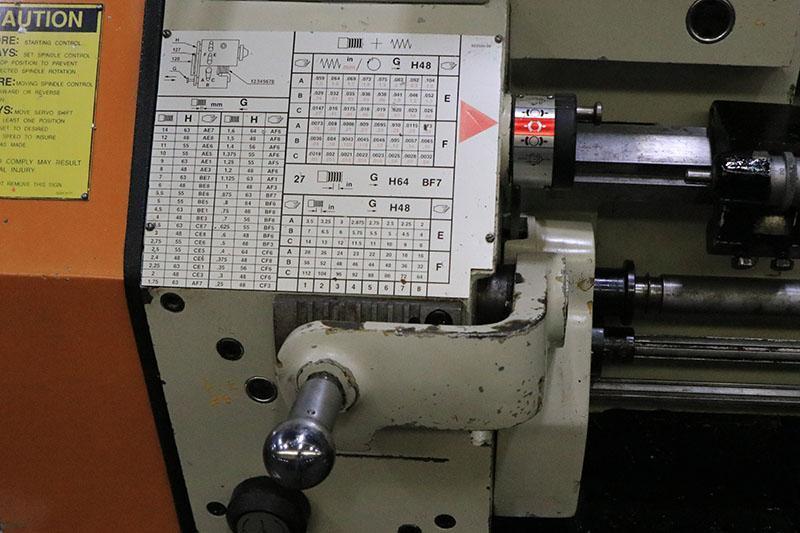

THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI

THREADING RANGE METRIC (40) ....... 0.25 - 14 mm

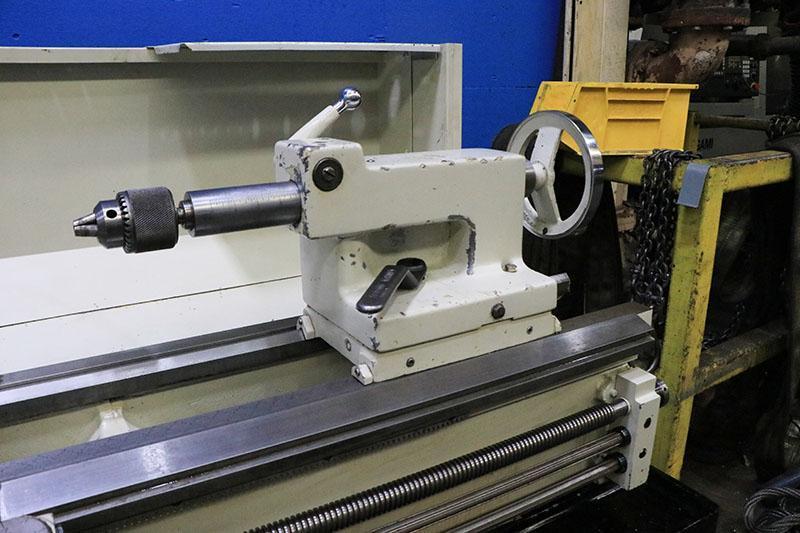

TAILSTOCK SPINDLE TRAVEL .......... 5"

TAILSTOCK SPINDLE TAPER ........... #4 MT

APPROX WEIGHT ..................... 3,300 LBS

APPROX DIMENSIONS ................. 104"L x 40"W x 51"H



EQUIPPED WITH:

INCH & METRIC THREADING CAPABILITY

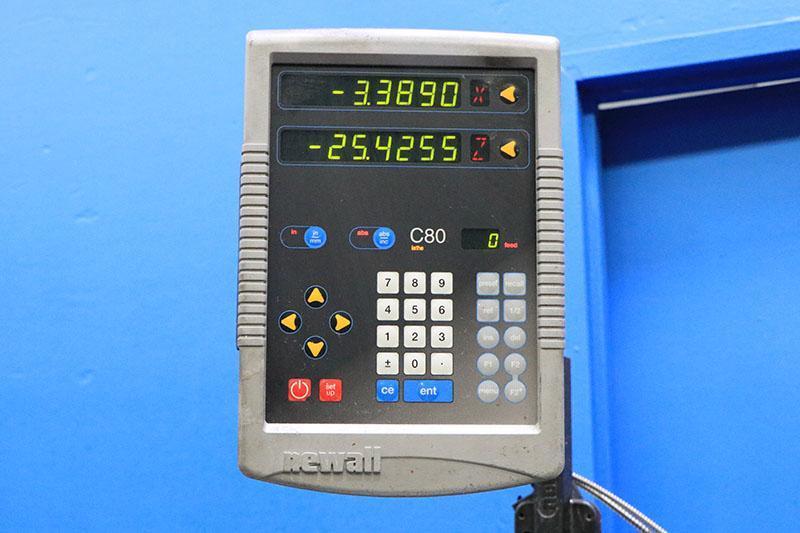

NEWALL TWO AXIS DIGITAL READOUT

INCH/METRIC HANDWHEELS

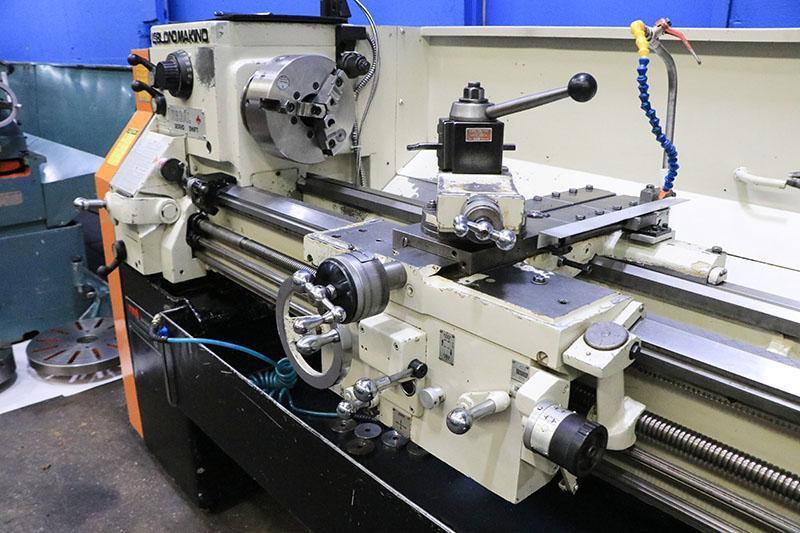

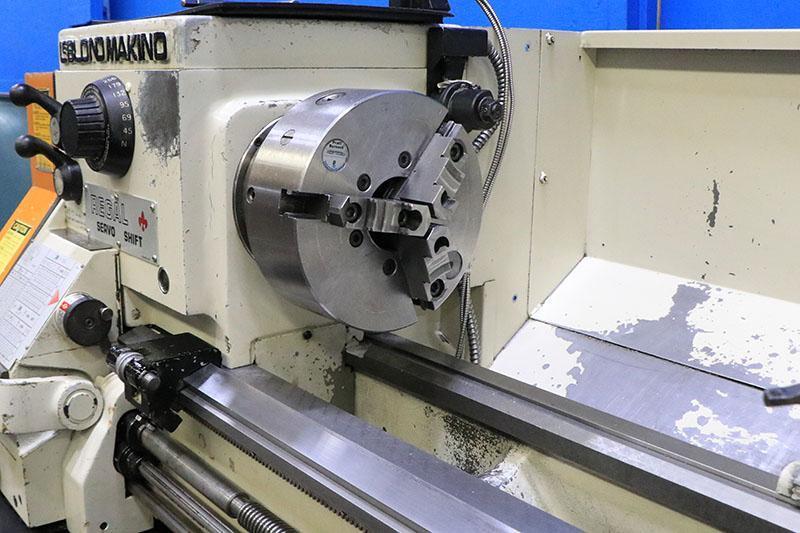

10" 3-JAW PRATT BURNERD CHUCK

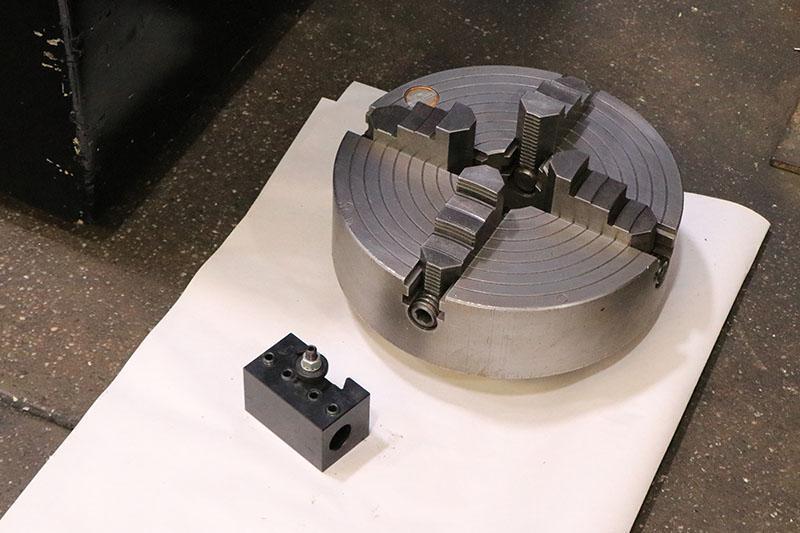

12" 4-JAW PRATT BURNERD CHUCK

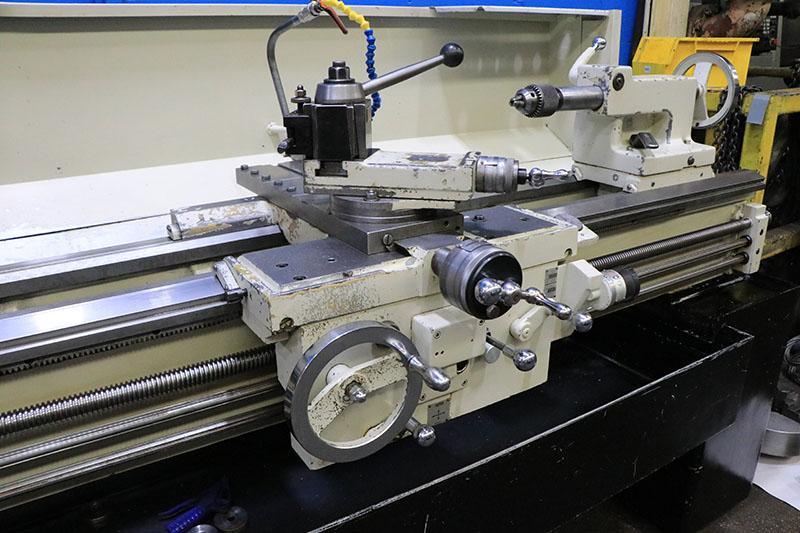

ALORIS MODEL: CXA QUICK CHANGE TOOLPOST

CENTER FOR TAILSTOCK

THREAD DIAL INDICATOR

MICROMETER CARRIAGE STOP

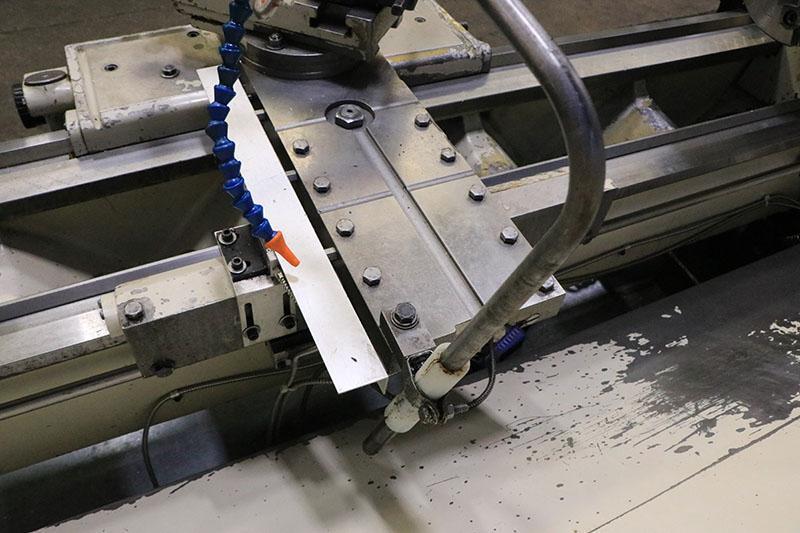

COOLANT SYSTEM WITH REMOVABLE CHIP PAN

HARDENED & GROUND REPLACEABLE BEDWAYS

7.5 HORSE POWER MAIN MOTOR
