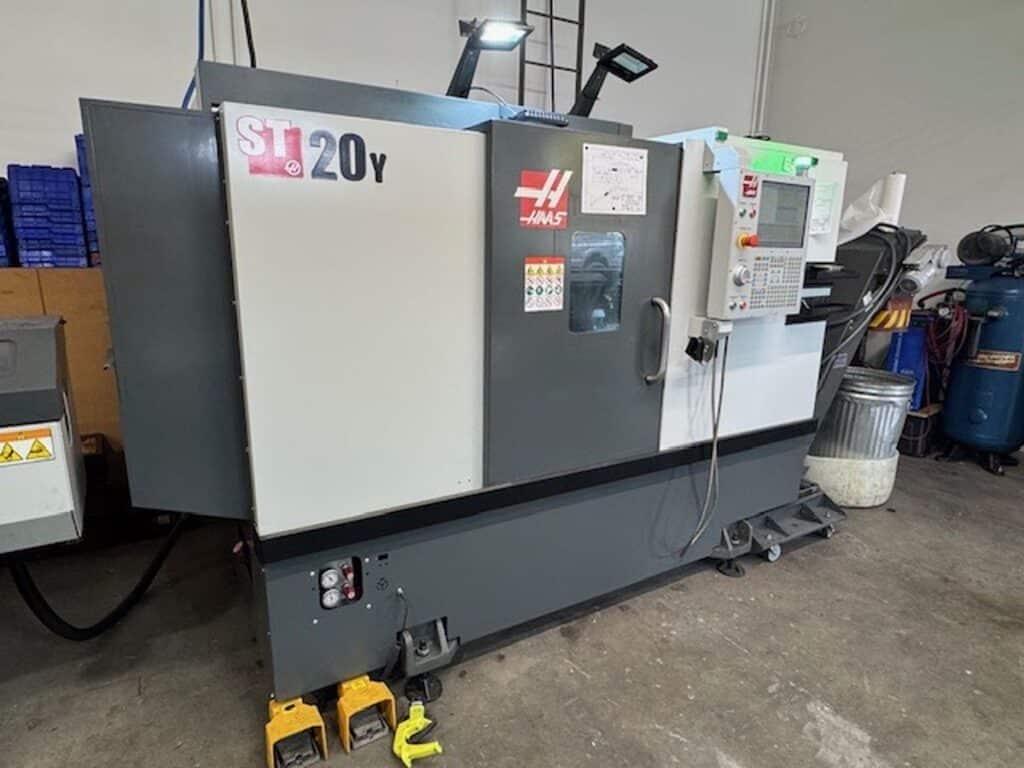

Haas ST-20Y CNC Lathe w/ Live Tooling (2023)

Manufacturer

Haas

Category

Lathes

Type

LATHES, CNC

Stock

173250004

Model

ST-20Y

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 173250004
  • Location: CA
  • Brand: Haas
  • Model: ST-20Y
  • Year: 2023
  • Approx. Shipping Weight: 10,480 LBS
  • Approx. Shipping Dimensions: 143″ L x 90″ W x 92″ H
  • Loading Fee: Loading Included

Specifications

  • Chuck Size: 8.3″
  • Max Part Swing: 21″
  • Max Cutting Diameter: 11.75″
  • Max Cutting Length: 22.5″
  • Bar Capacity: 2.5″
  • X-Axis Travel: 8.4″
  • Y-Axis Travel: 2″
  • Z-Axis Travel: 22.5″
  • Rapid Rate (X, Y, Z): 472 IPM, 472 IPM, 945 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 3.5″
  • Spindle Motor: 20 HP
  • Spindle Speed: 4,000 RPM
  • C-Axis Live Tooling Speed: 6,000 RPM

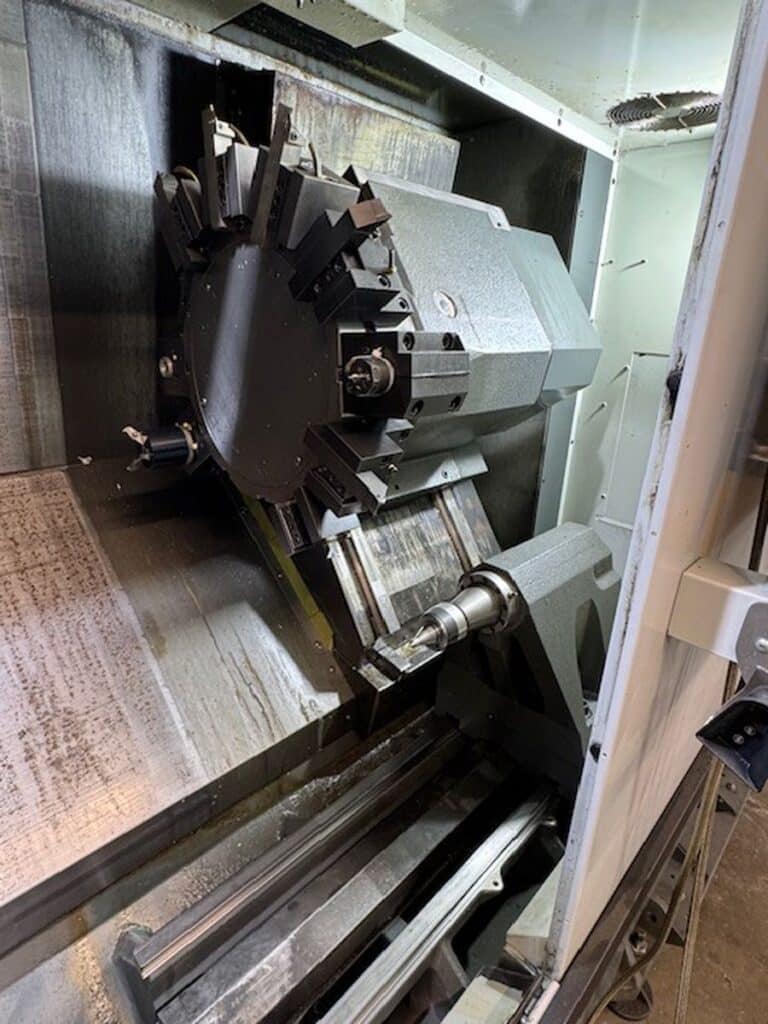

  • Turret: 12 Station
  • Coolant Capacity: 55 Gallons

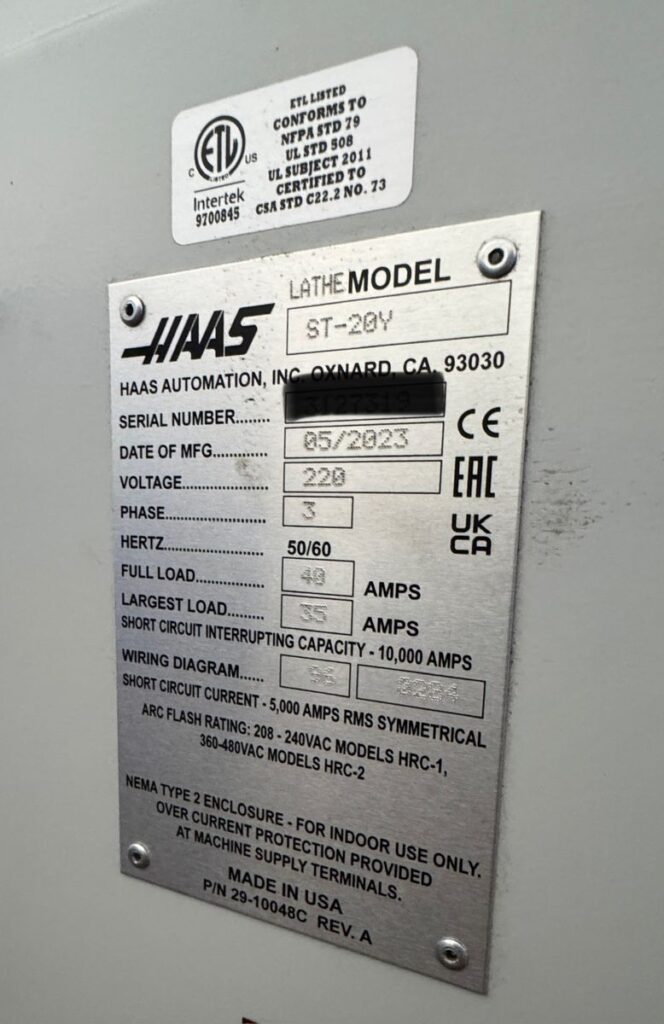

  • Power Required: 220V / 3 Phase

Equipped With

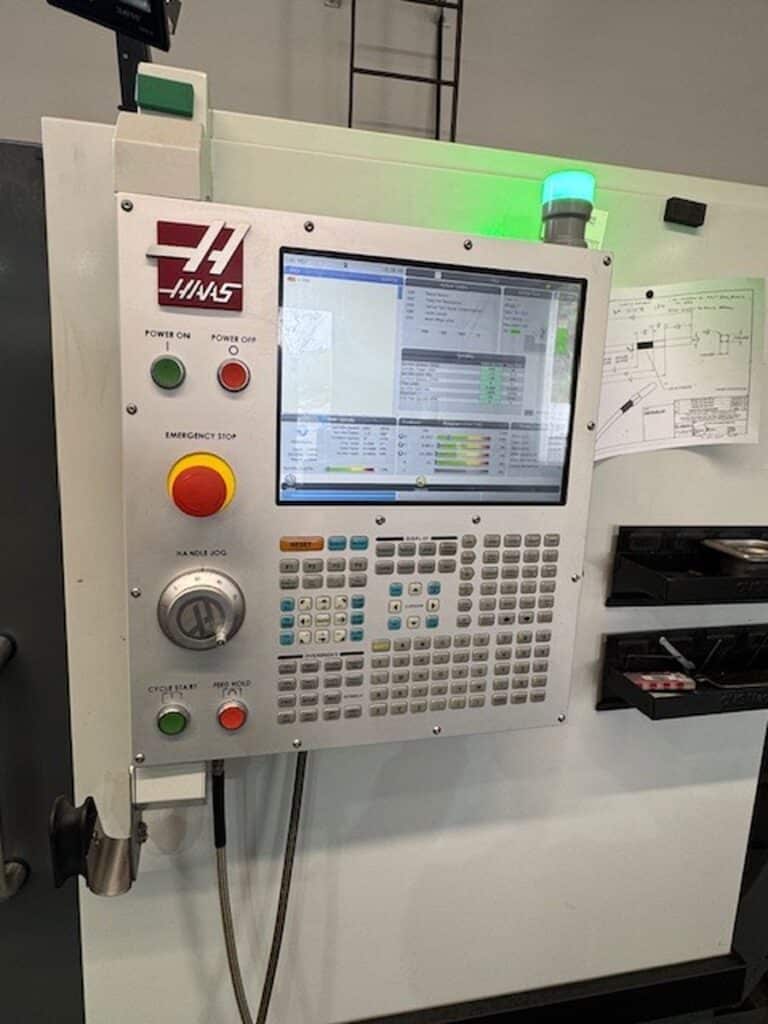

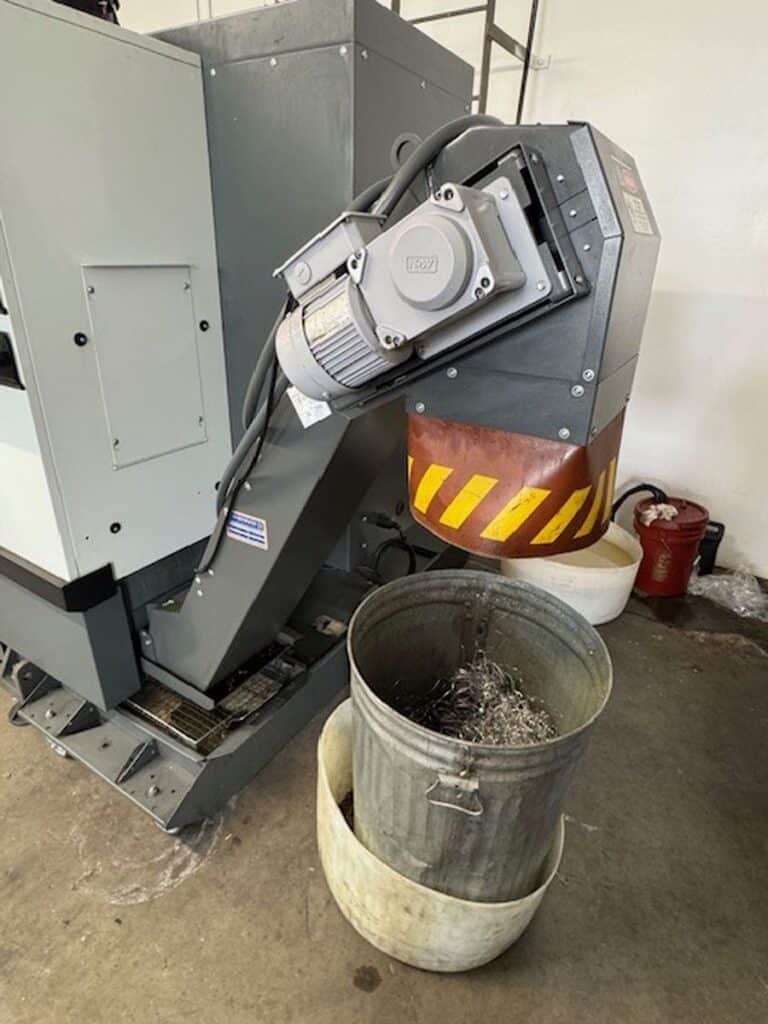

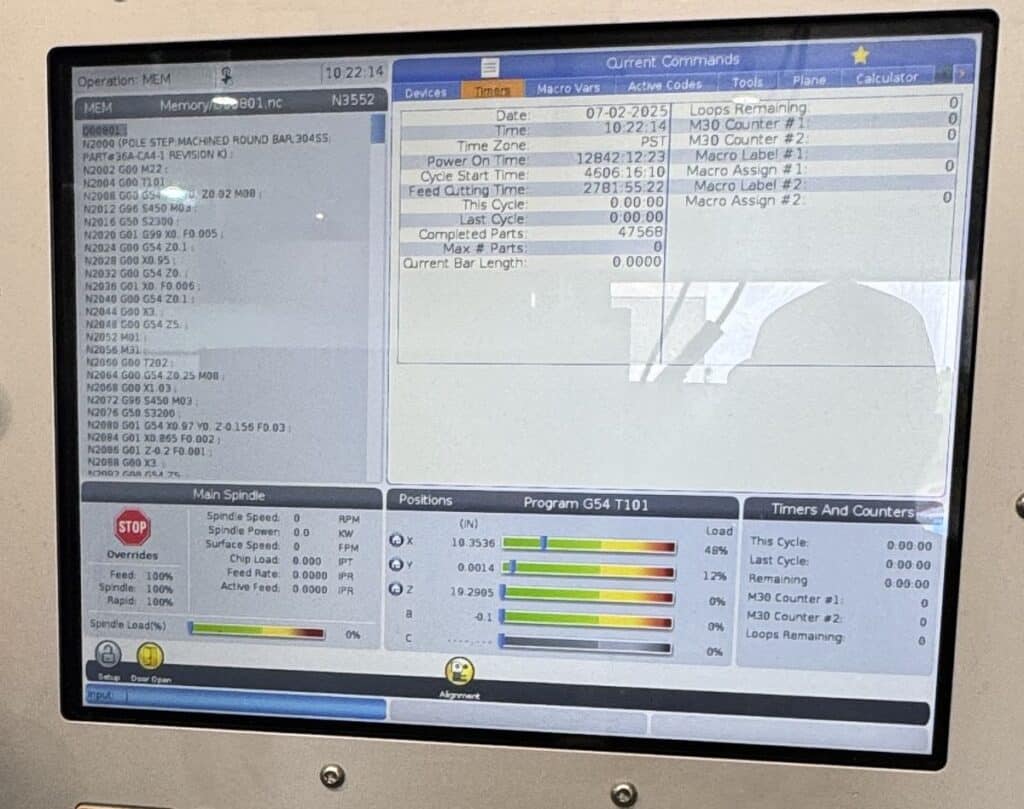

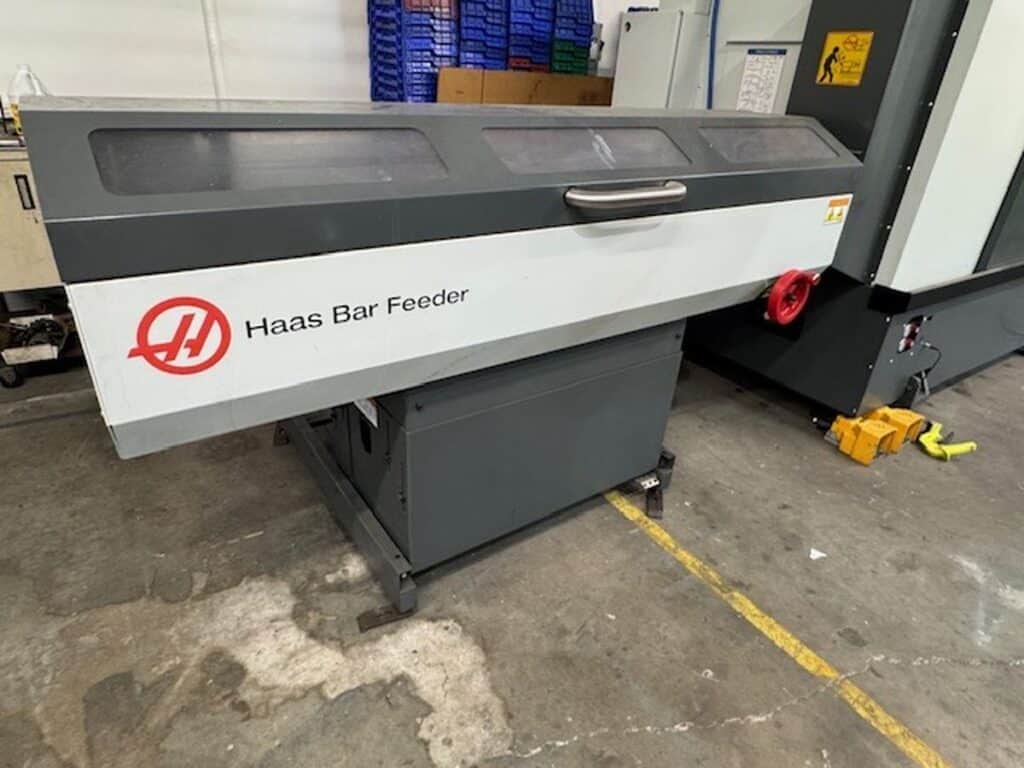

Haas CNC Control, 15″ Color LCD Monitor, High Torque C-Axis Live Tool, Haas Bar Feeder, Programmable Tailstock, Live & Standard Tooling, Automatic Tool Presetter, Chip Conveyor, Parts Catcher, USB Port & Rigid Tapping, Coolant System, High Intensity Lighting, Enclosure Exhaust System, Media Display M-Code, Auto Door, Ethernet Interface, Wifi Connection for Haas Control, Early Power Failure Detection Mode

Additional Info

Machine is under power and available to demo.
