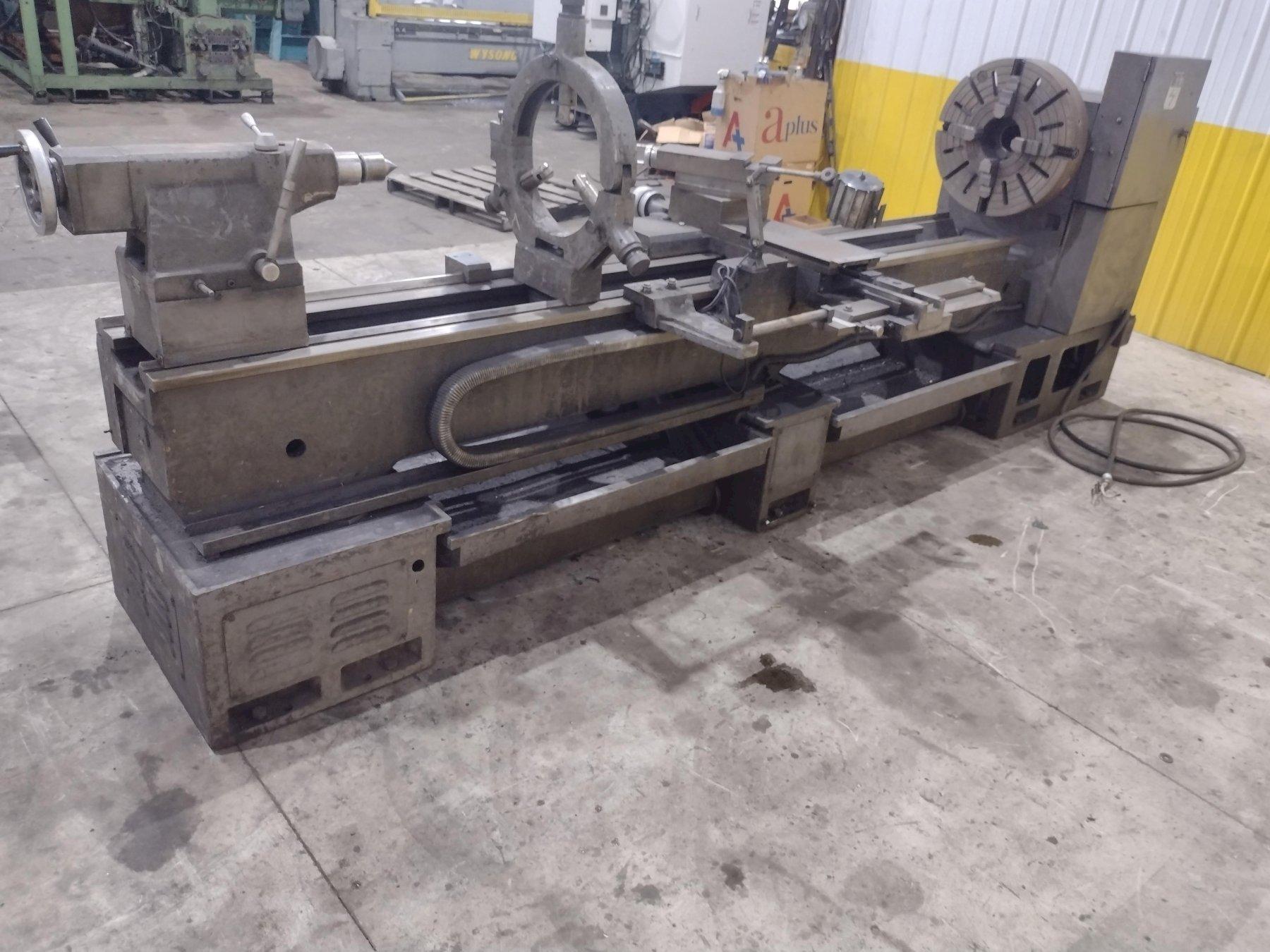

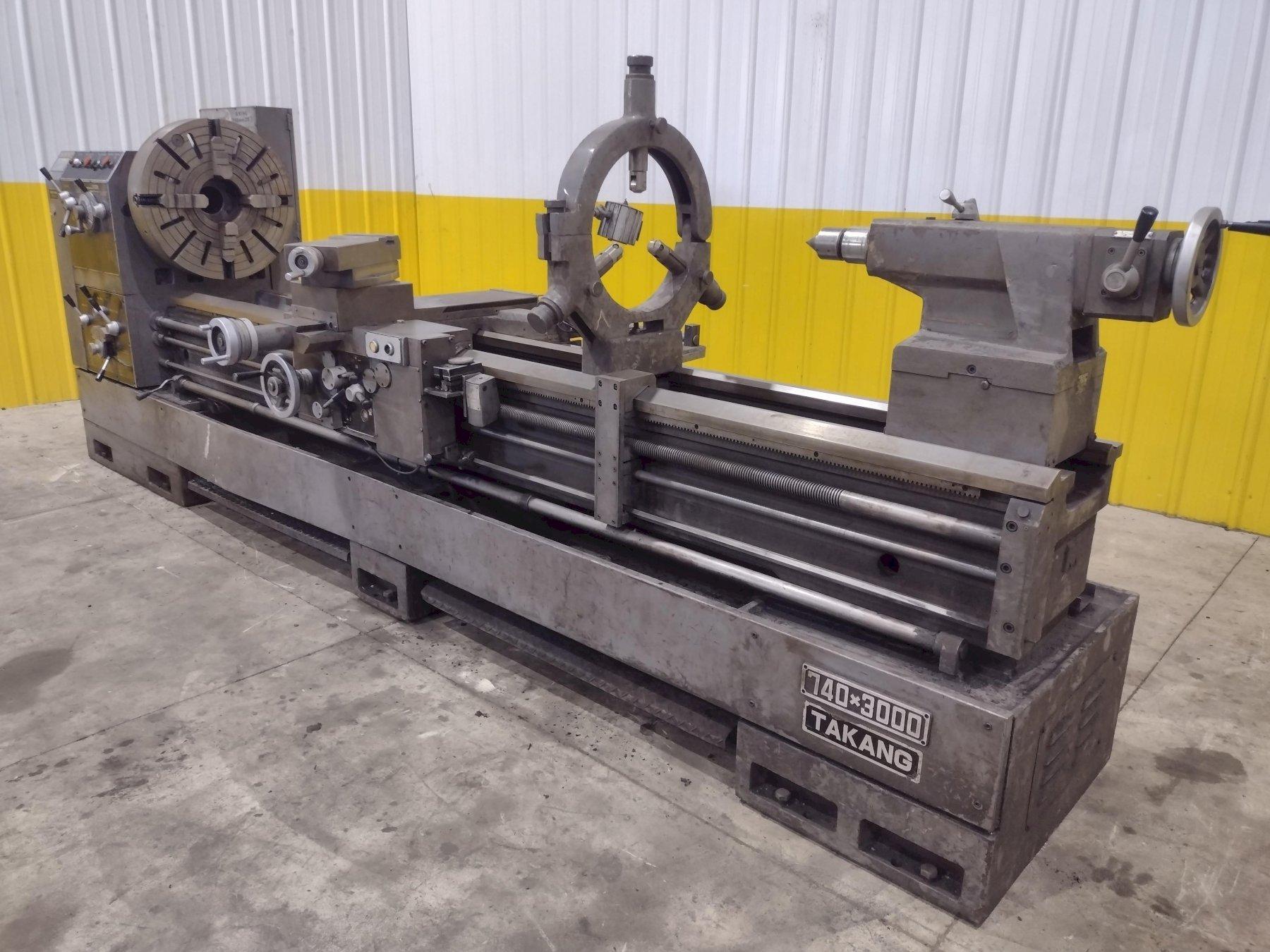

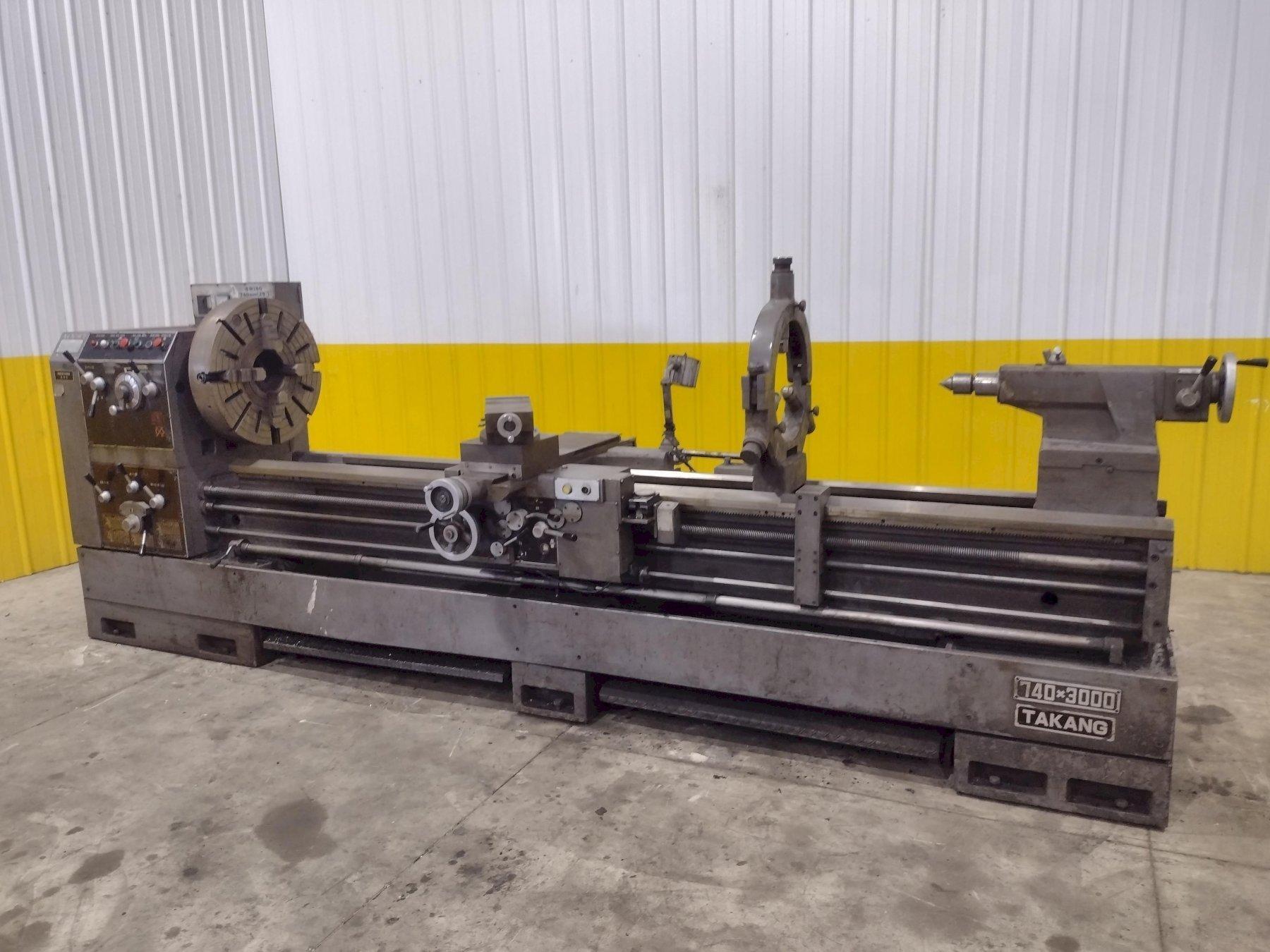

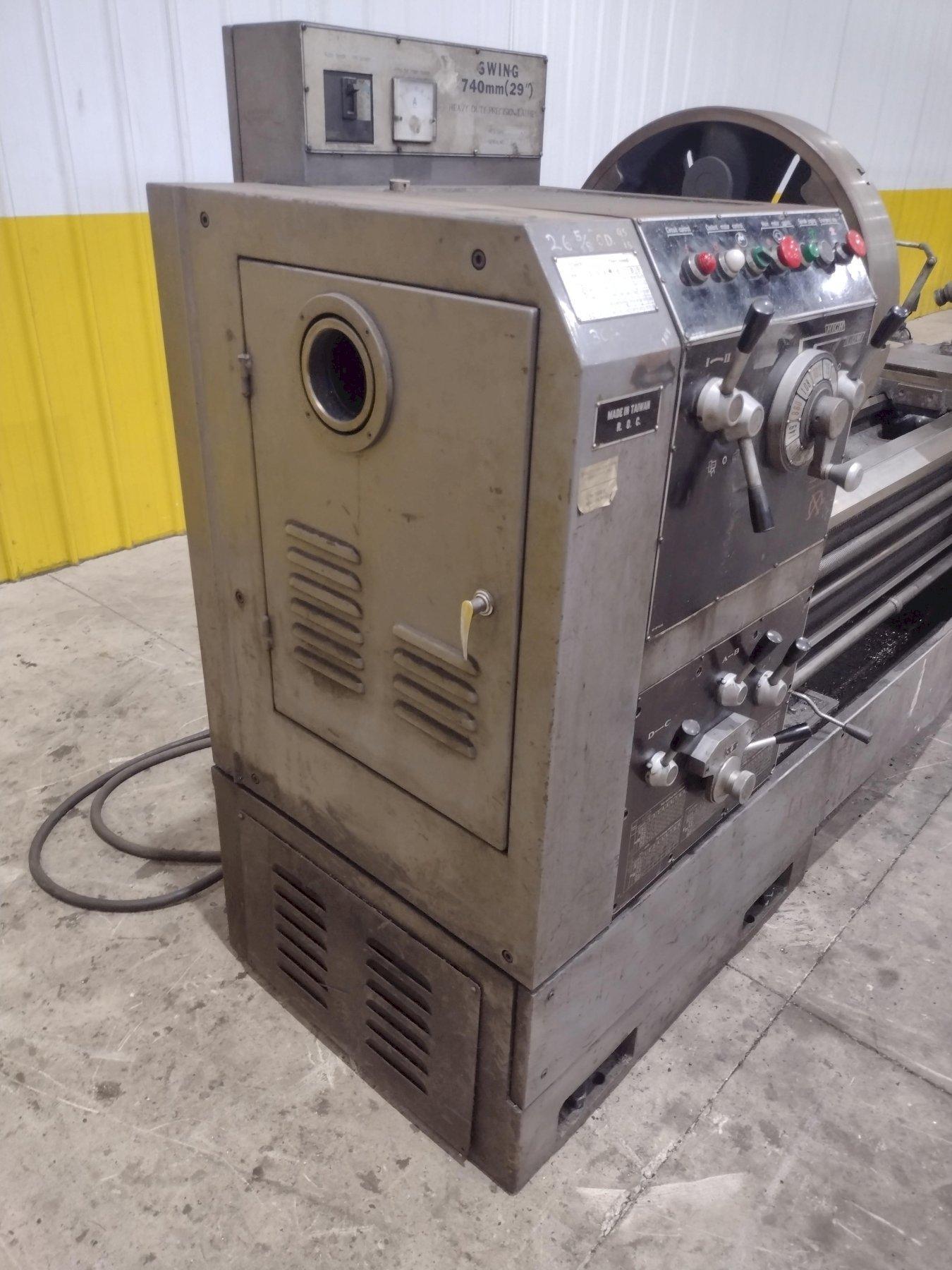

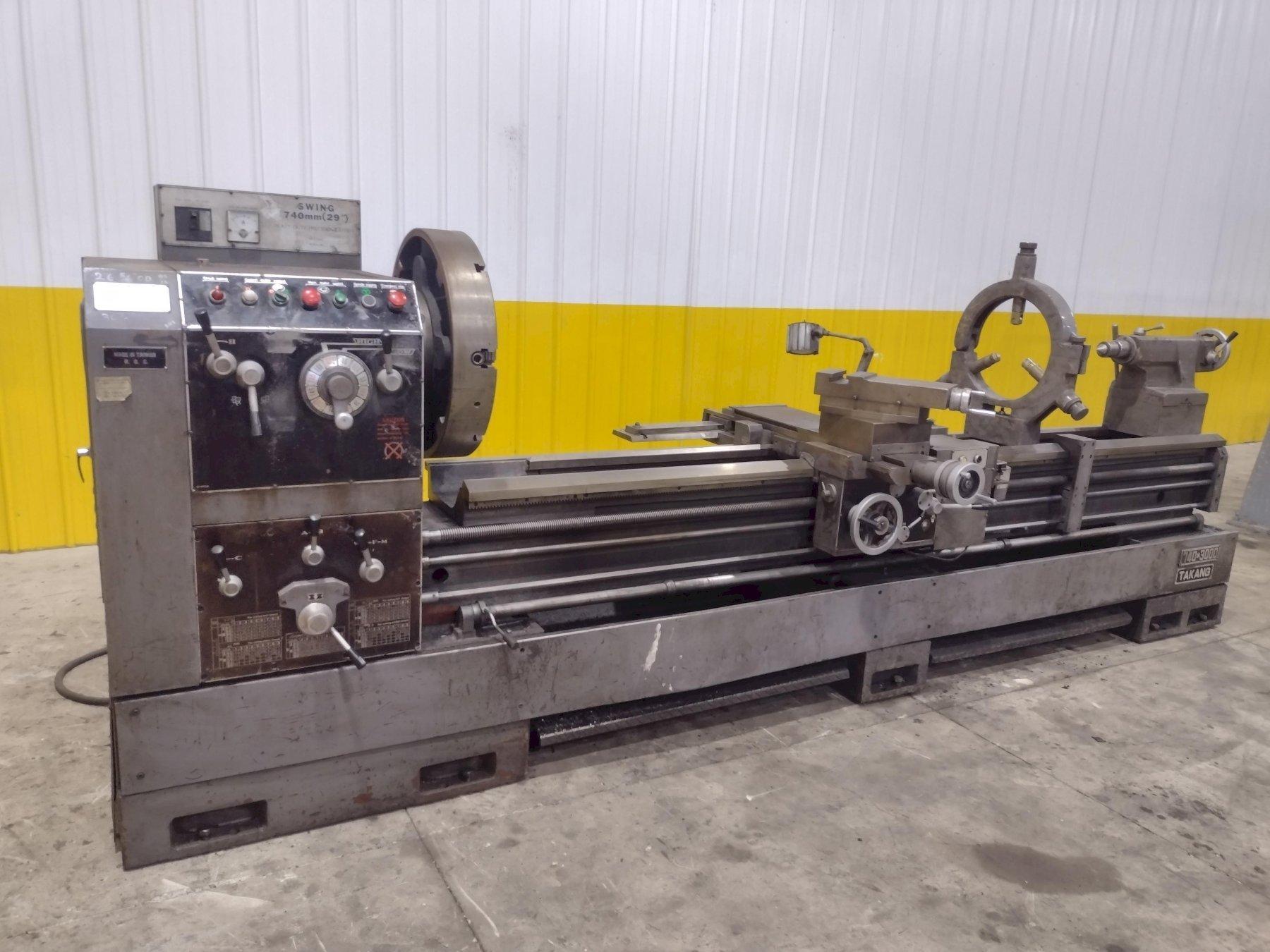

29" x 120" CHARLES TAKANG MAZAK MODEL #740X3000 ENGINE LATHE, METRIC, 4" HOLE: STOCK #23624

Manufacturer

TAKANG

Category

Lathes

Type

LATHES, ENGINE

Stock

23624

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

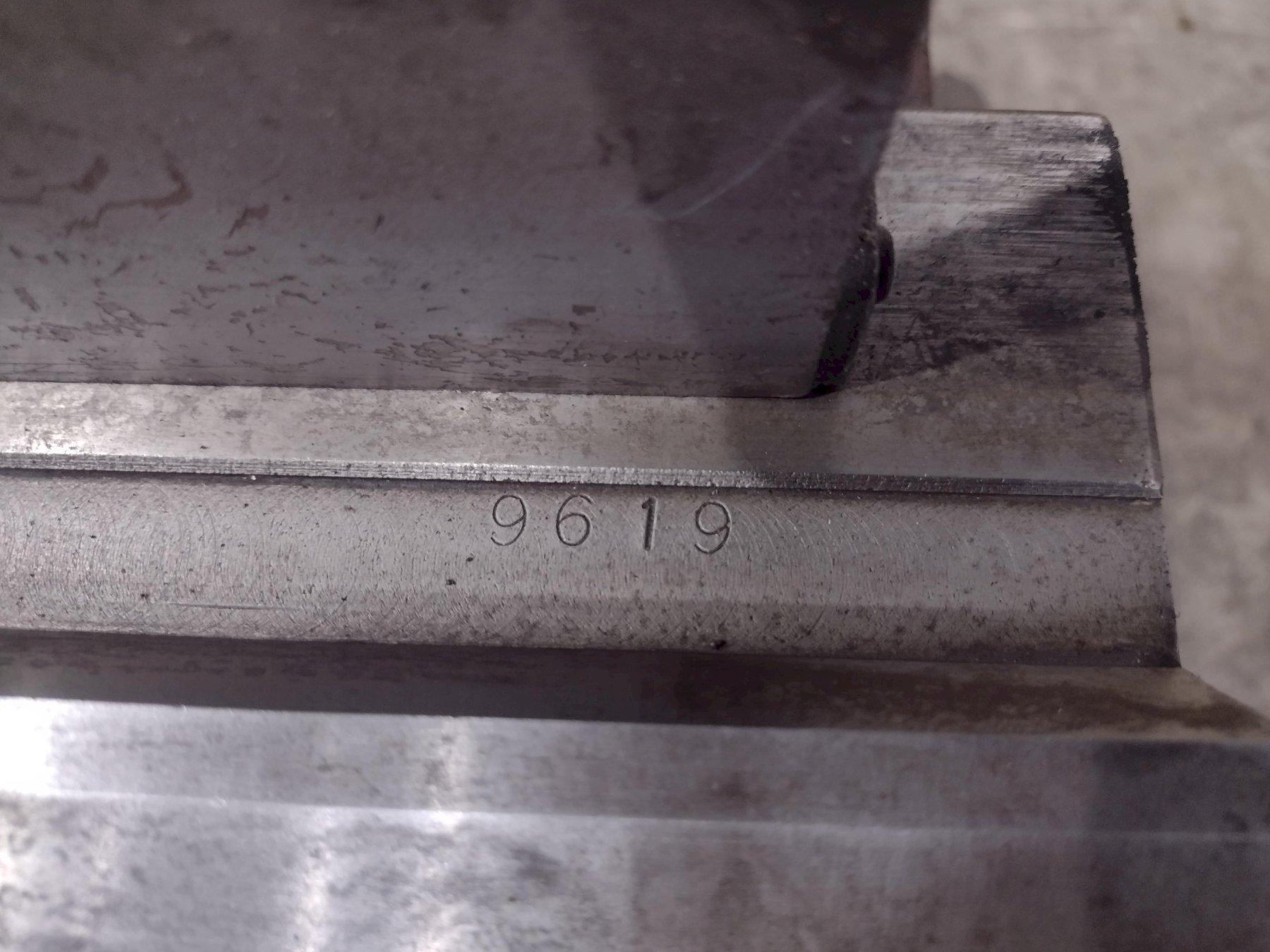

SERIAL ............... 9619
MODEL ................ 740X3000

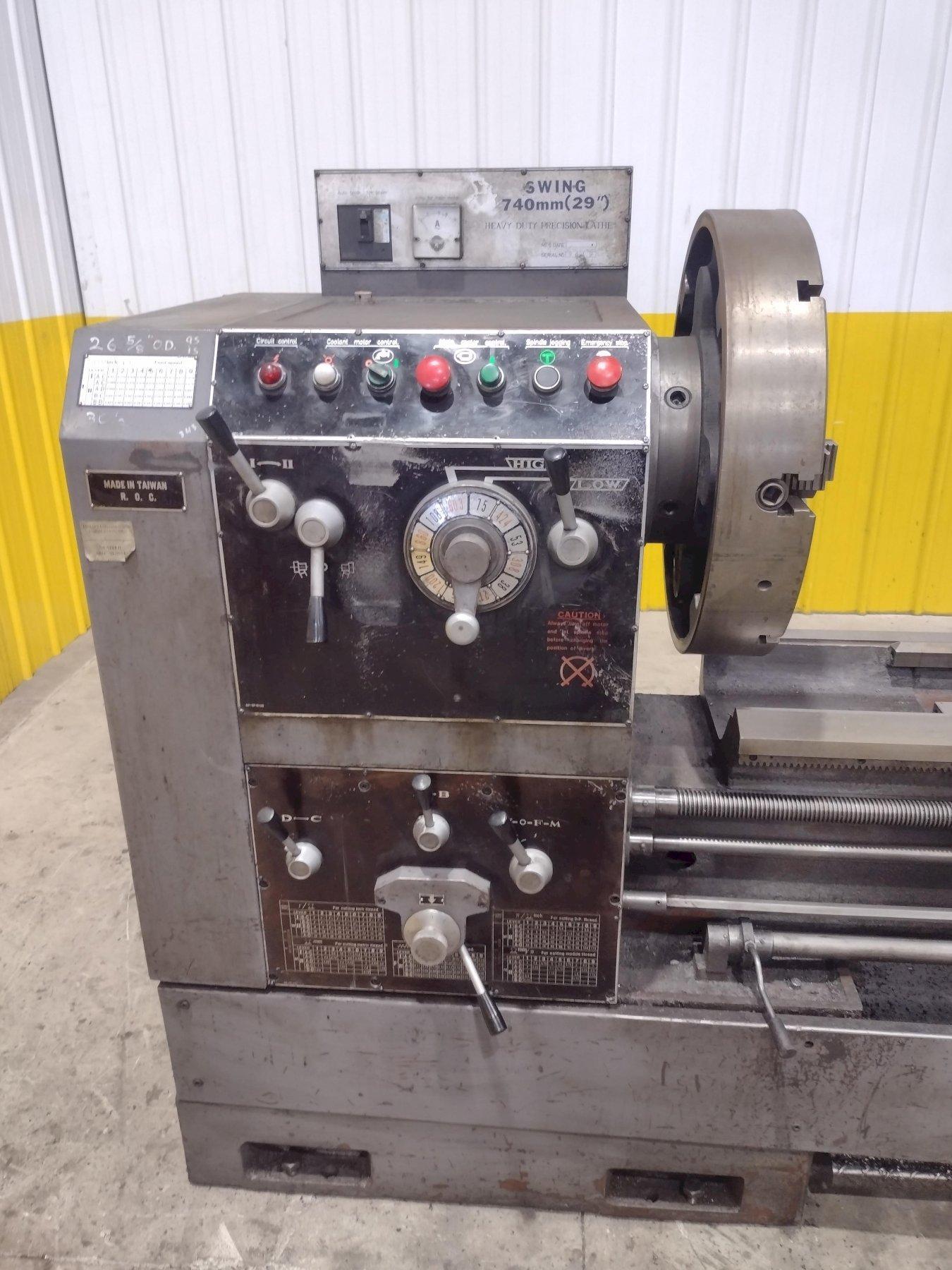

SWING ................ 29-1/8" (740MM)
CENTERS .............. 120" (3000MM)
SWING IN GAP ......... 37-25/32" (960MM)
LENGTH OF GAP ........ 20-1/4"
SWING OVER CROSS ..... 20.5" (520MM)

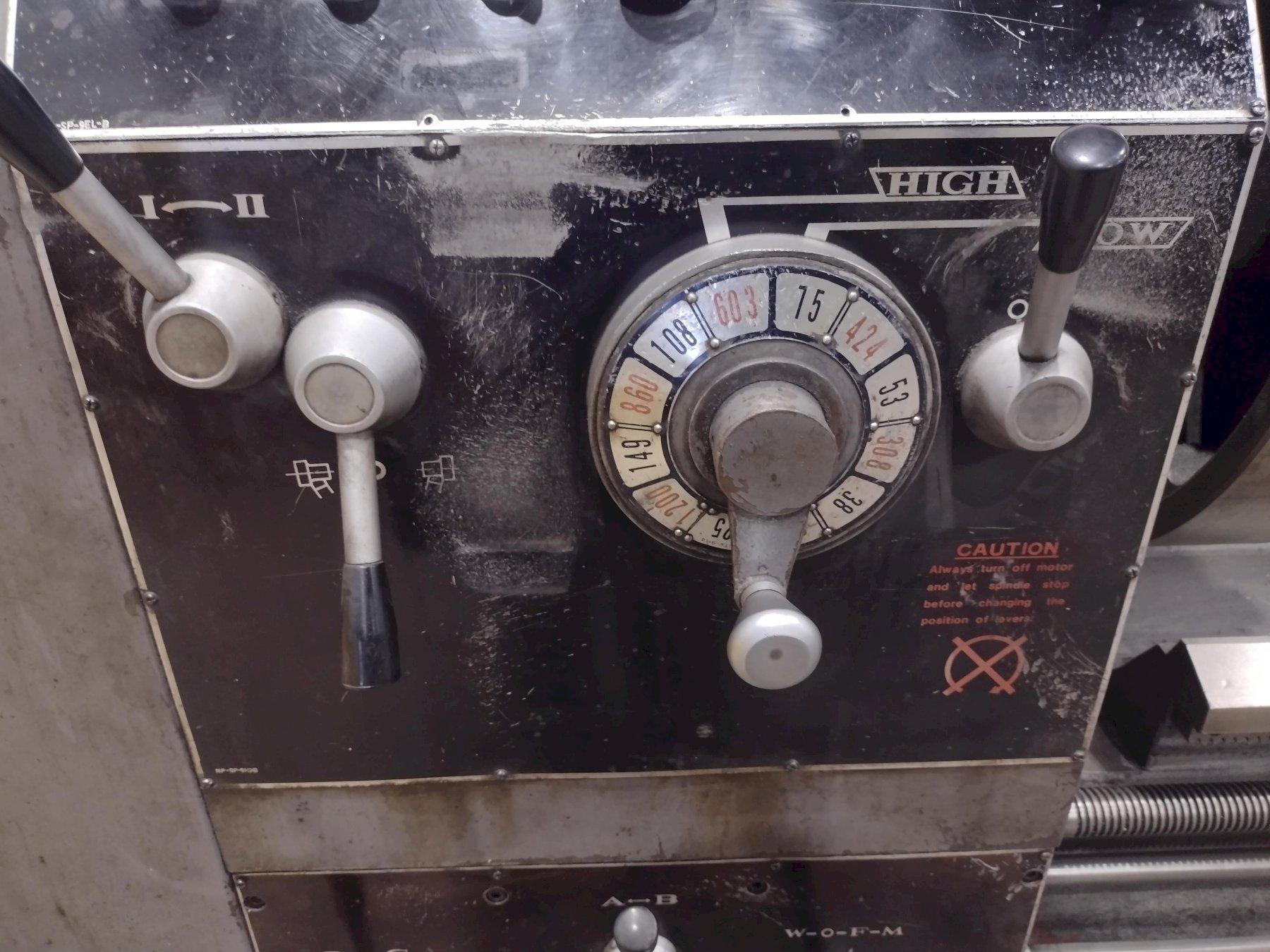

SPINDLE SPEEDS ....... 25 TO 1,200 RPM

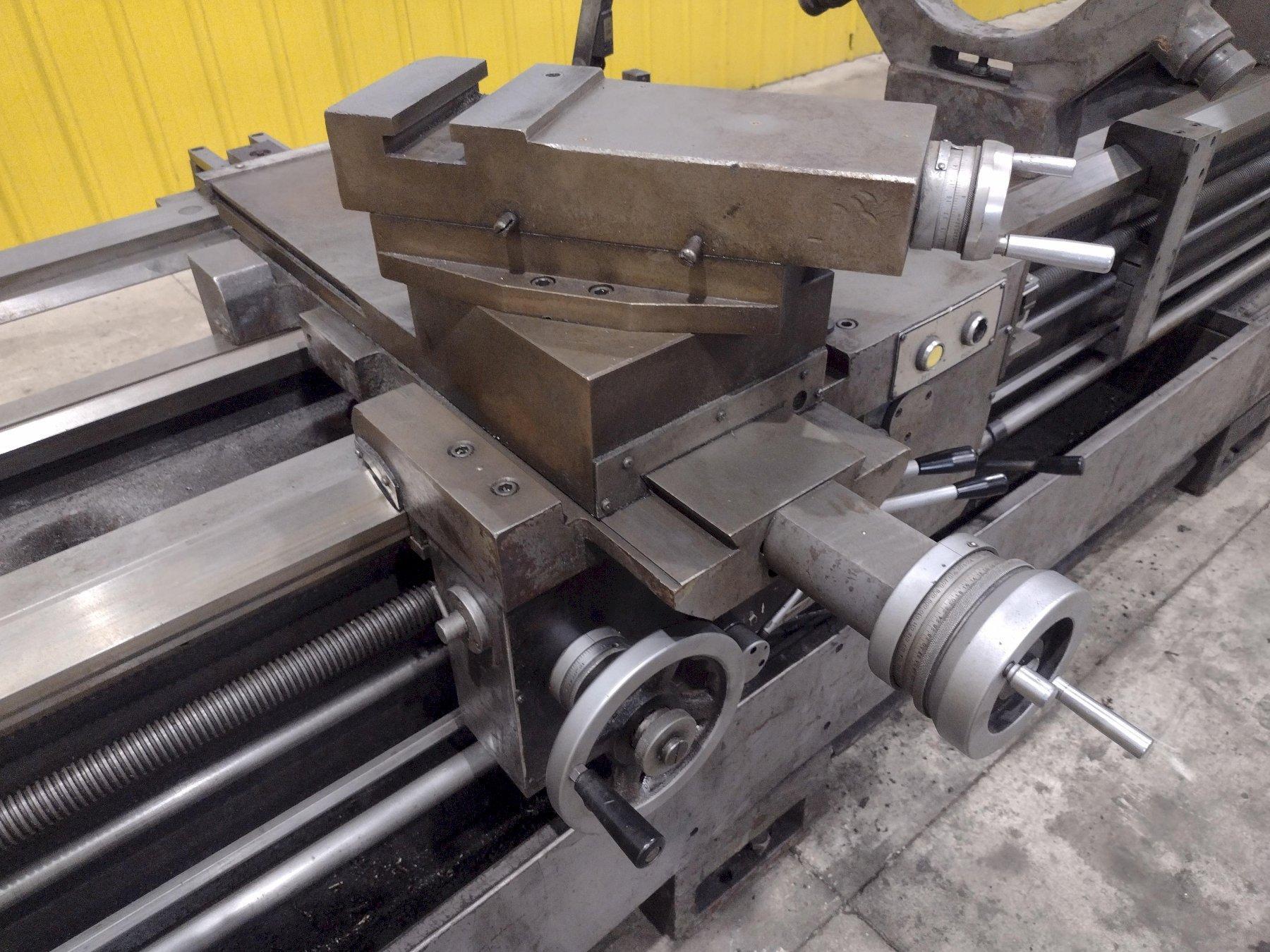

CROSS SLIDE TRAVEL ... 18-1/4"
COMPOUND TRAVEL ...... 9"

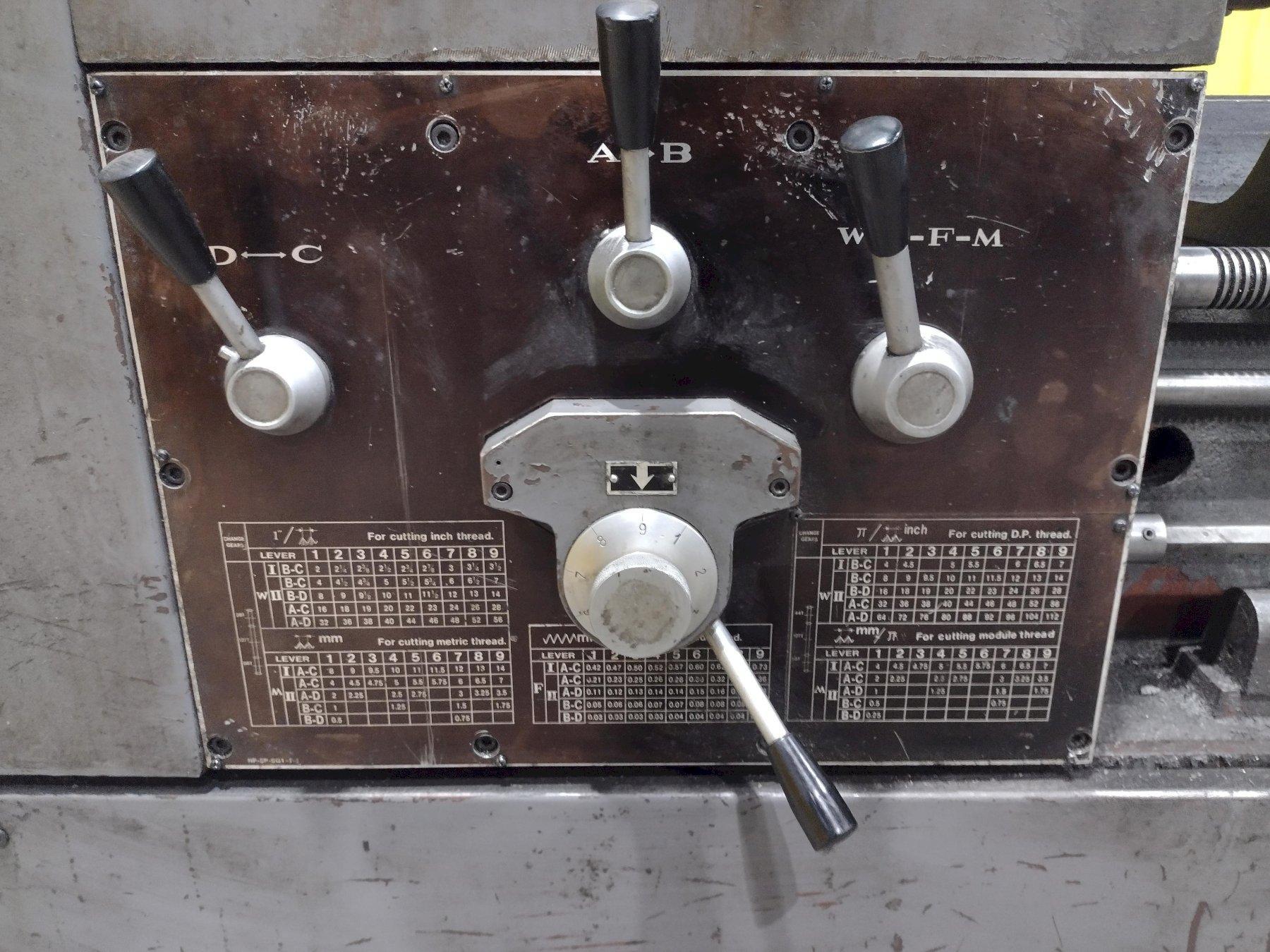

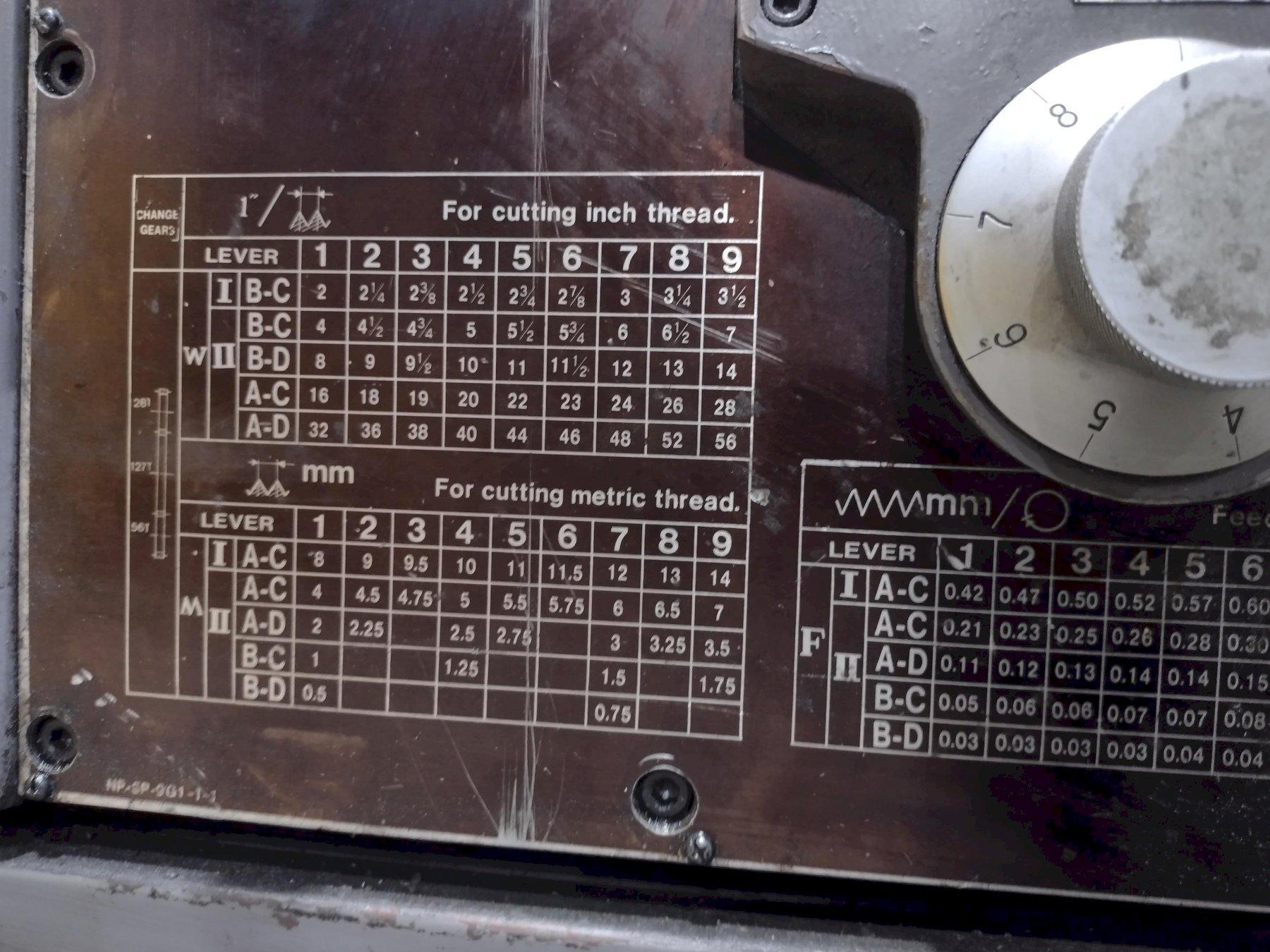

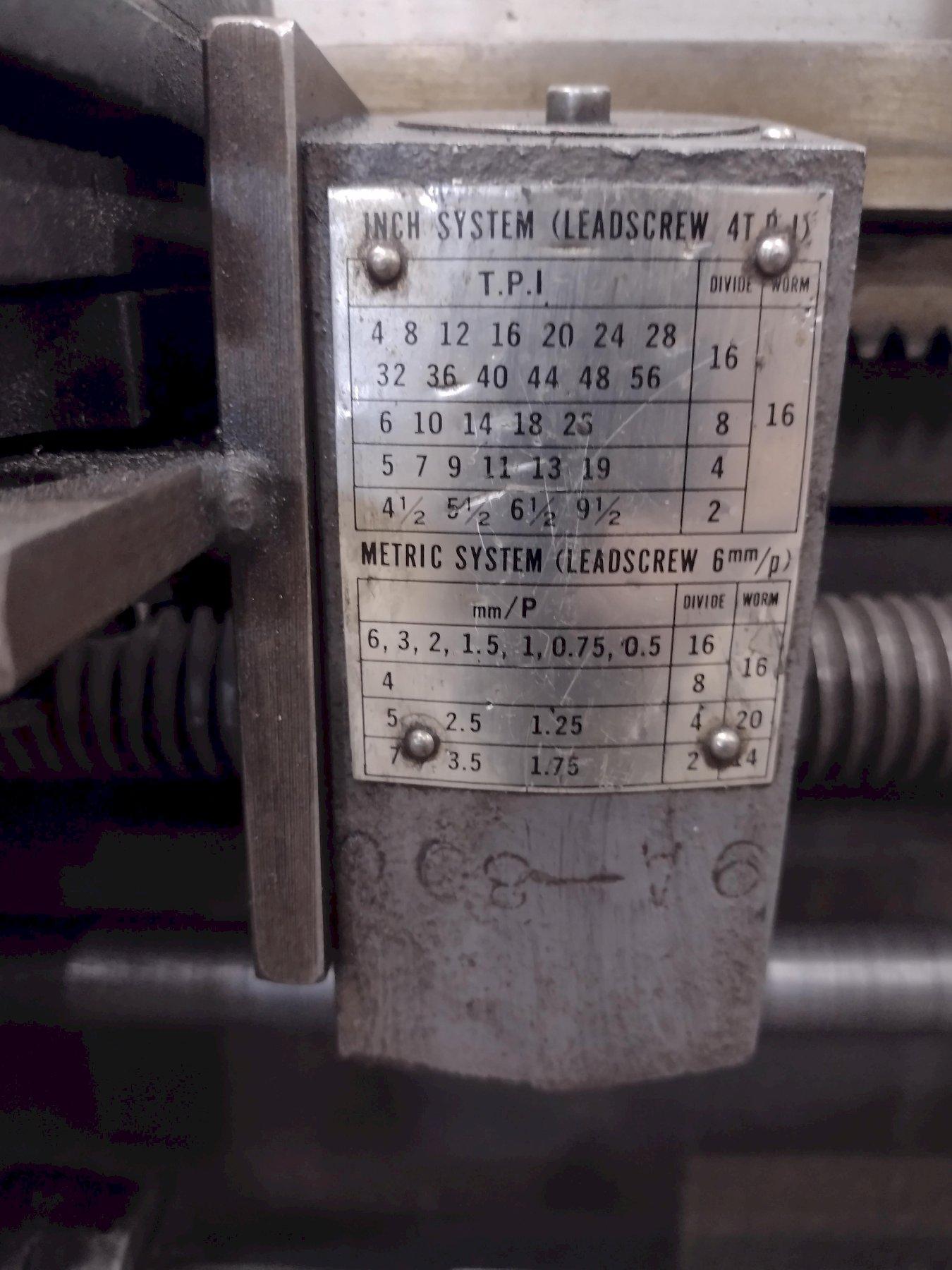

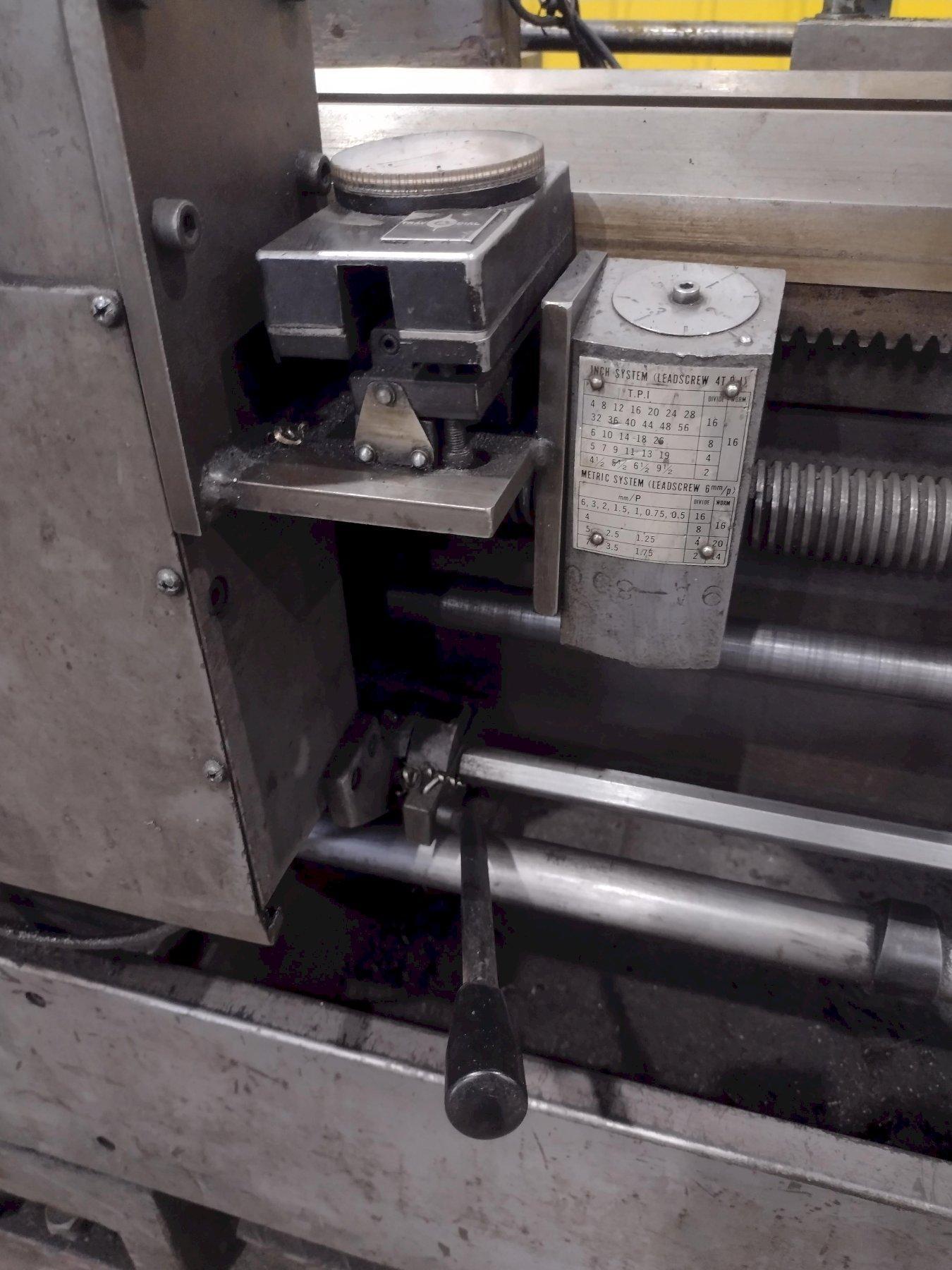

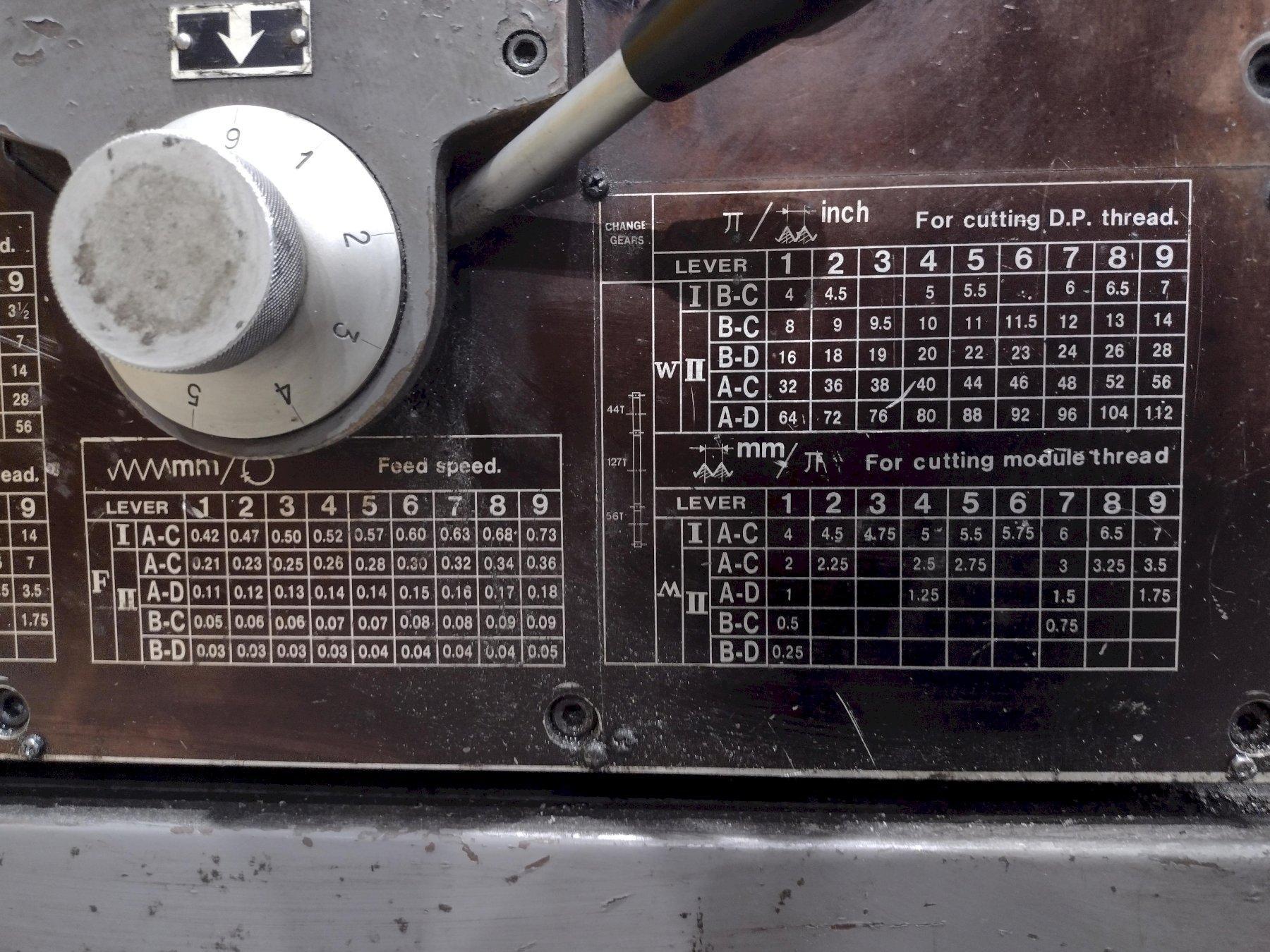

STANDARD THREADS ..... (45) 2 TO 56 TPI

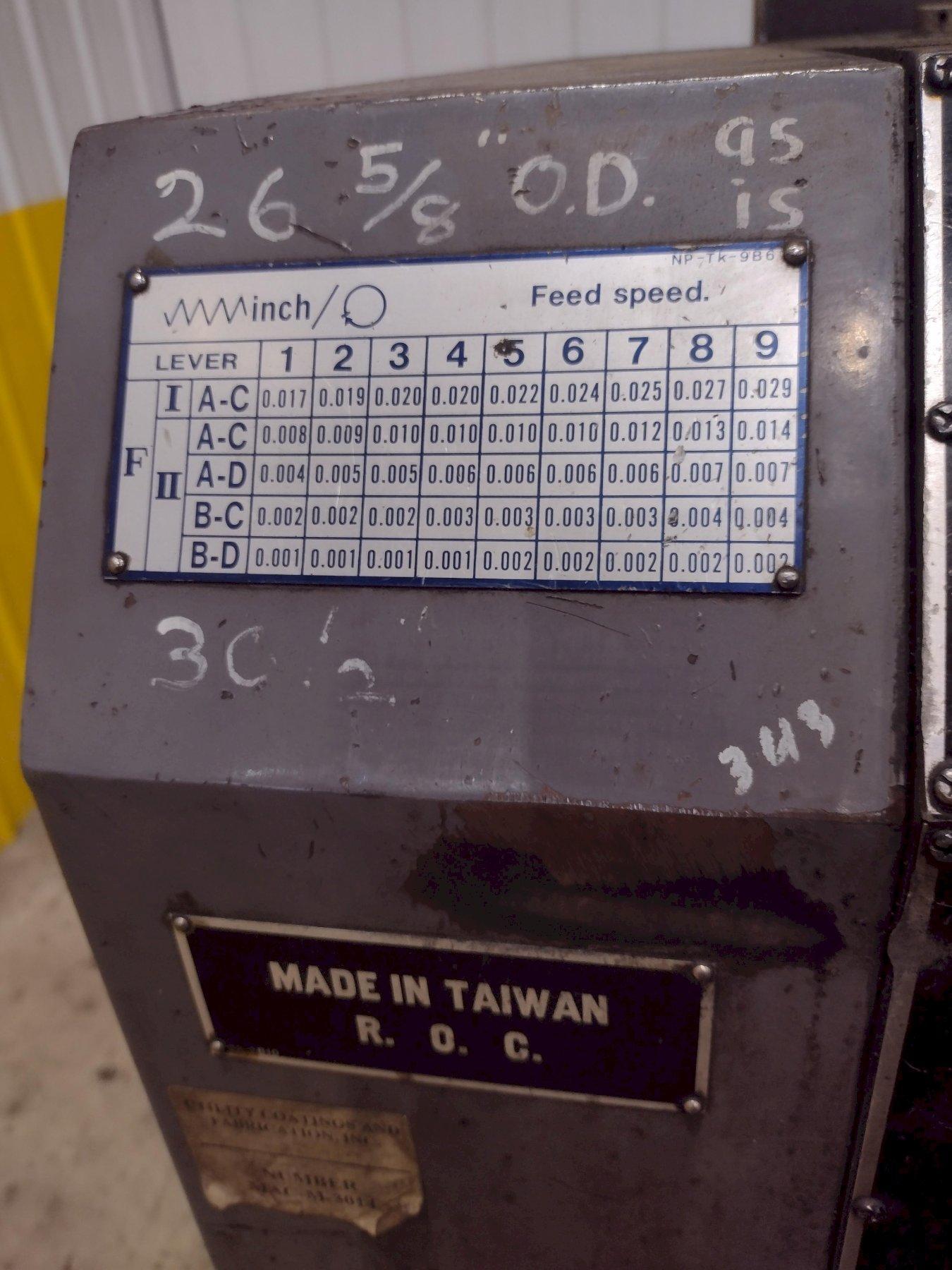

STANDARD FEEDS ....... YES
METRIC THREADS ....... (31) .5 TO 14 MM
METRIC FEEDS ......... YES
SPINDLE HOLE ......... 4-1/11"
SPINDLE NOSE ......... D1-11
CHUCK ................ 24.5" 4 JAW
TAPER ATTACHMENT ..... YES

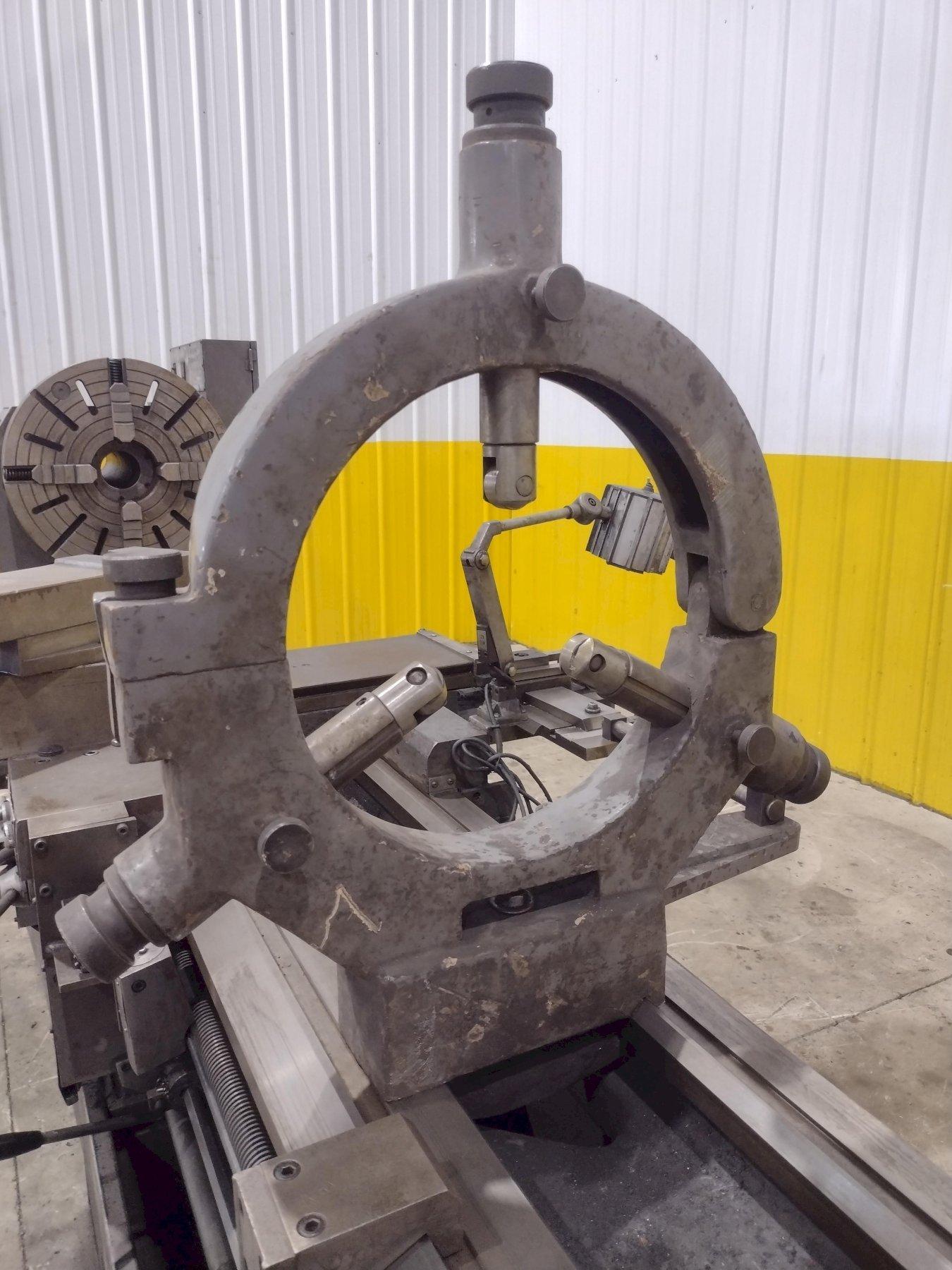

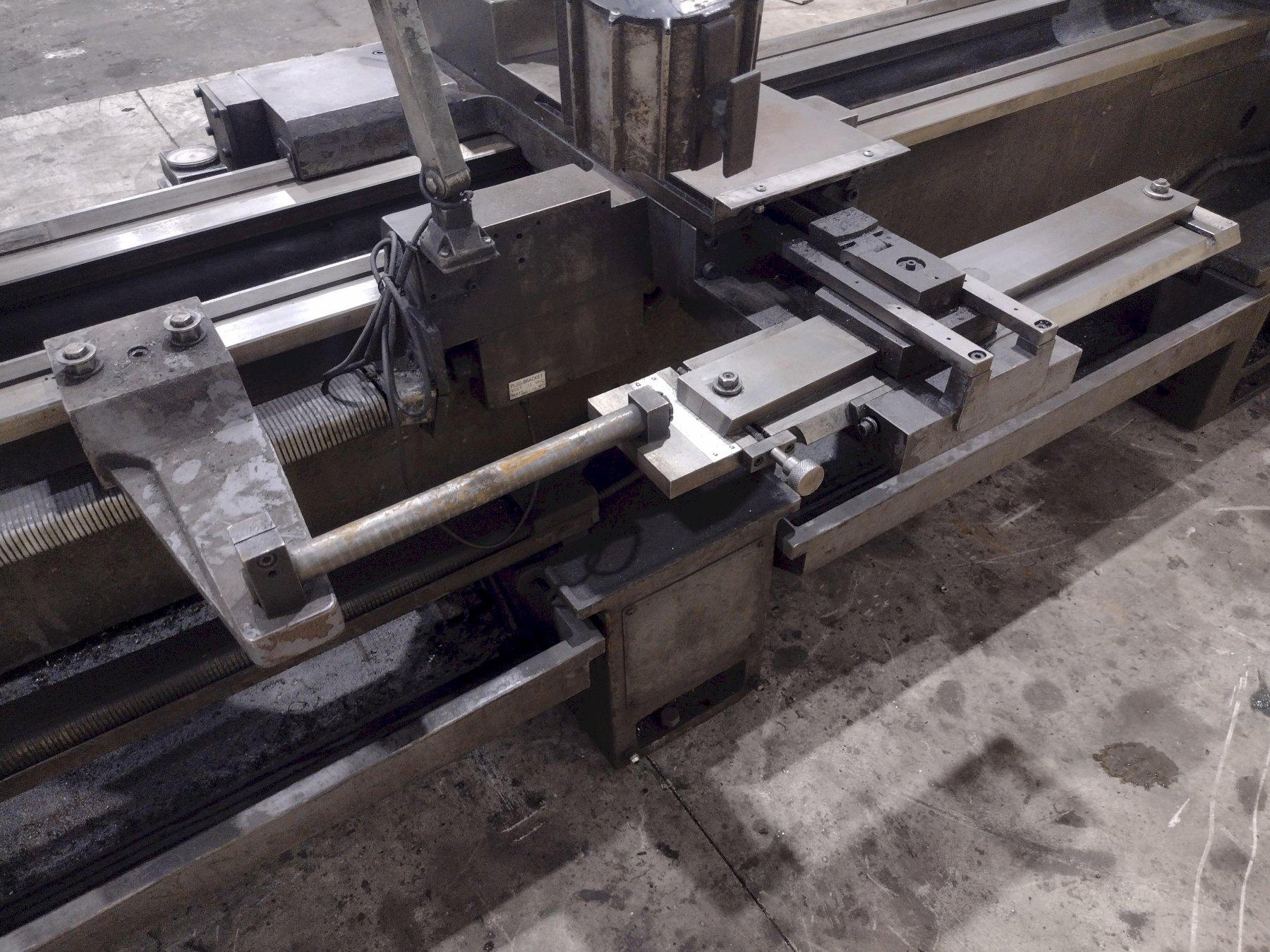

STEADY REST .......... 15" 3 POINT ROLLER

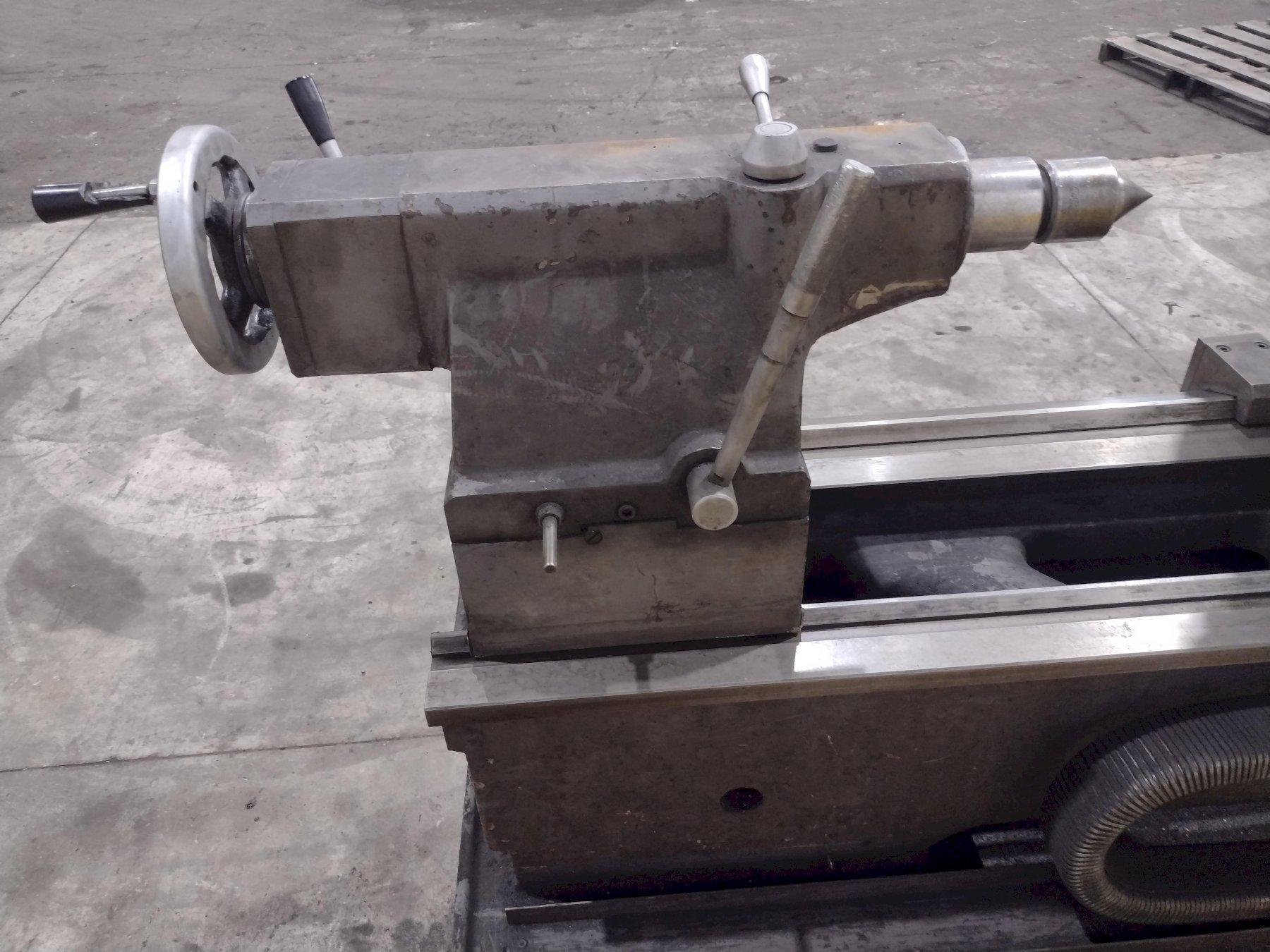

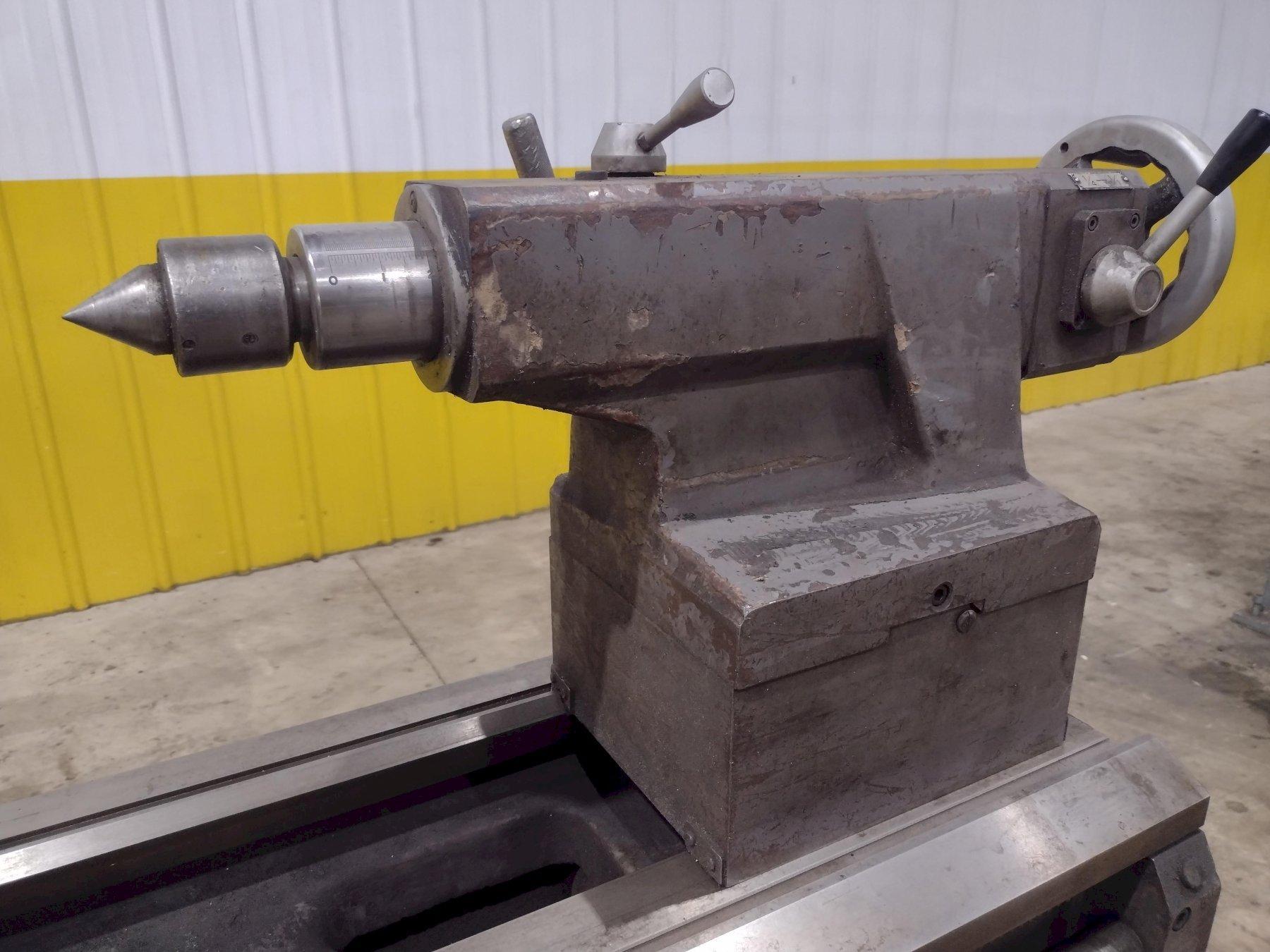

TAILSTOCK TAPER ...... #5MT
TAILSTOCK TRAVEL ..... 3-1/32"
RAPID TRAVERSE ....... 1/2 HP
COOLANT MOTOR ........ 1/8 HP
MOTOR ................ 15 HP
