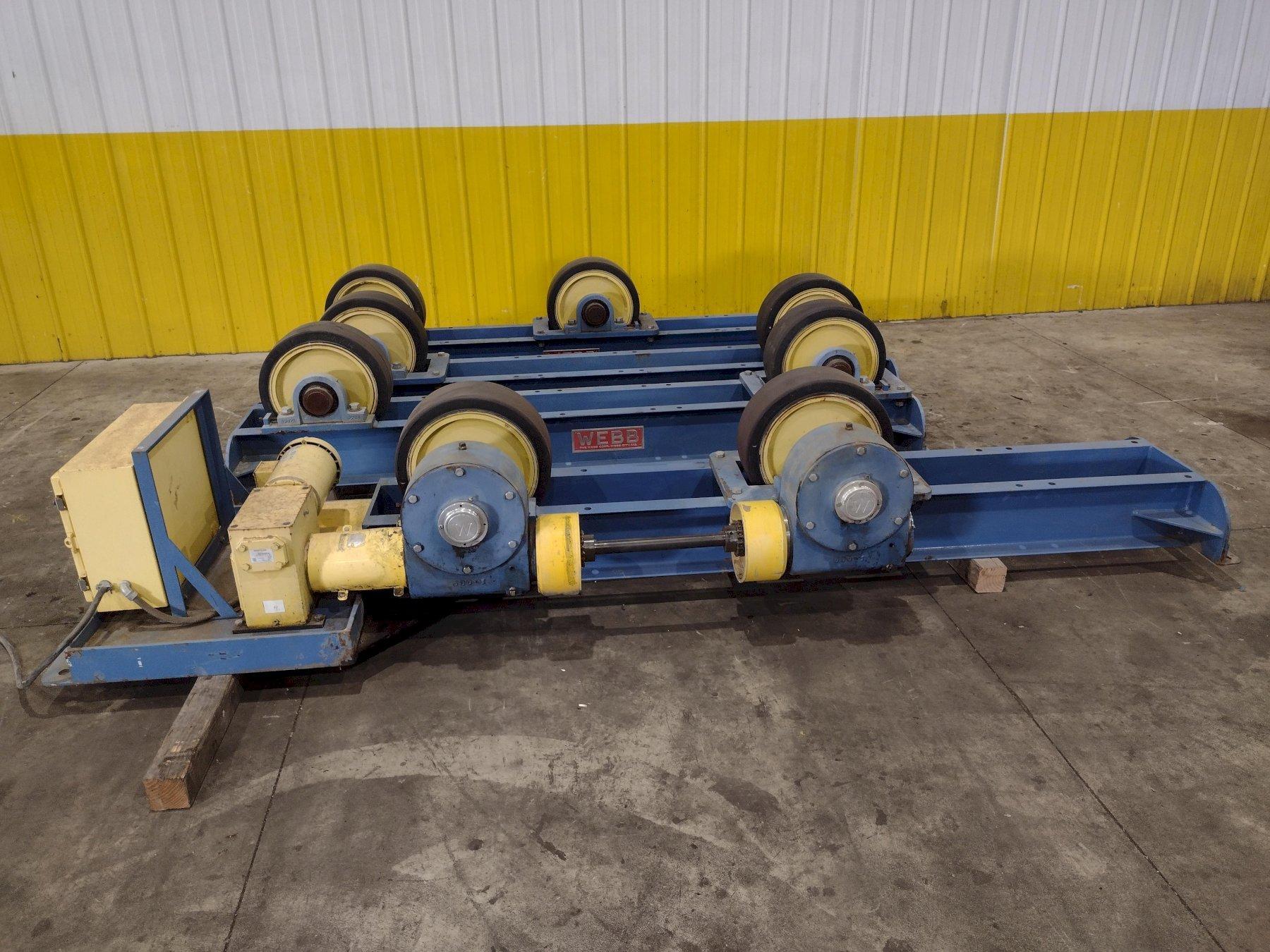

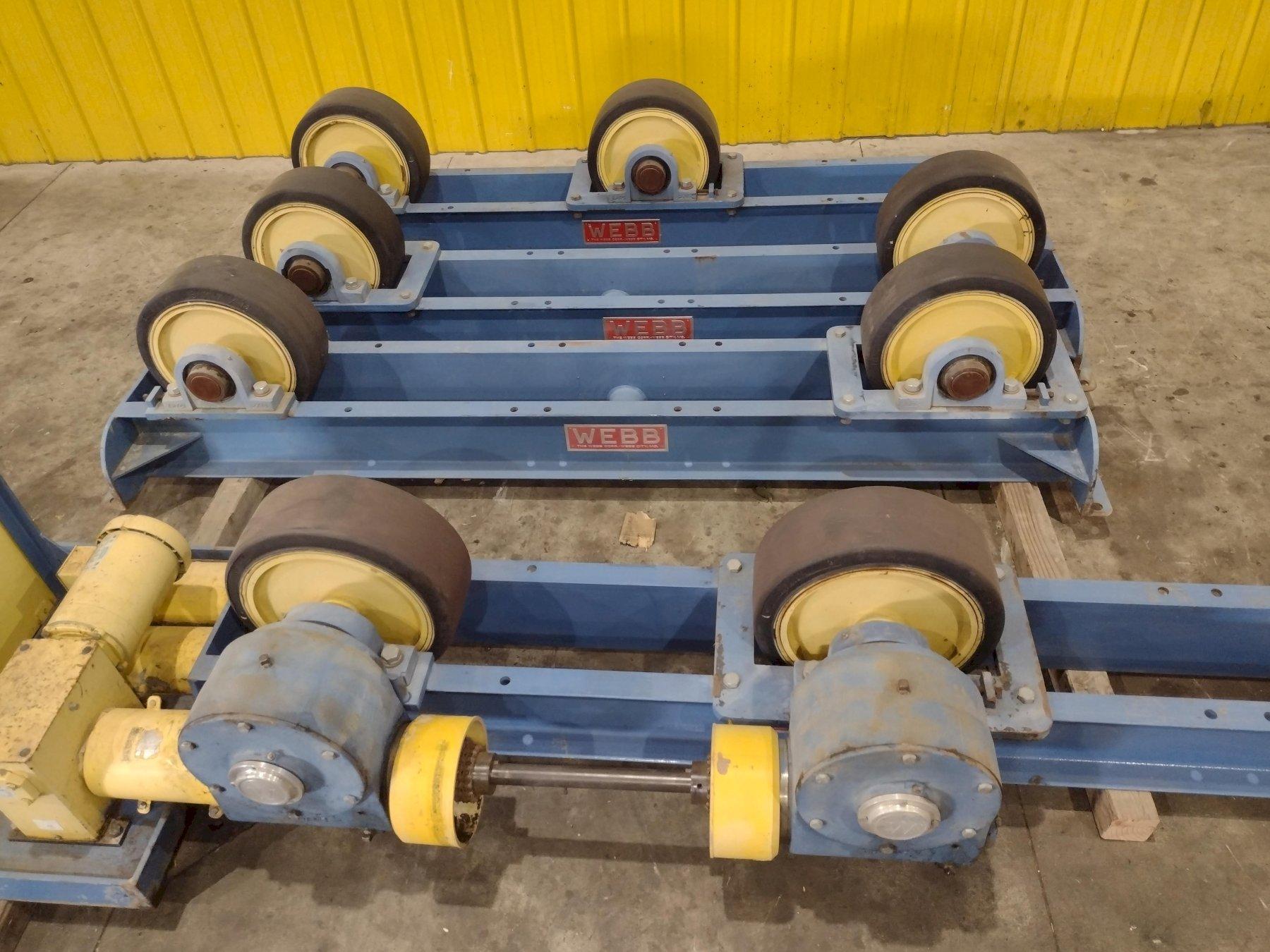

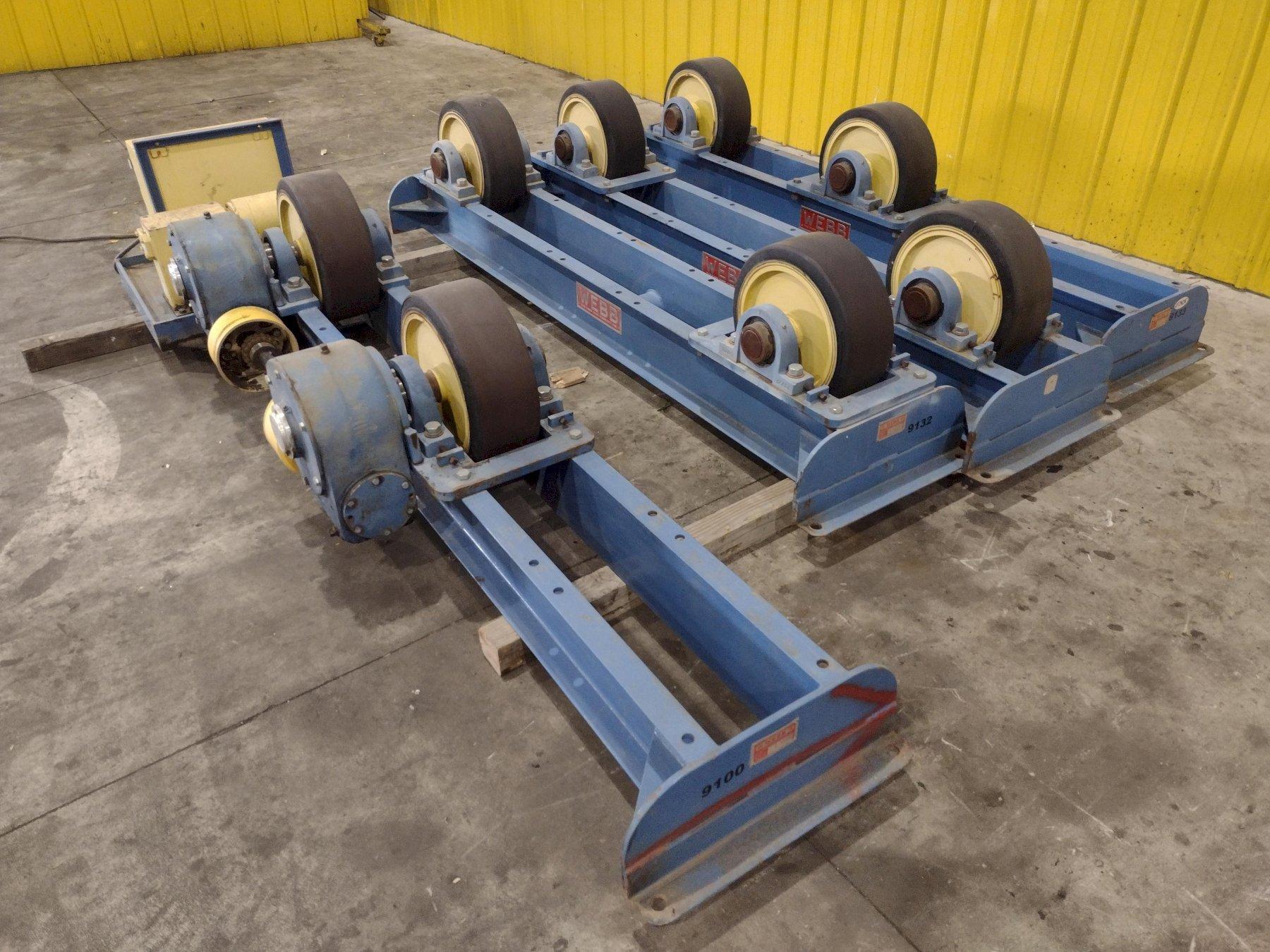

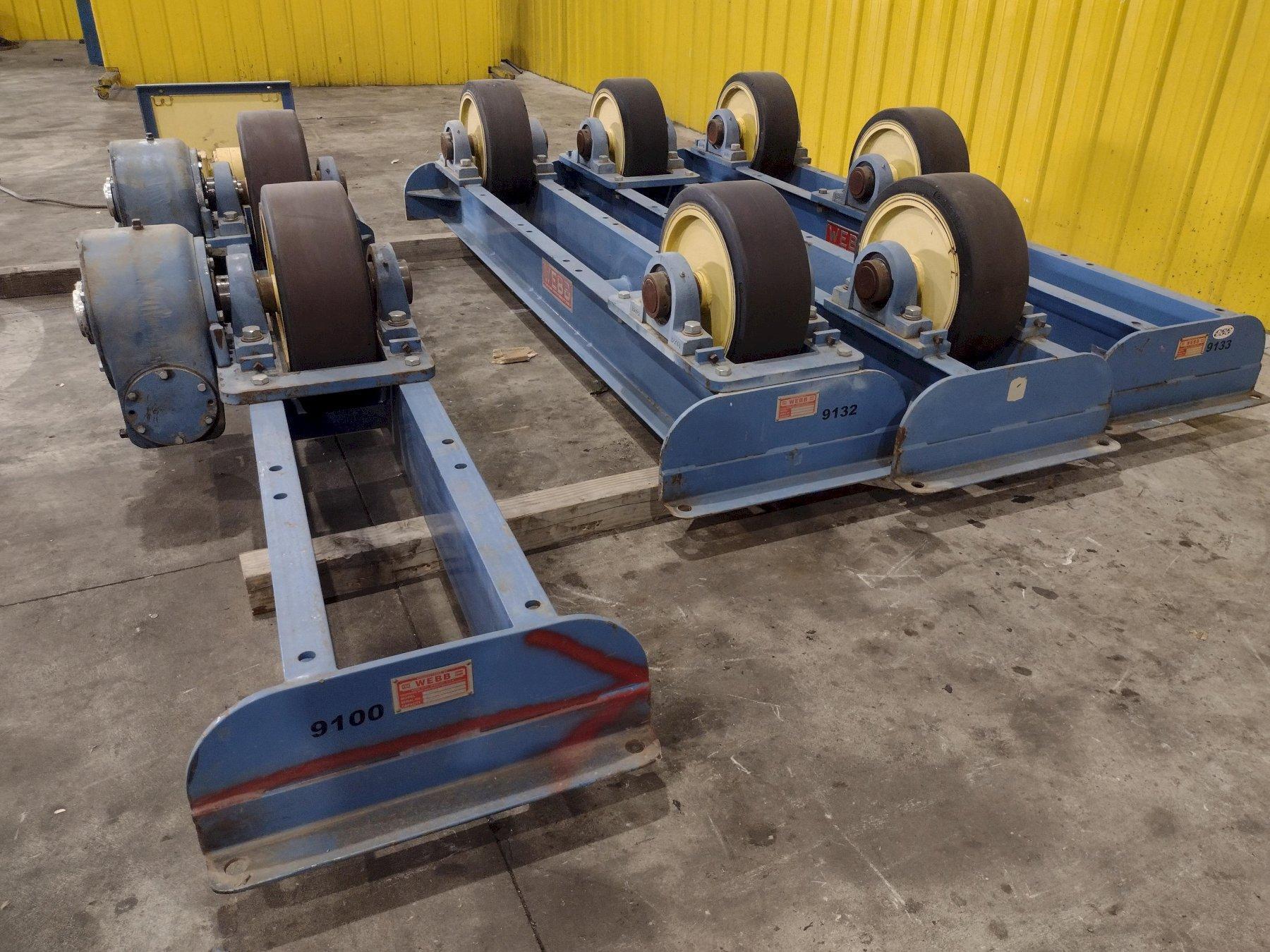

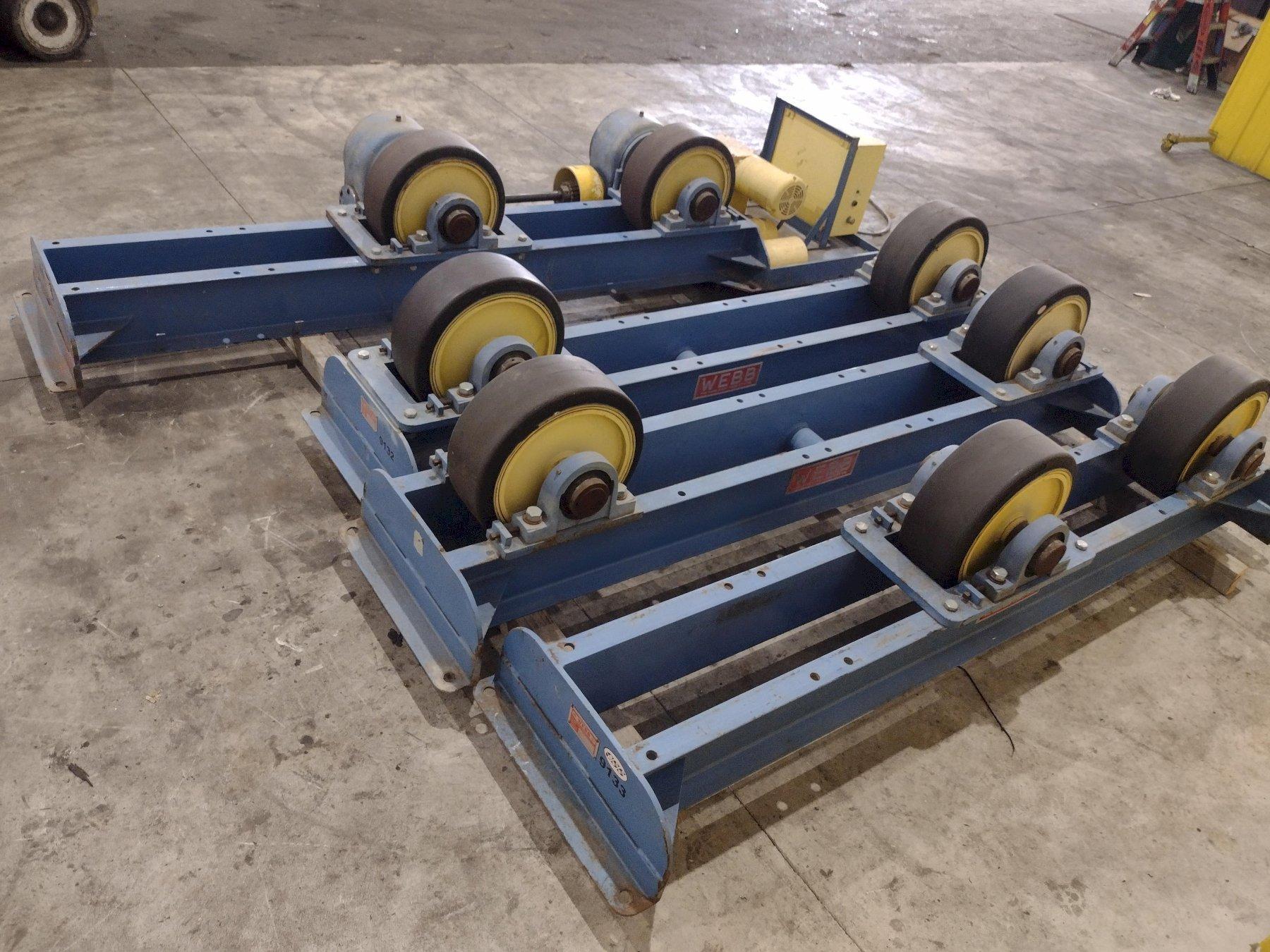

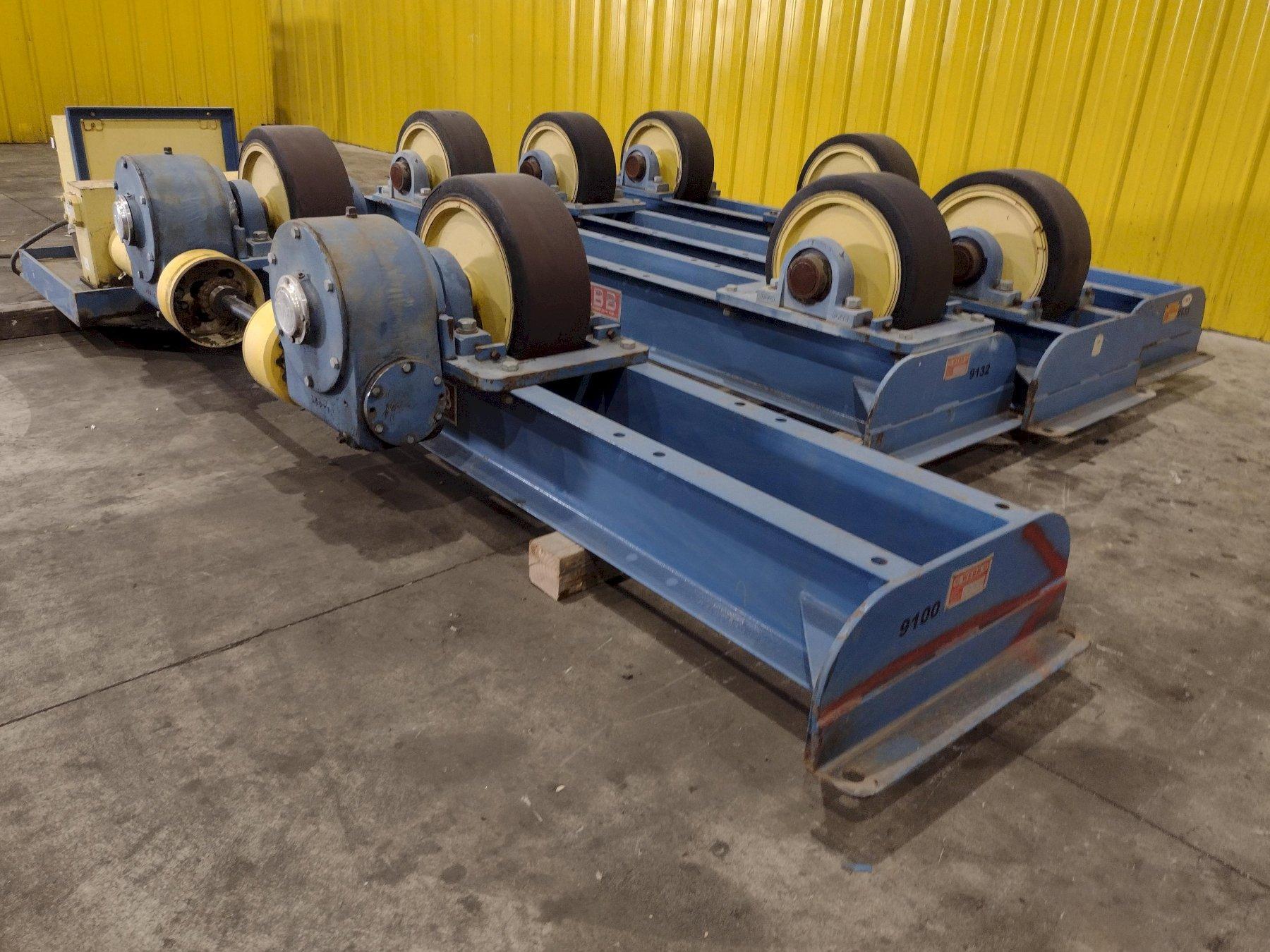

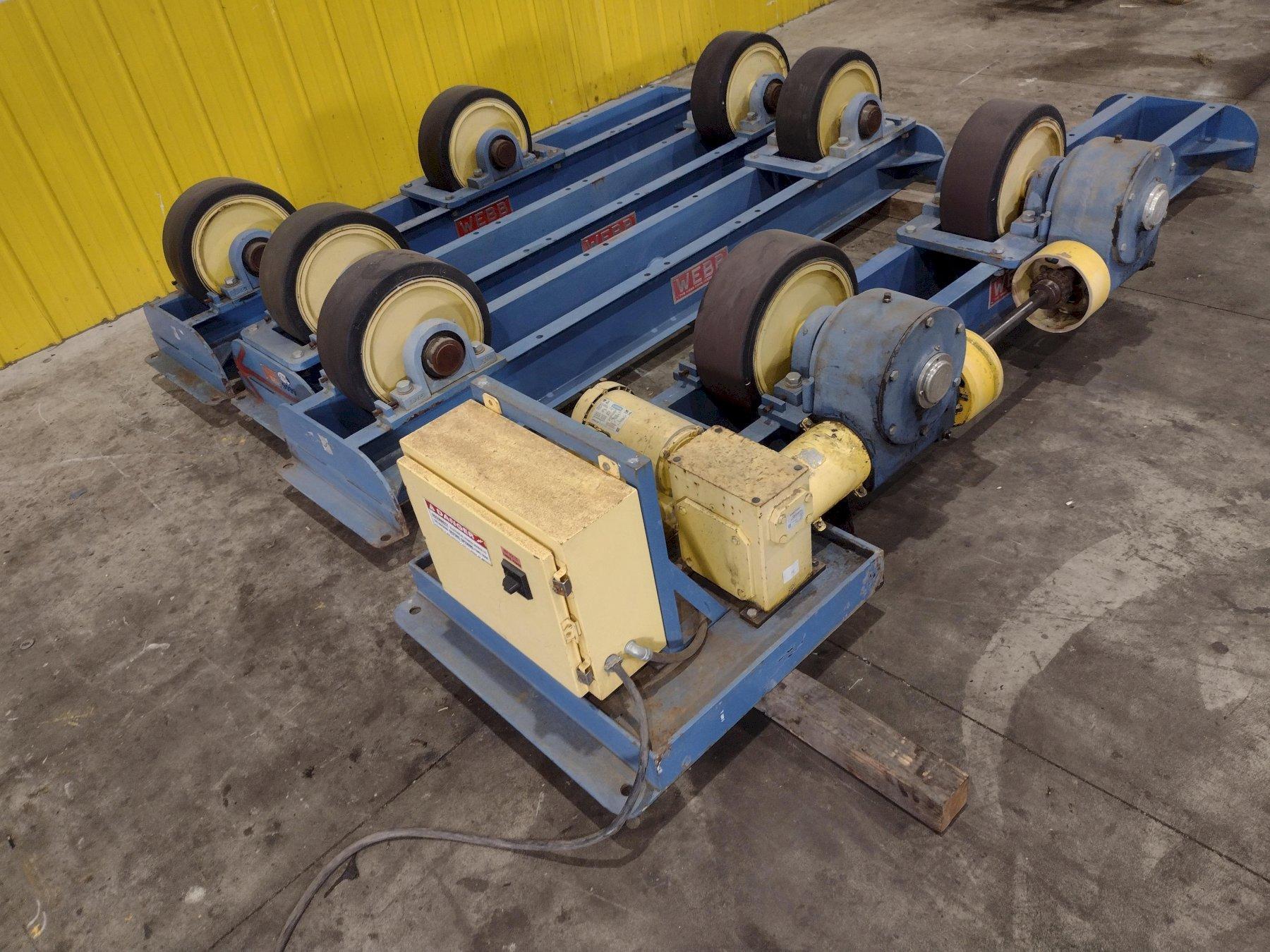

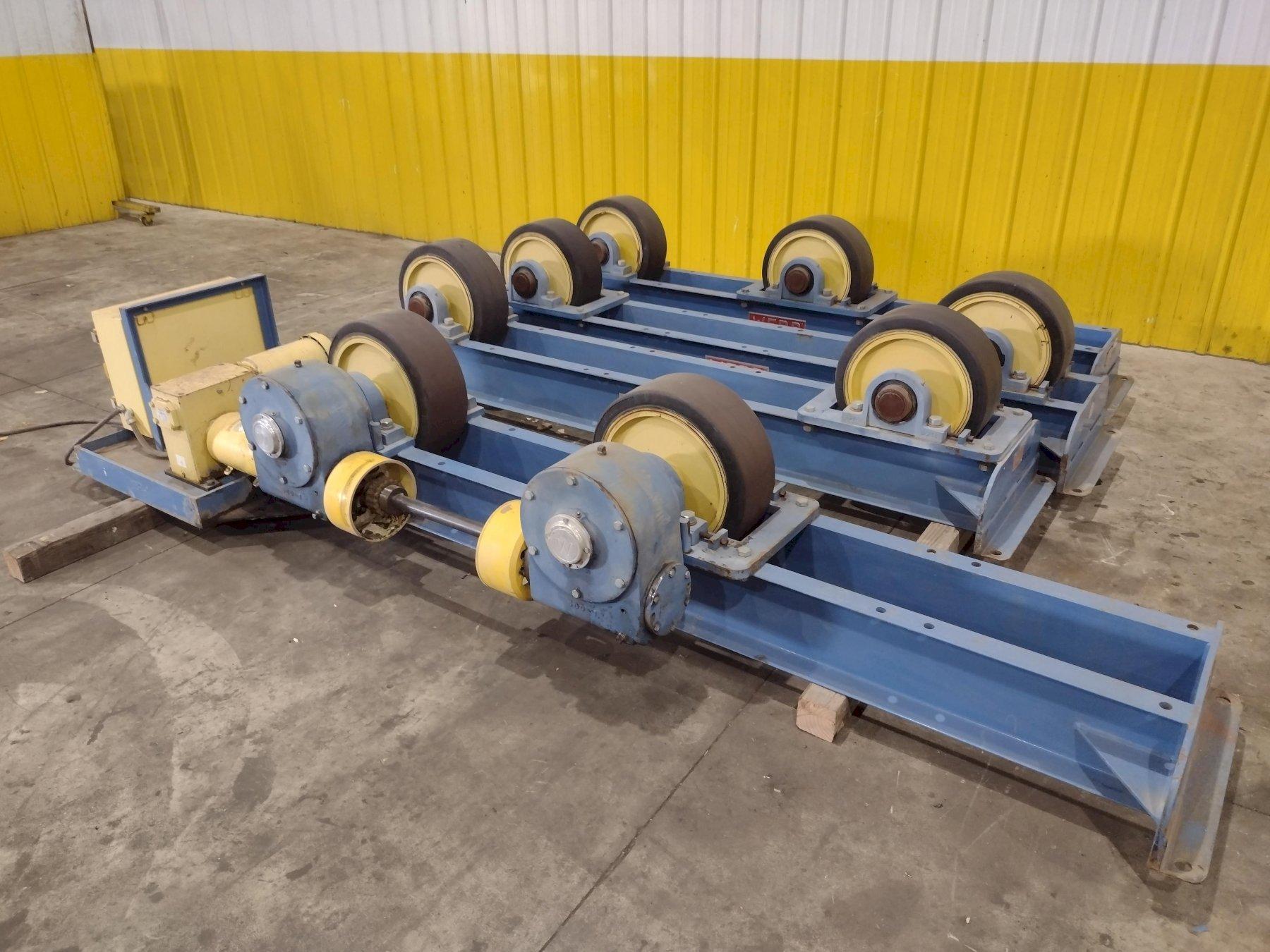

40 TON (80,000 LBS) x 15' WEBB MODEL R-500 POWERED TANK TURNING ROLLS; 1 DRIVE & 3 IDLERS: STOCK

Manufacturer

WEBB

Category

Rolls

Type

ROLLS, POWER TANK TURNING

Stock

23747

Model

R-500

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

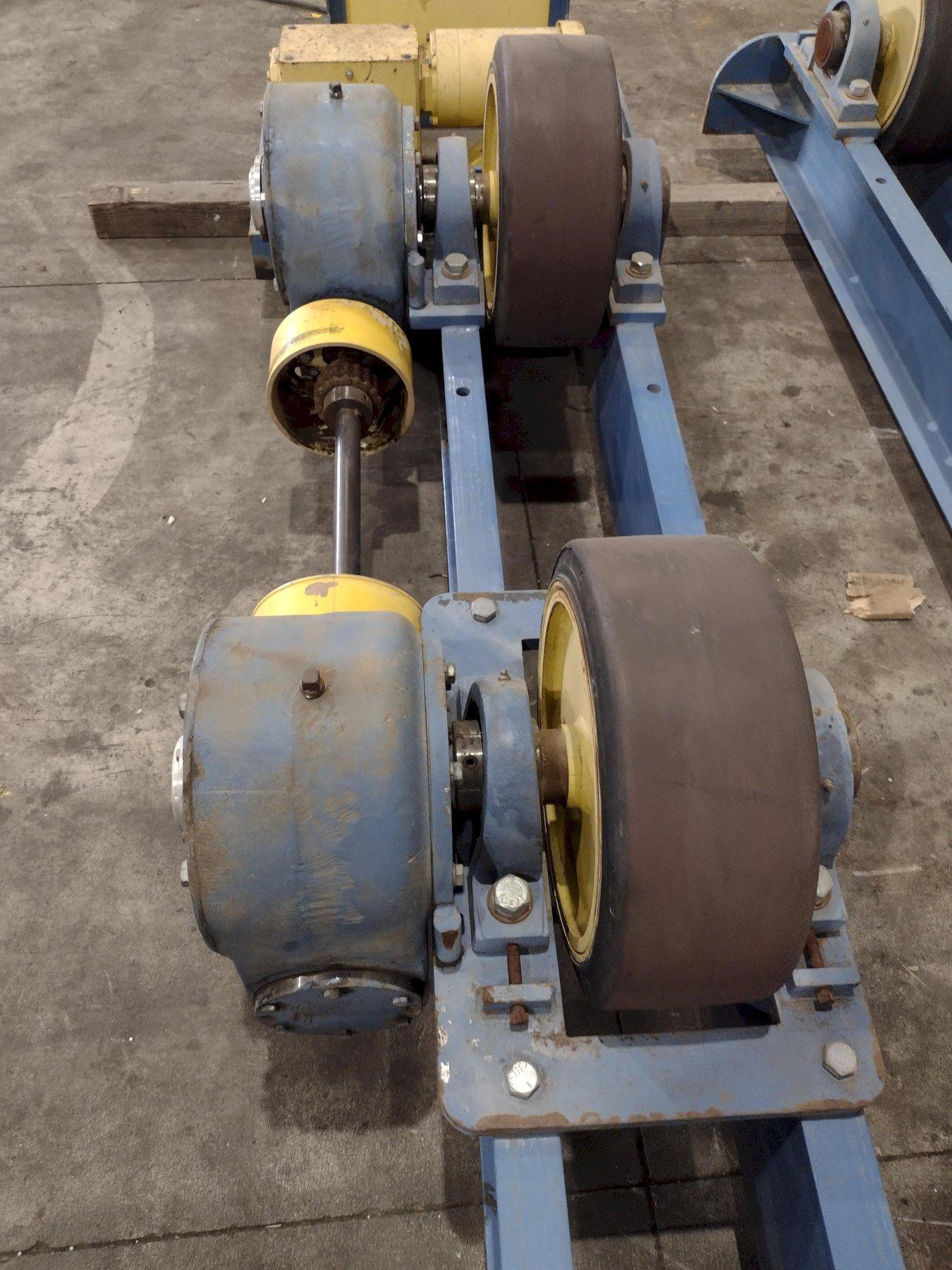

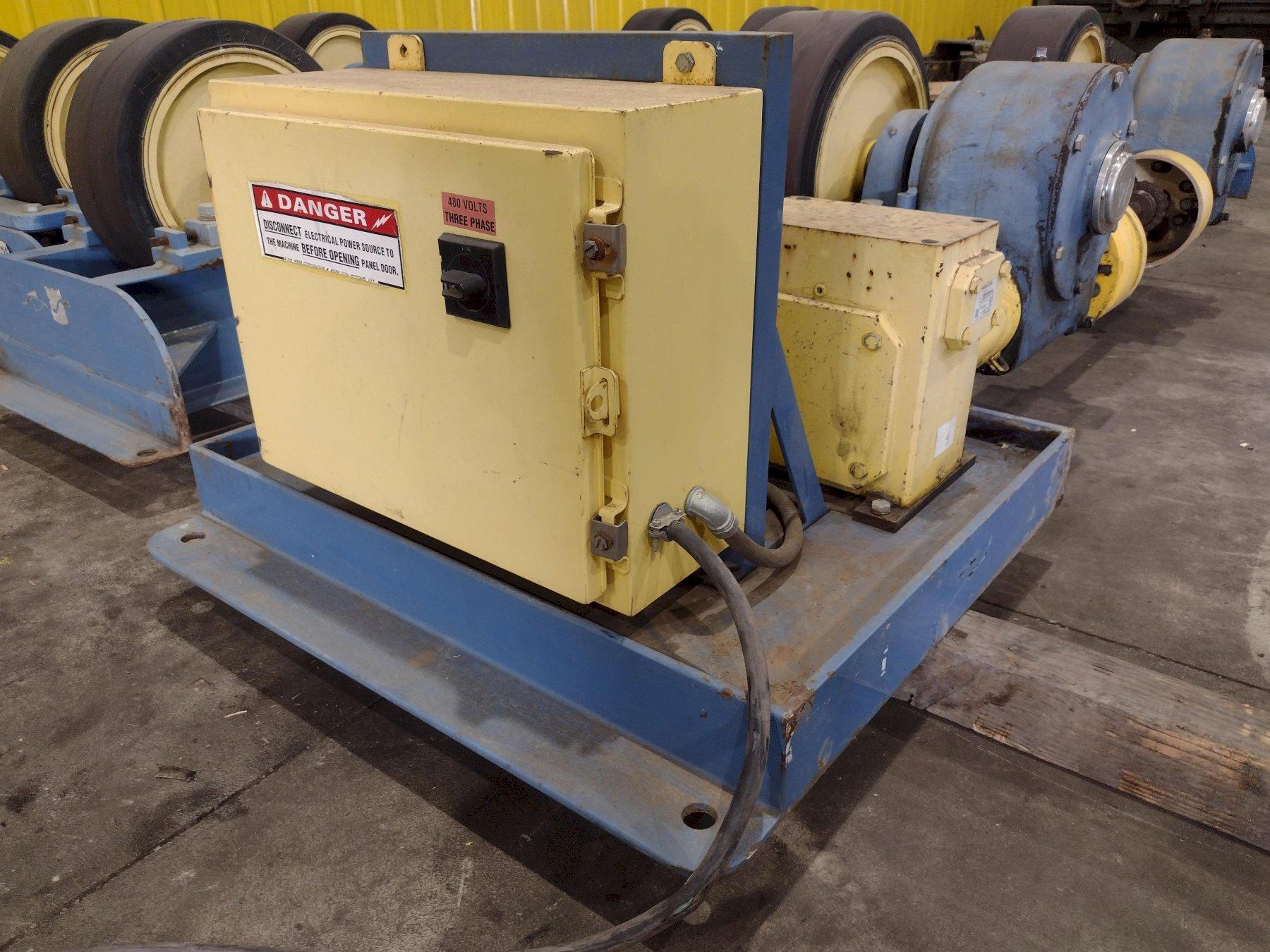

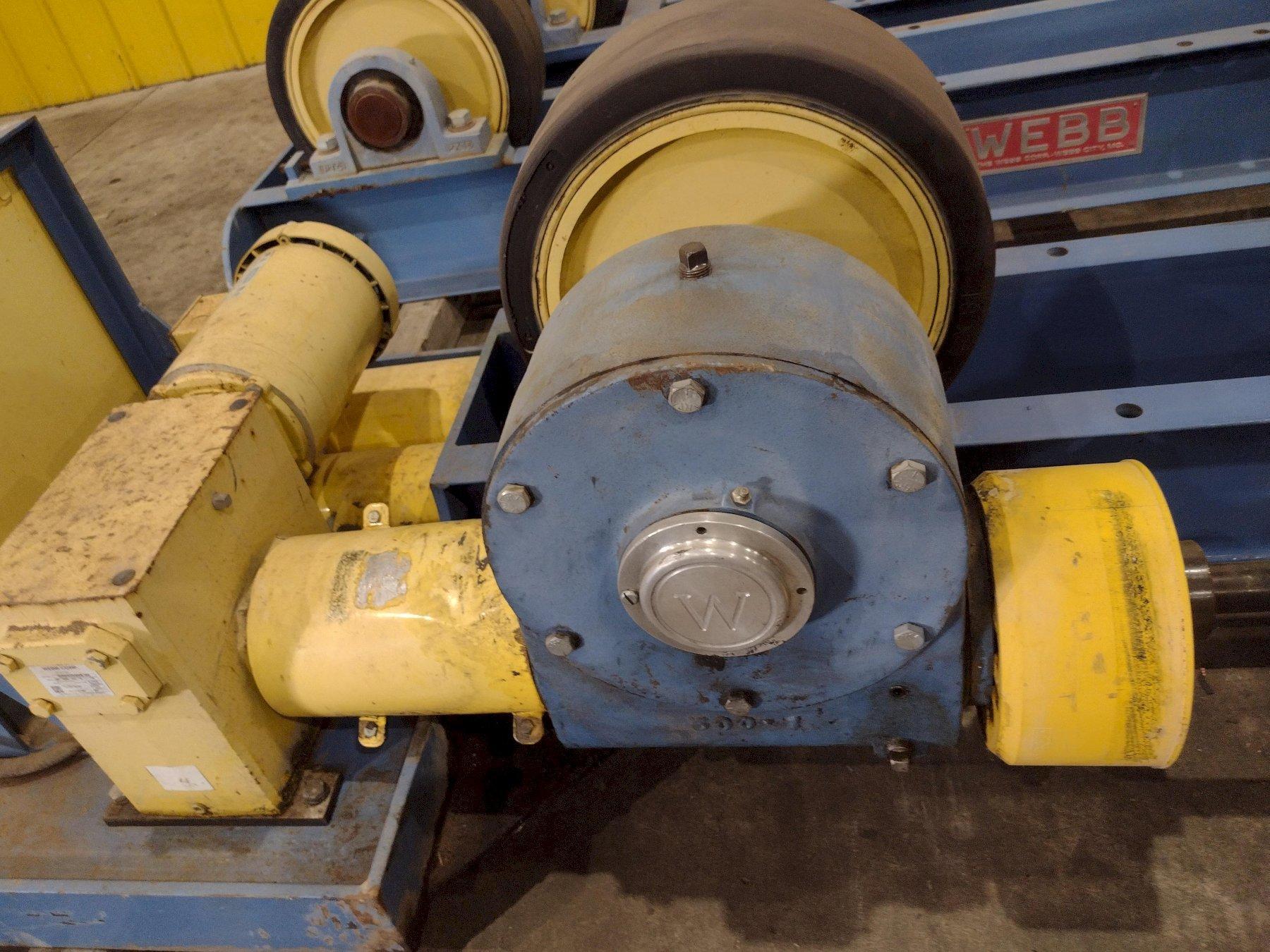

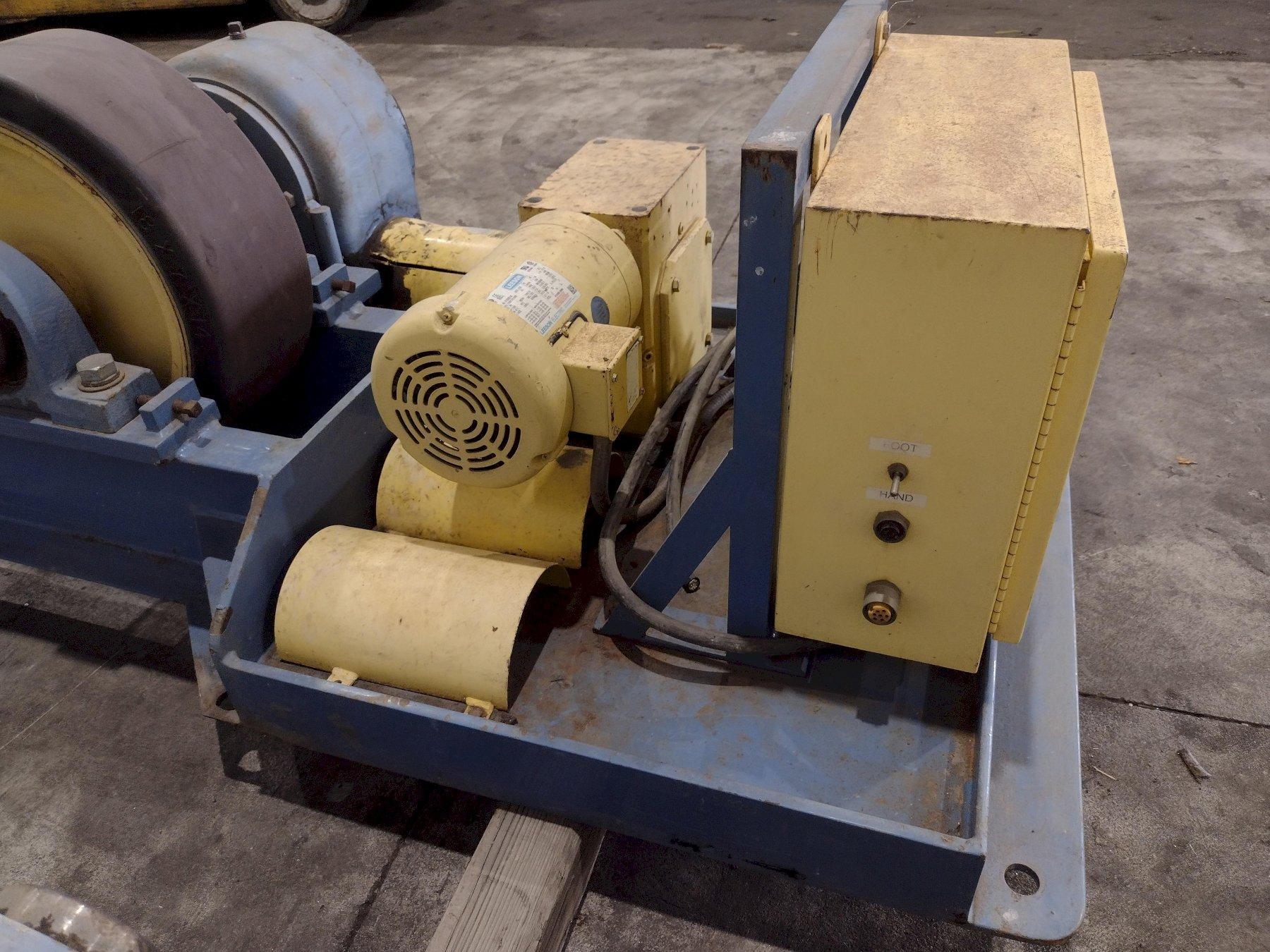

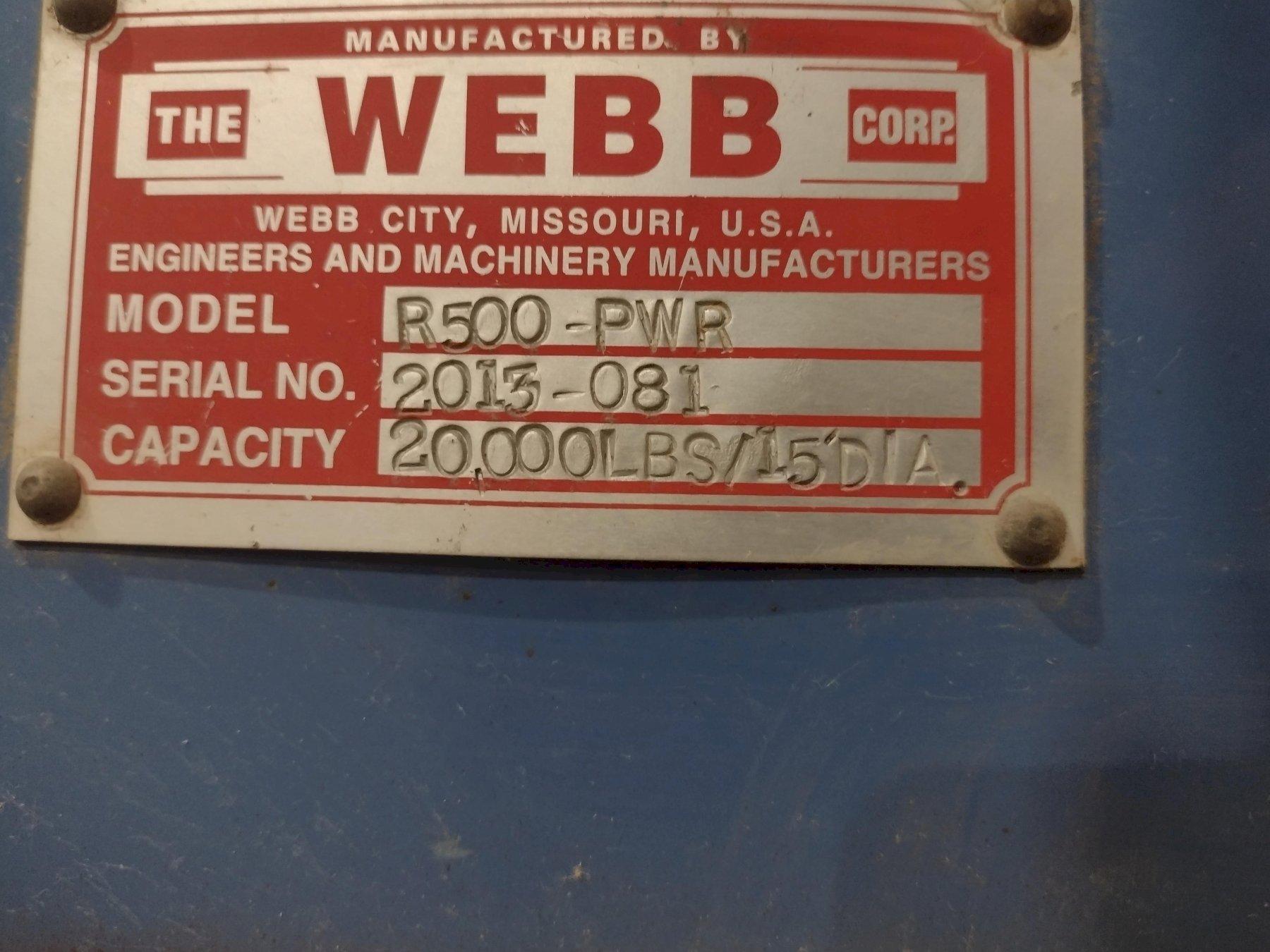

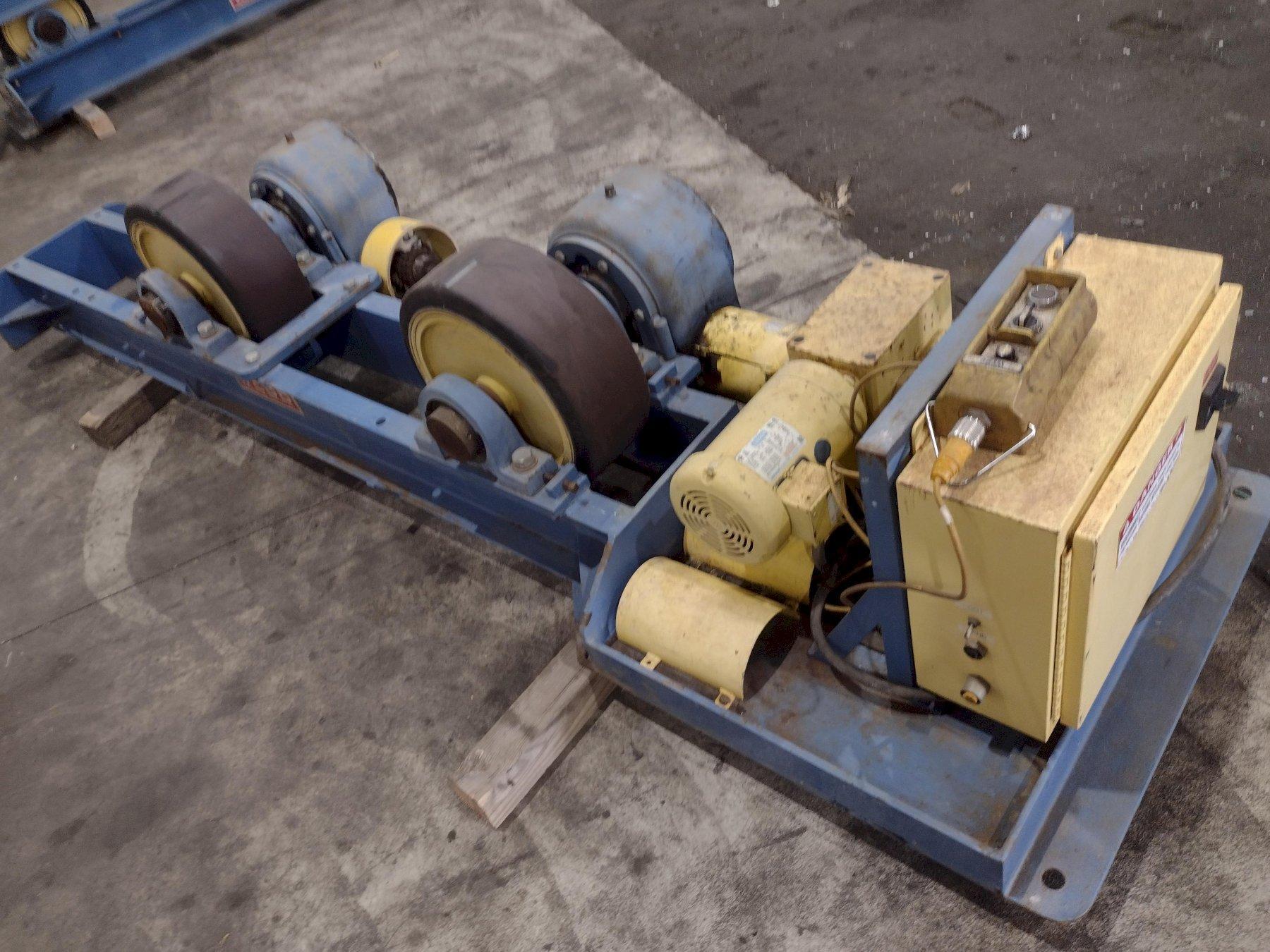

(3) Power Units
SERIAL 2013-O81
MODEL R-500
CAPACITY  20,000lb
Diameter Size up to 15’

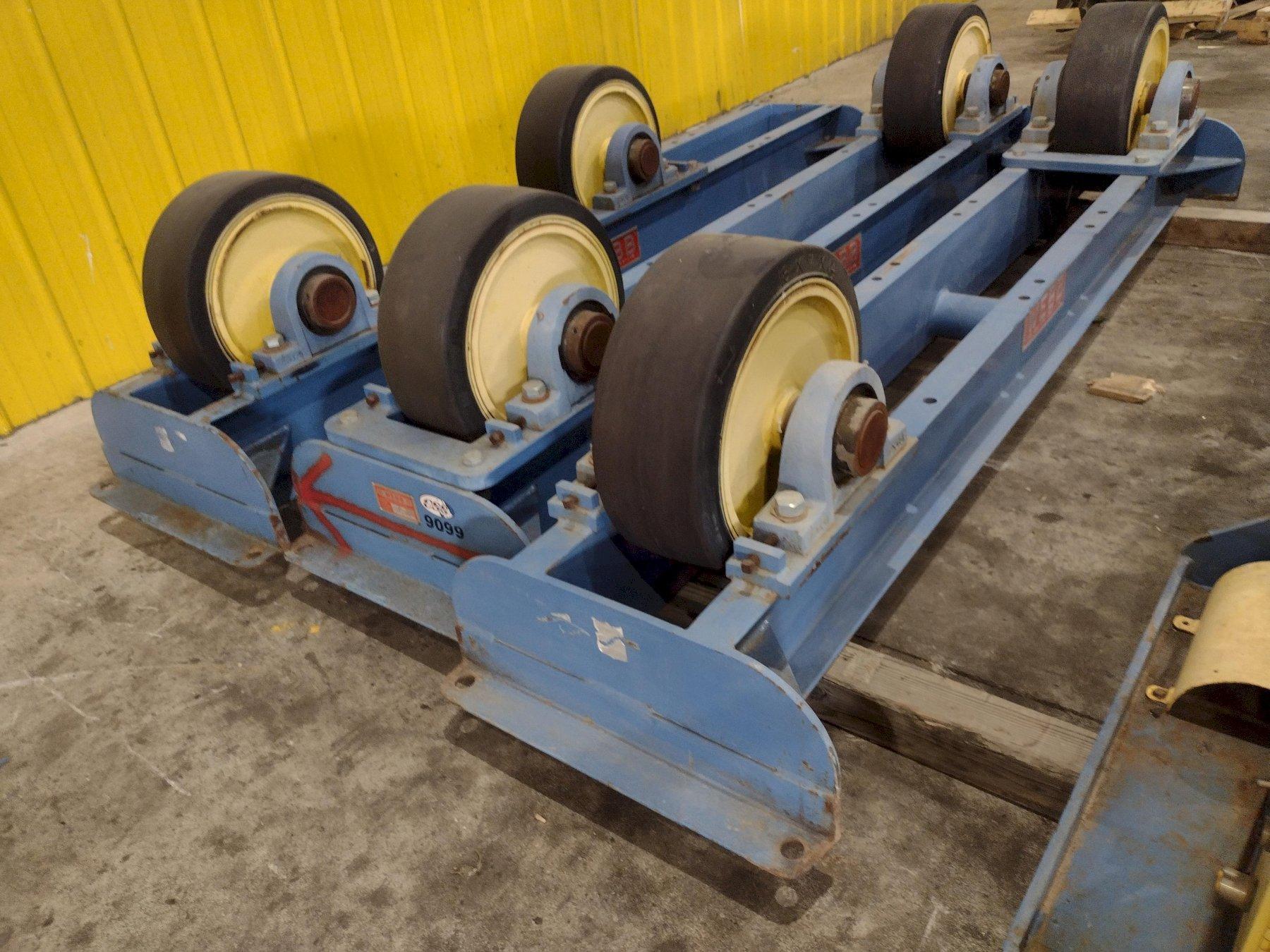

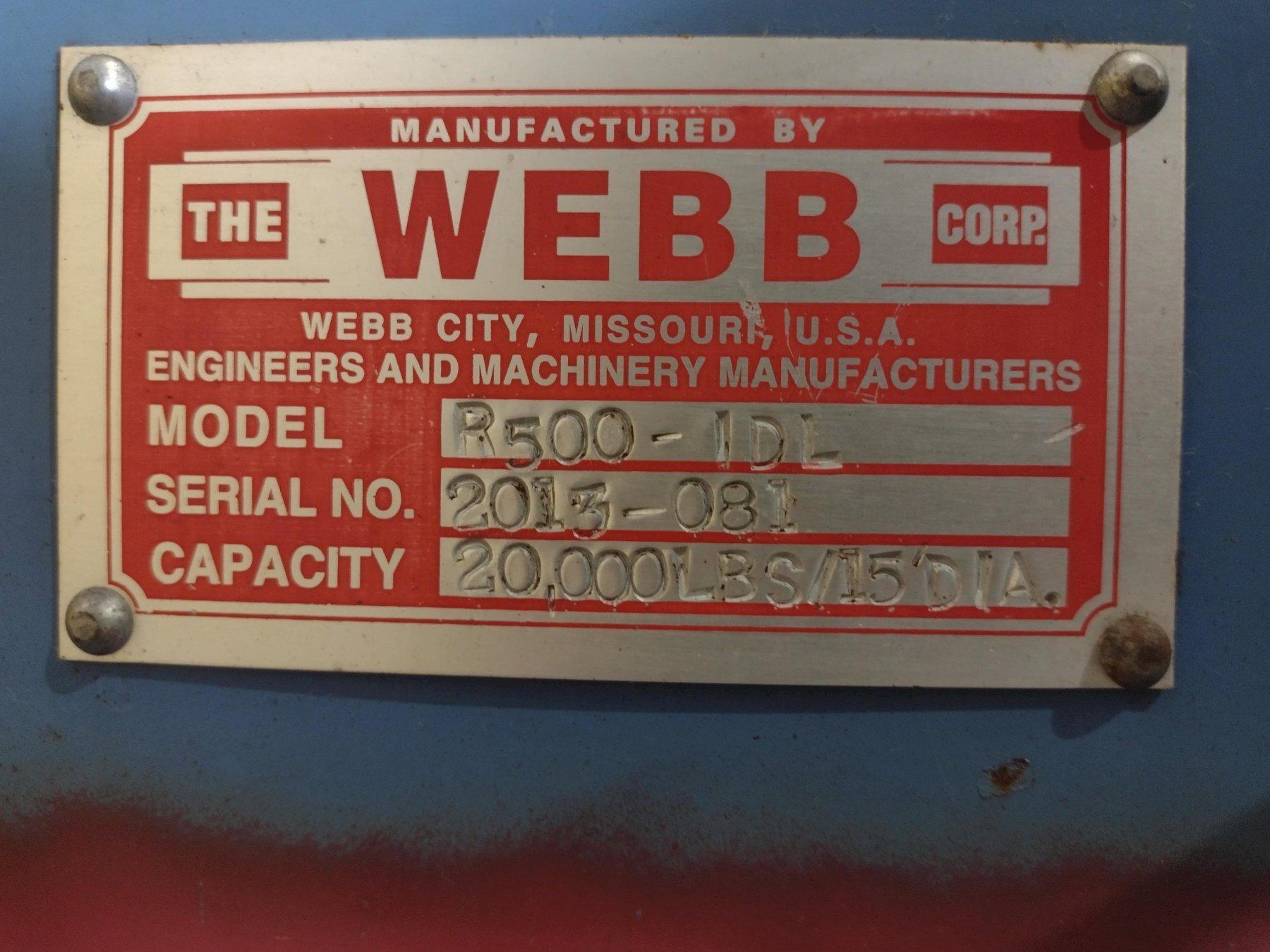

Idler units (quantity 3)  Model R-500 –  20,000lb Capacity each- up to 15’ Diameter Size

Total capacity 4 rolls, 80,000 lbs, 40 ton

R-500 SPECS

Turning Capacity(1 Idler) in Tons 20
Weight Capacity, Each Unit, in Tons 10

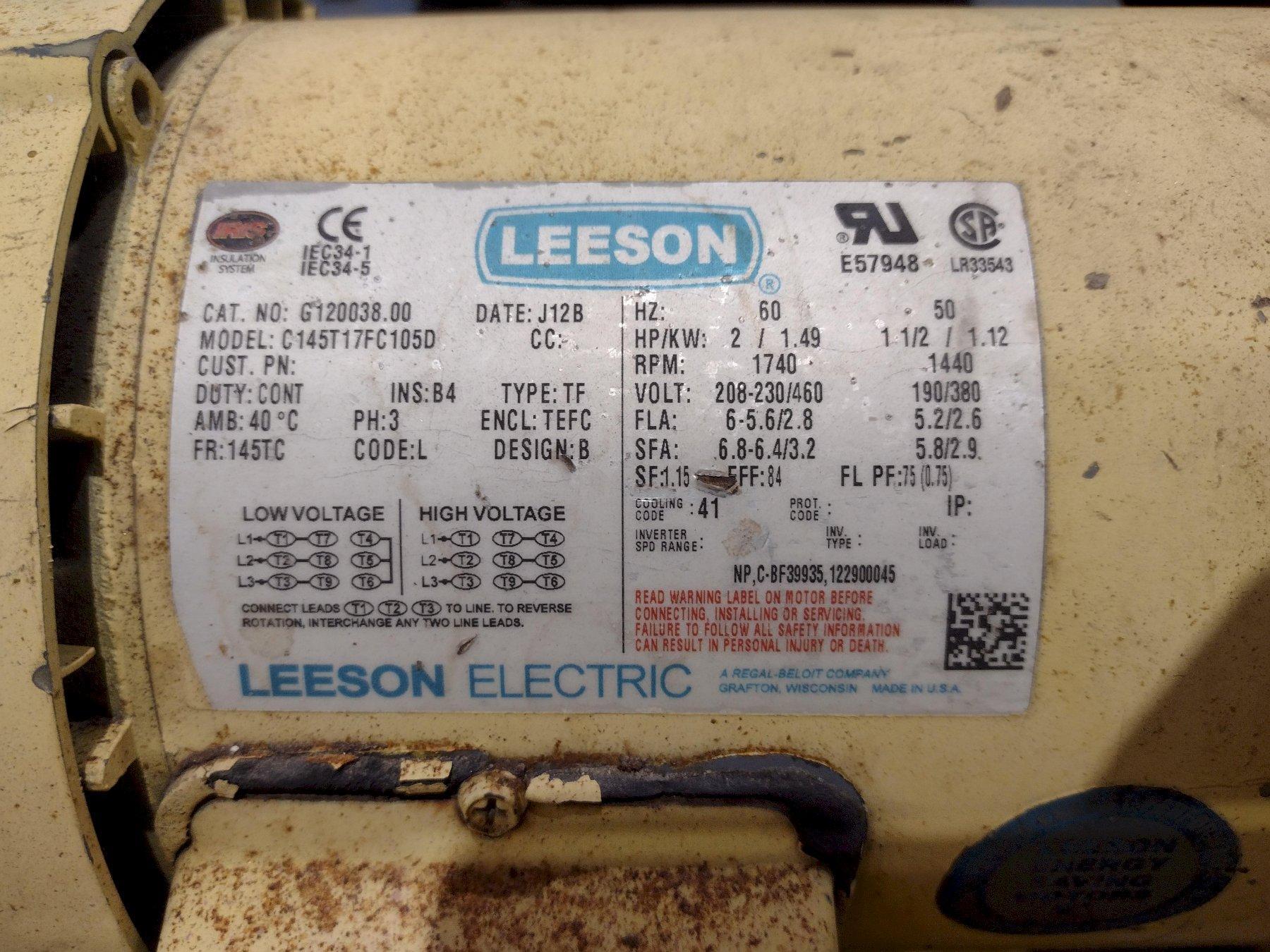

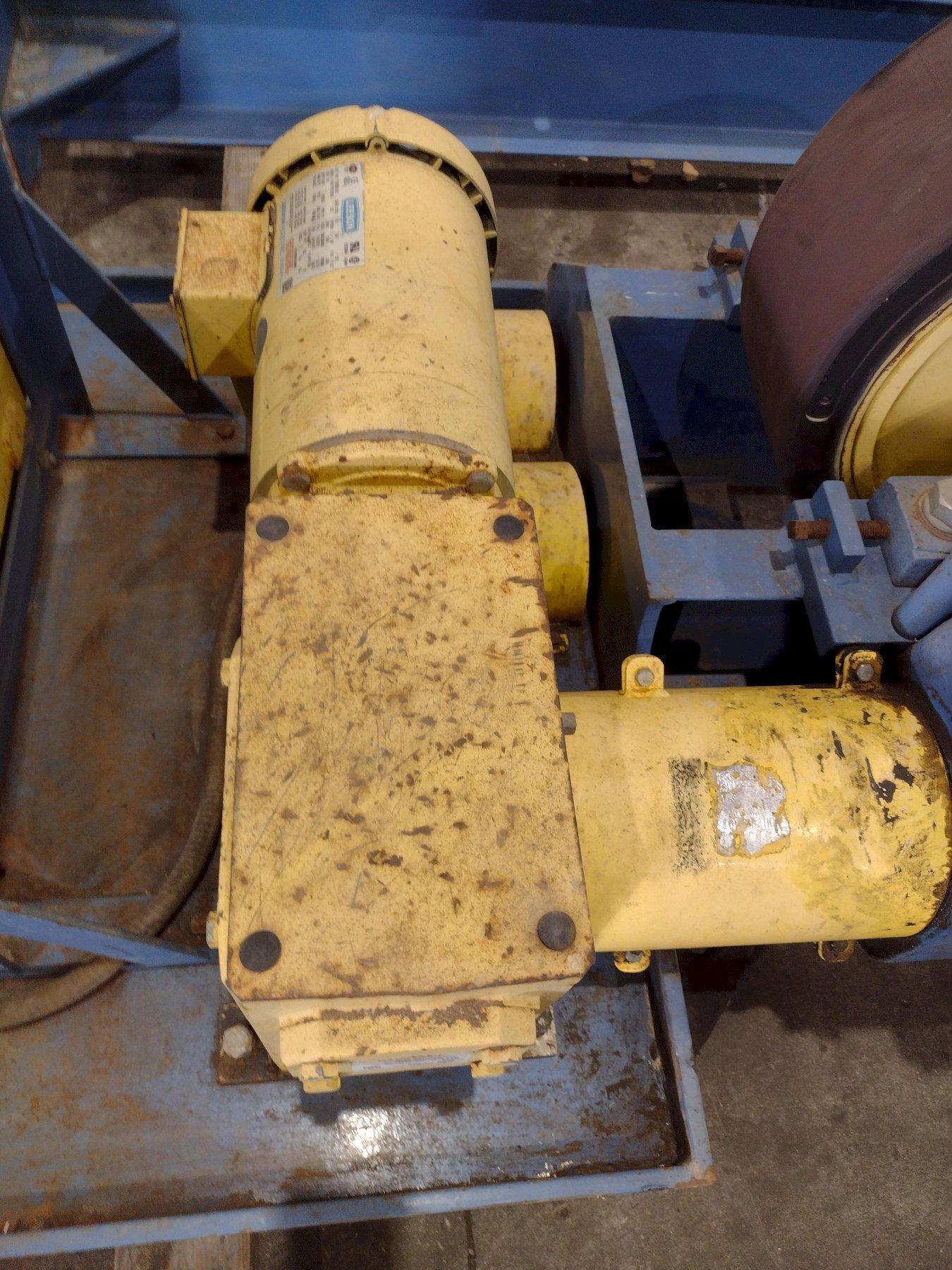

Motor Horsepower 2

Speed Range, IPM 7-58
Wheel Face Width 7”
Tires Per Axle 1
Maximum Working Diameter 15’
Minimum Working Diameter 6”
Tire Diameter 18”

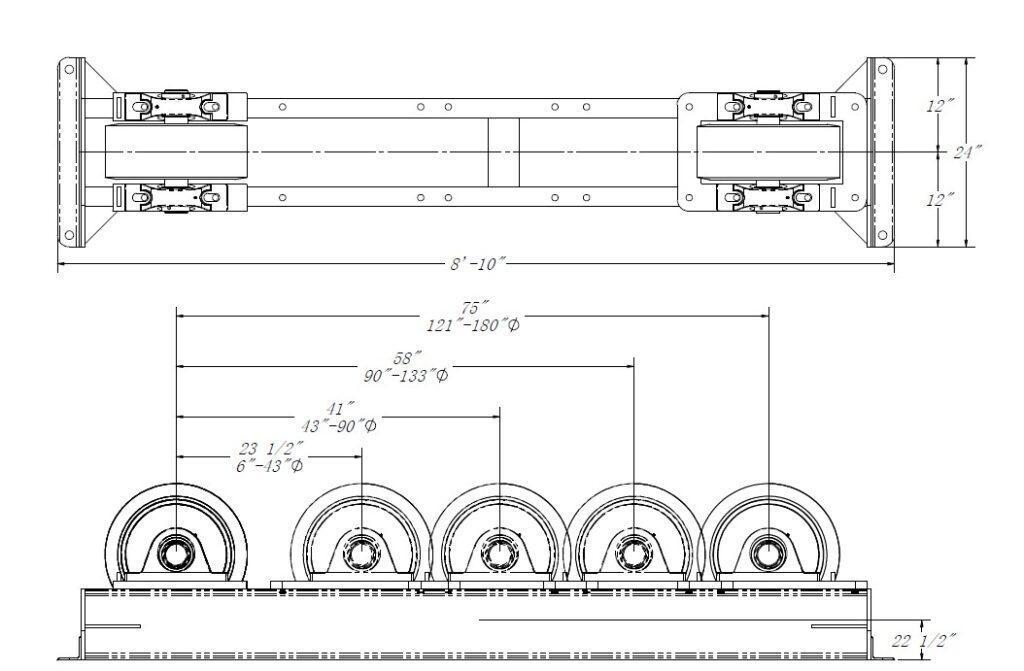

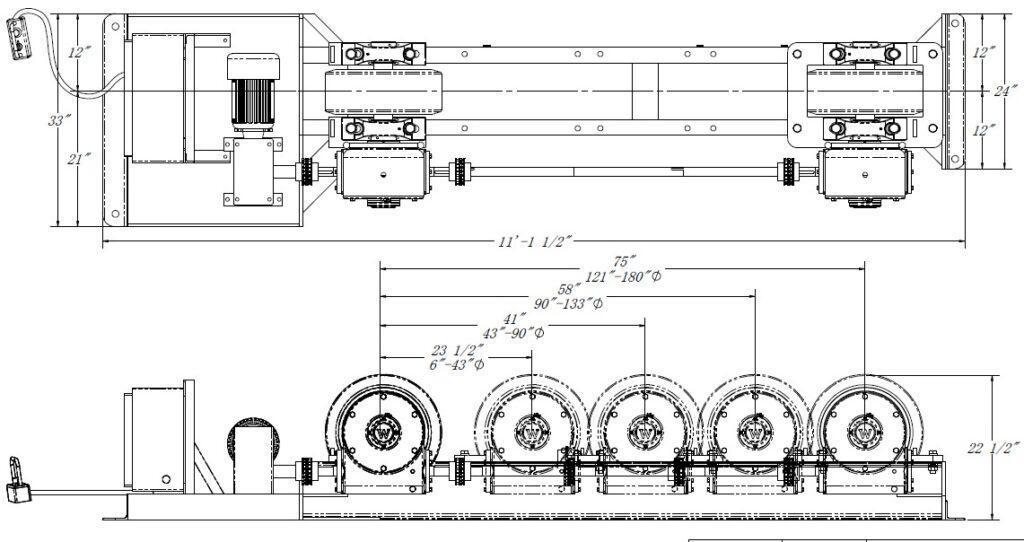

Wheel Center Spacing 23 ½”, 41”, 58”, 75”
Height to Top of Tire 22 ½”

Power Unit Length 133 ½”
Power Unit Width 33”
Power Unit Shipping Weight 2,200lbs

Idler Unit Length 106”
Idler Unit Width 24“
Idler Unit Shipping Weight 850bs
