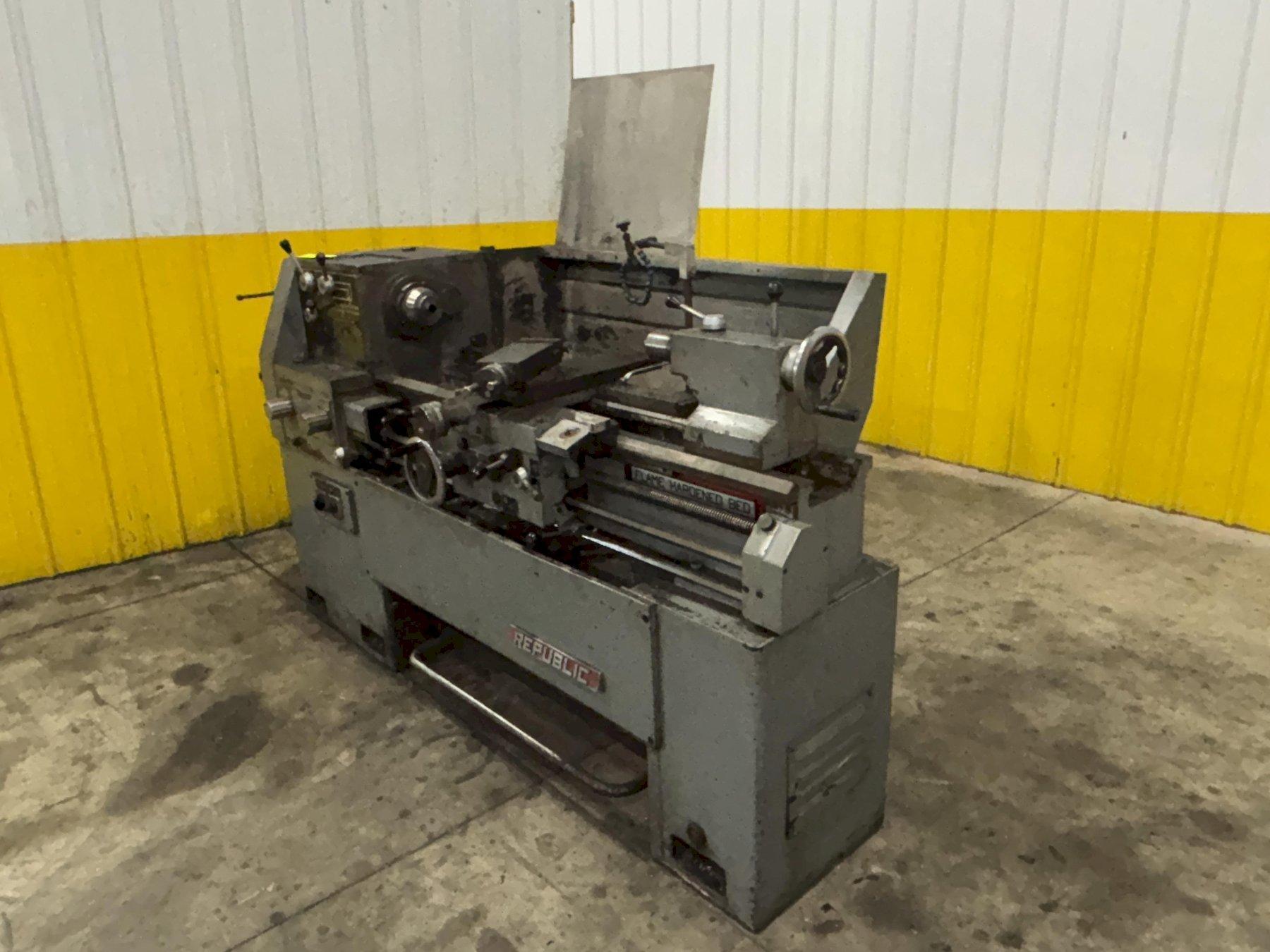

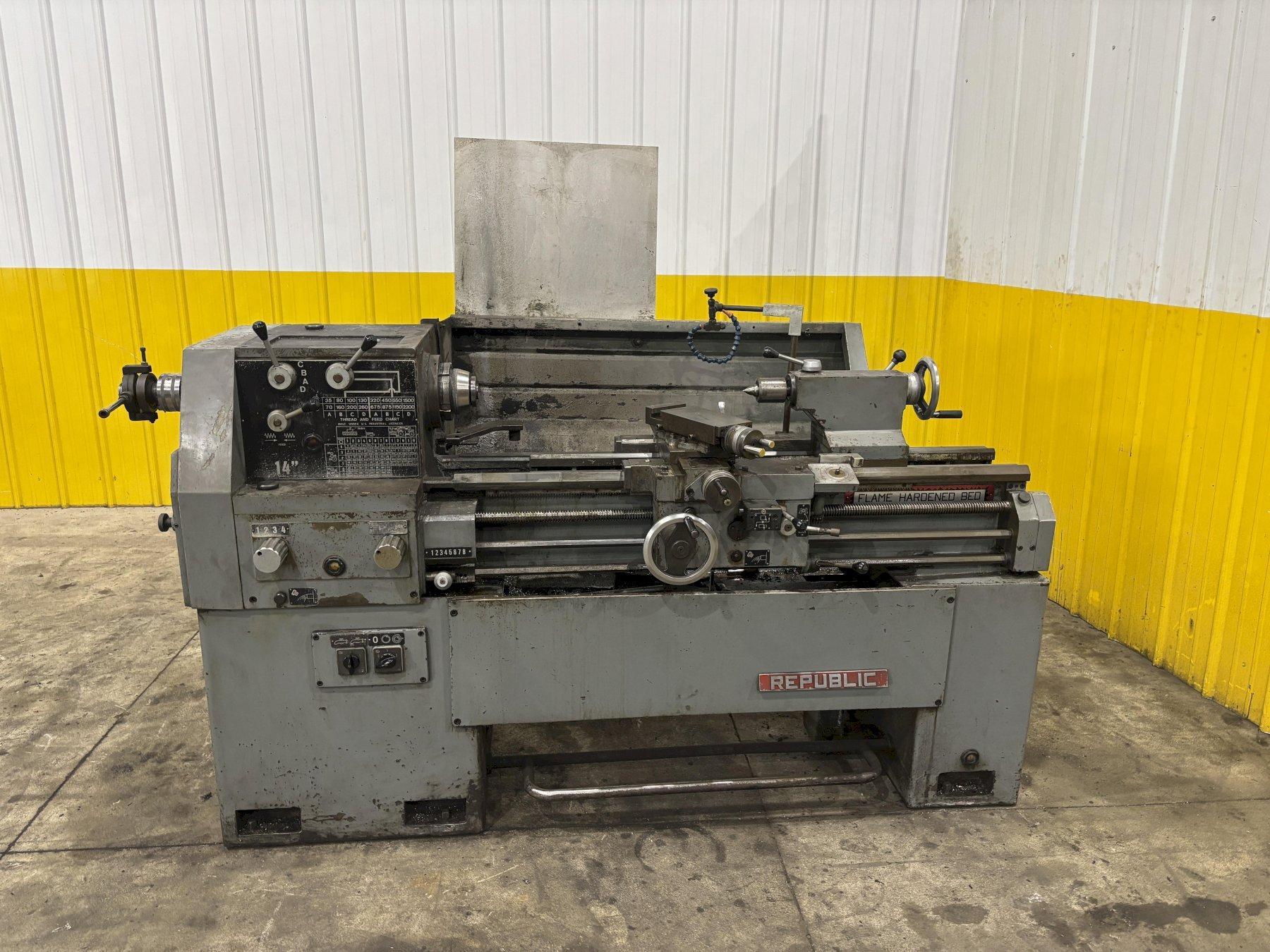

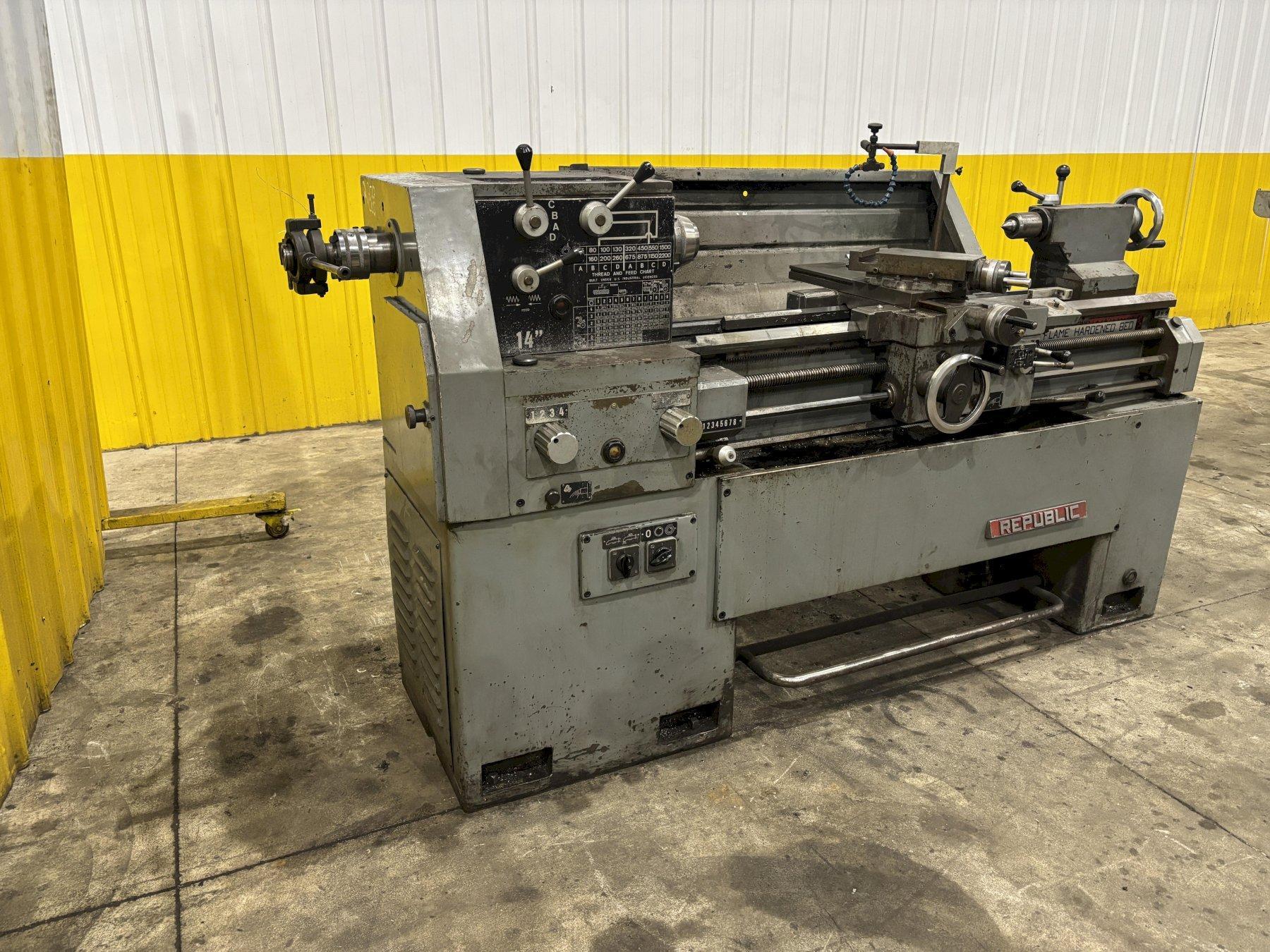

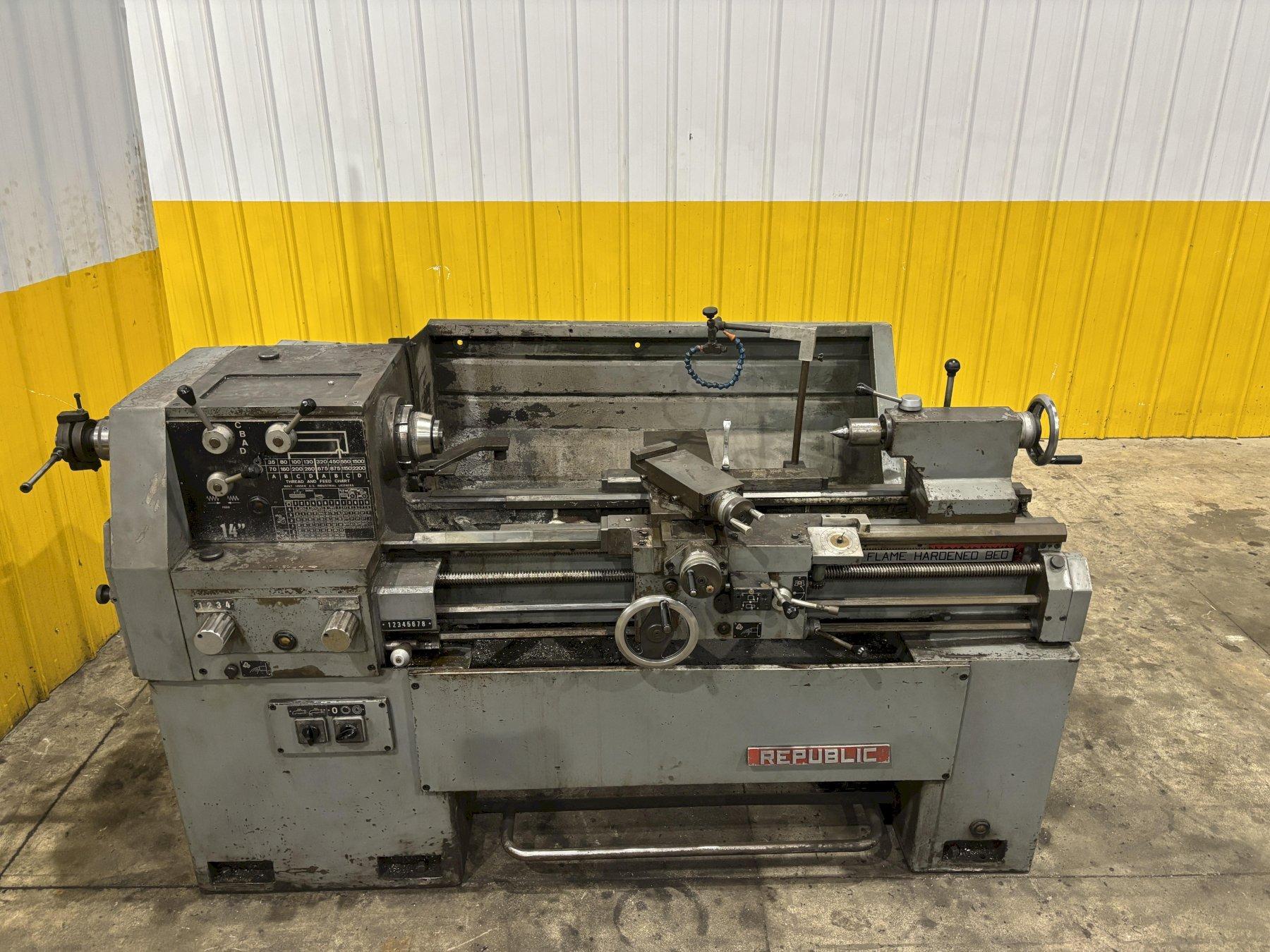

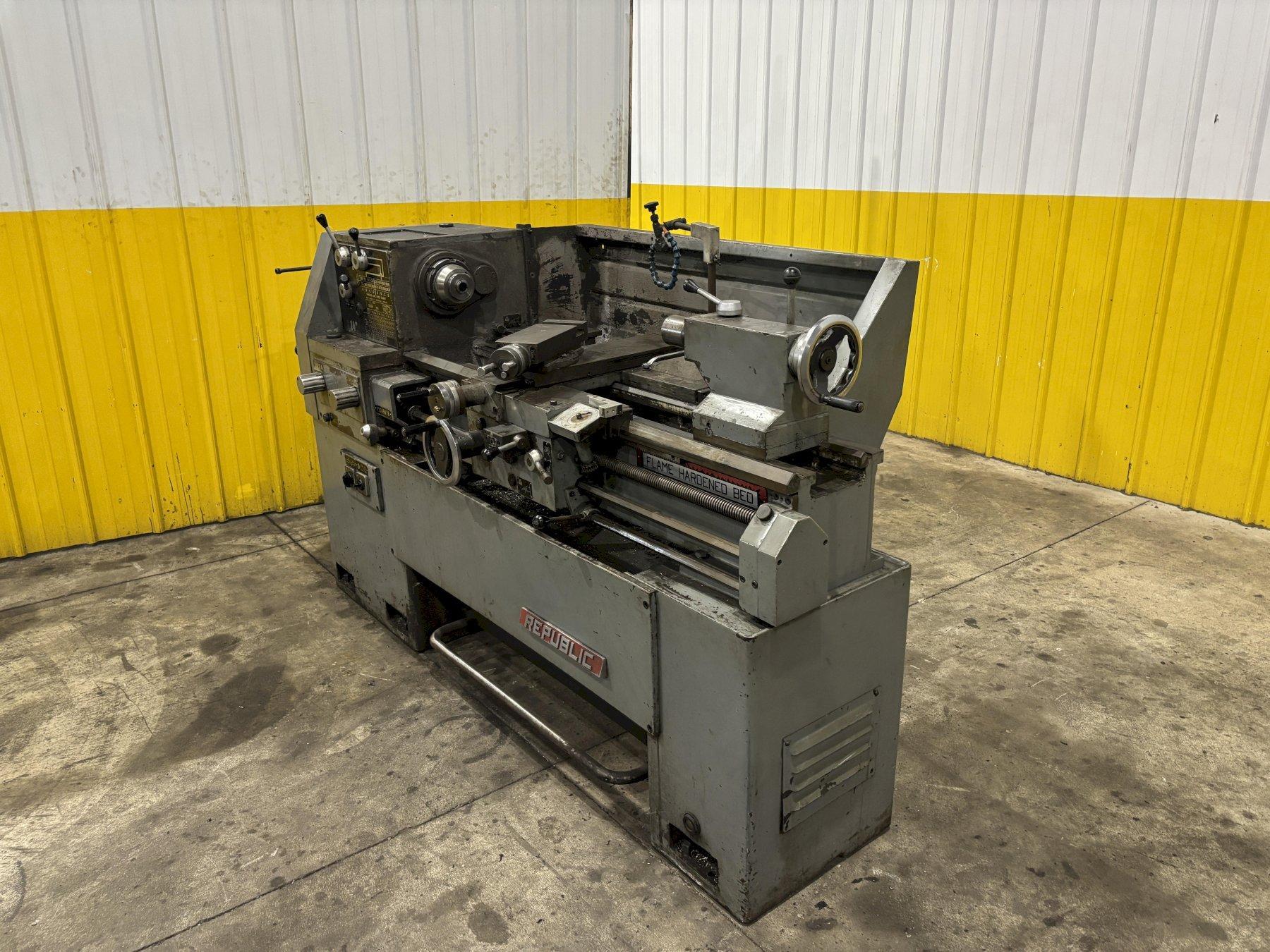

14" X 40" REPUBLIC MODEL #14 ENGINE LATHE WITH METRIC & 2" HOLE: STOCK #23667

Manufacturer

REPUBLIC

Category

Lathes

Type

LATHES, ENGINE

Stock

23667

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

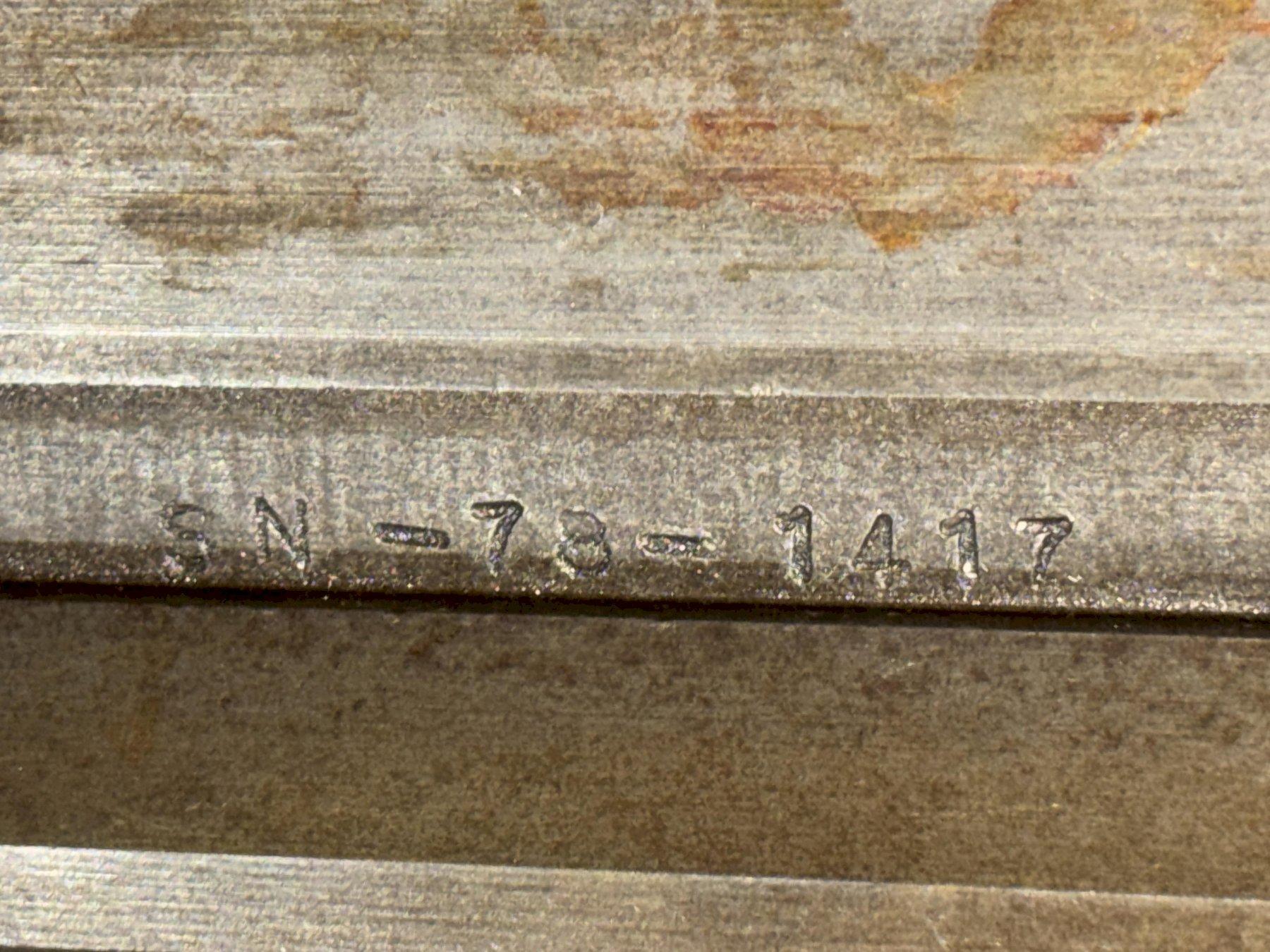

SERIAL ........................... 78-1417
MODEL ............................ #14
Swing over bed ................... 14"
Swing over cross slide ........... 8-1/2"
Distance between centers ......... 40"

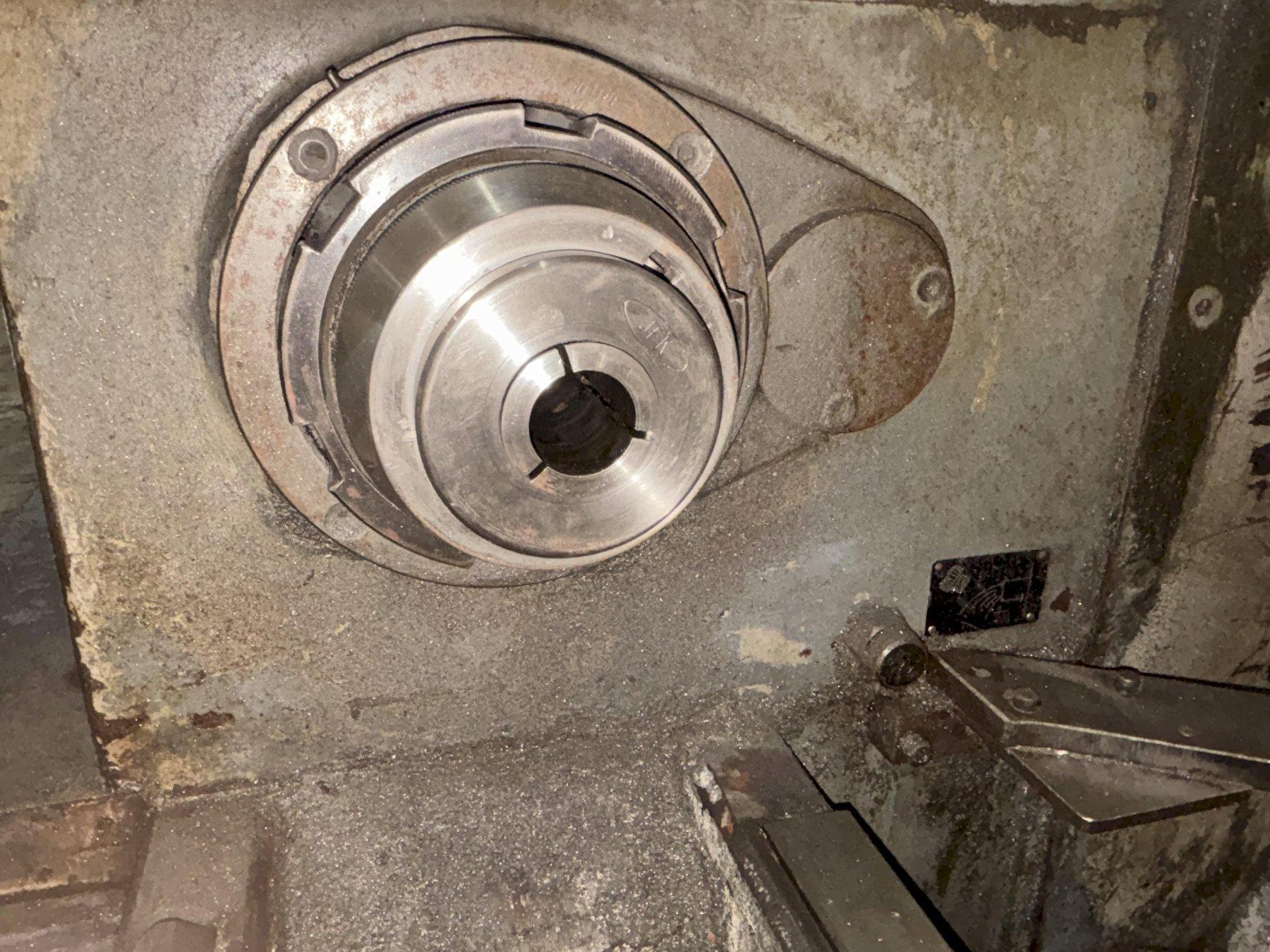

Spindle nose ..................... D1-6 camlock
Spindle bore diameter ............ 2"

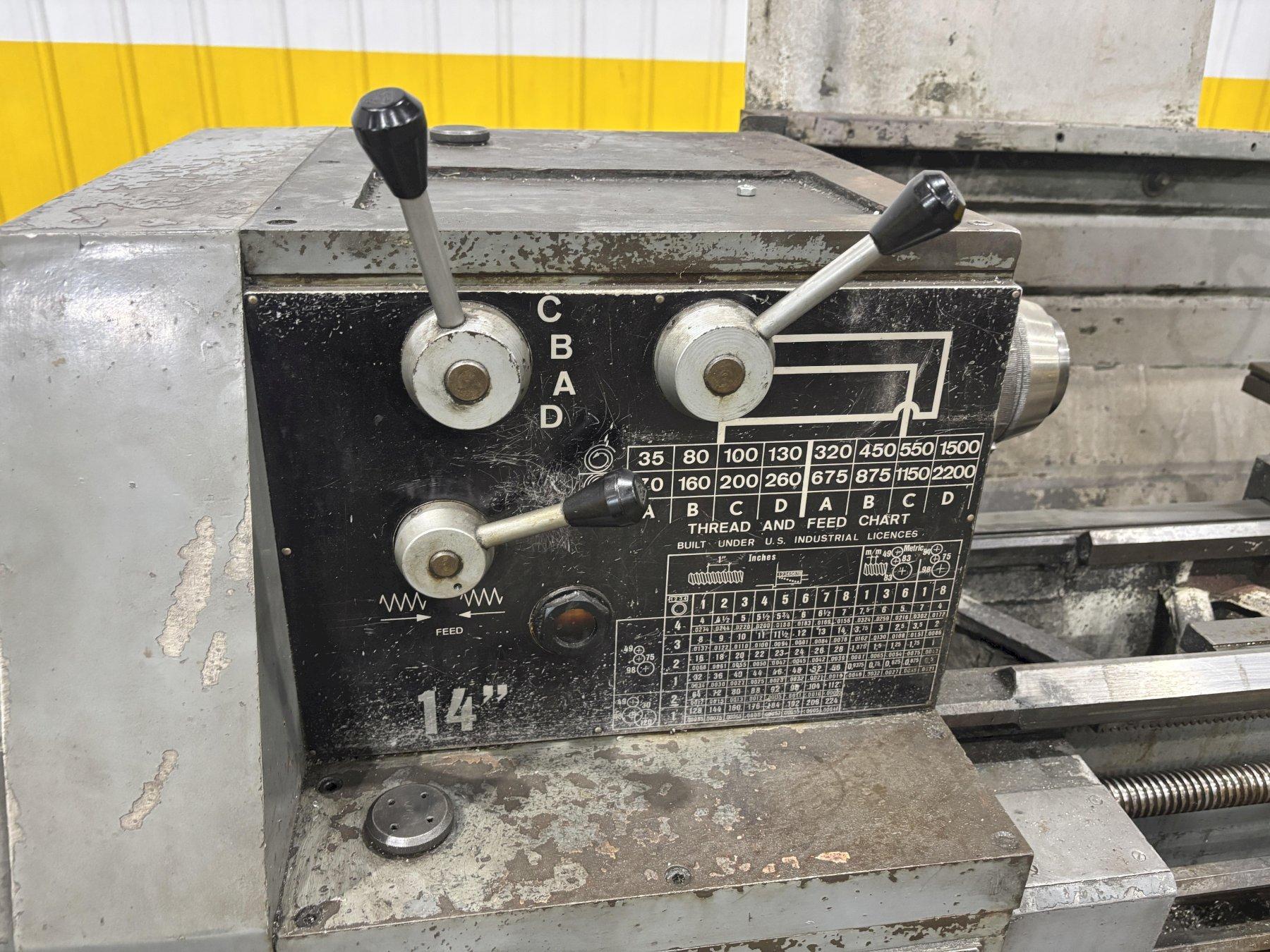

Spindle speeds (16) .............. 35 TO 2,200
Cross slide travel ............... 9"
Compound slide travel ............ 5"
Longitudinal feeds ............... 0.002 to 0.066
Cross feeds ...................... 0.001 to 0.033
Inch threads ..................... 2 to 72 TPI (45)
Metric threads ................... 2 to 14 MM (39)
Module Threads ................... 0.3 to 3.5 (18)
Diametral threads ................ 8 to 44 (21)
Tailstock quill diameter ......... 2"

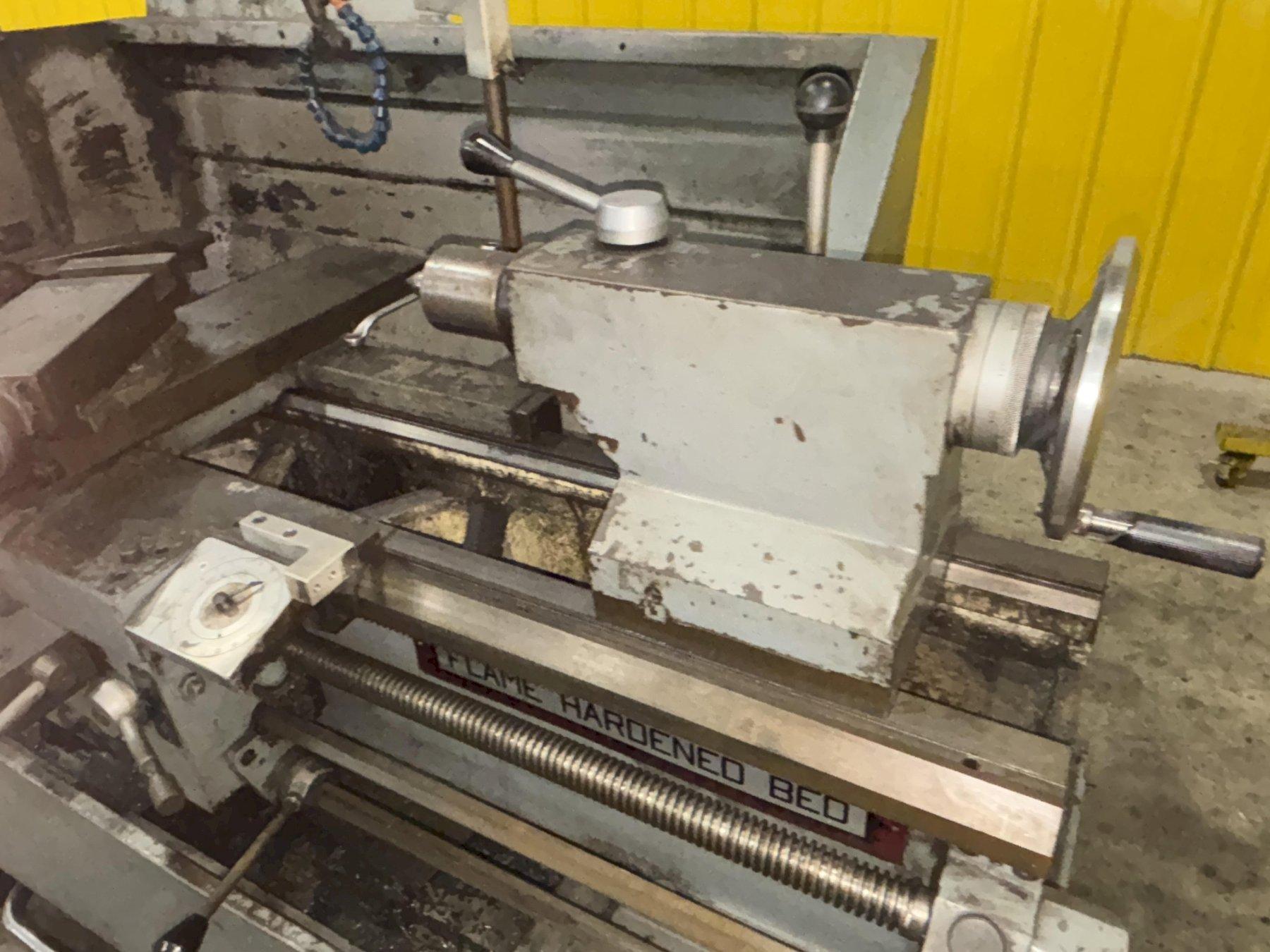

Tailstock quill travel ........... 5-1/2"
Tailstock quill taper ............ #4 MT
Motor ............................ 5 HP
