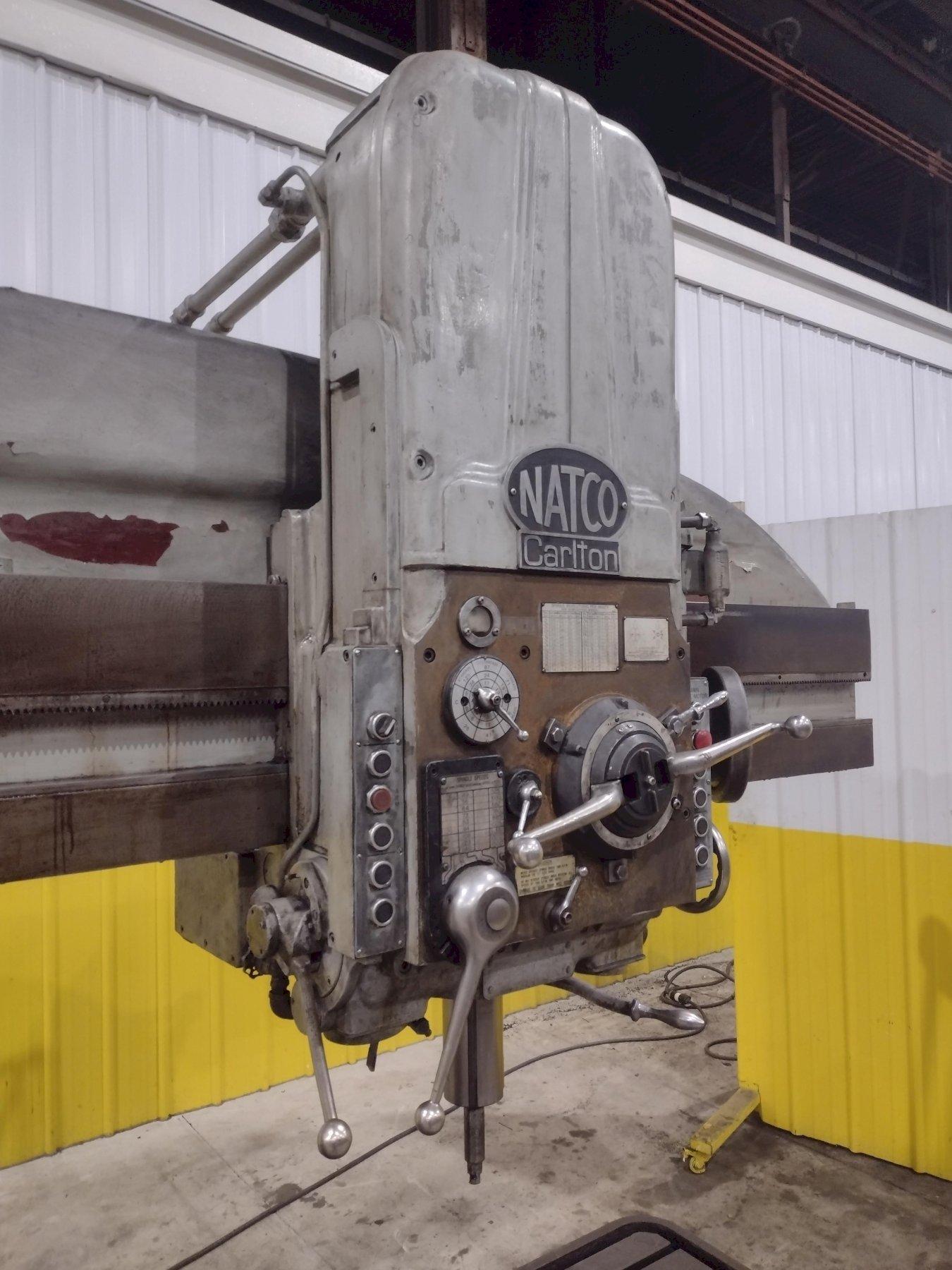

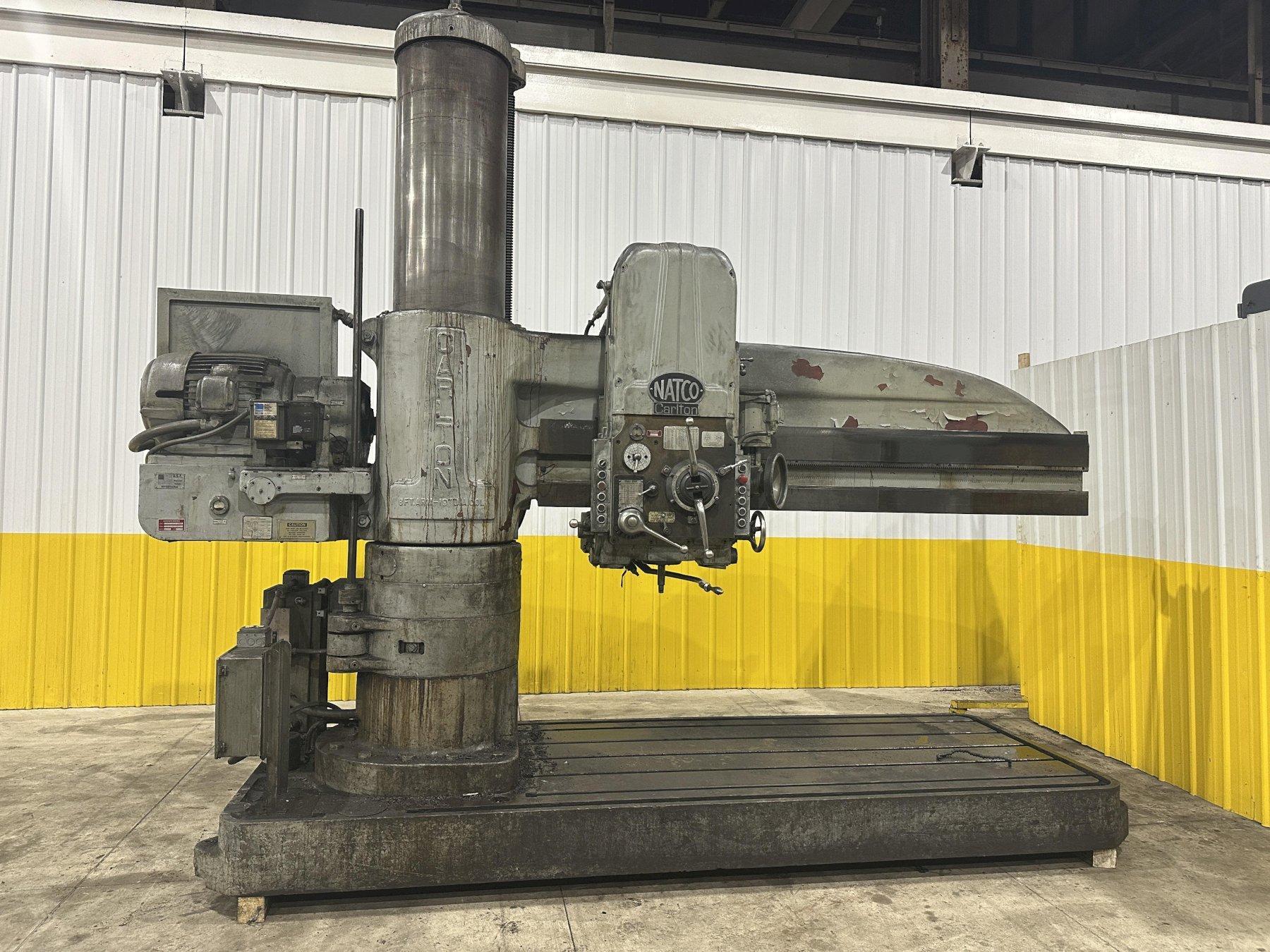

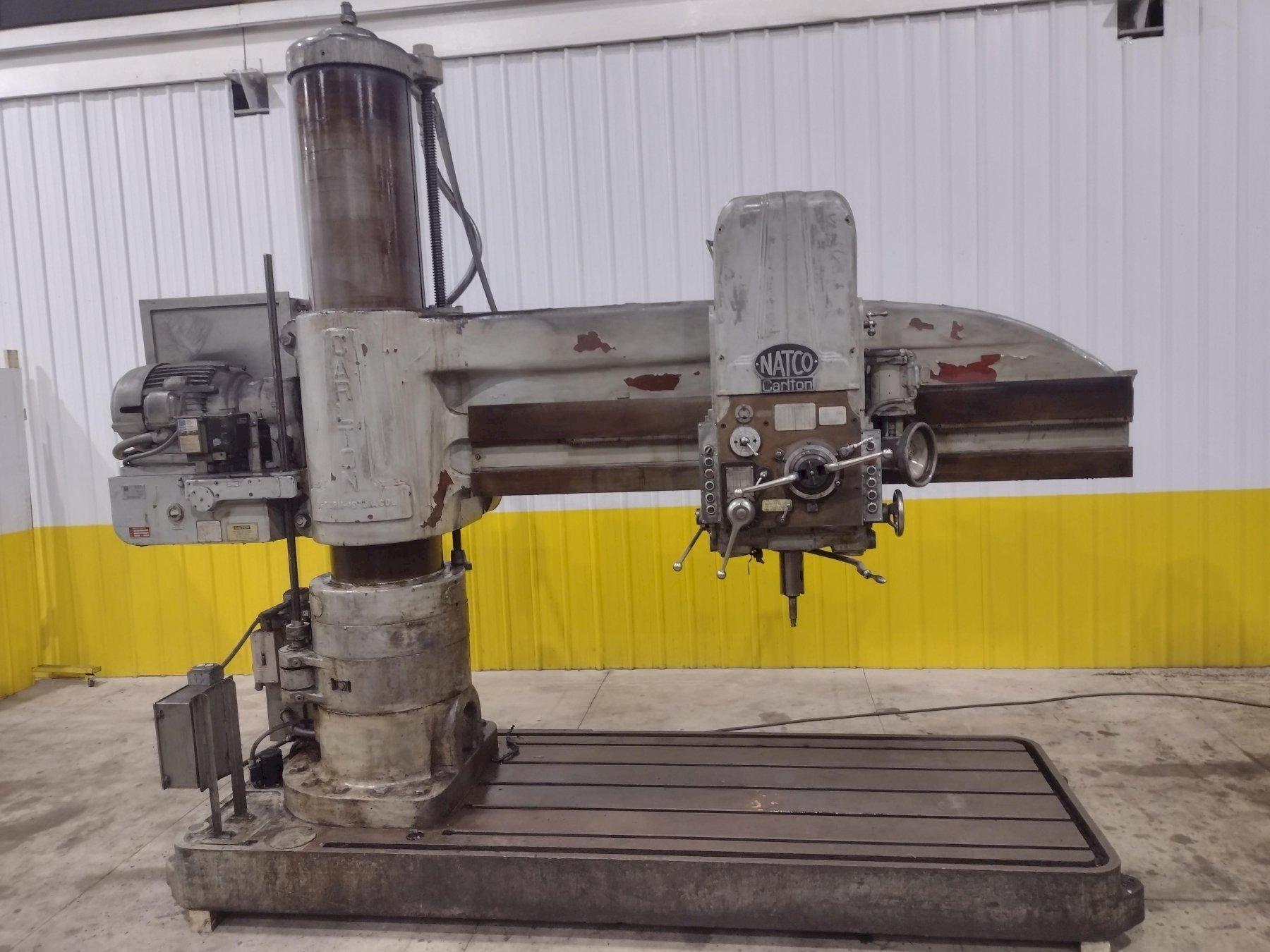

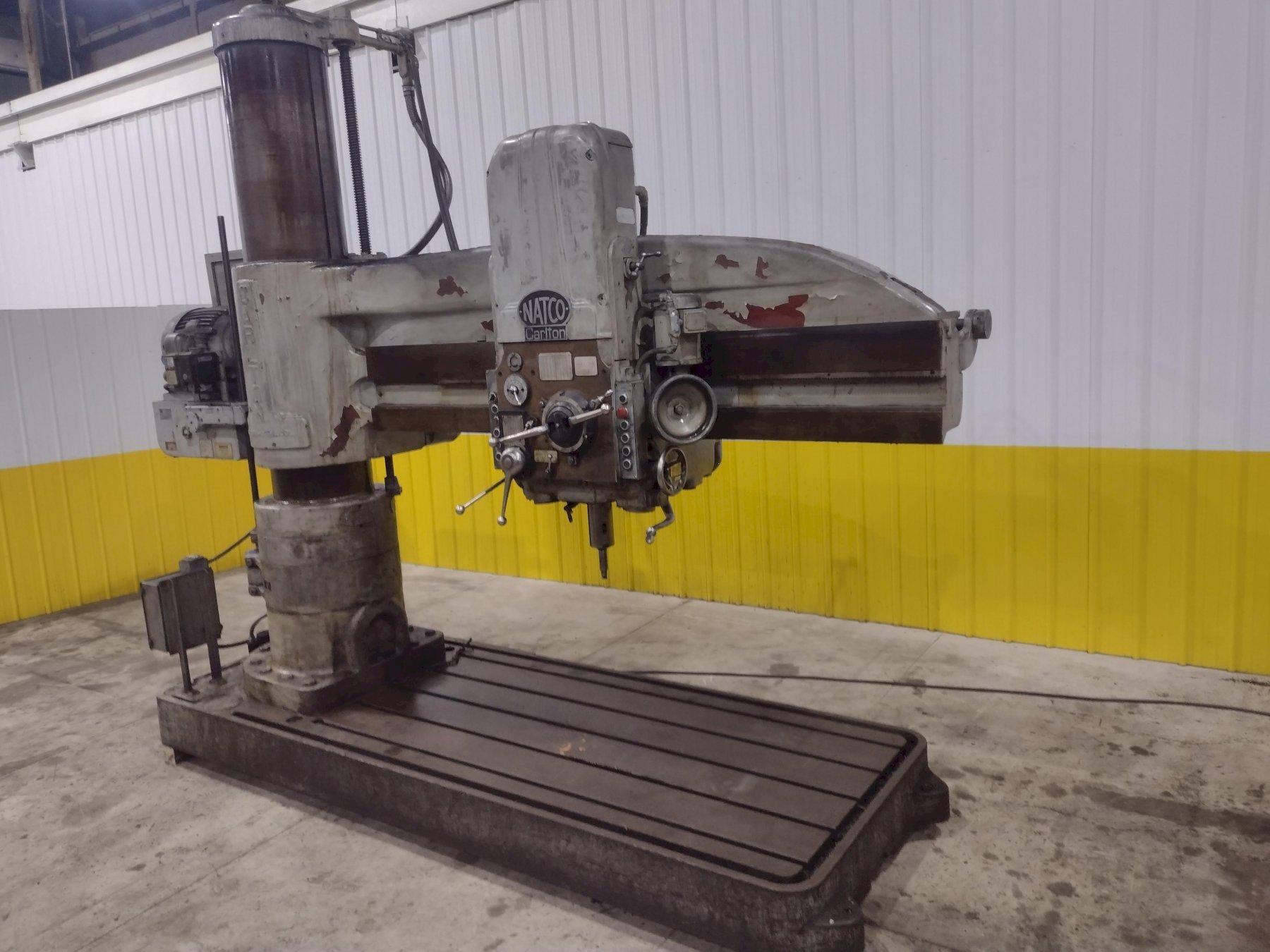

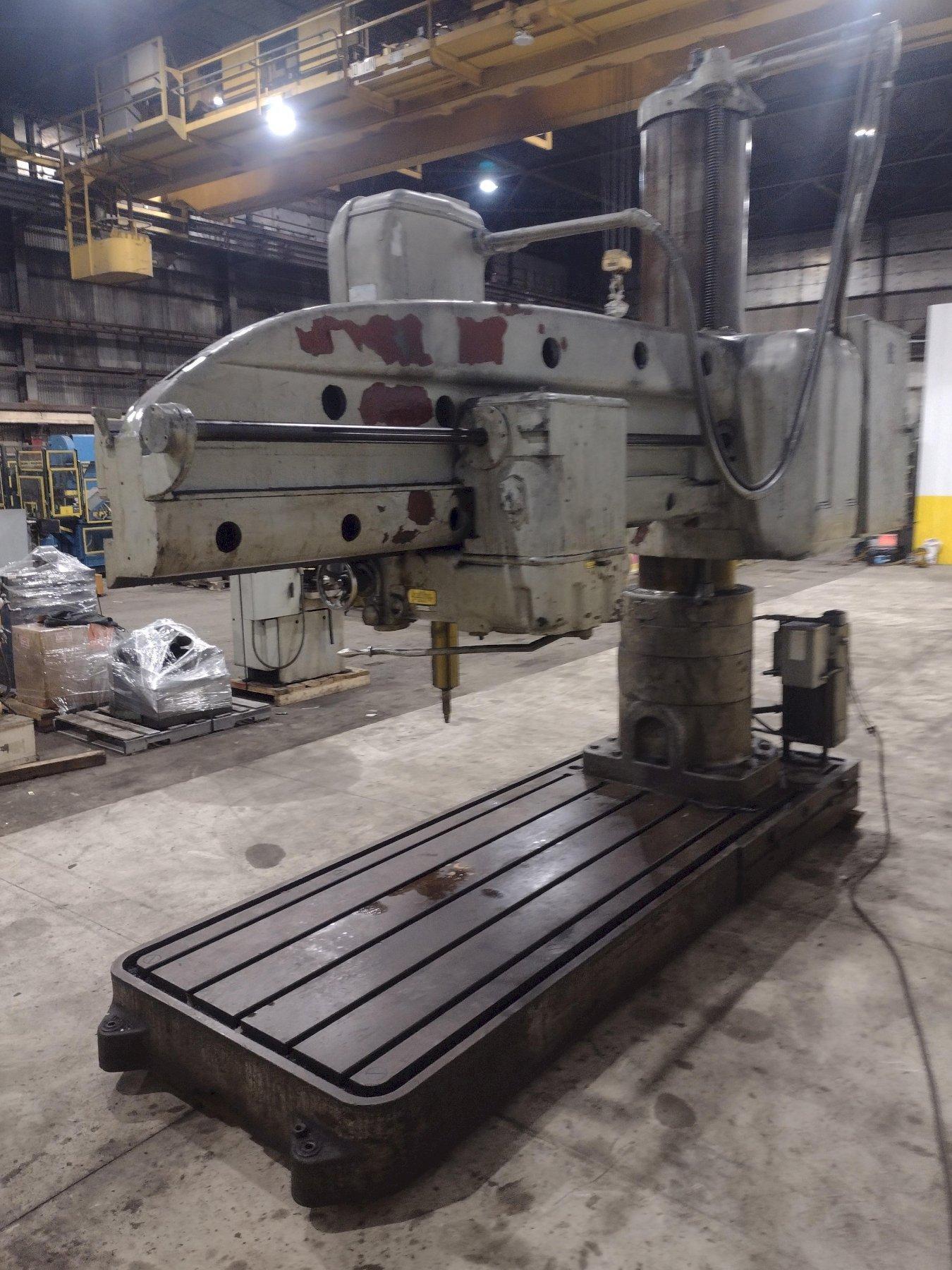

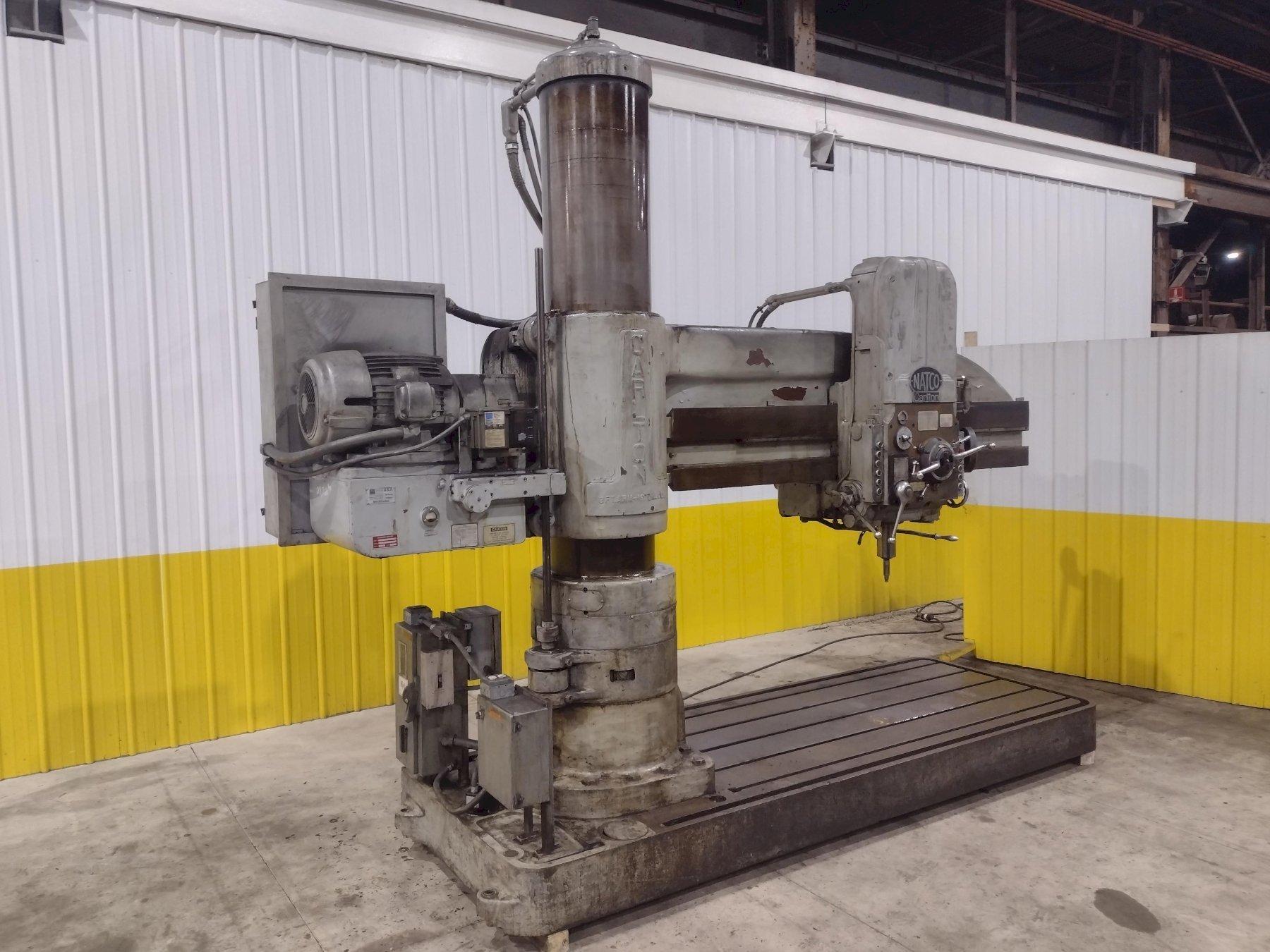

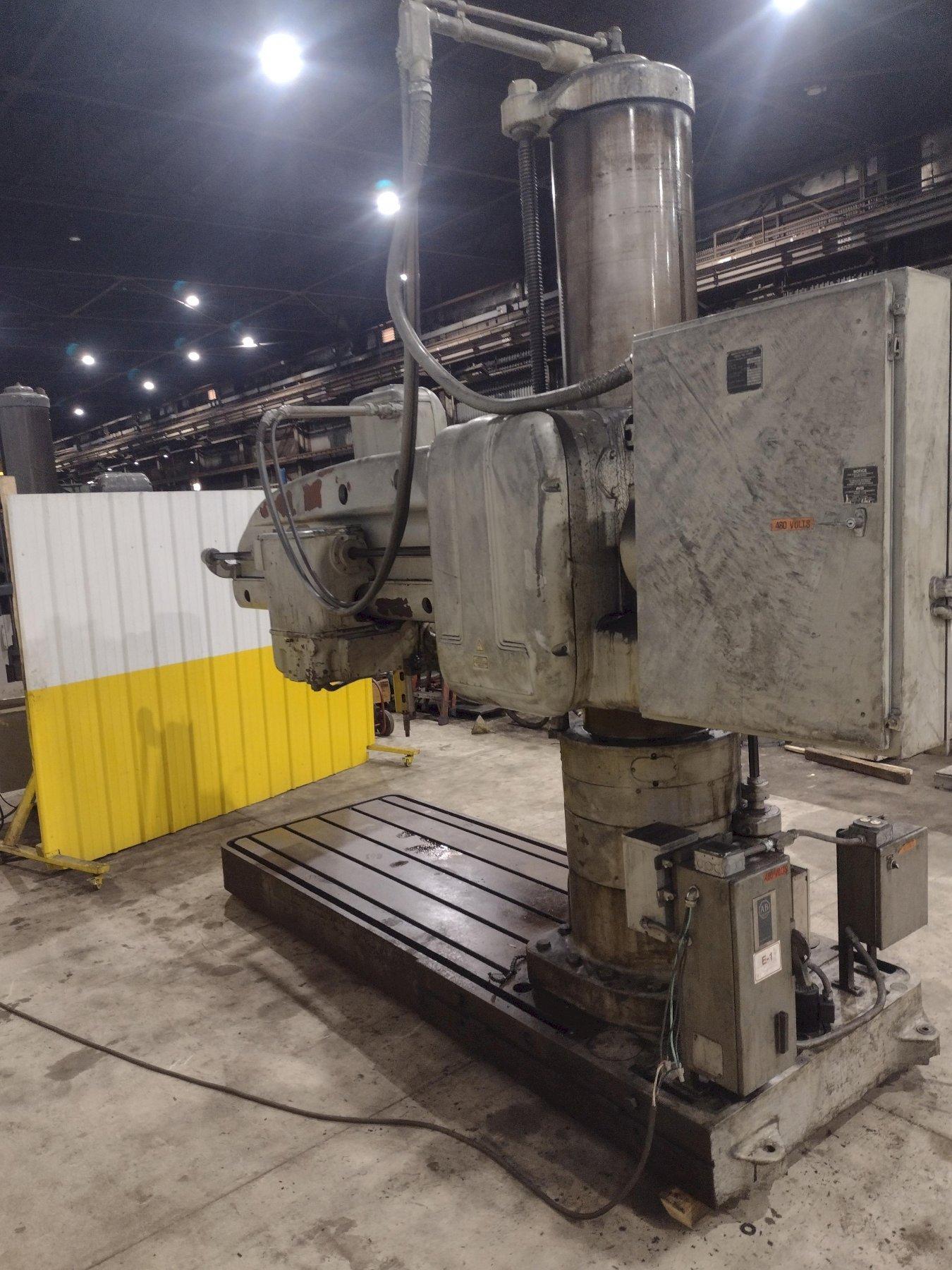

8' X 19" CARLTON MODEL #4A RADIAL ARM DRILL NEW 1996: STOCK #22069

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

22069

Model

3-A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

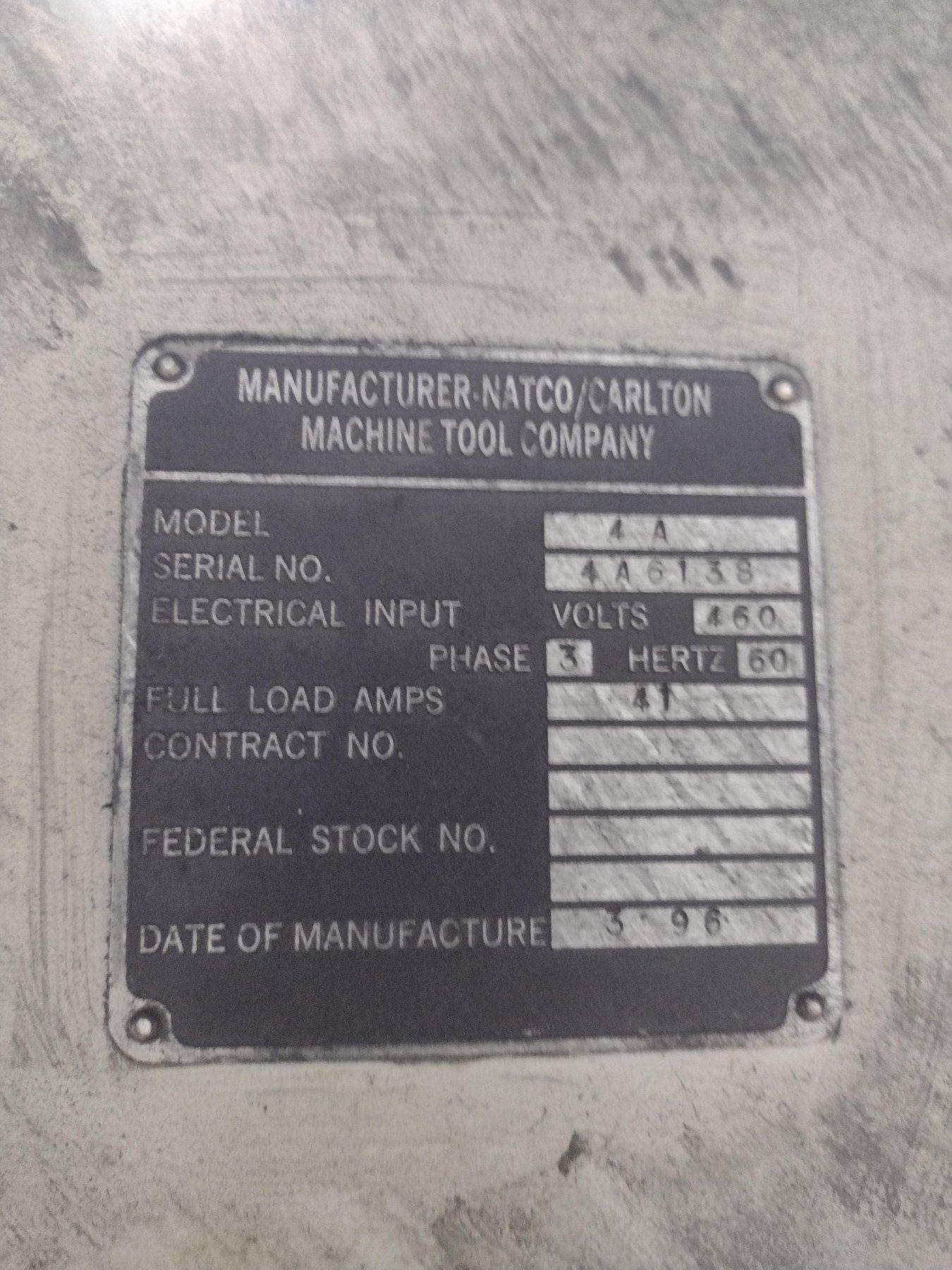

YEAR NEW ......................... 1996

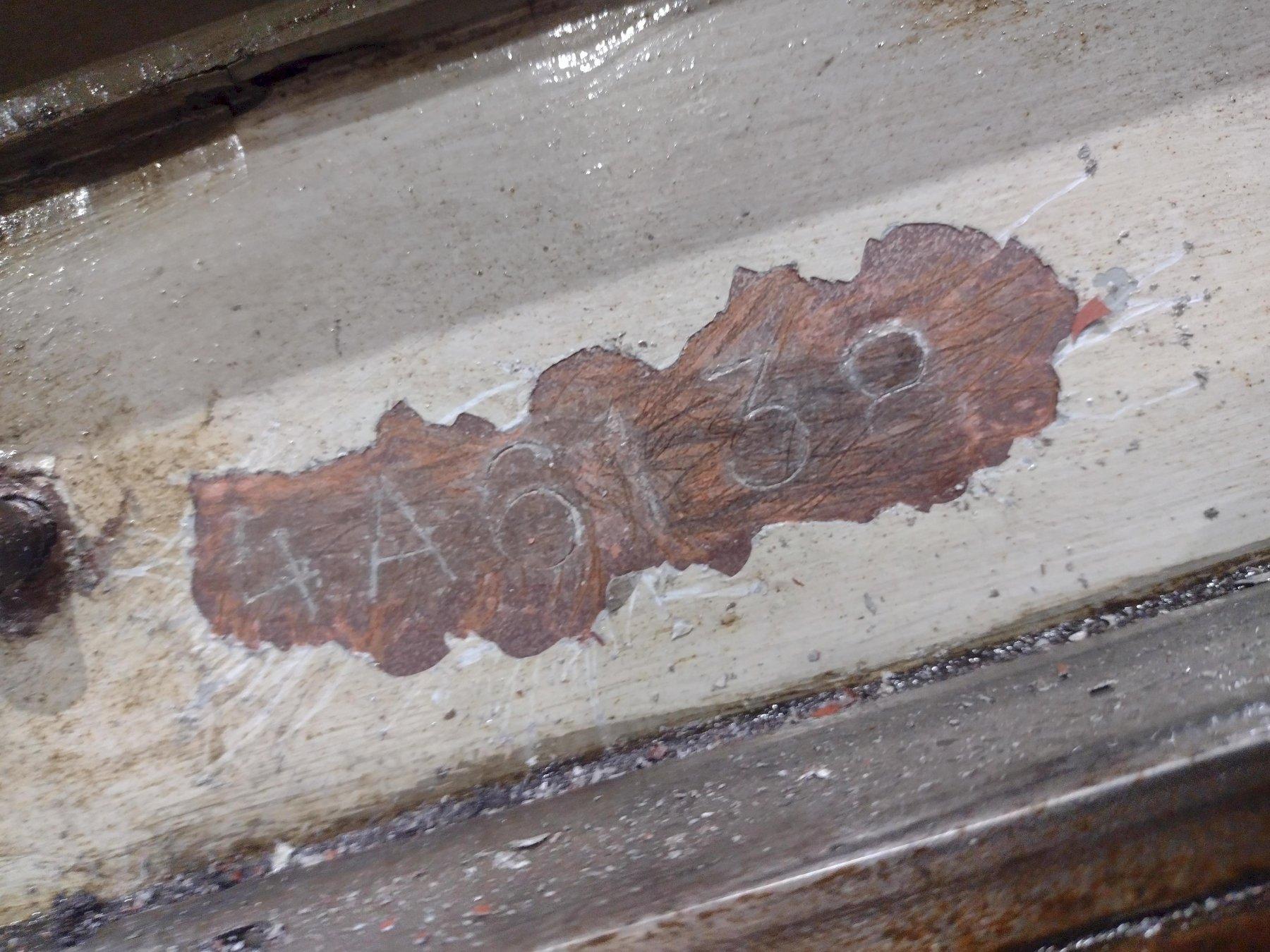

SERIAL ........................... 4A 6138
MODEL ............................ 4A

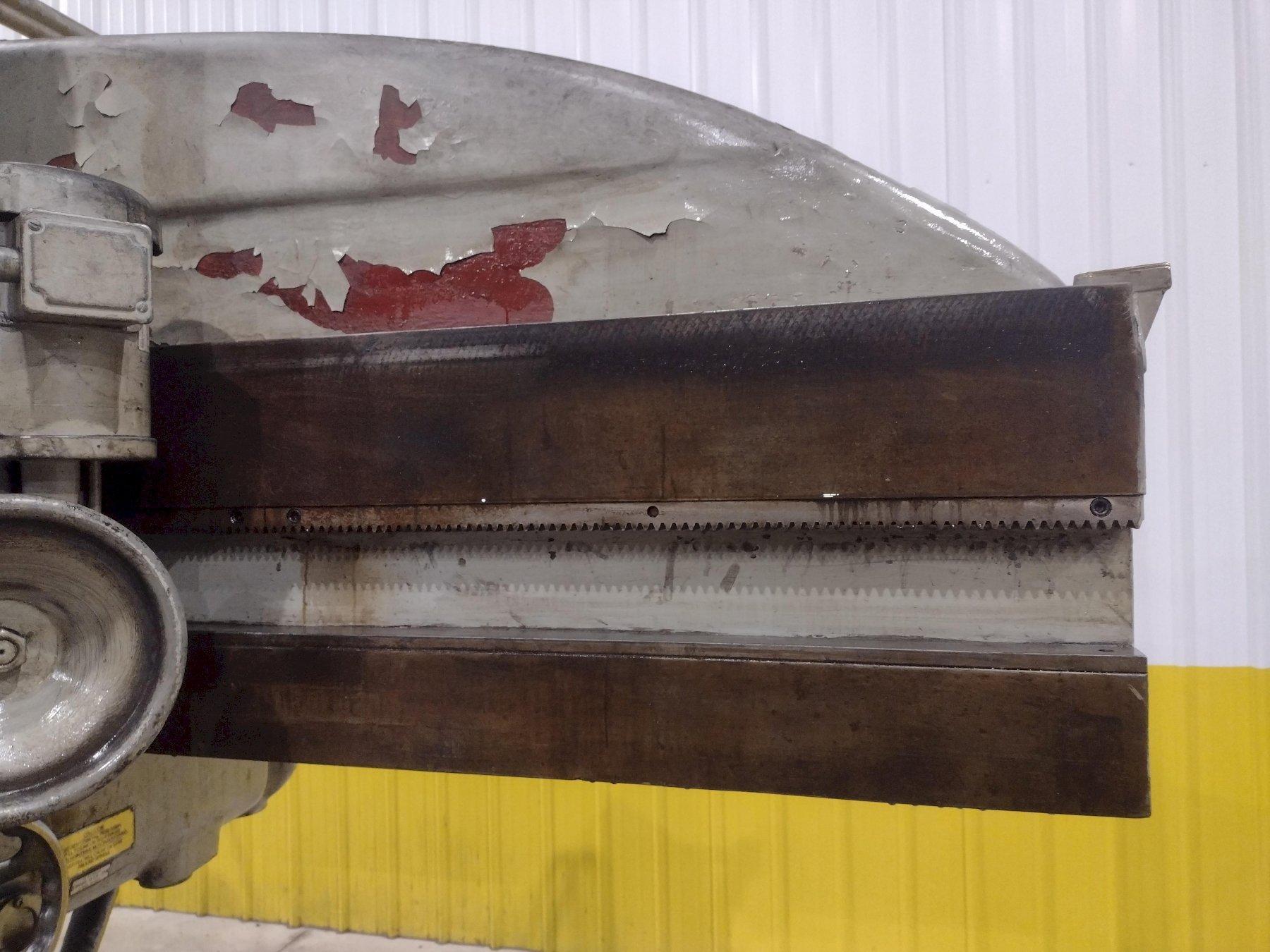

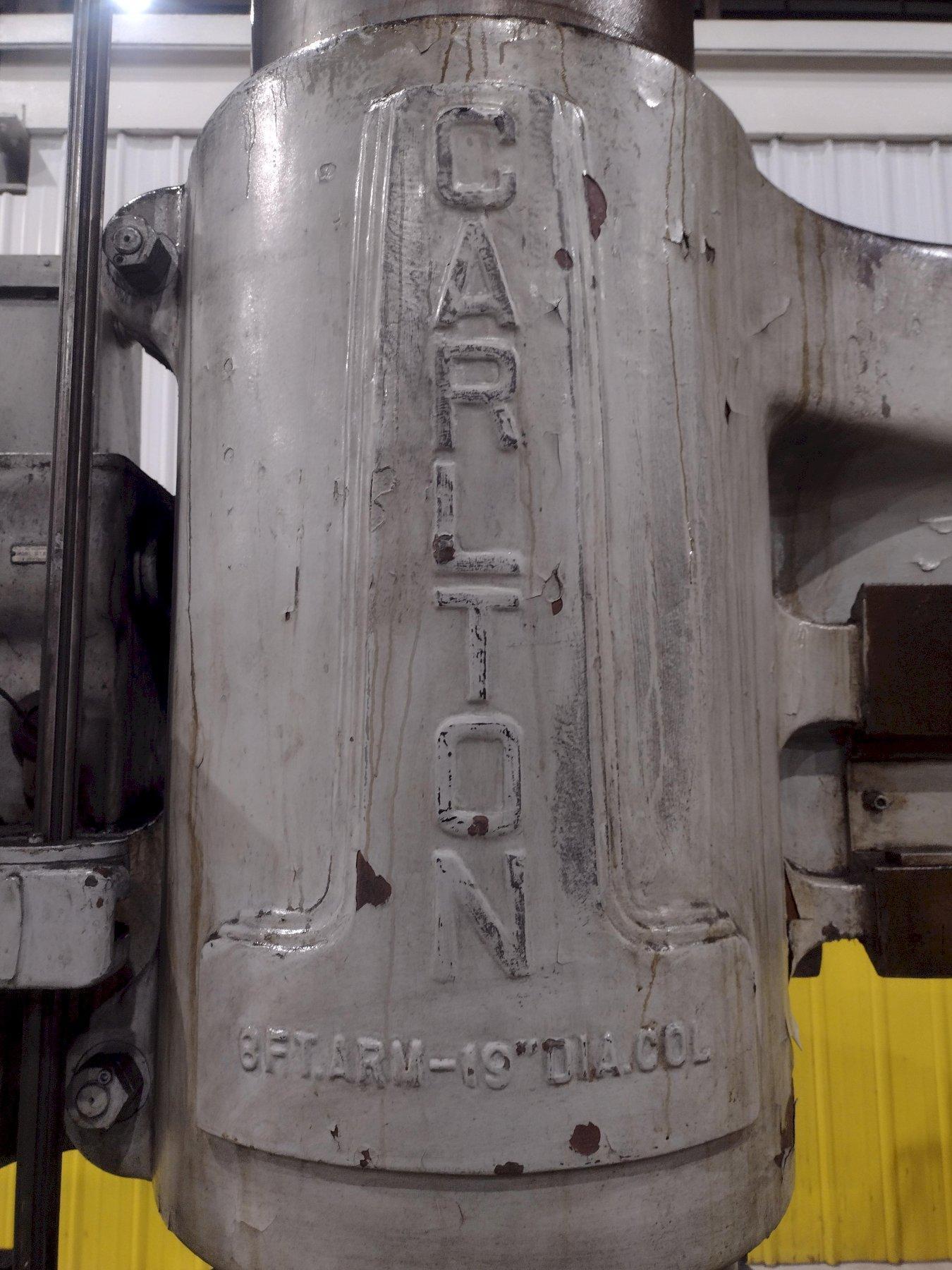

LENGTH OF ARM .................... 96"

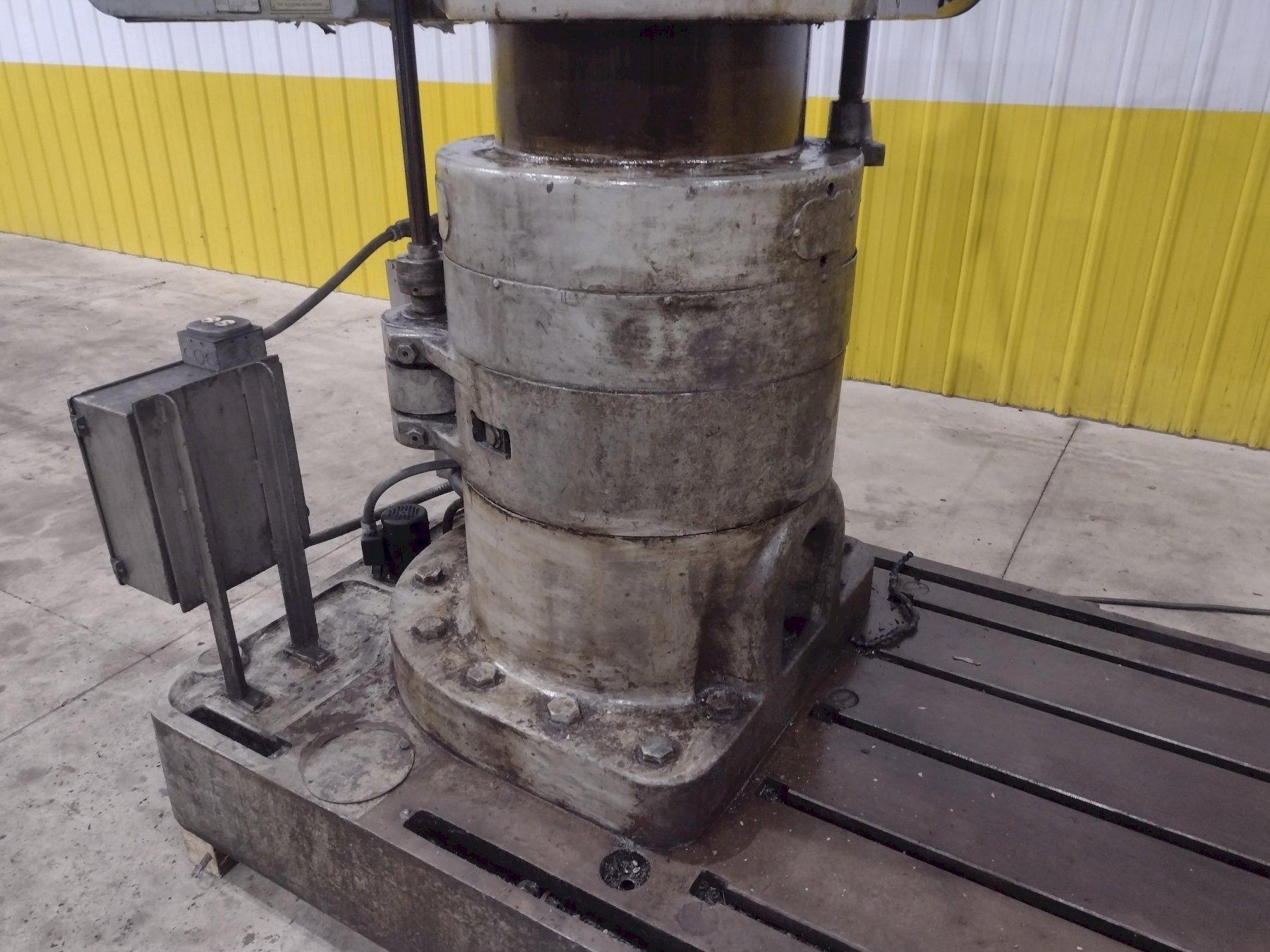

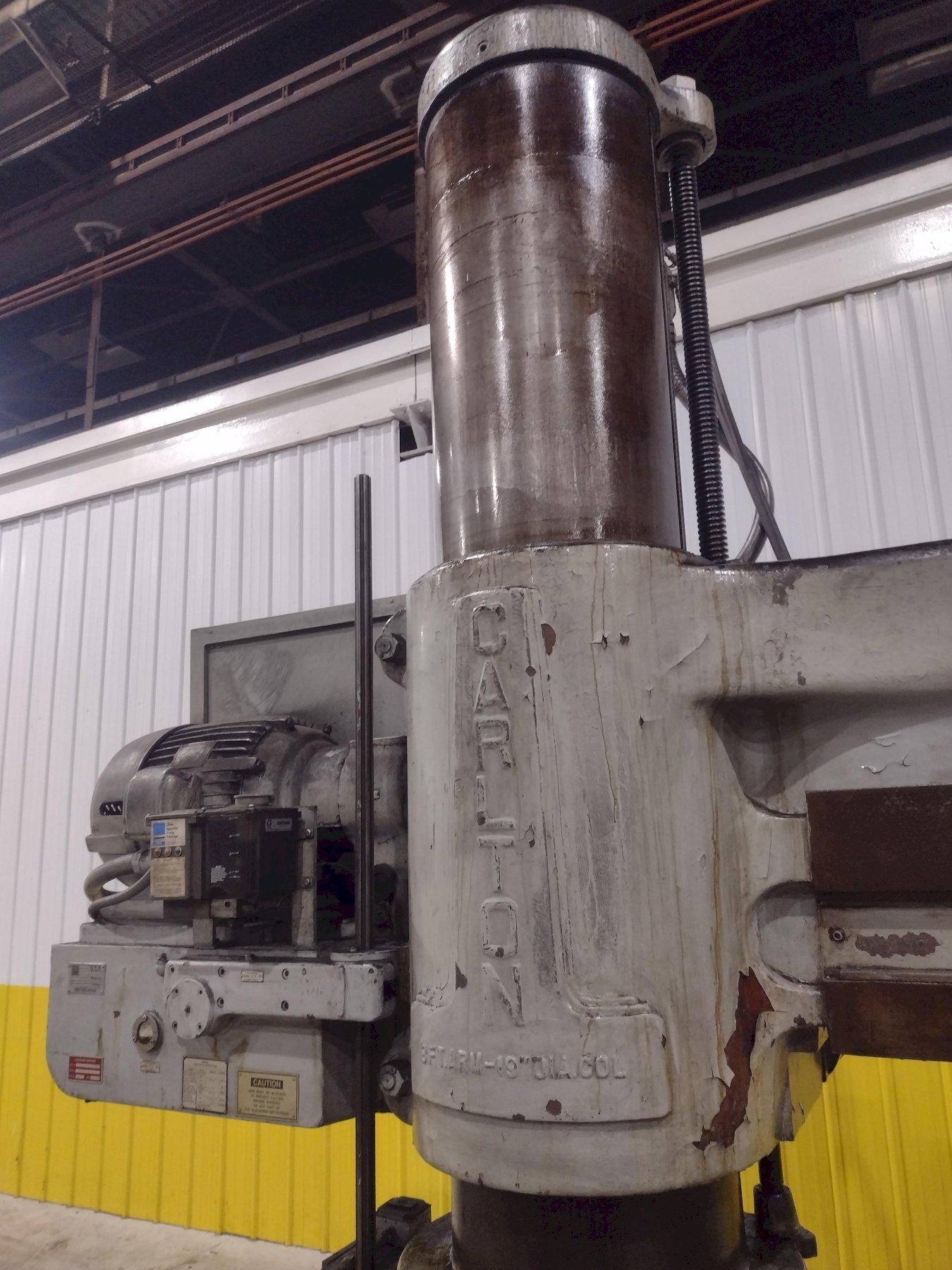

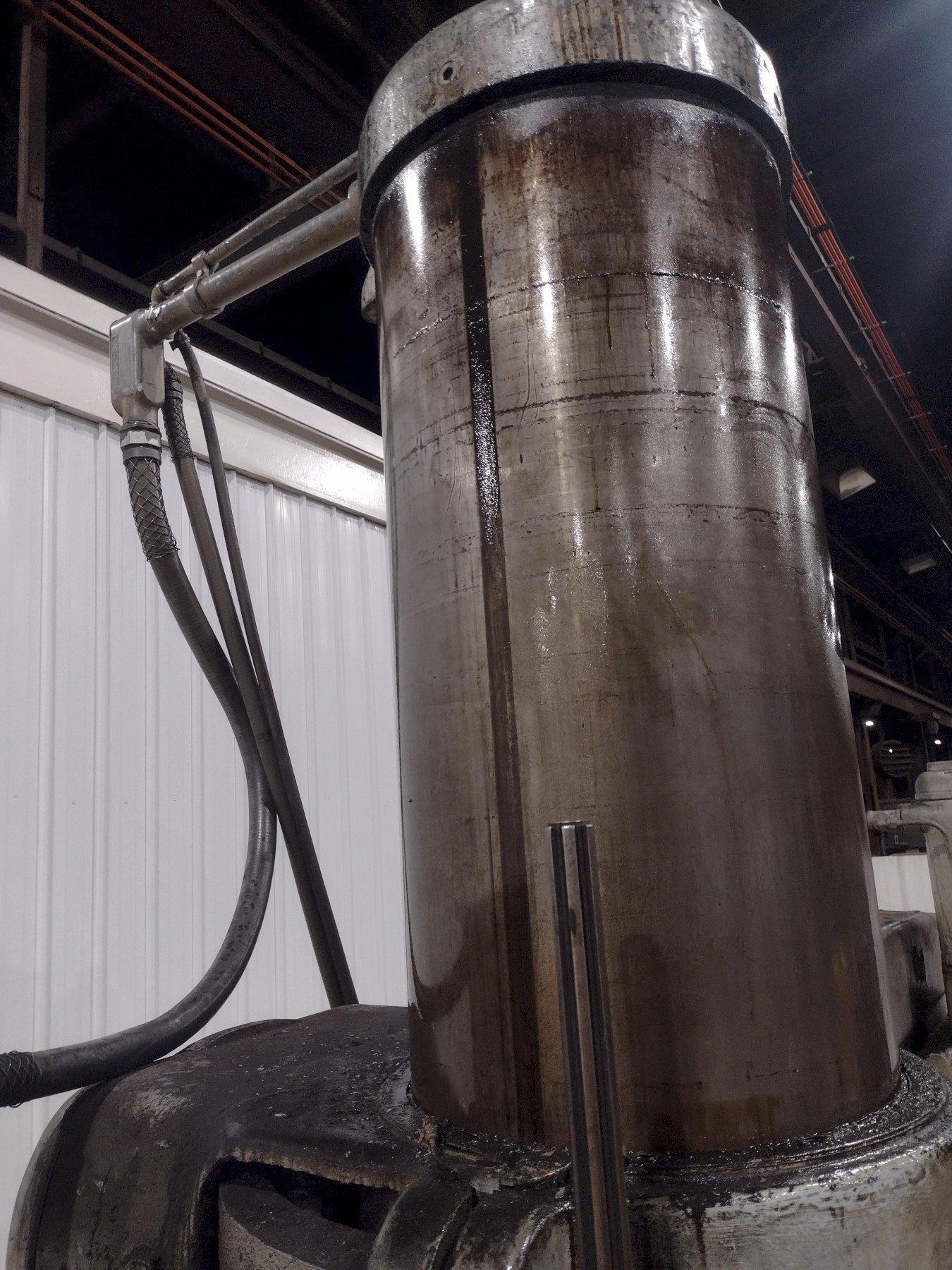

DIAMETER OF COLUMN ............... 19"

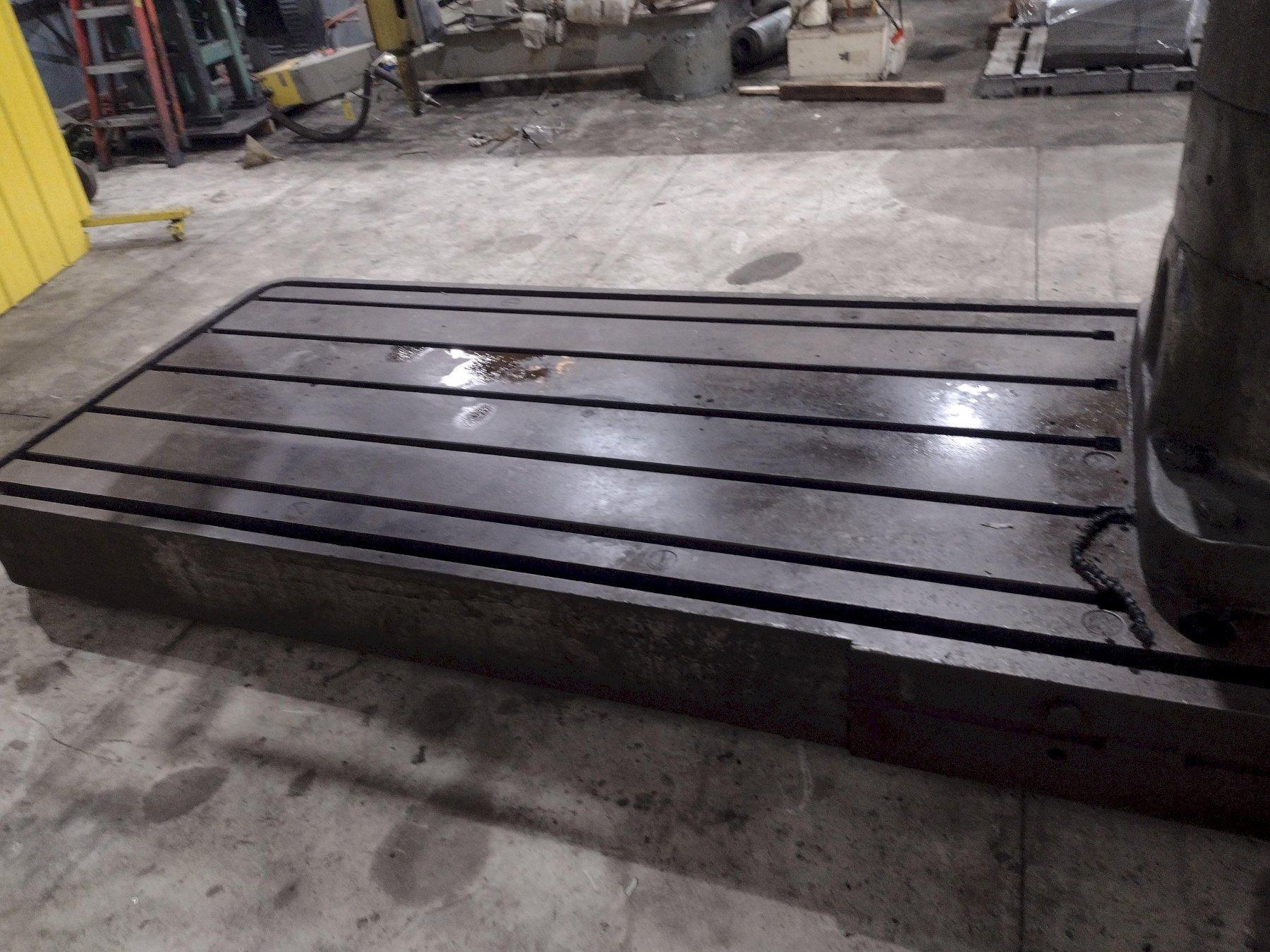

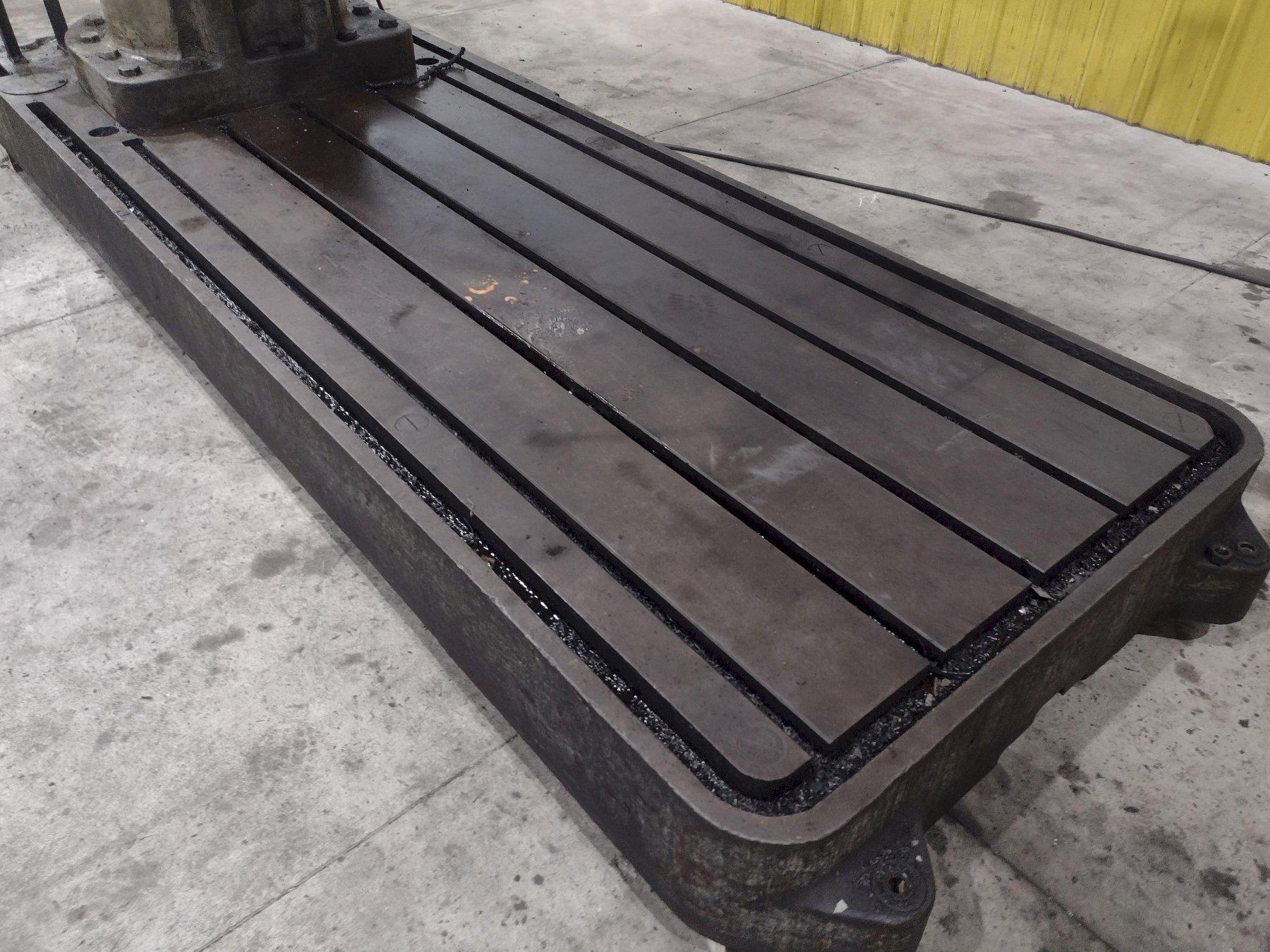

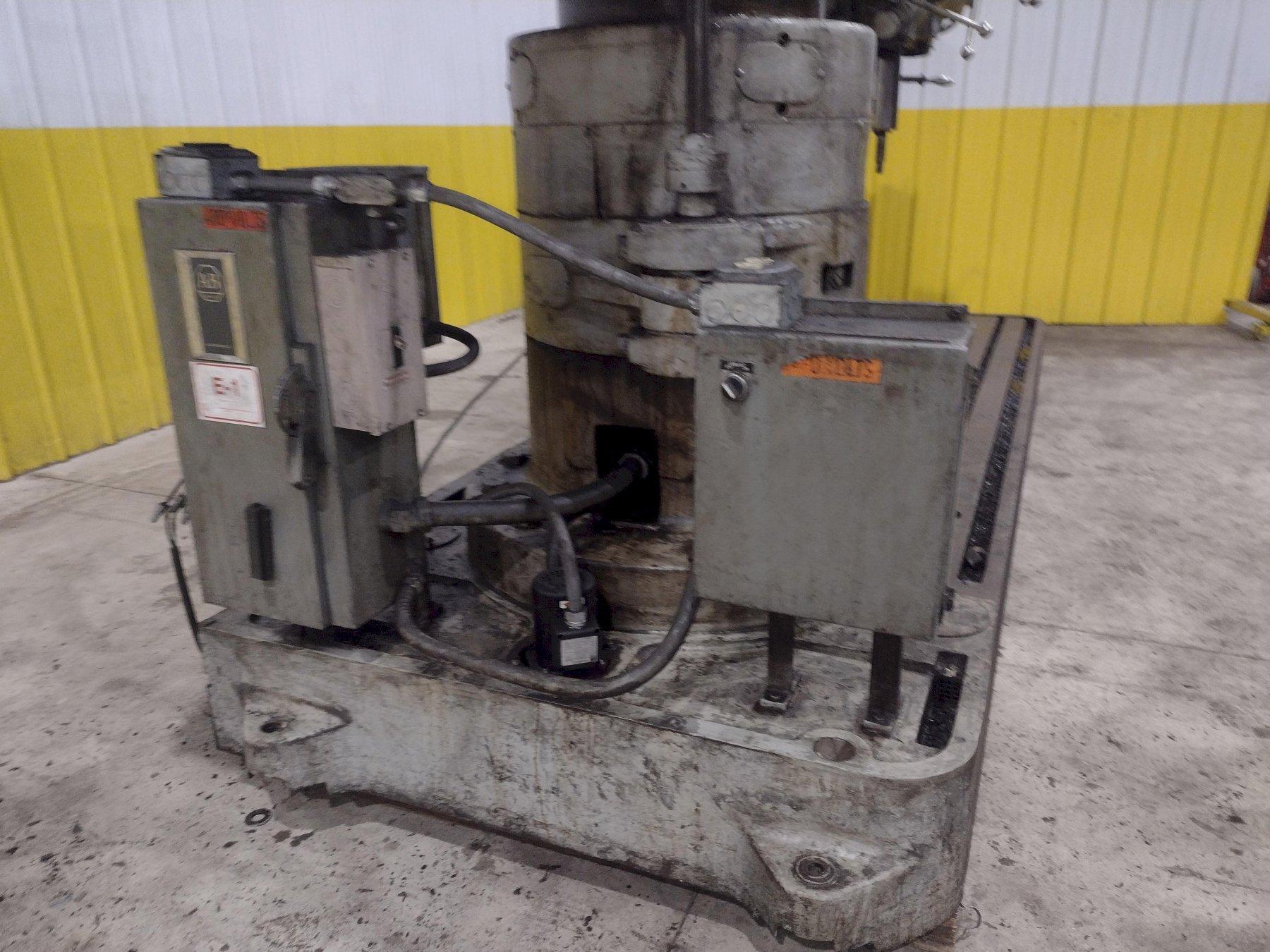

WORKING SURFACE OF BASE .......... 77" X 50"

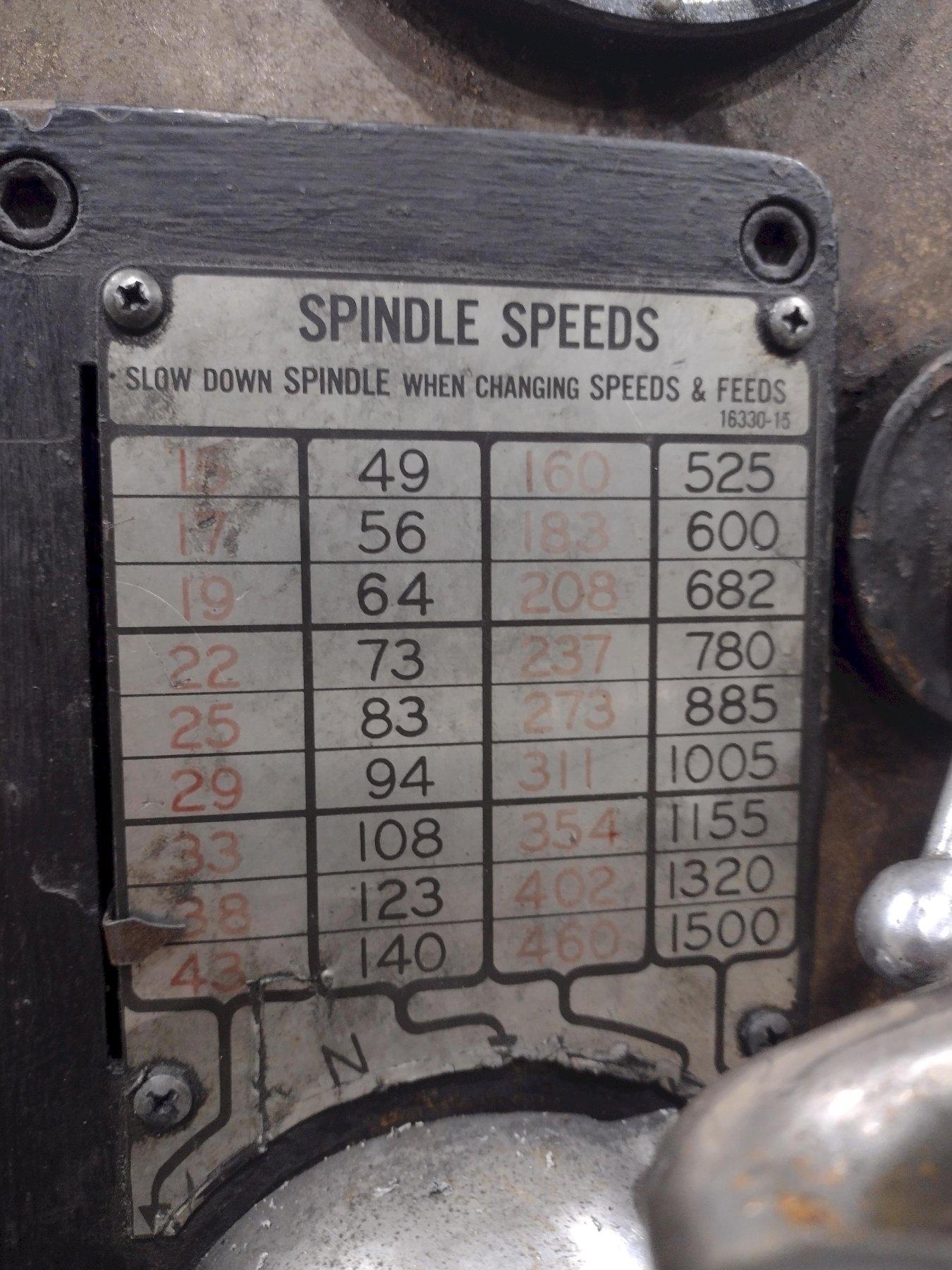

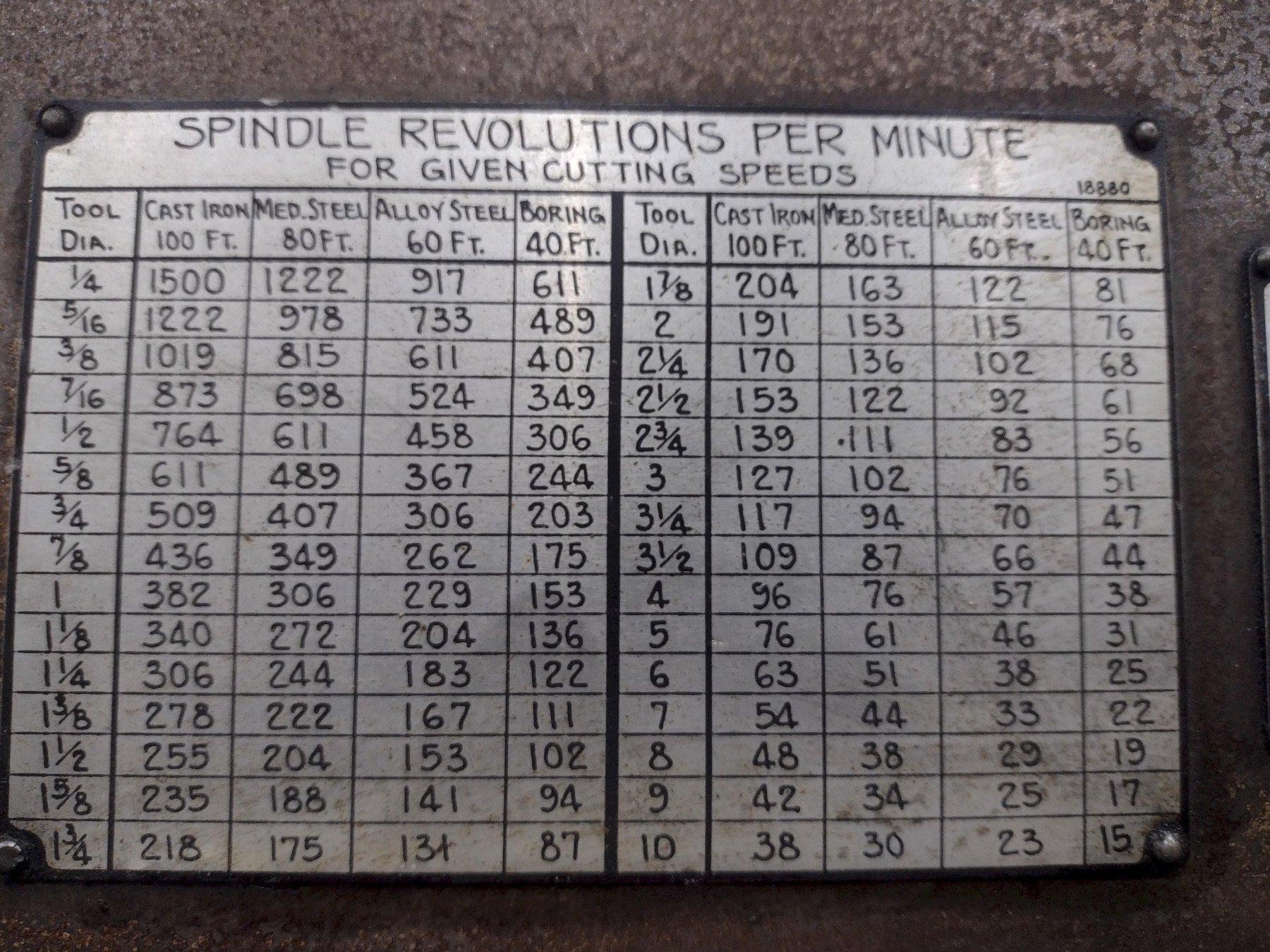

SPINDLE SPEEDS ................... (36) 15 TO 1500 RPM
FEEDS ............................ (18) .004 TO .125 IPR

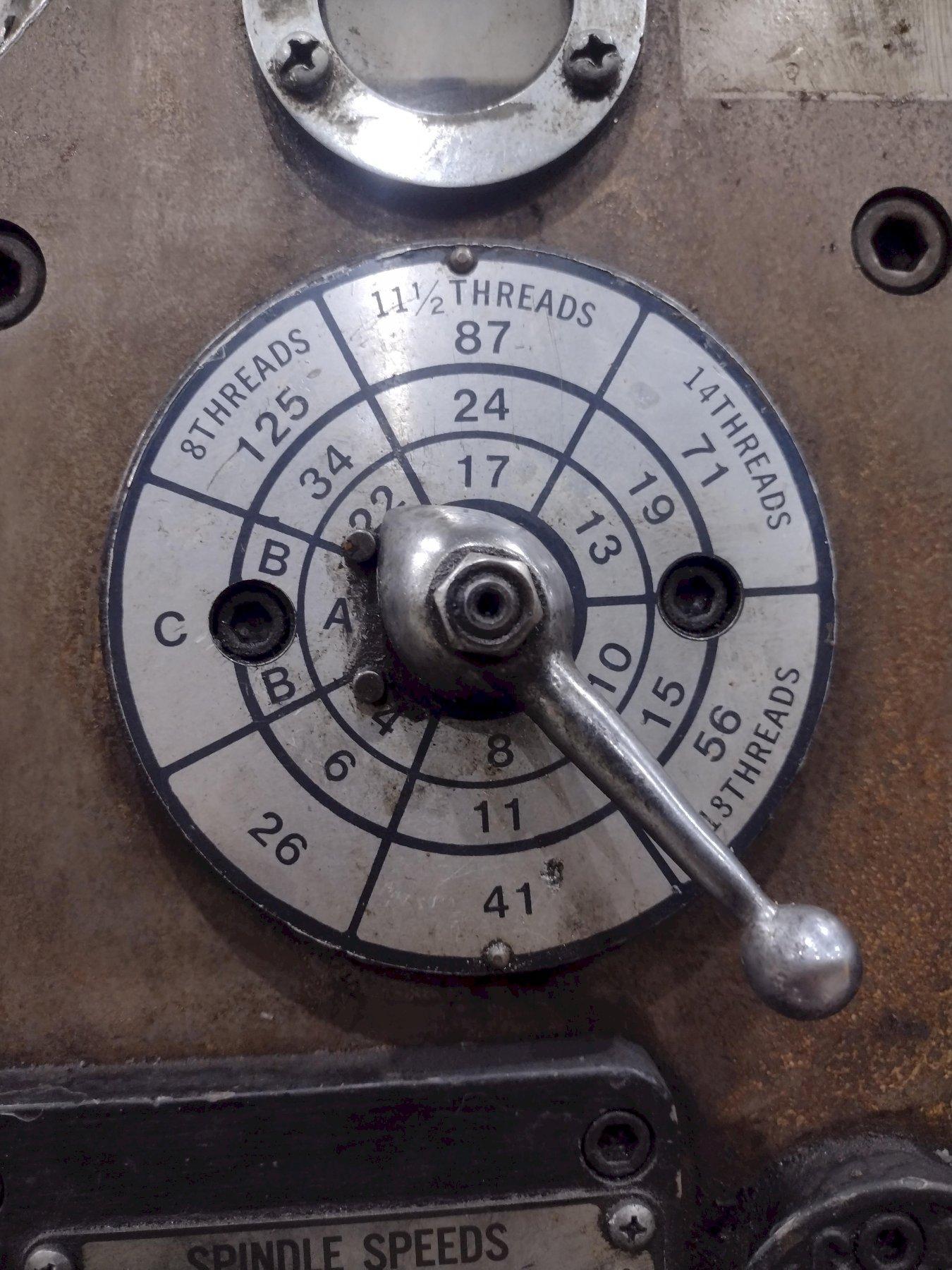

THREADS .......................... 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ................... 20"

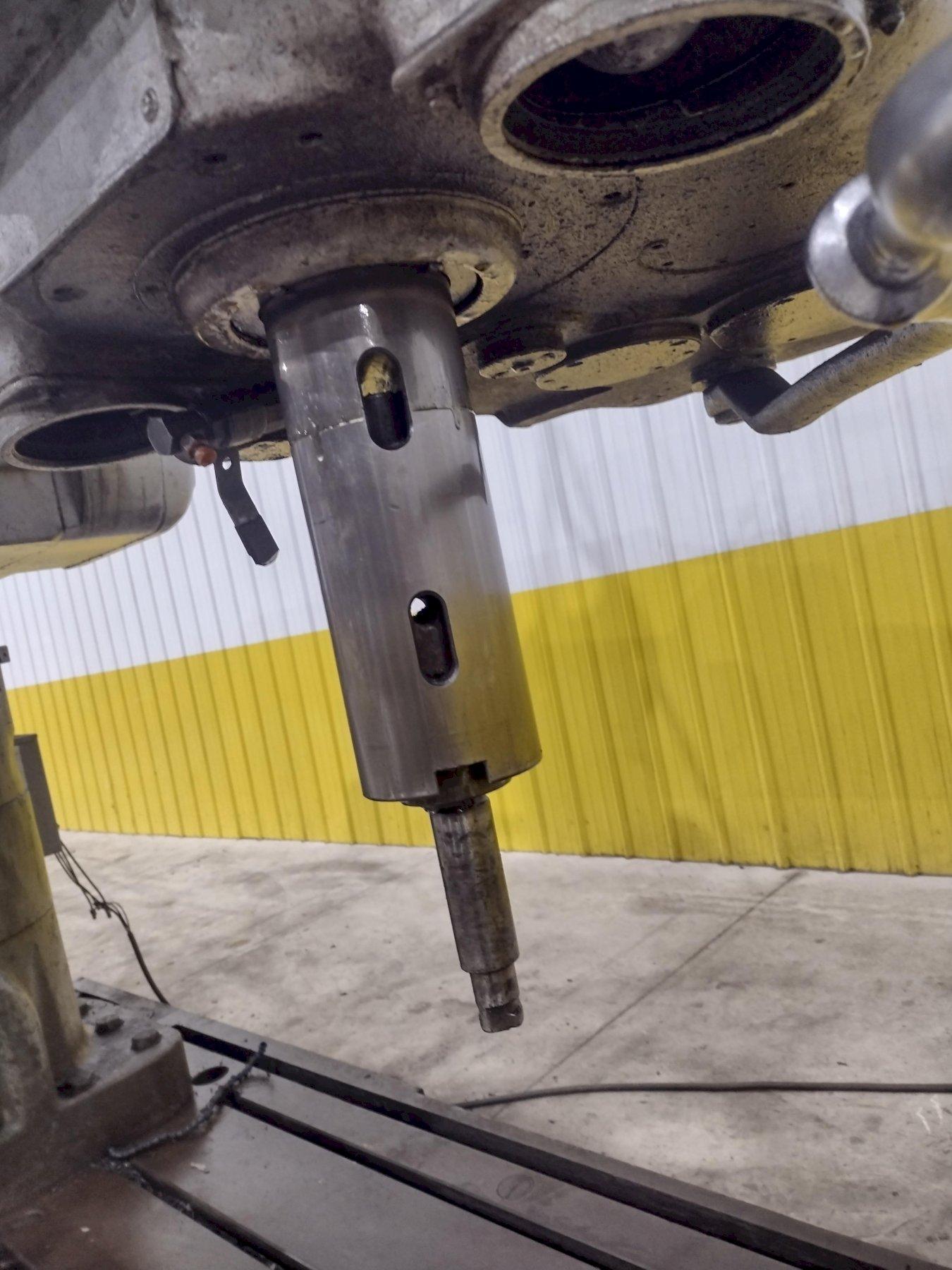

DIAMETER OF SPINDLE .............. 4"
TAPER IN SPINDLE ................. #6 MT
DISTANCE SPINDLE TO BASE ......... 32" MINIMUM TO 102" MAXIMUM
DISTANCE SPINDLE TO COLUMN ....... 13-1/4" MINIMUM TO 96" MAXIMUM
TRAVEL ARM ON COLUMN ............. 46"
TRAVEL HEAD ON ARM ............... 59"

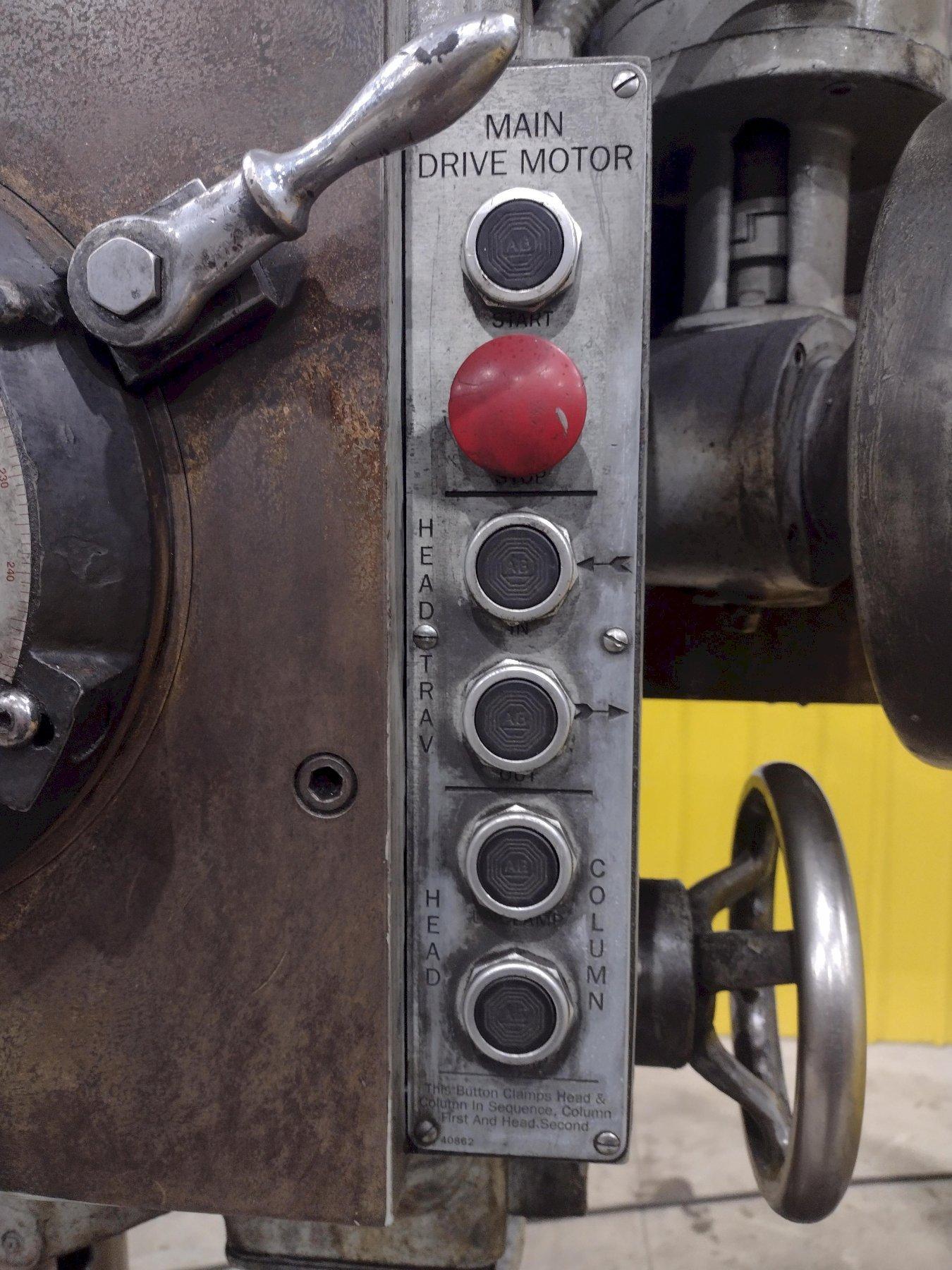

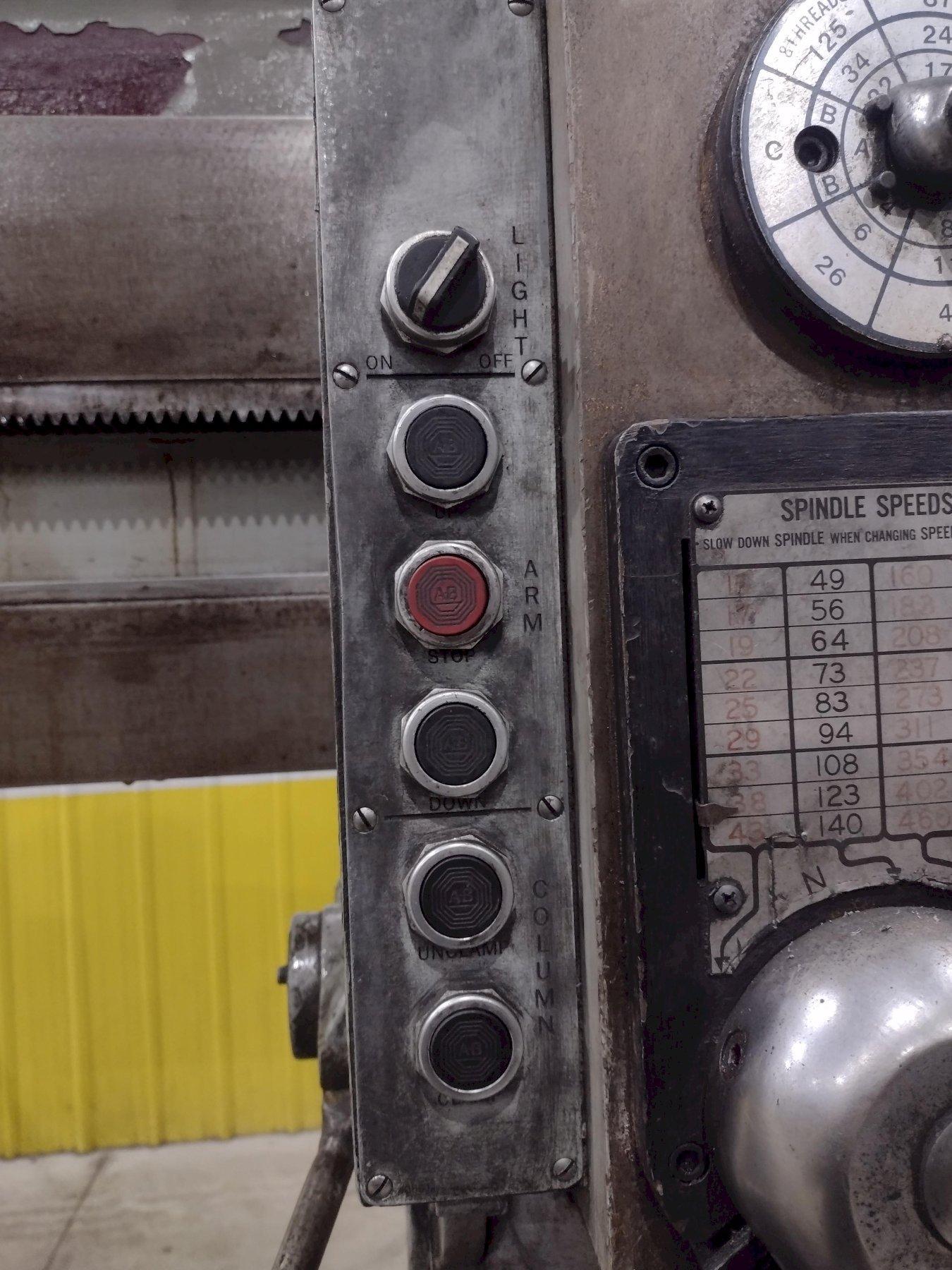

POWER CLAMPING ................... YES
POWER ELEVATION .................. YES
POWER HEAD TRAVERSE .............. YES

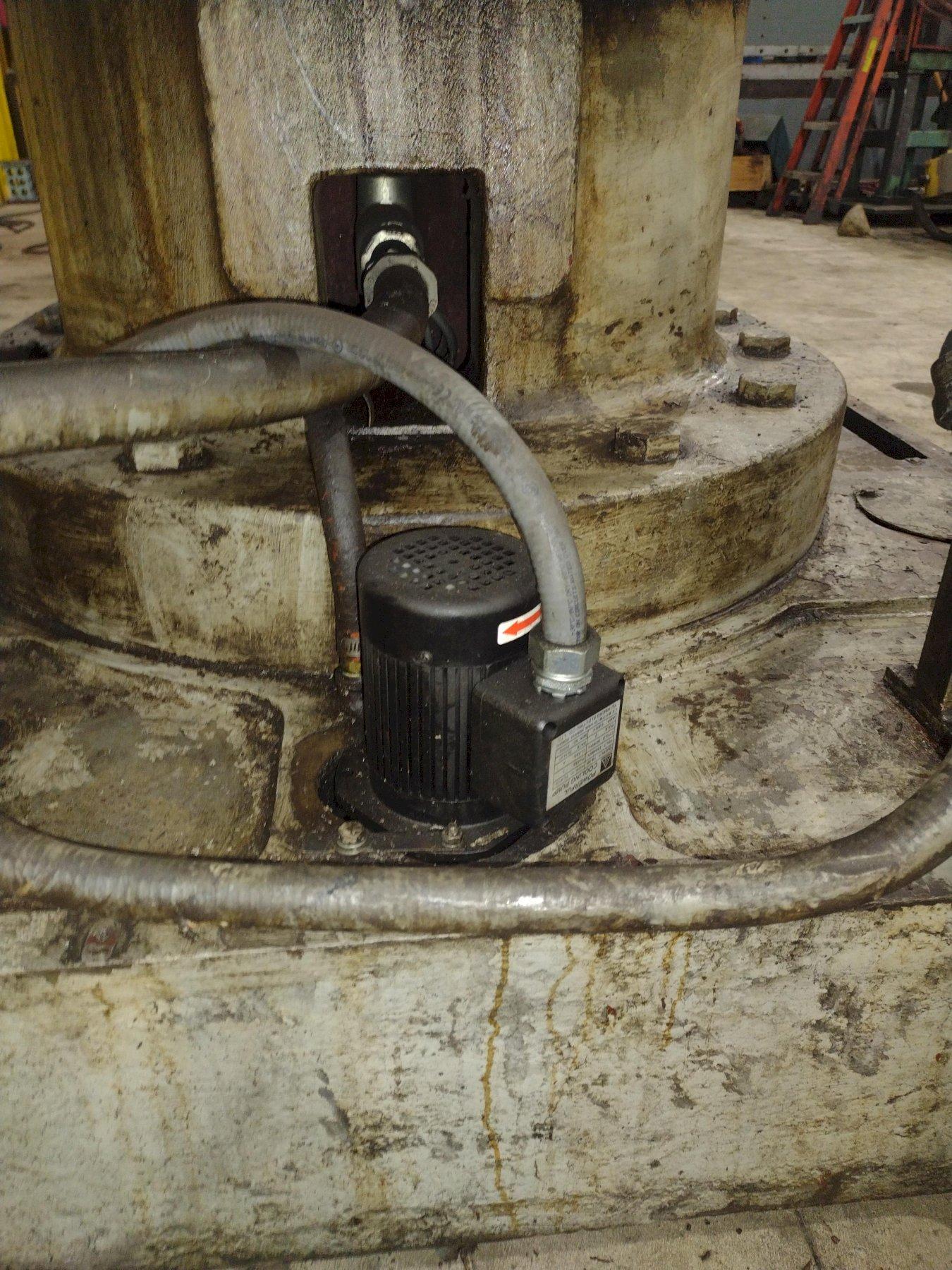

COOLANT .......................... YES
