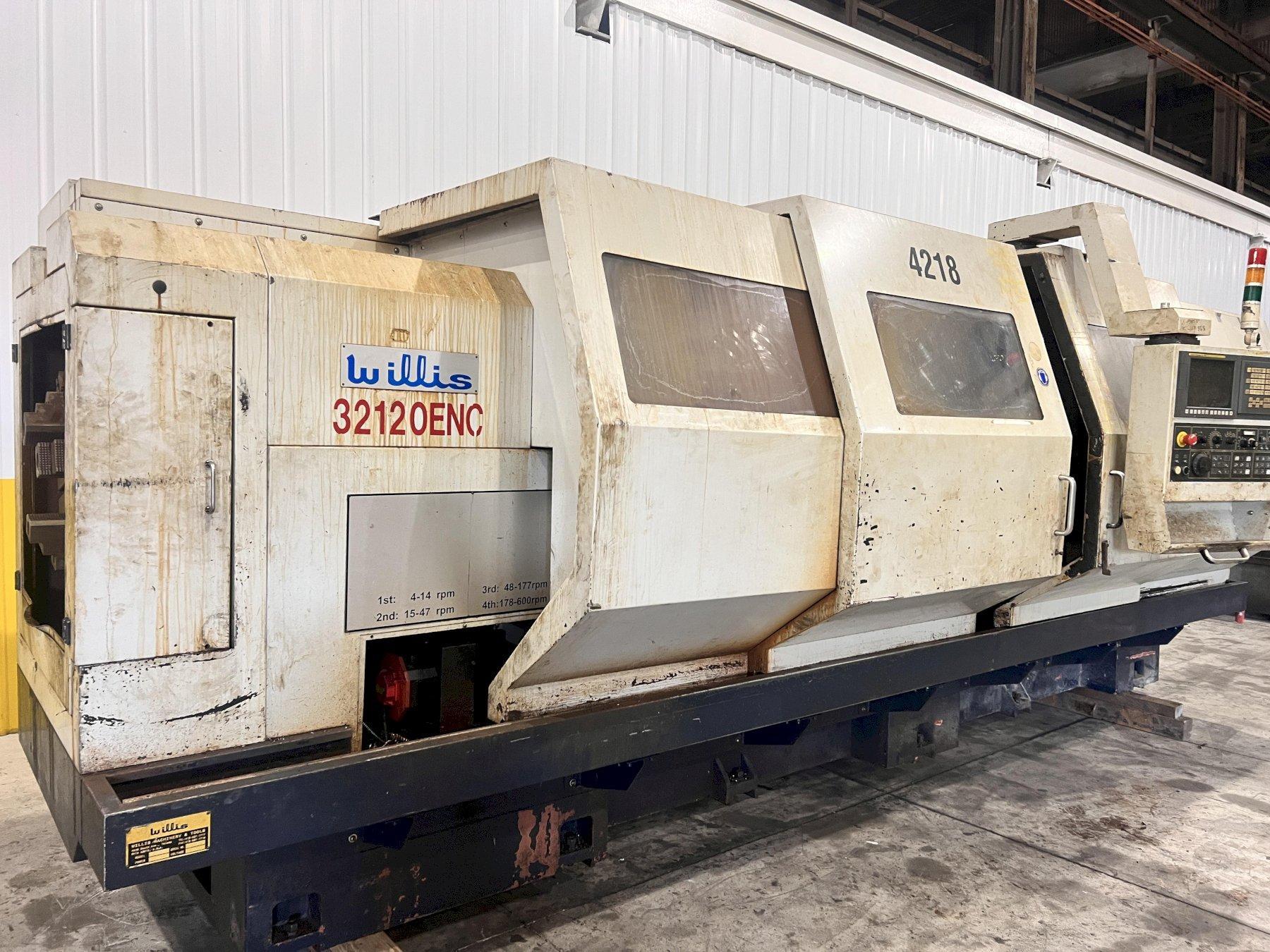

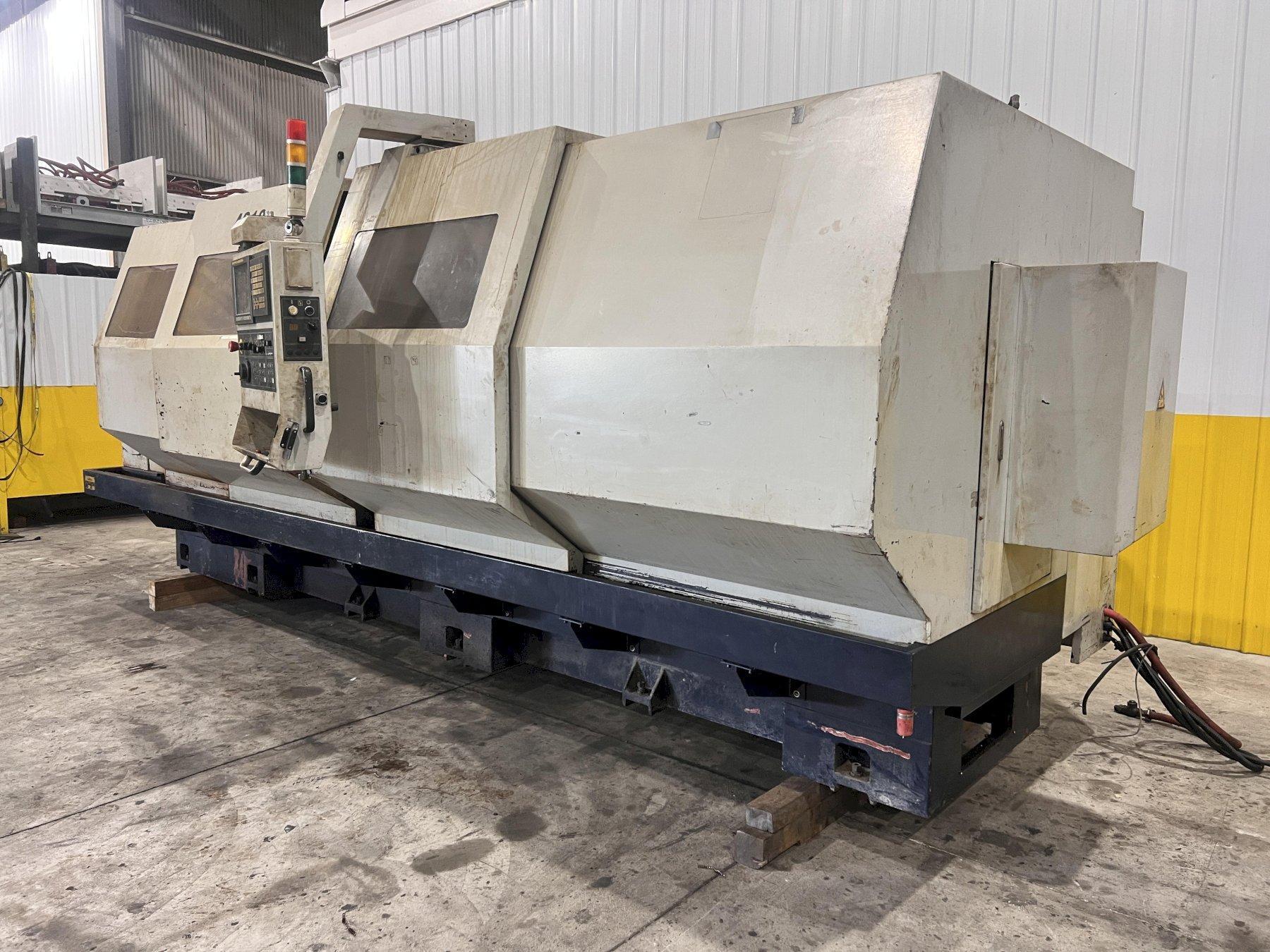

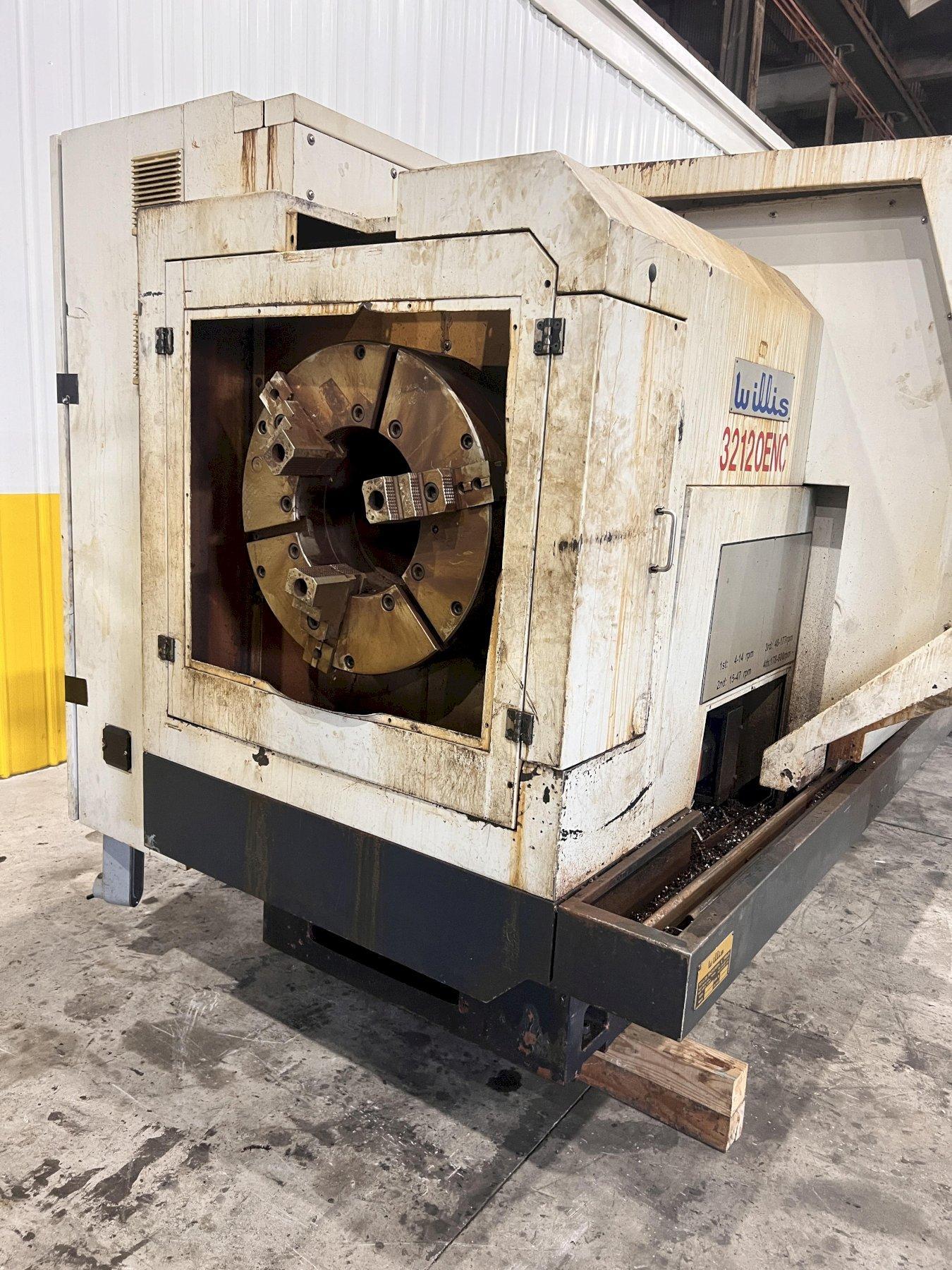

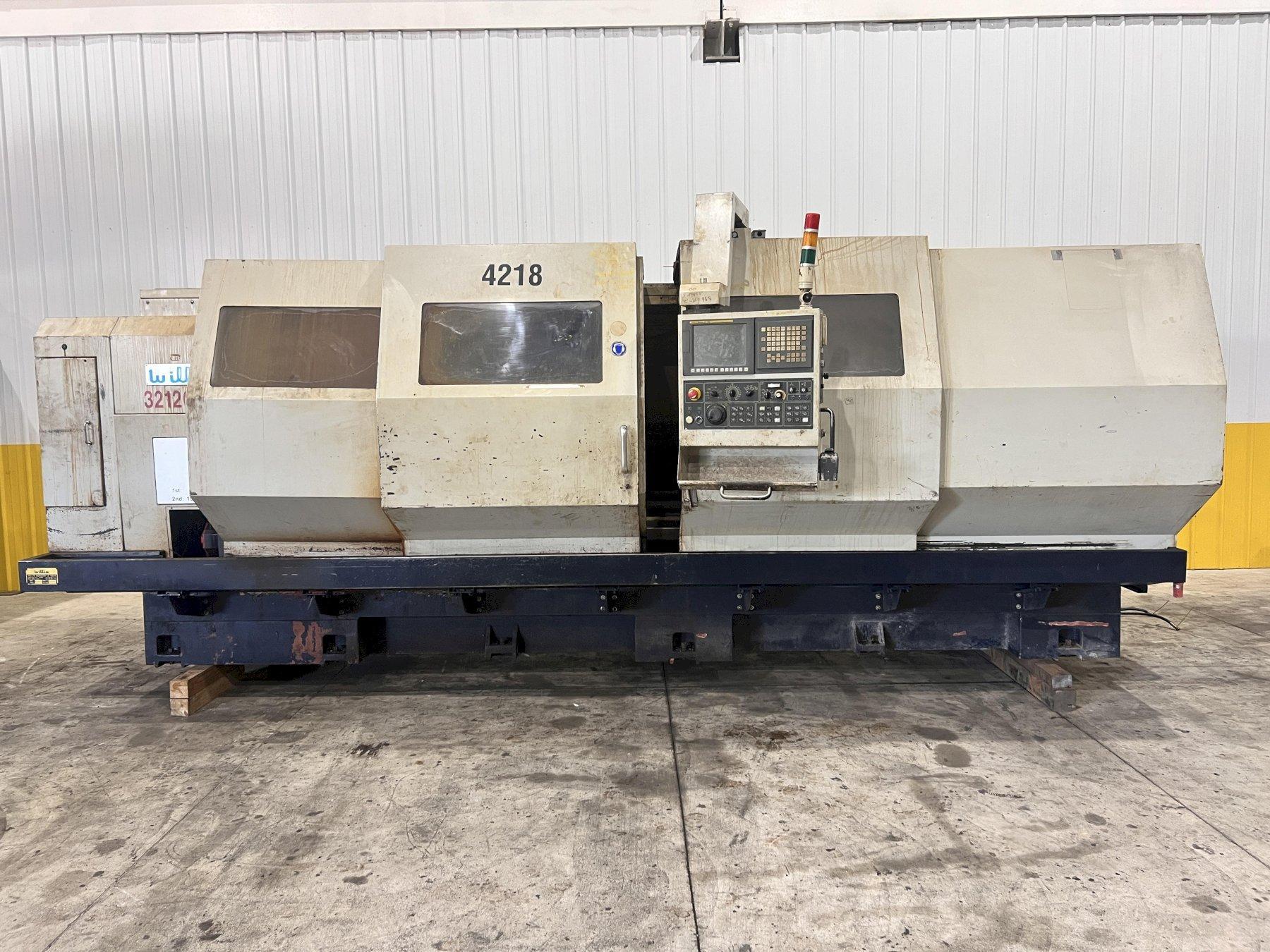

32" x 120" X 12" HOLLOW SPINDLE WILLIS MODEL #32120-ENC BIG-BORE CNC LATHE, WITH FANUC CONTROLS

Manufacturer

WILLIS

Category

Lathes

Type

LATHES, WHIRLING, CNC

Stock

21891

Model

3212OENC

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Weight - 22000 pounds

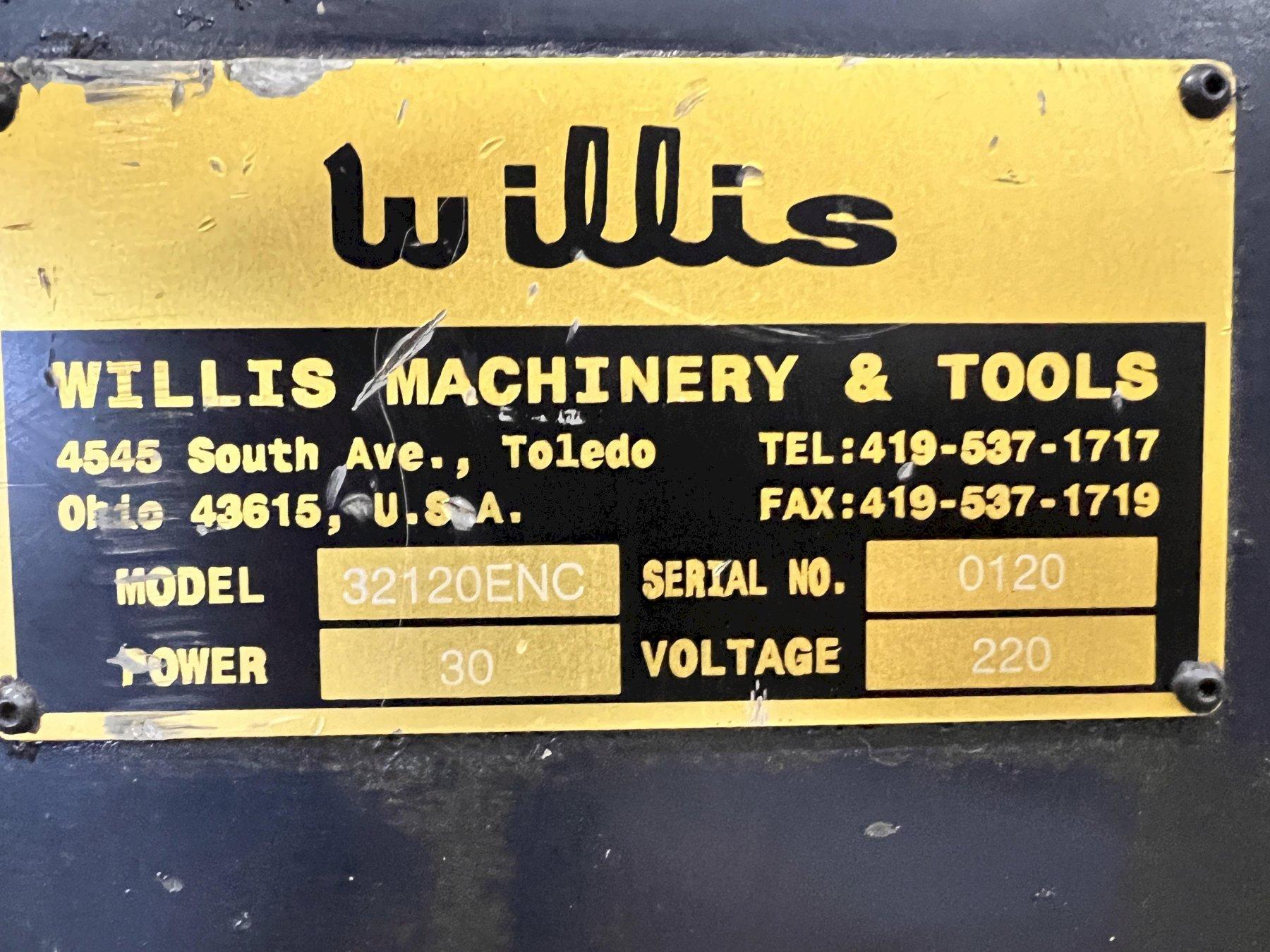

Serial ......................... 0120

New ............................ 2012

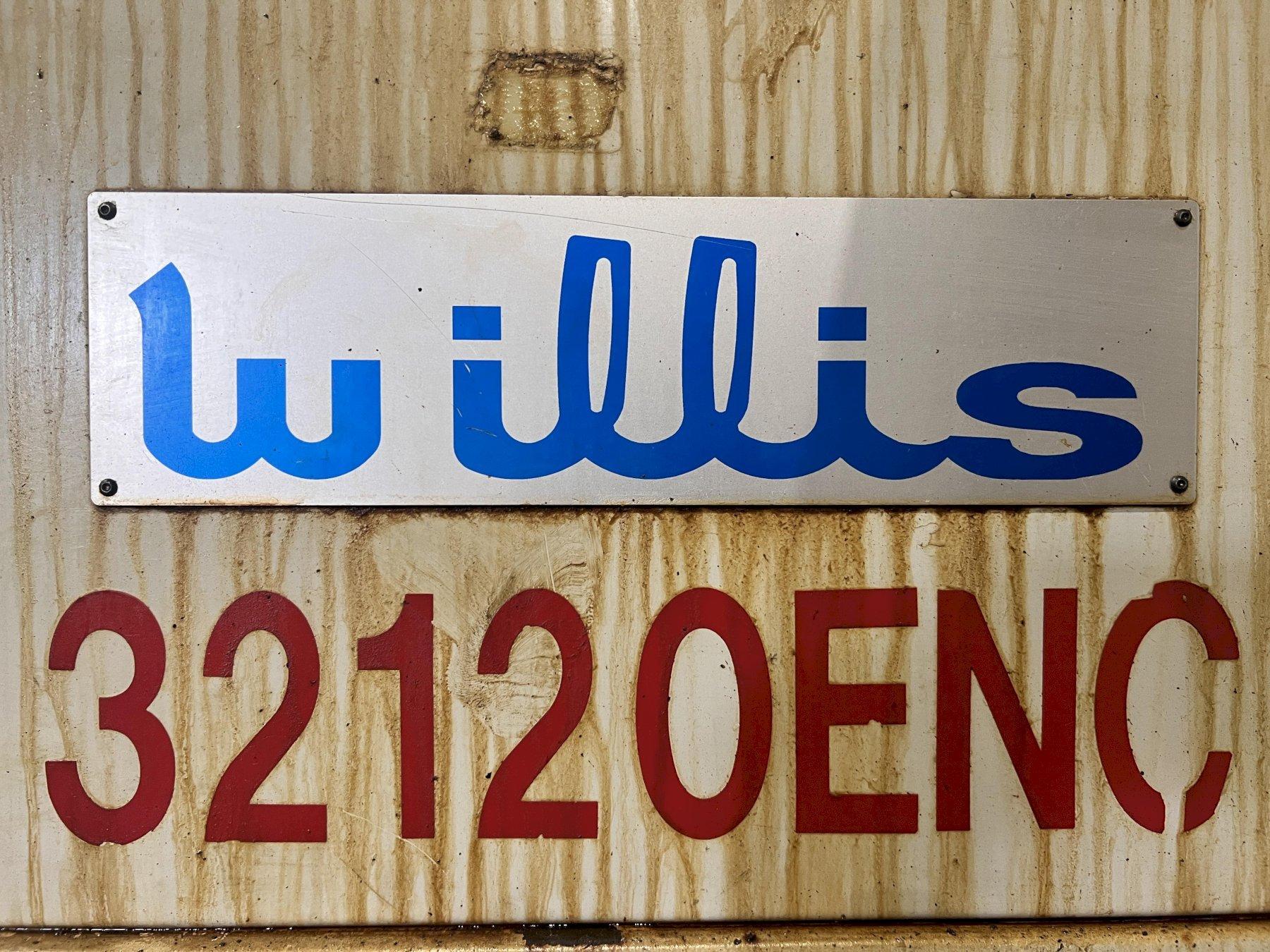

Model .......................... 32120ENC

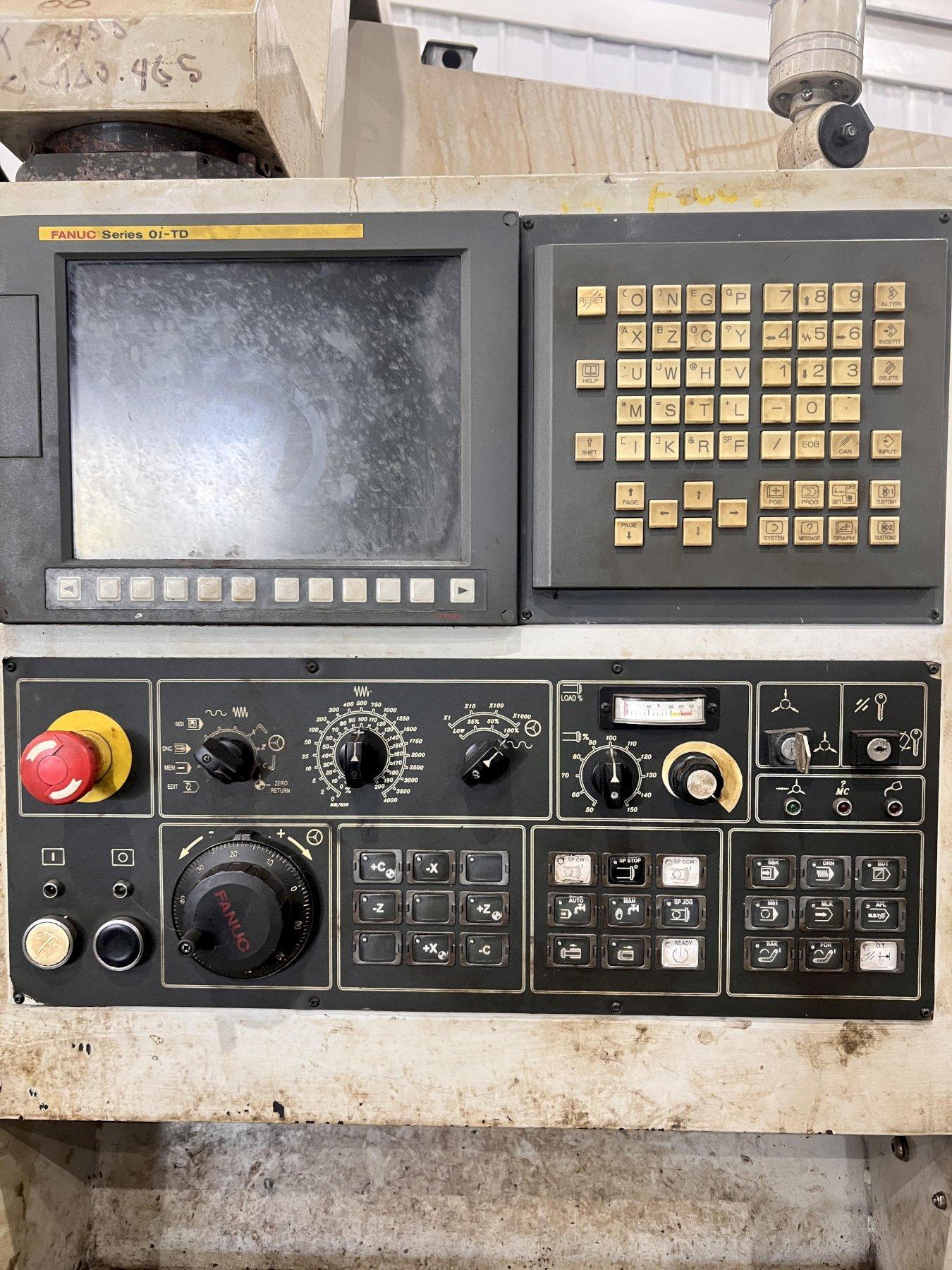

Controls ....................... Fanuc 0i-TD control w/ Fanuc servo spindle

Spindle bore Diameter .......... 12”(305mm)

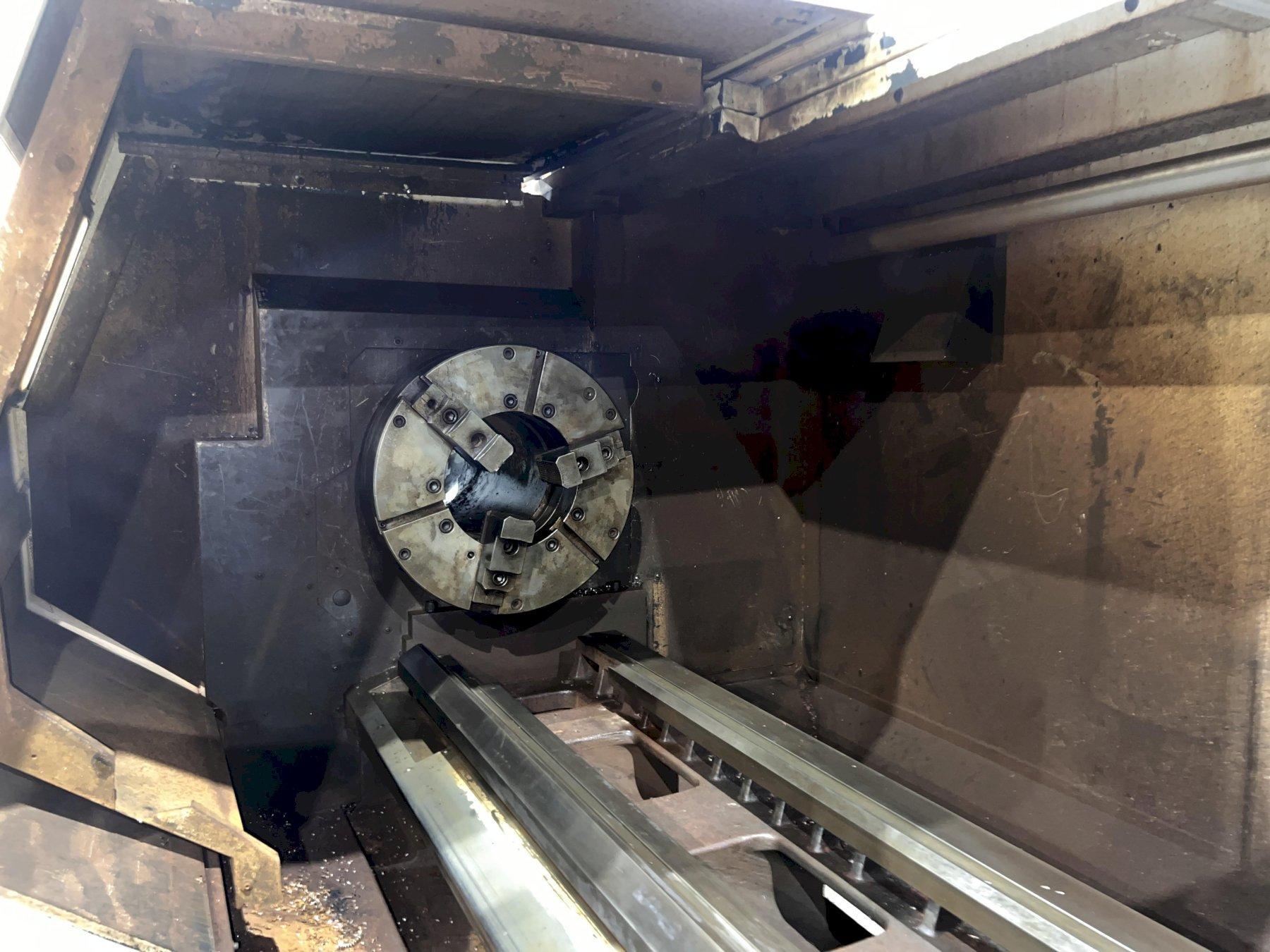

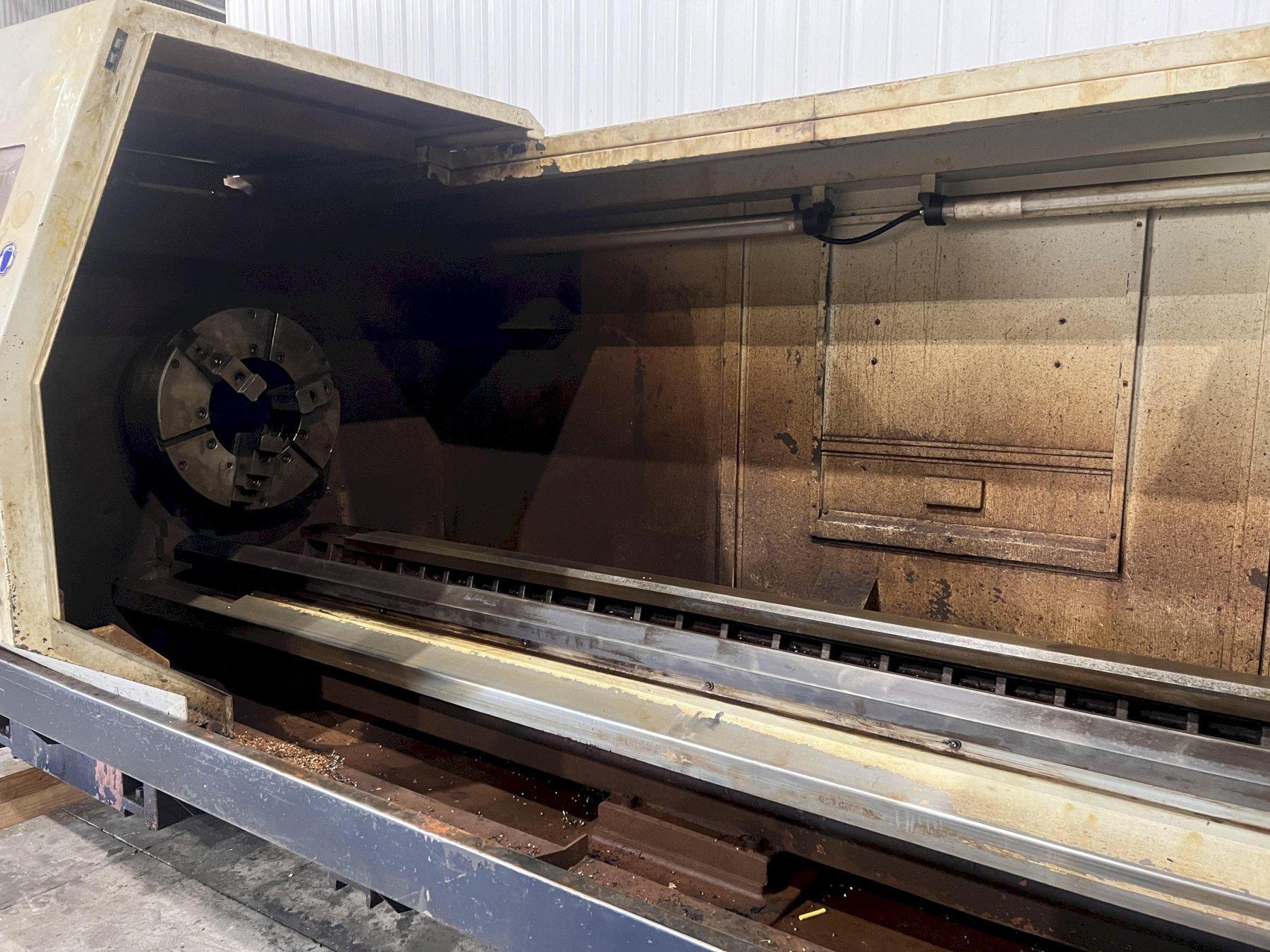

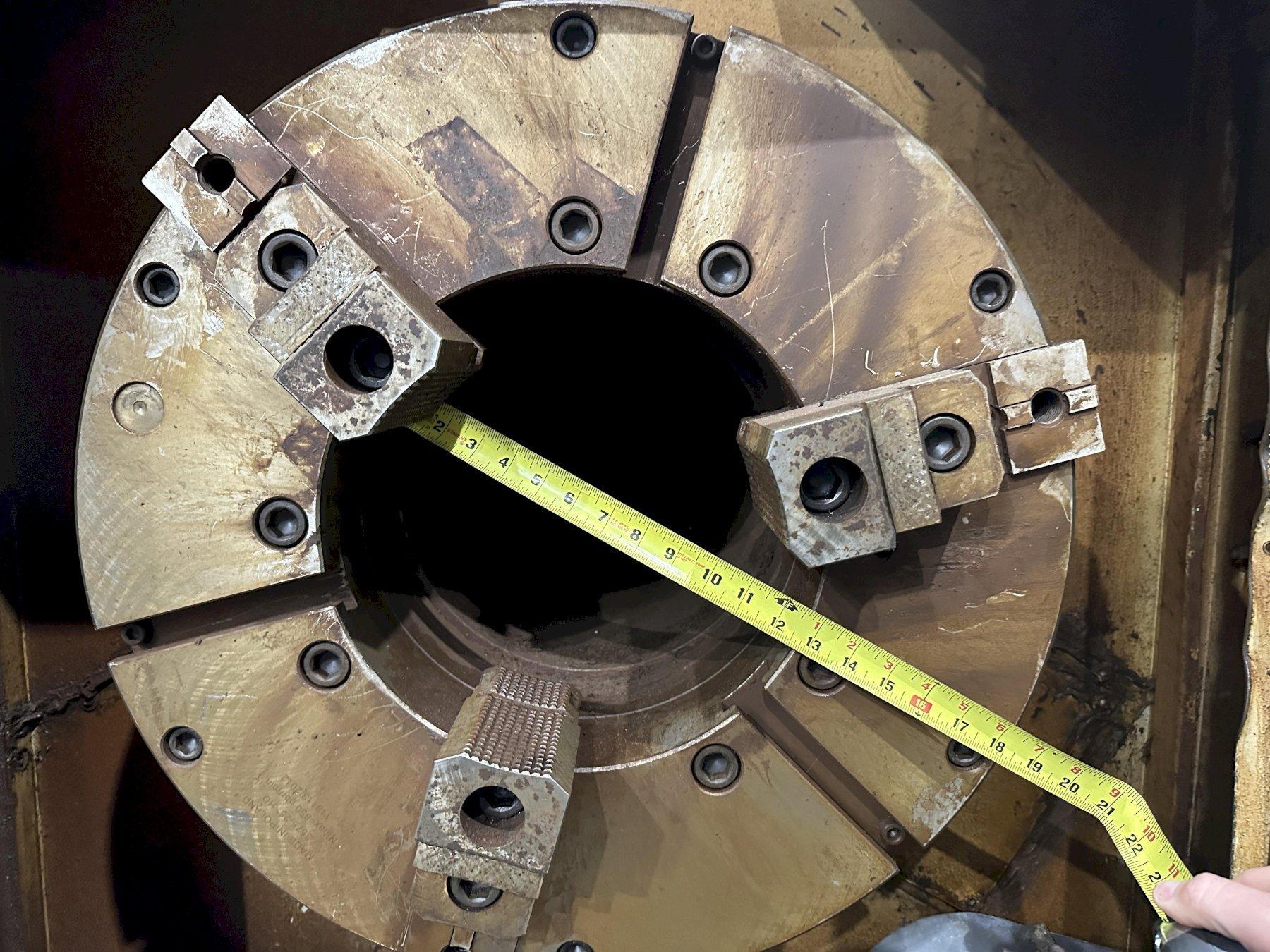

Front & Rear Chucks ............ A2-20 mount

Spindle Speeds ................. 4-600 RPM

Swing over bed ................. 31.5"

Swing over cross-slide ......... 20"

Center height .................. 15.7"

Distance between centers ....... 118"

Bed width ...................... 21.7"

Cross slide width .............. 11.8"

Z axis ball screw .............. 63mm

Z axis travel .................. 112"

X axis ball screw .............. 40mm

X axis travel .................. 21"

Tailstock quill taper .......... 6 MT

Tailstock quill diameter ....... 5"

Tailstock quill travel ......... 10"

Includes:

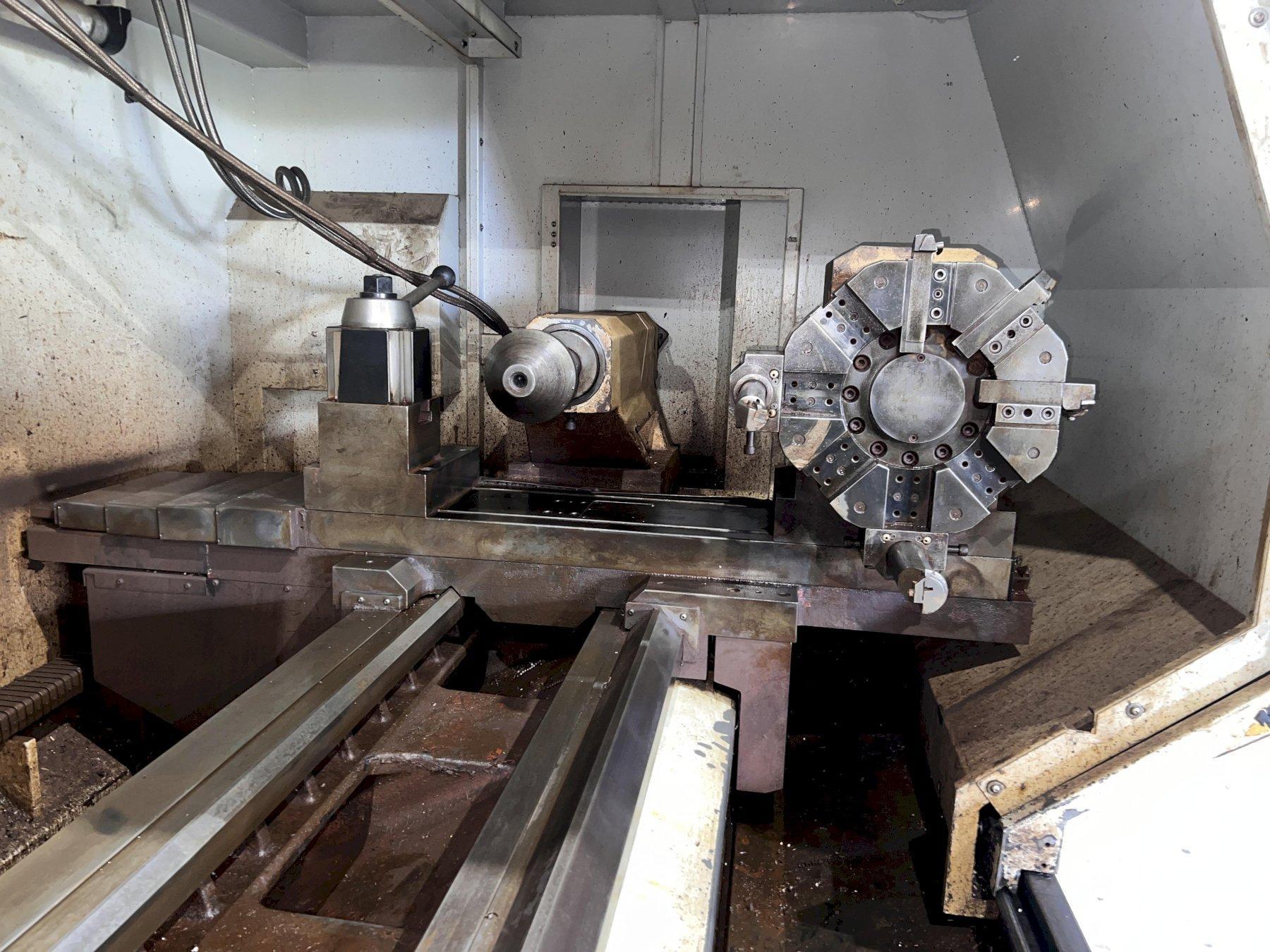

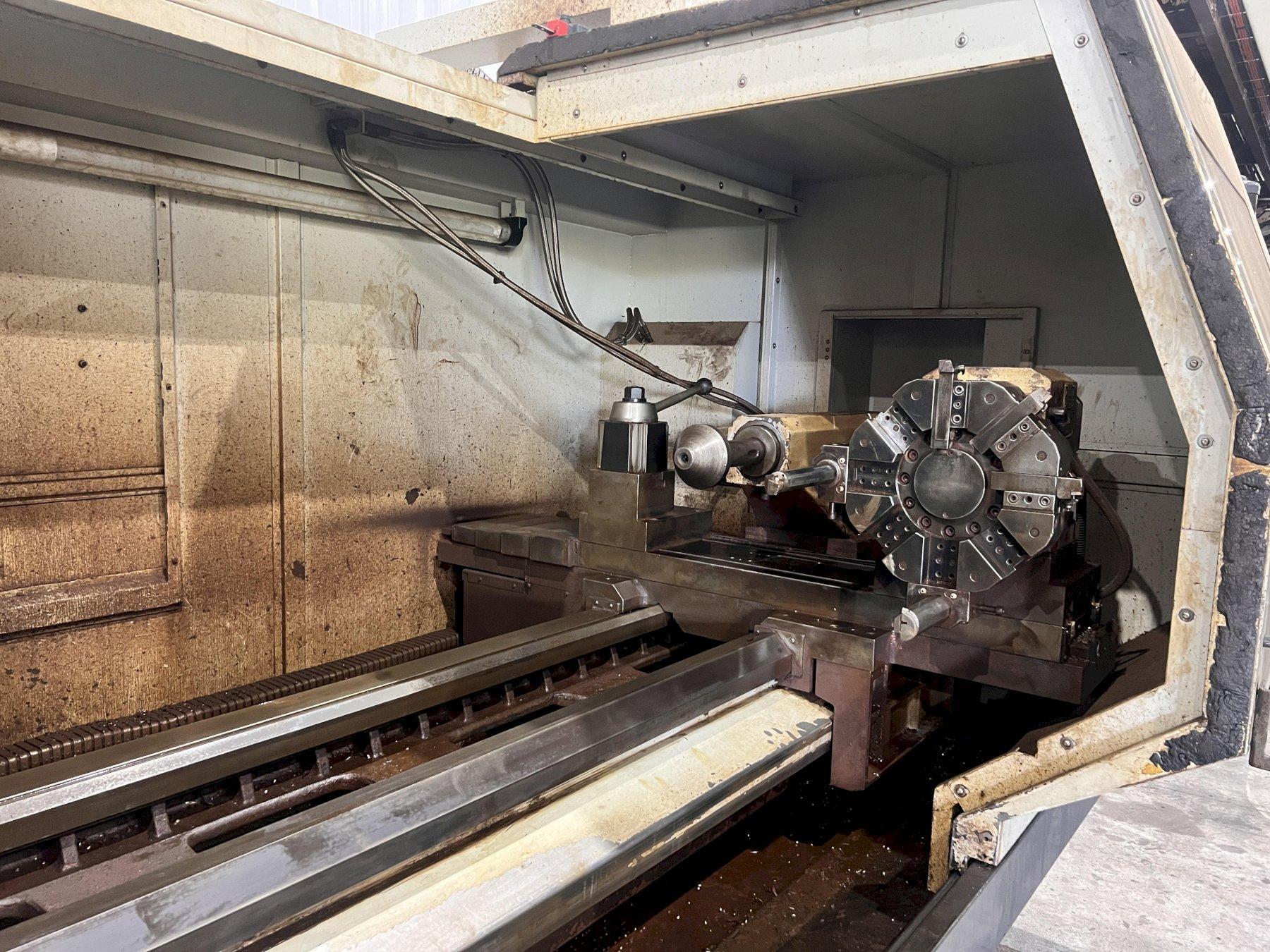

8 position electric turret on front of cross-slide

1-1/4" tool-holder capacity

2" boring bar holder capacity

Steady Rest (2"-15")

Rear chain type chip conveyor with cart

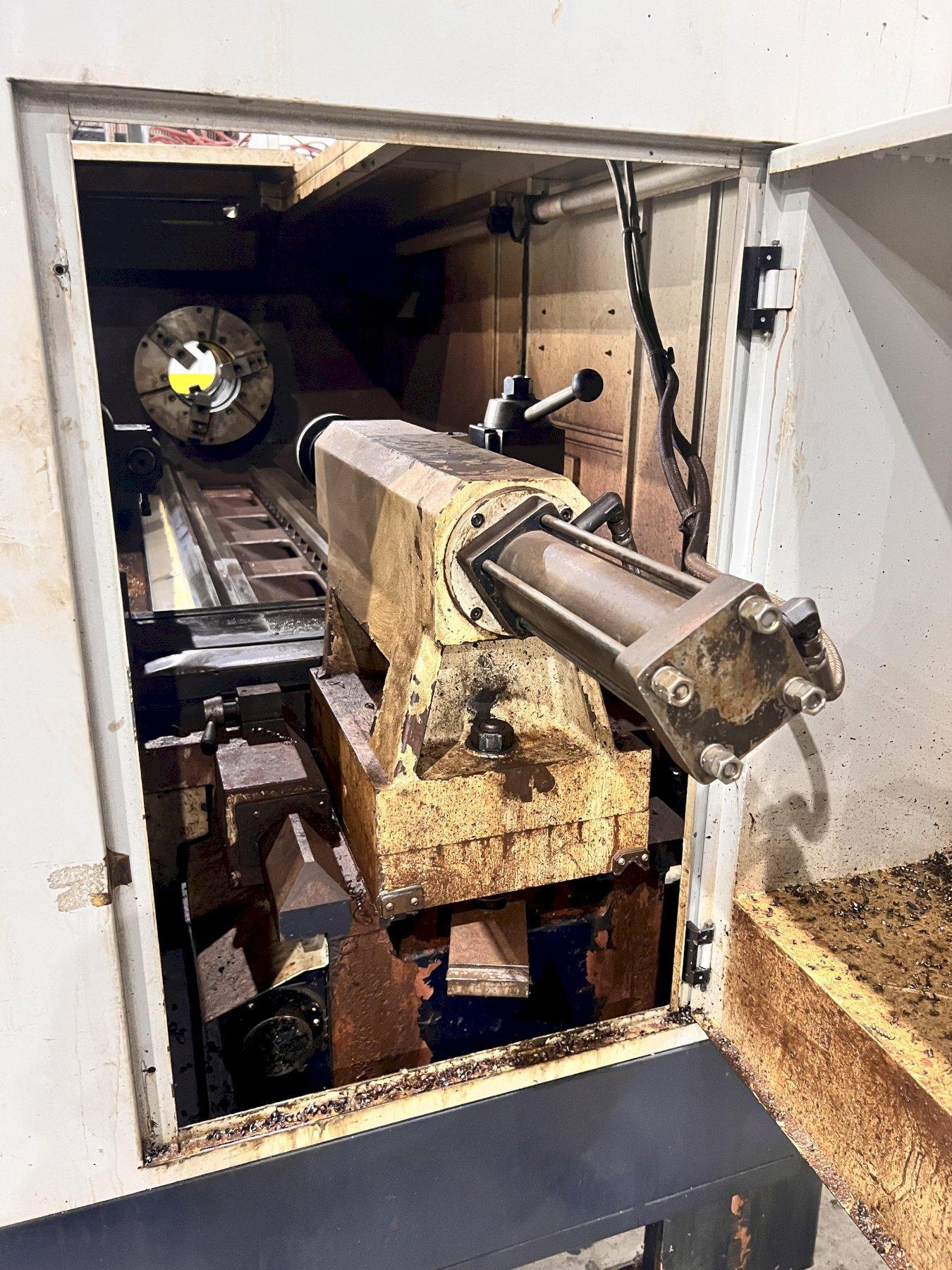

Hydraulic tailstock

Coolant System

Full length rear splash guard
