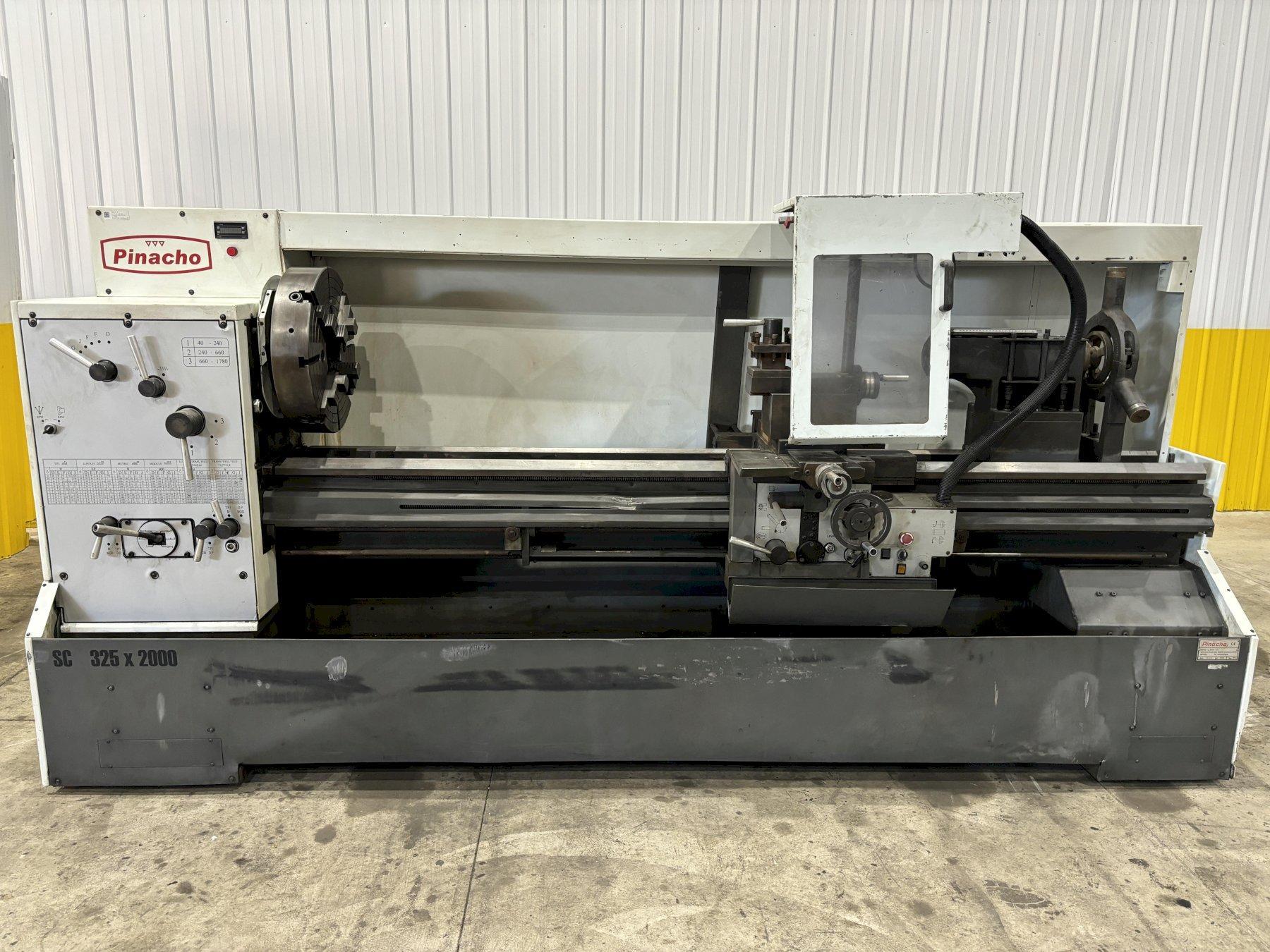

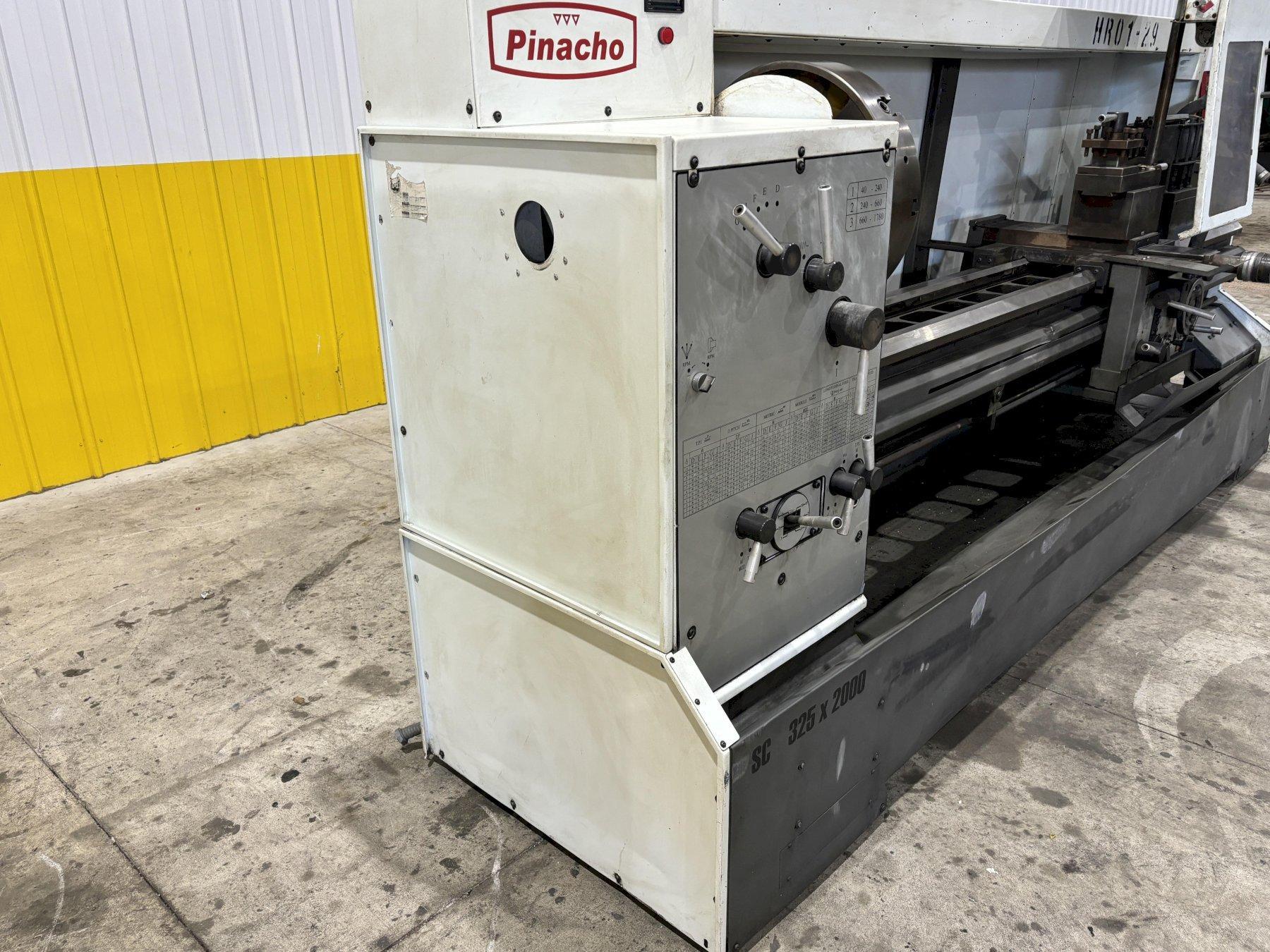

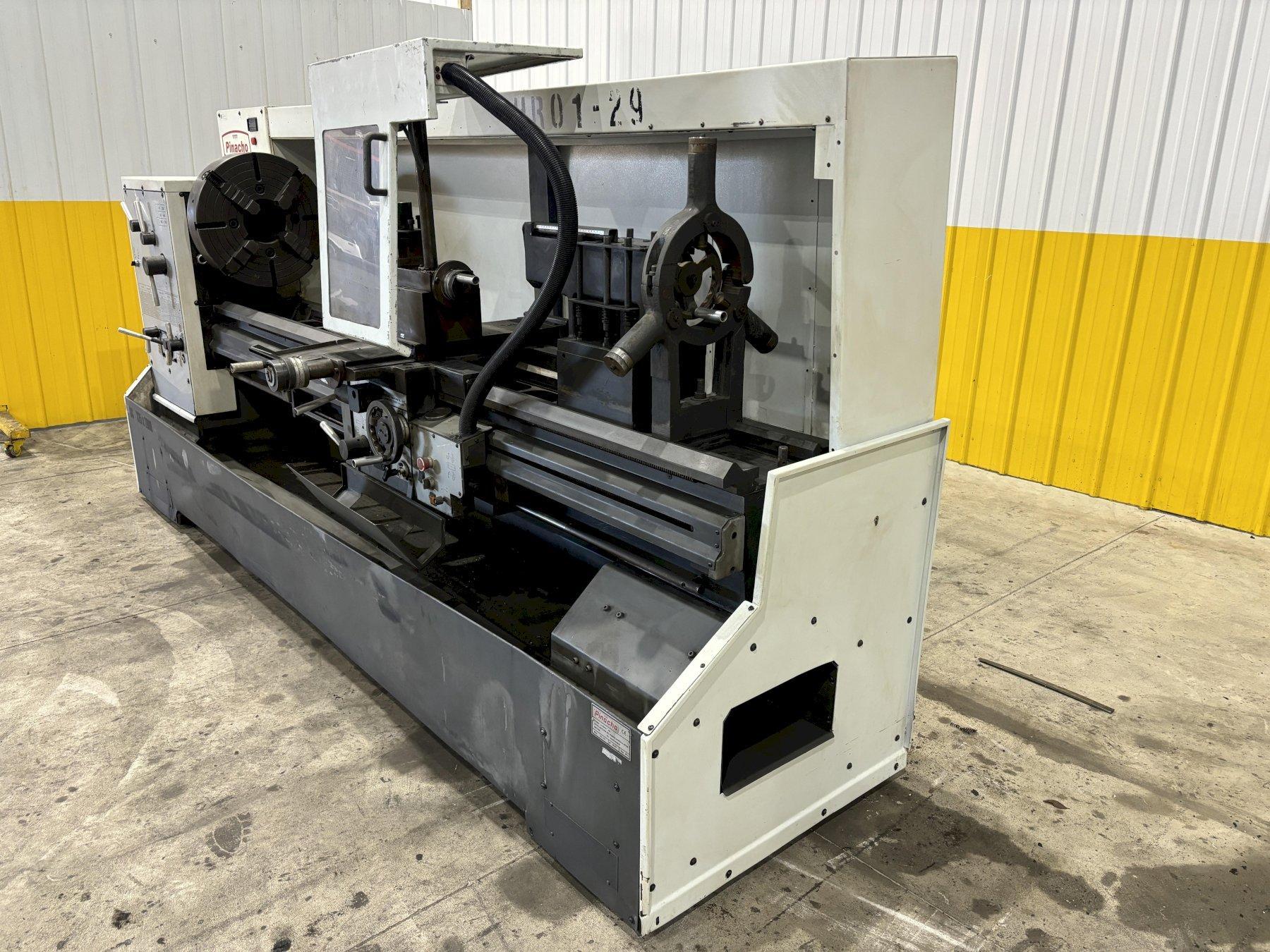

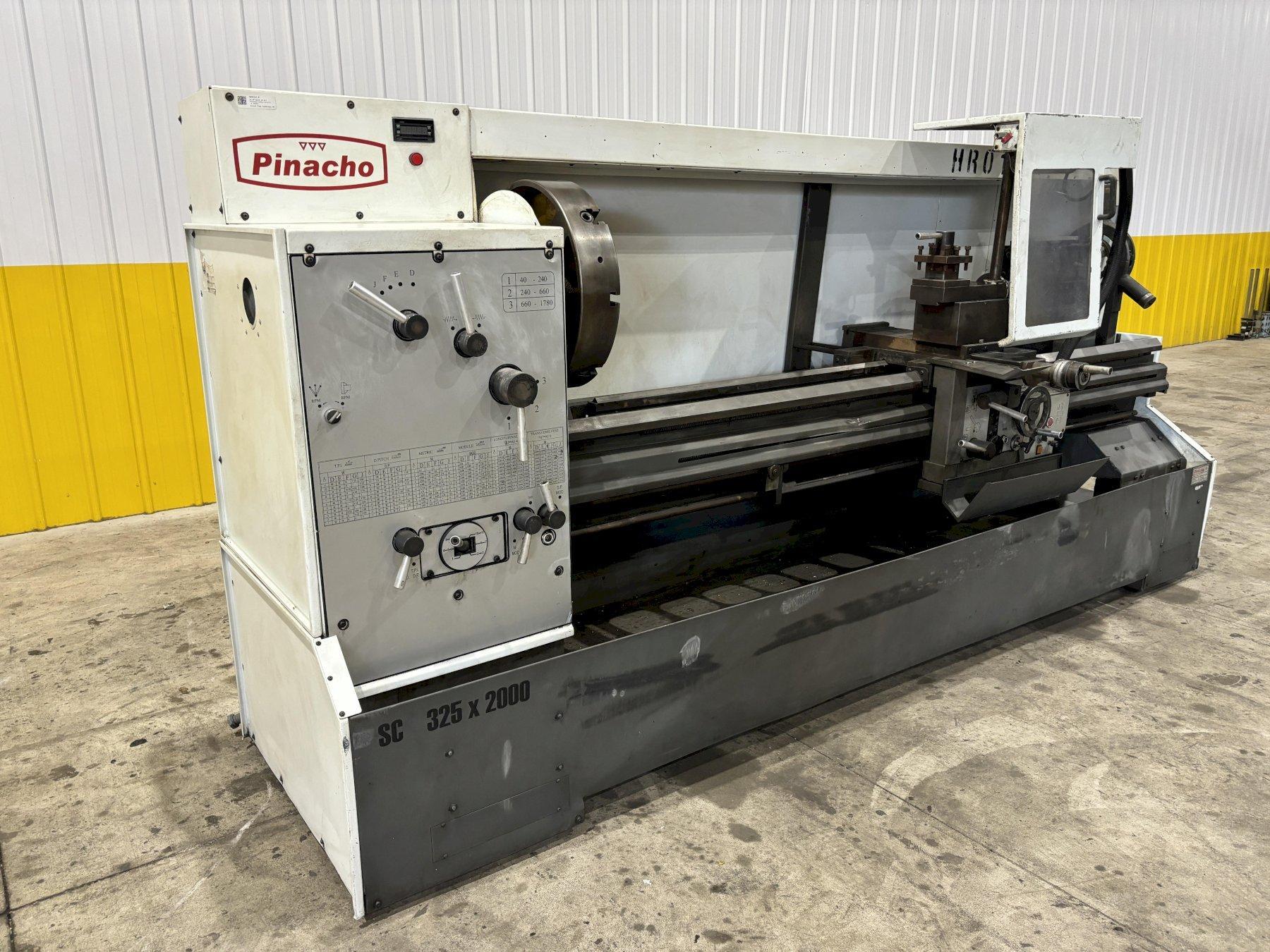

26" X 80" PINACHO MODEL #SC-325 MANUAL GAP BED ENGINE LATHE, NEW 2013, 3" HOLE: STOCK #21139

Manufacturer

PINACHO

Category

Lathes

Type

LATHES, ENGINE

Stock

21139

Model

SC-325

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



26" X 80" PINACHO MODEL #SC-325 MANUAL GAP BED ENGINE LATHE, NEW 2013: STOCK #21139

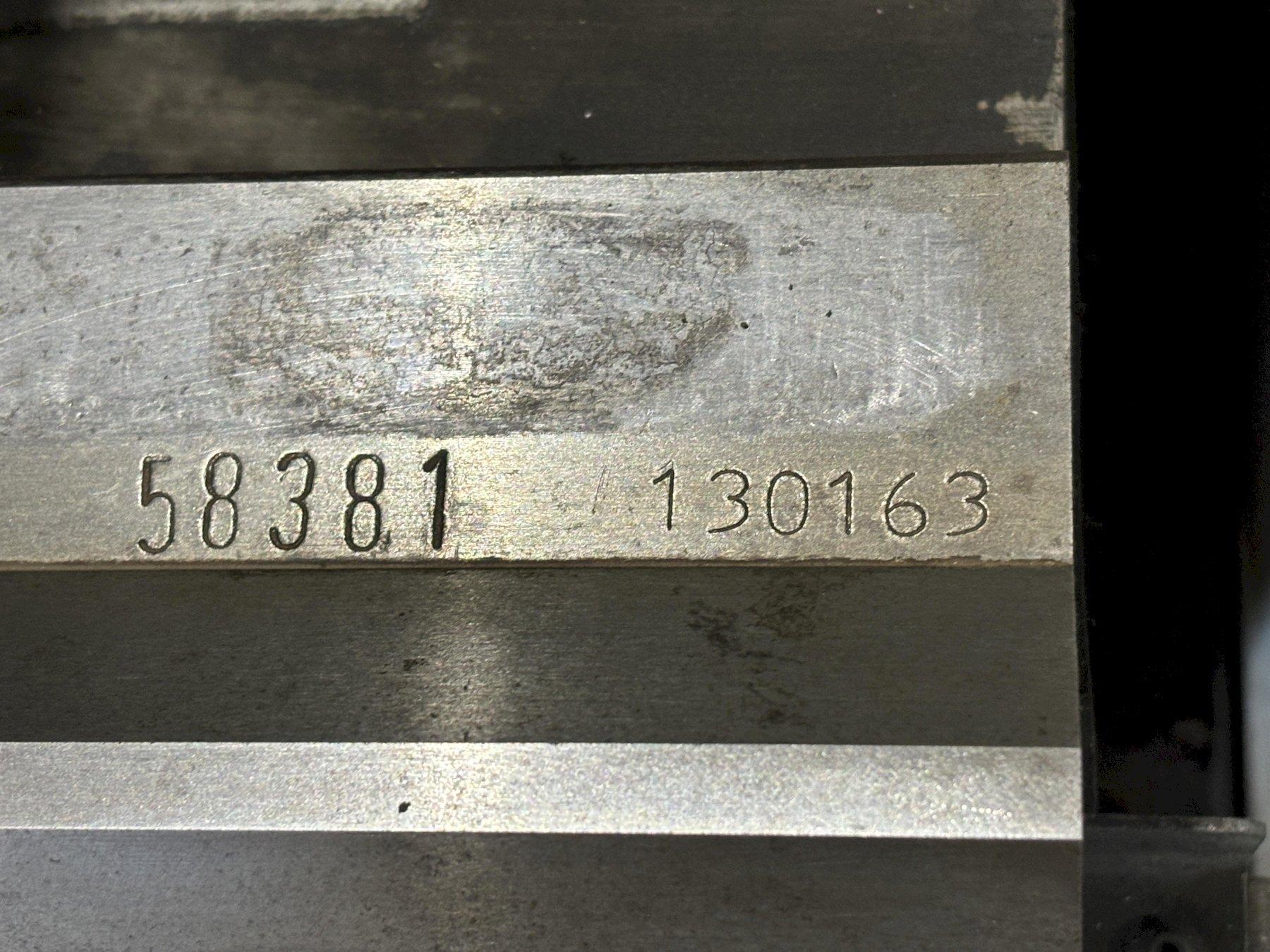

SERIAL .............................. 58380-1
MODEL ............................... #SC-325
Year ................................ 2013

Centre distance ..................... 80"
Centre height ....................... 13"
Swing over bed ...................... 26"

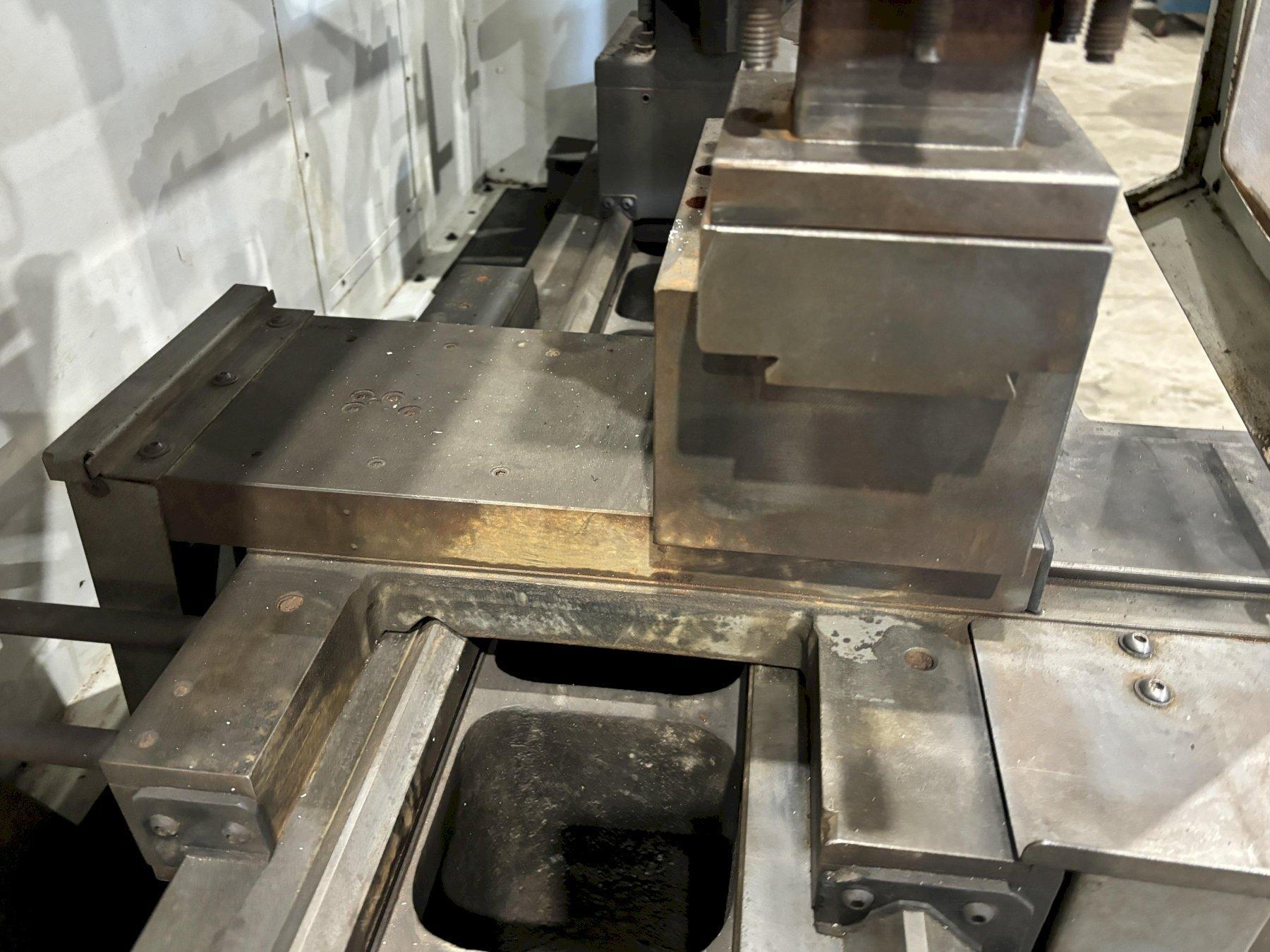

Swing over gap ...................... 36"
Gap length in front of face plate ... 9"
Bed width ........................... 14"
Swing over carriage ................. 23"
Swing over cross slide .............. 18"
Cross slide travel .................. 12-3/4"

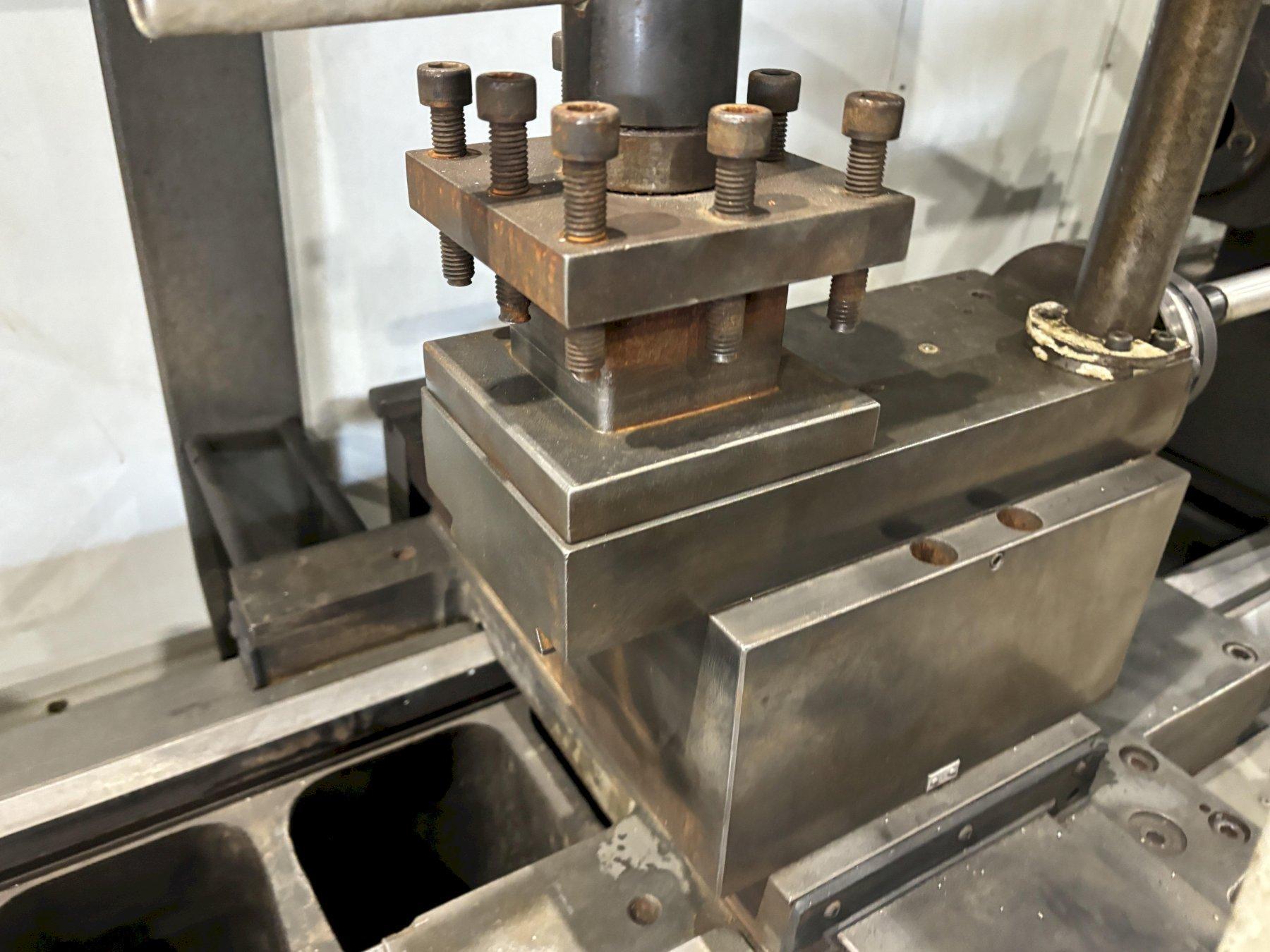

Tool post slide travel .............. 6"
Maximum tool dimensions ............. 1" x 1"

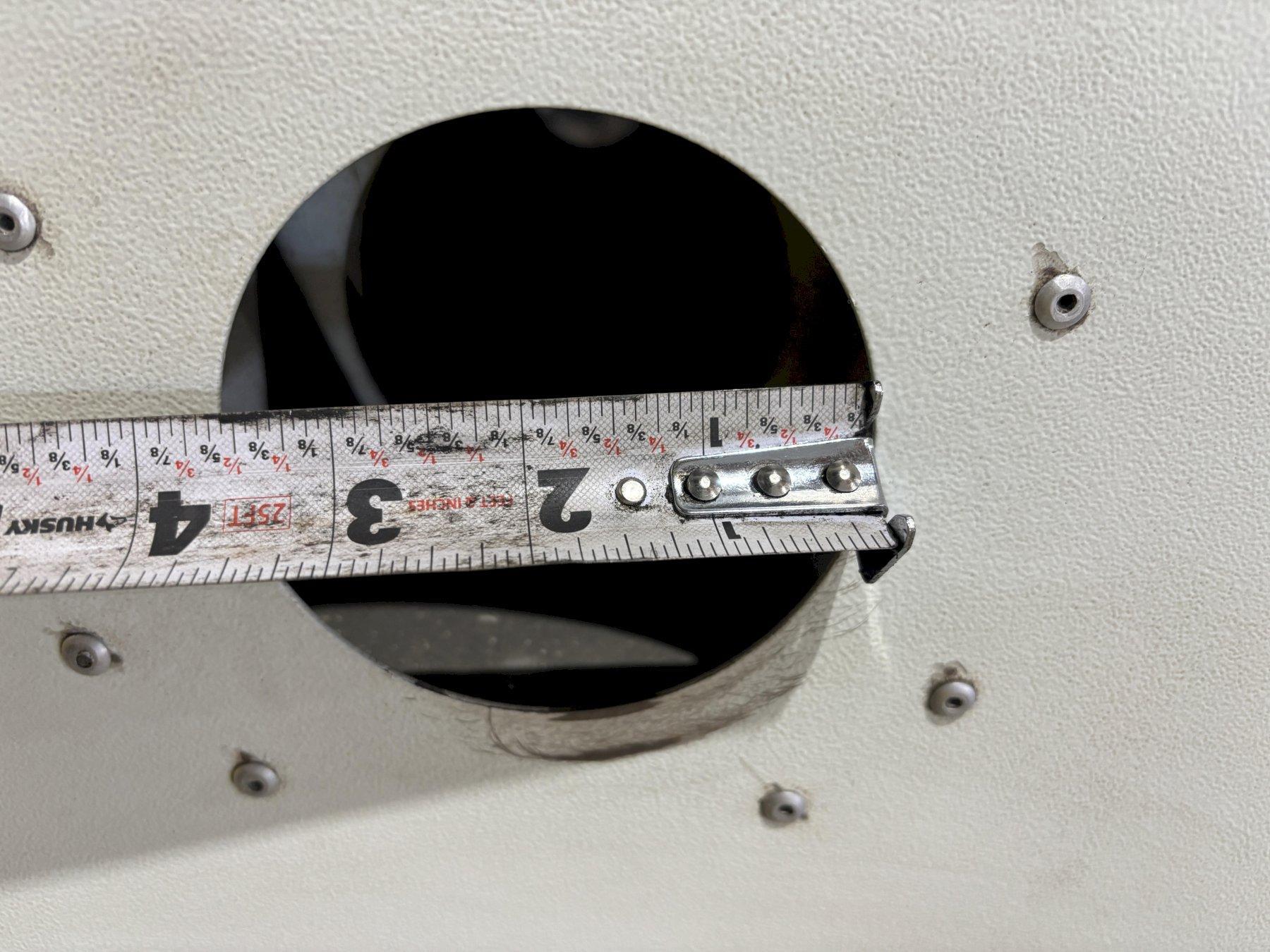

Headstock Main spindle bore ......... 3"
Main spindle nose / Camlock ......... A2 - 11 / 11
Main spindle morse taper (MT) ....... 5
Speed range (rpm) ................... 30 - 1700
No. of speed range .................. 3
Speed range 1 (rpm) ................. 50 - 120
Speed range 2 (rpm) ................. 120 - 290
Speed range 3 (rpm) ................. 290 - 800
Norton box No. threads and feeds .... 55
Longitudinal feeds .................. 0.05 - 1.5
Cross feeds ......................... 0.025 - 0.752
Metric threads ...................... 0.5 - 15
Whitworth threads in T.P.I .......... 60 - 2
Modular threads ..................... 0.25 - 7.5
Pitch diametral threads ............. 120 - 4

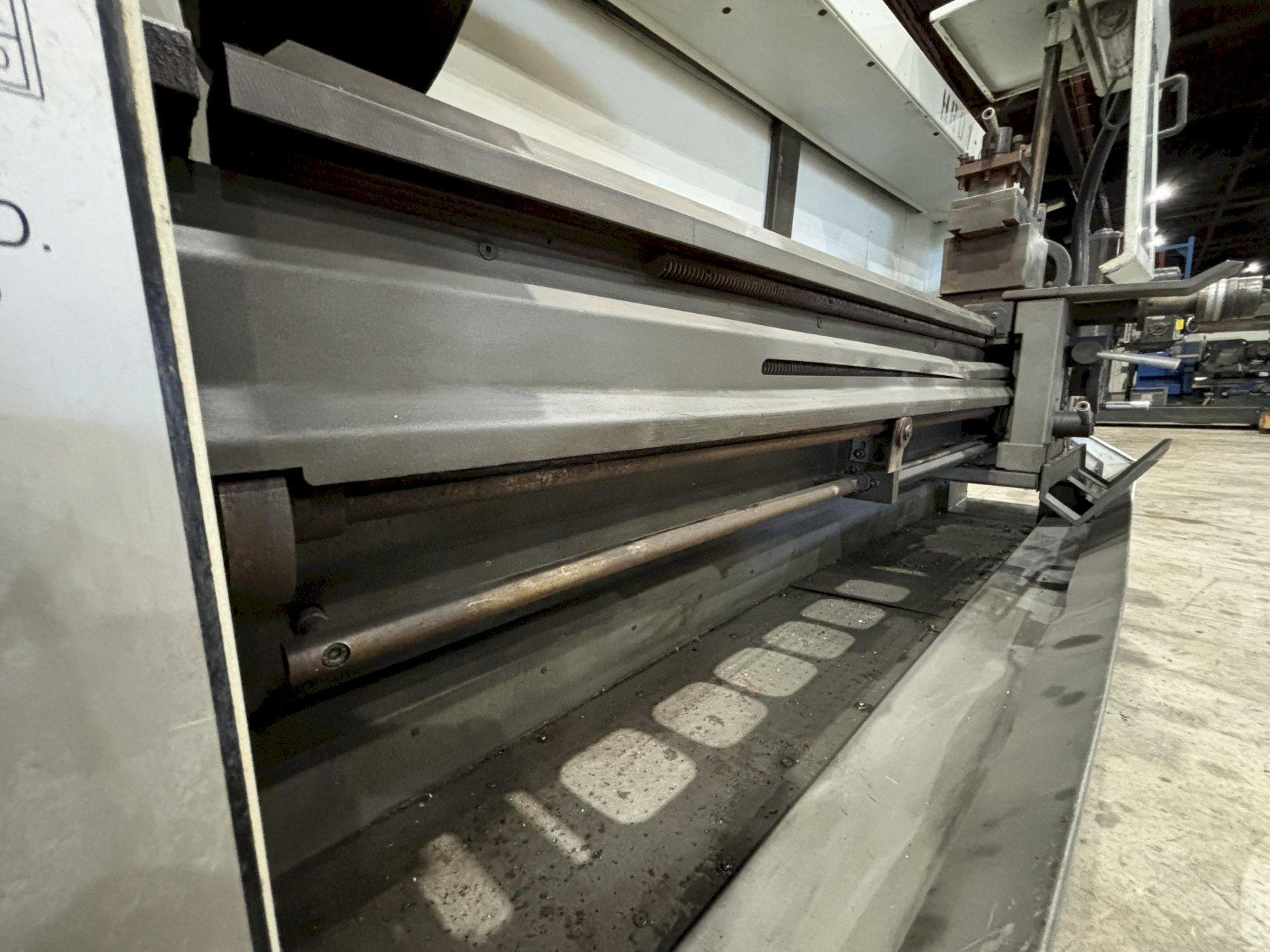

Ø35 lead screw rod pitch ............ 1/4"

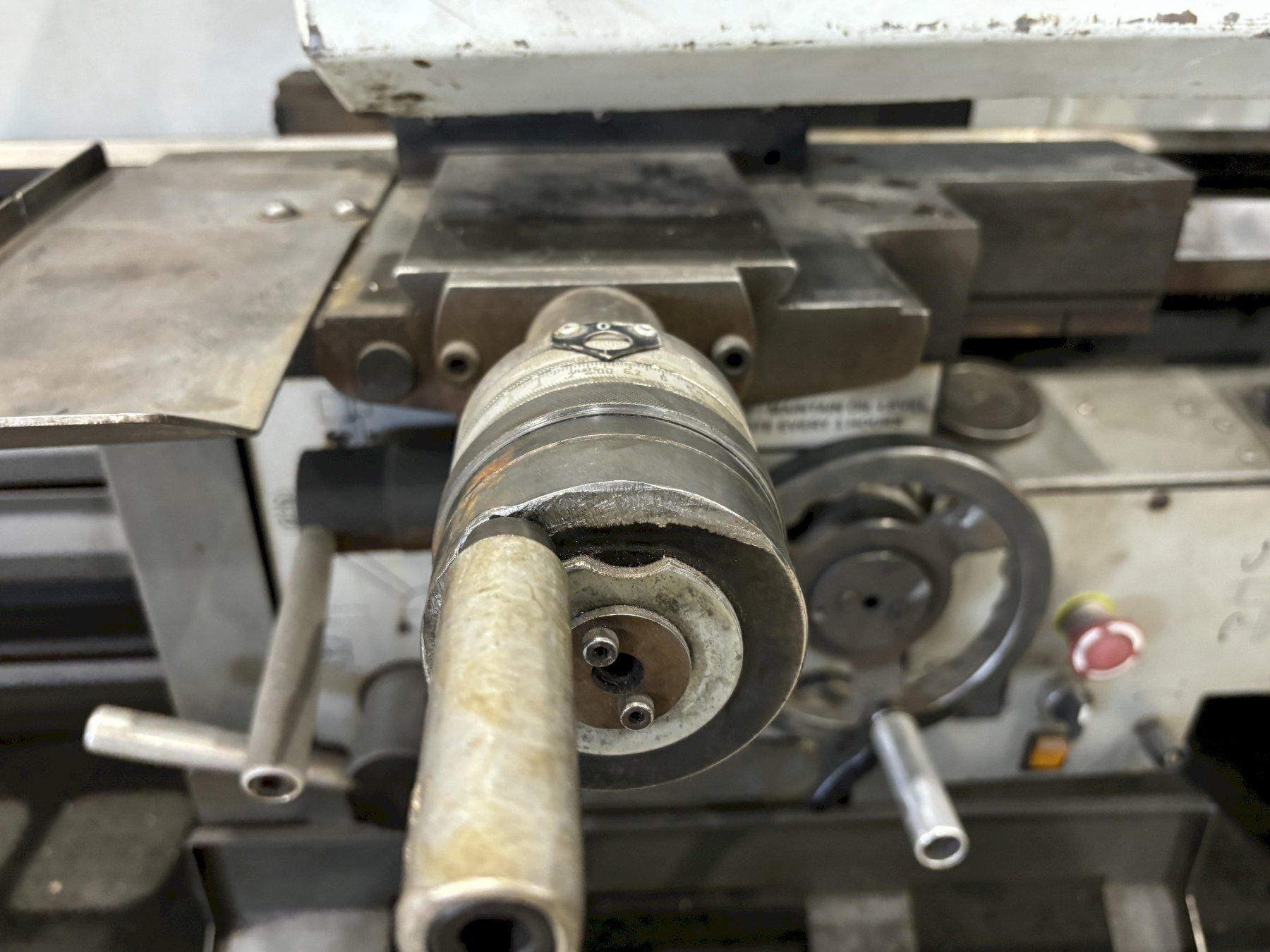

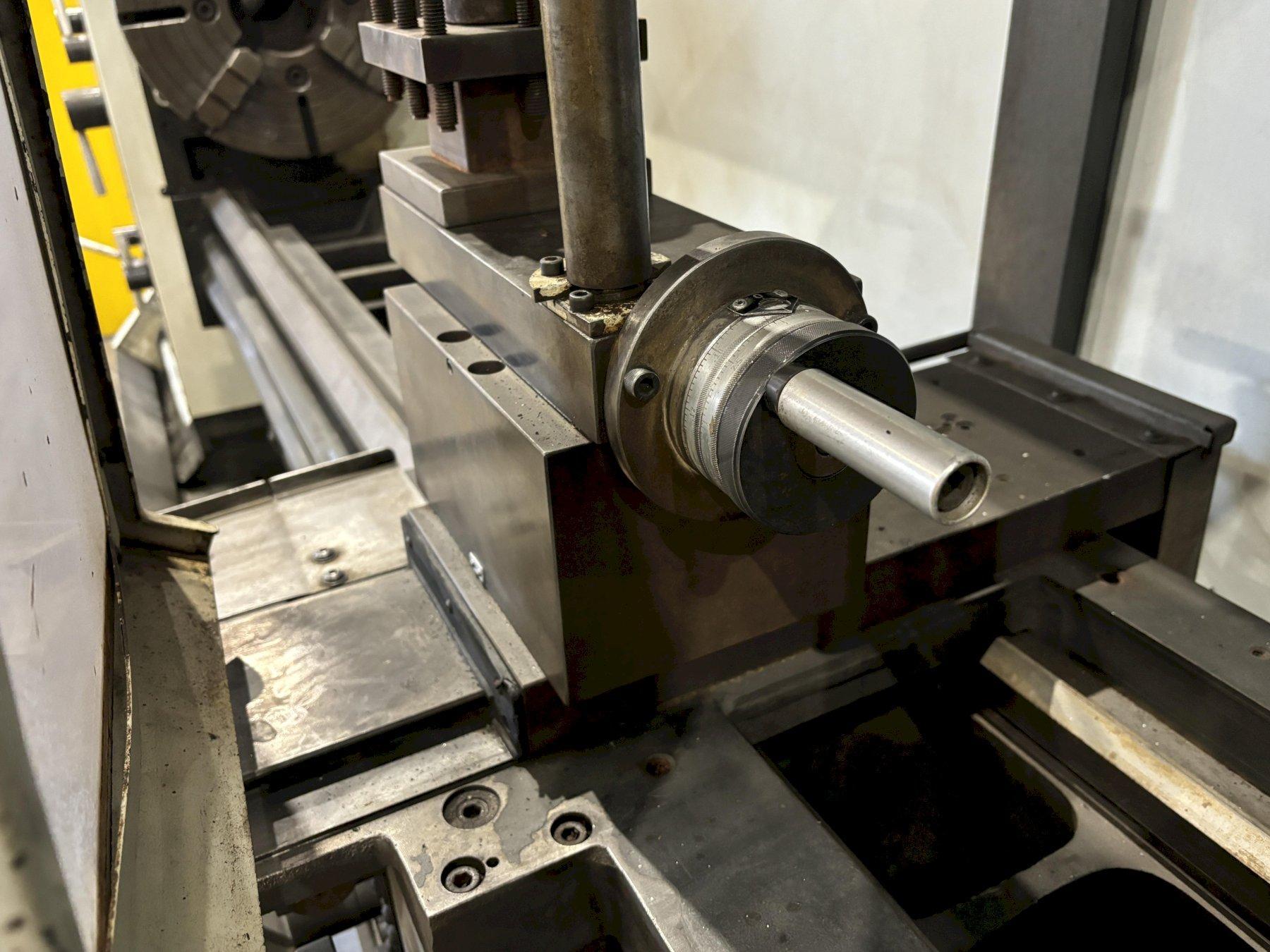

Tail stock barrel diameter .......... 3-3/4"
Tail stock barrel travel ............ 8-1/2"
Tail stock morse taper (MT) ......... 5
Fixed Steady capacity ............... 7-1/4"
Follow Rest capacity ................ 5"
Main Motor Power (kw) ............... 7.5
Pump Motor Power (kw) ............... 0.1
Capacity of coolant tank (Lts) ...... 151

Overall Dimensions
Length .............................. 150"
Width ............................... 44"
Height .............................. 72"
Weight (lbs.) ....................... 5512
