Haas ST-10Y CNC Lathe w/ Live Tooling, Y-Axis, & Bar Feder

Manufacturer

Haas

Category

Lathes

Type

LATHES, CNC

Stock

143250001

Model

ST-10Y

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 143250001
  • Location: Bigfork, MT
  • Brand: Haas
  • Model: ST-10Y
  • Year: 2014
  • Approx. Shipping Weight: 9,000 Lbs.
  • Approx. Shipping Dimensions: 17′ L x 6′ W x 7′ H
  • Skidding Fee: Skidding Unavailable
  • Loading Fee: Rigging Required

Specifications

  • Swing Over Bed: 25.25″
  • Max Turning Diameter: 12″
  • Max Turning Length: 16″
  • X-Axis Travel: 7.8″
  • Y-Axis Travel: +/- 2″
  • Z-Axis Travel: 16″
  • Bar Capacity: 1.75″
  • Spindle Nose: A2-5
  • Spindle Motor: 15 HP
  • Max Spindle Speed: 6,000 RPM

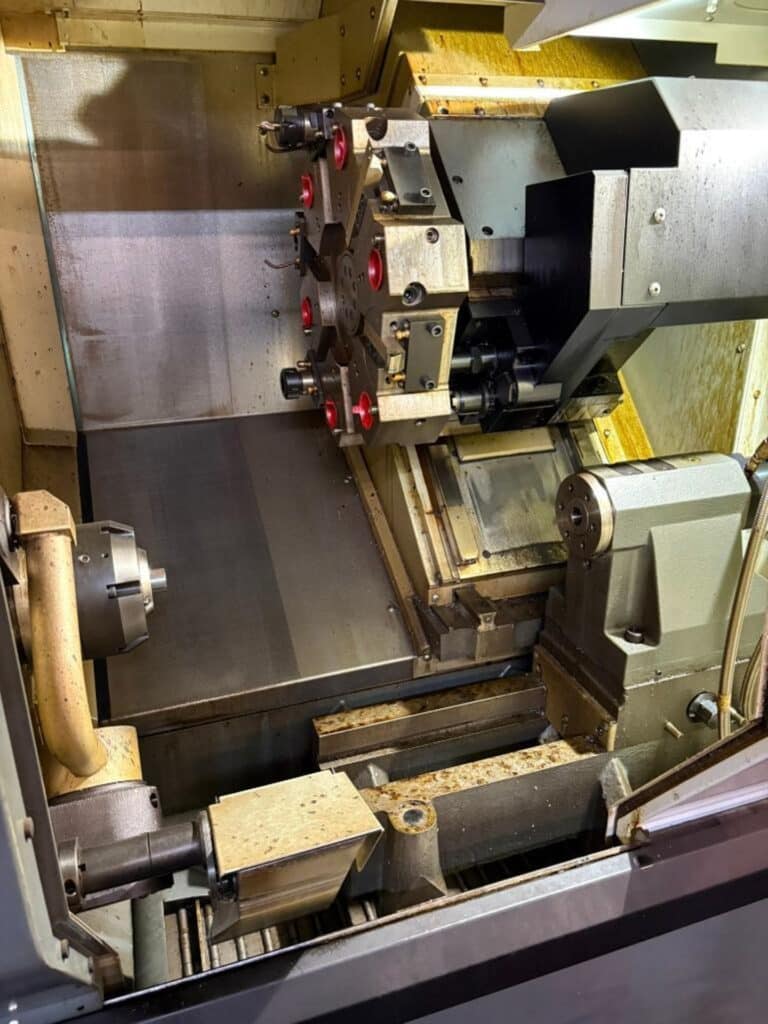

  • Turret Capacity / Type: 12 Station VDI / BOT Hybrid
  • Max Live Tooling Speed: 6,000 RPM

Equipped With

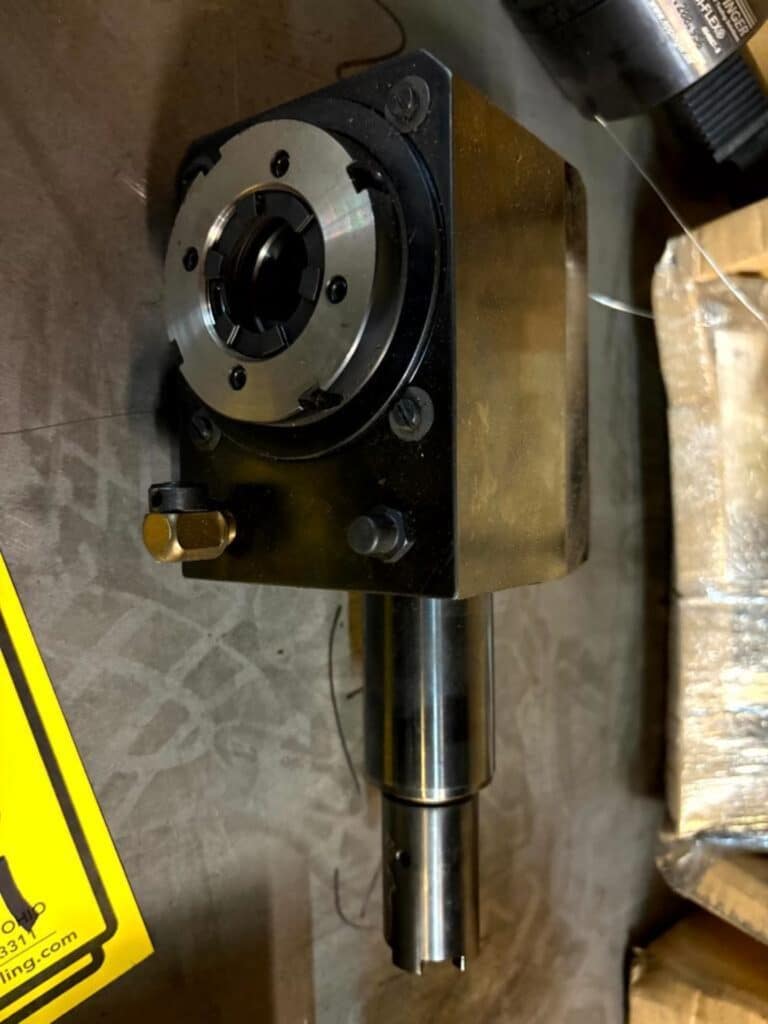

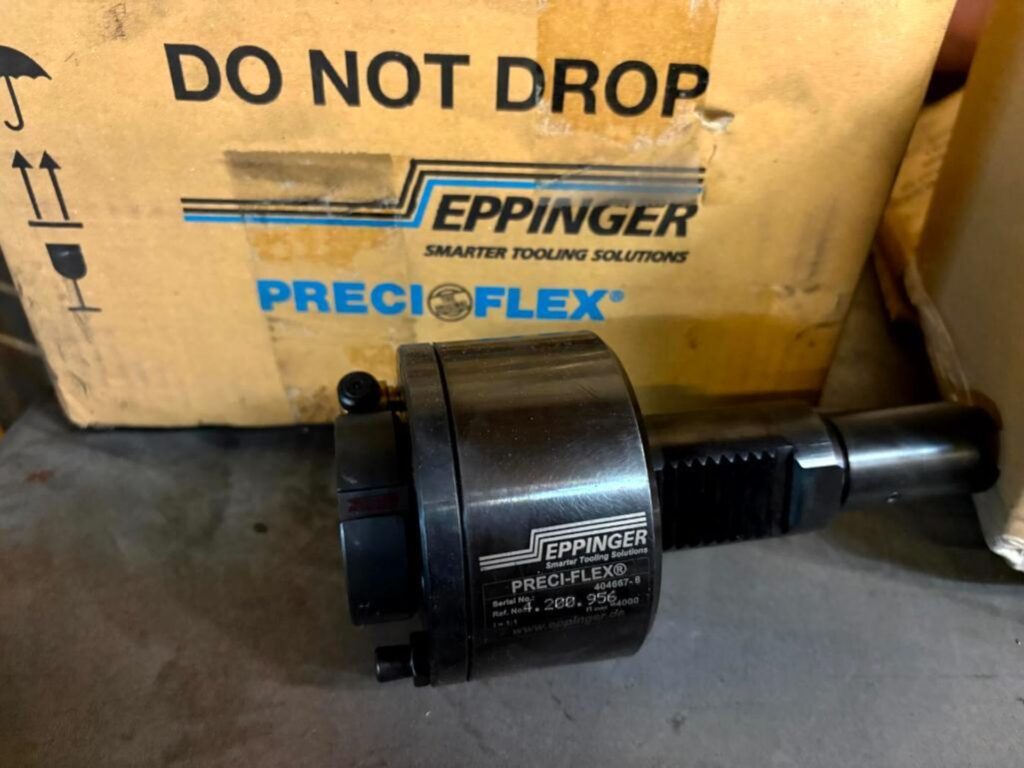

Haas CNC Control, Tool Presetter, Tailstock, Collet Chuck, Bar Feeder, Coolant System, Chip Conveyor, Assorted Live Tooling Holders: (Preci-Flex 4.200.957 Right Angle Live Tool Holder, Preci-Flex 4.200.957 Right Angle Live Tool Holder, Preci-Flex 4.200.956 Straight Live Tool Holder)
