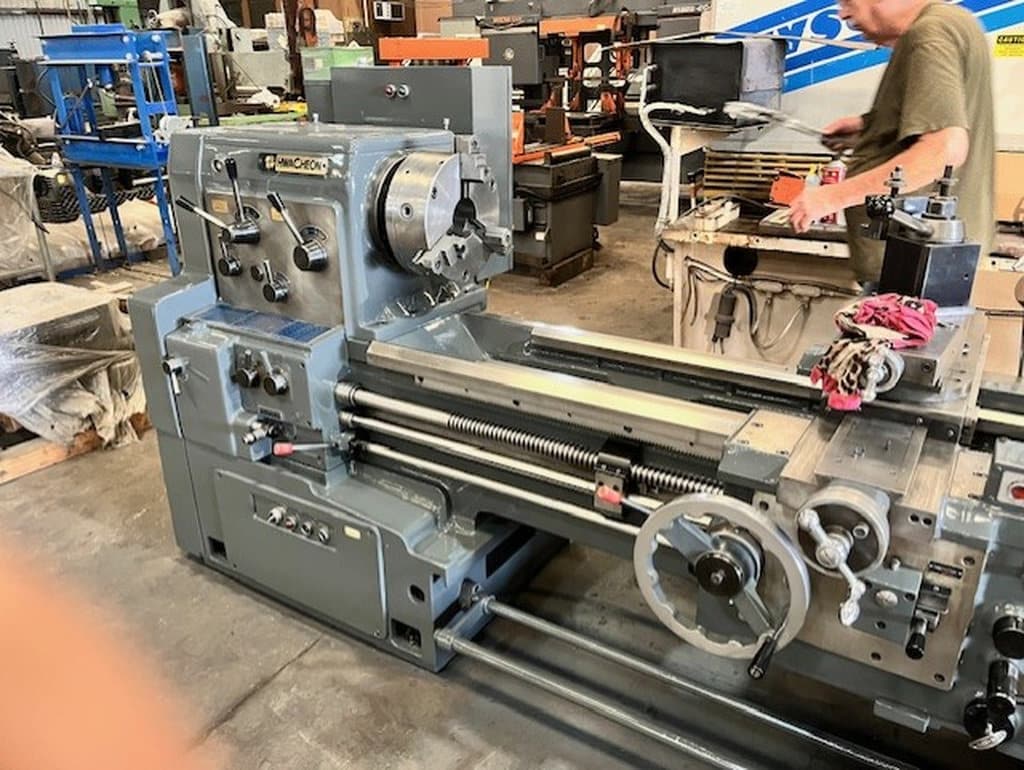

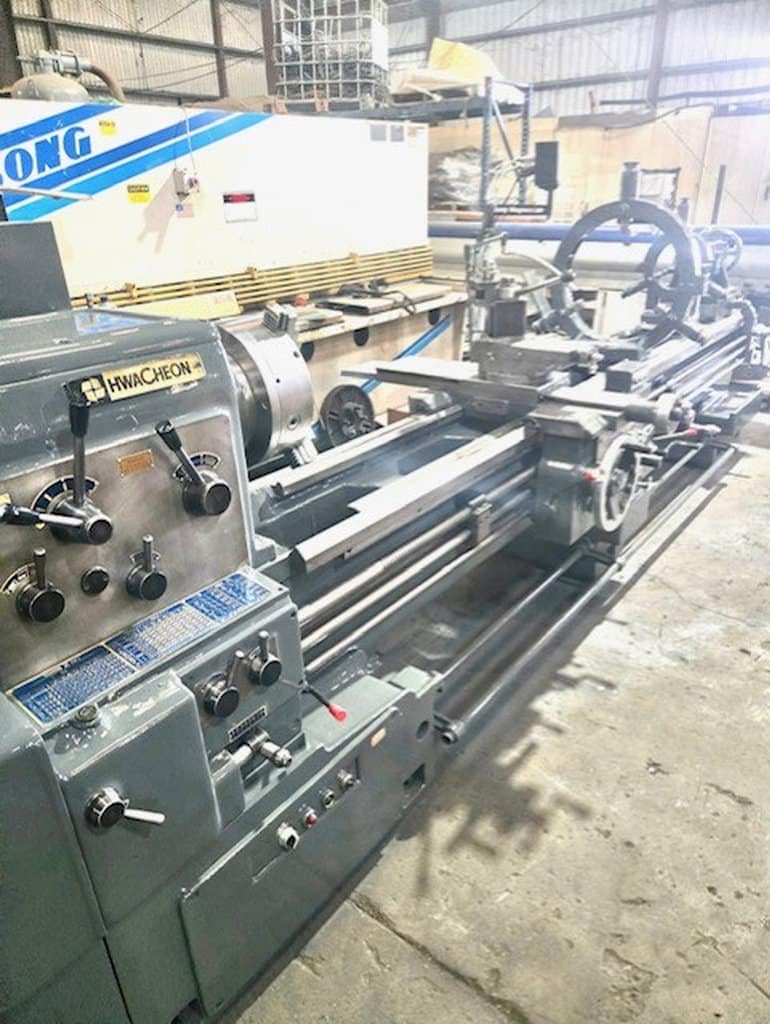

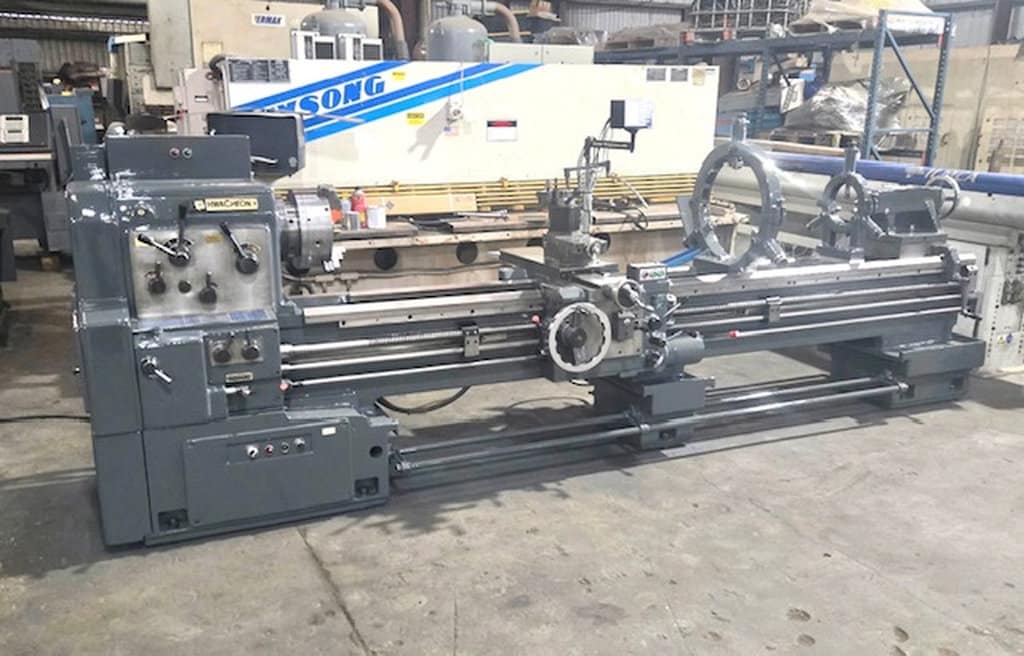

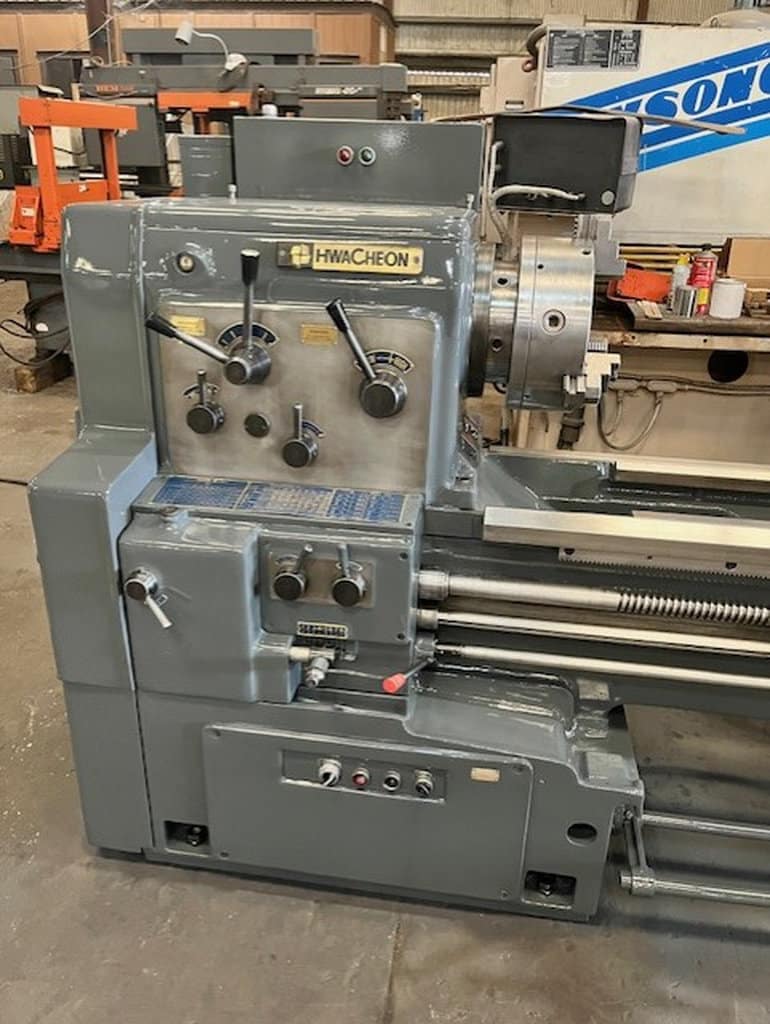

Hwacheon HL720 28″ x 120″ Precision Engine Lathe w/ Sony 2-Axis DRO

Stock

143250002

Model

HL720

Dealer Location

Georgia

Spec Sheet

  • Stock #: 143250002
  • Location: Houston, TX
  • Brand: Hwacheon
  • Model: HL720
  • Approx. Shipping Weight: 10,500 LBS.
  • Approx. Shipping Dimensions: 200″ L x 60″ W x 60″ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Swing Over Bed: 28.34″
  • Swing Over Cross Slide: 18.50″
  • Distance Between Centers: 118.11″
  • Spindle Nose: A-8
  • Spindle Bore: 3.03″
  • Taper Of Spindle Bore: MT No.7
  • Taper Of Center: MT No.5
  • Range Of Spindle Speeds (12): 27-1,205 RPM
  • No. of Feed Changes: 40 Step
  • Longitudinal Feed (Z-Axis): 0.0015″~0.0216 IPR
  • Cross Feed (X-Axis): 0.0016~0.0228 IPR
  • Cross Slide Travel: 13.35″
  • Compound Rest Travel: 6.69″
  • Inch Threads: 56~2 TPI
  • Metric Threads: 0.0196″~0.55″
  • D.P. Threads: 1~7 MP
  • Tail Stock Quill Travel: 5.90″
  • Tail Stock Quill Taper: MT No. 5

Equipped With

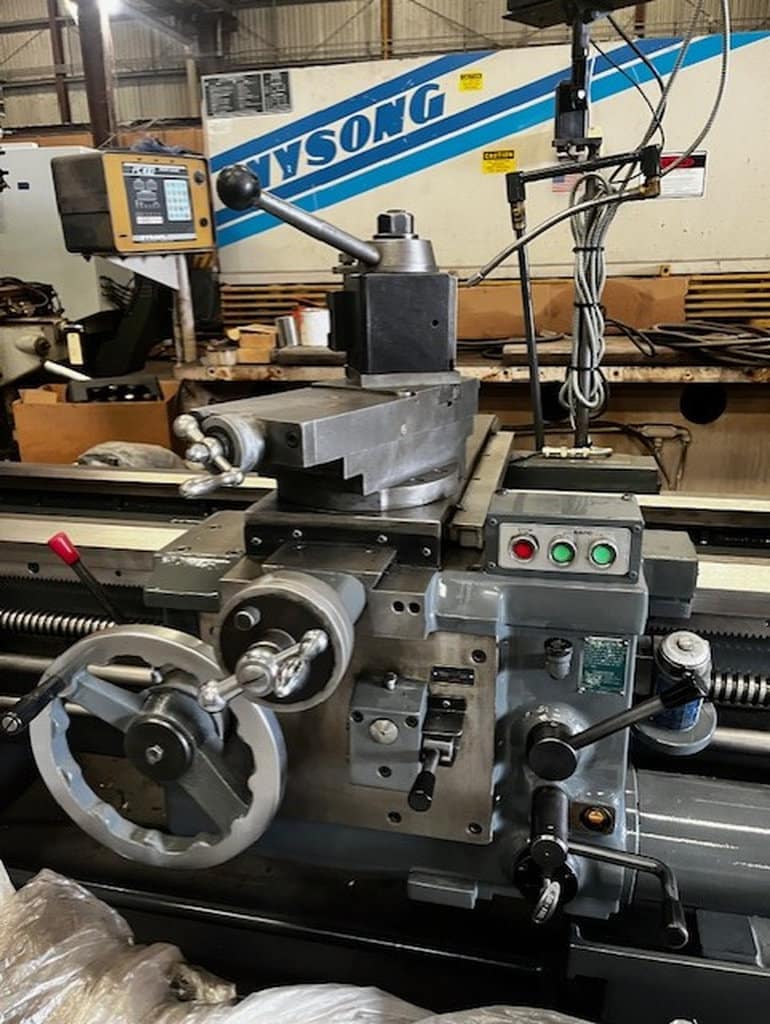

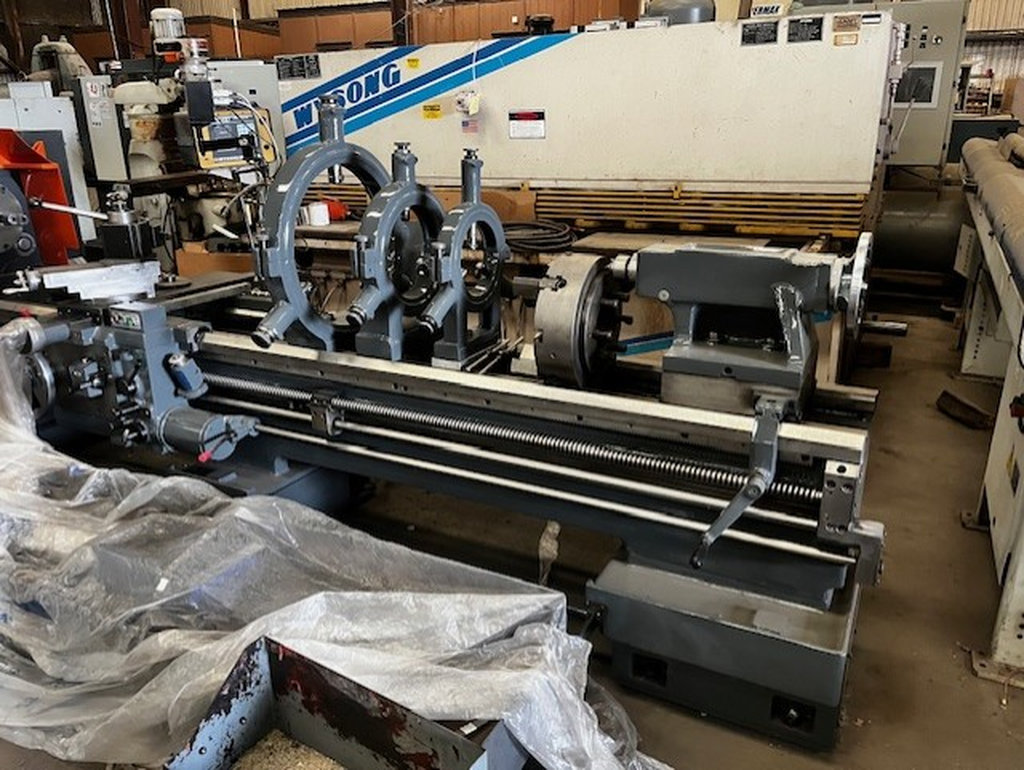

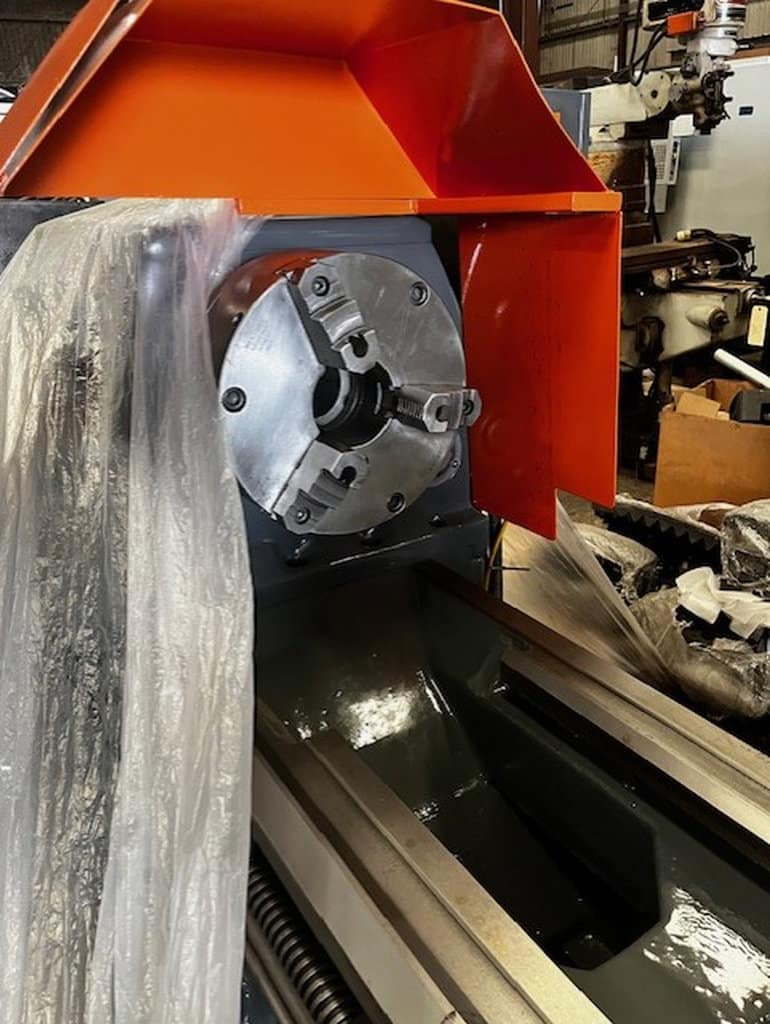

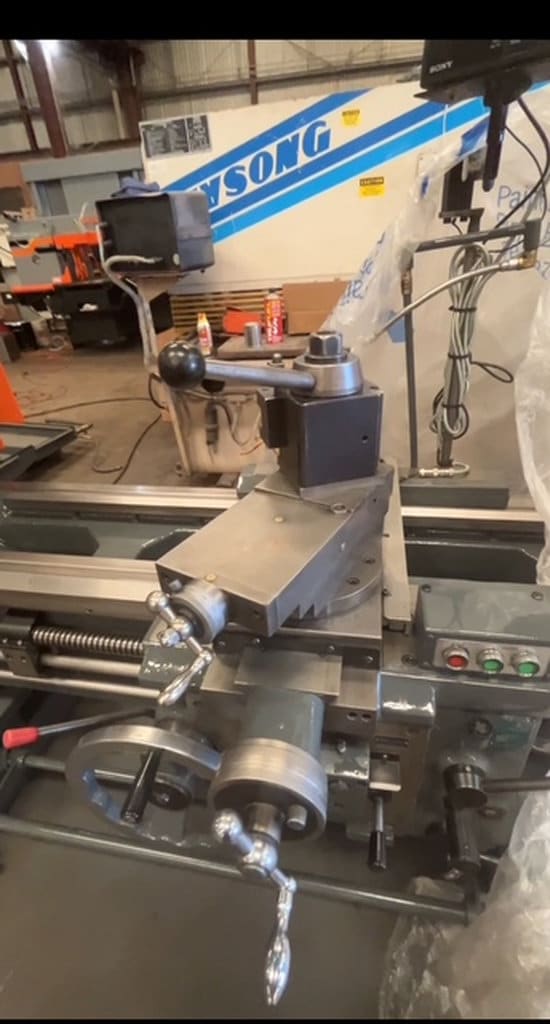

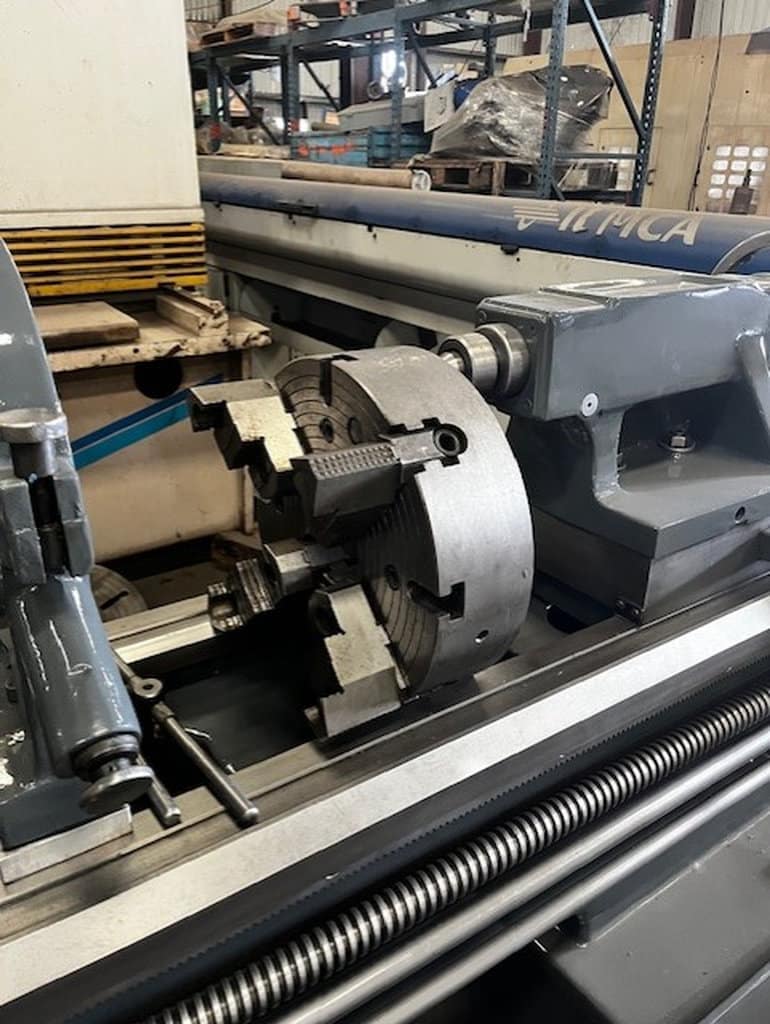

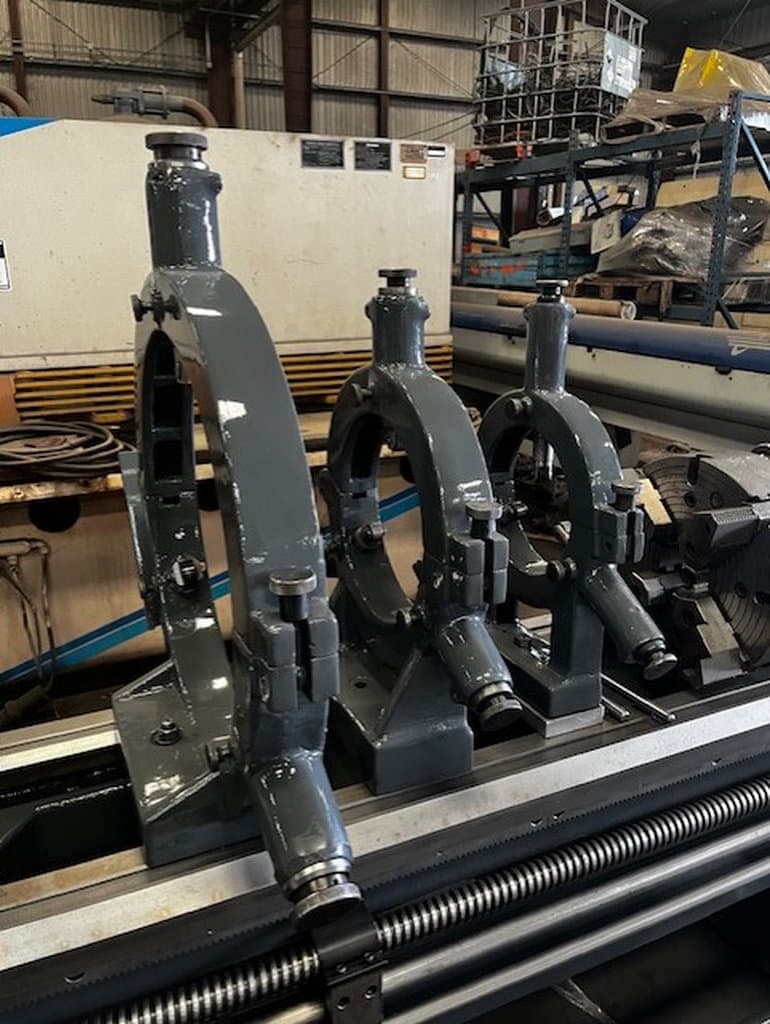

Sony 2-Axis Digital Readout System, Aloris Tool Post, Coolant System, 3 Steady Rests, 3-Jaw Chuck, 4-Jaw Chuck, Faceplate, Spindle Braking System
