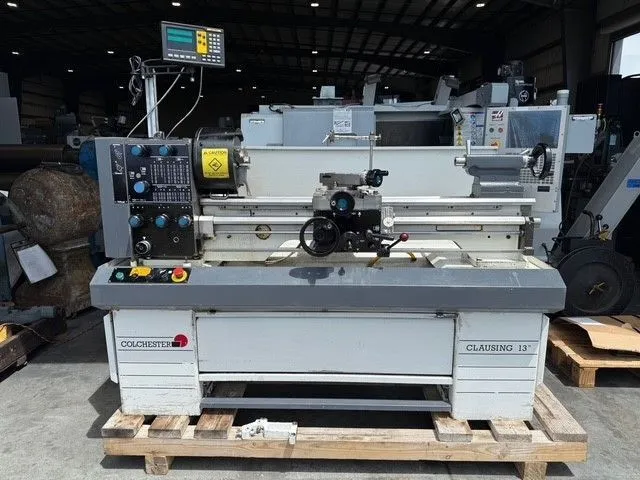

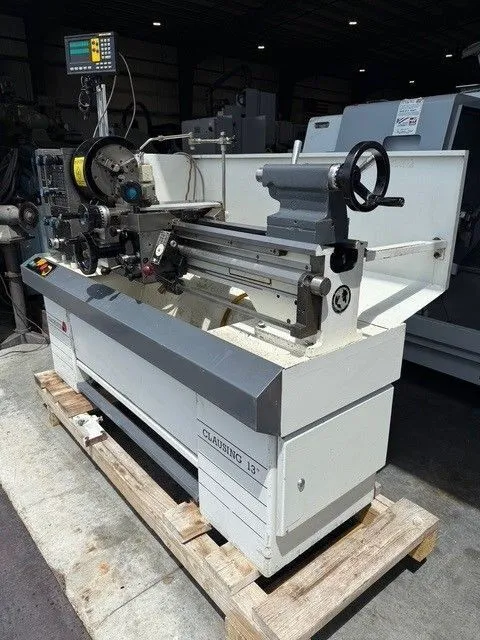

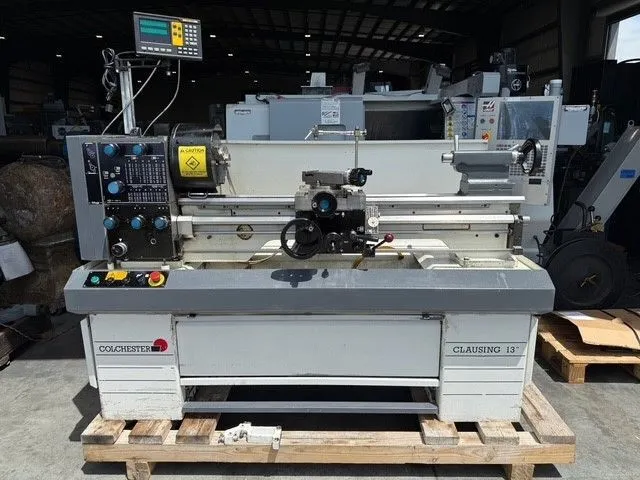

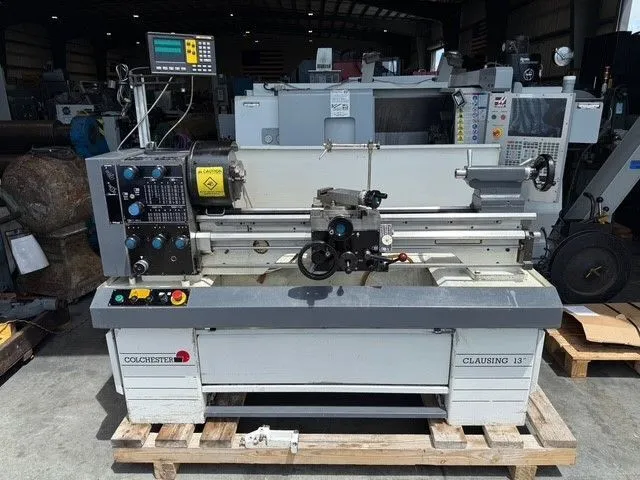

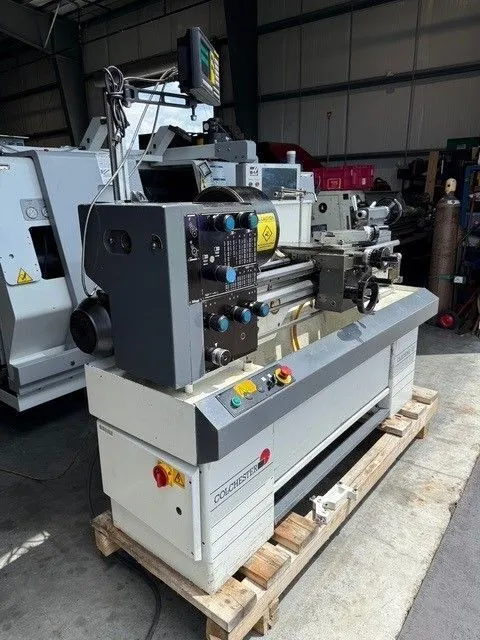

CLAUSING COLCHESTER 13”/18” x 40”cc Lathe 1998’ #7691

Manufacturer

CLAUSING COLCHESTER

Category

Lathes

Type

LATHES, ENGINE

Stock

7691

Model

STUDENT 2500

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

CLAUSING COLCHESTER 13”/18” x 40”cc Lathe 1998’ #7691
Reference #7691

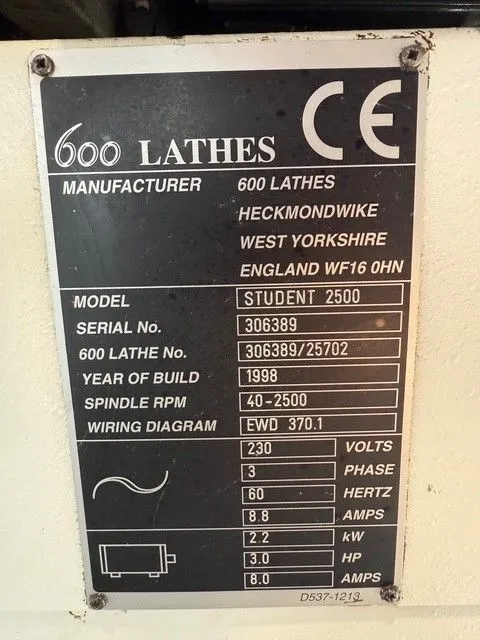

Model # 2500
Serial # 306389
Year of Manufacture- 1998’
Swing over bed- 13”
Swing over gap- 18.8”
Swing over cross slide- 8.26”
Distance between centers- 40”
Bedways width- 8”
Spindle bore- 1.5”
Spindle nose- D1-4
Spindle nose taper- 3 Morse taper
Number of spindle speeds- 12
Spindle speed range- 40 -2500 R.P.M.

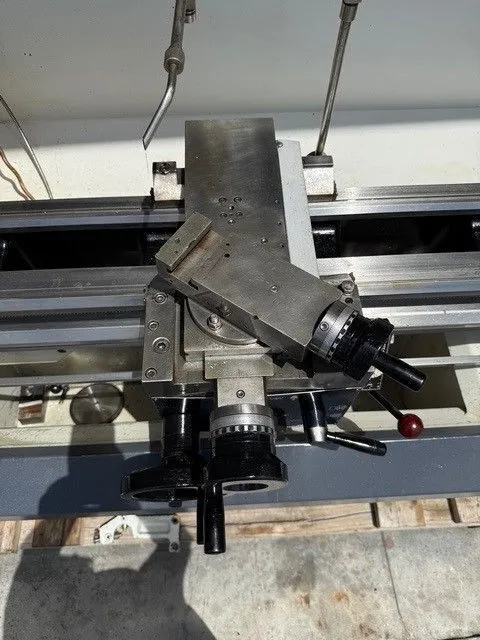

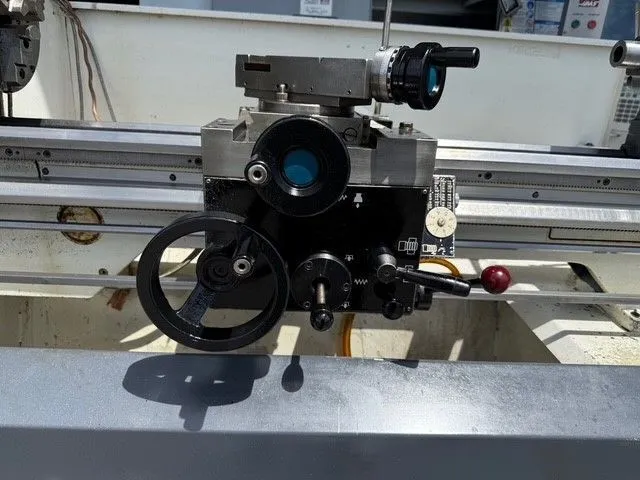

Travel of cross slide- 7.5”
Width of cross slide- 5.5”
Travel of top slide- 3.63”
Width of top slide- 3.25”

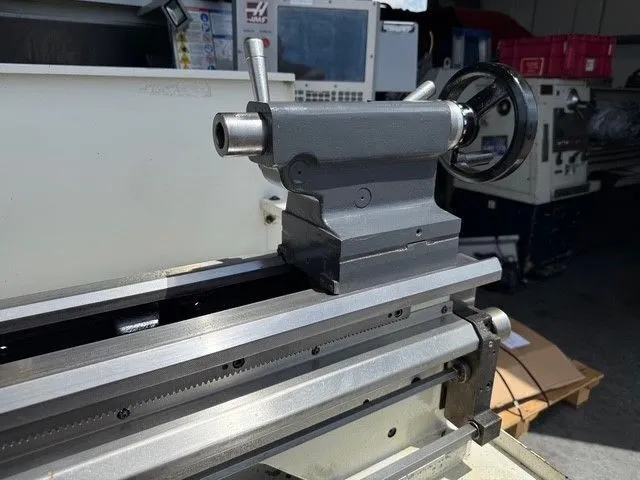

Tailstock quill travel- 4.38”
Quill diameter- 1.63”
Quill taper- 3 Morse taper
Longitudinal feeds-
Inch-.001” - .080” in/rev
mm- .03-2.00 mm/rev
Number of inch pitches- 35
Range in inch pitches- 2 – 56 T.P.I
Number of metric pitches- 39
Range of metric pitches- .2 – 14mm
