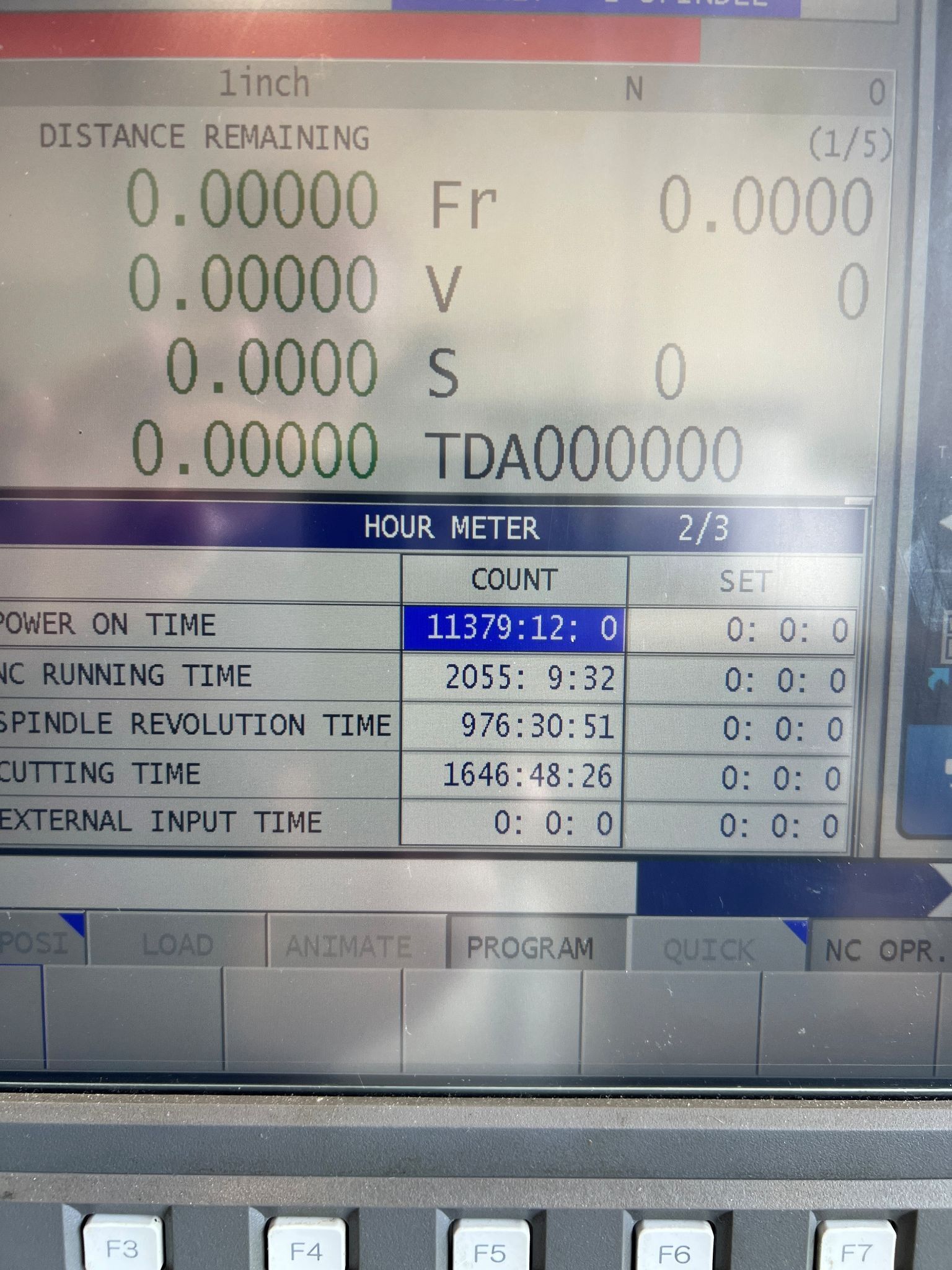

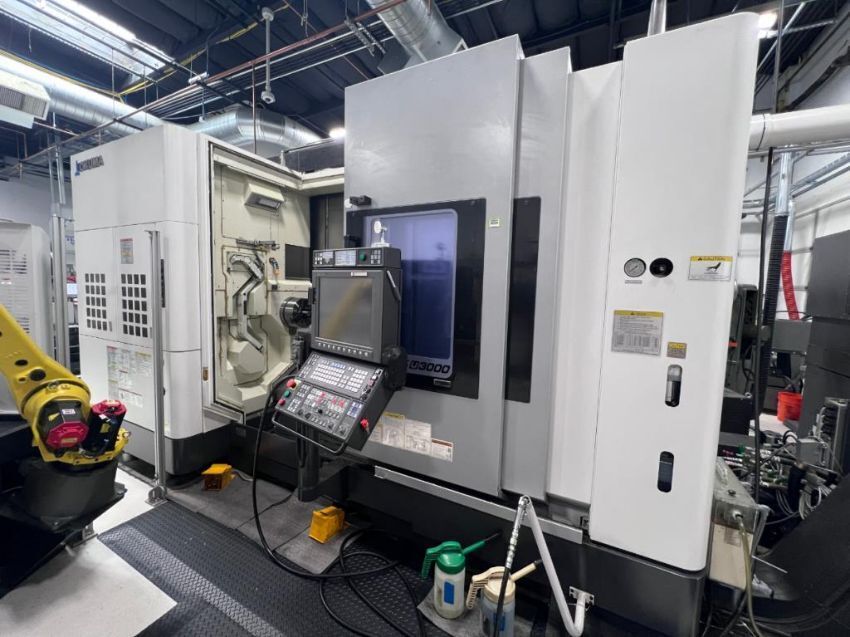

Okuma Multus U3000 Dual Spindle 8-Axis CNC Lathe, 2019 - 80 ATC, Less Than 1k Hours Spindle Time

Manufacturer

Okuma

Category

Lathes

Type

LATHES, CNC

Stock

None

Model

Multus U3000

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

Specifications:
X-Axis 25.39"
Y-Axis 9.84"
Z-Axis 62.99"
B-Axis –30° to +210°
C-Axis 0.0001°
Swing 25.59"
Machining Length 23.62"
Turning Dia 25.69"
Max Turning Length 23.62"
Center Distance 74.13"
Bar Capacity 3.15"
Chuck Size 12"
# Axis 8
Power 30 hp
Max RPM 5,000 RPM
Max Tool Spindle Speed 12000 rpm
Spindle Nose A2-6
Taper Capto C6
Twin Spindle Yes

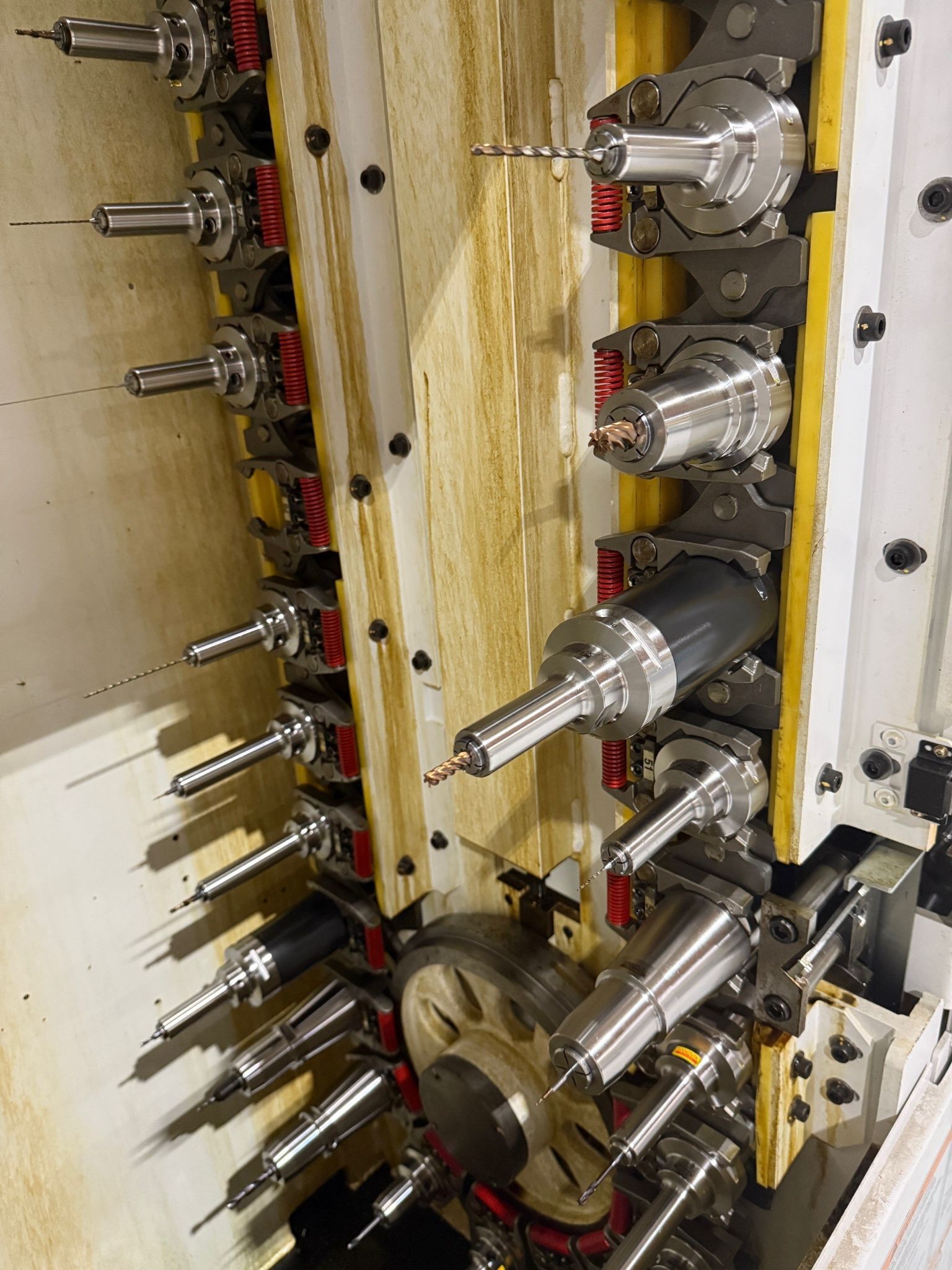

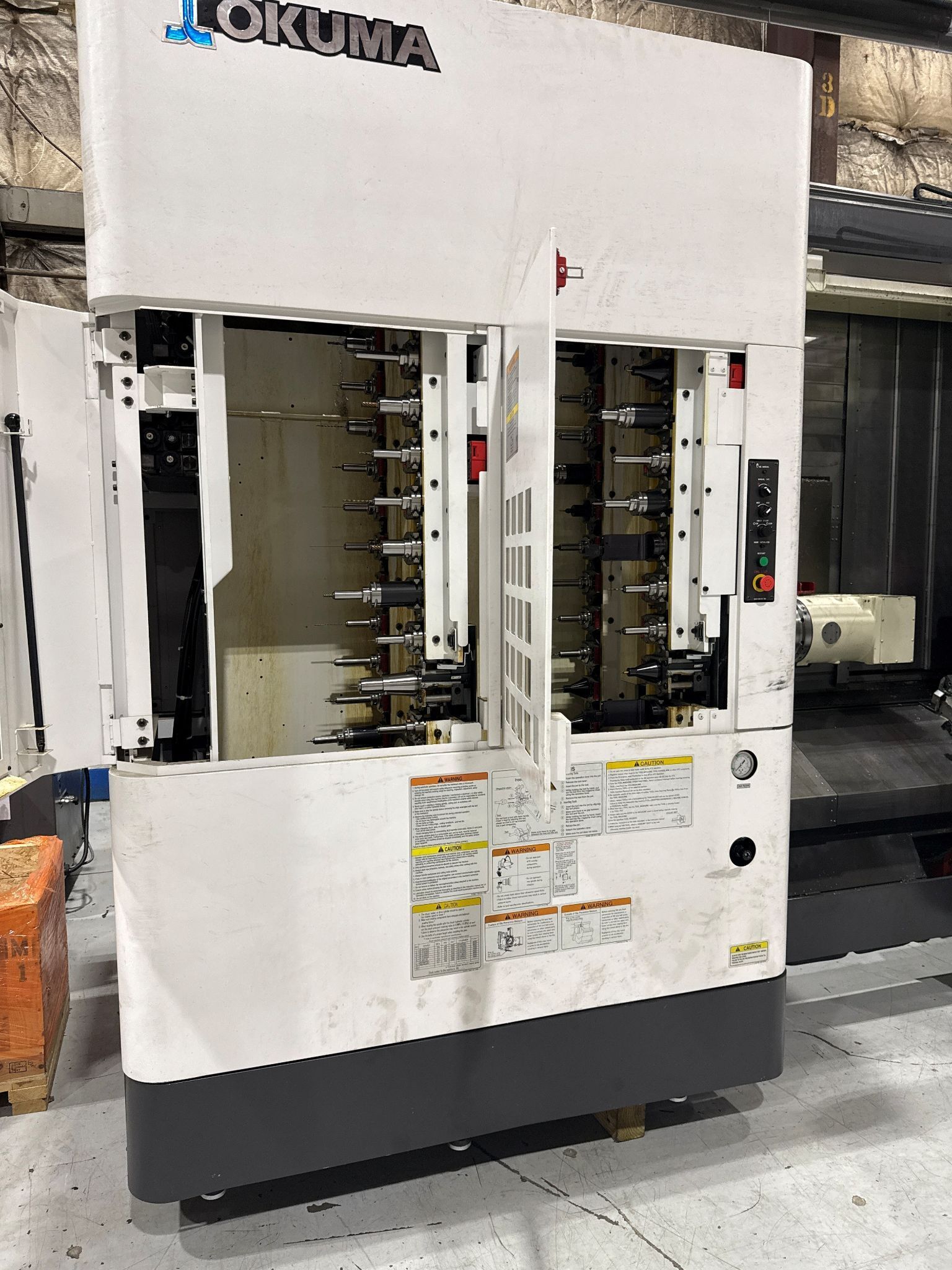

Tool Changer 80
Tailstock (Yes/No) No
Milling on Upper and Lower Turret Lower Only
Sub Spindle Speed 5000 rpm
Live Tool Speed 12000 rpm
Spindle Speed L-Spindle 4,200 RPM
Spindle Nose L-Spindle A2-6
Hole Through Draw Tube L-Spindle 2.56"
Dimensions 192.1" x 98.4" x 99.6"
Weight 22100 lbs

Equipped With:

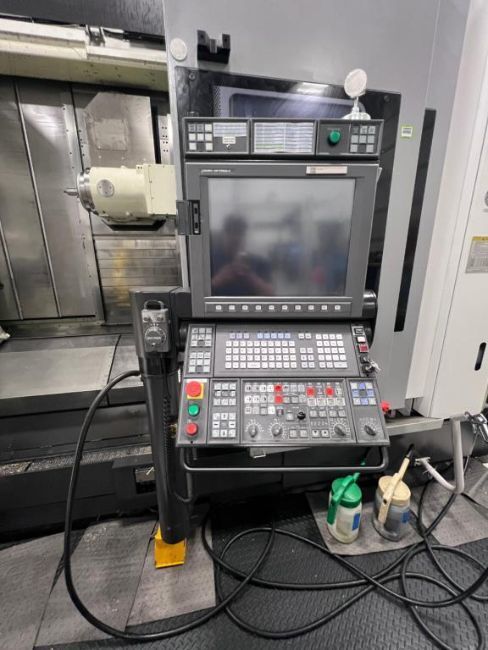

Okuma OSP-P300SA-H CNC Control
78 Tool Holders Included

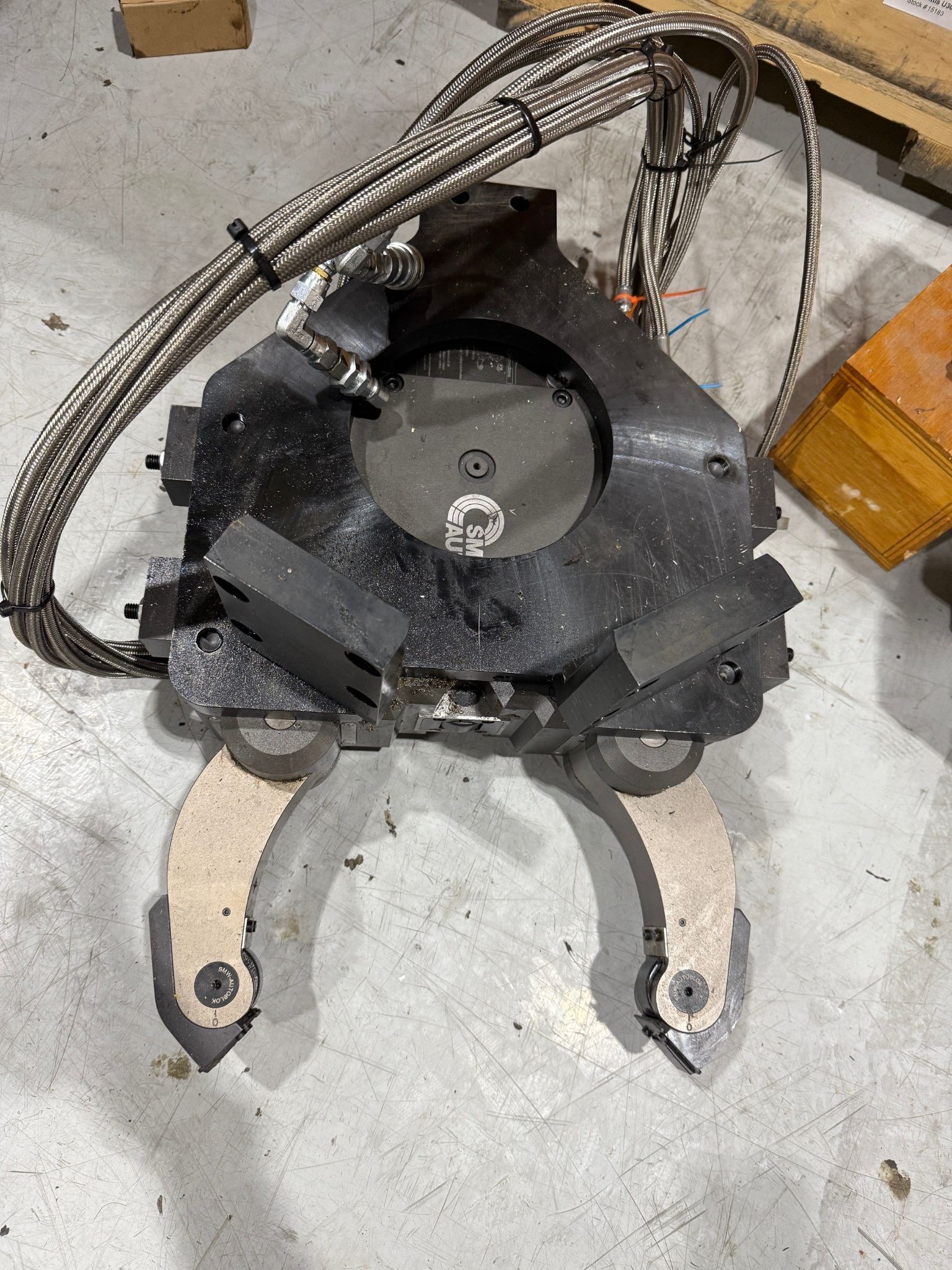

SMW Hydraulic Steady Rest
MP 1200 High Pressure Coolant System

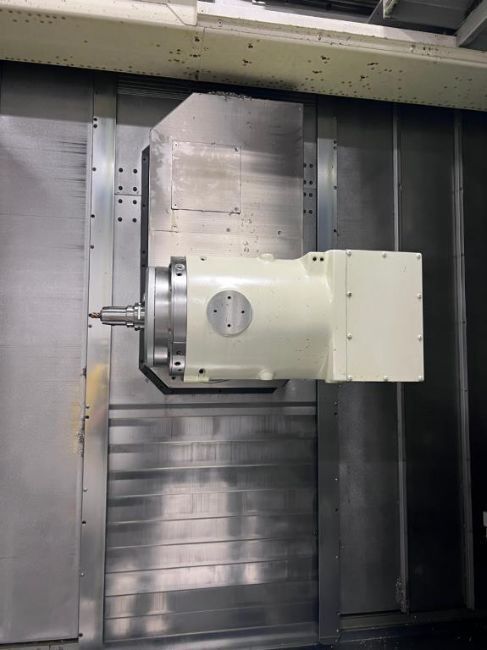

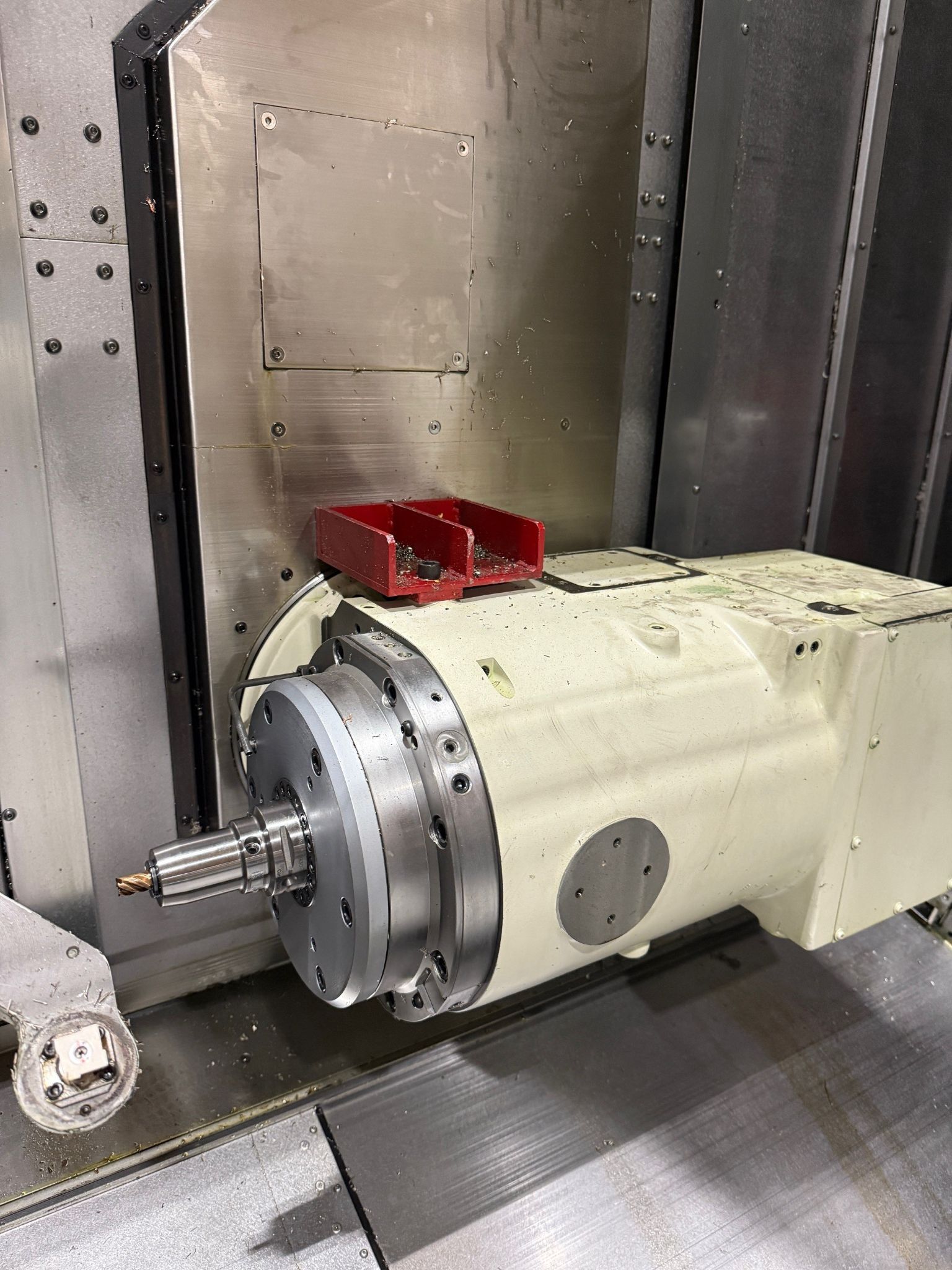

B-Axis Head
Coolant Tank

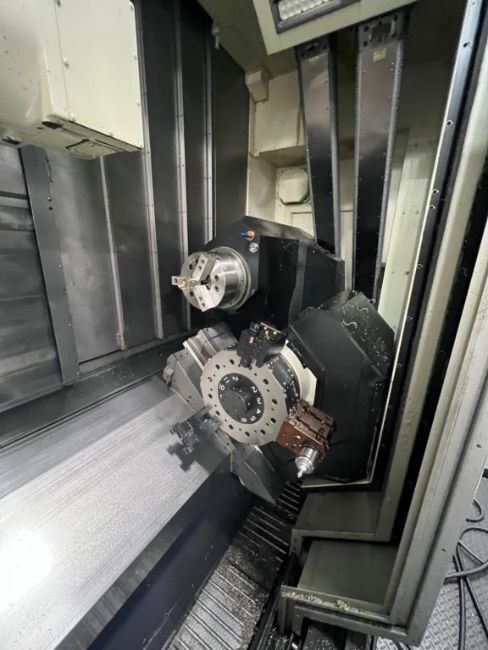

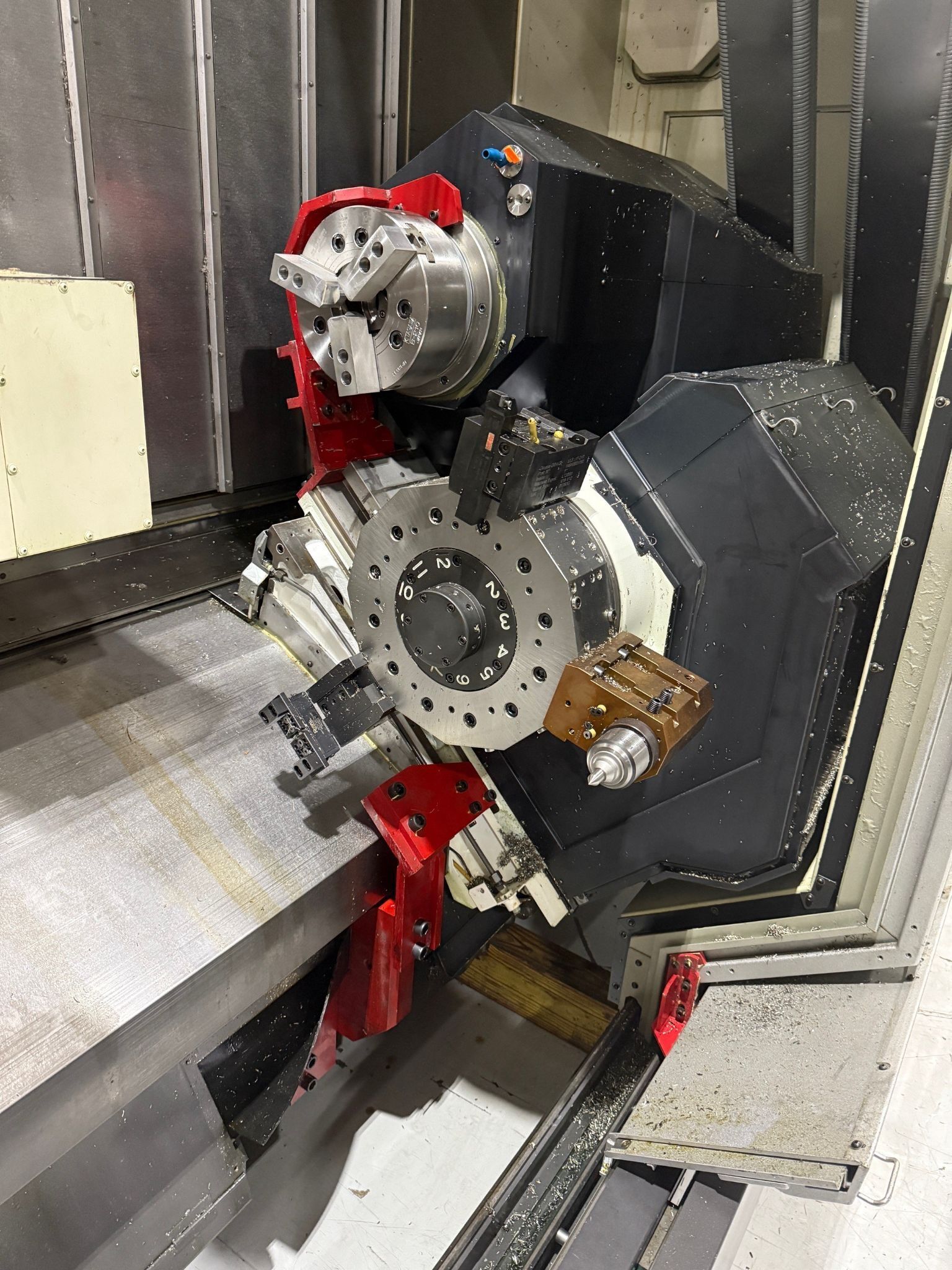

Lower Turret
Dual Spindle
Sub Spindle
Milling Spindle

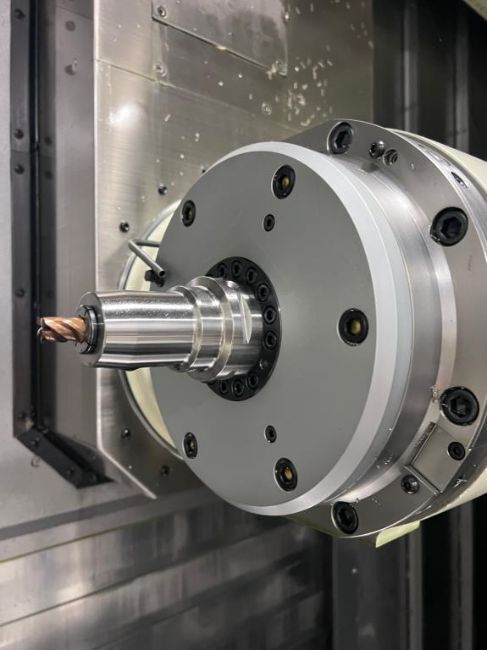

CAPTO C6 Milling Spindle
Tool Presetter

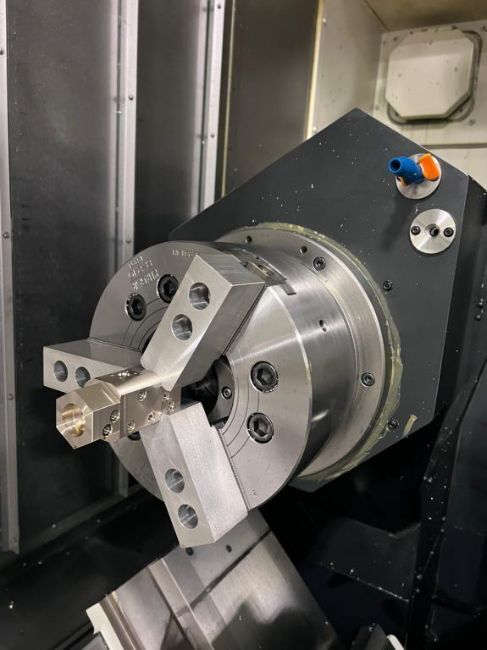

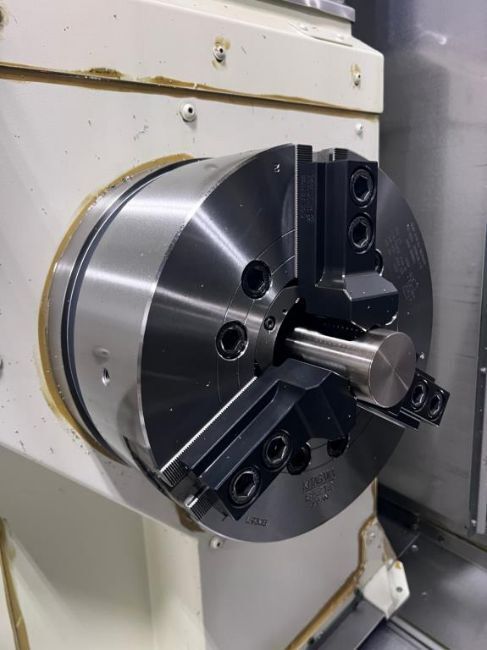

Kitagawa B-212 Hyd. Chuck Main Spindle
Kitagawa B-210 Hyd. Chuck on Sub Spindle
Renishaw Probing (Receiver)
