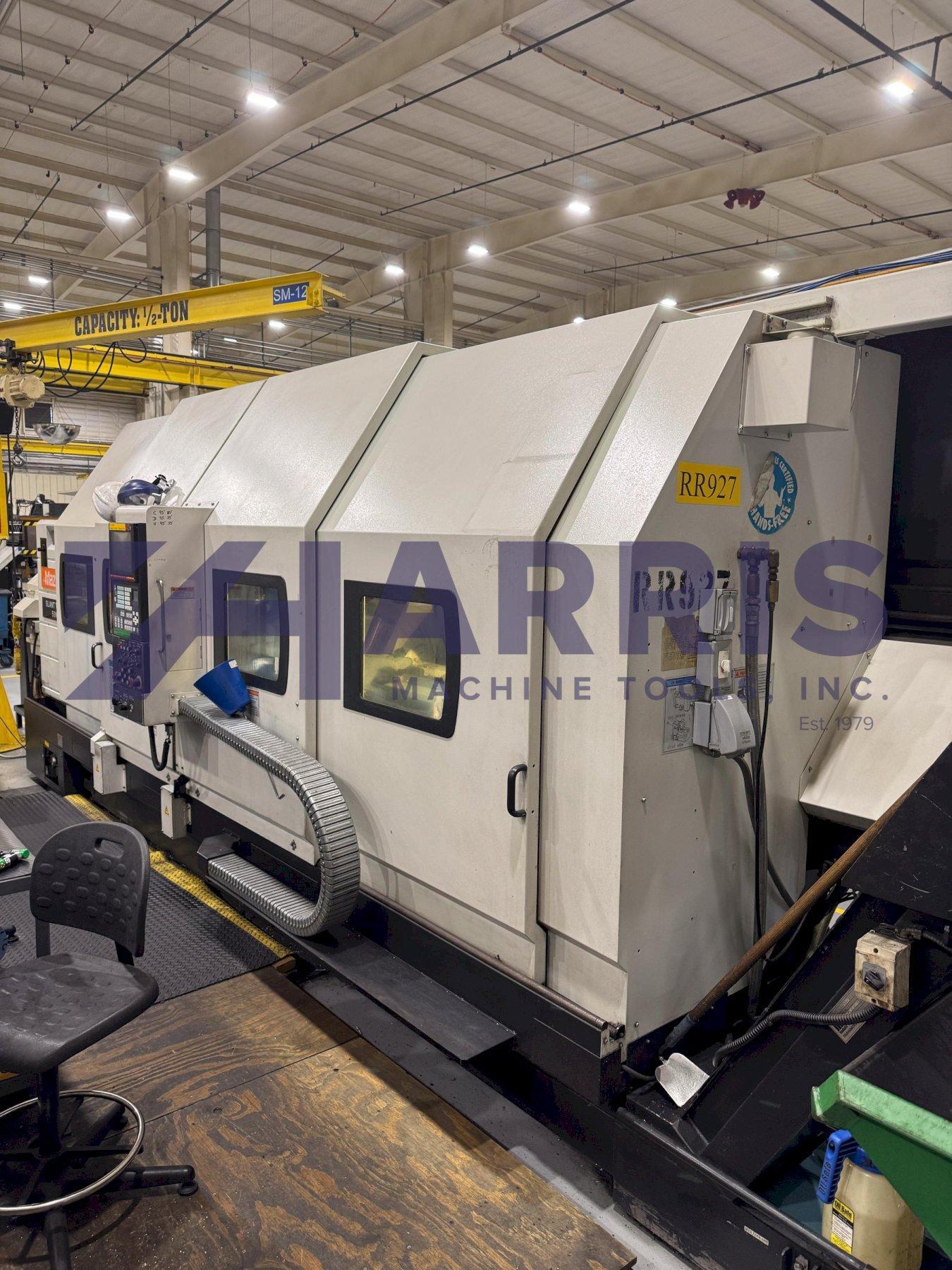

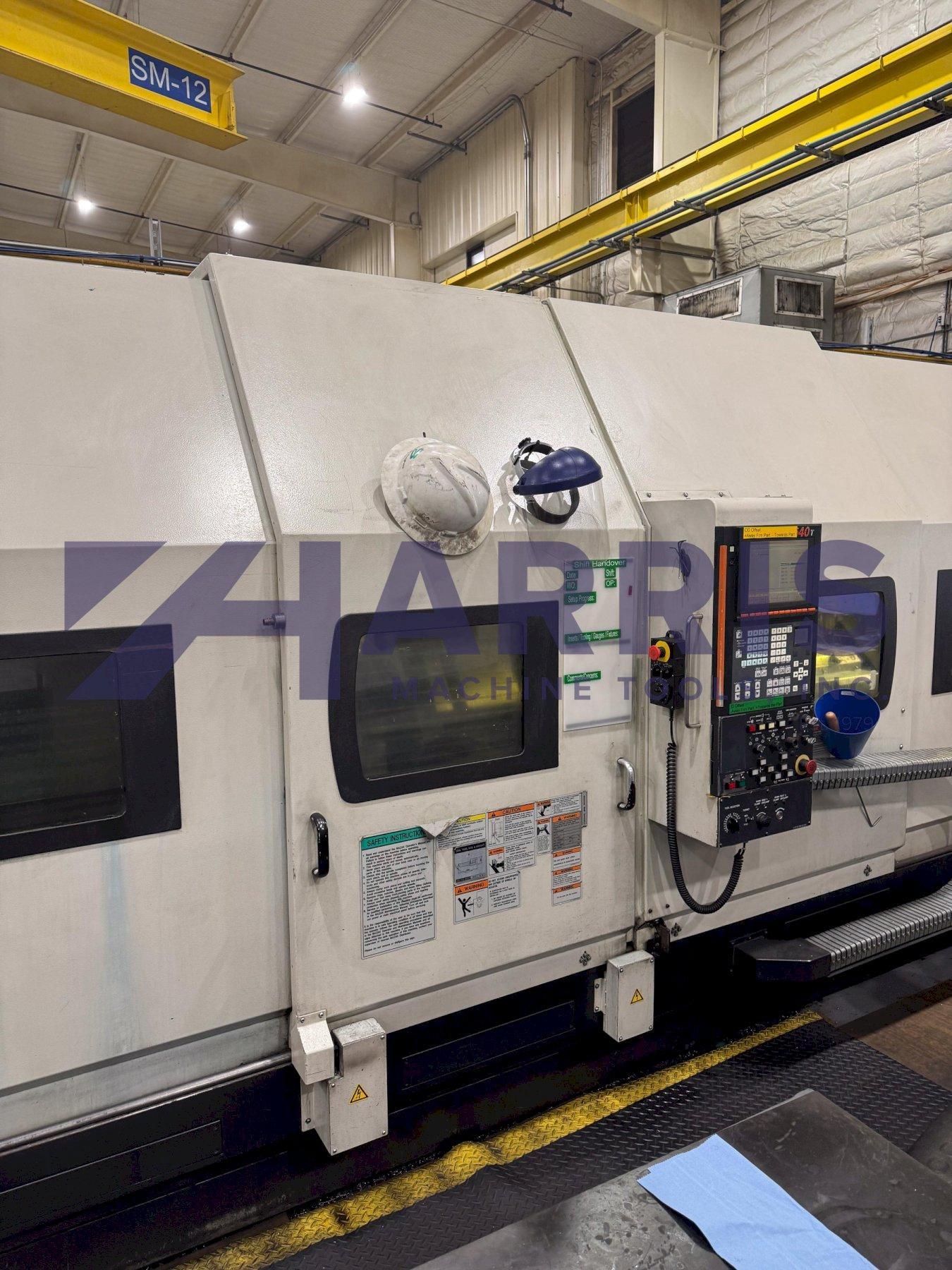

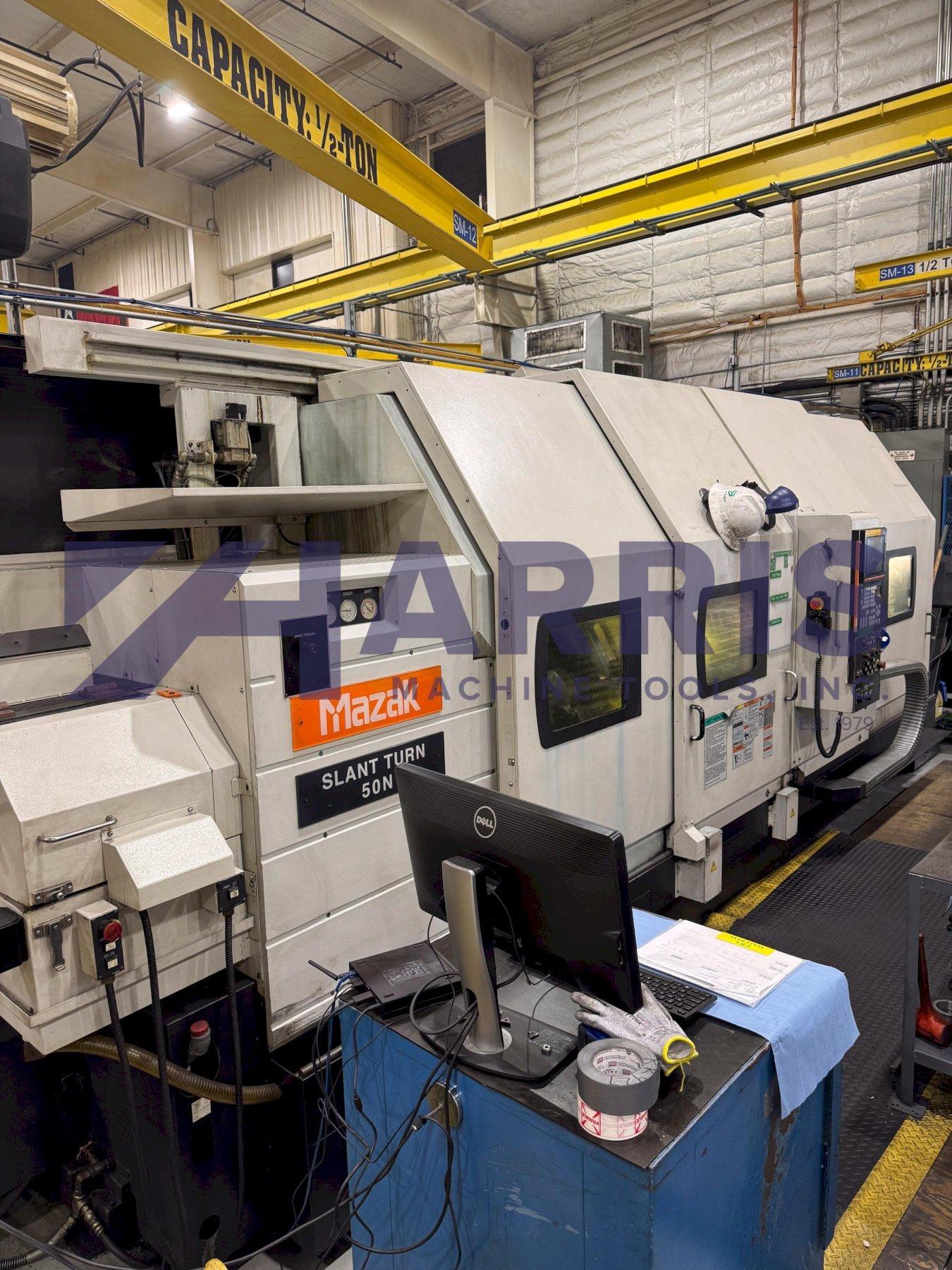

2006 Mazak Slant Turn 50N CNC Lathe

Manufacturer

MAZAK

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

20857

Model

Slant Turn 50N

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes

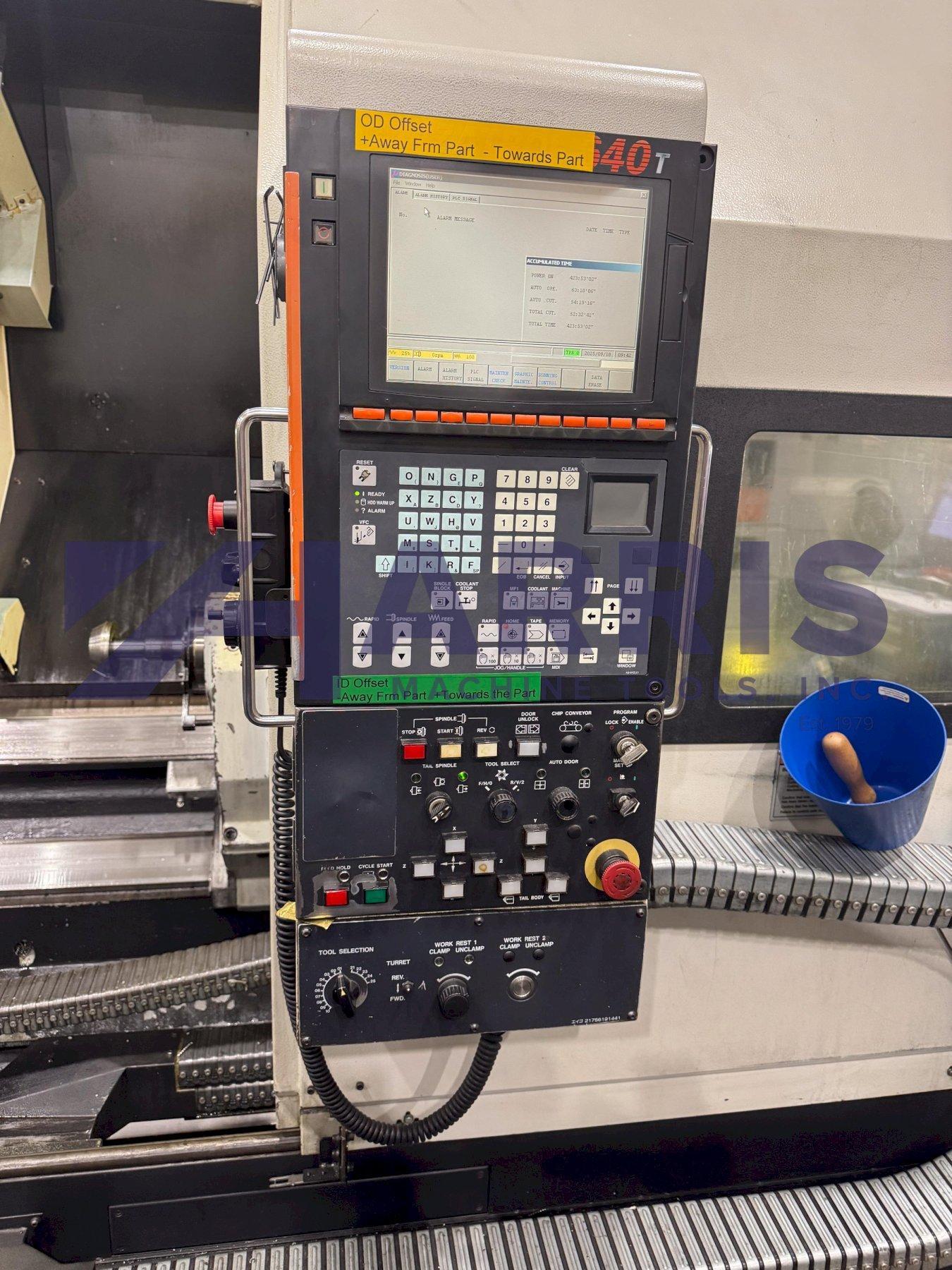

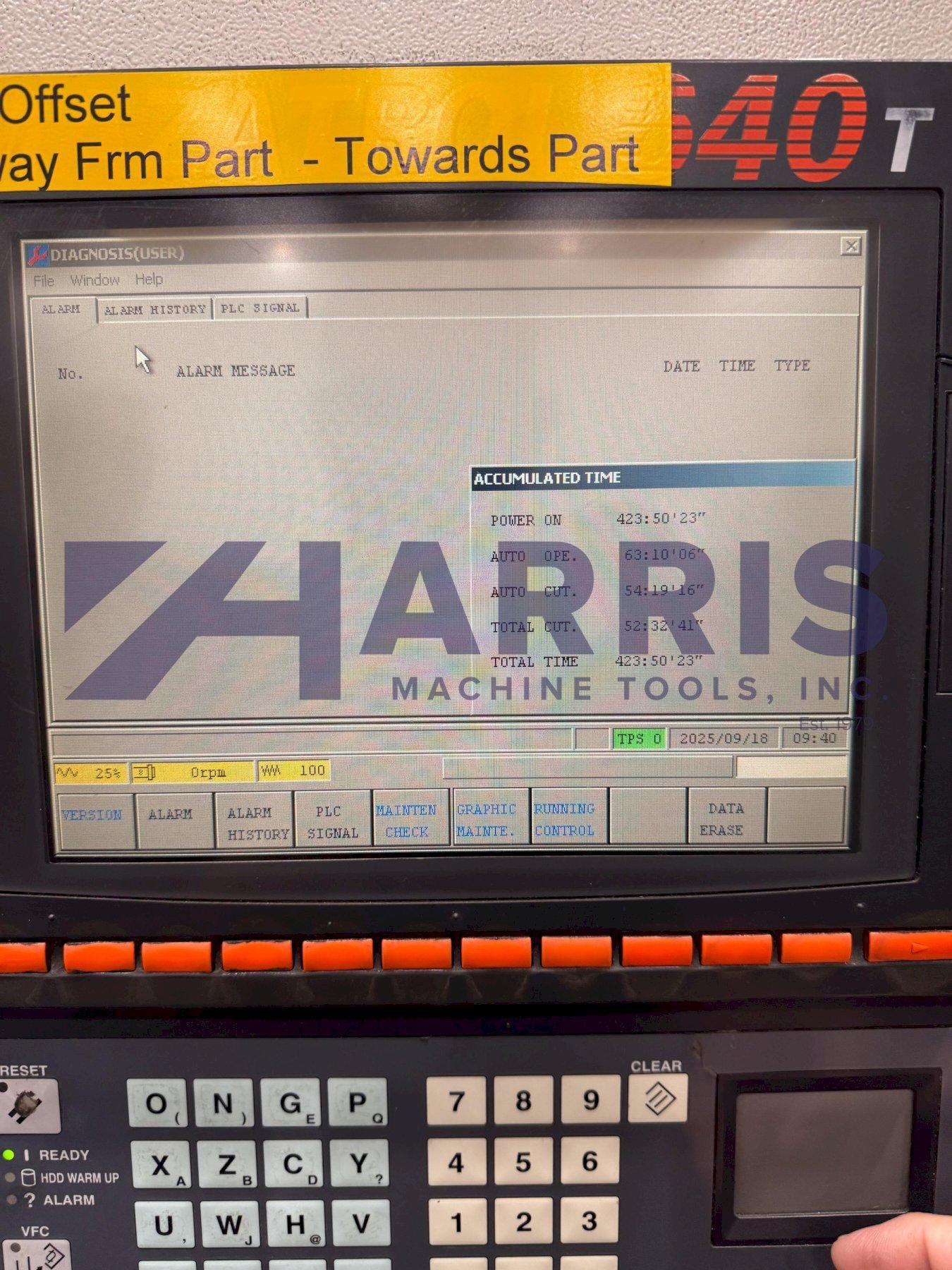

Type of CNC Control - Mazatrol 640T CNC Control
Chuck Size - 24 inches
Swing - 31.7 inches
Turning Diameter - 28 inches
Center Distance - 120 inches
Bar Capacity - 3.5 inches
Spindle Bore - 10.8 inches
X Axis Travel - 22.6 inches
Z Axis Travel - 123 inches
Rapid Traverse (X/Z) - 473/552 IPM
Spindle Speed (RPM) - 750
Main Motor - 50
Tailstock - yes
Steady Rest Capacity - 10.8 inches
Chuck Size - Rear - 24 inches


See it in action on our YouTube channel!

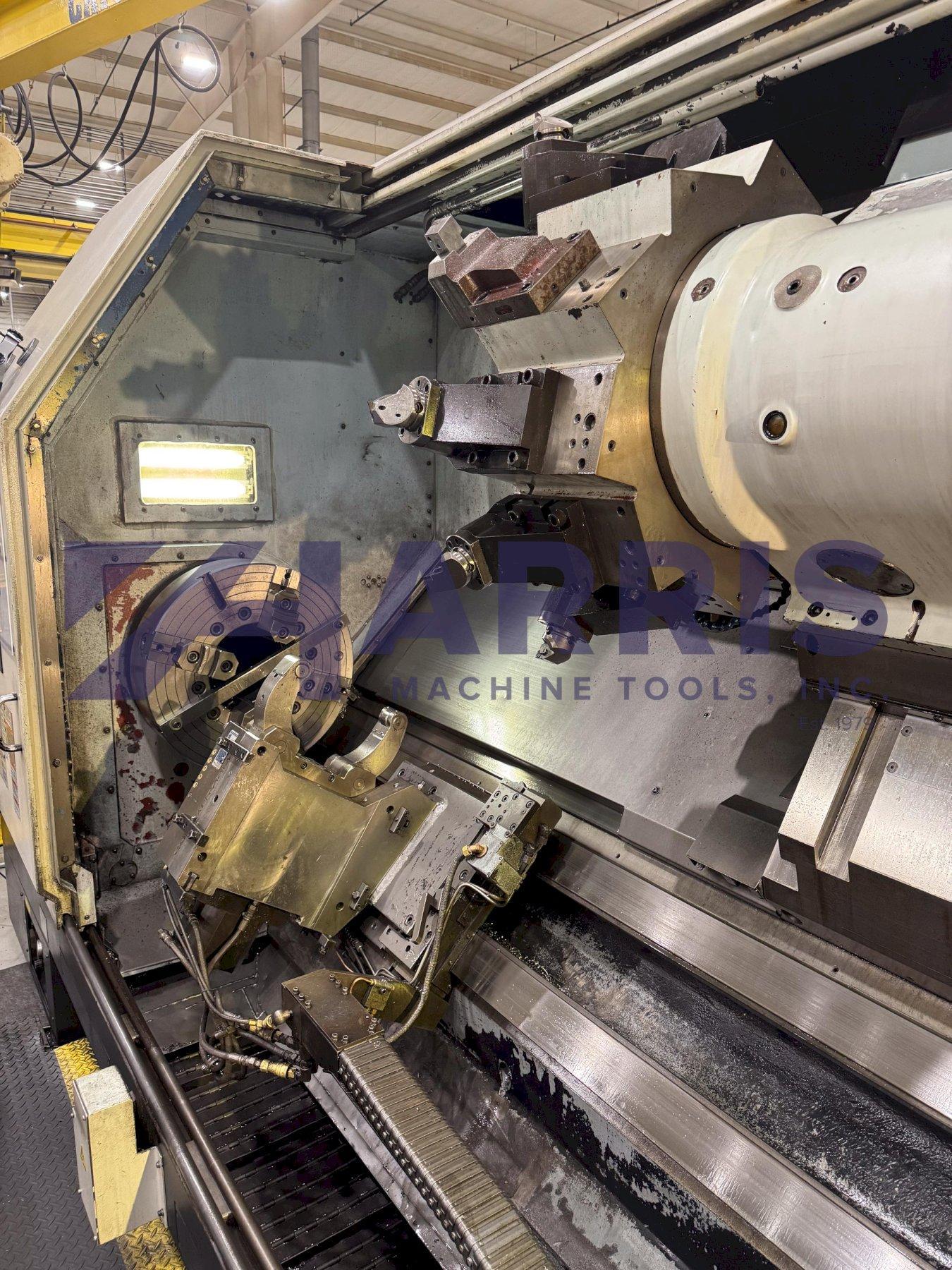

4-Jaw Chucks on Front & Rear

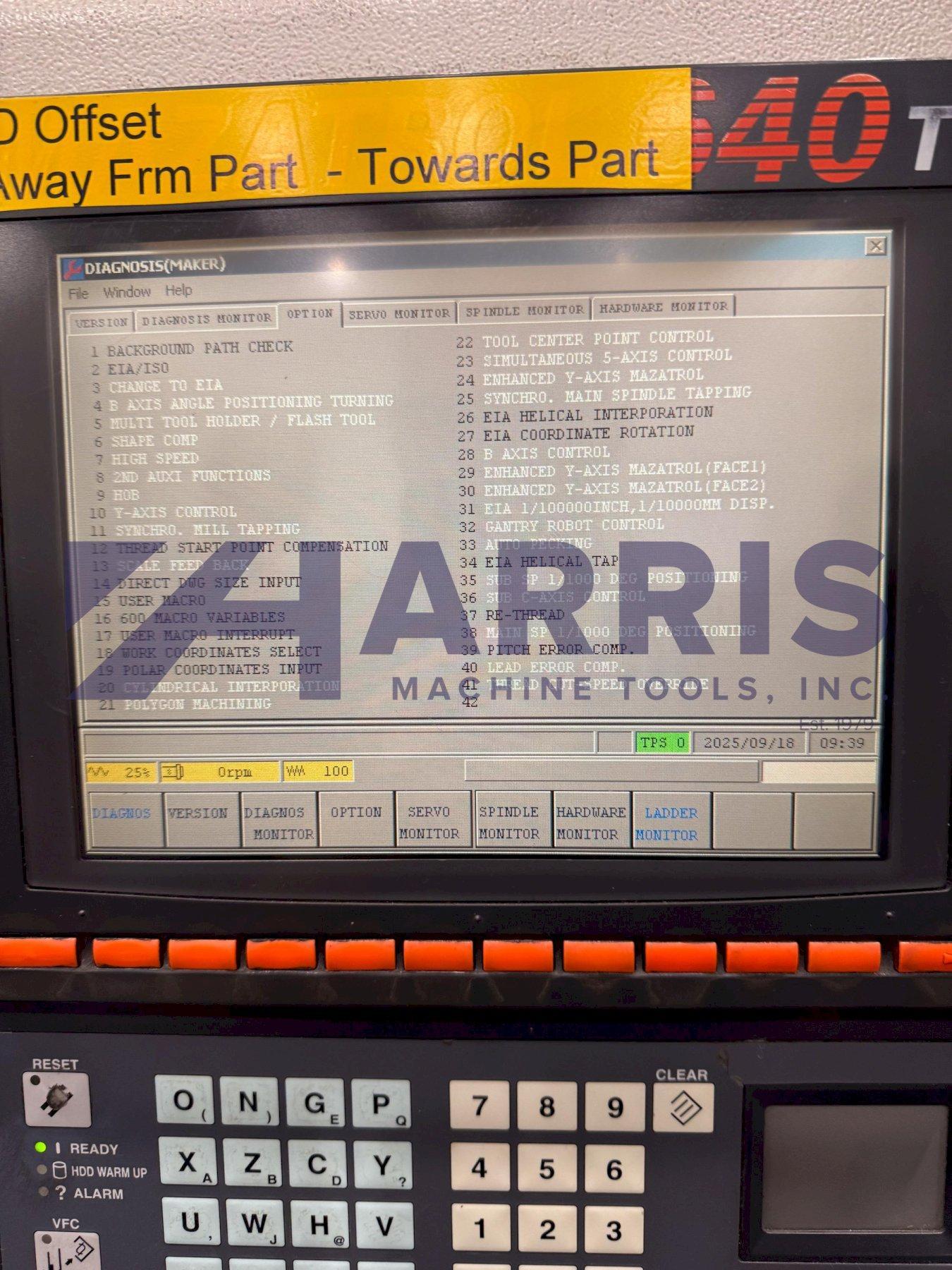

Control Options:
Coordinate Rotation and Scaling
Helical Interpolation
Macros
EIA/ISO Code Input Function
Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
EIA Helical Tap
Background Path Check
Pitch Error Comp.


Equipped With:

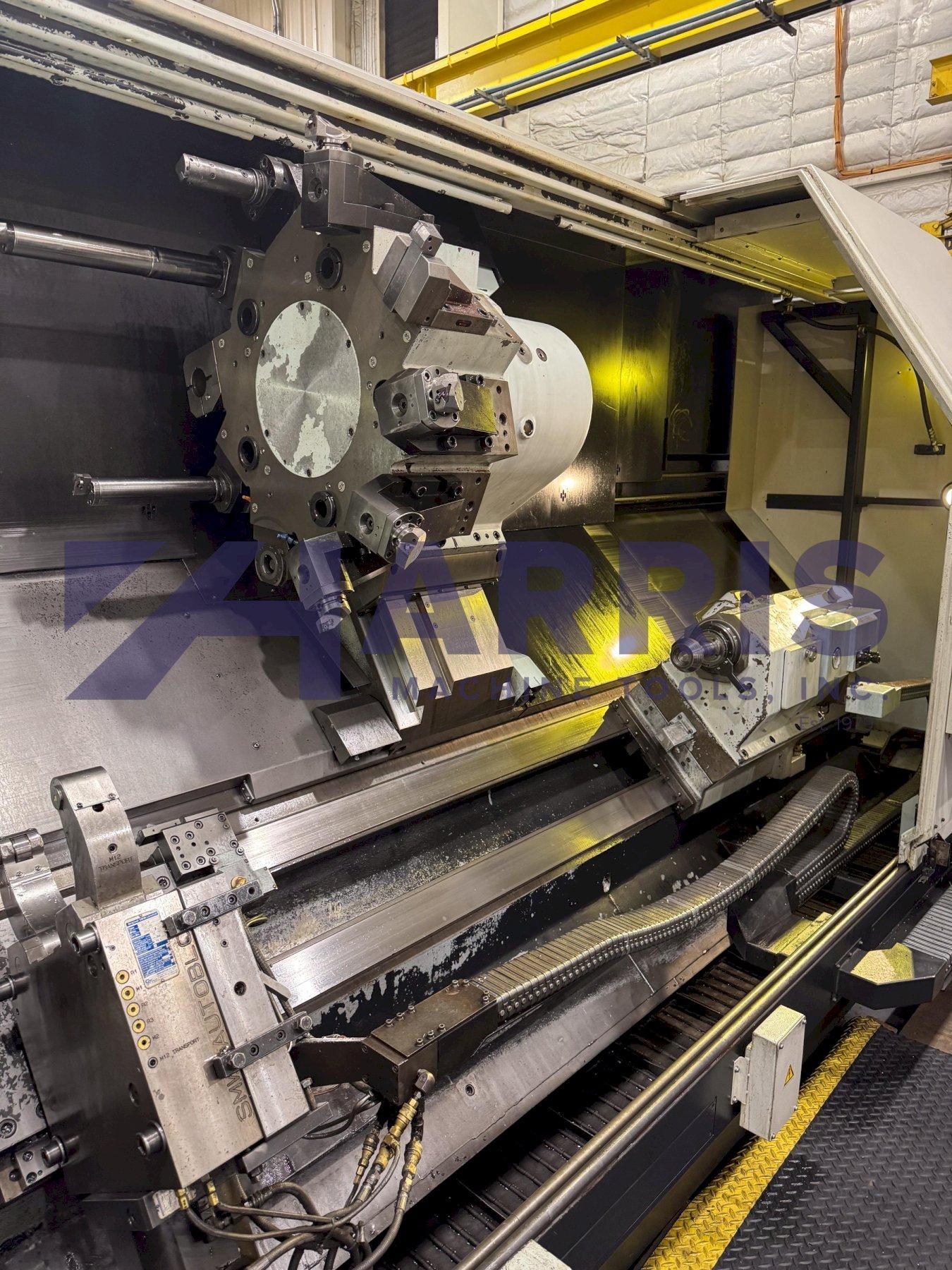

Hydraulic Steadyrest
Work Holding Type: Scroll Chuck
Tooling Included: No

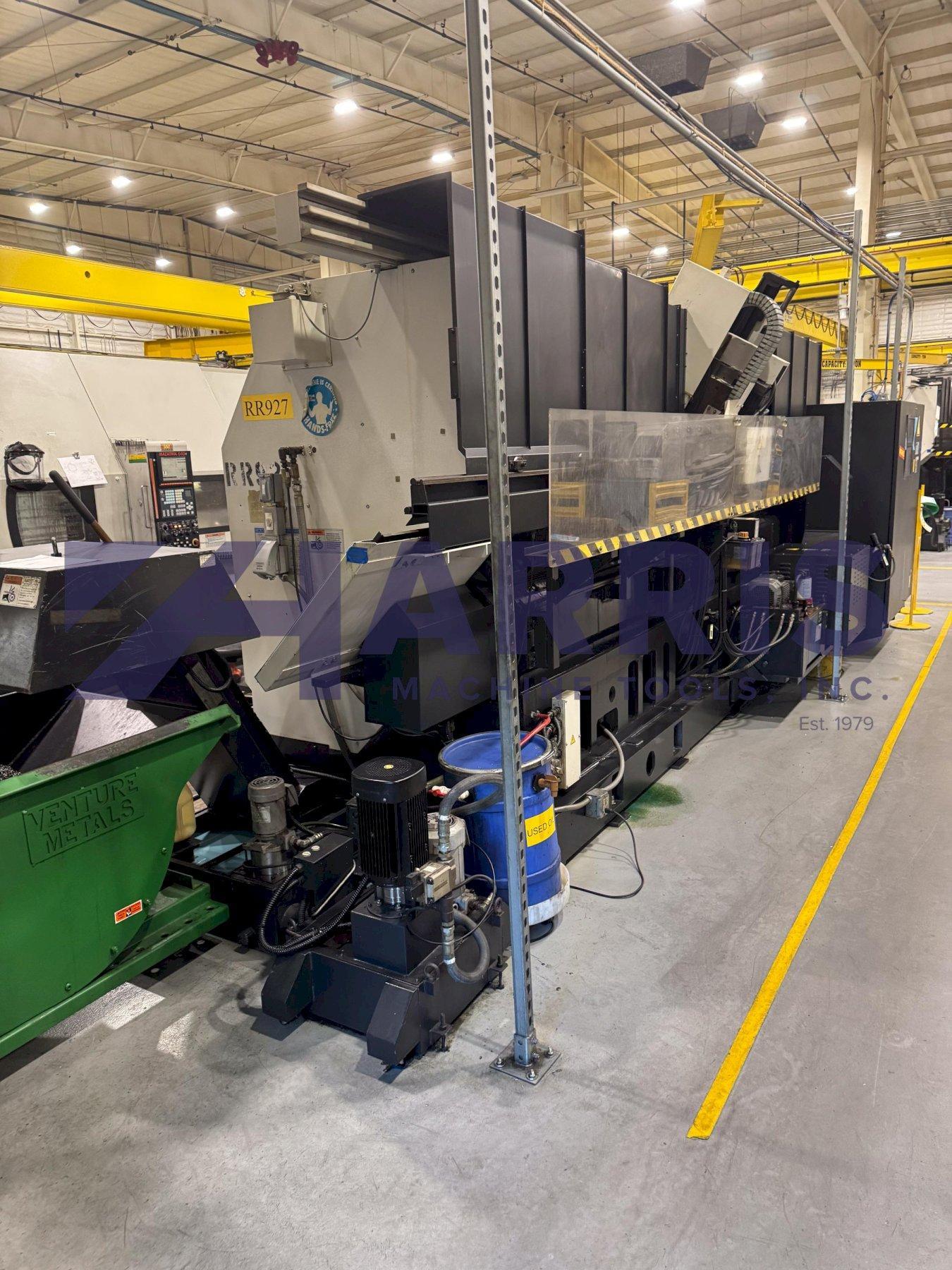

Chip Conveyor

*All specs are subject to buyer review
