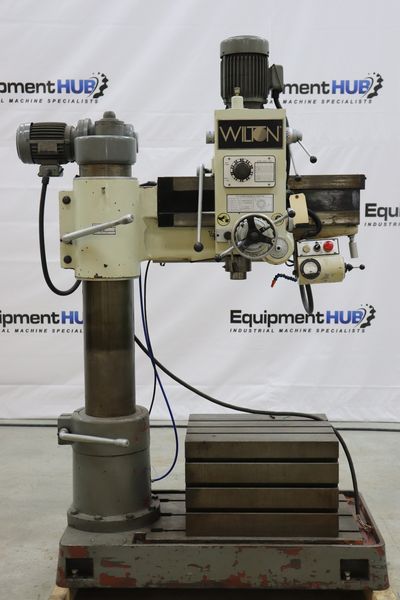

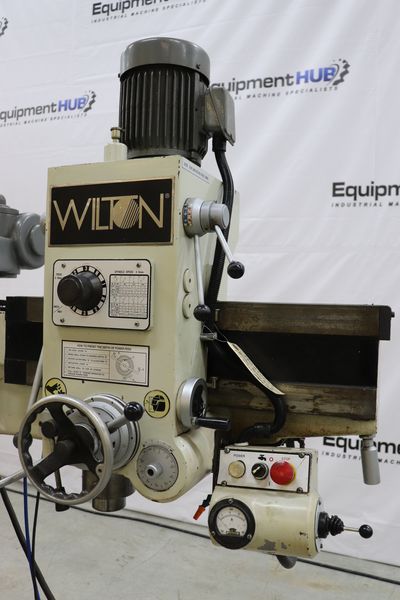

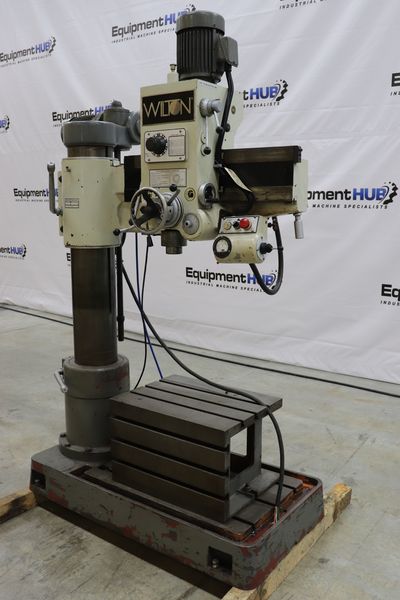

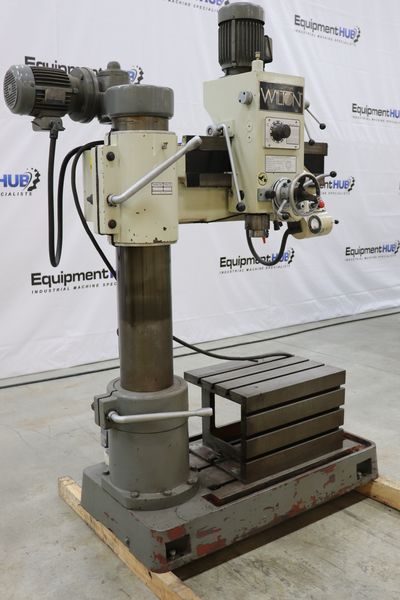

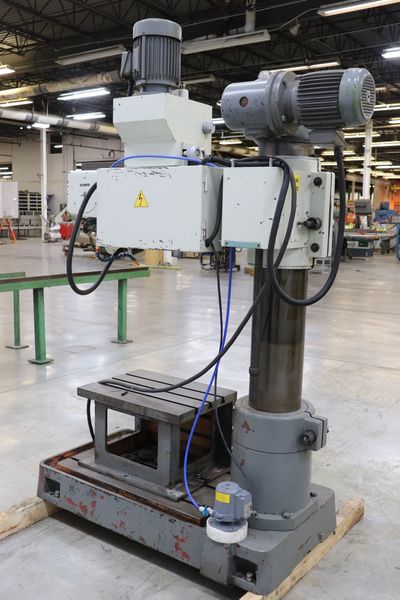

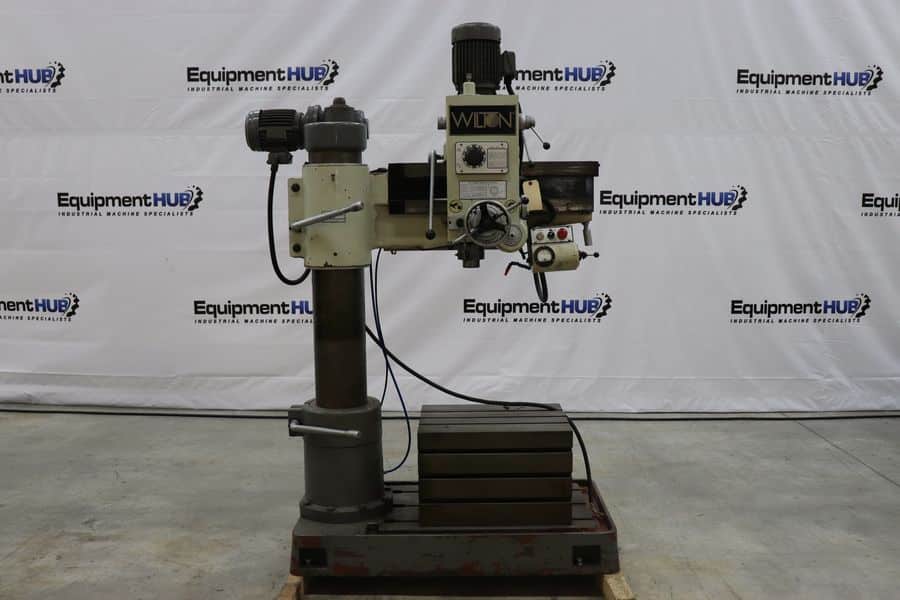

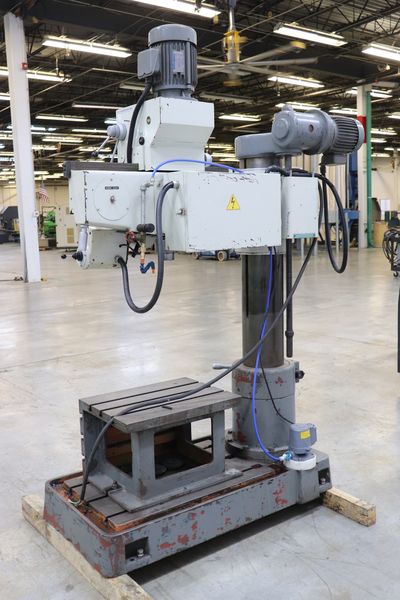

Wilton 720R 3′ Radial Arm Drill

Manufacturer

Wilton

Stock

190250023

Model

720R

Dealer Location

Georgia

Spec Sheet

  • Stock #: 190250023
  • Location: Decatur, GA
  • Brand: Wilton
  • Model: 720R

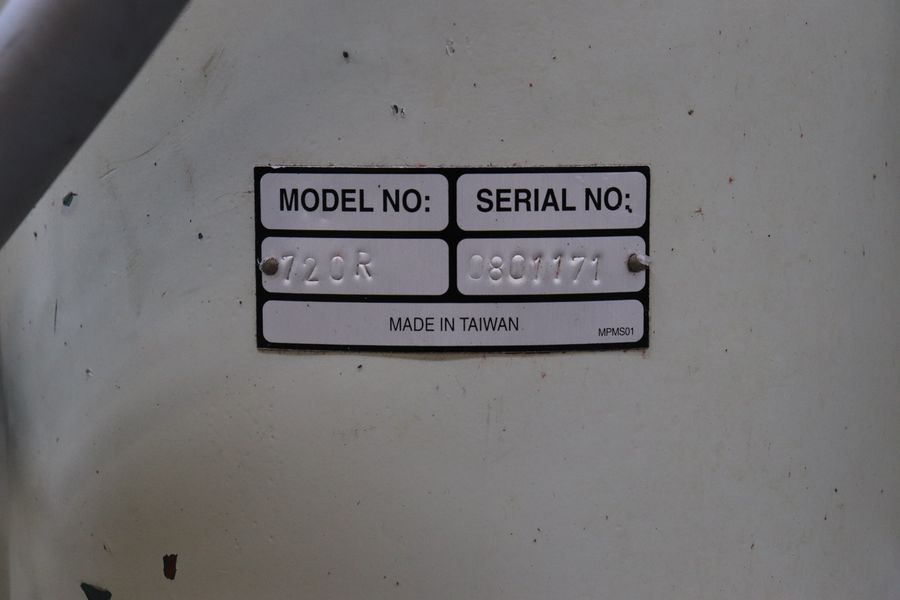

  • Serial #: 0801171
  • Approx. Shipping Weight: 3,750 Lbs.
  • Approx. Shipping Dimensions: 6′ L x 4′ W x 7′ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Main Motor Output: 3HP

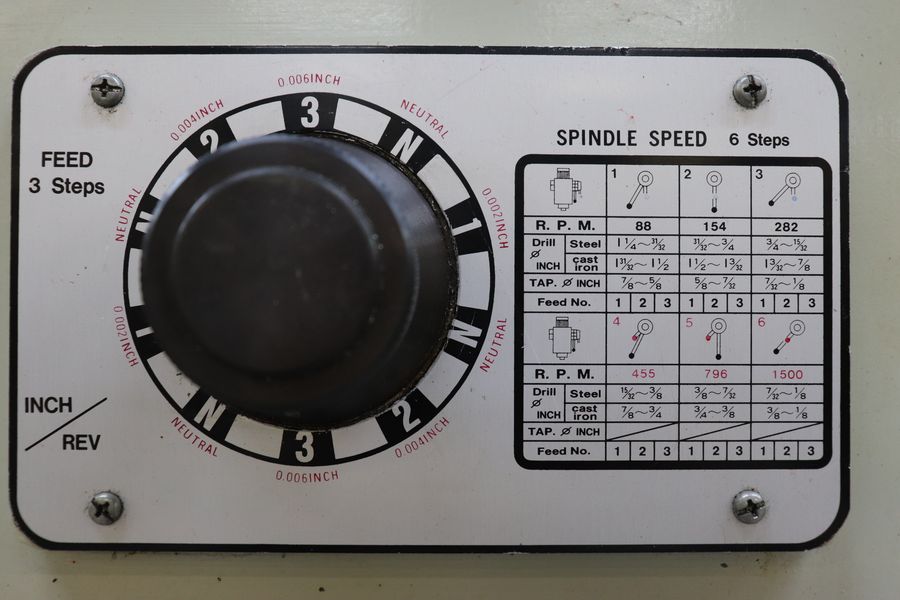

  • Spindle Speeds: 88 – 1500, Six Steps
  • Spindle Taper: 4MT
  • Column Diameter: 8-1/4″
  • Drilling Capacity Cast Iron: 2″
  • Drilling Capacity Mild Steel: 1-1/2″
  • Tapping Capacity Cast Iron: 1″
  • Tapping Capacity Mild Steel: 3/4″
  • Boring Capacity Steel: 2-3/4″
  • Boring Capacity Cast Iron: 4″
  • Distance Column to spindle: 8-5/8″ (Minimum), 41-3/4″ (Maximum)
  • Arm Travel Vertical: 23-13/16″
  • Quill Travel: 8-1/4″
  • Quill Down Feed Rates: .002, .004, 006 (IPR)
  • Elevating Motor: 1HP
  • Coolant Pump Motor: 1/8 HP
  • Electrical: 240V/3PH

Equipped With

23.5″ x 17.5″ x 15″ Box Table, Coolant Pump

Additional Info

The Wilton Radial Arm Drill can be demoed upon request. Check out the video on the listing to see it in operation.
