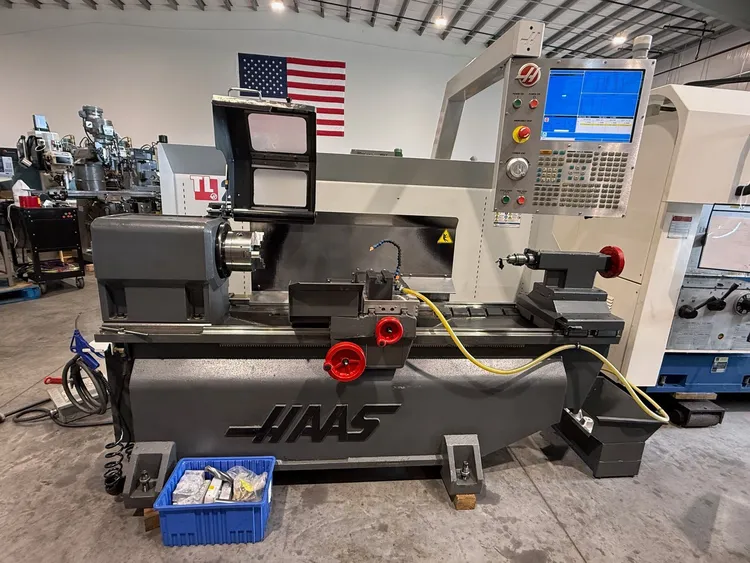

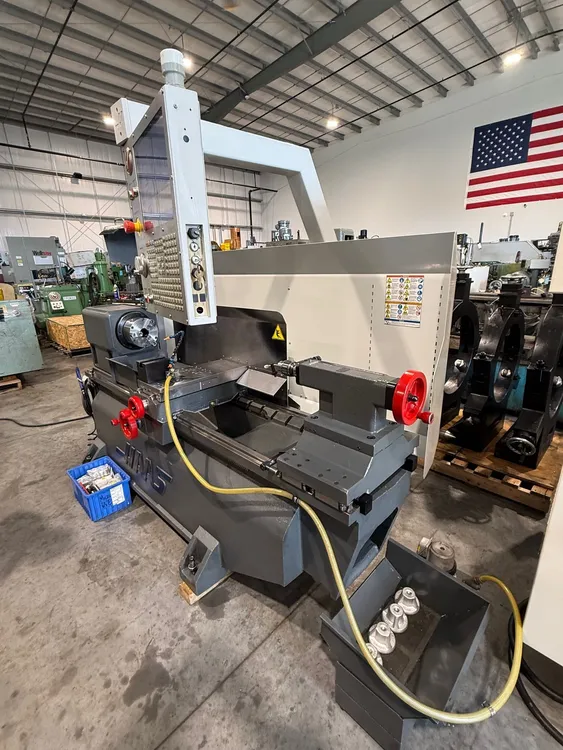

HAAS TL-2 CNC Toolroom Teach Style Lathe 2014’ USA #7781

Manufacturer

HAAS

Category

Lathes

Stock

7781

Model

TL-2

Dealer Location

Florida

Spec Sheet

Overview

Type:
CNC Lathes
Manufacturer:
HAAS
Model:
TL-2
Year:
2014
Stock #:
7781
Status:
For Sale

Description

HAAS TL-2 CNC Toolroom Teach Style Lathe 2014’ USA #7781

Swing20"508 mm
Machining Length48"1,219.2 mm
Chuck Size8"203.2 mm
Power12 hp8.9 kW
Max RPM2,000 RPM2,000 RPM
Turning Dia16"406.4 mm
Dimensions109” x 69” W x 83” H109” x 69” W x 83” H
Weight5,000 Lbs.5,000 Lbs.

HAAS TL-2 CNC Toolroom Teach Style Lathe 2014’ USA #7781
Reference # 7781
Model # TL-2
Serial # 3099916
Year of manufacture- 07/2014’
Maximum swing- 20”
Swing over cross slide- 11”
Maximum cutting diameter- 16”
Maximum cutting length- 48”
Distance between centers- 48”
X axis travel- 8”
Z axis travel- 48”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 2,000 R.P.M.
Spindle bore- 3.00”

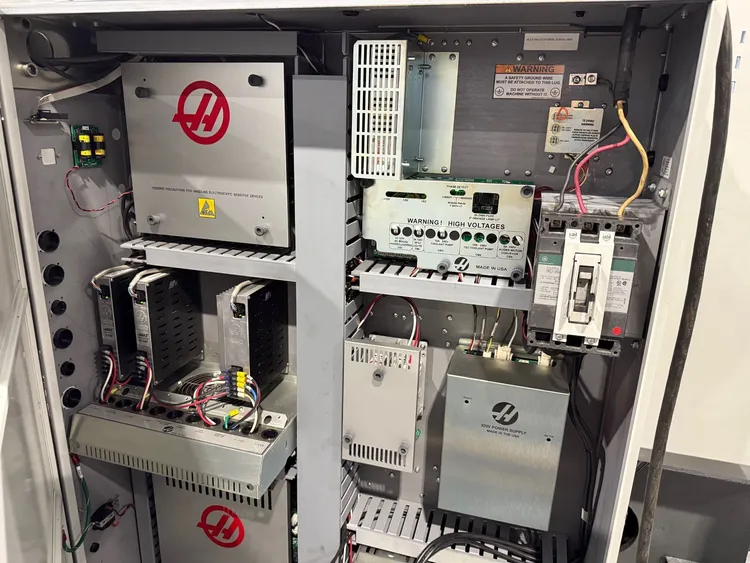

HAAS CNC control with USB
Run time- 1,991, Power on 2,294
Control options-Rigid tapping, DNC, M19 Spindle orient, Quick code, Brushless barfeeder, Intuitive programming system

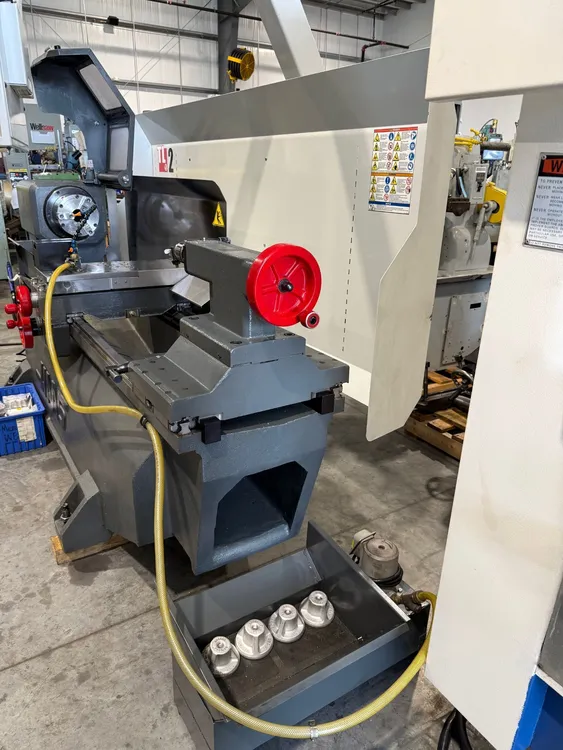

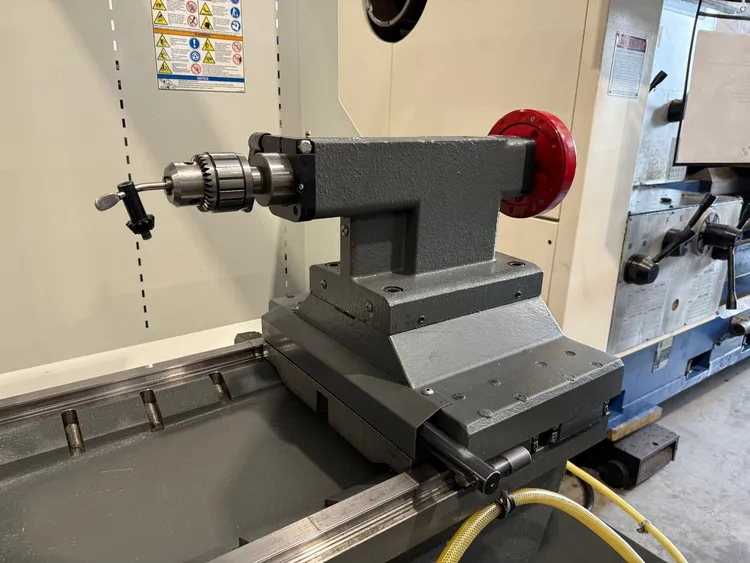

Tailstock with drill chuck

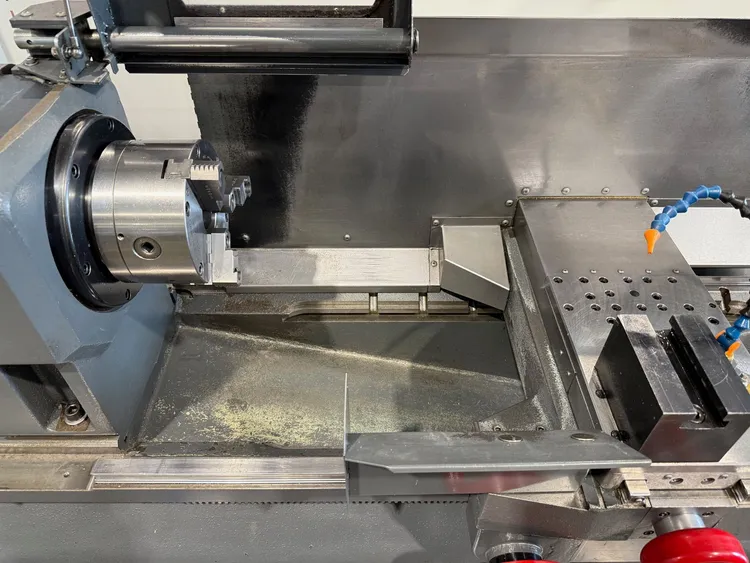

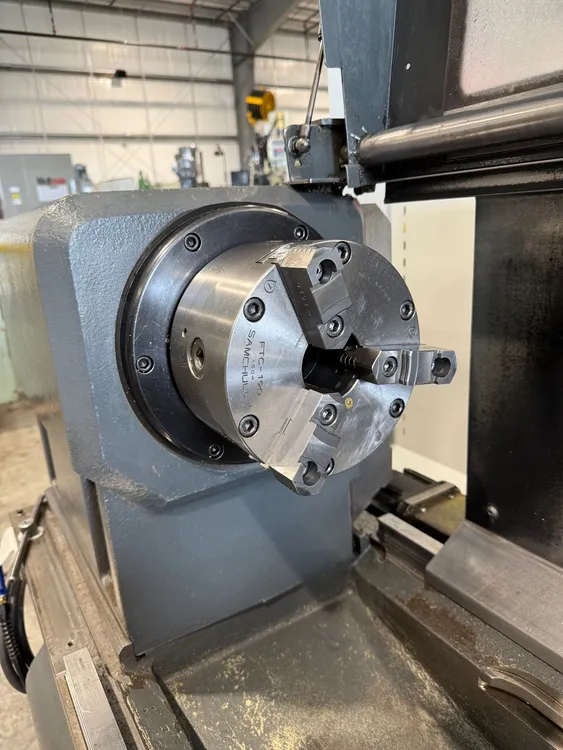

7“ SAMCHULLY 3 chuck and & extra jaws

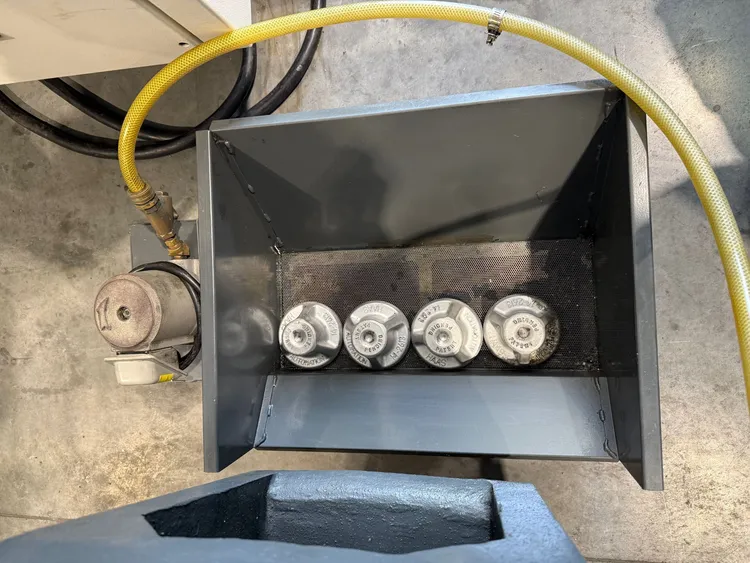

Coolant tank & pump
(4) Leveling pads
Main spindle motor 10 H.P.
Machine can run on 354 – 488 volt
Machine is currently wired for 208 volt / 3 phase / 60 H.Z.
Machine weight- 5000 Lbs.
Machine dimensions- 109” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
