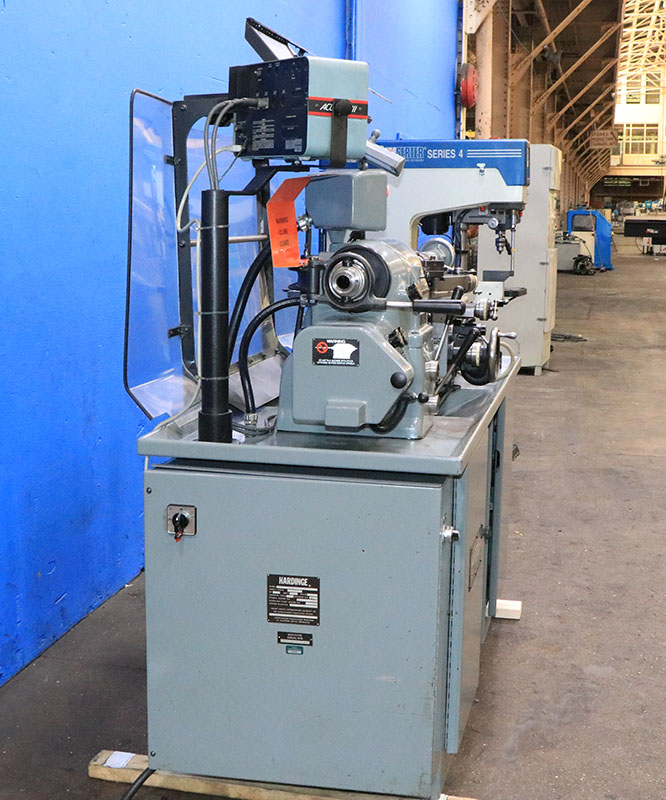

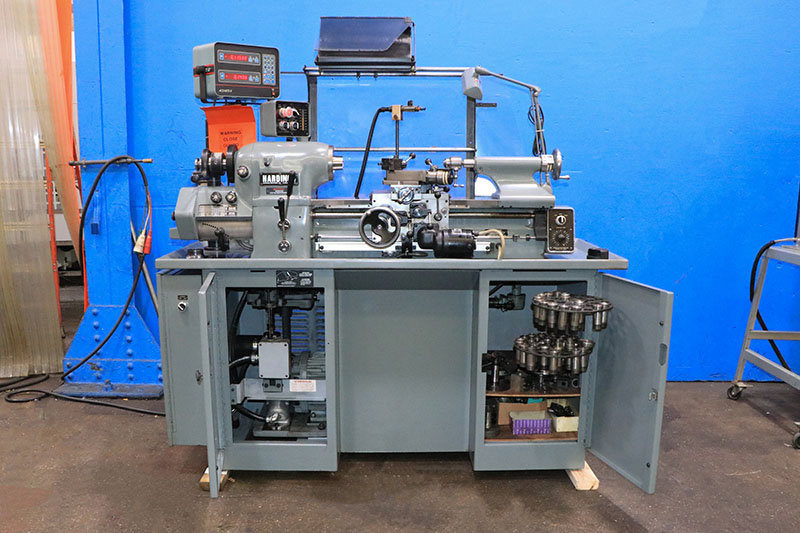

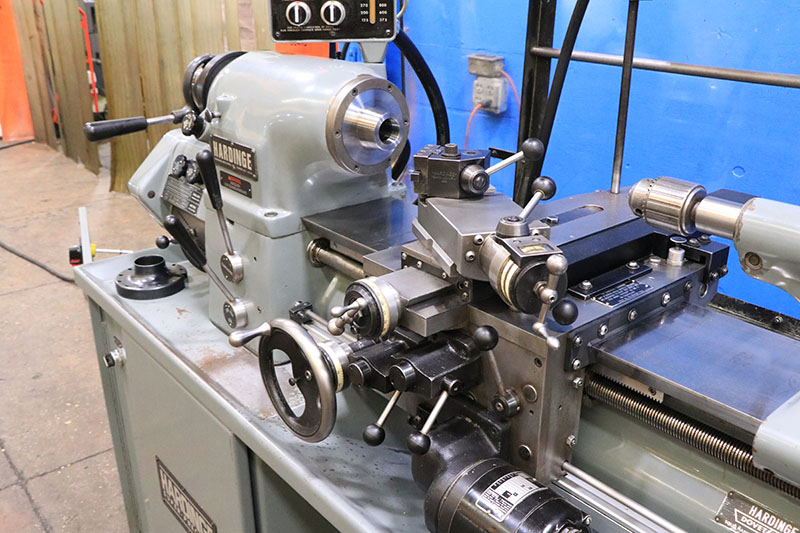

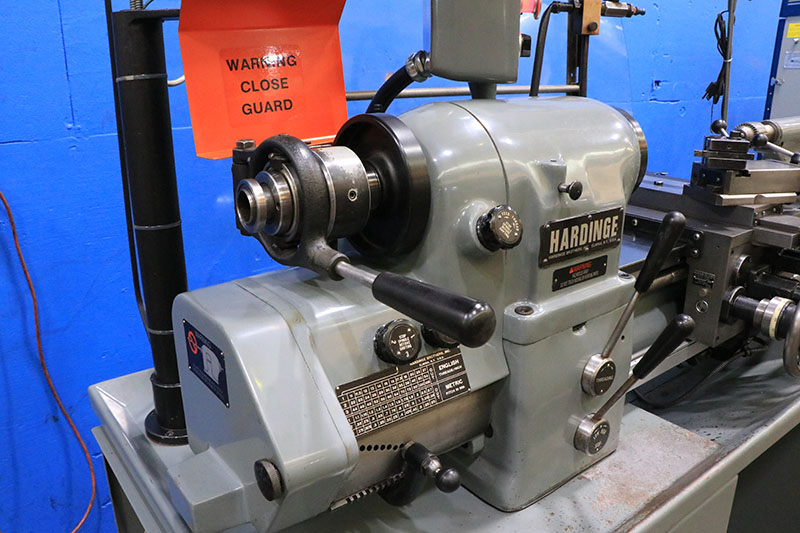

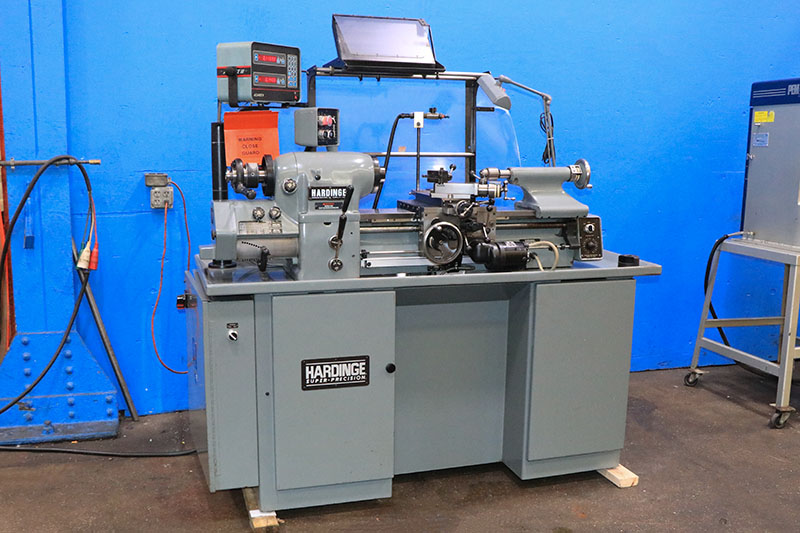

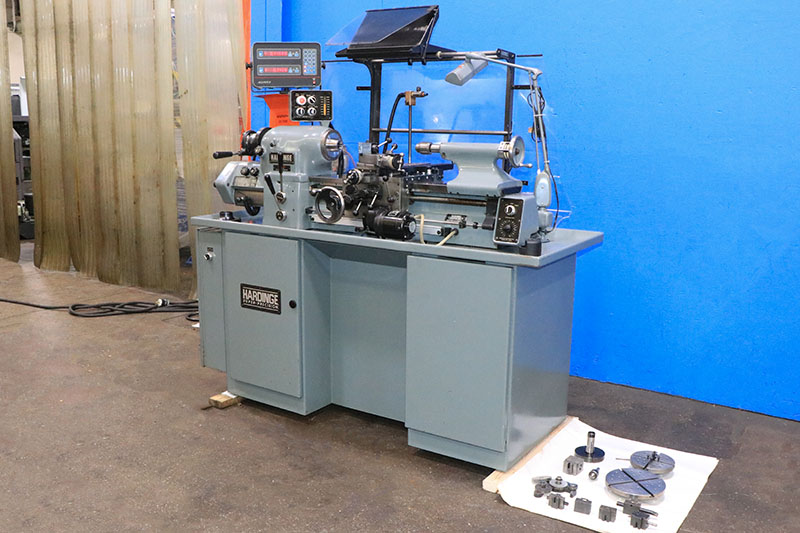

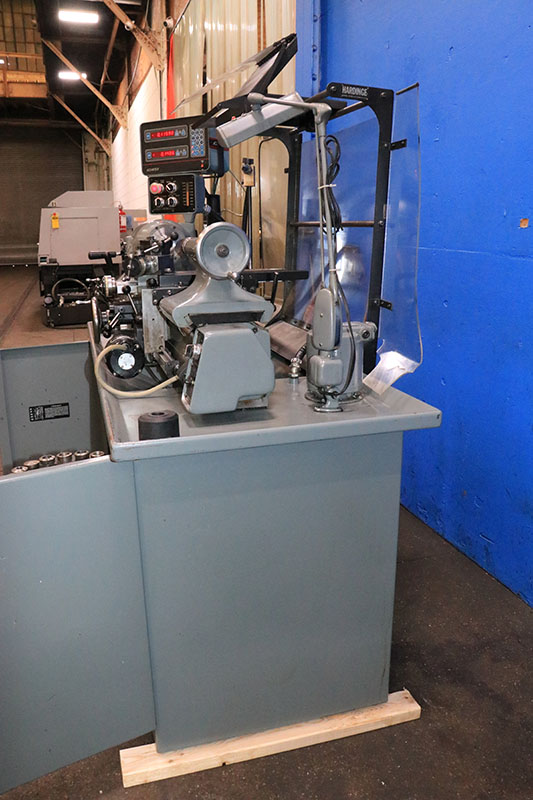

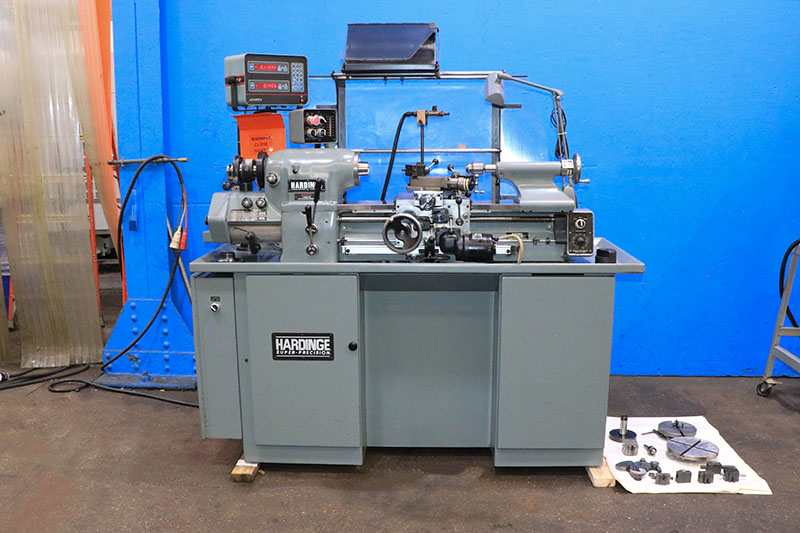

HARDINGE HLV-EM SUPER-PRECISON TOOLROOM LATHE - NEW: 1992

Manufacturer

HARDINGE

Category

Lathes

Type

LATHES, PRECISION, JEWELERS, TOOLROOM, (Etc.)

Stock

69286

Model

HLV-EM

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

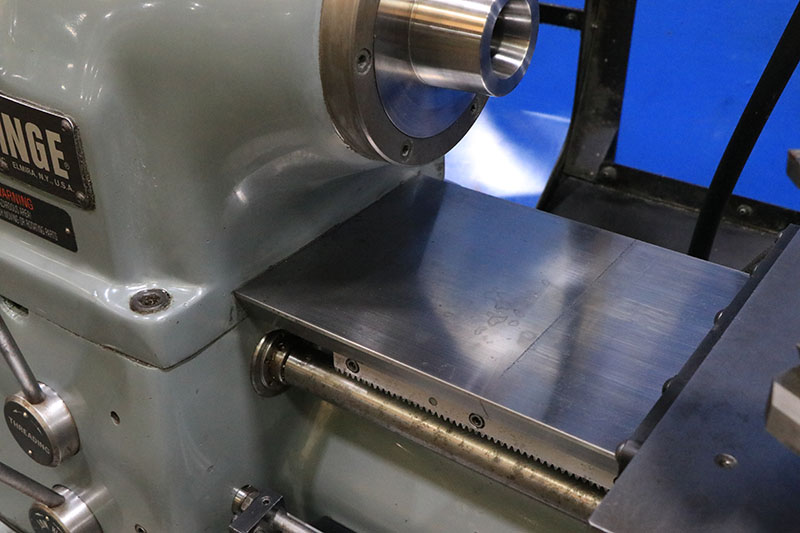

SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION
PRELOADED BALL BEARING

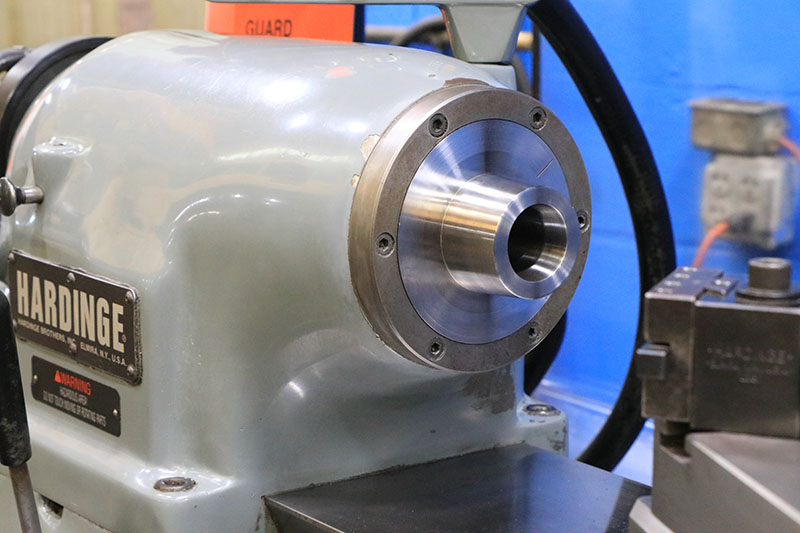

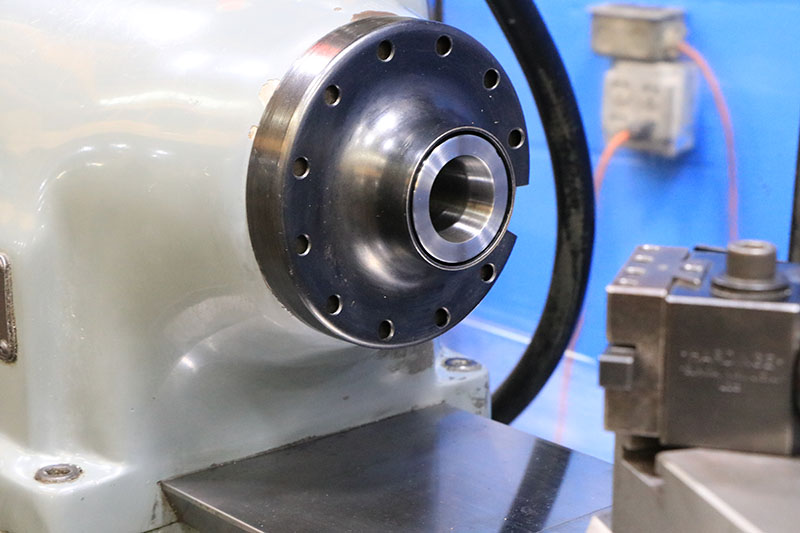

SPINDLE NOSE ..................... HARDINGE TAPERED

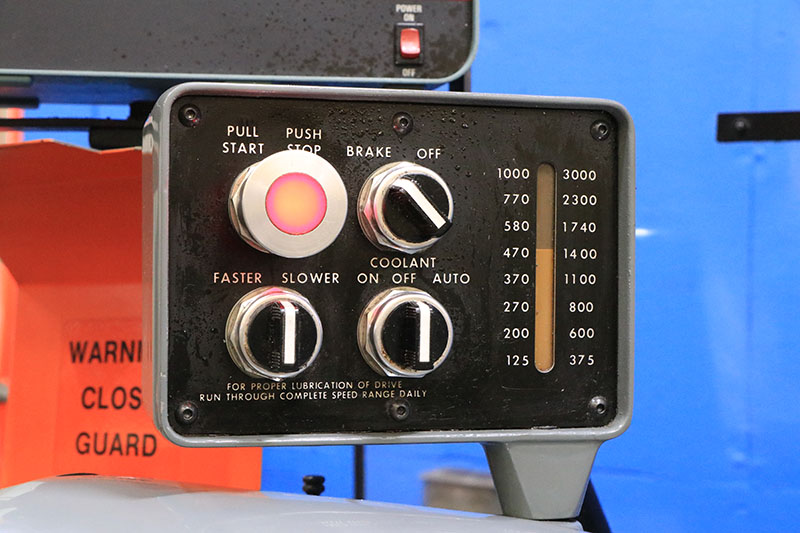

INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"
SPINDLE CAPACITY:
w/ROUND 5C COLLETS ........... 1-1/6
w/HEXAGON 5C COLLETS ......... 7/8"
w/SQUARE 5C COLLETS .......... 3/4"
w/STEP CHUCKS ................ 1-1/16" TO 6"
w/JAW CHUCKS ................. 5"
w/EXPANDING COLLETS .......... 3"
SWING OVER BED ................... 11"
SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"
COMPOUND SLIDE TRAVEL ............ 3"

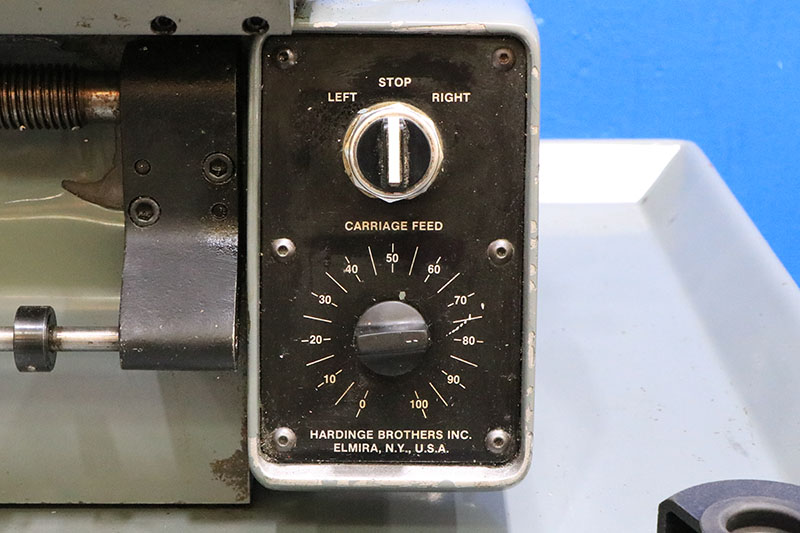

CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM

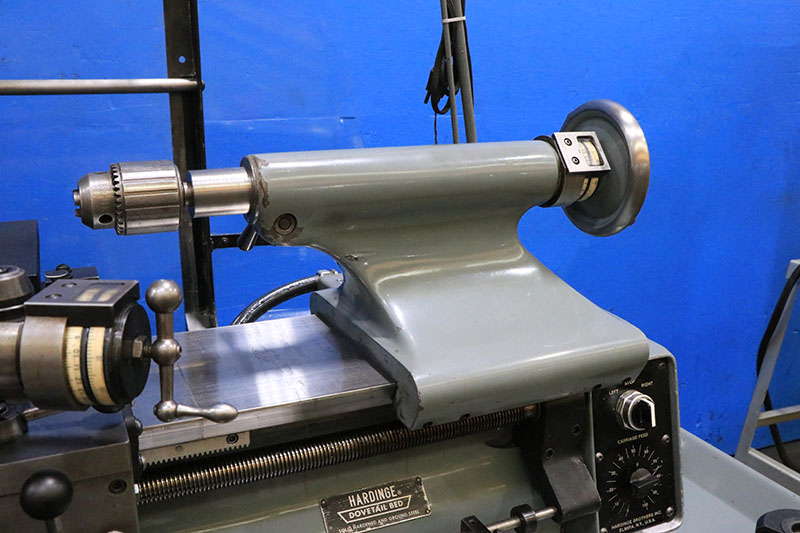

TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE .................. 11" TO 108" TPI
INCH THREADING RANGE ............. 11 - 108 T.P.I.
METRIC THREADING RANGE ........... 0.275 - 2.7 MM
APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"
APPROX. WEIGHT ................... 1,700 LBS.

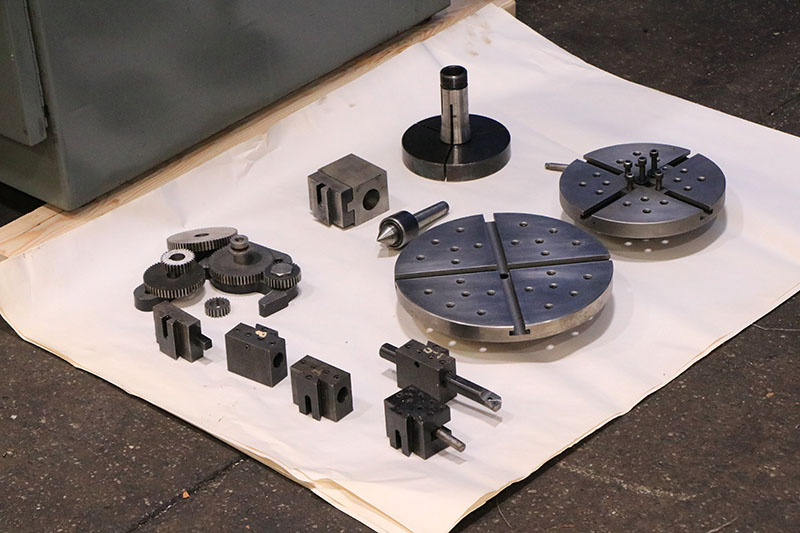

EQUIPPED WITH:
- INCH/METRIC THREADING CAPABILITY

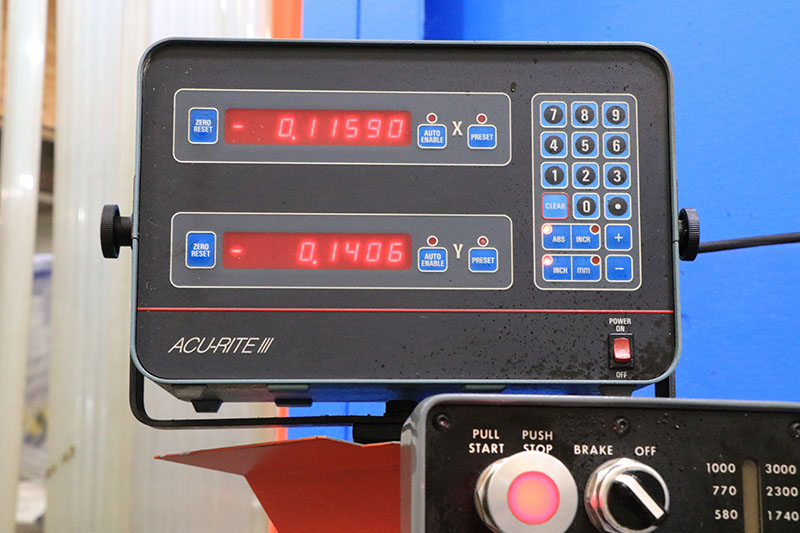

- ACU-RITE TWO AXIS DIGITAL READOUT
- INCH/METRIC DUAL DIALS ON TAILSTOCK & COMPOUND
- HARDINGE LEVER TYPE 5C-COLLET CLOSER

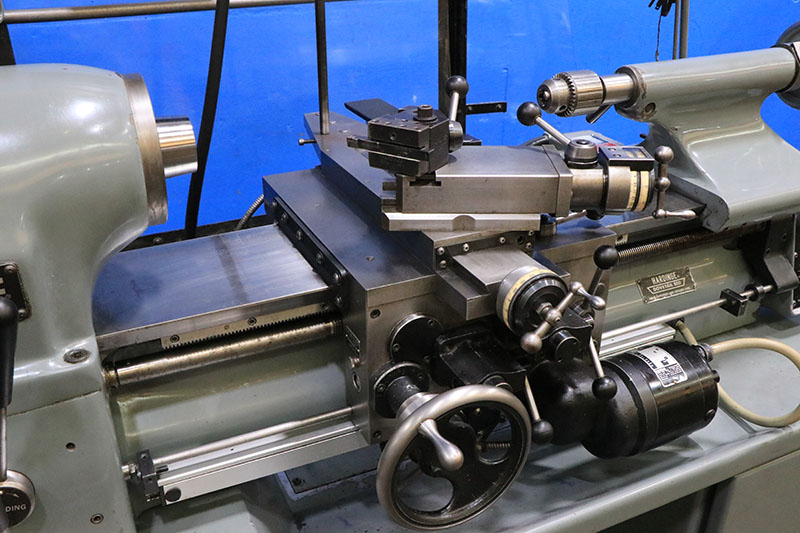

- HARDINGE MODEL: L19 QUICK CHANGE TOOLPOST WITH HOLDERS
- FACEPLATE
- JACOBS DRILL CHUCK FOR TAILSTOCK
- LIVE & DEAD CENTER FOR TAILSTOCK

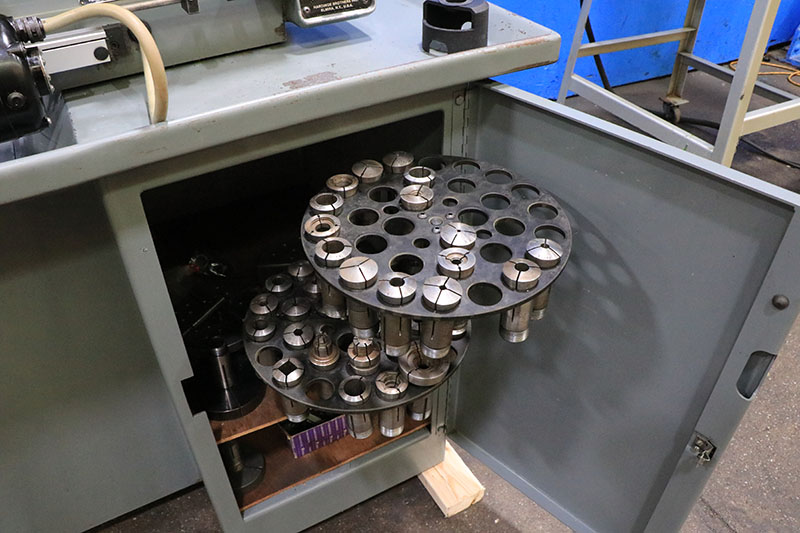

- ASSORTMENT OF 5C COLLETS

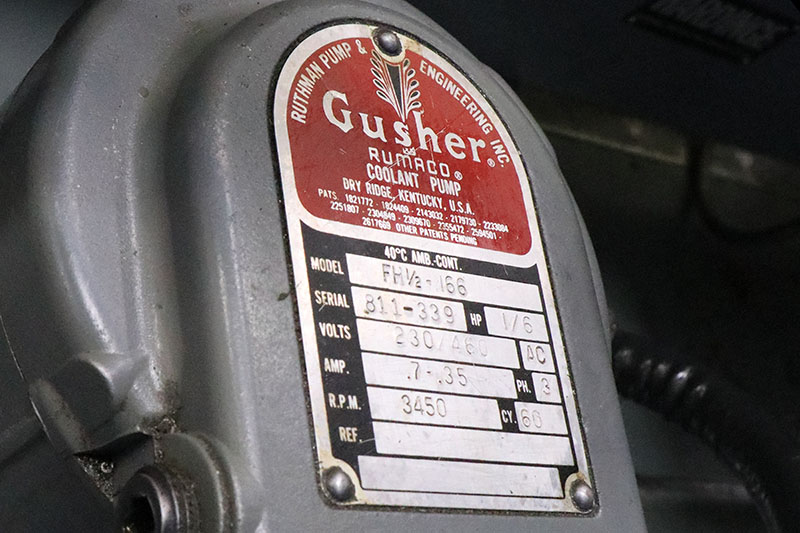

- COOLANT SYSTEM

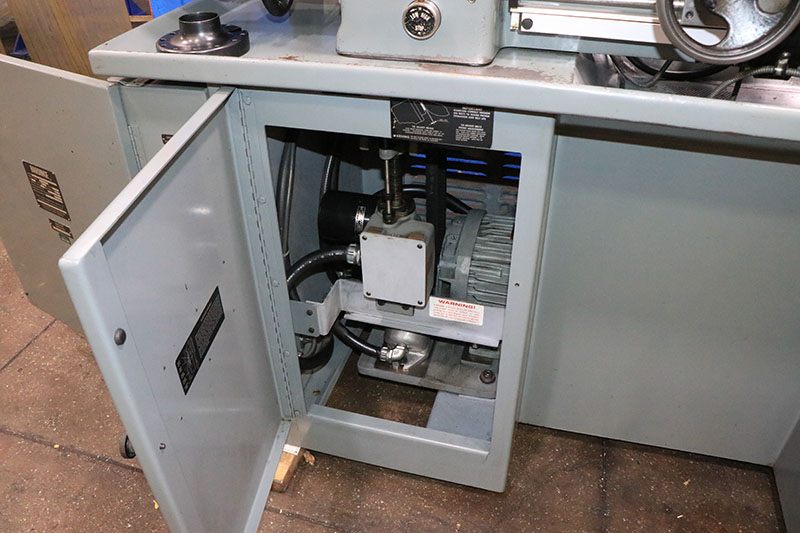

- 1.5 HORSE POWER TWO SPEED MOTOR

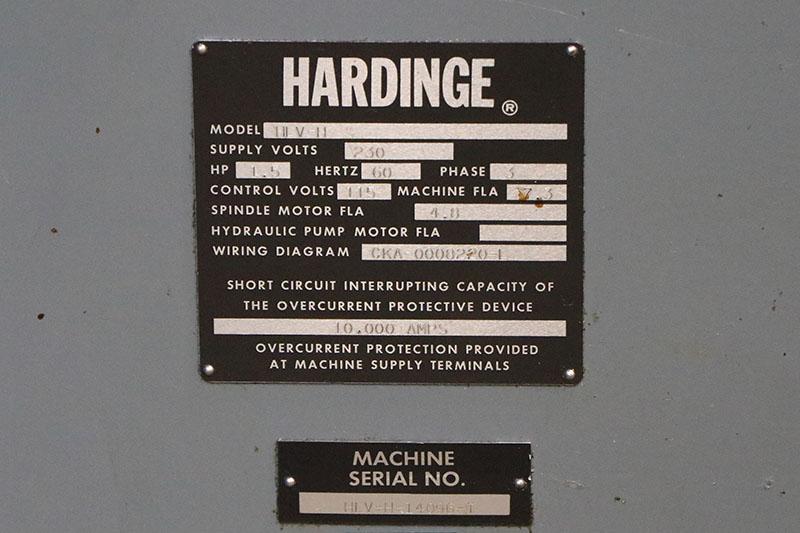

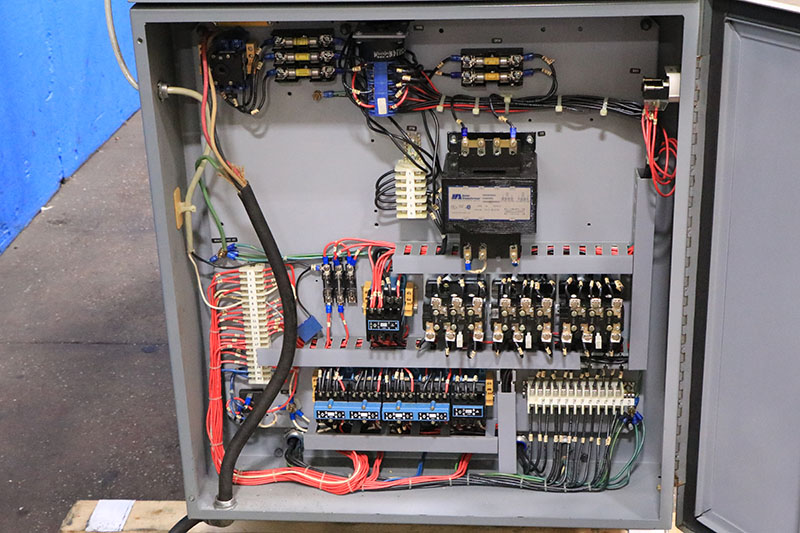

- MACHINE HAS A FACTORY-INSTALLED MULTI-TAP TRANSFORMER ALLOWING THE FOLLOWING VOLTAGE OPTIONS: 230/460 VOLTS

INSPECT UNDER POWER IN MID-WEST WAREHOUSE

MACHINE HAS ITS ORIGINAL PAINT
**** SUPERB-CONDITION ****
