LYNX 220LMA
Kentucky
| Swing | 23.2" | 589.28 mm |
| Machining Length | 20.1" | 510.54 mm |
| Chuck Size | 6.5" | 165.1 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 9.84" | 249.94 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Fanuc I) | CNC (Fanuc I) |
| Dimensions | 101” X 64” X 67” (without conveyor) | 101” X 64” X 67” (without conveyor) |
| Weight | 7,275 lbs | 7,275 lbs |

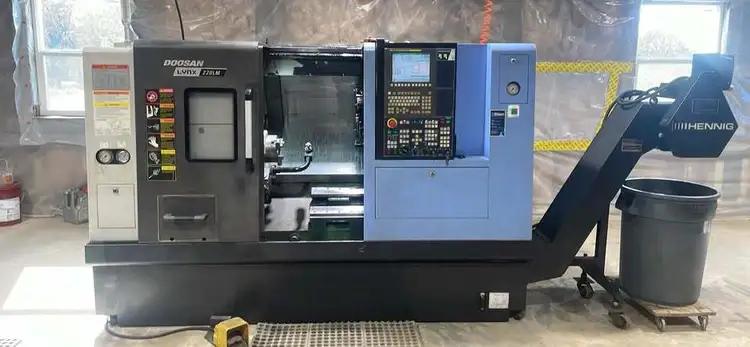

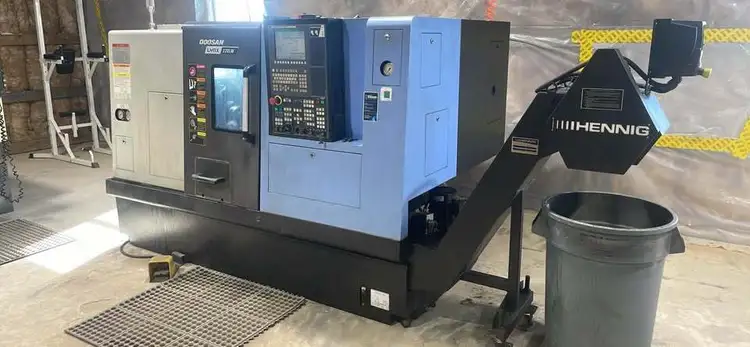

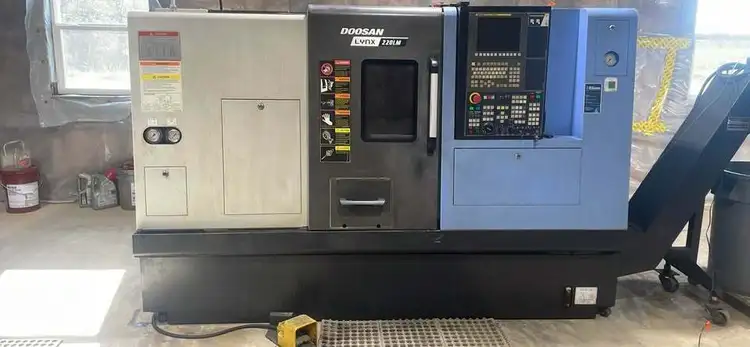

Doosan Lynx 220 LMA/ year 2015
-Live tooling C axis

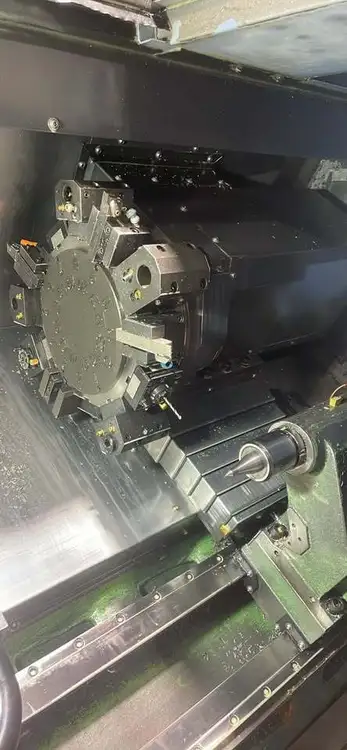

-24 Station Turret

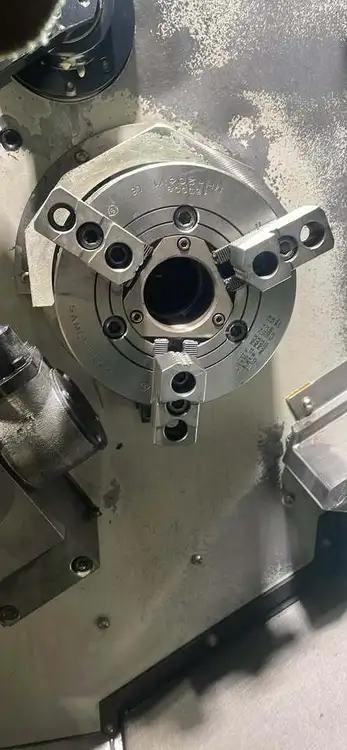

-6.5” Samchully Hydraulic Chuck

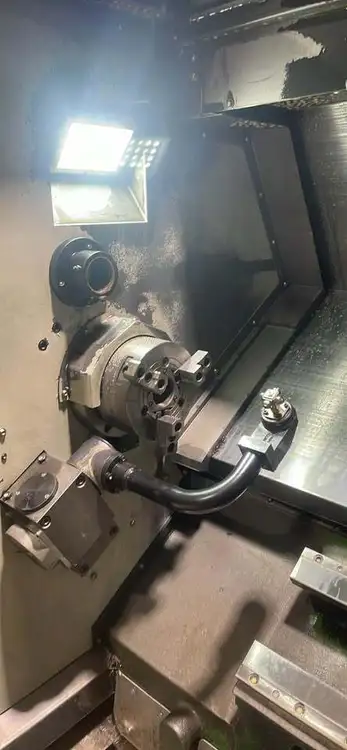

-Tool presetter
-MT 4 tailstock
-Fanuc i series Control
-USB port

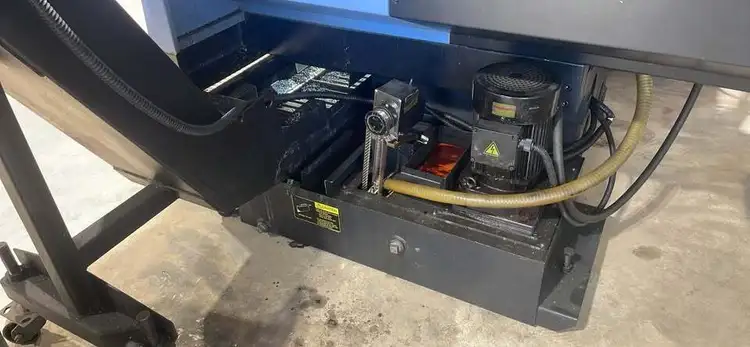

-Hennig Chip conveyor
-High pressure Coolant pump with tank
-KEM Oil skimmer
-Auto lube
-Power: 220v, 15 HP, 3 phase
- Weight: 7,275 lbs
-Live tooling: 3 radial, 1 axial
-Maximum turning diameter 10”
-Distance between centers 24”
-Tooling included at asking price ONLY
Machine is in great shape, well maintained, and ready for inspection under power. Serviced by Ellison Technologies.
Machine dimensions: L X W X H
101” X 64” X 67” (without conveyor)
