2013 Lemas TR 200/8 Plate Roll

Manufacturer

LEMAS

Category

Rolls

Type

ROLLS, PLATE BENDING, INIT & DBL PINCH TYPE, (Incl Sheet Metal)

Stock

None

Model

TR 200/8

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Plate Bending Rolls including Pinch
Manufacturer:
LEMAS
Model:
TR 200/8
Year:
2013
Status:
For Sale
Country:
United States

Description

Good running machine, can be inspected under power. Free loading.

Length of Rolls8'2.4 m
(Init/Dbl Pinch or Pyramid)MULTIPLEMULTIPLE
Max Thickness516"13,106 mm
# Rolls33
Hyd/MechHydHyd

SPECIFICATIONS:
* Capacities in mild steel with 36,000 PSI yield strength: 8' x 5/16"
* Diameter of all rolls: 7.87"
* Rolling speed - approximately 16' per minute
* Total connected motor power @ 480 volts – 5 HP drive motor; 3 HP hydraulic system motor
* Approximate net weight –8,900 pounds
EQUIPPED WITH:

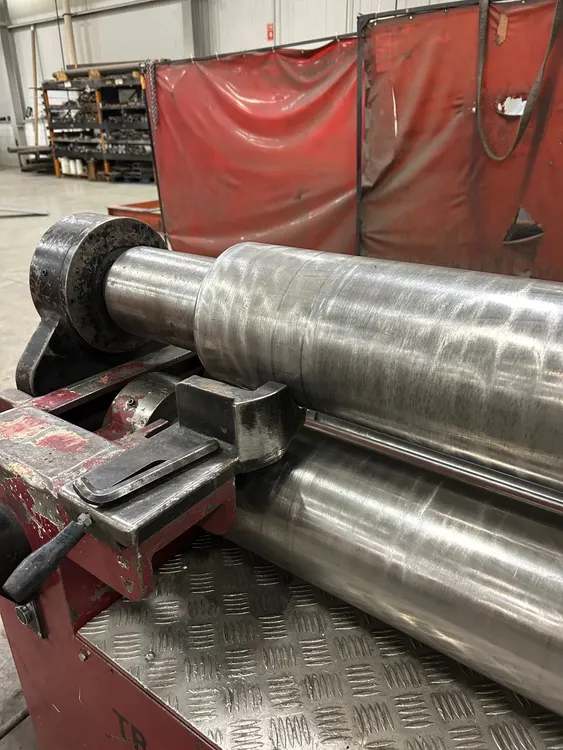

* Positive drive regardless of position of pinch roll
* Grooves for 1/4”, 3/8”, 1/2” round bar
* Spherical roller bearings in roll shafts
* Rear bending roll hydraulically adjusted
* Hydraulic tilting of the rear bending roll for cone rolling
* Cone bending attachment
* Digital readout for position of rear bending roll

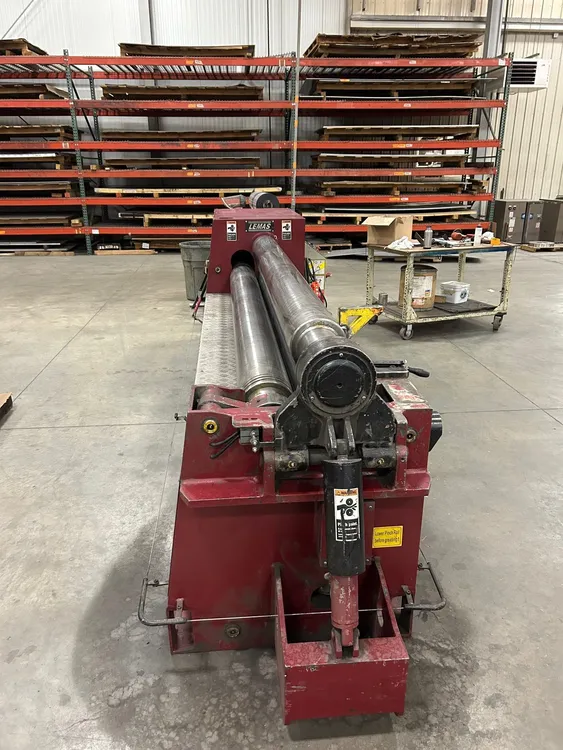

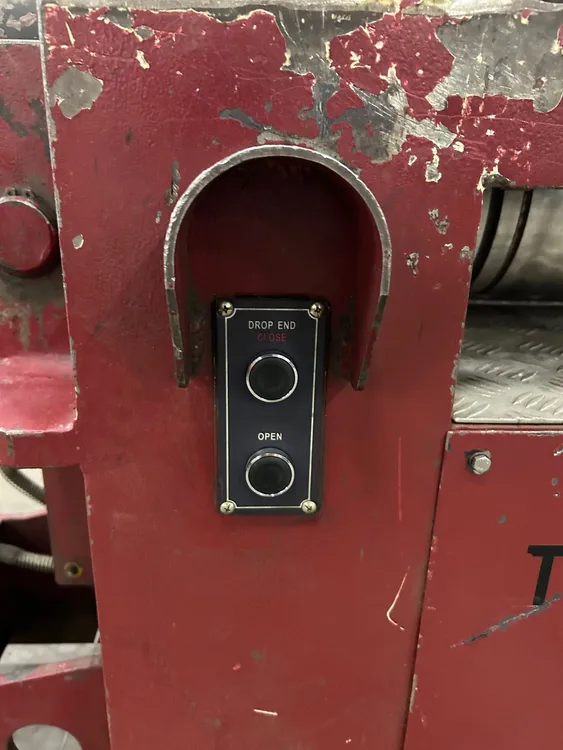

* Hydraulically operated drop end for quick removal of rolled product
* Hydraulic lower pinch roll adjustment with rapid pinch gauge control
* Manual tilt of the lower pinch roll

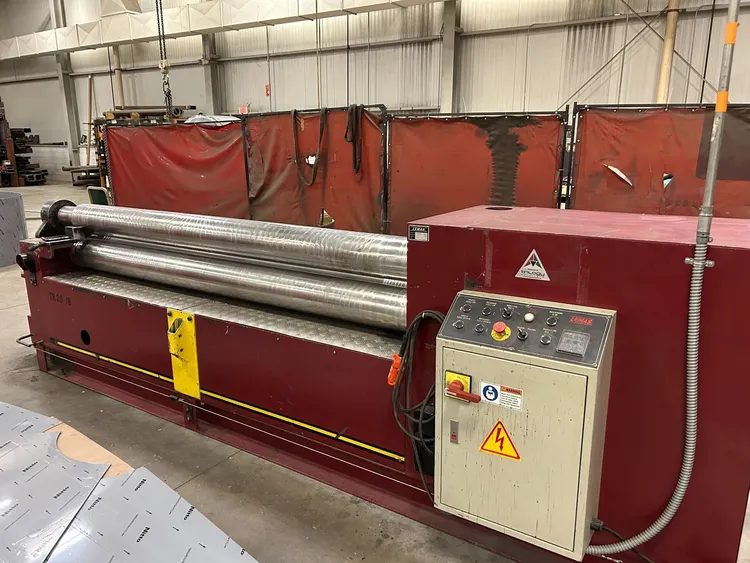

* Forward/Reverse rotation controls - Console mounted and remote hand control on cable
* Upper and lower pinch rolls driven
* All rolls heat treated to 50 Rc
* Electrics for 3/60/220 or 480 volt operation. Low voltage at the controls.
* Emergency stop palm button on the control console
* Emergency stop cable around the machine
* Hydraulic oil, tools, and instruction manual
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATIONS
