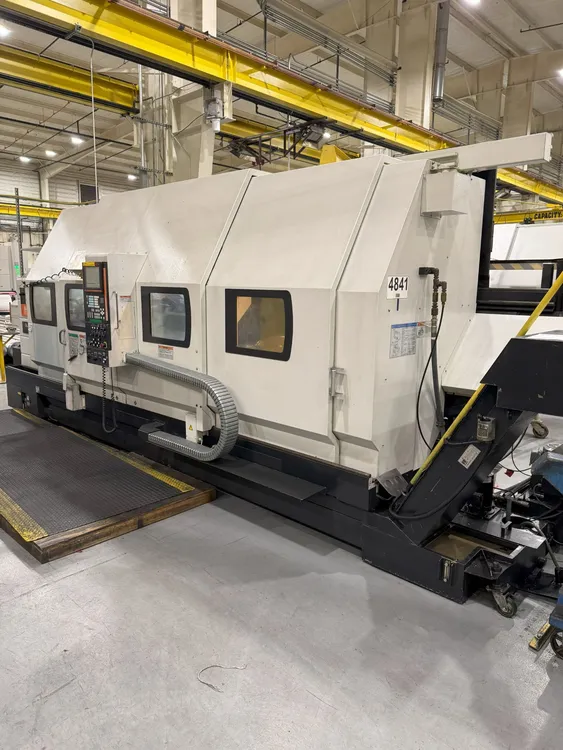

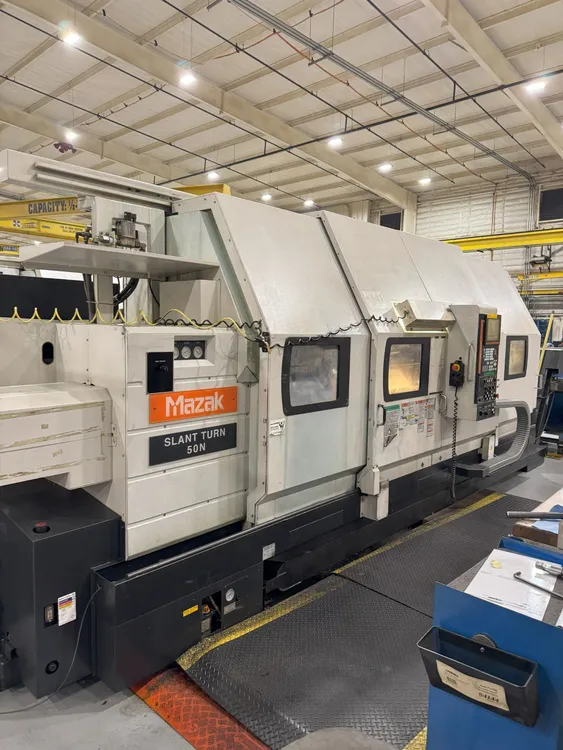

2006 Mazak Slant Turn 50N W/Steady Rest 31"x80"

Manufacturer

MAZAK

Category

Lathes

Stock

None

Model

SLANT TURN 50N

Dealer Location

Kentucky

Spec Sheet

Overview

Type:
CNC Lathes
Manufacturer:
MAZAK
Model:
SLANT TURN 50N
Year:
2006
Status:
For Sale
Serial #:
193322
Country:
United States

Description

Videos available

Swing31.7"805.18 mm
Machining Length120"3,048 mm
# Axis22
Chuck Size15"381 mm
Bar Capacity3.5"88.9 mm
Power50 hp37.3 kW
Max RPM1,600 RPM1,600 RPM
Turning Dia26"660.4 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (640T)CNC (640T)
Weight31000.0031000.00

X-Travel: 22.60"
Z-Travel: 80.00"
Distance Between Centers: 120"
Max Swing Over Bed: 31.70"
Max Cutting / Turning Diameter: 28.00"
Rapid Traverse: 473/552 IPM
Spindle
Bar Capacity: 3.50"

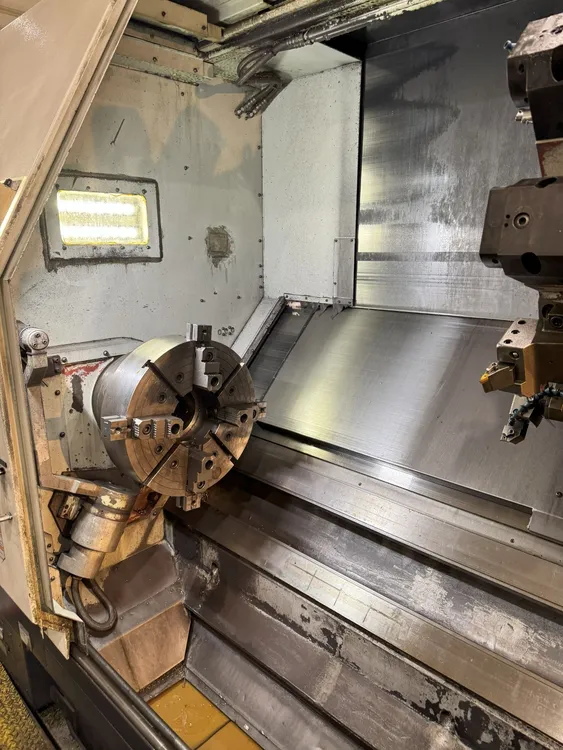

Chuck Size: 21.0"
Chuck Type: Manual
Spindle Bore: 4.00"
Spindle Speed: 750 RPM
Spindle Motor: 50 HP
Control

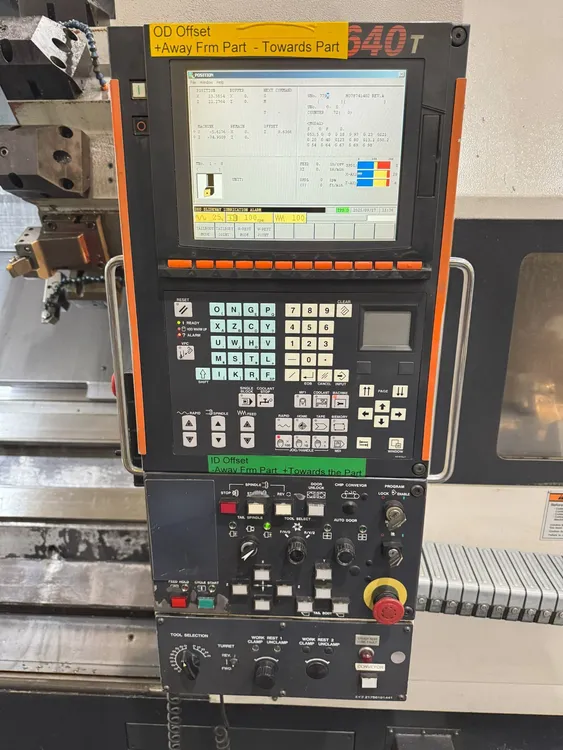

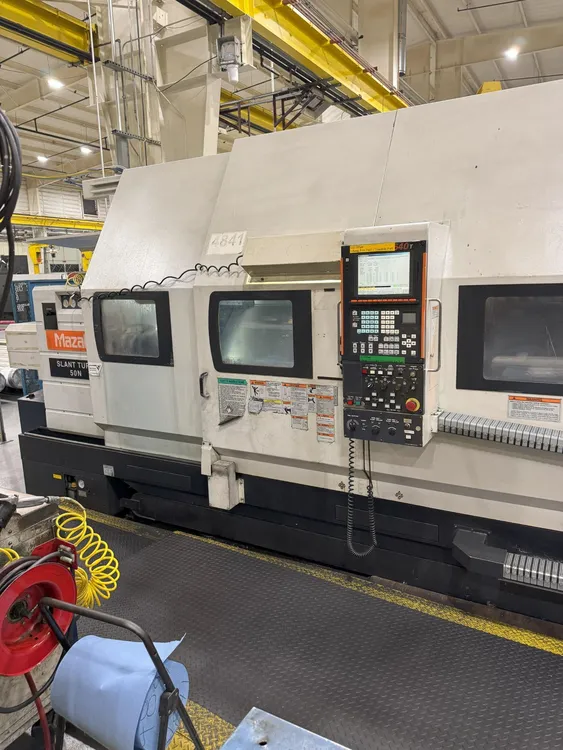

Control Make/Model: Mazatrol 640T CNC Control

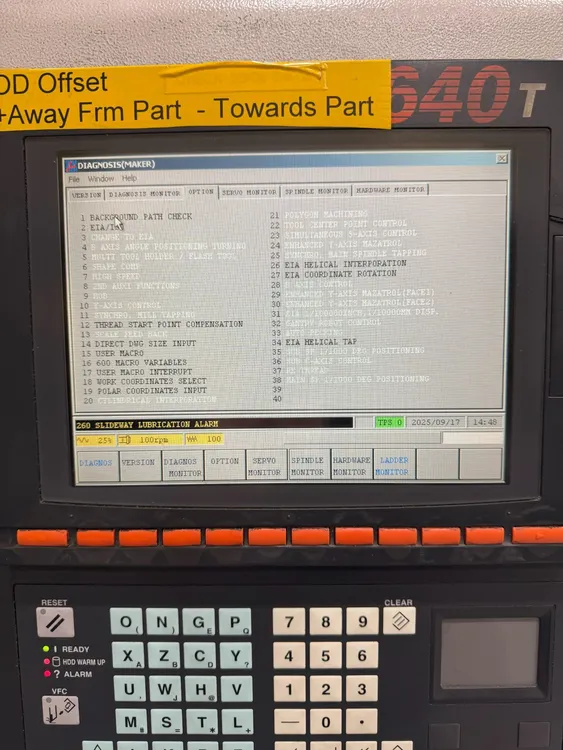

Control Options: Coordinate Rotation and Scaling;Helical Interpolation;Macros;EIA/ISO Code Input Function
Additional Control Options: Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
EIA Helical Tap
Background Path Check

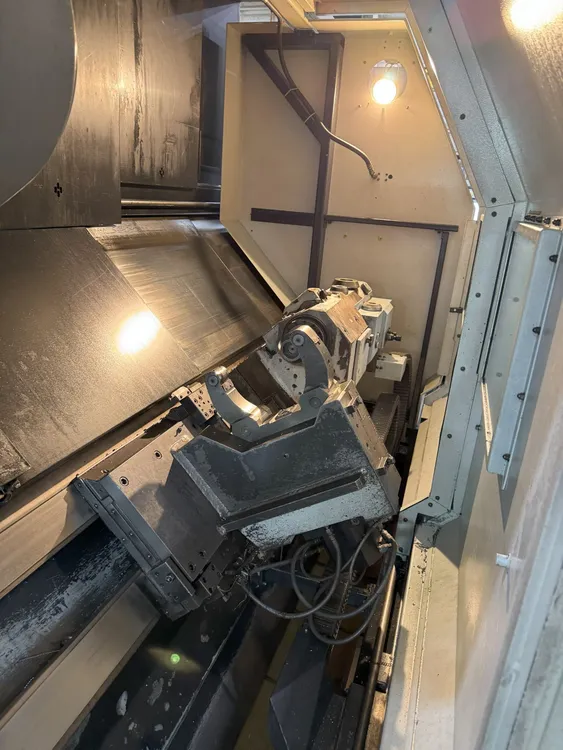

Tailstock / Steadyrest
Tailstock: Equipped With
Steadyrest Type: Hydraulic
Steadyrest Capacity: 10"
Options
Additional Machine Specs: Work Holding Type: Scroll Chuck
Tooling Included: No
Chip Removal: Chip Conveyor
